PoolDbCnvFactory< ConcreteConverter, i > Class Template Reference

Description: Implementation definition for POOL converter factories. More...

#include <PoolDb/PoolDbCnvFactory.h>

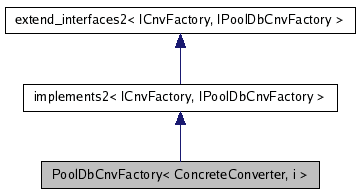

Inheritance diagram for PoolDbCnvFactory< ConcreteConverter, i >:

[legend]

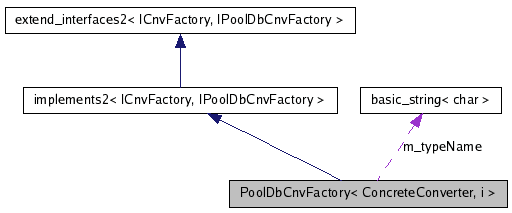

Collaboration diagram for PoolDbCnvFactory< ConcreteConverter, i >:

[legend]

List of all members.

Public Types
typedef ConcreteConverter	converter_t
	Converter type.
Public Member Functions
	PoolDbCnvFactory ()
	Standard constructor.
virtual	~PoolDbCnvFactory ()
	Standard destructor.
virtual const std::string &	typeName () const
	Access to object type.
virtual const CLID &	objType () const
	Access to the class type of the converter.
virtual const long	repSvcType () const
	Access to the service type of the converter.
virtual unsigned long	addRef () const
virtual unsigned long	release () const
virtual const std::string &	ident () const
virtual unsigned long	addRef ()
virtual unsigned long	release ()
virtual IConverter *	instantiate (long typ, const CLID &, ISvcLocator *svcloc) const
	Instantiation method.
virtual IConverter *	instantiate (ISvcLocator *) const
	virtual overload: Instantiate an instance of a converter
virtual IInterface *	instantiate (IInterface *) const
	Create an instance of a generic Gaudi object: Method is disabled!
Private Attributes
std::string	m_typeName
	Object type name.

---

Detailed Description

template<class ConcreteConverter, int i>
class PoolDbCnvFactory< ConcreteConverter, i >

Description: Implementation definition for POOL converter factories.

Author:

M.Frank

Version:

1.0

Definition at line 49 of file PoolDbCnvFactory.h.

---

Member Typedef Documentation

template<class ConcreteConverter, int i>

typedef ConcreteConverter PoolDbCnvFactory< ConcreteConverter, i >::converter_t

Converter type.

Definition at line 55 of file PoolDbCnvFactory.h.

---

Constructor & Destructor Documentation

template<class ConcreteConverter, int i>

PoolDbCnvFactory< ConcreteConverter, i >::PoolDbCnvFactory

(

)

[inline]

Standard constructor.

Definition at line 58 of file PoolDbCnvFactory.h.

                      {
    m_typeName = "";
    FactoryTable::instance()->addFactory( this );
  }

template<class ConcreteConverter, int i>

virtual PoolDbCnvFactory< ConcreteConverter, i >::~PoolDbCnvFactory

(

)

[inline, virtual]

Standard destructor.

Definition at line 63 of file PoolDbCnvFactory.h.

{  }

---

Member Function Documentation

template<class ConcreteConverter, int i>

virtual const std::string& PoolDbCnvFactory< ConcreteConverter, i >::typeName

(

)

const [inline, virtual]

Access to object type.

Definition at line 65 of file PoolDbCnvFactory.h.

                                                {
    // The name MUST be set here, not in the constructor.
    // At construction time it is not yet clear if we run from
    // an executable or a DLL.
    if ( m_typeName == "" )  {
      if ( System::moduleType() == System::SHAREDLIB )  {
        m_typeName  = System::moduleName();
        m_typeName += ":";
      }
      // Get the class name using the RTTI.
      m_typeName += System::typeinfoName( typeid(ConcreteConverter) );
    }
    return m_typeName;
  }

template<class ConcreteConverter, int i>

virtual const CLID& PoolDbCnvFactory< ConcreteConverter, i >::objType

(

)

const [virtual]

Access to the class type of the converter.

template<class ConcreteConverter, int i>

virtual const long PoolDbCnvFactory< ConcreteConverter, i >::repSvcType

(

)

const [inline, virtual]

Access to the service type of the converter.

Definition at line 82 of file PoolDbCnvFactory.h.

  {    return pool::POOL_StorageType.type();  }

template<class ConcreteConverter, int i>

virtual unsigned long PoolDbCnvFactory< ConcreteConverter, i >::addRef

(

)

const [inline, virtual]

Definition at line 84 of file PoolDbCnvFactory.h.

{     return 1;           }

template<class ConcreteConverter, int i>

virtual unsigned long PoolDbCnvFactory< ConcreteConverter, i >::release

(

)

const [inline, virtual]

Definition at line 85 of file PoolDbCnvFactory.h.

{     return 1;           }

template<class ConcreteConverter, int i>

virtual const std::string& PoolDbCnvFactory< ConcreteConverter, i >::ident

(

)

const [inline, virtual]

Definition at line 86 of file PoolDbCnvFactory.h.

{     return typeName();  }

template<class ConcreteConverter, int i>

virtual unsigned long PoolDbCnvFactory< ConcreteConverter, i >::addRef

(

)

[inline, virtual]

Definition at line 88 of file PoolDbCnvFactory.h.

{     return 1;           }

template<class ConcreteConverter, int i>

virtual unsigned long PoolDbCnvFactory< ConcreteConverter, i >::release

(

)

[inline, virtual]

Definition at line 89 of file PoolDbCnvFactory.h.

{     return 1;           }

template<class ConcreteConverter, int i>

virtual IConverter* PoolDbCnvFactory< ConcreteConverter, i >::instantiate	(	long	typ,
		const CLID &	,
		ISvcLocator *	svcloc
	)			const [inline, virtual]

Instantiation method.

Parameters:

	typ	[IN] Storage type of the converter to be created
	clid	[IN] Class identifier of the converter
	svcloc	[IN] Pointer to service locator object

Returns:

Pointer to created converter object.

Definition at line 99 of file PoolDbCnvFactory.h.

  {    return new ConcreteConverter(typ, svcloc);  }

template<class ConcreteConverter, int i>

virtual IConverter* PoolDbCnvFactory< ConcreteConverter, i >::instantiate

(

ISvcLocator *

)

const [inline, virtual]

virtual overload: Instantiate an instance of a converter

Definition at line 105 of file PoolDbCnvFactory.h.

  {    return 0;  }

template<class ConcreteConverter, int i>

virtual IInterface* PoolDbCnvFactory< ConcreteConverter, i >::instantiate

(

IInterface *

)

const [inline, virtual]

Create an instance of a generic Gaudi object: Method is disabled!

Definition at line 109 of file PoolDbCnvFactory.h.

  {    return 0;  }

---

Member Data Documentation

template<class ConcreteConverter, int i>

std::string PoolDbCnvFactory< ConcreteConverter, i >::m_typeName [mutable, private]

Object type name.

Definition at line 52 of file PoolDbCnvFactory.h.

---

The documentation for this class was generated from the following file:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r8/GaudiPoolDb/GaudiPoolDb/PoolDbCnvFactory.h
