PoolDbTupleCallback Class Reference

Description: Specialized callback to handle N-tuple interactions while saving and lodaing POOL data. More...

#include <PoolDbTupleCallback.h>

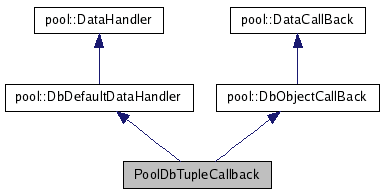

Inheritance diagram for PoolDbTupleCallback:

Inheritance graph
[legend]

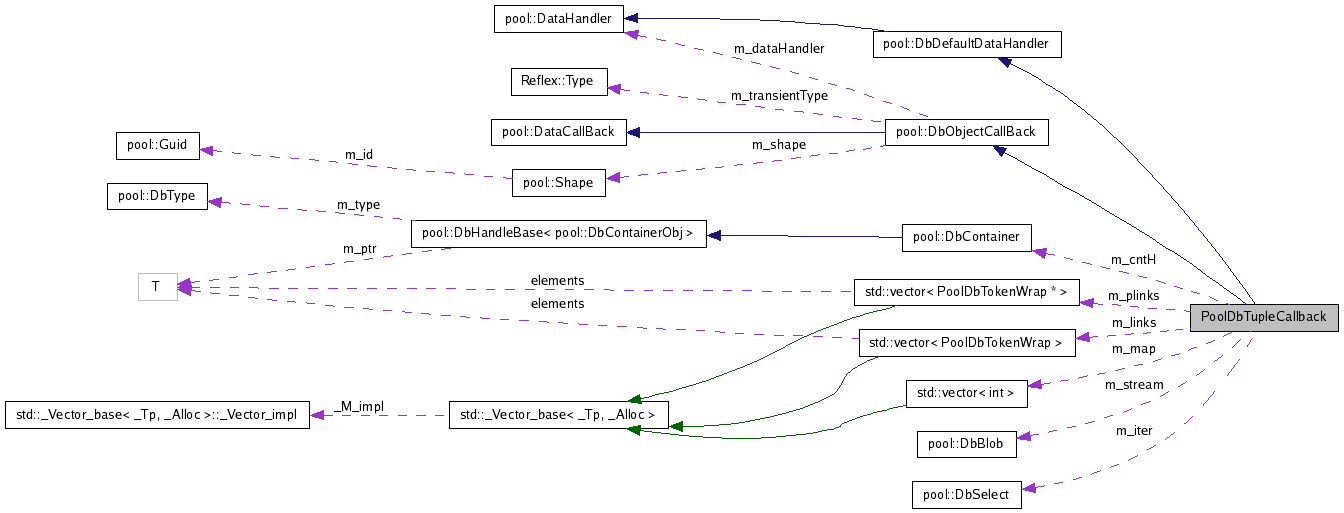

Collaboration diagram for PoolDbTupleCallback:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 PoolDbTupleCallback (DataObject *pObj)
 Initializing constructor for N-tuple callback object.
virtual ~PoolDbTupleCallback ()
 Standard Destructor.
virtual pool::DataCallBack * clone () const
 Virtual copy.
virtual void release ()
 Virtual delete.
std::vector< void * > & addresses ()
 Access to the bound addresses.
const std::vector< int > & mapping ()
 Access re-direction map.
std::vector< PoolDbTokenWrap * > & links ()
 Access to pointers of the links.
pool::DbBlob & stream ()
 Access to streambuffer object, for items which must be blobified.
pool::DbSelect * iterator () const
 Access to select statement.
pool::DbSelect * select (ISelectStatement *sel)
 Select new tokens according to new selection criteria.
void configure (const INTuple *pTuple, const pool::DbTypeInfo *typ, const pool::DbContainer &cntH)
 Configure N-tuple callback and store properties for re-use.
virtual pool::DbStatus start (CallType action_type, void *pObj, void **context)
 Callback when a read sequence should be started.
virtual pool::DbStatus end (CallType action_type, void *context)
 Callback when a read sequence should be started.
virtual pool::DbStatus bind (CallType action_type, const pool::DbColumn *col_ident, int col_number, void *context, void **data_pointer)
 Callback to retrieve the absolute address of a column.

Private Types

typedef const ROOT::Reflex::Type & TypeH
 Reflection information.

Private Attributes

std::vector< void * > m_addr
 Vector with all addresses mapped.
std::vector< PoolDbTokenWrap > m_links
 Vector to store pointers link information for address columns.
std::vector< PoolDbTokenWrap * > m_plinks
 Vector to store pointers link information for address columns.
std::vector< int > m_map
 Redirection map between N-tuple columns and DbTypeInfo columns.
pool::DbSelect * m_iter
 Pointer to hold the select statement.
pool::DbBlob m_stream
 Reference to streambuffer to hold blobified data.
pool::DbContainer m_cntH
 Pointer to pool container handle.
long m_refCount
 Reference counter.

Detailed Description

Description: Specialized callback to handle N-tuple interactions while saving and lodaing POOL data.

Author:
M.Frank
Version:
1.0

Definition at line 41 of file PoolDbTupleCallback.h.

Member Typedef Documentation

typedef const ROOT::Reflex::Type& PoolDbTupleCallback::TypeH [private]

Reflection information.

Reimplemented from pool::DataCallBack.

Definition at line 46 of file PoolDbTupleCallback.h.

Constructor & Destructor Documentation

PoolDbTupleCallback::PoolDbTupleCallback ( DataObject *  pObj  )

Initializing constructor for N-tuple callback object.

Parameters:
svc [IN] Manager interface of conversion service
pObj [IN] Pointer to N-tuple object
reading [IN] Read/Write flag (Needed by base class
Returns:
Reference to object

Definition at line 28 of file PoolDbTupleCallback.cpp.

00029 : pool::DbDefaultDataHandler(),
00030   pool::DbObjectCallBack(0),
00031   m_iter(0), m_cntH(pool::POOL_StorageType)
00032 {
00033   m_refCount = 1;
00034   setObject(pObj);
00035   s_count->increment();
00036 }

PoolDbTupleCallback::~PoolDbTupleCallback (  )  [virtual]

Standard Destructor.

Definition at line 39 of file PoolDbTupleCallback.cpp.

00040 {
00041   pool::deletePtr(m_iter);
00042   s_count->decrement();
00043   const pool::DbTypeInfo* typ = (const pool::DbTypeInfo*)shape();
00044   if ( typ ) typ->deleteRef();
00045 }

Member Function Documentation

pool::DataCallBack * PoolDbTupleCallback::clone (  )  const [virtual]

Virtual copy.

Reimplemented from pool::DbObjectCallBack.

Definition at line 48 of file PoolDbTupleCallback.cpp.

00049 {
00050   PoolDbTupleCallback* cb = const_cast<PoolDbTupleCallback*>(this);
00051   cb->m_refCount++;
00052   return cb;
00053 }

void PoolDbTupleCallback::release (  )  [virtual]

Virtual delete.

Reimplemented from pool::DataCallBack.

Definition at line 56 of file PoolDbTupleCallback.cpp.

00057 {
00058   if ( --m_refCount <= 0 ) {
00059     delete this;
00060   }
00061 }

std::vector<void*>& PoolDbTupleCallback::addresses (  )  [inline]

Access to the bound addresses.

Definition at line 81 of file PoolDbTupleCallback.h.

00081 {  return m_addr;     }

const std::vector<int>& PoolDbTupleCallback::mapping (  )  [inline]

Access re-direction map.

Definition at line 83 of file PoolDbTupleCallback.h.

00083 {  return m_map;      }

std::vector<PoolDbTokenWrap*>& PoolDbTupleCallback::links (  )  [inline]

Access to pointers of the links.

Definition at line 85 of file PoolDbTupleCallback.h.

00085 {  return m_plinks; }

pool::DbBlob& PoolDbTupleCallback::stream (  )  [inline]

Access to streambuffer object, for items which must be blobified.

Definition at line 87 of file PoolDbTupleCallback.h.

00087 {  return m_stream;   }

pool::DbSelect* PoolDbTupleCallback::iterator (  )  const [inline]

Access to select statement.

Definition at line 89 of file PoolDbTupleCallback.h.

00089 {  return m_iter;     }

pool::DbSelect * PoolDbTupleCallback::select ( ISelectStatement *  sel  )

Select new tokens according to new selection criteria.

Definition at line 97 of file PoolDbTupleCallback.cpp.

00097                                                   {
00098   pool::deletePtr(m_iter);
00099   if ( m_cntH.isValid() )  {
00100     std::string criteria = (sel && (sel->type() & ISelectStatement::STRING))
00101       ? sel->criteria() : std::string("");
00102     m_iter = new pool::DbSelect( criteria );
00103     pool::DbDatabase dbH = m_cntH.containedIn();
00104     m_iter->start(dbH, m_cntH.name());
00105   }
00106   return m_iter;
00107 }

void PoolDbTupleCallback::configure ( const INTuple *  pTuple,
const pool::DbTypeInfo *  typ,
const pool::DbContainer &  cntH
)

Configure N-tuple callback and store properties for re-use.

Definition at line 64 of file PoolDbTupleCallback.cpp.

00067 {
00068   pool::DbTypeInfo::Columns::const_iterator ic;
00069   const INTuple::ItemContainer& items = pTuple->items();
00070   const pool::DbTypeInfo::Columns& cols = typ->columns();
00071   size_t colsize = cols.size();
00072   m_map.resize(items.size()+1,-1);
00073   for(size_t item_no = 0; item_no < items.size(); ++item_no ) {
00074     int icc = 0;
00075     m_map[item_no] = -1;
00076     const std::string& itm_nam = items[item_no]->name();
00077     for (ic=cols.begin(); ic != cols.end(); ++ic, ++icc )  {
00078       if ( (*ic)->name() == itm_nam )  {
00079         m_map[item_no] = icc;
00080         break;
00081       }
00082     }
00083   }
00084   m_addr.resize(colsize);
00085   m_addr[colsize-1] = &m_stream;
00086   m_links.resize(m_map.size());
00087   m_plinks.resize(m_map.size());
00088   for(size_t i = 0; i < m_map.size(); ++i )  {
00089     m_plinks[i] = &m_links[i];
00090   }
00091   m_cntH = cntH;
00092   typ->addRef();
00093   setShape(typ);
00094 }

pool::DbStatus PoolDbTupleCallback::start ( CallType  action_type,
void *  pObj,
void **  context
) [virtual]

Callback when a read sequence should be started.

Reimplemented from pool::DbObjectCallBack.

Definition at line 111 of file PoolDbTupleCallback.cpp.

00114 {
00115   return pool::Success;
00116 }

pool::DbStatus PoolDbTupleCallback::end ( CallType  action_type,
void *  context
) [virtual]

Callback when a read sequence should be started.

Reimplemented from pool::DbObjectCallBack.

Definition at line 119 of file PoolDbTupleCallback.cpp.

00121 {
00122   return pool::Success;
00123 }

pool::DbStatus PoolDbTupleCallback::bind ( CallType  action_type,
const pool::DbColumn *  col_ident,
int  col_number,
void *  context,
void **  data_pointer
) [virtual]

Callback to retrieve the absolute address of a column.

Reimplemented from pool::DbObjectCallBack.

Definition at line 127 of file PoolDbTupleCallback.cpp.

00132 {
00133   switch(action_type)  {
00134   case GET:
00135     *data_pointer = m_addr[col_number];
00136     break;
00137   case PUT:
00138     *data_pointer = m_addr[col_number];
00139     break;
00140   }
00141   return pool::Success;
00142 }

Member Data Documentation

std::vector< void* > PoolDbTupleCallback::m_addr [private]

Vector with all addresses mapped.

Definition at line 48 of file PoolDbTupleCallback.h.

std::vector<PoolDbTokenWrap> PoolDbTupleCallback::m_links [private]

Vector to store pointers link information for address columns.

Definition at line 50 of file PoolDbTupleCallback.h.

std::vector<PoolDbTokenWrap*> PoolDbTupleCallback::m_plinks [private]

Vector to store pointers link information for address columns.

Definition at line 52 of file PoolDbTupleCallback.h.

std::vector<int> PoolDbTupleCallback::m_map [private]

Redirection map between N-tuple columns and DbTypeInfo columns.

Definition at line 54 of file PoolDbTupleCallback.h.

pool::DbSelect* PoolDbTupleCallback::m_iter [private]

Pointer to hold the select statement.

Definition at line 56 of file PoolDbTupleCallback.h.

pool::DbBlob PoolDbTupleCallback::m_stream [private]

Reference to streambuffer to hold blobified data.

Definition at line 58 of file PoolDbTupleCallback.h.

pool::DbContainer PoolDbTupleCallback::m_cntH [private]

Pointer to pool container handle.

Definition at line 60 of file PoolDbTupleCallback.h.

long PoolDbTupleCallback::m_refCount [private]

Reference counter.

Definition at line 62 of file PoolDbTupleCallback.h.

The documentation for this class was generated from the following files:
