Property Class Reference

Property base class allowing Property* collections to be "homogeneous". More...

#include <GaudiKernel/Property.h>

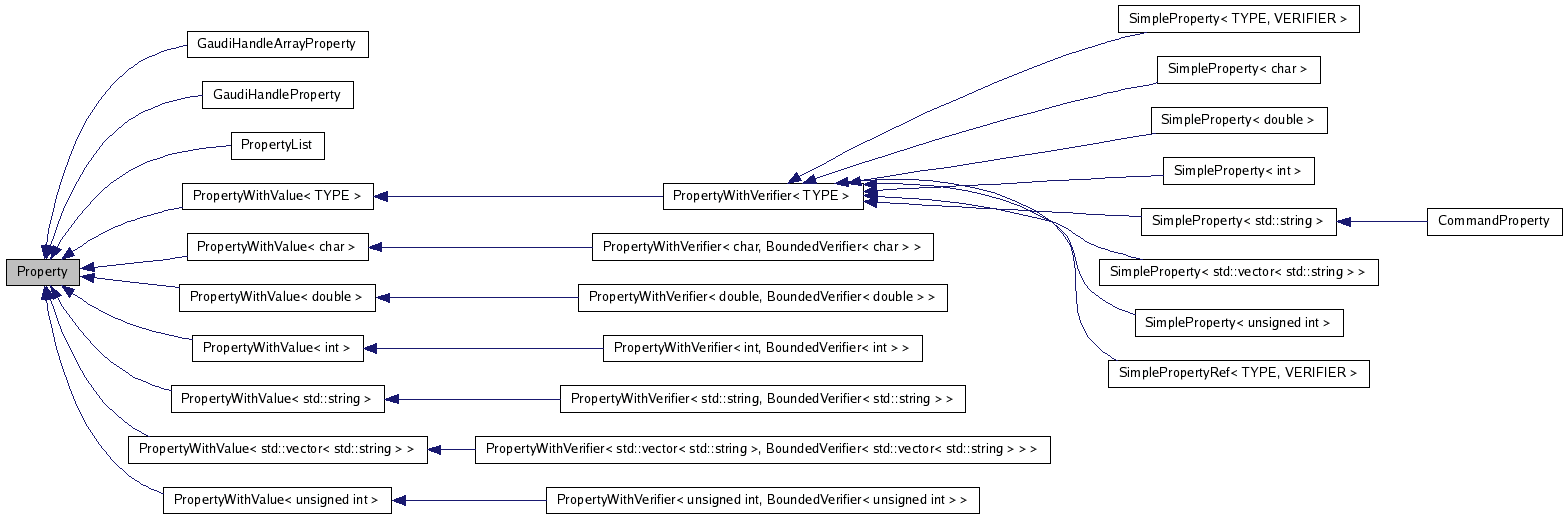

Inheritance diagram for Property:

[legend]

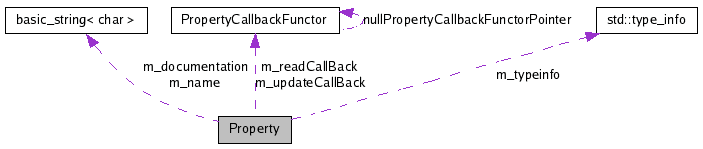

Collaboration diagram for Property:

[legend]

List of all members.

Public Member Functions
const std::string &	name () const
	property name
const std::string &	documentation () const
	property documentation
const std::type_info *	type_info () const
	property type-info
std::string	type () const
	property type
virtual bool	load (Property &dest) const =0
	export the property value to the destination
virtual bool	assign (const Property &source)=0
	import the property value form the source
virtual std::string	toString () const =0
	value -> string
virtual StatusCode	fromString (const std::string &value)=0
	string -> value
const PropertyCallbackFunctor *	readCallBack () const
	Call-back functor at reading: the functor is owned by property!
const PropertyCallbackFunctor *	updateCallBack () const
	Call-back functor for update: the functor is owned by property!
virtual void	declareReadHandler (PropertyCallbackFunctor *pf)
	set new callback for reading
virtual void	declareUpdateHandler (PropertyCallbackFunctor *pf)
	set new callback for update
template<class HT>
void	declareReadHandler (void(HT::*MF)(Property &), HT *instance)
template<class HT>
void	declareUpdateHandler (void(HT::*MF)(Property &), HT *instance)
virtual void	useReadHandler () const
	use the call-back function at reading
virtual bool	useUpdateHandler ()
	use the call-back function at update
virtual	~Property ()
	virtual destructor
virtual Property *	clone () const =0
	clone: "virtual constructor"
void	setName (const std::string &value)
	set the new value for the property name
void	setDocumentation (const std::string &documentation)
	set the documentation string
virtual std::ostream &	fillStream (std::ostream &) const
	the printout of the property value
Protected Member Functions
	Property (const std::type_info &type, const std::string &name="")
	constructor from the property name and the type
	Property (const std::string &name, const std::type_info &type)
	constructor from the property name and the type
	Property (const Property &right)
	copy constructor
Property &	operator= (const Property &right)
	assignment operator
Protected Attributes
PropertyCallbackFunctor *	m_readCallBack
PropertyCallbackFunctor *	m_updateCallBack
Private Member Functions
	Property ()
Private Attributes
std::string	m_name
std::string	m_documentation
const std::type_info *	m_typeinfo

---

Detailed Description

Property base class allowing Property* collections to be "homogeneous".

Author:

Paul Maley

CTDay

Vanya BELYAEV ibelyaev@physics.syr.edu

Definition at line 43 of file Property.h.

---

Constructor & Destructor Documentation

Property::~Property

(

)

[virtual]

virtual destructor

Definition at line 112 of file Property.cpp.

{
  if ( 0 != m_readCallBack   )
  { delete m_readCallBack    ; m_readCallBack    = 0 ; }
  if ( 0 != m_updateCallBack )
  { delete m_updateCallBack  ; m_updateCallBack  = 0 ; }
}

Property::Property	(	const std::type_info &	type,
		const std::string &	name = ""
	)			[protected]

constructor from the property name and the type

Definition at line 48 of file Property.cpp.

  : m_name            (  name )
  , m_documentation   ( name )
  , m_typeinfo        ( &type )
  , m_readCallBack    (  0  )
  , m_updateCallBack  (  0  )
{}

Property::Property	(	const std::string &	name,
		const std::type_info &	type
	)			[protected]

constructor from the property name and the type

Definition at line 63 of file Property.cpp.

  : m_name            (  name )
  , m_documentation   ( name )
  , m_typeinfo        ( &type )
  , m_readCallBack    (  0  )
  , m_updateCallBack  (  0  )
{}

Property::Property

(

const Property &

right

)

[protected]

copy constructor

Definition at line 75 of file Property.cpp.

  : m_name     ( right.m_name     )
  , m_documentation ( right.m_documentation )
  , m_typeinfo ( right.m_typeinfo )
  , m_readCallBack   ( 0 )
  , m_updateCallBack ( 0 )
{
  if ( 0 != right.m_readCallBack   )
  { m_readCallBack   = right.m_readCallBack   -> clone () ; }
  if ( 0 != right.m_updateCallBack )
  { m_updateCallBack = right.m_updateCallBack -> clone () ; }
}

Property::Property

(

)

[private]

---

Member Function Documentation

const std::string& Property::name

(

)

const [inline]

property name

Definition at line 47 of file Property.h.

{ return m_name             ; } ;

const std::string& Property::documentation

(

)

const [inline]

property documentation

Definition at line 49 of file Property.h.

{ return m_documentation; };

const std::type_info* Property::type_info

(

)

const [inline]

property type-info

Definition at line 51 of file Property.h.

{ return m_typeinfo         ; } ;

std::string Property::type

(

)

const [inline]

property type

Definition at line 53 of file Property.h.

{ return m_typeinfo->name() ; } ;

virtual bool Property::load

(

Property &

dest

)

const [pure virtual]

export the property value to the destination

Implemented in PropertyWithValue< TYPE >, GaudiHandleProperty, GaudiHandleArrayProperty, PropertyList, PropertyWithValue< double >, PropertyWithValue< std::string >, PropertyWithValue< std::vector< std::string > >, PropertyWithValue< int >, PropertyWithValue< unsigned int >, and PropertyWithValue< char >.

virtual bool Property::assign

(

const Property &

source

)

[pure virtual]

import the property value form the source

Implemented in PropertyWithValue< TYPE >, GaudiHandleProperty, GaudiHandleArrayProperty, PropertyList, PropertyWithValue< double >, PropertyWithValue< std::string >, PropertyWithValue< std::vector< std::string > >, PropertyWithValue< int >, PropertyWithValue< unsigned int >, and PropertyWithValue< char >.

virtual std::string Property::toString

(

)

const [pure virtual]

value -> string

Implemented in PropertyWithValue< TYPE >, GaudiHandleProperty, GaudiHandleArrayProperty, PropertyWithValue< double >, PropertyWithValue< std::string >, PropertyWithValue< std::vector< std::string > >, PropertyWithValue< int >, PropertyWithValue< unsigned int >, and PropertyWithValue< char >.

virtual StatusCode Property::fromString

(

const std::string &

value

)

[pure virtual]

string -> value

Implemented in PropertyWithValue< TYPE >, GaudiHandleProperty, GaudiHandleArrayProperty, PropertyWithValue< double >, PropertyWithValue< std::string >, PropertyWithValue< std::vector< std::string > >, PropertyWithValue< int >, PropertyWithValue< unsigned int >, and PropertyWithValue< char >.

const PropertyCallbackFunctor * Property::readCallBack

(

)

const

Call-back functor at reading: the functor is owned by property!

Definition at line 122 of file Property.cpp.

{ return m_readCallBack ; }

const PropertyCallbackFunctor * Property::updateCallBack

(

)

const

Call-back functor for update: the functor is owned by property!

Definition at line 127 of file Property.cpp.

{ return m_updateCallBack ; }

void Property::declareReadHandler

(

PropertyCallbackFunctor *

pf

)

[virtual]

set new callback for reading

Definition at line 132 of file Property.cpp.

{
  if ( 0 != m_readCallBack   )
  { delete m_readCallBack    ; m_readCallBack    = 0 ; }
  m_readCallBack = pf ;
}

void Property::declareUpdateHandler

(

PropertyCallbackFunctor *

pf

)

[virtual]

set new callback for update

Definition at line 141 of file Property.cpp.

{
  if ( 0 != m_updateCallBack   )
  { delete m_updateCallBack    ; m_updateCallBack    = 0 ; }
  m_updateCallBack = pf ;
}

template<class HT>

void Property::declareReadHandler	(	void(HT::*)(Property &)	MF,
		HT *	instance
	)			[inline]

Definition at line 128 of file Property.h.

{ declareReadHandler ( new PropertyCallbackMemberFunctor< HT >( MF , obj ) ) ; }

template<class HT>

void Property::declareUpdateHandler	(	void(HT::*)(Property &)	MF,
		HT *	instance
	)			[inline]

Definition at line 133 of file Property.h.

{ declareUpdateHandler ( new PropertyCallbackMemberFunctor< HT >( MF , obj ) ) ; }

void Property::useReadHandler

(

)

const [virtual]

use the call-back function at reading

Definition at line 150 of file Property.cpp.

{
  if ( 0 == m_readCallBack ) { return ; }               // RETURN
  const Property& p = *this ;
  PropertyCallbackFunctor* theCallBack = m_readCallBack;
  // avoid infinite loop
  m_readCallBack = 0;
  (*theCallBack)( const_cast<Property&>(p) ) ;
  m_readCallBack = theCallBack;
}

bool Property::useUpdateHandler

(

)

[virtual]

use the call-back function at update

Definition at line 163 of file Property.cpp.

{
  bool sc(true);
  if ( 0 == m_updateCallBack ) { return sc; }  // RETURN
  PropertyCallbackFunctor* theCallBack = m_updateCallBack;
  // avoid infinite loop
  m_updateCallBack = 0;
  try {
    (*theCallBack)( *this ) ;
  } catch(...) {
    sc = false;
  }
  m_updateCallBack = theCallBack;
  return sc;
}

virtual Property* Property::clone

(

)

const [pure virtual]

clone: "virtual constructor"

Implemented in SimpleProperty< TYPE, VERIFIER >, SimplePropertyRef< TYPE, VERIFIER >, GaudiHandleProperty, GaudiHandleArrayProperty, SimpleProperty< double >, SimpleProperty< std::string >, SimpleProperty< std::vector< std::string > >, SimpleProperty< int >, SimpleProperty< unsigned int >, and SimpleProperty< char >.

void Property::setName

(

const std::string &

value

)

[inline]

set the new value for the property name

Definition at line 88 of file Property.h.

{ m_name = value ; }

void Property::setDocumentation

(

const std::string &

documentation

)

[inline]

set the documentation string

Definition at line 90 of file Property.h.

                                                          {
    m_documentation = documentation; };

std::ostream & Property::fillStream

(

std::ostream &

stream

)

const [virtual]

the printout of the property value

Definition at line 182 of file Property.cpp.

{ return stream << " '" <<name() << "':" << toString() ; }

Property & Property::operator=

(

const Property &

right

)

[protected]

assignment operator

Definition at line 90 of file Property.cpp.

{
  if ( &right == this ) { return *this ; }
  //
  m_name     = right.m_name ;
  m_documentation = right.m_documentation ;
  m_typeinfo = right.m_typeinfo ;
  //
  if ( 0 !=       m_readCallBack   )
  { delete m_readCallBack   ; m_readCallBack   = 0 ; }
  if ( 0 !=       m_updateCallBack )
  { delete m_updateCallBack ; m_updateCallBack = 0 ; }
  if ( 0 != right.m_readCallBack   )
  { m_readCallBack   = right.m_readCallBack   -> clone () ; }
  if ( 0 != right.m_updateCallBack )
  { m_updateCallBack = right.m_updateCallBack -> clone () ; }
  //
  return *this ;
}

---

Member Data Documentation

std::string Property::m_name [private]

Definition at line 112 of file Property.h.

std::string Property::m_documentation [private]

Definition at line 114 of file Property.h.

const std::type_info* Property::m_typeinfo [private]

Definition at line 116 of file Property.h.

PropertyCallbackFunctor* Property::m_readCallBack [mutable, protected]

Definition at line 119 of file Property.h.

PropertyCallbackFunctor* Property::m_updateCallBack [protected]

Definition at line 121 of file Property.h.

---

The documentation for this class was generated from the following files:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r8/GaudiKernel/GaudiKernel/Property.h
• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r8/GaudiKernel/src/Lib/Property.cpp
