Gaudi Framework, version v21r8

Generated: 17 Mar 2010

extends1< BASE, I1 > Struct Template Reference

Base class used to extend a class implementing other interfaces. More...

#include <extends.h>

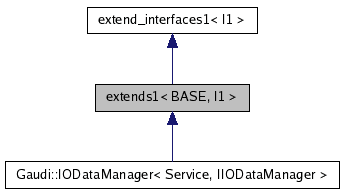

Inheritance diagram for extends1< BASE, I1 >:

Inheritance graph

Collaboration diagram for extends1< BASE, I1 >:

Collaboration graph

List of all members.

Public Types

typedef extends1 base_class

Typedef to this class.

typedef extend_interfaces1< I1 > extend_interfaces_base

Typedef to the base of this class.

typedef
extend_interfaces_base::ext_iids interfaces

MPL set of all the implemented interfaces.

Public Member Functions

template<typename A1, typename A2, typename A3>

extends1 (A1 a1, A2 a2, A3 a3)

Templated constructor with 3 arguments.

template<typename A1, typename A2>

extends1 (A1 a1, A2 a2)

Templated constructor with 2 arguments.

template<typename A1>

extends1 (A1 a1)

Templated constructor with 1 argument.

extends1 ()

Default constructor.

virtual void * i_cast (const std::type_info &tid) const

Implementation of IInterface::i_cast.

virtual StatusCode queryInterface (const InterfaceID &ti, void **pp)

Implementation of IInterface::queryInterface.

virtual std::vector< std::string > getInterfaceNames () const

Implementation of IInterface::getInterfaceNames.

virtual ~extends1 ()

Virtual destructor.

Detailed Description

template<typename BASE, typename I1>
struct extends1< BASE, I1 >

Base class used to extend a class implementing other interfaces.

Version for one interface.

Author:: Marco Clemencic

Definition at line 10 of file extends.h.

Member Typedef Documentation

template<typename BASE, typename I1>

typedef extends1 extends1< BASE, I1 >::base_class

Typedef to this class.

Definition at line 12 of file extends.h.

template<typename BASE, typename I1>

typedef extend_interfaces1<I1> extends1< BASE, I1 >::extend_interfaces_base

Typedef to the base of this class.

Definition at line 14 of file extends.h.

template<typename BASE, typename I1>

typedef extend_interfaces_base::ext_iids extends1< BASE, I1 >::interfaces

MPL set of all the implemented interfaces.

Definition at line 17 of file extends.h.

Constructor & Destructor Documentation

template<typename BASE, typename I1>

template<typename A1, typename A2, typename A3>

extends1< BASE, I1 >::extends1	(	A1	a1,
		A2	a2,
		A3	a3
	)			`[inline]`

Templated constructor with 3 arguments.

Definition at line 21 of file extends.h.

00021 : BASE(a1,a2,a3){}

template<typename BASE, typename I1>

template<typename A1, typename A2>

extends1< BASE, I1 >::extends1	(	A1	a1,
		A2	a2
	)			`[inline]`

Templated constructor with 2 arguments.

Definition at line 23 of file extends.h.

00023 : BASE(a1, a2){}

template<typename BASE, typename I1>

template<typename A1>

extends1< BASE, I1 >::extends1 ( A1 a1 ) [inline]

Templated constructor with 1 argument.

Definition at line 25 of file extends.h.

00025 : BASE(a1){}

template<typename BASE, typename I1>

extends1< BASE, I1 >::extends1 ( ) [inline]

Default constructor.

Definition at line 27 of file extends.h.

00027 : BASE(){}

template<typename BASE, typename I1>

virtual extends1< BASE, I1 >::~extends1 ( ) [inline, virtual]

Virtual destructor.

Definition at line 68 of file extends.h.

00068 {}

Member Function Documentation

template<typename BASE, typename I1>

virtual void* extends1< BASE, I1 >::i_cast ( const std::type_info & tid ) const [inline, virtual]

Implementation of IInterface::i_cast.

Definition at line 30 of file extends.h.

00030                                                       {
00031     void *ptr = 0;
00032 #ifndef __GCCXML__
00033     check_cast<base_class> caster(this,tid,ptr);
00034     mpl::for_each<interfaces>(caster);
00035 #endif
00036     if (!ptr) {
00037       ptr = BASE::i_cast(tid);
00038     }
00039     return ptr;
00040   }

template<typename BASE, typename I1>

virtual StatusCode extends1< BASE, I1 >::queryInterface	(	const InterfaceID &	ti,
		void **	pp
	)			`[inline, virtual]`

Implementation of IInterface::queryInterface.

Definition at line 43 of file extends.h.

00043                                                                      {
00044     if (!pp) return StatusCode::FAILURE;
00045     *pp = 0;
00046 #ifndef __GCCXML__
00047     interfaceMatch<base_class> matcher(this,ti,*pp);
00048     mpl::for_each<interfaces>(matcher);
00049     if (!*pp) { // cast failed, try the base class
00050       return BASE::queryInterface(ti,pp);
00051     }
00052     this->addRef();
00053 #endif
00054     return StatusCode::SUCCESS;
00055   }

template<typename BASE, typename I1>

virtual std::vector<std::string> extends1< BASE, I1 >::getInterfaceNames ( ) const [inline, virtual]

Implementation of IInterface::getInterfaceNames.

Definition at line 58 of file extends.h.

00058                                                          {
00059     std::vector<std::string> v = BASE::getInterfaceNames(); // start from the base
00060 #ifndef __GCCXML__
00061     AppendInterfaceName appender(v);
00062     mpl::for_each<interfaces>(appender);
00063 #endif
00064     return v;
00065   }

The documentation for this struct was generated from the following file:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r8/GaudiKernel/GaudiKernel/extends.h
