HistoTableFormat.h File Reference

#include "GaudiKernel/Kernel.h"

Include dependency graph for HistoTableFormat.h:

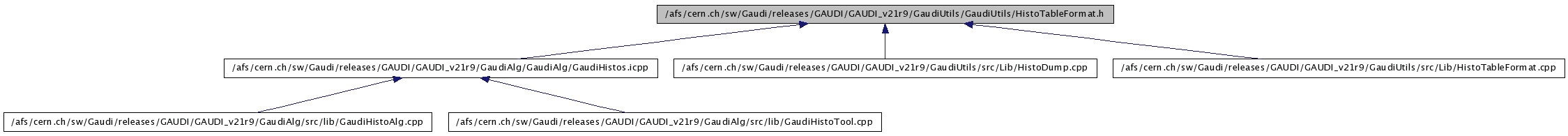

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	AIDA
namespace	Gaudi
namespace	Gaudi::Utils
namespace	Gaudi::Utils::Histos
namespace	Gaudi::Utils::Histos::Formats
Classes
class	Gaudi::Utils::Histos::Table
	Simple class for the customizeble printout of the histogram tables. More...
Defines
#define	GAUDIUTILS_HISTOTABLEFORMAT_H   1
Enumerations
enum	Gaudi::Utils::Histos::Formats::Format {   Gaudi::Utils::Histos::Formats::Default = 0, Gaudi::Utils::Histos::Formats::Old, Gaudi::Utils::Histos::Formats::Full, Gaudi::Utils::Histos::Formats::FullStat,   Gaudi::Utils::Histos::Formats::Stat, Gaudi::Utils::Histos::Formats::StatOnly, Gaudi::Utils::Histos::Formats::Stat1, Gaudi::Utils::Histos::Formats::ShapeOnly,   Gaudi::Utils::Histos::Formats::Shape, Gaudi::Utils::Histos::Formats::LineTitle, Gaudi::Utils::Histos::Formats::LineOnly, Gaudi::Utils::Histos::Formats::PathTitle }
	the ID for predefined formats Default : the default format Old : the old-style format (title,integra,entries,mean,rms) Full : FULL information (all 15 predefiend values) FullStat : FULL statistical information (all 13 statistical values) Stat : title, entries,mean, rms, skewness&kurtosis StatOnly : entries,mean, rms, skewness&kurtosis Stat1 : entries,mean+-, rms+-, skewness+-&kurtosis+- ShapeOnly : mean,rms,skewness,kurtosis,underflow&overflow fractions Shape : as ShapeOnly but with errors LineTitle : line-format title, mean,rms,skewness&kurtosis LineOnly : line-format mean,rms,skewness&kurtosis PathTitle : path & title More...
Functions
GAUDI_API std::string	Gaudi::Utils::Histos::Formats::format (const int ID=Default)
	get the format by enum
GAUDI_API std::string	Gaudi::Utils::Histos::Formats::header (const int ID=Default)
	get the recommended header by enum
GAUDI_API std::string	Gaudi::Utils::Histos::path (const AIDA::IBaseHistogram *aida)
	get the path in THS for AIDA histogram
GAUDI_API std::string	Gaudi::Utils::Histos::format (const AIDA::IHistogram1D *histo, const std::string &fmt)
	Make the string representation of the historgam according to the specified format.
GAUDI_API std::string	Gaudi::Utils::Histos::format (const AIDA::IHistogram1D *histo, const std::string &ID, const std::string &fmt1, const std::string &fmt2)
	format a full row in table, including ID, label, path or any other "extra" identifier in string form
template<class HISTO, class STREAM, class TERMINATOR>
STREAM &	Gaudi::Utils::Histos::printList (HISTO first, HISTO last, const std::string &fmt, STREAM &stream, TERMINATOR term)
	print the simple sequence (list-like) of histograms as table
template<class LIST, class STREAM, class TERMINATOR>
STREAM &	Gaudi::Utils::Histos::printList (const LIST &histos, const std::string &fmt, STREAM &stream, TERMINATOR term)
	print the simple container of histograms as table
template<class HISTO, class STREAM, class TERMINATOR>
STREAM &	Gaudi::Utils::Histos::printMap (HISTO begin, HISTO end, const std::string &fmt1, const std::string &fmt2, STREAM &stream, TERMINATOR term)
	Print the "associative sequence" (e.g.
template<class MAP, class STREAM, class TERMINATOR>
STREAM &	Gaudi::Utils::Histos::printMap (const MAP &histos, const std::string &fmt1, const std::string &fmt2, STREAM &stream, TERMINATOR term)
	Print the "associative sequence" (e.g.
GAUDI_API std::string	Gaudi::Utils::Histos::format (const std::string &val1, const std::string &val2, const std::string &fmt)
	helper method to merge the headers for short format table

---

Define Documentation

#define GAUDIUTILS_HISTOTABLEFORMAT_H   1

Definition at line 4 of file HistoTableFormat.h.
