CollectionCloneAlg Class Reference

Small algorithm, which allows to merge N-tuples in a generic way. More...

Inheritance diagram for CollectionCloneAlg:

Inheritance graph
[legend]

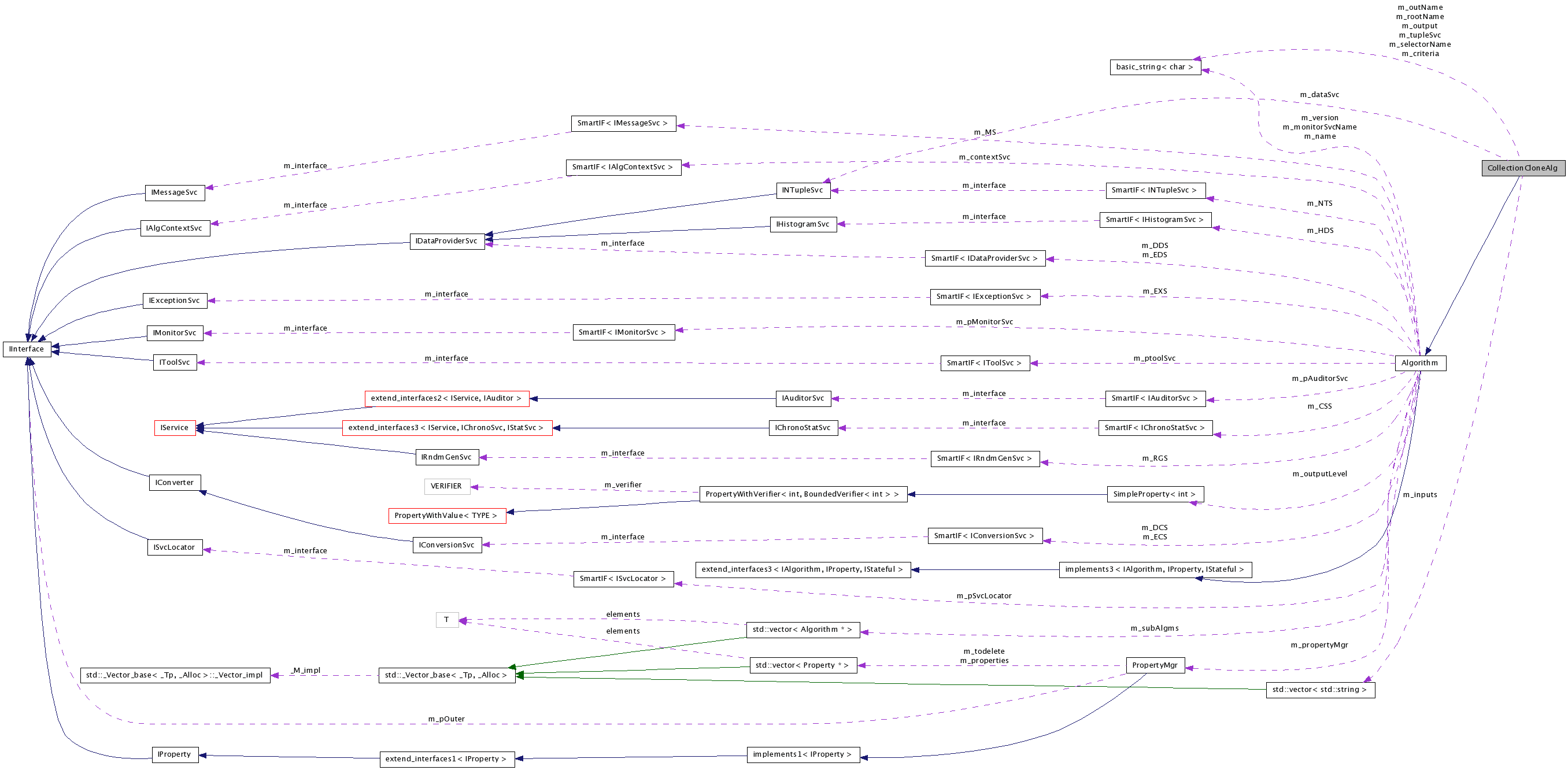

Collaboration diagram for CollectionCloneAlg:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 CollectionCloneAlg (const std::string &name, ISvcLocator *pSvcLocator)
 Standard algorithm constructor.
virtual ~CollectionCloneAlg ()
 Standard Destructor.
virtual StatusCode initialize ()
 Initialize.
virtual StatusCode finalize ()
 Finalize.
virtual StatusCode execute ()
 Execute procedure.
virtual StatusCode book (const NTuple::Tuple *nt)
 Book the N-tuple according to the specification.
virtual StatusCode checkInput (const NTuple::Tuple *clone, const NTuple::Tuple *src)
StatusCode mergeEntries (const std::string &input)
 Merge the entries of a single input tuple into the output.
StatusCode connect ()
 Connect input and output N-tuples.
StatusCode mergeInputTuples ()
 Merge all N-tuple entries.

Private Attributes

INTupleSvc * m_dataSvc
 Reference to data provider service.
std::string m_tupleSvc
 Name of the data provider service.
std::string m_output
 Output specification.
std::vector< std::string > m_inputs
 input specifications
std::string m_rootName
 Name of the root leaf (obtained at initialize).
std::string m_outName
 Output tuple name.
std::string m_criteria
 Selection criteria (if any).
std::string m_selectorName
 Selector factory.

Detailed Description

Small algorithm, which allows to merge N-tuples in a generic way.

In the options directory an python interface is presented, which shows how to steer this algorithm in a standaqlone program.

Author:
: M.Frank
Version:
: 1.0

Definition at line 127 of file CollectionCloneAlg.cpp.

Constructor & Destructor Documentation

CollectionCloneAlg::CollectionCloneAlg ( const std::string &  name,
ISvcLocator *  pSvcLocator
) [inline]

Standard algorithm constructor.

Definition at line 147 of file CollectionCloneAlg.cpp.

00148   :     Algorithm(name, pSvcLocator),  m_dataSvc(0)
00149   {
00150     declareProperty("EvtTupleSvc", m_tupleSvc="EvtTupleSvc");
00151     declareProperty("Input",       m_inputs);
00152     declareProperty("Output",      m_output);
00153   }

virtual CollectionCloneAlg::~CollectionCloneAlg (  )  [inline, virtual]

Standard Destructor.

Definition at line 155 of file CollectionCloneAlg.cpp.

00155                                     {
00156   }

Member Function Documentation

virtual StatusCode CollectionCloneAlg::initialize (  )  [inline, virtual]

Initialize.

Reimplemented from Algorithm.

Definition at line 159 of file CollectionCloneAlg.cpp.

00159                                     {
00160     MsgStream log(msgSvc(), name());
00161     m_rootName = "";
00162     m_outName = "";
00163     m_criteria = "";
00164     m_selectorName = "";
00165     StatusCode sc = service(m_tupleSvc, m_dataSvc, true);
00166     if ( sc.isSuccess() )  {
00167       std::string fun;
00168       Tokenizer tok(true);
00169       tok.analyse(m_output, " ", "", "", "=", "'", "'");
00170       for ( Tokenizer::Items::iterator i = tok.items().begin(); i != tok.items().end(); i++ )   {
00171         const std::string& tag = (*i).tag();
00172         const std::string& val = (*i).value();
00173         switch( ::toupper(tag[0]) )    {
00174         case 'D':
00175           m_outName = val;
00176           break;
00177         case 'S':
00178           m_criteria = val;
00179           break;
00180         case 'F':
00181           fun = val;
00182         default:
00183           break;
00184         }
00185       }
00186       if ( m_outName.empty() )  {
00187         log << MSG::ERROR << "Failed to analyze output specs:" << m_output << endmsg;
00188         return StatusCode::FAILURE;
00189       }
00190       if ( fun.length() > 0 || m_criteria.length() > 0 )   {
00191         if ( m_criteria.length() > 0 && fun.length() == 0 ) fun = "NTuple::Selector";
00192         m_selectorName = fun;
00193         return StatusCode::SUCCESS;
00194       }
00195       return sc;
00196     }
00197     log << MSG::ERROR << "Failed to access service \""
00198         << m_tupleSvc << "\"." << endmsg;
00199     return sc;
00200   }

virtual StatusCode CollectionCloneAlg::finalize ( void   )  [inline, virtual]

Finalize.

Reimplemented from Algorithm.

Definition at line 203 of file CollectionCloneAlg.cpp.

00203                                 {
00204     if ( m_dataSvc ) m_dataSvc->release();
00205     m_dataSvc = 0;
00206     return StatusCode::SUCCESS;
00207   }

virtual StatusCode CollectionCloneAlg::execute (  )  [inline, virtual]

Execute procedure.

Definition at line 210 of file CollectionCloneAlg.cpp.

00210                                   {
00211     StatusCode status = connect();
00212     if ( status.isSuccess() )  {
00213       status = mergeInputTuples();
00214     }
00215     return status;
00216   }

virtual StatusCode CollectionCloneAlg::book ( const NTuple::Tuple *  nt  )  [inline, virtual]

Book the N-tuple according to the specification.

Definition at line 219 of file CollectionCloneAlg.cpp.

00219                                                   {
00220     MsgStream log(msgSvc(), name());
00221     const INTuple::ItemContainer& items = nt->items();
00222     StatusCode status = StatusCode::SUCCESS;
00223     INTuple::ItemContainer::const_iterator i;
00224     NTuple::Tuple* tuple = m_dataSvc->book(m_outName, nt->clID(), nt->title());
00225     for (i = items.begin(); i != items.end(); ++i)  {
00226       long type = (*i)->type();
00227       switch(type)  {
00228       case DataTypeInfo::UCHAR:
00229         status = createItem(log, tuple, *i, (unsigned char)0);
00230         break;
00231       case DataTypeInfo::USHORT:
00232         status = createItem(log, tuple, *i, (unsigned short)0);
00233         break;
00234       case DataTypeInfo::UINT:
00235         status = createItem(log, tuple, *i, (unsigned int)0);
00236         break;
00237       case DataTypeInfo::ULONG:
00238         status = createItem(log, tuple, *i, (unsigned long)0);
00239         break;
00240       case DataTypeInfo::CHAR:
00241         status = createItem(log, tuple, *i, char(0));
00242         break;
00243       case DataTypeInfo::SHORT:
00244         status = createItem(log, tuple, *i, short(0));
00245         break;
00246       case DataTypeInfo::INT:
00247         status = createItem(log, tuple, *i, int(0));
00248         break;
00249       case DataTypeInfo::LONG:
00250         status = createItem(log, tuple, *i, long(0));
00251         break;
00252       case DataTypeInfo::BOOL:
00253         status = createItem(log, tuple, *i, false);
00254         break;
00255       case DataTypeInfo::FLOAT:
00256         status = createItem(log, tuple, *i, float(0.0));
00257         break;
00258       case DataTypeInfo::DOUBLE:
00259         status = createItem(log, tuple, *i, double(0.0));
00260         break;
00261       case DataTypeInfo::OBJECT_ADDR:
00262         status = createItem(log, tuple, *i, (IOpaqueAddress*)0);
00263         break;
00264       case DataTypeInfo::POINTER:
00265         status = createItem(log, tuple, *i, (void*)0);
00266         break;
00267       case DataTypeInfo::STRING:
00268 //        status = createItem(log, tuple, *i, (std::string*)0);
00269 //        break;
00270       case DataTypeInfo::NTCHAR:
00271 //        status = createItem(log, tuple, *i, (char*)0);
00272 //        break;
00273       case DataTypeInfo::UNKNOWN:
00274       default:
00275         status = StatusCode::FAILURE;
00276         break;
00277       }
00278     }
00279     return status;
00280   }

virtual StatusCode CollectionCloneAlg::checkInput ( const NTuple::Tuple *  clone,
const NTuple::Tuple *  src
) [inline, virtual]

Definition at line 283 of file CollectionCloneAlg.cpp.

00283                                                                                    {
00284     MsgStream log(msgSvc(), name());
00285     if ( 0 != clone && 0 != src )   {
00286       const INTuple::ItemContainer& clone_items  = clone->items();
00287       const std::string clone_id = clone->registry()->identifier();
00288       const std::string src_id = src->registry()->identifier();
00289
00290       INTuple::ItemContainer::const_iterator i;
00291       log << MSG::ERROR;
00292       for (i = clone_items.begin(); i != clone_items.end(); ++i)  {
00293         const INTupleItem* itm = *i;
00294         const std::string& nam = itm->name();
00295         const INTupleItem* src_itm = src->find(nam);
00296         if ( !src_itm )  {
00297           log << "Tuple item " << nam << " not present in " << src_id << endmsg;
00298           return StatusCode::FAILURE;
00299         }
00300         if ( itm->type() != src_itm->type() )  {
00301           log << "Tuple item " << nam << " are of different types in "
00302             << src_id   << ":" << src_itm->typeName() << " <-> "
00303             << clone_id << ":" << itm->typeName() << endmsg;
00304           return StatusCode::FAILURE;
00305         }
00306         if ( itm->ndim() != src_itm->ndim() )  {
00307           log << "Tuple item " << nam << " have different dimensions in "
00308             << src_id   << ":" << src_itm->ndim() << " <-> "
00309             << clone_id << ":" << itm->ndim() << endmsg;
00310           return StatusCode::FAILURE;
00311         }
00312         for (int j=0; j<itm->ndim(); ++j)  {
00313           if ( src_itm->dim(j) != itm->dim(j) )  {
00314             log << "Tuple item " << nam << " have different dimensions in "
00315               << src_id   << "[" << j << "]:" << src_itm->dim(j) << " <-> "
00316               << clone_id << "[" << j << "]:" << itm->dim(j) << endmsg;
00317             return StatusCode::FAILURE;
00318           }
00319         }
00320         if ( itm->hasIndex() != src_itm->hasIndex() )  {
00321           log << "Tuple item " << nam << " has different index colums "
00322             << src_id   << ":" << src_itm->hasIndex() << " <-> "
00323             << clone_id << ":" << itm->hasIndex() << endmsg;
00324           return StatusCode::FAILURE;
00325         }
00326         if ( itm->hasIndex() )  {
00327           if ( itm->index() != src_itm->index() )  {
00328             log << "Tuple item " << nam << " has different index colums "
00329               << src_id   << ":" << src_itm->index() << " <-> "
00330               << clone_id << ":" << itm->index() << endmsg;
00331             return StatusCode::FAILURE;
00332           }
00333         }
00334       }
00335       return StatusCode::SUCCESS;
00336     }
00337     return StatusCode::FAILURE;
00338   }

StatusCode CollectionCloneAlg::mergeEntries ( const std::string &  input  )  [inline]

Merge the entries of a single input tuple into the output.

Definition at line 341 of file CollectionCloneAlg.cpp.

00341                                                    {
00342     MsgStream log(msgSvc(), name());
00343     NTuplePtr out(m_dataSvc, m_outName);
00344     if ( 0 != out )  {
00345       const INTuple::ItemContainer& clone_items  = out->items();
00346       std::vector<GenericAddress> addrVector(clone_items.size());
00347       StatusCode status = StatusCode::SUCCESS;
00348       NTuplePtr nt(m_dataSvc, input);
00349       size_t k = 0, nentry = 0;
00350       if ( 0 != nt ) {
00351         const INTuple::ItemContainer& source_items = nt->items();
00352         for (k=0; k < source_items.size(); ++k )  {
00353           if ( source_items[k]->type() == DataTypeInfo::OBJECT_ADDR )  {
00354             *(IOpaqueAddress**)source_items[k]->buffer() = &addrVector[k];
00355           }
00356         }
00357         while ( status.isSuccess() ) {
00358           status = m_dataSvc->readRecord(nt.ptr());
00359           if ( status.isSuccess() )   {
00360             INTuple::ItemContainer::const_iterator i;
00361             nentry++;
00362             for (k=0,i = source_items.begin(); i != source_items.end(); ++i,++k)  {
00363               const INTupleItem* src_itm = *i;
00364               const INTupleItem* out_itm = out->find(src_itm->name());
00365               size_t size = 0;
00366               switch((*i)->type())  {
00367               case DataTypeInfo::UCHAR:
00368                 size = sizeof(unsigned char);
00369                 break;
00370               case DataTypeInfo::USHORT:
00371                 size = sizeof(unsigned short);
00372                 break;
00373               case DataTypeInfo::UINT:
00374                 size = sizeof(unsigned int);
00375                 break;
00376               case DataTypeInfo::ULONG:
00377                 size = sizeof(unsigned long);
00378                 break;
00379               case DataTypeInfo::CHAR:
00380                 size = sizeof(char);
00381                 break;
00382               case DataTypeInfo::SHORT:
00383                 size = sizeof(short);
00384                 break;
00385               case DataTypeInfo::INT:
00386                 size = sizeof(int);
00387                 break;
00388               case DataTypeInfo::LONG:
00389                 size = sizeof(long);
00390                 break;
00391               case DataTypeInfo::BOOL:
00392                 size = sizeof(bool);
00393                 break;
00394               case DataTypeInfo::FLOAT:
00395                 size = sizeof(float);
00396                 break;
00397               case DataTypeInfo::DOUBLE:
00398                 size = sizeof(double);
00399                 break;
00400               case DataTypeInfo::STRING:
00401                 *(std::string*)out_itm->buffer() = *(std::string*)src_itm->buffer();
00402                 size = 0;
00403                 break;
00404               case DataTypeInfo::NTCHAR:
00405                 size = ::strlen((const char*)src_itm->buffer())+1;
00406                 break;
00407               case DataTypeInfo::POINTER:
00408                 {
00409                   *(void**)out_itm->buffer() = *(void**)src_itm->buffer();
00410                   size = 0;
00411                 }
00412                 break;
00413               case DataTypeInfo::OBJECT_ADDR:
00414                 {
00415                 IOpaqueAddress* ppA1  = &addrVector[k];
00416                 IOpaqueAddress** ppA2 = (IOpaqueAddress**)out_itm->buffer();
00417                 *ppA2 = ppA1;
00418                 size = 0;
00419                 }
00420                 break;
00421               case DataTypeInfo::UNKNOWN:
00422               default:
00423                 size = 0;
00424                 break;
00425               }
00426               if ( size > 0 )  {
00427                 ::memcpy((void*)out_itm->buffer(), src_itm->buffer(), size*src_itm->length());
00428               }
00429             }
00430             status = m_dataSvc->writeRecord(out.ptr());
00431             if ( !status.isSuccess() )  {
00432               log << MSG::ERROR << "Failed to write record " << nentry
00433                   << " from " << input << " to " << m_outName << endmsg;
00434             }
00435           }
00436         }
00437         log << MSG::INFO << "End of reading tuple " << input
00438             << " after " << nentry << " entries." << endmsg;
00439
00440         if ( nentry > 0 || m_selectorName != "" )  {
00441           return StatusCode::SUCCESS;
00442         }
00443         return StatusCode::FAILURE;
00444       }
00445       log << MSG::ERROR << "Failed to access input: " << input << endmsg;
00446     }
00447     return StatusCode::FAILURE;
00448   }

StatusCode CollectionCloneAlg::connect (  )  [inline]

Connect input and output N-tuples.

Definition at line 451 of file CollectionCloneAlg.cpp.

00451                          {
00452     StatusCode status = StatusCode::SUCCESS;
00453     for (size_t i=0; i < m_inputs.size(); ++i)  {
00454       NTuplePtr nt(m_dataSvc, m_inputs[i]);
00455       if ( !(0 == nt) )    {
00456         NTuplePtr out(m_dataSvc, m_outName);
00457         if ( 0 == out )  {
00458           status = book(nt);
00459         }
00460         else  {
00461           status = checkInput(out, nt);
00462         }
00463         if ( !status.isSuccess() )  {
00464           return status;
00465         }
00466         else if ( m_selectorName != "" )   {
00467           SmartIF<ISelectStatement> stmt(ROOT::Reflex::PluginService::Create<IInterface*>(m_selectorName,serviceLocator()));
00468           if ( stmt.isValid( ) )    {
00469             if ( m_criteria.length() > 0 ) stmt->setCriteria(m_criteria);
00470             nt->attachSelector(stmt);
00471           }
00472           else  {
00473             MsgStream log(msgSvc(), name());
00474             log << MSG::ERROR << "Failed to attach tuple selector to " << m_inputs[i] << endmsg;
00475             return StatusCode::FAILURE;
00476           }
00477         }
00478       }
00479       else  {
00480         MsgStream log(msgSvc(), name());
00481         log << MSG::ERROR << "Failed to access tuple: " << m_inputs[i] << endmsg;
00482         return StatusCode::FAILURE;
00483       }
00484     }
00485     return StatusCode::SUCCESS;
00486   }

StatusCode CollectionCloneAlg::mergeInputTuples (  )  [inline]

Merge all N-tuple entries.

Definition at line 489 of file CollectionCloneAlg.cpp.

00489                                  {
00490     MsgStream log(msgSvc(), name());
00491     for (size_t inp=0; inp < m_inputs.size(); ++inp)  {
00492       StatusCode sc = mergeEntries(m_inputs[inp]);
00493       if ( !sc.isSuccess() )  {
00494         log << MSG::ERROR << "Failed to merge tuple:" << m_inputs[inp] << endmsg;
00495         return sc;
00496       }
00497     }
00498     return StatusCode::SUCCESS;
00499   }

Member Data Documentation

INTupleSvc* CollectionCloneAlg::m_dataSvc [private]

Reference to data provider service.

Definition at line 129 of file CollectionCloneAlg.cpp.

std::string CollectionCloneAlg::m_tupleSvc [private]

Name of the data provider service.

Definition at line 131 of file CollectionCloneAlg.cpp.

std::string CollectionCloneAlg::m_output [private]

Output specification.

Definition at line 133 of file CollectionCloneAlg.cpp.

std::vector<std::string> CollectionCloneAlg::m_inputs [private]

input specifications

Definition at line 135 of file CollectionCloneAlg.cpp.

std::string CollectionCloneAlg::m_rootName [private]

Name of the root leaf (obtained at initialize).

Definition at line 137 of file CollectionCloneAlg.cpp.

std::string CollectionCloneAlg::m_outName [private]

Output tuple name.

Definition at line 139 of file CollectionCloneAlg.cpp.

std::string CollectionCloneAlg::m_criteria [private]

Selection criteria (if any).

Definition at line 141 of file CollectionCloneAlg.cpp.

std::string CollectionCloneAlg::m_selectorName [private]

Selector factory.

Definition at line 143 of file CollectionCloneAlg.cpp.

The documentation for this class was generated from the following file:
Generated at Mon May 3 12:23:47 2010 for Gaudi Framework, version v21r9 by Doxygen version 1.5.6 written by Dimitri van Heesch, © 1997-2004
