DataStreamTool Class Reference

#include <GaudiKernel/DataStreamTool.h>

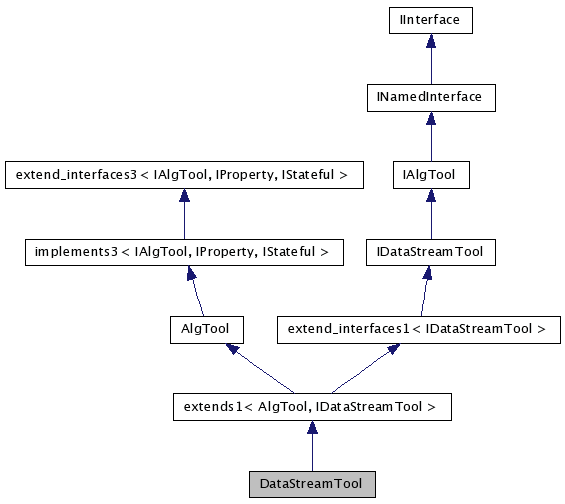

Inheritance diagram for DataStreamTool:

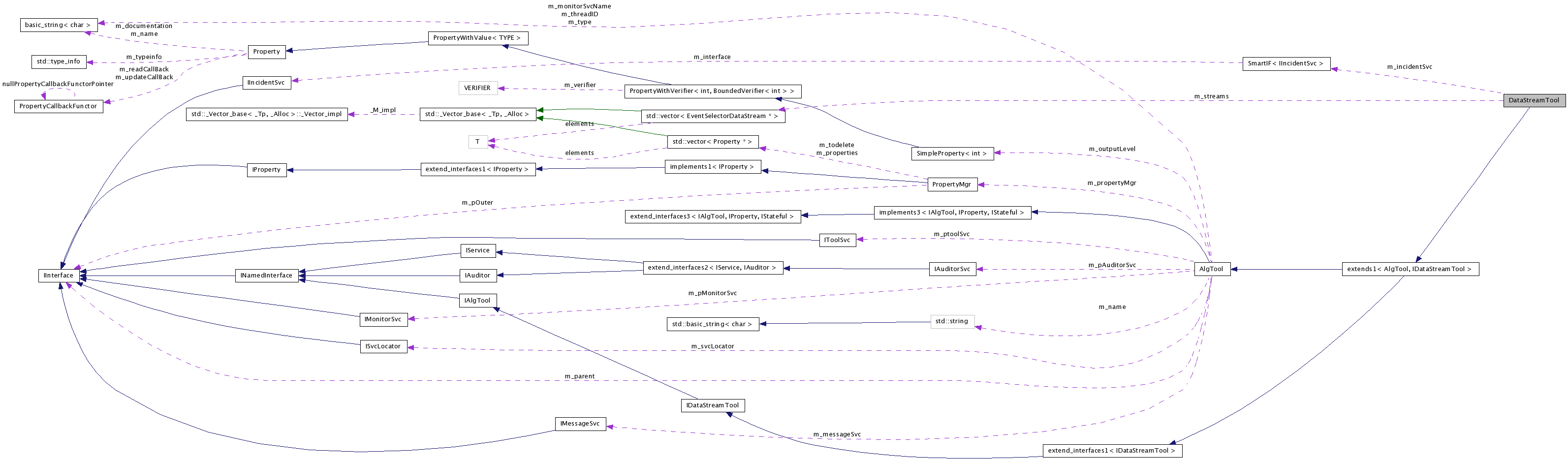

Collaboration diagram for DataStreamTool:

Detailed Description

Author:: Andres Felipe Osorio Oliveros
Marco Clemencic

Date:: 2006-09-21

Definition at line 29 of file DataStreamTool.h.

Member Typedef Documentation

typedef std::vector<EventSelectorDataStream*> DataStreamTool::Streams

Definition at line 32 of file DataStreamTool.h.

typedef std::vector<StringProperty> DataStreamTool::Properties

Definition at line 33 of file DataStreamTool.h.

Constructor & Destructor Documentation

DataStreamTool::DataStreamTool	(	const std::string &	type,
		const std::string &	name,
		const IInterface *	parent
	)

Standard constructor.

Definition at line 34 of file DataStreamTool.cpp.

00037   : base_class ( type, name , parent )
00038 {
00039   //declareInterface<IDataStreamTool>(this);
00040
00041   m_incidentSvc       = 0;
00042   m_streamCount       = 0;
00043   m_streamID          = 0;
00044
00045 }

DataStreamTool::~DataStreamTool ( ) [virtual]

Destructor.

Definition at line 49 of file DataStreamTool.cpp.

00049                                 {
00050 }

DataStreamTool::DataStreamTool ( const DataStreamTool & ) [private]

Fake copy constructor (never implemented).

Member Function Documentation

StatusCode DataStreamTool::initialize ( ) [virtual]

Reimplemented from AlgTool.

Definition at line 53 of file DataStreamTool.cpp.

00053                                       {
00054
00055   MsgStream logger(msgSvc(), name());
00056
00057   StatusCode status = AlgTool::initialize();
00058   if( !status.isSuccess() )  {
00059     logger << MSG::FATAL << "Error. Cannot initialize base class." << endmsg;
00060     return status;
00061   }
00062
00063   // Get the references to the services that are needed by the ApplicationMgr itself
00064   m_incidentSvc = serviceLocator()->service("IncidentSvc");
00065   if( !m_incidentSvc.isValid() )  {
00066     logger << MSG::FATAL << "Error retrieving IncidentSvc." << endmsg;
00067     return StatusCode::FAILURE;
00068   }
00069
00070   return StatusCode::SUCCESS;
00071
00072 }

StatusCode DataStreamTool::addStream ( const std::string & input ) [virtual]

Implements IDataStreamTool.

Definition at line 74 of file DataStreamTool.cpp.

00074                                                             {
00075
00076   if ( NULL != getStream(input) )   {
00077     MsgStream log(msgSvc(), name());
00078     log << MSG::WARNING << "Input stream " << input << "already in use" << endmsg;
00079   }
00080
00081   m_streamSpecs.push_back(input);
00082
00083   char txt[32];
00084
00085   std::string strname = name() + "_" + ::_itoa(++m_streamCount, txt, 10);
00086
00087   EventSelectorDataStream* s = 0;
00088
00089   StatusCode status = createStream(strname, input , s );
00090
00091   if( status.isSuccess() && 0 != s ) {
00092     s->addRef();
00093     m_streams.push_back(s);
00094     status = StatusCode::SUCCESS;
00095   }
00096   else {
00097     MsgStream log(msgSvc(), name());
00098     if (s) {
00099       s->release();
00100       log << MSG::ERROR << "Error connecting/creating Stream: " << s << endmsg;
00101     }
00102     log << MSG::ERROR << "Error connecting/creating Stream: " << input << endmsg;
00103     status = StatusCode::FAILURE;
00104   }
00105
00106   return status;
00107
00108 }

StatusCode DataStreamTool::addStreams ( const StreamSpecs & inputs ) [virtual]

Implements IDataStreamTool.

Definition at line 110 of file DataStreamTool.cpp.

00110                                                                 {
00111
00112   StatusCode status = StatusCode::SUCCESS;
00113
00114   for ( StreamSpecs::const_iterator itr = inputs.begin(); itr != inputs.end() && status.isSuccess(); ++itr )    {
00115
00116     status = addStream(*itr);
00117
00118   }
00119
00120   return status;
00121
00122 }

StatusCode DataStreamTool::eraseStream ( const std::string & info ) [virtual]

Implements IDataStreamTool.

Definition at line 194 of file DataStreamTool.cpp.

00194                                                                  {
00195
00196   Streams::iterator i = getStreamIterator(info);
00197
00198   if ( m_streams.end() != i )   {
00199     (*i)->release();
00200     m_streams.erase(i);
00201     return StatusCode::SUCCESS;
00202   }
00203
00204   return StatusCode::FAILURE;
00205 }

StatusCode DataStreamTool::finalize ( void ) [virtual]

Reimplemented from AlgTool.

Definition at line 124 of file DataStreamTool.cpp.

00124                                     {
00125   clear().ignore();
00126   m_incidentSvc = 0; // release
00127
00128   return AlgTool::finalize();
00129 }

StatusCode DataStreamTool::initializeStream ( EventSelectorDataStream * s ) [virtual]

Initialize newly opened stream.

Implements IDataStreamTool.

Definition at line 131 of file DataStreamTool.cpp.

00131                                                                         {
00132   IEvtSelector* sel = 0;
00133   StatusCode status = s->initialize();
00134   if ( status.isSuccess() )   {
00135     status = createSelector(s->name(), s->selectorType(), sel);
00136     if ( status.isSuccess() )   {
00137       SmartIF<IProperty> prop(sel); //Att: IProperty, IService used to point to EventSelector
00138       SmartIF<IService>  isvc(sel);
00139       s->setSelector(sel);
00140       sel->release();  // No need of this interface anymore, it is passed to the stream
00141       if ( prop.isValid( ) && isvc.isValid( ) )   {
00142         const Properties& p = s->properties();
00143         for(Properties::const_iterator i=p.begin(); i!=p.end(); i++)   {
00144           prop->setProperty((*i)).ignore();
00145         }
00146         int output_level = this->outputLevel();
00147         prop->setProperty(IntegerProperty("OutputLevel",output_level)).ignore();
00148         // FIXME: (MCl) Why do we have to initialize the selector here?
00149         return isvc->sysInitialize();
00150       }
00151     }
00152   }
00153   return StatusCode::FAILURE;
00154 }

StatusCode DataStreamTool::finalizeStream ( EventSelectorDataStream * s ) [virtual]

Finalize no longer needed stream.

Implements IDataStreamTool.

Definition at line 172 of file DataStreamTool.cpp.

00172                                                                       {
00173   if ( s )    {
00174     IEvtSelector* sel = const_cast<IEvtSelector*>(s->selector());
00175     if ( sel )    {
00176       SmartIF<IService> isvc(sel);
00177       if ( isvc.isValid() )   {
00178         isvc->finalize().ignore();
00179         s->finalize().ignore();
00180         // Fire EndStream "Incident"
00181         m_incidentSvc->fireIncident(Incident(name(),IncidentType::EndStream));
00182         return StatusCode::SUCCESS;
00183       }
00184       // Failed to get service interface of sub-event selector
00185       return StatusCode::FAILURE;
00186     }
00187     // No selector (yet) attached - no need to finalize it!
00188     return StatusCode::SUCCESS;
00189   }
00190   return StatusCode::FAILURE;
00191 }

StatusCode DataStreamTool::getNextStream	(	const EventSelectorDataStream *&	esds,
		size_type &	dsid
	)			`[virtual]`

Definition at line 320 of file DataStreamTool.cpp.

00321 {
00322
00323   EventSelectorDataStream * nextStream = getStream(dsid);
00324   if ( NULL == nextStream ) return StatusCode::FAILURE; //<-end of streams reached
00325
00326   esds = nextStream;
00327   ++m_streamID;
00328
00329   return StatusCode::SUCCESS;
00330
00331 }

StatusCode DataStreamTool::getPreviousStream	(	const EventSelectorDataStream *&	esds,
		size_type &	dsid
	)			`[virtual]`

Definition at line 333 of file DataStreamTool.cpp.

00334 {
00335
00336   EventSelectorDataStream * previousStream = getStream(dsid);
00337   if (  NULL == previousStream ) return StatusCode::FAILURE; //<-begin of streams reached
00338
00339   esds = previousStream;
00340   --m_streamID;
00341
00342   return StatusCode::SUCCESS;
00343
00344 }

virtual Streams& DataStreamTool::getStreams ( ) [inline, virtual]

Definition at line 62 of file DataStreamTool.h.

00062 { return m_streams; };

EventSelectorDataStream * DataStreamTool::lastStream ( ) [virtual]

Implements IDataStreamTool.

Definition at line 237 of file DataStreamTool.cpp.

00238 {
00239   if (m_streams.size() > 1 )
00240     return *(--m_streams.end());
00241   else return *m_streams.begin();
00242
00243 }

virtual Streams::iterator DataStreamTool::beginOfStreams ( ) [inline, virtual]

Definition at line 66 of file DataStreamTool.h.

00066 {return m_streams.begin(); };

virtual Streams::iterator DataStreamTool::endOfStreams ( ) [inline, virtual]

Definition at line 68 of file DataStreamTool.h.

00068 {return m_streams.end(); };

EventSelectorDataStream * DataStreamTool::getStream ( const std::string & info ) [virtual]

Retrieve stream by name.

Implements IDataStreamTool.

Definition at line 215 of file DataStreamTool.cpp.

00215                                                                            {
00216   Streams::iterator i = getStreamIterator(info);
00217   if ( m_streams.end() == i ) return NULL;
00218   return *i;
00219 }

EventSelectorDataStream * DataStreamTool::getStream ( size_type pos ) [virtual]

Definition at line 230 of file DataStreamTool.cpp.

00230                                                                    {
00231   if ( (pos >= 0) && ((size_t)pos < m_streams.size()) ) // pos has to point inside the vector
00232     return m_streams[pos];
00233   else
00234     return 0;
00235 }

virtual size_type DataStreamTool::size ( void ) [inline, virtual]

Implements IDataStreamTool.

Definition at line 75 of file DataStreamTool.h.

00075 { return m_streams.size(); };

StatusCode DataStreamTool::clear ( void ) [virtual]

Implements IDataStreamTool.

Definition at line 247 of file DataStreamTool.cpp.

00248 {
00249
00250   StatusCode iret, status = StatusCode::SUCCESS;
00251   iret.ignore();
00252
00253   MsgStream log(msgSvc(), name());
00254
00255   // disconnect the streams
00256   for ( StreamSpecs::const_iterator il = m_streamSpecs.begin(); il != m_streamSpecs.end(); il++ ) {
00257     EventSelectorDataStream* s = getStream(*il);
00258     if ( NULL != s )   {
00259       if ( s->isInitialized() )    {
00260         iret = finalizeStream(s);
00261         if ( !iret.isSuccess() )  {
00262           log << MSG::ERROR << "Error finalizing Stream" << *il << endmsg;
00263           status = iret;
00264         }
00265       }
00266       iret = eraseStream( *il );
00267       if ( !iret.isSuccess() )    {
00268         log << MSG::ERROR << "Error diconnecting Stream" << *il << endmsg;
00269         status = iret;
00270       }
00271     }
00272   }
00273
00274   m_streamSpecs.clear();
00275
00276   return status;
00277 }

StatusCode DataStreamTool::createSelector	(	const std::string &	nam,
		const std::string &	typ,
		IEvtSelector *&	sel
	)			`[protected, virtual]`

Implements IDataStreamTool.

Definition at line 157 of file DataStreamTool.cpp.

00157                                                                                                         {
00158   MsgStream log(msgSvc(), name());
00159   IService* isvc = ROOT::Reflex::PluginService::Create<IService*>(typ, nam, serviceLocator());
00160   if ( isvc ) {
00161     StatusCode status = isvc->queryInterface(IEvtSelector::interfaceID(), (void**)&sel);
00162     if ( status.isSuccess() ) {
00163       return status;
00164     }
00165     sel = 0;
00166     isvc->release();
00167   }
00168   return StatusCode::FAILURE;
00169 }

StatusCode DataStreamTool::createStream	(	const std::string &	nam,
		const std::string &	info,
		EventSelectorDataStream *&	stream
	)			`[protected, virtual]`

Implements IDataStreamTool.

Definition at line 207 of file DataStreamTool.cpp.

00208                                                                            {
00209   stream = new EventSelectorDataStream(nam, info, serviceLocator());
00210
00211   return StatusCode::SUCCESS;
00212 }

StatusCode DataStreamTool::connectStream ( EventSelectorDataStream * s ) [protected]

Connect single stream by reference.

Definition at line 280 of file DataStreamTool.cpp.

00281 {
00282
00283   if ( 0 != s )   {
00284     s->addRef();
00285     m_streams.push_back(s);
00286     return StatusCode::SUCCESS;
00287   }
00288
00289   return StatusCode::FAILURE;
00290
00291 }

StatusCode DataStreamTool::connectStream ( const std::string & info ) [protected]

Connect single stream by name.

Definition at line 293 of file DataStreamTool.cpp.

00294 {
00295
00296   if ( NULL != getStream(info) )   {
00297     MsgStream log(msgSvc(), name());
00298     log << MSG::WARNING << "Input stream " << info << "already in use" << endmsg;
00299   }
00300   char txt[32];
00301   std::string nam = name() + "_" + ::_itoa(++m_streamCount, txt, 10);
00302   EventSelectorDataStream* s = 0;
00303   StatusCode status = createStream(nam, info, s);
00304   if ( status.isSuccess() )   {
00305     return connectStream(s);
00306   }
00307   s->release();
00308   return status;
00309
00310
00311 }

DataStreamTool::Streams::iterator DataStreamTool::getStreamIterator ( const std::string & info ) [protected]

Definition at line 221 of file DataStreamTool.cpp.

00221                                                                                         {
00222   for ( Streams::iterator i = m_streams.begin(); i != m_streams.end(); i++ )    {
00223     if ( (*i)->definition() == info )    {
00224       return i;
00225     }
00226   }
00227   return m_streams.end();
00228 }

DataStreamTool& DataStreamTool::operator= ( const DataStreamTool & ) [private]

Fake assignment operator (never implemented).

Member Data Documentation

size_type DataStreamTool::m_streamID [protected]

Definition at line 92 of file DataStreamTool.h.

size_type DataStreamTool::m_streamCount [protected]

Definition at line 94 of file DataStreamTool.h.

Streams DataStreamTool::m_streams [protected]

Definition at line 96 of file DataStreamTool.h.

StreamSpecs DataStreamTool::m_streamSpecs [protected]

Definition at line 98 of file DataStreamTool.h.

SmartIF<IIncidentSvc> DataStreamTool::m_incidentSvc [protected]

Reference to the incident service.

Definition at line 101 of file DataStreamTool.h.

bool DataStreamTool::m_reconfigure [protected]

Definition at line 103 of file DataStreamTool.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r9/GaudiKernel/GaudiKernel/DataStreamTool.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r9/GaudiKernel/src/Lib/DataStreamTool.cpp


Public Types
typedef std::vector < EventSelectorDataStream * >	Streams
typedef std::vector < StringProperty >	Properties
Public Member Functions
	DataStreamTool (const std::string &type, const std::string &name, const IInterface *parent)
	Standard constructor.
virtual	~DataStreamTool ()
	Destructor.
virtual StatusCode	initialize ()
virtual StatusCode	addStream (const std::string &)
virtual StatusCode	addStreams (const StreamSpecs &)
virtual StatusCode	eraseStream (const std::string &)
virtual StatusCode	finalize ()
virtual StatusCode	initializeStream (EventSelectorDataStream *)
	Initialize newly opened stream.
virtual StatusCode	finalizeStream (EventSelectorDataStream *)
	Finalize no longer needed stream.
virtual StatusCode	getNextStream (const EventSelectorDataStream *&, size_type &)
virtual StatusCode	getPreviousStream (const EventSelectorDataStream *&, size_type &)
virtual Streams &	getStreams ()
virtual EventSelectorDataStream *	lastStream ()
virtual Streams::iterator	beginOfStreams ()
virtual Streams::iterator	endOfStreams ()
virtual EventSelectorDataStream *	getStream (const std::string &)
	Retrieve stream by name.
virtual EventSelectorDataStream *	getStream (size_type)
virtual size_type	size ()
virtual StatusCode	clear ()
Protected Member Functions
virtual StatusCode	createSelector (const std::string &, const std::string &, IEvtSelector *&)
virtual StatusCode	createStream (const std::string &, const std::string &, EventSelectorDataStream *&)
StatusCode	connectStream (EventSelectorDataStream *)
	Connect single stream by reference.
StatusCode	connectStream (const std::string &)
	Connect single stream by name.
Streams::iterator	getStreamIterator (const std::string &)
Protected Attributes
size_type	m_streamID
size_type	m_streamCount
Streams	m_streams
StreamSpecs	m_streamSpecs
SmartIF< IIncidentSvc >	m_incidentSvc
	Reference to the incident service.
bool	m_reconfigure
Private Member Functions
	DataStreamTool (const DataStreamTool &)
	Fake copy constructor (never implemented).
DataStreamTool &	operator= (const DataStreamTool &)
	Fake assignment operator (never implemented).

Gaudi Framework, version v21r9

DataStreamTool Class Reference

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
