Gaudi::Histogram3D Class Reference

AIDA implementation for 2 D histograms using ROOT THD2. More...

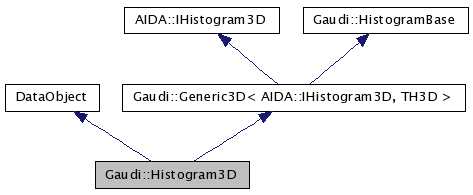

Inheritance diagram for Gaudi::Histogram3D:

Inheritance graph
[legend]

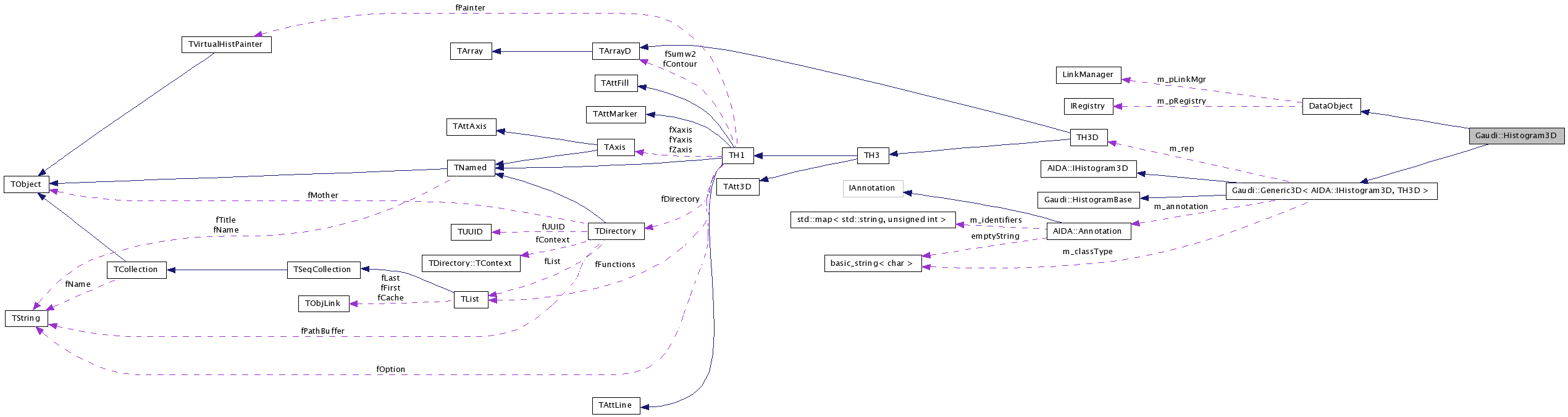

Collaboration diagram for Gaudi::Histogram3D:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 Histogram3D ()
 Standard Constructor.
 Histogram3D (TH3D *rep)
 Standard Constructor.
virtual ~Histogram3D ()
 Destructor.
bool fill (double x, double y, double z, double weight)
 Fill bin content.
virtual bool setBinContents (int i, int j, int k, int entries, double height, double error, double centreX, double centreY, double centreZ)
 Fast filling method for a given bin. It can be also the over/underflow bin.
virtual bool setRms (double rmsX, double rmsY, double rmsZ)
 Sets the rms of the histogram.
virtual bool reset ()
void * cast (const std::string &className) const
 Introspection method.
void copyFromAida (const AIDA::IHistogram3D &h)
 Create new histogram from any AIDA based histogram.
virtual const CLID & clID () const
 Retrieve reference to class defininition identifier.

Static Public Member Functions

static const CLID & classID ()
 Retrieve reference to class definition structure (static access).

Protected Attributes

double m_sumwx
double m_sumwy
double m_sumwz

Detailed Description

AIDA implementation for 2 D histograms using ROOT THD2.

Author:
M.Frank

Definition at line 21 of file H3D.cpp.

Constructor & Destructor Documentation

Gaudi::Histogram3D::Histogram3D (  )

Standard Constructor.

Definition at line 94 of file H3D.cpp.

00094                               {
00095   m_rep = new TH3D();
00096   setTitle("");
00097   m_rep->Sumw2();
00098   m_sumEntries = 0;
00099   m_sumwx = 0;
00100   m_sumwy = 0;
00101   m_sumwz = 0;
00102   m_rep->SetDirectory(0);
00103 }

Gaudi::Histogram3D::Histogram3D ( TH3D *  rep  )

Standard Constructor.

Definition at line 105 of file H3D.cpp.

00105                                        {
00106   m_rep = 0;
00107   adoptRepresentation(rep);
00108   m_sumEntries = 0;
00109   m_sumwx = 0;
00110   m_sumwy = 0;
00111   m_sumwz = 0;
00112   m_rep->SetDirectory(0);
00113 }

virtual Gaudi::Histogram3D::~Histogram3D (  )  [inline, virtual]

Destructor.

Definition at line 28 of file H3D.cpp.

00028 {}

Member Function Documentation

bool Gaudi::Histogram3D::fill ( double  x,
double  y,
double  z,
double  weight
)

Fill bin content.

Definition at line 138 of file H3D.cpp.

00138                                                                           {
00139   m_rep->Fill ( x , y, z, weight );
00140   return true;
00141 }

bool Gaudi::Histogram3D::setBinContents ( int  i,
int  j,
int  k,
int  entries,
double  height,
double  error,
double  centreX,
double  centreY,
double  centreZ
) [virtual]

Fast filling method for a given bin. It can be also the over/underflow bin.

Definition at line 116 of file H3D.cpp.

00116                                                                                                                                               {
00117   m_rep->SetBinContent(rIndexX(i), rIndexY(j), rIndexZ(k), height);
00118   m_rep->SetBinError(rIndexX(i), rIndexY(j), rIndexZ(k), error);
00119   // accumulate sum bin centers
00120   if (i >=0 && j >= 0 && k >= 0) {
00121     m_sumwx += centreX*height;
00122     m_sumwy += centreY*height;
00123     m_sumwz += centreZ*height;
00124   }
00125   m_sumEntries += entries;
00126   return true;
00127 }

bool Gaudi::Histogram3D::setRms ( double  rmsX,
double  rmsY,
double  rmsZ
) [virtual]

Sets the rms of the histogram.

Definition at line 159 of file H3D.cpp.

00159                                                                       {
00160   m_rep->SetEntries(m_sumEntries);
00161   std::vector<double> stat(11);
00162   // sum weights
00163   stat[0] =  sumBinHeights();
00164   stat[1] = 0;
00165   if (equivalentBinEntries() != 0)
00166     stat[1] = (  sumBinHeights() * sumBinHeights() ) / equivalentBinEntries();
00167   stat[2] = m_sumwx;
00168   double meanX = 0;
00169   if ( sumBinHeights() != 0 ) meanX =  m_sumwx/ sumBinHeights();
00170   stat[3] = ( meanX*meanX + rmsX*rmsX )* sumBinHeights();
00171   stat[4] = m_sumwy;
00172   double meanY = 0;
00173   if ( sumBinHeights() != 0 ) meanY =  m_sumwy/ sumBinHeights();
00174   stat[5] = ( meanY*meanY + rmsY*rmsY )* sumBinHeights();
00175   stat[6] = 0;
00176   stat[7] = m_sumwz;
00177   double meanZ = 0;
00178   if ( sumBinHeights() != 0 ) meanZ =  m_sumwz/ sumBinHeights();
00179   stat[8] = ( meanZ*meanZ + rmsZ*rmsZ )* sumBinHeights();
00180   // do not need to use sumwxy sumwxz and sumwyz
00181
00182   m_rep->PutStats(&stat.front());
00183   return true;
00184 }

bool Gaudi::Histogram3D::reset (  )  [virtual]

Definition at line 129 of file H3D.cpp.

00129                                   {
00130   m_sumwx = 0;
00131   m_sumwy = 0;
00132   m_sumwz = 0;
00133   m_sumEntries = 0;
00134   m_rep->Reset ( );
00135   return true;
00136 }

void * Gaudi::Histogram3D::cast ( const std::string &  className  )  const

Introspection method.

Definition at line 143 of file H3D.cpp.

00143                                                                 {
00144   if (className == "AIDA::IHistogram3D")   {
00145     return (AIDA::IHistogram3D*)this;
00146   }
00147   else if (className == "AIDA::IHistogram")   {
00148     return (AIDA::IHistogram*)this;
00149   }
00150   return 0;
00151 }

void Gaudi::Histogram3D::copyFromAida ( const AIDA::IHistogram3D &  h  )

Create new histogram from any AIDA based histogram.

Definition at line 186 of file H3D.cpp.

00186                                                               {
00187   delete m_rep;
00188   // implement here the copy
00189   const char* tit = h.title().c_str();
00190   if (h.xAxis().isFixedBinning() && h.yAxis().isFixedBinning() &&  h.zAxis().isFixedBinning() )  {
00191     m_rep = new TH3D(tit,tit,
00192       h.xAxis().bins(), h.xAxis().lowerEdge(), h.xAxis().upperEdge(),
00193       h.yAxis().bins(), h.yAxis().lowerEdge(), h.yAxis().upperEdge(),
00194       h.zAxis().bins(), h.zAxis().lowerEdge(), h.zAxis().upperEdge() );
00195   }
00196   else {
00197     Edges eX, eY, eZ;
00198     for (int i =0; i < h.xAxis().bins(); ++i)
00199       eX.push_back(h.xAxis().binLowerEdge(i));
00200     // add also upperedges at the end
00201     eX.push_back(h.xAxis().upperEdge() );
00202     for (int i =0; i < h.yAxis().bins(); ++i)
00203       eY.push_back(h.yAxis().binLowerEdge(i));
00204     // add also upperedges at the end
00205     eY.push_back(h.yAxis().upperEdge() );
00206     for (int i =0; i < h.zAxis().bins(); ++i)
00207       eZ.push_back(h.zAxis().binLowerEdge(i));
00208     // add also upperedges at the end
00209     eZ.push_back(h.zAxis().upperEdge() );
00210     m_rep = new TH3D(tit,tit,eX.size()-1,&eX.front(),eY.size()-1,&eY.front(),eZ.size()-1,&eZ.front());
00211   }
00212   m_xAxis.initialize(m_rep->GetXaxis(),true);
00213   m_yAxis.initialize(m_rep->GetYaxis(),true);
00214   m_zAxis.initialize(m_rep->GetZaxis(),true);
00215   const TArrayD* a = m_rep->GetSumw2();
00216   if ( 0 == a || (a && a->GetSize()==0) ) m_rep->Sumw2();
00217   m_sumEntries = 0;
00218   m_sumwx = 0;
00219   m_sumwy = 0;
00220   m_sumwz = 0;
00221
00222   // statistics
00223   double sumw   = h.sumBinHeights();
00224   double sumw2  = 0;
00225   if (h.equivalentBinEntries() != 0)
00226     sumw2 = ( sumw * sumw ) /h.equivalentBinEntries();
00227   double sumwx  = h.meanX()*h.sumBinHeights();
00228   double sumwx2 = (h.meanX()*h.meanX() + h.rmsX()*h.rmsX() )*h.sumBinHeights();
00229   double sumwy  = h.meanY()*h.sumBinHeights();
00230   double sumwy2 = (h.meanY()*h.meanY() + h.rmsY()*h.rmsY() )*h.sumBinHeights();
00231   double sumwz  = h.meanZ()*h.sumBinHeights();
00232   double sumwz2 = (h.meanZ()*h.meanZ() + h.rmsZ()*h.rmsZ() )*h.sumBinHeights();
00233   double sumwxy = 0;
00234   double sumwxz = 0;
00235   double sumwyz = 0;
00236
00237   // copy the contents in  (AIDA underflow/overflow are -2,-1)
00238   for (int i=-2; i < xAxis().bins(); ++i) {
00239     for (int j=-2; j < yAxis().bins(); ++j) {
00240       for (int k=-2; k < zAxis().bins(); ++k) {
00241         m_rep->SetBinContent(rIndexX(i), rIndexY(j), rIndexZ(k), h.binHeight(i,j,k) );
00242         m_rep->SetBinError(rIndexX(i), rIndexY(j), rIndexZ(k), h.binError(i,j,k) );
00243         // calculate statistics
00244         if ( i >= 0 && j >= 0 && k >= 0) {
00245           sumwxy += h.binHeight(i,j,k)*h.binMeanX(i,j,k)*h.binMeanY(i,j,k);
00246           sumwxz += h.binHeight(i,j,k)*h.binMeanX(i,j,k)*h.binMeanZ(i,j,k);
00247           sumwyz += h.binHeight(i,j,k)*h.binMeanY(i,j,k)*h.binMeanZ(i,j,k);
00248         }
00249       }
00250     }
00251   }
00252   // need to do set entries after setting contents otherwise root will recalulate them
00253   // taking into account how many time  SetBinContents() has been called
00254   m_rep->SetEntries(h.allEntries());
00255
00256   // fill stat vector
00257   std::vector<double> stat(11);
00258   stat[0] = sumw;
00259   stat[1] = sumw2;
00260   stat[2] = sumwx;
00261   stat[3] = sumwx2;
00262   stat[4] = sumwy;
00263   stat[5] = sumwy2;
00264   stat[6] = sumwxy;
00265   stat[7] = sumwz;
00266   stat[8] = sumwz2;
00267   stat[9] = sumwxz;
00268   stat[10] = sumwyz;
00269   m_rep->PutStats(&stat.front());
00270 }

virtual const CLID& Gaudi::Histogram3D::clID (  )  const [inline, virtual]

Retrieve reference to class defininition identifier.

Reimplemented from DataObject.

Definition at line 42 of file H3D.cpp.

00042 { return Gaudi::Histogram3D::classID(); }

static const CLID& Gaudi::Histogram3D::classID (  )  [inline, static]

Retrieve reference to class definition structure (static access).

Retrieve Pointer to class definition structure.

Reimplemented from DataObject.

Definition at line 43 of file H3D.cpp.

00043 { return CLID_H3D; }

Member Data Documentation

double Gaudi::Histogram3D::m_sumwx [protected]

Definition at line 47 of file H3D.cpp.

double Gaudi::Histogram3D::m_sumwy [protected]

Definition at line 48 of file H3D.cpp.

double Gaudi::Histogram3D::m_sumwz [protected]

Definition at line 49 of file H3D.cpp.

The documentation for this class was generated from the following file:
