GaudiTupleTool Class Reference

Simple class to extend the functionality of class GaudiHistoTool. More...

#include <GaudiAlg/GaudiTupleTool.h>

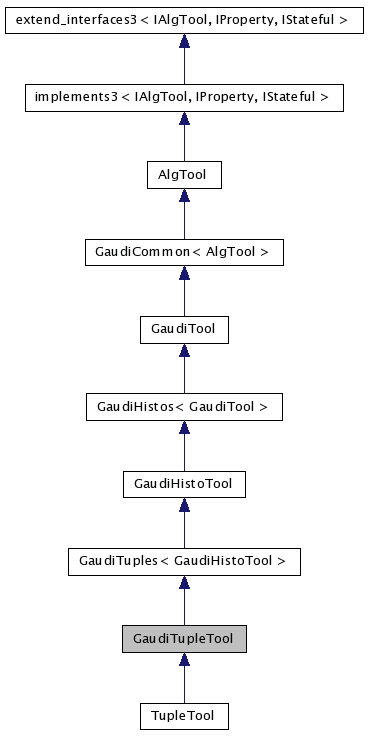

Inheritance diagram for GaudiTupleTool:

[legend]

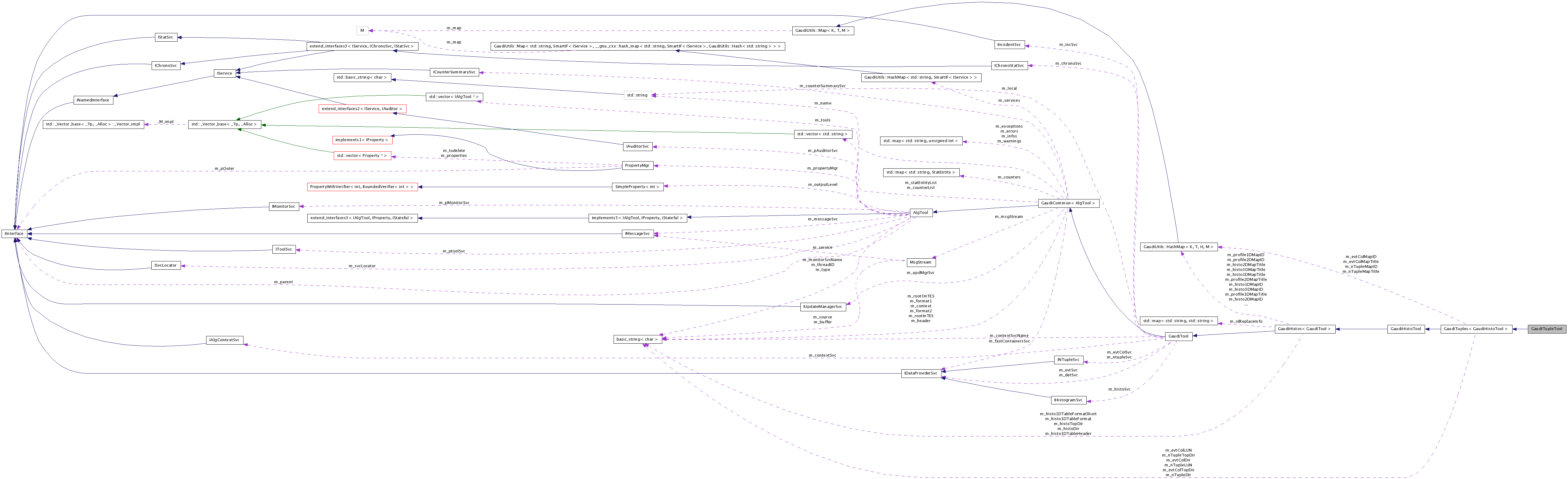

Collaboration diagram for GaudiTupleTool:

[legend]

List of all members.

Protected Member Functions
	GaudiTupleTool (const std::string &type, const std::string &name, const IInterface *parent)
	standard constructor
virtual	~GaudiTupleTool ()
	destructor
virtual StatusCode	initialize ()
	standard initialization method
virtual StatusCode	finalize ()
	standard finalization method
Private Member Functions
	GaudiTupleTool ()
	default constructor is disabled
	GaudiTupleTool (const GaudiTupleTool &)
	copy constructor is disabled
GaudiTupleTool &	operator= (const GaudiTupleTool &)
	assignment operator is disabled

---

Detailed Description

Simple class to extend the functionality of class GaudiHistoTool.

Class is instrumented with few methods for dealing with N-tuples and Event Tag collections

Attention:

See the class GaudiTuples, which implements the common functionality between GaudiTupleTool and GaudiTupleAlg

Author:

Vanya BELYAEV Ivan.Belyaev@itep.ru

Chris Jones Christopher.Rob.Jones@cern.ch

Date:

2004-06-28

Definition at line 43 of file GaudiTupleTool.h.

---

Constructor & Destructor Documentation

GaudiTupleTool::GaudiTupleTool	(	const std::string &	type,
		const std::string &	name,
		const IInterface *	parent
	)			[protected]

standard constructor

See also:

GaudiTool

AlgTool

Parameters:

	type	tool type
	name	tool name
	parent	pointer to the parent component

Definition at line 30 of file GaudiTupleTool.cpp.

  : GaudiTuples<GaudiHistoTool> ( type , name , parent ) { }

GaudiTupleTool::~GaudiTupleTool

(

)

[protected, virtual]

destructor

Definition at line 39 of file GaudiTupleTool.cpp.

{ }

GaudiTupleTool::GaudiTupleTool

(

)

[private]

default constructor is disabled

GaudiTupleTool::GaudiTupleTool

(

const GaudiTupleTool &

)

[private]

copy constructor is disabled

---

Member Function Documentation

StatusCode GaudiTupleTool::initialize

(

)

[protected, virtual]

standard initialization method

See also:

Algorithm

IAlgorithm

Returns:

status code

Reimplemented from GaudiTuples< GaudiHistoTool >.

Definition at line 45 of file GaudiTupleTool.cpp.

{
  // initialize the base class and return
  return GaudiTuples<GaudiHistoTool>::initialize();
}

StatusCode GaudiTupleTool::finalize

(

void

)

[protected, virtual]

standard finalization method

See also:

Algorithm

IAlgorithm

Returns:

status code

Reimplemented from GaudiTuples< GaudiHistoTool >.

Definition at line 55 of file GaudiTupleTool.cpp.

{
  // finalize the base class and return
  return GaudiTuples<GaudiHistoTool>::finalize();
}

GaudiTupleTool& GaudiTupleTool::operator=

(

const GaudiTupleTool &

)

[private]

assignment operator is disabled

---

The documentation for this class was generated from the following files:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r9/GaudiAlg/GaudiAlg/GaudiTupleTool.h
• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r9/GaudiAlg/src/lib/GaudiTupleTool.cpp
