PersistencySvc Class Reference

PersistencySvc class implementation definition. More...

#include <PersistencySvc.h>

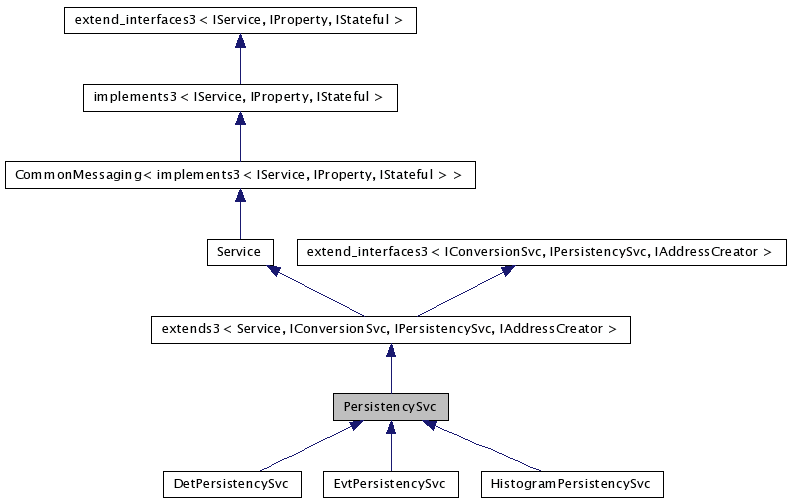

Inheritance diagram for PersistencySvc:

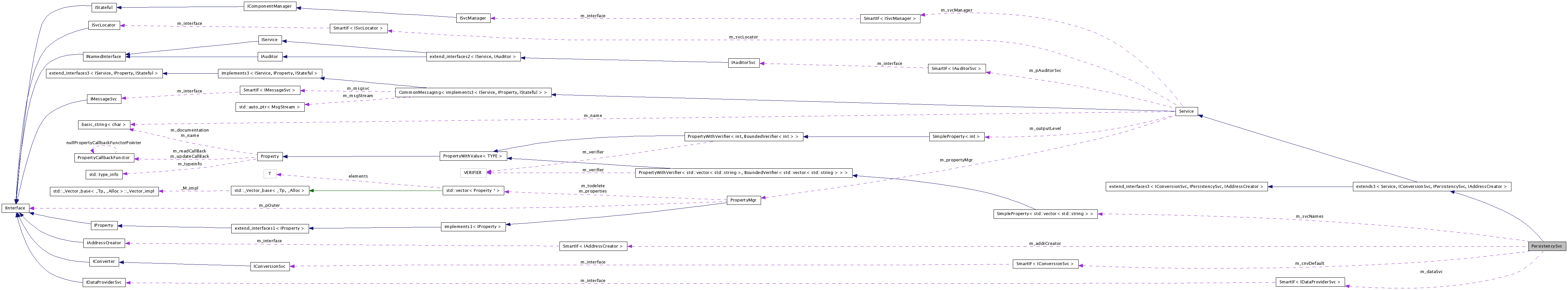

Collaboration diagram for PersistencySvc:

List of all members.

: Object implementation

PersistencySvc (const std::string &name, ISvcLocator *svc)

Standard Constructor.

virtual ~PersistencySvc ()

Standard Destructor.

SmartIF< IConversionSvc > & service (const std::string &nam)

Retrieve conversion service by name.

SmartIF< IConversionSvc > & service (long service_type)

Retrieve conversion service from list.

SmartIF< IAddressCreator > & addressCreator (long service_type)

Retrieve address creator from list.

void encodeAddrHdr (long service_type, const CLID &clid, std::string &address) const

Retrieve string from storage type and clid.

void decodeAddrHdr (const std::string &address, long &service_type, CLID &clid, std::string &address_trailer) const

Retrieve storage type and clid from address header of string.

StatusCode makeCall (int typ, IOpaqueAddress *&pAddress, DataObject *&pObject)

Implementation helper.

bool enable (bool value)

Set enabled flag.

Public Member Functions

IPersistencySvc Interface implementation

long repSvcType () const

Return default service type.

const CLID & objType () const

Retrieve the class type of objects the converter produces. (DUMMY).

virtual StatusCode createObj (IOpaqueAddress *pAddress, DataObject *&refpObject)

Implementation of IConverter: Create the transient representation of an object.

virtual StatusCode fillObjRefs (IOpaqueAddress *pAddress, DataObject *pObject)

Implementation of IConverter: Resolve the references of the created transient object.

virtual StatusCode updateObj (IOpaqueAddress *pAddress, DataObject *refpObject)

Implementation of IConverter: Update the transient object from the other representation.

virtual StatusCode updateObjRefs (IOpaqueAddress *pAddress, DataObject *pObject)

Implementation of IConverter: Update the references of an updated transient object.

virtual StatusCode createRep (DataObject *pObject, IOpaqueAddress *&refpAddress)

Implementation of IConverter: Convert the transient object to the requested representation.

virtual StatusCode fillRepRefs (IOpaqueAddress *pAddress, DataObject *pObject)

Implementation of IConverter: Resolve the references of the converted object.

virtual StatusCode updateRep (IOpaqueAddress *pAddress, DataObject *pObject)

Implementation of IConverter: Update the converted representation of a transient object.

virtual StatusCode updateRepRefs (IOpaqueAddress *pAddress, DataObject *pObject)

Implementation of IConverter: Update the references of an already converted object.

virtual StatusCode setDataProvider (IDataProviderSvc *pStore)

Define transient datastore.

virtual SmartIF
< IDataProviderSvc > & dataProvider () const

Access reference to transient datastore.

virtual StatusCode setConversionSvc (IConversionSvc *svc)

Set conversion service the converter is connected to.

virtual SmartIF< IConversionSvc > & conversionSvc () const

Get conversion service the converter is connected to.

virtual StatusCode setAddressCreator (IAddressCreator *creator)

Set address creator facility.

virtual SmartIF
< IAddressCreator > & addressCreator () const

Retrieve address creator facility.

virtual StatusCode addConverter (IConverter *pConverter)

Add converter object to conversion service.

virtual StatusCode addConverter (const CLID &clid)

Add converter object to conversion service.

virtual IConverter * converter (const CLID &clid)

Retrieve converter from list.

virtual StatusCode removeConverter (const CLID &clid)

Remove converter object from conversion service (if present).

virtual StatusCode connectOutput (const std::string &outputFile, const std::string &openMode)

Connect the output file to the service with open mode.

virtual StatusCode connectOutput (const std::string &outputFile)

Connect the output file to the service.

virtual StatusCode commitOutput (const std::string &output, bool do_commit)

Commit pending output.

virtual StatusCode createAddress (long svc_type, const CLID &clid, const std::string *pars, const unsigned long *ipars, IOpaqueAddress *&refpAddress)

Create a Generic address using explicit arguments to identify a single object.

virtual StatusCode convertAddress (const IOpaqueAddress *pAddress, std::string &refAddress)

Convert an address to string form.

virtual StatusCode createAddress (long svc_type, const CLID &clid, const std::string &refAddress, IOpaqueAddress *&refpAddress)

Convert an address in string form to object form.

: IPersistencySvc implementation

virtual StatusCode addCnvService (IConversionSvc *service)

Add a new Service.

virtual StatusCode removeCnvService (long type)

Remove a Service.

virtual StatusCode setDefaultCnvService (long type)

Set default service type.

virtual StatusCode getService (long service_type, IConversionSvc *&refpSvc)

Retrieve conversion service identified by technology.

virtual StatusCode getService (const std::string &service_type, IConversionSvc *&refpSvc)

Retrieve conversion service identified by technology.

: IService implementation

virtual StatusCode initialize ()

Initialize the service.

virtual StatusCode finalize ()

stop the service.

Protected Types

typedef std::map< long,
ServiceEntry > Services

Protected Member Functions

void svcNamesHandler (Property &theProp)

Handlers for Service Names Property.

Protected Attributes

long m_cnvDefType

Default service type.

SmartIF< IDataProviderSvc > m_dataSvc

Pointer to datma provider service.

Services m_cnvServices

List of convermsion workers.

SmartIF< IConversionSvc > m_cnvDefault

Default output service.

StringArrayProperty m_svcNames

Names of services to be requested from the service locator and added by default.

bool m_enable

Flag to indicate that the service is enabled.

SmartIF< IAddressCreator > m_addrCreator

Pointer to the IAddressCreator interface of this, for addressCreator().

Friends

class SvcFactory< PersistencySvc >

class Factory< PersistencySvc, IService *(std::string, ISvcLocator *)>

Classes

class ServiceEntry

Detailed Description

PersistencySvc class implementation definition.

System: The LHCb Offline System

Package: PersistencySvc

Dependencies:

STL: <vector>, <algorithm>, <functional>
Generic service definition: "Kernel/Service.h"
IConversionSvc definition: "Kernel/IConversionSvc.h"
PersistencySvc definition: "Kernel/Interfaces/IPersistencySvc.h"

History:

    +---------+----------------------------------------------+---------+
    |    Date |                 Comment                      | Who     |
    +---------+----------------------------------------------+---------+
    | 3/11/98 | Initial version                              | M.Frank |
    +---------+----------------------------------------------+---------+

Author:: Markus Frank

Version:: 1.0

Definition at line 53 of file PersistencySvc.h.

Member Typedef Documentation

typedef std::map<long,ServiceEntry> PersistencySvc::Services [protected]

Definition at line 106 of file PersistencySvc.h.

Constructor & Destructor Documentation

PersistencySvc::PersistencySvc	(	const std::string &	name,
		ISvcLocator *	svc
	)

Standard Constructor.

Definition at line 628 of file PersistencySvc.cpp.

00629 :  base_class(name, svc),
00630    m_cnvDefType(TEST_StorageType),
00631    m_enable(true)
00632 {
00633   declareProperty("CnvServices", m_svcNames);
00634   m_svcNames.declareUpdateHandler( &PersistencySvc::svcNamesHandler, this );
00635 }

PersistencySvc::~PersistencySvc ( ) [virtual]

Standard Destructor.

Definition at line 638 of file PersistencySvc.cpp.

00638                                   {
00639 }

Member Function Documentation

long PersistencySvc::repSvcType ( ) const

Return default service type.

Retrieve the class type of the data store the converter uses.

Definition at line 342 of file PersistencySvc.cpp.

00342                                       {
00343   long typ = (m_cnvDefault) ? m_cnvDefault->repSvcType() : 0;
00344   return typ;
00345 }

const CLID & PersistencySvc::objType ( ) const

Retrieve the class type of objects the converter produces. (DUMMY).

Retrieve the class type of objects the converter produces.

Definition at line 589 of file PersistencySvc.cpp.

00589                                              {
00590   return CLID_NULL;
00591 }

StatusCode PersistencySvc::createObj	(	IOpaqueAddress *	pAddress,
		DataObject *&	refpObject
	)			`[virtual]`

Implementation of IConverter: Create the transient representation of an object.

Create the transient representation of an object.

Definition at line 116 of file PersistencySvc.cpp.

00116                                                                                   {
00117   return makeCall(CREATE_OBJ, pAddr, refpObj);
00118 }

StatusCode PersistencySvc::fillObjRefs	(	IOpaqueAddress *	pAddress,
		DataObject *	pObject
	)			`[virtual]`

Implementation of IConverter: Resolve the references of the created transient object.

Resolve the references of the created transient object.

Definition at line 121 of file PersistencySvc.cpp.

00121                                                                                  {
00122   return makeCall(FILL_OBJ_REFS, pAddr, pObj);
00123 }

StatusCode PersistencySvc::updateObj	(	IOpaqueAddress *	pAddress,
		DataObject *	refpObject
	)			`[virtual]`

Implementation of IConverter: Update the transient object from the other representation.

Update the transient object from the other representation.

Definition at line 126 of file PersistencySvc.cpp.

00126                                                                               {
00127   return makeCall(UPDATE_OBJ, pAddr, pObj);
00128 }

StatusCode PersistencySvc::updateObjRefs	(	IOpaqueAddress *	pAddress,
		DataObject *	pObject
	)			`[virtual]`

Implementation of IConverter: Update the references of an updated transient object.

Update the references of an updated transient object.

Definition at line 131 of file PersistencySvc.cpp.

00131                                                                                  {
00132   return makeCall(UPDATE_OBJ_REFS, pAddr, pObj);
00133 }

StatusCode PersistencySvc::createRep	(	DataObject *	pObject,
		IOpaqueAddress *&	refpAddress
	)			`[virtual]`

Implementation of IConverter: Convert the transient object to the requested representation.

Convert the transient object to the requested representation.

Reimplemented in HistogramPersistencySvc.

Definition at line 136 of file PersistencySvc.cpp.

00136                                                                                  {
00137   return makeCall(CREATE_REP, refpAddr, pObj);
00138 }

StatusCode PersistencySvc::fillRepRefs	(	IOpaqueAddress *	pAddress,
		DataObject *	pObject
	)			`[virtual]`

Implementation of IConverter: Resolve the references of the converted object.

Resolve the references of the converted object.

Definition at line 141 of file PersistencySvc.cpp.

00141                                                                                {
00142   return makeCall(FILL_REP_REFS, pAddr, pObj);
00143 }

StatusCode PersistencySvc::updateRep	(	IOpaqueAddress *	pAddress,
		DataObject *	pObject
	)			`[virtual]`

Implementation of IConverter: Update the converted representation of a transient object.

Update the converted representation of a transient object.

Definition at line 146 of file PersistencySvc.cpp.

00146                                                                              {
00147   return makeCall(UPDATE_REP, pAddr, pObj);
00148 }

StatusCode PersistencySvc::updateRepRefs	(	IOpaqueAddress *	pAddress,
		DataObject *	pObject
	)			`[virtual]`

Implementation of IConverter: Update the references of an already converted object.

Update the references of an already converted object.

Definition at line 151 of file PersistencySvc.cpp.

00151                                                                                    {
00152   return makeCall(UPDATE_REP_REFS, pAddr, pObj);
00153 }

StatusCode PersistencySvc::setDataProvider ( IDataProviderSvc * pStore ) [virtual]

Define transient datastore.

Define transient data store.

Definition at line 174 of file PersistencySvc.cpp.

00174                                                                         {
00175   m_dataSvc = pDataSvc;
00176   for ( Services::iterator i = m_cnvServices.begin(); i != m_cnvServices.end(); i++ )   {
00177     (*i).second.conversionSvc()->setDataProvider(m_dataSvc).ignore();
00178   }
00179   return StatusCode(StatusCode::SUCCESS,true);
00180 }

SmartIF< IDataProviderSvc > & PersistencySvc::dataProvider ( ) const [virtual]

Access reference to transient datastore.

Access the dataprovider service.

Definition at line 183 of file PersistencySvc.cpp.

00183                                                                 {
00184   return m_dataSvc;
00185 }

StatusCode PersistencySvc::setConversionSvc ( IConversionSvc * svc ) [virtual]

Set conversion service the converter is connected to.

Definition at line 188 of file PersistencySvc.cpp.

00188                                                                  {
00189   m_cnvDefault = svc;
00190   return StatusCode(StatusCode::SUCCESS,true);
00191 }

SmartIF< IConversionSvc > & PersistencySvc::conversionSvc ( ) const [virtual]

Get conversion service the converter is connected to.

Definition at line 194 of file PersistencySvc.cpp.

00194                                                                   {
00195   return m_cnvDefault;
00196 }

StatusCode PersistencySvc::setAddressCreator ( IAddressCreator * creator ) [virtual]

Set address creator facility.

Definition at line 496 of file PersistencySvc.cpp.

00496                                                                 {
00497   // The persistency service is a address creation dispatcher istelf.
00498   // The persistency service can NEVER create addresses itself.
00499   // The entry point must only be provided in order to fulfill the needs of the
00500   // implementing interfaces.
00501   return StatusCode::FAILURE;
00502 }

SmartIF< IAddressCreator > & PersistencySvc::addressCreator ( ) const [virtual]

Retrieve address creator facility.

Definition at line 505 of file PersistencySvc.cpp.

00505                                                                    {
00506   return m_addrCreator;
00507 }

StatusCode PersistencySvc::addConverter ( IConverter * pConverter ) [virtual]

Add converter object to conversion service.

Definition at line 204 of file PersistencySvc.cpp.

00204                                                                  {
00205   if ( 0 != pConverter )    {
00206     long typ  = pConverter->repSvcType();
00207     IConversionSvc* svc = service(typ);
00208     if ( 0 != svc )   {
00209       return svc->addConverter(pConverter);
00210     }
00211     return BAD_STORAGE_TYPE;
00212   }
00213   return NO_CONVERTER;
00214 }

StatusCode PersistencySvc::addConverter ( const CLID & clid ) [virtual]

Add converter object to conversion service.

Definition at line 199 of file PersistencySvc.cpp.

00199                                                                {
00200   return StatusCode::FAILURE;
00201 }

IConverter * PersistencySvc::converter ( const CLID & clid ) [virtual]

Retrieve converter from list.

Definition at line 230 of file PersistencySvc.cpp.

00230                                                           {
00231   return 0;
00232 }

StatusCode PersistencySvc::removeConverter ( const CLID & clid ) [virtual]

Remove converter object from conversion service (if present).

Definition at line 217 of file PersistencySvc.cpp.

00217                                                             {
00218   // Remove converter type from all services
00219   StatusCode status = NO_CONVERTER, iret = StatusCode::SUCCESS;
00220   for ( Services::iterator i = m_cnvServices.begin(); i != m_cnvServices.end(); i++ )    {
00221     iret = (*i).second.conversionSvc()->removeConverter(clid);
00222     if ( iret.isSuccess() )    {
00223       status = iret;
00224     }
00225   }
00226   return status;
00227 }

StatusCode PersistencySvc::connectOutput	(	const std::string &	outputFile,
		const std::string &	openMode
	)			`[virtual]`

Connect the output file to the service with open mode.

Definition at line 354 of file PersistencySvc.cpp.

00355                                                                           {
00356   return connectOutput(outputFile);
00357 }

StatusCode PersistencySvc::connectOutput ( const std::string & outputFile ) [virtual]

Connect the output file to the service.

Definition at line 360 of file PersistencySvc.cpp.

00360                                                          {
00361   return StatusCode::SUCCESS;
00362 }

StatusCode PersistencySvc::commitOutput	(	const std::string &	output,
		bool	do_commit
	)			`[virtual]`

Commit pending output.

Definition at line 365 of file PersistencySvc.cpp.

00365                                                                 {
00366   return StatusCode::SUCCESS;
00367 }

StatusCode PersistencySvc::createAddress	(	long	svc_type,
		const CLID &	clid,
		const std::string *	pars,
		const unsigned long *	ipars,
		IOpaqueAddress *&	refpAddress
	)			`[virtual]`

Create a Generic address using explicit arguments to identify a single object.

Definition at line 370 of file PersistencySvc.cpp.

00374                                                                           {
00375   IAddressCreator* svc = addressCreator(svc_type);
00376   StatusCode   status  = BAD_STORAGE_TYPE;        // Preset error
00377   refpAddress = 0;
00378   if ( 0 != svc )   {
00379     status = svc->createAddress(svc_type, clid, pars, ipars, refpAddress);
00380   }
00381   return status;
00382 }

StatusCode PersistencySvc::convertAddress	(	const IOpaqueAddress *	pAddress,
		std::string &	refAddress
	)			`[virtual]`

Convert an address to string form.

Definition at line 385 of file PersistencySvc.cpp.

00387 {
00388   // Assumuption is that the Persistency service prepends a header
00389   // and requests the conversion service refered to by the service
00390   // type to encode the rest
00391   long svc_type = 0;
00392   CLID clid = 0;
00393   if ( 0 != pAddress ) {
00394     svc_type = pAddress->svcType();
00395     clid     = pAddress->clID();
00396   }
00397   IAddressCreator* svc = addressCreator(svc_type);
00398   StatusCode   status  = BAD_STORAGE_TYPE;        // Preset error
00399   refAddress = "";
00400
00401   if ( 0 != svc )   {
00402     // Found service, set header
00403     encodeAddrHdr(svc_type, clid, refAddress);
00404     std::string address;
00405     // Get rest of address from conversion service
00406     status = svc->convertAddress(pAddress, address);
00407     refAddress += address;
00408   }
00409   return status;
00410 }

StatusCode PersistencySvc::createAddress	(	long	svc_type,
		const CLID &	clid,
		const std::string &	refAddress,
		IOpaqueAddress *&	refpAddress
	)			`[virtual]`

Convert an address in string form to object form.

Definition at line 413 of file PersistencySvc.cpp.

00417 {
00418   // Assumuption is that the Persistency service decodes that header
00419   // and requests the conversion service refered to by the service
00420   // type to decode the rest
00421   long new_svc_type = 0;
00422   CLID new_clid = 0;
00423   std::string address_trailer;
00424   decodeAddrHdr(refAddress, new_svc_type, new_clid, address_trailer);
00425   IAddressCreator* svc = addressCreator(new_svc_type);
00426   StatusCode   status  = BAD_STORAGE_TYPE;        // Preset error
00427   if ( 0 != svc )   {
00428     status = svc->createAddress( new_svc_type, new_clid, address_trailer, refpAddress);
00429   }
00430   return status;
00431 }

StatusCode PersistencySvc::addCnvService ( IConversionSvc * service ) [virtual]

Add a new Service.

Add data service.

Definition at line 280 of file PersistencySvc.cpp.

00280                                                                  {
00281   if ( 0 != servc )   {
00282     long type = servc->repSvcType();
00283     long def_typ = (m_cnvDefault) ? m_cnvDefault->repSvcType() : 0;
00284     Services::iterator it = m_cnvServices.find( type );
00285     IConversionSvc* cnv_svc = 0;
00286     if ( it != m_cnvServices.end() )    {
00287       cnv_svc = (*it).second.conversionSvc();
00288     }
00289     if ( type == def_typ )     {
00290       m_cnvDefault = servc;
00291     }
00292     if ( cnv_svc != servc )   {
00293       MsgStream log( msgSvc(), name() );
00294       IAddressCreator* icr = 0;
00295       StatusCode status  = servc->queryInterface(IAddressCreator::interfaceID(), pp_cast<void>(&icr));
00296       if ( status.isSuccess() )   {
00297         IService* isvc = 0;
00298         status = servc->queryInterface(IService::interfaceID(), pp_cast<void>(&isvc));
00299         if ( status.isSuccess() )    {
00300           if ( 0 != cnv_svc )   {
00301             removeCnvService (type).ignore();
00302           }
00303           std::pair<Services::iterator, bool> p =
00304             m_cnvServices.insert( Services::value_type( type, ServiceEntry(type, isvc, servc, icr)));
00305           if( p.second )    {
00306             log << MSG::INFO << "Added successfully Conversion service:" << isvc->name() << endmsg;
00307             servc->addRef();
00308             servc->setAddressCreator(this).ignore();
00309             servc->setDataProvider(m_dataSvc).ignore();
00310             return StatusCode::SUCCESS;
00311           }
00312           log << MSG::INFO << "Cannot add Conversion service of type " << isvc->name() << endmsg;
00313           isvc->release();
00314           icr->release();
00315           return StatusCode::FAILURE;
00316         }
00317         icr->release();
00318       }
00319       log << MSG::INFO << "Cannot add Conversion service of type " << type << endmsg;
00320       return StatusCode::FAILURE;
00321     }
00322     else    {
00323       return StatusCode::SUCCESS;
00324     }
00325   }
00326   return BAD_STORAGE_TYPE;
00327 }

StatusCode PersistencySvc::removeCnvService ( long type ) [virtual]

Remove a Service.

Remove conversion service.

Definition at line 330 of file PersistencySvc.cpp.

00330                                                            {
00331   Services::iterator it = m_cnvServices.find( svctype );
00332   if( it != m_cnvServices.end() ) {
00333     (*it).second.service()->release();
00334     (*it).second.addrCreator()->release();
00335     m_cnvServices.erase(it);
00336     return StatusCode::SUCCESS;
00337   }
00338   return BAD_STORAGE_TYPE;
00339 }

StatusCode PersistencySvc::setDefaultCnvService ( long type ) [virtual]

Set default service type.

Set default conversion service.

Definition at line 348 of file PersistencySvc.cpp.

00348                                                              {
00349   m_cnvDefault = service(type);
00350   return StatusCode::SUCCESS;
00351 }

StatusCode PersistencySvc::getService	(	long	service_type,
		IConversionSvc *&	refpSvc
	)			`[virtual]`

Retrieve conversion service identified by technology.

Definition at line 510 of file PersistencySvc.cpp.

00510                                                                                      {
00511   refpSvc = service(service_type);
00512   return (0==refpSvc) ? StatusCode::FAILURE : StatusCode::SUCCESS;
00513 }

StatusCode PersistencySvc::getService	(	const std::string &	service_type,
		IConversionSvc *&	refpSvc
	)			`[virtual]`

Retrieve conversion service identified by technology.

Definition at line 516 of file PersistencySvc.cpp.

00516                                                                                                  {
00517   const char* imp = service_type.c_str();
00518   long len = service_type.length();
00519   if ( ::strncasecmp(imp,"SICB", len) == 0 )
00520     return getService(SICB_StorageType, refpSvc);
00521   else if ( ::strncasecmp(imp,"ZEBRA", len) == 0 )
00522     return getService(SICB_StorageType, refpSvc);
00523   else if ( ::strncasecmp(imp,"MS Access", len) == 0 )
00524     return getService(ACCESS_StorageType, refpSvc);
00525   else if ( ::strncasecmp(imp,"Microsoft Access", strlen("Microsoft Access")) == 0 )
00526     return getService(ACCESS_StorageType, refpSvc);
00527   else if ( ::strncasecmp(imp,"SQL Server", len) == 0 )
00528     return getService(SQLSERVER_StorageType, refpSvc);
00529   else if ( ::strncasecmp(imp,"Microsoft ODBC for Oracle", len) == 0 )
00530     return getService(ORACLE_StorageType, refpSvc);
00531   else if ( ::strncasecmp(imp,"Oracle ODBC", strlen("Oracle ODBC")) == 0 )
00532     return getService(ORACLE_StorageType, refpSvc);
00533   else if ( ::strncasecmp(imp,"Oracle OCI", strlen("Oracle OCI")) == 0 )
00534     return getService(ORACLE_StorageType, refpSvc);
00535   else if ( ::strncasecmp(imp,"MySQL", len) == 0 )
00536     return getService(MYSQL_StorageType, refpSvc);
00537   else if ( ::strncasecmp(imp,"ROOT", len) == 0 )
00538     return getService(ROOT_StorageType, refpSvc);
00539   else if ( ::strncasecmp(imp,"OBJY", len) == 0 )
00540     return getService(OBJY_StorageType, refpSvc);
00541   else if ( ::strncasecmp(imp,"OBJYECTI", 7) == 0 )
00542     return getService(OBJY_StorageType, refpSvc);
00543   else if ( ::strncasecmp(imp,"POOL_ROOTKEY", 12) == 0 )
00544     return getService(POOL_ROOTKEY_StorageType, refpSvc);
00545   else if ( ::strncasecmp(imp,"POOL_ROOTTREE", 12) == 0 )
00546     return getService(POOL_ROOTTREE_StorageType, refpSvc);
00547   else if ( ::strncasecmp(imp,"POOL_ROOT", 9) == 0 )
00548     return getService(POOL_ROOT_StorageType, refpSvc);
00549   else if ( ::strncasecmp(imp,"POOL_MySQL", 8) == 0 )
00550     return getService(POOL_MYSQL_StorageType, refpSvc);
00551   else if ( ::strncasecmp(imp,"POOL_ORACLE", 8) == 0 )
00552     return getService(POOL_ORACLE_StorageType, refpSvc);
00553   else if ( ::strncasecmp(imp,"POOL_ACCESS", 8) == 0 )
00554     return getService(POOL_ACCESS_StorageType, refpSvc);
00555   else if ( ::strncasecmp(imp,"POOL", 4) == 0 )
00556     return getService(POOL_StorageType, refpSvc);
00557
00558   for(Services::const_iterator i=m_cnvServices.begin(); i != m_cnvServices.end();++i)  {
00559     SmartIF<IService> svc((*i).second.conversionSvc());
00560     if ( svc )  {
00561       // Check wether this is already an active service: first check by service name
00562       if ( svc->name() == service_type )  {
00563         refpSvc = (*i).second.conversionSvc();
00564         return StatusCode::SUCCESS;
00565       }
00566       // Check wether this is already an active service: now check by service type
00567       if ( System::typeinfoName(typeid(*(svc.get()))) == service_type )  {
00568         refpSvc = (*i).second.conversionSvc();
00569         return StatusCode::SUCCESS;
00570       }
00571     }
00572   }
00573   const std::vector<std::string>& names = m_svcNames;
00574   // if not, check if the service is in the list and may be requested
00575   for(std::vector<std::string>::const_iterator i=names.begin(); i != names.end(); i++) {
00576     Gaudi::Utils::TypeNameString itm(*i);
00577     if ( itm.name() == service_type || itm.type() == service_type )  {
00578       IConversionSvc* svc = service(*i);
00579       if ( svc )  {
00580         refpSvc = svc;
00581         return StatusCode::SUCCESS;
00582       }
00583     }
00584   }
00585   return StatusCode::FAILURE;
00586 }

StatusCode PersistencySvc::initialize ( ) [virtual]

Initialize the service.

Reimplemented from Service.

Reimplemented in DetPersistencySvc, EvtPersistencySvc, and HistogramPersistencySvc.

Definition at line 594 of file PersistencySvc.cpp.

00594                                           {
00595   m_addrCreator = this; // initialize internal pointer to IAddressCreator interface
00596   // Initialize basic service
00597   StatusCode status = Service::initialize();
00598   if ( !status.isSuccess() )   {
00599     MsgStream log( msgSvc(), name() ); // Service MUST be initialized BEFORE!
00600     log << MSG::ERROR << "Error initializing Service base class." << endmsg;
00601   }
00602   return status;
00603 }

StatusCode PersistencySvc::finalize ( void ) [virtual]

stop the service.

Reimplemented from Service.

Reimplemented in DetPersistencySvc, EvtPersistencySvc, and HistogramPersistencySvc.

Definition at line 606 of file PersistencySvc.cpp.

00606                                          {
00607   // Release all workers
00608   m_cnvServices.clear();
00609   // Release references to this to avoid loops
00610   m_addrCreator = 0;
00611   return StatusCode::SUCCESS;
00612 }

SmartIF< IConversionSvc > & PersistencySvc::service ( const std::string & nam ) [protected]

Retrieve conversion service by name.

Definition at line 235 of file PersistencySvc.cpp.

00235                                                                          {
00236   Gaudi::Utils::TypeNameString tn(nam);
00237   IConversionSvc* svc = 0;
00238   for ( Services::iterator it = m_cnvServices.begin(); it != m_cnvServices.end(); it++ )    {
00239     if ( (*it).second.service()->name() == tn.name() )   {
00240       return (*it).second.conversionSvc();
00241     }
00242   }
00243   StatusCode status = Service::service(nam, svc, true);
00244   if ( status.isSuccess() )   {
00245     if ( addCnvService(svc).isSuccess() )   {
00246       svc->release();       // Do not double-reference count
00247       return service(nam); // now it is in the list
00248     }
00249   }
00250   MsgStream log( msgSvc(), name() );
00251   log << MSG::INFO << "Cannot access Conversion service:" << nam << endmsg;
00252   static SmartIF<IConversionSvc> no_svc;
00253   return no_svc;
00254 }

SmartIF< IConversionSvc > & PersistencySvc::service ( long service_type ) [protected]

Retrieve conversion service from list.

Definition at line 257 of file PersistencySvc.cpp.

00257                                                               {
00258   typedef std::vector<std::string> SvcNames;
00259   // Check wether this is already an active service
00260   Services::iterator it = m_cnvServices.find( type );
00261   if( it != m_cnvServices.end() ) {
00262     return (*it).second.conversionSvc();
00263   }
00264   // if not, check if the service is in the list and may be requested
00265   const SvcNames& theNames = m_svcNames.value();
00266   for ( SvcNames::const_iterator i = theNames.begin(); i != theNames.end(); i++ )   {
00267     SmartIF<IConversionSvc>& svc = service(*i);
00268     if ( svc != 0 )  {
00269       long typ = svc->repSvcType();
00270       if ( typ == type )    {
00271         return svc;
00272       }
00273     }
00274   }
00275   static SmartIF<IConversionSvc> no_svc;
00276   return no_svc;
00277 }

SmartIF< IAddressCreator > & PersistencySvc::addressCreator ( long service_type ) [protected]

Retrieve address creator from list.

Retrieve address creator service from list.

Definition at line 156 of file PersistencySvc.cpp.

00156                                                                       {
00157   long typ = type;
00158   Services::iterator it = m_cnvServices.find( typ );
00159   if( it == m_cnvServices.end() ) {
00160     IConversionSvc* s = service(type);
00161     if ( s )   {
00162       it = m_cnvServices.find( typ );
00163       if ( it != m_cnvServices.end() ) {
00164         return (*it).second.addrCreator();
00165       }
00166     }
00167     static SmartIF<IAddressCreator> no_creator;
00168     return no_creator;
00169   }
00170   return (*it).second.addrCreator();
00171 }

void PersistencySvc::encodeAddrHdr	(	long	service_type,
		const CLID &	clid,
		std::string &	address
	)			const `[protected]`

Retrieve string from storage type and clid.

Definition at line 434 of file PersistencySvc.cpp.

00437 {
00438   // For address header, use xml-style format of
00439   // <addrhdr service_type="xxx" clid="yyy" />
00440   std::stringstream stream;
00441   int svctyp = service_type; // must put int into stream, not char
00442   stream << "<address_header service_type=\"" << svctyp << "\" clid=\"" << clid << "\" /> ";
00443   address = stream.str();
00444 }

void PersistencySvc::decodeAddrHdr	(	const std::string &	address,
		long &	service_type,
		CLID &	clid,
		std::string &	address_trailer
	)			const `[protected]`

Retrieve storage type and clid from address header of string.

Definition at line 447 of file PersistencySvc.cpp.

00451 {
00452   // For address header, use xml-style format of
00453   // <addrhdr service_type="xxx" clid="yyy" />
00454   service_type = 0;
00455   clid = 0;
00456   address_trailer = "";
00457
00458   // Check for addrhdr tag
00459   size_t pos = address.find("<address_header");
00460   if (std::string::npos != pos) {
00461     // Get service_type
00462     pos = address.find("service_type=\"");
00463     if (std::string::npos != pos) {
00464       pos += 14;
00465       size_t end = address.find('\"', pos);
00466         if (std::string::npos != end) {
00467           std::string str;
00468           str.insert(0, address, pos, end-pos);
00469           int temp;
00470           sscanf(str.c_str(),"%d",&temp);
00471           service_type = temp;
00472           // Get clid
00473           pos = address.find("clid=\"");
00474         if (std::string::npos != pos) {
00475           pos += 6;
00476           size_t end1 = address.find('\"', pos);
00477           if (std::string::npos != end1) {
00478             std::string str1;
00479             str1.insert(0, address, pos, end1-pos);
00480             sscanf(str1.c_str(),"%d",&temp);
00481             clid = temp;
00482             // Get trailer_address
00483             pos = address.find(">");
00484             if (std::string::npos != pos) {
00485               pos += 1;
00486               address_trailer.insert(0, address, pos, address.size() - pos);
00487             }
00488           }
00489         }
00490       }
00491     }
00492   }
00493 }

StatusCode PersistencySvc::makeCall	(	int	typ,
		IOpaqueAddress *&	pAddress,
		DataObject *&	pObject
	)			`[protected]`

Implementation helper.

Definition at line 52 of file PersistencySvc.cpp.

00054                                                                {
00055   if ( m_enable )    {
00056     IConversionSvc* svc    = 0;
00057     switch(typ)   {
00058     case CREATE_REP:
00059     case FILL_REP_REFS:
00060     case UPDATE_REP:
00061     case UPDATE_REP_REFS:
00062       svc = m_cnvDefault;
00063       break;
00064     default:
00065       if ( 0 != pAddress )    {
00066         long svc_type = pAddress->svcType();
00067         svc = service(svc_type);
00068         if ( 0 == svc )   {
00069           return BAD_STORAGE_TYPE;
00070         }
00071       }
00072       else  {
00073         return INVALID_ADDRESS;
00074       }
00075       break;
00076     }
00077
00078     StatusCode status(StatusCode::FAILURE,true);
00079     switch( typ )     {
00080     case CREATE_OBJ:
00081       pObject = 0;
00082       status = svc->createObj(pAddress, pObject);
00083       break;
00084     case FILL_OBJ_REFS:
00085       status = svc->fillObjRefs(pAddress, pObject);
00086       break;
00087     case UPDATE_OBJ:
00088       status = svc->updateObj(pAddress, pObject);
00089       break;
00090     case UPDATE_OBJ_REFS:
00091       status = svc->updateObjRefs(pAddress, pObject);
00092       break;
00093     case CREATE_REP:
00094       status = svc->createRep(pObject, pAddress);
00095       break;
00096     case FILL_REP_REFS:
00097       status = svc->fillRepRefs(pAddress, pObject);
00098       break;
00099     case UPDATE_REP:
00100       status = svc->updateRep(pAddress, pObject);
00101       break;
00102     case UPDATE_REP_REFS:
00103       status = svc->updateRepRefs(pAddress, pObject);
00104       break;
00105     default:
00106       status = StatusCode::FAILURE;
00107       break;
00108     }
00109     status.ignore();
00110     return status;
00111   }
00112   return StatusCode::SUCCESS;
00113 }

bool PersistencySvc::enable ( bool value ) [protected]

Set enabled flag.

Definition at line 620 of file PersistencySvc.cpp.

00621 {
00622   bool old = m_enable;
00623   m_enable = value;
00624   return old;
00625 }

void PersistencySvc::svcNamesHandler ( Property & theProp ) [protected]

Handlers for Service Names Property.

Definition at line 614 of file PersistencySvc.cpp.

00614                                                       {
00615   MsgStream log( msgSvc(), name() );
00616   log << MSG::INFO << p << endmsg ;
00617 }

Friends And Related Function Documentation

friend class SvcFactory< PersistencySvc > [friend]

Definition at line 58 of file PersistencySvc.h.

friend class Factory< PersistencySvc, IService *(std::string, ISvcLocator *)> [friend]

Definition at line 59 of file PersistencySvc.h.

Member Data Documentation

long PersistencySvc::m_cnvDefType [protected]

Default service type.

Definition at line 280 of file PersistencySvc.h.

SmartIF<IDataProviderSvc> PersistencySvc::m_dataSvc [mutable, protected]

Pointer to datma provider service.

Definition at line 282 of file PersistencySvc.h.

Services PersistencySvc::m_cnvServices [protected]

List of convermsion workers.

Definition at line 284 of file PersistencySvc.h.

SmartIF<IConversionSvc> PersistencySvc::m_cnvDefault [mutable, protected]

Default output service.

Definition at line 286 of file PersistencySvc.h.

StringArrayProperty PersistencySvc::m_svcNames [protected]

Names of services to be requested from the service locator and added by default.

Definition at line 290 of file PersistencySvc.h.

bool PersistencySvc::m_enable [protected]

Flag to indicate that the service is enabled.

Definition at line 292 of file PersistencySvc.h.

SmartIF<IAddressCreator> PersistencySvc::m_addrCreator [mutable, protected]

Pointer to the IAddressCreator interface of this, for addressCreator().

Definition at line 295 of file PersistencySvc.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r9/GaudiSvc/src/PersistencySvc/PersistencySvc.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r9/GaudiSvc/src/PersistencySvc/PersistencySvc.cpp


: Object implementation
	PersistencySvc (const std::string &name, ISvcLocator *svc)
	Standard Constructor.
virtual	~PersistencySvc ()
	Standard Destructor.
SmartIF< IConversionSvc > &	service (const std::string &nam)
	Retrieve conversion service by name.
SmartIF< IConversionSvc > &	service (long service_type)
	Retrieve conversion service from list.
SmartIF< IAddressCreator > &	addressCreator (long service_type)
	Retrieve address creator from list.
void	encodeAddrHdr (long service_type, const CLID &clid, std::string &address) const
	Retrieve string from storage type and clid.
void	decodeAddrHdr (const std::string &address, long &service_type, CLID &clid, std::string &address_trailer) const
	Retrieve storage type and clid from address header of string.
StatusCode	makeCall (int typ, IOpaqueAddress &pAddress, DataObject &pObject)
	Implementation helper.
bool	enable (bool value)
	Set enabled flag.
Public Member Functions
IPersistencySvc Interface implementation
long	repSvcType () const
	Return default service type.
const CLID &	objType () const
	Retrieve the class type of objects the converter produces. (DUMMY).
virtual StatusCode	createObj (IOpaqueAddress pAddress, DataObject &refpObject)
	Implementation of IConverter: Create the transient representation of an object.
virtual StatusCode	fillObjRefs (IOpaqueAddress pAddress, DataObject pObject)
	Implementation of IConverter: Resolve the references of the created transient object.
virtual StatusCode	updateObj (IOpaqueAddress pAddress, DataObject refpObject)
	Implementation of IConverter: Update the transient object from the other representation.
virtual StatusCode	updateObjRefs (IOpaqueAddress pAddress, DataObject pObject)
	Implementation of IConverter: Update the references of an updated transient object.
virtual StatusCode	createRep (DataObject pObject, IOpaqueAddress &refpAddress)
	Implementation of IConverter: Convert the transient object to the requested representation.
virtual StatusCode	fillRepRefs (IOpaqueAddress pAddress, DataObject pObject)
	Implementation of IConverter: Resolve the references of the converted object.
virtual StatusCode	updateRep (IOpaqueAddress pAddress, DataObject pObject)
	Implementation of IConverter: Update the converted representation of a transient object.
virtual StatusCode	updateRepRefs (IOpaqueAddress pAddress, DataObject pObject)
	Implementation of IConverter: Update the references of an already converted object.
virtual StatusCode	setDataProvider (IDataProviderSvc *pStore)
	Define transient datastore.
virtual SmartIF < IDataProviderSvc > &	dataProvider () const
	Access reference to transient datastore.
virtual StatusCode	setConversionSvc (IConversionSvc *svc)
	Set conversion service the converter is connected to.
virtual SmartIF< IConversionSvc > &	conversionSvc () const
	Get conversion service the converter is connected to.
virtual StatusCode	setAddressCreator (IAddressCreator *creator)
	Set address creator facility.
virtual SmartIF < IAddressCreator > &	addressCreator () const
	Retrieve address creator facility.
virtual StatusCode	addConverter (IConverter *pConverter)
	Add converter object to conversion service.
virtual StatusCode	addConverter (const CLID &clid)
	Add converter object to conversion service.
virtual IConverter *	converter (const CLID &clid)
	Retrieve converter from list.
virtual StatusCode	removeConverter (const CLID &clid)
	Remove converter object from conversion service (if present).
virtual StatusCode	connectOutput (const std::string &outputFile, const std::string &openMode)
	Connect the output file to the service with open mode.
virtual StatusCode	connectOutput (const std::string &outputFile)
	Connect the output file to the service.
virtual StatusCode	commitOutput (const std::string &output, bool do_commit)
	Commit pending output.
virtual StatusCode	createAddress (long svc_type, const CLID &clid, const std::string pars, const unsigned long ipars, IOpaqueAddress *&refpAddress)
	Create a Generic address using explicit arguments to identify a single object.
virtual StatusCode	convertAddress (const IOpaqueAddress *pAddress, std::string &refAddress)
	Convert an address to string form.
virtual StatusCode	createAddress (long svc_type, const CLID &clid, const std::string &refAddress, IOpaqueAddress *&refpAddress)
	Convert an address in string form to object form.
: IPersistencySvc implementation
virtual StatusCode	addCnvService (IConversionSvc *service)
	Add a new Service.
virtual StatusCode	removeCnvService (long type)
	Remove a Service.
virtual StatusCode	setDefaultCnvService (long type)
	Set default service type.
virtual StatusCode	getService (long service_type, IConversionSvc *&refpSvc)
	Retrieve conversion service identified by technology.
virtual StatusCode	getService (const std::string &service_type, IConversionSvc *&refpSvc)
	Retrieve conversion service identified by technology.
: IService implementation
virtual StatusCode	initialize ()
	Initialize the service.
virtual StatusCode	finalize ()
	stop the service.
Protected Types
typedef std::map< long, ServiceEntry >	Services
Protected Member Functions
void	svcNamesHandler (Property &theProp)
	Handlers for Service Names Property.
Protected Attributes
long	m_cnvDefType
	Default service type.
SmartIF< IDataProviderSvc >	m_dataSvc
	Pointer to datma provider service.
Services	m_cnvServices
	List of convermsion workers.
SmartIF< IConversionSvc >	m_cnvDefault
	Default output service.
StringArrayProperty	m_svcNames
	Names of services to be requested from the service locator and added by default.
bool	m_enable
	Flag to indicate that the service is enabled.
SmartIF< IAddressCreator >	m_addrCreator
	Pointer to the IAddressCreator interface of this, for addressCreator().
Friends
class	SvcFactory< PersistencySvc >
class	Factory< PersistencySvc, IService (std::string, ISvcLocator )>
Classes
class	ServiceEntry

Gaudi Framework, version v21r9

PersistencySvc Class Reference

: Object implementation

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes
