StoreExplorerAlg Class Reference

Small algorith, which traverses the data store and prints generic information about all leaves, which can be loaded/accessed. More...

Inheritance diagram for StoreExplorerAlg:

Inheritance graph
[legend]

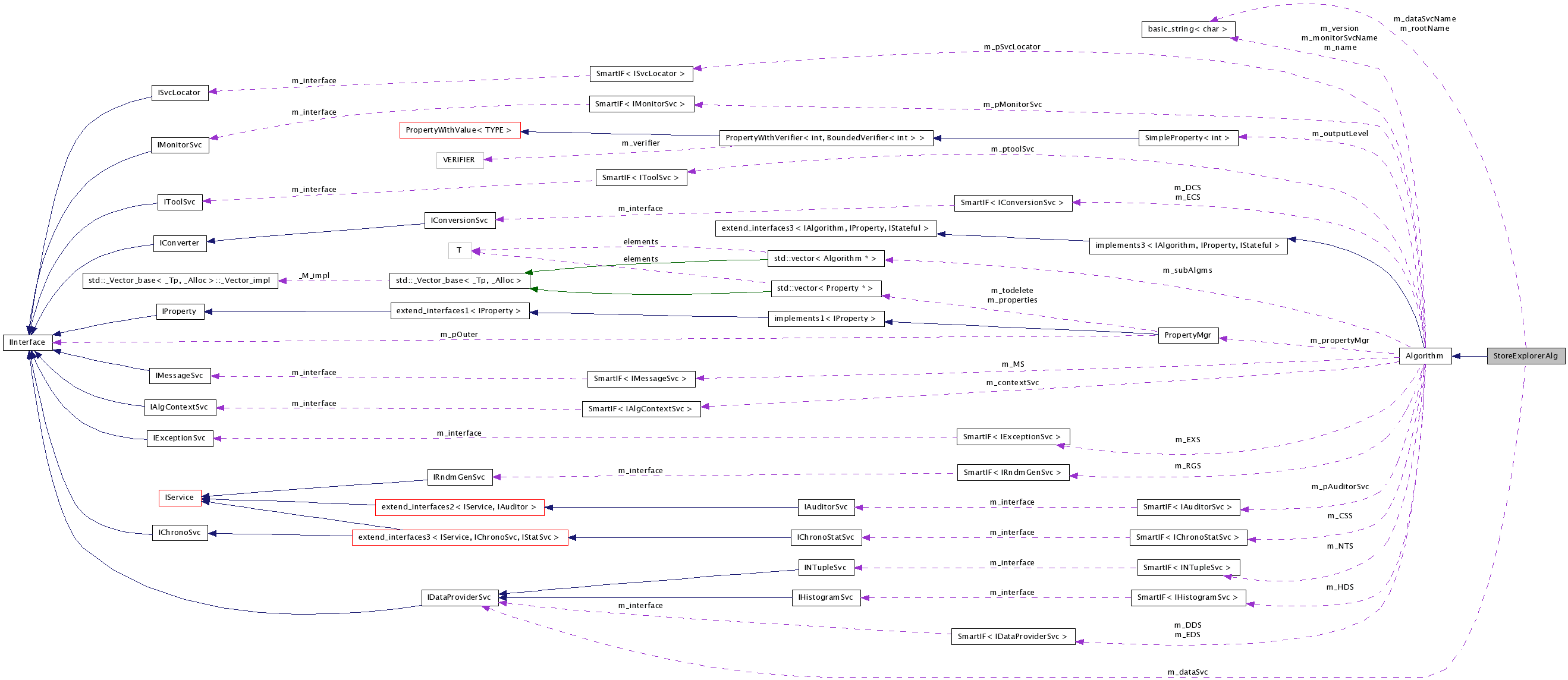

Collaboration diagram for StoreExplorerAlg:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 StoreExplorerAlg (const std::string &name, ISvcLocator *pSvcLocator)
 Standard algorithm constructor.
virtual ~StoreExplorerAlg ()
 Standard Destructor.
template<class T>
std::string access (T *p)
void printObj (IRegistry *pReg, std::vector< bool > &flg)
 Print datastore leaf.
void explore (IRegistry *pObj, std::vector< bool > &flg)
virtual StatusCode initialize ()
 Initialize.
virtual StatusCode finalize ()
 Finalize.
virtual StatusCode execute ()
 Execute procedure.

Private Attributes

long m_print
 Job option to limit printout to first nnn events.
double m_frequency
 Job option to set the printout frequency.
bool m_exploreRelations
 Flag to check if relations should be followed.
long m_printMissing
 Flag to indicate if missing entities should be printed.
long m_total
 Internal counter to trigger printouts.
long m_frqPrint
 Internal counter to adjust printout frequency.
bool m_load
 Flag to load non existing items.
bool m_testAccess
 Flag to test access to objects (DataObject and ContainedObject).
bool m_accessForeign
 Flag to indicate if foreign files should be opened.
IDataProviderSvc * m_dataSvc
 Reference to data provider service.
std::string m_dataSvcName
 Name of the data provider service.
std::string m_rootName
 Name of the root leaf (obtained at initialize).

Detailed Description

Small algorith, which traverses the data store and prints generic information about all leaves, which can be loaded/accessed.

Author:
: M.Frank
Version:
: 1.0

Definition at line 32 of file StoreExplorerAlg.cpp.

Constructor & Destructor Documentation

StoreExplorerAlg::StoreExplorerAlg ( const std::string &  name,
ISvcLocator *  pSvcLocator
) [inline]

Standard algorithm constructor.

Definition at line 60 of file StoreExplorerAlg.cpp.

00061   :     Algorithm(name, pSvcLocator), m_dataSvc(0)
00062   {
00063     m_total = m_frqPrint = 0;
00064     declareProperty("Load",             m_load = false);
00065     declareProperty("PrintEvt",         m_print = 1);
00066     declareProperty("PrintMissing",     m_printMissing = 0);
00067     declareProperty("PrintFreq",        m_frequency = 0.0);
00068     declareProperty("ExploreRelations", m_exploreRelations = false);
00069     declareProperty("DataSvc",          m_dataSvcName="EventDataSvc");
00070     declareProperty("TestAccess",       m_testAccess = false);
00071     declareProperty("AccessForeign",    m_accessForeign = false);
00072   }

virtual StoreExplorerAlg::~StoreExplorerAlg (  )  [inline, virtual]

Standard Destructor.

Definition at line 74 of file StoreExplorerAlg.cpp.

00074                                   {
00075   }

Member Function Documentation

template<class T>
std::string StoreExplorerAlg::access ( T *  p  )  [inline]

Definition at line 78 of file StoreExplorerAlg.cpp.

00078                           {
00079     if ( p )  {
00080       std::stringstream s;
00081       for (typename T::const_iterator i = p->begin(); i != p->end(); ++i )  {
00082         int idx = p->index(*i);
00083         s << idx << ":" << (*i)->clID() << ",";
00084       }
00085       std::string result = s.str();
00086       return result.substr(0, result.length()-2);
00087     }
00088     return "Access FAILED.";
00089   }

void StoreExplorerAlg::printObj ( IRegistry *  pReg,
std::vector< bool > &  flg
) [inline]

Print datastore leaf.

Definition at line 93 of file StoreExplorerAlg.cpp.

00093                                                           {
00094     MsgStream log(msgSvc(), name());
00095     log << MSG::INFO;
00096     for (size_t j = 1; j < flg.size(); j++ )     {
00097       if ( !flg[j-1] && flg[j] ) log << "| ";
00098       else if ( flg[j] ) log << "  ";
00099       else          log << "| ";
00100     }
00101     log << "+--> " << pReg->name();
00102     if ( pReg->address() )  {
00103       log << " [Address: CLID="
00104           << std::showbase << std::hex << pReg->address()->clID();
00105       log << " Type=" << (void*)pReg->address()->svcType() << "]";
00106     }
00107     else  {
00108       log << " [No Address]";
00109     }
00110     DataObject* p = pReg->object();
00111     if ( p )   {
00112       try  {
00113         std::string typ = System::typeinfoName(typeid(*p));
00114         if ( m_testAccess )  {
00115           p->clID();
00116         }
00117         log << "  " << typ.substr(0,32);
00118       }
00119       catch (...)  {
00120         log << "Access test FAILED";
00121       }
00122     }
00123     else    {
00124       log << "  (Unloaded) ";
00125     }
00126     ObjectContainerBase* base = dynamic_cast<ObjectContainerBase*>(p);
00127     if ( base )  {
00128       try   {
00129         int numObj = base->numberOfObjects();
00130         const CLID id = p->clID();
00131         log << " [" << numObj << "]";
00132         if ( m_testAccess )  {
00133           CLID idd = id>>16;
00134           switch(idd) {
00135             case CLID_ObjectList>>16:                /* ObjectList    */
00136               access((ObjectList<ContainedObject>*)base);
00137               break;
00138             case CLID_ObjectVector>>16:              /* ObjectVector  */
00139               access((ObjectVector<ContainedObject>*)base);
00140               break;
00141             case (CLID_ObjectVector+0x00030000)>>16: /* Keyed Map     */
00142               access((KeyedContainer<KeyedObject<int>,Containers::Map>*)base);
00143               break;
00144             case (CLID_ObjectVector+0x00040000)>>16: /* Keyed Hashmap */
00145               access((KeyedContainer<KeyedObject<int>,Containers::HashMap>*)base);
00146               break;
00147             case (CLID_ObjectVector+0x00050000)>>16: /* Keyed array   */
00148               access((KeyedContainer<KeyedObject<int>,Containers::Array>*)base);
00149               break;
00150           }
00151         }
00152       }
00153       catch (...)  {
00154         log << "Access test FAILED";
00155       }
00156     }
00157     log << endmsg;
00158   }

void StoreExplorerAlg::explore ( IRegistry *  pObj,
std::vector< bool > &  flg
) [inline]

Definition at line 160 of file StoreExplorerAlg.cpp.

00160                                                          {
00161     printObj(pObj, flg);
00162     if ( 0 != pObj )    {
00163       SmartIF<IDataManagerSvc> mgr(eventSvc());
00164       if ( mgr )    {
00165         typedef std::vector<IRegistry*> Leaves;
00166         Leaves leaves;
00167         StatusCode sc = mgr->objectLeaves(pObj, leaves);
00168         const std::string* par0 = 0;
00169         if ( pObj->address() )  {
00170           par0 = pObj->address()->par();
00171         }
00172         if ( sc.isSuccess() )  {
00173           for ( Leaves::const_iterator i=leaves.begin(); i != leaves.end(); i++ )   {
00174             const std::string& id = (*i)->identifier();
00175             DataObject* p = 0;
00176             if ( !m_accessForeign && (*i)->address() )  {
00177               if ( par0 )  {
00178                 const std::string* par1 = (*i)->address()->par();
00179                 if ( par1 )  {
00180                   if ( par0[0] != par1[0] )  {
00181                     continue;
00182                   }
00183                 }
00184               }
00185             }
00186             if ( m_load )  {
00187               sc = eventSvc()->retrieveObject(id, p);
00188             }
00189             else {
00190               sc = eventSvc()->findObject(id, p);
00191             }
00192             if ( sc.isSuccess() )  {
00193               if ( id != "/Event/Rec/Relations" || m_exploreRelations )   {
00194                 flg.push_back(i+1 == leaves.end());
00195                 explore(*i, flg);
00196                 flg.pop_back();
00197               }
00198             }
00199             else {
00200               flg.push_back(i+1 == leaves.end());
00201               printObj(*i, flg);
00202               flg.pop_back();
00203             }
00204           }
00205         }
00206       }
00207     }
00208   }

virtual StatusCode StoreExplorerAlg::initialize (  )  [inline, virtual]

Initialize.

Reimplemented from Algorithm.

Definition at line 211 of file StoreExplorerAlg.cpp.

00211                                     {
00212     MsgStream log(msgSvc(), name());
00213     m_rootName = "";
00214     StatusCode sc = service(m_dataSvcName, m_dataSvc, true);
00215     if ( sc.isSuccess() )  {
00216       SmartIF<IDataManagerSvc> mgr(m_dataSvc);
00217       if ( mgr )  {
00218         m_rootName = mgr->rootName();
00219         return sc;
00220       }
00221       log << MSG::ERROR << "Failed to retrieve IDataManagerSvc interface." << endmsg;
00222       return StatusCode::FAILURE;
00223     }
00224     log << MSG::ERROR << "Failed to access service \""
00225         << m_dataSvcName << "\"." << endmsg;
00226     return StatusCode::FAILURE;
00227   }

virtual StatusCode StoreExplorerAlg::finalize ( void   )  [inline, virtual]

Finalize.

Reimplemented from Algorithm.

Definition at line 230 of file StoreExplorerAlg.cpp.

00230                                 {
00231     if ( m_dataSvc ) m_dataSvc->release();
00232     m_dataSvc = 0;
00233     return StatusCode::SUCCESS;
00234   }

virtual StatusCode StoreExplorerAlg::execute (  )  [inline, virtual]

Execute procedure.

Definition at line 237 of file StoreExplorerAlg.cpp.

00237                                   {
00238     MsgStream log(msgSvc(), name());
00239     SmartDataPtr<DataObject>   root(m_dataSvc,m_rootName);
00240     if ( ((m_print > m_total++) || (m_frequency*m_total > m_frqPrint)) && root )    {
00241       if ( m_frequency*m_total > m_frqPrint )  {
00242         m_frqPrint++;
00243       }
00244       std::string store_name = "Unknown";
00245       IRegistry* pReg = root->registry();
00246       if ( pReg )  {
00247         SmartIF<IService> isvc(pReg->dataSvc());
00248         if ( isvc )  {
00249           store_name = isvc->name();
00250         }
00251       }
00252       log << MSG::INFO << "========= " << m_rootName << "["
00253           << "0x" << std::hex << (unsigned long) root.ptr() << std::dec
00254           << "@" << store_name << "]:" << endmsg;
00255       std::vector<bool> flg;
00256       flg.push_back(true);
00257       explore(root->registry(), flg);
00258       return StatusCode::SUCCESS;
00259     }
00260     else if ( root )   {
00261       return StatusCode::SUCCESS;
00262     }
00263     log << MSG::ERROR << "Cannot retrieve \"/Event\"!" << endmsg;
00264     return StatusCode::FAILURE;
00265   }

Member Data Documentation

long StoreExplorerAlg::m_print [private]

Job option to limit printout to first nnn events.

Definition at line 34 of file StoreExplorerAlg.cpp.

double StoreExplorerAlg::m_frequency [private]

Job option to set the printout frequency.

Definition at line 36 of file StoreExplorerAlg.cpp.

bool StoreExplorerAlg::m_exploreRelations [private]

Flag to check if relations should be followed.

Definition at line 38 of file StoreExplorerAlg.cpp.

long StoreExplorerAlg::m_printMissing [private]

Flag to indicate if missing entities should be printed.

Definition at line 40 of file StoreExplorerAlg.cpp.

long StoreExplorerAlg::m_total [private]

Internal counter to trigger printouts.

Definition at line 42 of file StoreExplorerAlg.cpp.

long StoreExplorerAlg::m_frqPrint [private]

Internal counter to adjust printout frequency.

Definition at line 44 of file StoreExplorerAlg.cpp.

bool StoreExplorerAlg::m_load [private]

Flag to load non existing items.

Definition at line 46 of file StoreExplorerAlg.cpp.

bool StoreExplorerAlg::m_testAccess [private]

Flag to test access to objects (DataObject and ContainedObject).

Definition at line 48 of file StoreExplorerAlg.cpp.

bool StoreExplorerAlg::m_accessForeign [private]

Flag to indicate if foreign files should be opened.

Definition at line 50 of file StoreExplorerAlg.cpp.

IDataProviderSvc* StoreExplorerAlg::m_dataSvc [private]

Reference to data provider service.

Definition at line 52 of file StoreExplorerAlg.cpp.

std::string StoreExplorerAlg::m_dataSvcName [private]

Name of the data provider service.

Definition at line 54 of file StoreExplorerAlg.cpp.

std::string StoreExplorerAlg::m_rootName [private]

Name of the root leaf (obtained at initialize).

Definition at line 56 of file StoreExplorerAlg.cpp.

The documentation for this class was generated from the following file:
Generated at Mon May 3 12:26:32 2010 for Gaudi Framework, version v21r9 by Doxygen version 1.5.6 written by Dimitri van Heesch, © 1997-2004
