THistSvc Class Reference

#include <THistSvc.h>

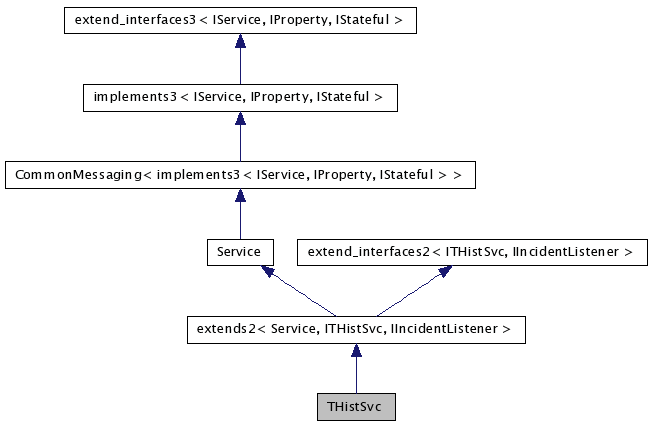

Inheritance diagram for THistSvc:

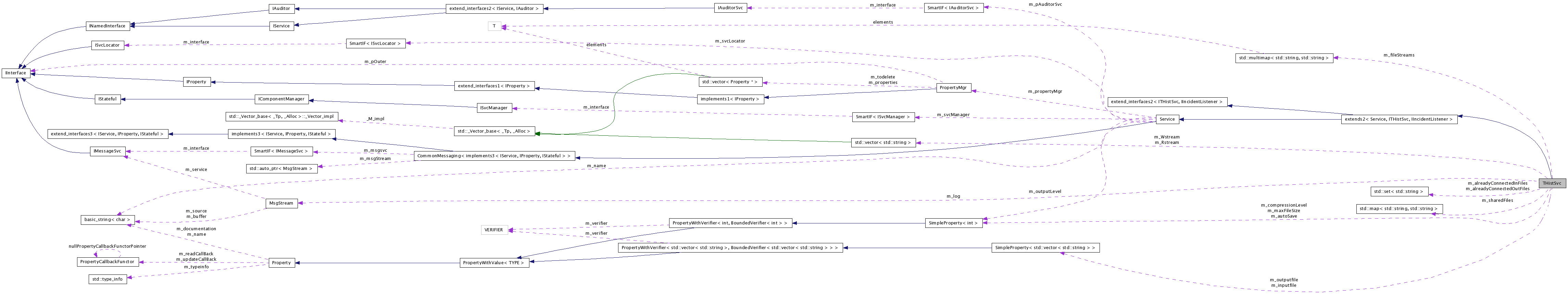

Collaboration diagram for THistSvc:

Detailed Description

Definition at line 26 of file THistSvc.h.

Member Typedef Documentation

typedef std::map<std::string, THistID> THistSvc::uidMap [private]

Definition at line 114 of file THistSvc.h.

typedef std::multimap<std::string, THistID> THistSvc::idMap [private]

Definition at line 115 of file THistSvc.h.

typedef std::map<TObject*, THistID> THistSvc::objMap [private]

Definition at line 116 of file THistSvc.h.

typedef std::multimap<std::string, std::string> THistSvc::streamMap [private]

Definition at line 117 of file THistSvc.h.

Member Enumeration Documentation

enum THistSvc::Mode [private]

Enumerator:

READ
WRITE
UPDATE
APPEND
SHARE

Definition at line 104 of file THistSvc.h.

00104             {
00105     READ,
00106     WRITE,
00107     UPDATE,
00108     APPEND,
00109     SHARE
00110   };

Constructor & Destructor Documentation

THistSvc::THistSvc	(	const std::string &	name,
		ISvcLocator *	svc
	)

Definition at line 43 of file THistSvc.cpp.

00044   : base_class(name, svc), m_log(msgSvc(), name ), signaledStop(false) {
00045
00046   declareProperty ("Output", m_outputfile );
00047   declareProperty ("Input", m_inputfile );
00048   declareProperty ("AutoSave", m_autoSave=0 );
00049   declareProperty ("PrintAll", m_print=false);
00050   declareProperty ("CompressionLevel", m_compressionLevel=1 );
00051   declareProperty ("MaxFileSize", m_maxFileSize=5120,
00052                    "maximum file size in MB. if exceeded, will cause an abort");
00053
00054   m_inputfile.declareUpdateHandler ( &THistSvc::setupInputFile,  this );
00055   m_outputfile.declareUpdateHandler( &THistSvc::setupOutputFile, this );
00056 }

THistSvc::~THistSvc ( ) [protected, virtual]

Definition at line 60 of file THistSvc.cpp.

00060                     {
00061
00062 }

Member Function Documentation

StatusCode THistSvc::initialize ( ) [virtual]

Reimplemented from Service.

Definition at line 67 of file THistSvc.cpp.

00067                      {
00068   GlobalDirectoryRestore restore;
00069
00070   m_alreadyConnectedOutFiles.clear();
00071   m_alreadyConnectedInFiles.clear();
00072
00073   StatusCode status = Service::initialize();
00074   m_log.setLevel( m_outputLevel.value() );
00075
00076   if (status.isFailure()) {
00077     MsgStream log ( msgSvc(), name() );
00078     log << MSG::ERROR << "initializing service" << endmsg;
00079     return status;
00080   }
00081
00082   vector<string>::const_iterator itr;
00083   StatusCode st(StatusCode::SUCCESS);
00084
00085   try {
00086     setupOutputFile( m_outputfile );
00087   } catch ( GaudiException& err ) {
00088     m_log << MSG::ERROR
00089           << "Caught: " << err << endmsg;
00090     st = StatusCode::FAILURE;
00091   }
00092
00093   try {
00094     setupInputFile( m_inputfile );
00095   } catch ( GaudiException& err ) {
00096     m_log << MSG::ERROR
00097           << "Caught: " << err << endmsg;
00098     st = StatusCode::FAILURE;
00099   }
00100
00101   // Protect against multiple instances of TROOT
00102   if ( 0 == gROOT )   {
00103     static TROOT root("root","ROOT I/O");
00104     //    gDebug = 99;
00105   } else {
00106     m_log << MSG::VERBOSE << "ROOT already initialized, debug = "
00107           << gDebug<< endmsg;
00108   }
00109
00110   IIncidentSvc* p_incSvc(0);
00111
00112   if (service("IncidentSvc", p_incSvc, true).isFailure()) {
00113     m_log << MSG::ERROR << "unable to get the IncidentSvc" << endmsg;
00114     st = StatusCode::FAILURE;
00115   } else {
00116     p_incSvc->addListener( this, "EndEvent", 100, true);
00117   }
00118
00119   if (st.isFailure()) {
00120     m_log << MSG::FATAL << "Unable to initialize THistSvc" << endmsg;
00121   }
00122
00123   return st;
00124
00125 }

StatusCode THistSvc::reinitialize ( ) [virtual]

Reimplemented from Service.

Definition at line 130 of file THistSvc.cpp.

00130                        {
00131
00132   GlobalDirectoryRestore restore;
00133
00134   m_log << MSG::WARNING << "reinitialize not implemented" << endmsg;
00135
00136
00137   return StatusCode::SUCCESS;
00138
00139 }

StatusCode THistSvc::finalize ( void ) [virtual]

Reimplemented from Service.

Definition at line 144 of file THistSvc.cpp.

00144                    {
00145
00146   GlobalDirectoryRestore restore;
00147
00148   m_log << MSG::DEBUG << "THistSvc::finalize" << endmsg;
00149
00150   uidMap::const_iterator uitr;
00151   for (uitr=m_uids.begin(); uitr != m_uids.end(); ++uitr) {
00152
00153     TObject* to = uitr->second.obj;
00154
00155     string dirname("none");
00156     if (to->IsA()->InheritsFrom("TTree")) {
00157       TTree* tr = dynamic_cast<TTree*>(to);
00158       if (tr->GetDirectory() != 0) {
00159         dirname = tr->GetDirectory()->GetPath();
00160       }
00161     } else if (to->IsA()->InheritsFrom("TGraph")) {
00162       if (!uitr->second.temp) {
00163         dirname = uitr->second.file->GetPath();
00164         string id2(uitr->second.id);
00165         id2.erase(0,id2.find("/",1));
00166         id2.erase(id2.rfind("/"), id2.length());
00167         if (id2.find("/") == 0) {
00168           id2.erase(0,1);
00169         }
00170         dirname += id2;
00171       } else {
00172         dirname = "/tmp";
00173       }
00174     } else if (to->IsA()->InheritsFrom("TH1")) {
00175       TH1* th = dynamic_cast<TH1*>(to);
00176       if (th == 0) {
00177         m_log << MSG::ERROR << "Couldn't dcast: " << uitr->first << endmsg;
00178       } else {
00179         if (th->GetDirectory() != 0) {
00180           dirname = th->GetDirectory()->GetPath();
00181         }
00182       }
00183     }
00184
00185     m_log << MSG::DEBUG << "uid: \"" << uitr->first << "\"  temp: "
00186         << uitr->second.temp << "  dir: " << dirname
00187         << endmsg;
00188
00189
00190 //     if (uitr->second.temp == true) {
00191 //       log << MSG::INFO << "Deleting \"" << uitr->first << "\"" << endmsg;
00192 //       delete uitr->second.obj;
00193 //     }
00194   }
00195
00196   StatusCode sc = write();
00197   if (sc.isFailure()) {
00198     m_log << MSG::ERROR << "problems writing histograms" << endmsg;
00199   }
00200
00201   if (m_print) {
00202     m_log << MSG::INFO << "Listing contents of ROOT files: " << endmsg;
00203   }
00204   vector<TFile*> deleted_files;
00205   map<string, pair<TFile*,Mode> >::const_iterator itr;
00206   for (itr = m_files.begin(); itr != m_files.end(); ++itr) {
00207
00208     if (find(deleted_files.begin(), deleted_files.end(), itr->second.first) ==
00209         deleted_files.end()) {
00210       deleted_files.push_back(itr->second.first);
00211
00212       m_log << MSG::DEBUG << "finalizing stream/file " << itr->first << ":"
00213             << itr->second.first->GetName()
00214             << endmsg;
00215     } else {
00216       m_log << MSG::DEBUG << "already finalized stream " << itr->first << endmsg;
00217       continue;
00218     }
00219
00220
00221     if (m_print && m_log.level() <= MSG::INFO) {
00222
00223       m_log << MSG::INFO;
00224       m_log << "==> File: " << itr->second.first->GetName()
00225             << "  stream: " << itr->first << endmsg;
00226
00227       itr->second.first->Print("base");
00228     }
00229
00230     string tmpfn=itr->second.first->GetName();
00231
00232     itr->second.first->Close();
00233
00234     if (itr->second.second==SHARE) {
00235       TFile *outputfile;
00236       //Merge File
00237       try {
00238         m_log << MSG::DEBUG << "Opening Final Output File: " <<m_sharedFiles[itr->first].c_str()<<endmsg;
00239         outputfile = new TFile(m_sharedFiles[itr->first].c_str(), "UPDATE");
00240       } catch (const std::exception& Exception) {
00241       m_log << MSG::ERROR << "exception caught while trying to open root"
00242             << " file for appending: " << Exception.what() << std::endl
00243             << "  -> file probably corrupt." << endmsg;
00244       return StatusCode::FAILURE;
00245       } catch (...) {
00246         m_log << MSG::ERROR << "Problems opening output file  \"" << m_sharedFiles[itr->first]
00247             << "\" for append: probably corrupt" << endmsg;
00248         return StatusCode::FAILURE;
00249       }
00250
00251       m_log << MSG::DEBUG << "THistSvc::write()::Merging Rootfile "<<endmsg;
00252       TFile *inputfile;
00253       try {
00254         m_log << MSG::DEBUG << "Openning again Temporary File: " <<tmpfn.c_str()<<endmsg;
00255         inputfile=new TFile(tmpfn.c_str(),"READ");
00256       } catch (const std::exception& Exception) {
00257         m_log << MSG::ERROR << "exception caught while trying to open root"
00258               << " file for appending: " << Exception.what() << std::endl
00259               << "  -> file probably corrupt." << endmsg;
00260         return StatusCode::FAILURE;
00261       } catch (...) {
00262         m_log << MSG::ERROR << "Problems opening output file  \""
00263               << tmpfn.c_str()
00264               << "\" for append: probably corrupt" << endmsg;
00265         return StatusCode::FAILURE;
00266       }
00267
00268       MergeRootFile(outputfile, inputfile);
00269
00270       outputfile->SetCompressionLevel( m_compressionLevel );
00271
00272       outputfile->Write();
00273       outputfile->Close();
00274       inputfile->Close();
00275
00276       m_log << MSG::DEBUG << "Trying to remove temporary file \"" << tmpfn
00277             << "\""<<endmsg;
00278
00279       std::remove(tmpfn.c_str());
00280     }
00281     delete itr->second.first;
00282   }
00283
00284   m_sharedFiles.clear();
00285   m_fileStreams.clear();
00286   m_files.clear();
00287   m_uids.clear();
00288   m_ids.clear();
00289   m_tobjs.clear();
00290
00291   return Service::finalize();
00292 }

StatusCode THistSvc::regHist ( const std::string & name ) [virtual]

Definition at line 515 of file THistSvc.cpp.

00515                                      {
00516
00517   TH1 *hist(0);
00518
00519   return regHist_i(hist, id);
00520 }

StatusCode THistSvc::regHist	(	const std::string &	name,
		TH1 *	hist
	)			`[virtual]`

Definition at line 525 of file THistSvc.cpp.

00525                                                 {
00526   return regHist_i(hist, id);
00527 }

StatusCode THistSvc::regHist	(	const std::string &	name,
		TH2 *	hist
	)			`[virtual]`

Definition at line 532 of file THistSvc.cpp.

00532                                                 {
00533   return regHist_i(hist, id);
00534 }

StatusCode THistSvc::regHist	(	const std::string &	name,
		TH3 *	hist
	)			`[virtual]`

Definition at line 539 of file THistSvc.cpp.

00539                                                 {
00540   return regHist_i(hist, id);
00541 }

StatusCode THistSvc::getHist	(	const std::string &	name,
		TH1 *&	hist
	)			const `[virtual]`

Definition at line 593 of file THistSvc.cpp.

00593                                                        {
00594   return getHist_i(id, hist);
00595 }

StatusCode THistSvc::getHist	(	const std::string &	name,
		TH2 *&	hist
	)			const `[virtual]`

Definition at line 600 of file THistSvc.cpp.

00600                                                        {
00601   return getHist_i(id, hist);
00602 }

StatusCode THistSvc::getHist	(	const std::string &	name,
		TH3 *&	hist
	)			const `[virtual]`

Definition at line 607 of file THistSvc.cpp.

00607                                                        {
00608   return getHist_i(id, hist);
00609 }

StatusCode THistSvc::regTree ( const std::string & name ) [virtual]

Definition at line 546 of file THistSvc.cpp.

00546                                      {
00547   TTree *hist(0);
00548   return regHist_i(hist, id);
00549 }

StatusCode THistSvc::regTree	(	const std::string &	name,
		TTree *	hist
	)			`[virtual]`

Definition at line 554 of file THistSvc.cpp.

00554                                                   {
00555   StatusCode sc = regHist_i(hist, id);
00556   if (hist != 0 && m_autoSave != 0 && sc.isSuccess()) {
00557     hist->SetAutoSave(m_autoSave);
00558   }
00559   return sc;
00560 }

StatusCode THistSvc::getTree	(	const std::string &	name,
		TTree *&	hist
	)			const `[virtual]`

Definition at line 635 of file THistSvc.cpp.

00635                                                          {
00636   return getHist_i(id, hist);
00637 }

StatusCode THistSvc::regGraph ( const std::string & name ) [virtual]

Definition at line 565 of file THistSvc.cpp.

00565                                       {
00566   TGraph *hist(0);
00567   return regHist_i(hist, id);
00568 }

StatusCode THistSvc::regGraph	(	const std::string &	name,
		TGraph *	hist
	)			`[virtual]`

Definition at line 573 of file THistSvc.cpp.

00573                                                     {
00574   if ( strcmp(hist->GetName(),"Graph") == 0 ) {
00575
00576     std::string id2(id);
00577     string::size_type i = id2.rfind("/");
00578     if (i != string::npos) {
00579       id2.erase(0,i+1);
00580     }
00581
00582     m_log << MSG::INFO << "setting name of TGraph id: \"" << id << "\" to \""
00583           << id2 << "\" since it is unset" << endmsg;
00584     hist->SetName(id2.c_str());
00585   }
00586
00587   return regHist_i(hist, id);
00588 }

StatusCode THistSvc::getGraph	(	const std::string &	name,
		TGraph *&	hist
	)			const `[virtual]`

Definition at line 663 of file THistSvc.cpp.

00663                                                            {
00664   return getHist_i(id, hist);
00665 }

StatusCode THistSvc::deReg ( TObject * obj ) [virtual]

Definition at line 440 of file THistSvc.cpp.

00440                             {
00441
00442   objMap::iterator itr = m_tobjs.find(obj);
00443   if (itr != m_tobjs.end()) {
00444     THistID hid = itr->second;
00445
00446     uidMap::iterator itr2 = m_uids.find(hid.id);
00447     if (itr2 == m_uids.end()) {
00448       m_log << MSG::ERROR << "Problems deregistering TObject \""
00449             << obj->GetName()
00450             << "\" with id \"" << hid.id << "\"" << endmsg;
00451       return StatusCode::FAILURE;
00452     }
00453
00454     std::string id,root,rem;
00455     parseString(hid.id, root, rem);
00456
00457     idMap::iterator itr3;
00458     bool found(false);
00459
00460     std::pair<idMap::iterator, idMap::iterator> mitr = m_ids.equal_range(rem);
00461     if (mitr.first == mitr.second) {
00462       m_log << MSG::ERROR << "Problems deregistering TObject \""
00463             << obj->GetName()
00464             << "\" with id \"" << hid.id << "\"" << endmsg;
00465       return StatusCode::FAILURE;
00466     } else {
00467       for (itr3 = mitr.first; itr3 != mitr.second; ++itr3) {
00468         if (itr3->second.obj == obj) {
00469           found = true;
00470           break;
00471         }
00472       }
00473       if (!found) {
00474         m_log << MSG::ERROR << "Problems deregistering TObject \""
00475               << obj->GetName()
00476               << "\" with id \"" << hid.id << "\"" << endmsg;
00477       }
00478     }
00479
00480     m_tobjs.erase(itr);
00481     m_uids.erase(itr2);
00482     m_ids.erase(itr3);
00483
00484     return StatusCode::SUCCESS;
00485
00486   } else {
00487     m_log << MSG::ERROR << "Cannot unregister TObject \"" << obj->GetName()
00488           << "\": not known to THistSvc" << endmsg;
00489     return StatusCode::FAILURE;
00490   }
00491
00492 }

StatusCode THistSvc::deReg ( const std::string & name ) [virtual]

Definition at line 498 of file THistSvc.cpp.

00498                                    {
00499
00500   uidMap::iterator itr = m_uids.find(id);
00501   if (itr == m_uids.end()) {
00502     m_log << MSG::ERROR << "Problems deregistering id \""
00503           << id << "\"" << endmsg;
00504     return StatusCode::FAILURE;
00505   }
00506
00507   TObject* obj = itr->second.obj;
00508
00509   return deReg(obj);
00510 }

std::vector< std::string > THistSvc::getHists ( ) const [virtual]

Definition at line 614 of file THistSvc.cpp.

00614                          {
00615
00616   std::vector<std::string> names;
00617   names.reserve(m_uids.size());
00618
00619   uidMap::const_iterator itr;
00620   for (itr = m_uids.begin(); itr != m_uids.end(); ++itr) {
00621     THistID tid = itr->second;
00622
00623     if (tid.obj->IsA()->InheritsFrom("TH1")) {
00624       names.push_back(itr->first);
00625     }
00626
00627   }
00628
00629   return names;
00630
00631 }

std::vector< std::string > THistSvc::getTrees ( ) const [virtual]

Definition at line 642 of file THistSvc.cpp.

00642                          {
00643
00644   std::vector<std::string> names;
00645   names.reserve(m_uids.size());
00646
00647   uidMap::const_iterator itr;
00648   for (itr = m_uids.begin(); itr != m_uids.end(); ++itr) {
00649     THistID tid = itr->second;
00650
00651     if (tid.obj->IsA()->InheritsFrom("TTree")) {
00652       names.push_back(itr->first);
00653     }
00654
00655   }
00656
00657   return names;
00658
00659 }

std::vector< std::string > THistSvc::getGraphs ( ) const [virtual]

Definition at line 670 of file THistSvc.cpp.

00670                           {
00671
00672   std::vector<std::string> names;
00673   names.reserve(m_uids.size());
00674
00675   uidMap::const_iterator itr;
00676   for (itr = m_uids.begin(); itr != m_uids.end(); ++itr) {
00677     THistID tid = itr->second;
00678
00679     if (tid.obj->IsA()->InheritsFrom("TGraph")) {
00680       names.push_back(itr->first);
00681     }
00682
00683   }
00684
00685   return names;
00686
00687 }

StatusCode THistSvc::getTHists	(	TDirectory *	td,
		TList &	tl
	)			const `[virtual]`

Definition at line 342 of file THistSvc.cpp.

00342                                                     {
00343
00344   GlobalDirectoryRestore restore;
00345
00346   gErrorIgnoreLevel = kBreak;
00347
00348   if (!td->cd()) {
00349     m_log << MSG::ERROR << "No such TDirectory \"" << td->GetPath() << "\""
00350           << endmsg;
00351     return StatusCode::FAILURE;
00352   }
00353
00354   TIter nextkey(td->GetList());
00355   while (TObject *key = (TObject*)nextkey()) {
00356     if (key != 0) {
00357       if (key->IsA()->InheritsFrom("TH1")) { tl.Add(key); }
00358     }
00359   }
00360
00361
00362   return StatusCode::SUCCESS;
00363
00364 }

StatusCode THistSvc::getTHists	(	const std::string &	name,
		TList &	tl
	)			const `[virtual]`

Definition at line 369 of file THistSvc.cpp.

00369                                                           {
00370
00371   GlobalDirectoryRestore restore;
00372
00373   gErrorIgnoreLevel = kBreak;
00374
00375   StatusCode sc;
00376
00377   if (!gDirectory->cd(dir.c_str())) {
00378     m_log << MSG::ERROR << "No such TDirectory \"" << dir << "\""
00379           << endmsg;
00380     sc = StatusCode::FAILURE;
00381   } else {
00382     sc = getTHists(gDirectory,tl);
00383   }
00384
00385   return sc;
00386
00387 }

StatusCode THistSvc::getTTrees	(	TDirectory *	td,
		TList &	tl
	)			const `[virtual]`

Definition at line 391 of file THistSvc.cpp.

00391                                                     {
00392
00393   GlobalDirectoryRestore restore;
00394
00395   gErrorIgnoreLevel = kBreak;
00396
00397   if (!td->cd()) {
00398     m_log << MSG::ERROR << "No such TDirectory \"" << td->GetPath() << "\""
00399           << endmsg;
00400     return StatusCode::FAILURE;
00401   }
00402
00403   TIter nextkey(td->GetList());
00404   while (TObject *key = (TObject*)nextkey()) {
00405     if (key != 0) {
00406       if (key->IsA()->InheritsFrom("TTree")) { tl.Add(key); }
00407     }
00408   }
00409
00410   return StatusCode::SUCCESS;
00411
00412 }

StatusCode THistSvc::getTTrees	(	const std::string &	name,
		TList &	tl
	)			const `[virtual]`

Definition at line 417 of file THistSvc.cpp.

00417                                                           {
00418
00419   GlobalDirectoryRestore restore;
00420
00421   gErrorIgnoreLevel = kBreak;
00422
00423   StatusCode sc;
00424
00425   if (!gDirectory->cd(dir.c_str())) {
00426     m_log << MSG::ERROR << "No such TDirectory \"" << dir << "\""
00427           << endmsg;
00428     sc = StatusCode::FAILURE;
00429   } else {
00430     sc = getTTrees(gDirectory,tl);
00431   }
00432
00433   return sc;
00434
00435 }

bool THistSvc::exists ( const std::string & name ) const [virtual]

Definition at line 1354 of file THistSvc.cpp.

01354                                               {
01355
01356   TH1* h;
01357
01358   return getHist_i(name,h,true).isSuccess();
01359
01360
01361 }

void THistSvc::handle ( const Incident & )

Definition at line 1366 of file THistSvc.cpp.

01366                                             {
01367
01368   if (signaledStop) return ;
01369
01370   // convert to bytes.
01371   Long64_t mfs = (Long64_t)m_maxFileSize.value() * (Long64_t)1048576;
01372
01373   updateFiles();
01374
01375   map<string, pair<TFile*,Mode> >::const_iterator itr;
01376   for (itr=m_files.begin(); itr!= m_files.end(); ++itr) {
01377     TFile* tf = itr->second.first;
01378
01379 #ifndef NDEBUG
01380     m_log << MSG::DEBUG << "stream: " << itr->first << "  name: "
01381           << tf->GetName() << "  size: " << tf->GetSize()
01382           << endmsg;
01383 #endif
01384
01385     // Signal job to terminate if output file is too large
01386     if (tf->GetSize() > mfs) {
01387
01388       signaledStop = true;
01389
01390       m_log << MSG::FATAL << "file \"" << tf->GetName()
01391             << "\" associated with stream \"" << itr->first
01392             << "\" has exceeded the max file size of "
01393             << m_maxFileSize.value() << "MB. Terminating Job."
01394             << endmsg;
01395
01396       IEventProcessor* evt(0);
01397       if (service("ApplicationMgr", evt, true).isSuccess()) {
01398         evt->stopRun();
01399         evt->release();
01400       } else {
01401         abort();
01402       }
01403     }
01404   }
01405 }

template<typename T>

StatusCode THistSvc::regHist_i	(	T *	hist,
		const std::string &	name
	)			`[inline, private]`

template<typename T>

StatusCode THistSvc::getHist_i	(	const std::string &	name,
		T *&	hist,
		bool	quiet = `false`
	)			const `[inline, private]`

template<typename T>

StatusCode THistSvc::readHist_i	(	const std::string &	name,
		T *&	hist
	)			const `[inline, private]`

StatusCode THistSvc::readHist	(	const std::string &	name,
		TH1 *&	hist
	)			const `[private]`

Definition at line 691 of file THistSvc.cpp.

00691                                                         {
00692   return readHist_i(id, hist);
00693 }

StatusCode THistSvc::readHist	(	const std::string &	name,
		TH2 *&	hist
	)			const `[private]`

Definition at line 698 of file THistSvc.cpp.

00698                                                         {
00699   return readHist_i(id, hist);
00700 }

StatusCode THistSvc::readHist	(	const std::string &	name,
		TH3 *&	hist
	)			const `[private]`

Definition at line 705 of file THistSvc.cpp.

00705                                                         {
00706   return readHist_i(id, hist);
00707 }

StatusCode THistSvc::readTree	(	const std::string &	name,
		TTree *&	hist
	)			const `[private]`

Definition at line 712 of file THistSvc.cpp.

00712                                                           {
00713   return readHist_i(id, hist);
00714 }

void THistSvc::updateFiles ( ) [private]

Definition at line 847 of file THistSvc.cpp.

00847                       {
00848
00849   // If TTrees grow beyond TTree::fgMaxFileSize, a new file is
00850   // automatically created by root, and the old one closed. We
00851   // need to migrate all the UIDs over to show the correct file
00852   // pointer. This is ugly.
00853
00854   uidMap::iterator uitr, uitr2;
00855   for (uitr=m_uids.begin(); uitr != m_uids.end(); ++uitr) {
00856     TObject* to = uitr->second.obj;
00857     TFile* oldFile = uitr->second.file;
00858     if (to->IsA()->InheritsFrom("TTree")) {
00859       TTree* tr = dynamic_cast<TTree*>(to);
00860       TFile* newFile = tr->GetCurrentFile();
00861
00862       if (oldFile != newFile) {
00863         std::string newFileName = newFile->GetName();
00864         std::string oldFileName(""), streamName, rem;
00865         TFile* dummy;
00866         findStream(uitr->second.id, streamName, rem, dummy);
00867
00868         map<string, pair<TFile*,Mode> >::iterator itr;
00869         for (itr=m_files.begin(); itr!= m_files.end(); ++itr) {
00870           if (itr->second.first == oldFile) {
00871             itr->second.first = newFile;
00872
00873           }
00874         }
00875
00876         uitr2 = uitr;
00877         for (; uitr2 != m_uids.end(); ++uitr2) {
00878           if (uitr2->second.file == oldFile) {
00879             uitr2->second.file = newFile;
00880           }
00881         }
00882
00883         streamMap::iterator sitr;
00884         for (sitr = m_fileStreams.begin(); sitr!=m_fileStreams.end(); ++sitr) {
00885           if (sitr->second == streamName) {
00886             oldFileName = sitr->first;
00887             break;
00888           }
00889         }
00890
00891
00892 #ifndef NDEBUG
00893         m_log << MSG::DEBUG << "migrating uid: " << uitr->second.id
00894               << "   stream: " << streamName
00895               << "   oldFile: " << oldFileName
00896               << "   newFile: " << newFileName
00897               << endmsg;
00898 #endif
00899
00900
00901         if (oldFileName != "") {
00902           while ( (sitr=m_fileStreams.find(oldFileName)) != m_fileStreams.end() ) {
00903
00904 #ifndef NDEBUG
00905             m_log << MSG::DEBUG << "changing filename \"" << oldFileName
00906                   << "\" to \"" << newFileName << "\" for stream \""
00907                   << sitr->second << "\"" << endmsg;
00908 #endif
00909             m_fileStreams.erase(sitr);
00910             m_fileStreams.insert( make_pair<std::string,std::string>(newFileName,streamName) );
00911           }
00912
00913
00914         } else {
00915           m_log << MSG::ERROR
00916                 << "Problems updating fileStreams with new file name" << endmsg;
00917         }
00918
00919       }
00920
00921     }
00922   }
00923
00924 }

StatusCode THistSvc::write ( ) [private]

Definition at line 929 of file THistSvc.cpp.

00929                 {
00930
00931   updateFiles();
00932
00933   map<string, pair<TFile*,Mode> >::const_iterator itr;
00934   for (itr=m_files.begin(); itr!= m_files.end(); ++itr) {
00935     if (itr->second.second == WRITE || itr->second.second == UPDATE
00936         ||itr->second.second==SHARE) {
00937       itr->second.first->Write("",TObject::kOverwrite);
00938     } else if (itr->second.second == APPEND) {
00939       itr->second.first->Write("");
00940     }
00941   }
00942
00943
00944   m_log << MSG::DEBUG << "THistSvc::write()::List of Files connected in ROOT "
00945         << endmsg;
00946
00947   TSeqCollection *filelist=gROOT->GetListOfFiles();
00948   for (int ii=0; ii<filelist->GetEntries(); ii++) {
00949     m_log << MSG::DEBUG
00950           << "THistSvc::write()::List of Files connected in ROOT: \""
00951           << filelist->At(ii)->GetName()<<"\""<<endmsg;
00952   }
00953
00954   return StatusCode::SUCCESS;
00955
00956 }

StatusCode THistSvc::connect ( const std::string & ident ) [private]

Definition at line 961 of file THistSvc.cpp.

00961                                         {
00962
00963   Tokenizer tok(true);
00964
00965   string::size_type loc = ident.find(" ");
00966   string stream = ident.substr(0,loc);
00967   char typ(0);
00968   typedef std::pair<std::string,std::string>      Prop;
00969   std::vector<Prop> props;
00970   string val,VAL,TAG,filename,db_typ("ROOT");
00971
00972   tok.analyse(ident.substr(loc+1,ident.length()), " ", "", "", "=", "'", "'");
00973
00974   for ( Tokenizer::Items::iterator i = tok.items().begin(); i != tok.items().end(); i++)    {
00975     const std::string& tag = (*i).tag();
00976     TAG = tag;
00977     toupper(TAG);
00978
00979     val = (*i).value();
00980     VAL = val;
00981     toupper(VAL);
00982
00983     if (TAG == "FILE" || TAG == "DATAFILE") {
00984       filename = val;
00985       removeDoubleSlash( filename );
00986     } else if ( TAG == "OPT" ) {
00987       if ( VAL == "APPEND" || VAL == "UPDATE" ) {
00988         typ = 'A';
00989       } else if ( VAL == "CREATE" || VAL == "NEW" || VAL == "WRITE" ) {
00990         typ = 'N';
00991       } else if ( VAL == "RECREATE" ) {
00992         typ = 'R';
00993       } else if (VAL == "SHARE") {
00994         typ = 'S';
00995       } else if ( VAL == "OLD" || VAL == "READ" ) {
00996         typ = 'O';
00997       } else {
00998         m_log << MSG::ERROR << "Unknown OPT: \"" << (*i).value() << "\""
00999             << endmsg;
01000         typ = 0;
01001       }
01002     } else if (TAG == "TYP") {
01003       db_typ = (*i).value();
01004     } else {
01005       props.push_back( Prop((*i).tag(), (*i).value()));
01006     }
01007
01008   }
01009
01010   if (stream == "temp") {
01011     m_log << MSG::ERROR << "in JobOption \"" << ident
01012           << "\": stream name \"temp\" reserved."
01013           << endmsg;
01014     return StatusCode::FAILURE;
01015   }
01016
01017   if (db_typ != "ROOT") {
01018     m_log << MSG::ERROR << "in JobOption \"" << ident
01019           << "\": technology type \"" << db_typ << "\" not supported."
01020           << endmsg;
01021     return StatusCode::FAILURE;
01022   }
01023
01024
01025   if (m_files.find(stream) != m_files.end()) {
01026     m_log << MSG::ERROR << "in JobOption \"" << ident
01027           << "\":\n stream \"" << stream << "\" already connected to file: \""
01028           << m_files[stream].first->GetName() << "\""
01029           << endmsg;
01030     return StatusCode::FAILURE;
01031   }
01032
01033   Mode newMode;
01034   if (typ == 'O') {
01035     newMode = THistSvc::READ;
01036   } else if (typ == 'N') {
01037     newMode = THistSvc::WRITE;
01038   } else if (typ == 'A') {
01039     newMode = THistSvc::APPEND;
01040   } else if (typ == 'R') {
01041     newMode = THistSvc::UPDATE;
01042   } else if (typ == 'S') {
01043     newMode = THistSvc::SHARE;
01044   } else {
01045     // something else?
01046     m_log << MSG::ERROR << "No OPT= specified or unknown access mode in: "
01047           << ident << endmsg;
01048     return StatusCode::FAILURE;
01049   }
01050
01051   // Is this file already connected to another stream?
01052   if (m_fileStreams.find(filename) != m_fileStreams.end()) {
01053     std::pair<streamMap::iterator, streamMap::iterator> fitr =
01054       m_fileStreams.equal_range(filename);
01055
01056     std::string oldstream = (fitr.first)->second;
01057
01058     std::pair<TFile*,Mode> f_info = m_files[oldstream];
01059
01060     if (newMode != f_info.second) {
01061       m_log << MSG::ERROR << "in JobOption \"" << ident
01062             << "\":\n file \"" << filename << "\" already opened by stream: \""
01063             << oldstream << "\" with different access mode."
01064             << endmsg;
01065       return StatusCode::FAILURE;
01066     } else {
01067       TFile *f2 = f_info.first;
01068       m_files[stream] = make_pair<TFile*,Mode>(f2,newMode);
01069       m_log << MSG::DEBUG << "Connecting stream: \"" << stream
01070             << "\" to previously opened TFile: \"" << filename << "\""
01071             << endmsg;
01072       return StatusCode::SUCCESS;
01073     }
01074   }
01075
01076
01077   TFile *f(0) ;
01078   if (newMode == THistSvc::READ) {
01079     // old file
01080
01081     try {
01082       f = TFile::Open(filename.c_str(),"READ");
01083     } catch (const std::exception& Exception) {
01084       m_log << MSG::ERROR << "exception caught while trying to open root"
01085             << " file for reading: " << Exception.what() << std::endl
01086             << "  -> file probably corrupt." << endmsg;
01087       return StatusCode::FAILURE;
01088     } catch (...) {
01089       m_log << MSG::ERROR << "Problems opening input file  \"" << filename
01090             << "\": probably corrupt" << endmsg;
01091       return StatusCode::FAILURE;
01092     }
01093
01094     if (!f->IsOpen()) {
01095       m_log << MSG::ERROR << "Unable to open input file \"" << filename
01096             << "\": file does not exist" << endmsg;
01097       return StatusCode::FAILURE;
01098     }
01099
01100
01101   } else if (newMode == THistSvc::WRITE) {
01102     // new file
01103
01104     f = TFile::Open(filename.c_str(),"NEW");
01105     if (!f->IsOpen()) {
01106       m_log << MSG::ERROR << "Unable to create new output file \"" << filename
01107             << "\" for writing: file already exists" << endmsg;
01108       return StatusCode::FAILURE;
01109     }
01110     f->SetCompressionLevel( m_compressionLevel );
01111
01112   } else if (newMode == THistSvc::APPEND) {
01113     // update file
01114
01115     try {
01116       f =  TFile::Open(filename.c_str(),"UPDATE");
01117     } catch (const std::exception& Exception) {
01118       m_log << MSG::ERROR << "exception caught while trying to open root"
01119             << " file for appending: " << Exception.what() << std::endl
01120             << "  -> file probably corrupt." << endmsg;
01121       return StatusCode::FAILURE;
01122     } catch (...) {
01123       m_log << MSG::ERROR << "Problems opening output file  \"" << filename
01124             << "\" for append: probably corrupt" << endmsg;
01125       return StatusCode::FAILURE;
01126     }
01127
01128     if (!f->IsOpen()) {
01129       m_log << MSG::ERROR << "Unable to open output file \"" << filename
01130             << "\" for appending" << endmsg;
01131       return StatusCode::FAILURE;
01132     }
01133     f->SetCompressionLevel( m_compressionLevel );
01134
01135   } else if (newMode == THistSvc::SHARE) {
01136     // SHARE file type
01137     //For SHARE files, all data will be stored in a temp file and will be merged into the target file
01138     //in write() when finalize(), this help to solve some confliction. e.g. with storegate
01139
01140     static int ishared = 0;
01141     stringstream out;
01142     string realfilename=filename;
01143     out << ishared++;
01144     filename = string("tmp_THistSvc_")+out.str()+string(".root");
01145
01146     m_log << MSG::DEBUG << "Creating temp file \"" << filename
01147           << "\" and realfilename="<<realfilename << endmsg;
01148     m_sharedFiles[stream]=realfilename;
01149
01150     try {
01151       f = TFile::Open(filename.c_str(),"NEW");
01152     } catch (const std::exception& Exception) {
01153       m_log << MSG::ERROR << "exception caught while trying to open root"
01154             << " file for appending: " << Exception.what() << std::endl
01155             << "  -> file probably corrupt." << endmsg;
01156       return StatusCode::FAILURE;
01157     } catch (...) {
01158       m_log << MSG::ERROR << "Problems opening output file  \"" << filename
01159             << "\" for append: probably corrupt" << endmsg;
01160       return StatusCode::FAILURE;
01161     }
01162
01163     if (!f->IsOpen()) {
01164       m_log << MSG::ERROR << "Unable to open output file \"" << filename
01165           << "\" for appending" << endmsg;
01166       return StatusCode::FAILURE;
01167     }
01168     f->SetCompressionLevel( m_compressionLevel );
01169
01170   } else if (newMode == THistSvc::UPDATE) {
01171     // update file
01172
01173     try {
01174       f =  TFile::Open(filename.c_str(),"RECREATE");
01175     } catch (const std::exception& Exception) {
01176       m_log << MSG::ERROR << "exception caught while trying to open root"
01177             << " file for updating: " << Exception.what() << std::endl
01178             << "  -> file probably corrupt." << endmsg;
01179       return StatusCode::FAILURE;
01180     } catch (...) {
01181       m_log << MSG::ERROR << "Problems opening output file  \"" << filename
01182             << "\" for update: probably corrupt" << endmsg;
01183       return StatusCode::FAILURE;
01184     }
01185
01186     if (!f->IsOpen()) {
01187       m_log << MSG::ERROR << "Unable to open output file \"" << filename
01188             << "\" for updating" << endmsg;
01189       return StatusCode::FAILURE;
01190     }
01191     f->SetCompressionLevel( m_compressionLevel );
01192
01193   }
01194
01195   m_files[stream] = make_pair<TFile*,Mode>(f,newMode);
01196   m_fileStreams.insert(make_pair<std::string,std::string>(filename,stream));
01197
01198   m_log << MSG::DEBUG << "Opening TFile \"" << filename << "\"  stream: \""
01199         << stream << "\"  mode: \"" << typ << "\""
01200         << endmsg;
01201
01202   return StatusCode::SUCCESS;
01203 }

TDirectory * THistSvc::changeDir ( const THistSvc::THistID & hid ) const [private]

Definition at line 1208 of file THistSvc.cpp.

01208                                                     {
01209
01210   string uid = hid.id;
01211   TFile* file = hid.file;
01212   string stream, fdir, bdir, dir, id;
01213
01214   if (file != 0) {
01215     file->cd("/");
01216   } else {
01217     gROOT->cd();
01218   }
01219
01220   fdir = uid;
01221   bdir = dirname(fdir);
01222
01223   while ( (dir = dirname(fdir)) != "") {
01224     if (! gDirectory->GetKey(dir.c_str())) {
01225       gDirectory->mkdir(dir.c_str());
01226     }
01227     gDirectory->cd(dir.c_str());
01228   }
01229
01230   return gDirectory;
01231
01232 }

std::string THistSvc::dirname ( std::string & dir ) const [private]

Definition at line 1237 of file THistSvc.cpp.

01237                                       {
01238
01239
01240   string::size_type i = dir.find("/");
01241
01242   if (i == string::npos) {
01243     return "";
01244   }
01245
01246   if ( i == 0 ) {
01247     dir.erase(0,1);
01248     return dirname(dir);
01249   }
01250
01251   string root = dir.substr(0,i);
01252   dir.erase(0,i);
01253
01254   return root;
01255
01256 }

void THistSvc::removeDoubleSlash ( std::string & id ) const [private]

Definition at line 1275 of file THistSvc.cpp.

01275                                                {
01276
01277   while (id.find("//") != std::string::npos) {
01278     id.replace(id.find("//"),2,"/");
01279   }
01280
01281 }

bool THistSvc::browseTDir ( TDirectory * dir ) const [private]

Definition at line 297 of file THistSvc.cpp.

00297                                           {
00298
00299   if (dir == 0) {
00300     std::cerr << "TDirectory == 0" << std::endl;
00301     return false;
00302   }
00303
00304   GlobalDirectoryRestore restore;
00305
00306   dir->cd();
00307
00308
00309   cout << "-> " << dir->GetPath() << "  "
00310        << dir->GetListOfKeys()->GetSize() << endl;
00311
00312   //  TIter nextkey(dir->GetListOfKeys());
00313   TIter nextkey(dir->GetList());
00314   while (TKey *key = (TKey*)nextkey()) {
00315
00316     TObject *obj = key->ReadObj();
00317     if (obj == 0) { cout << key->GetName() << " obj==0"<< endl; continue; }
00318     //    if (obj->IsA()->InheritsFrom("TDirectory")) {
00319       cout << "  Key: " << key->GetName() << "   "
00320            << " tit: " << obj->GetTitle() << "   "
00321            << " (" << key->GetClassName() << ")" << endl;
00322       //    }
00323   }
00324
00325   nextkey = dir->GetListOfKeys();
00326   while (TKey *key = (TKey*)nextkey()) {
00327
00328     TObject *obj = key->ReadObj();
00329     if (obj == 0) { cout << key->GetName() << " obj==0"<< endl; continue; }
00330     if (obj->IsA()->InheritsFrom("TDirectory")) {
00331       TDirectory *tt = dynamic_cast<TDirectory*>(obj);
00332       browseTDir(tt);
00333     }
00334   }
00335
00336   return true;
00337 }

bool THistSvc::findStream	(	const std::string &	name,
		std::string &	root,
		std::string &	rem,
		TFile *&	file
	)			const `[private]`

Definition at line 719 of file THistSvc.cpp.

00720                                        {
00721
00722   string::size_type pos = id.find("/");
00723
00724   if (pos == string::npos) {
00725     stream = "temp";
00726     rem = id;
00727   } else if (pos != 0) {
00728     stream = "temp";
00729     rem = id;
00730   } else {
00731
00732     string::size_type pos2 = id.find("/",pos+1);
00733
00734     if (pos2 == string::npos) {
00735       m_log << MSG::ERROR << "badly formed Hist/Tree id: \"" << id << "\""
00736             << endmsg;
00737       return false;
00738     }
00739
00740     parseString(id,stream,rem);
00741
00742   }
00743
00744   if (stream == "temp") {
00745     file = 0;
00746     return true;
00747   }
00748
00749   map< string,pair<TFile*,Mode> >::const_iterator itr = m_files.find(stream);
00750   if (itr != m_files.end()) {
00751     file = itr->second.first;
00752   } else {
00753     file = 0;
00754     m_log << MSG::WARNING << "no stream \"" << stream
00755           << "\" associated with id: \"" << id << "\""
00756           << endmsg;
00757   }
00758
00759   return true;
00760
00761 }

void THistSvc::parseString	(	const std::string &	id,
		std::string &	root,
		std::string &	rem
	)			const `[private]`

Definition at line 766 of file THistSvc.cpp.

00766                                                                        {
00767   string::size_type pos = id.find("/");
00768
00769   if (pos == string::npos) {
00770     root = "";
00771     rem = id;
00772     return;
00773   }
00774
00775   if (pos == 0) {
00776     parseString(id.substr(1,id.length()),root,rem);
00777   } else {
00778     root = id.substr(0,pos);
00779     rem = id.substr(pos+1,id.length());
00780   }
00781
00782 }

void THistSvc::setupInputFile ( Property & inputfile ) [private]

call-back method to handle input stream property

Definition at line 787 of file THistSvc.cpp.

00788 {
00789   StatusCode sc = StatusCode::SUCCESS;
00790
00791   typedef std::vector<std::string> Strings_t;
00792   for ( Strings_t::const_iterator
00793           itr  = m_inputfile.value().begin(),
00794           iEnd = m_inputfile.value().end();
00795         itr != iEnd;
00796         ++itr ) {
00797     if ( m_alreadyConnectedInFiles.end() ==
00798          m_alreadyConnectedInFiles.find( *itr ) ) {
00799       if ( connect(*itr).isFailure() ) {
00800         sc = StatusCode::FAILURE;
00801       } else {
00802         m_alreadyConnectedInFiles.insert( *itr );
00803       }
00804     }
00805   }
00806
00807   if ( !sc.isSuccess() ) {
00808     throw GaudiException( "Problem connecting inputfile !!", name(),
00809                           StatusCode::FAILURE );
00810   }
00811   return;
00812 }

void THistSvc::setupOutputFile ( Property & outputfile ) [private]

call-back method to handle output stream property

Definition at line 817 of file THistSvc.cpp.

00818 {
00819   StatusCode sc = StatusCode::SUCCESS;
00820
00821   typedef std::vector<std::string> Strings_t;
00822   for ( Strings_t::const_iterator
00823           itr  = m_outputfile.value().begin(),
00824           iEnd = m_outputfile.value().end();
00825         itr != iEnd;
00826         ++itr ) {
00827     if ( m_alreadyConnectedOutFiles.end() ==
00828          m_alreadyConnectedOutFiles.find( *itr ) ) {
00829       if ( connect(*itr).isFailure() ) {
00830         sc = StatusCode::FAILURE;
00831       } else {
00832         m_alreadyConnectedOutFiles.insert( *itr );
00833       }
00834     }
00835   }
00836
00837   if ( !sc.isSuccess() ) {
00838     throw GaudiException( "Problem connecting outputfile !!", name(),
00839                           StatusCode::FAILURE );
00840   }
00841   return;
00842 }

void THistSvc::MergeRootFile	(	TDirectory *	target,
		TDirectory *	source
	)			`[private]`

Definition at line 1285 of file THistSvc.cpp.

01285                                                                    {
01286
01287   m_log <<MSG::DEBUG << "Target path: " << target->GetPath() << endmsg;
01288   TString path( (char*)strstr(target->GetPath(), ":") );
01289   path.Remove( 0, 2);
01290
01291   source->cd(path);
01292   TDirectory *current_sourcedir = gDirectory;
01293
01294   // loop over all keys in this directory
01295   TList *lkeys=current_sourcedir->GetListOfKeys();
01296   int nkeys=lkeys->GetEntries();
01297   TKey *key;
01298   for (int jj=0; jj<nkeys; jj++) {
01299     key=(TKey*) lkeys->At(jj);
01300     string pathnameinsource=current_sourcedir->GetPath()+string("/")+key->GetName();
01301     m_log <<MSG::DEBUG << "Reading Key:" << pathnameinsource << endmsg;
01302     //key->Dump();
01303     //TObject *obj=key->ReadObj();
01304     TObject *obj=source->Get(pathnameinsource.c_str());
01305
01306     if (obj->IsA()->InheritsFrom("TDirectory") ) {
01307       // it's a subdirectory
01308
01309       m_log <<MSG::DEBUG << "Found subdirectory " << obj->GetName()
01310             << endmsg;
01311
01312       // create a new subdir of same name and title in the target file
01313       target->cd();
01314       TDirectory *newtargetdir =
01315         target->mkdir(obj->GetName(), obj->GetTitle() );
01316
01317       MergeRootFile(newtargetdir, source);
01318
01319     } else if (obj->IsA()->InheritsFrom("TTree")) {
01320       m_log <<MSG::DEBUG << "Found TTree " << obj->GetName() << endmsg;
01321       TTree *mytree=dynamic_cast<TTree*>(obj);
01322       int nentries=(int) mytree->GetEntries();
01323       mytree->SetBranchStatus("*",1);
01324
01325       m_log <<MSG::DEBUG << "Dumping TTree " << nentries <<" entries"
01326           << endmsg;
01327       //mytree->Print();
01328       //for (int ij=0; ij<nentries; ij++) {
01329       //m_log <<MSG::DEBUG << "Dumping TTree Show( " << ij <<" )"
01330       //<< endmsg;
01331       //mytree->Show(ij);
01332       //}
01333       target->cd();
01334       mytree->CloneTree();
01335
01336       //m_log <<MSG::DEBUG << "Writing TTree to target file: ( "
01337       //<< mycopiedtree->Write(key->GetName()) <<" ) bytes written"
01338       //<< endmsg;
01339
01340     } else if (obj) {
01341       target->cd();
01342       obj->Write(key->GetName() );
01343     }
01344
01345   } // while ( ( TKey *key = (TKey*)nextkey() ) )
01346
01347   // save modifications to target file
01348
01349 }

Member Data Documentation

MsgStream THistSvc::m_log [mutable, private]

Definition at line 112 of file THistSvc.h.

StringArrayProperty THistSvc::m_inputfile [private]

Definition at line 152 of file THistSvc.h.

StringArrayProperty THistSvc::m_outputfile [private]

Definition at line 152 of file THistSvc.h.

std::vector<std::string> THistSvc::m_Rstream [private]

Definition at line 153 of file THistSvc.h.

std::vector<std::string> THistSvc::m_Wstream [private]

Definition at line 153 of file THistSvc.h.

IntegerProperty THistSvc::m_autoSave [private]

Definition at line 154 of file THistSvc.h.

IntegerProperty THistSvc::m_compressionLevel [private]

Definition at line 154 of file THistSvc.h.

IntegerProperty THistSvc::m_maxFileSize [private]

Definition at line 154 of file THistSvc.h.

BooleanProperty THistSvc::m_print [private]

Definition at line 155 of file THistSvc.h.

std::set<std::string> THistSvc::m_alreadyConnectedInFiles [private]

list of already connected files.

This is to keep track of files registered by the setupInputFile callback method

Definition at line 159 of file THistSvc.h.

std::set<std::string> THistSvc::m_alreadyConnectedOutFiles [private]

list of already connected files.

This is to keep track of files registered by the setupOutputFile callback method

Definition at line 163 of file THistSvc.h.

uidMap THistSvc::m_uids [private]

Definition at line 167 of file THistSvc.h.

idMap THistSvc::m_ids [private]

Definition at line 168 of file THistSvc.h.

objMap THistSvc::m_tobjs [private]

Definition at line 169 of file THistSvc.h.

std::map<std::string, std::pair<TFile*,Mode> > THistSvc::m_files [private]

Definition at line 171 of file THistSvc.h.

streamMap THistSvc::m_fileStreams [private]

Definition at line 172 of file THistSvc.h.

std::map<std::string, std::string > THistSvc::m_sharedFiles [private]

Definition at line 174 of file THistSvc.h.

bool THistSvc::signaledStop [private]

Definition at line 177 of file THistSvc.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r9/GaudiSvc/src/THistSvc/THistSvc.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v21r9/GaudiSvc/src/THistSvc/THistSvc.cpp


Public Member Functions
virtual StatusCode	initialize ()
virtual StatusCode	reinitialize ()
virtual StatusCode	finalize ()
virtual StatusCode	regHist (const std::string &name)
virtual StatusCode	regHist (const std::string &name, TH1 *)
virtual StatusCode	regHist (const std::string &name, TH2 *)
virtual StatusCode	regHist (const std::string &name, TH3 *)
virtual StatusCode	getHist (const std::string &name, TH1 *&) const
virtual StatusCode	getHist (const std::string &name, TH2 *&) const
virtual StatusCode	getHist (const std::string &name, TH3 *&) const
virtual StatusCode	regTree (const std::string &name)
virtual StatusCode	regTree (const std::string &name, TTree *)
virtual StatusCode	getTree (const std::string &name, TTree *&) const
virtual StatusCode	regGraph (const std::string &name)
virtual StatusCode	regGraph (const std::string &name, TGraph *)
virtual StatusCode	getGraph (const std::string &name, TGraph *&) const
virtual StatusCode	deReg (TObject *obj)
virtual StatusCode	deReg (const std::string &name)
virtual std::vector< std::string >	getHists () const
virtual std::vector< std::string >	getTrees () const
virtual std::vector< std::string >	getGraphs () const
virtual StatusCode	getTHists (TDirectory *td, TList &) const
virtual StatusCode	getTHists (const std::string &name, TList &) const
virtual StatusCode	getTTrees (TDirectory *td, TList &) const
virtual StatusCode	getTTrees (const std::string &name, TList &) const
virtual bool	exists (const std::string &name) const
	THistSvc (const std::string &name, ISvcLocator *svc)
void	handle (const Incident &)
Protected Member Functions
virtual	~THistSvc ()
Private Types
enum	Mode { READ, WRITE, UPDATE, APPEND, SHARE }
typedef std::map< std::string, THistID >	uidMap
typedef std::multimap < std::string, THistID >	idMap
typedef std::map< TObject *, THistID >	objMap
typedef std::multimap < std::string, std::string >	streamMap
Private Member Functions
template<typename T>
StatusCode	regHist_i (T *hist, const std::string &name)
template<typename T>
StatusCode	getHist_i (const std::string &name, T *&hist, bool quiet=false) const
template<typename T>
StatusCode	readHist_i (const std::string &name, T *&hist) const
StatusCode	readHist (const std::string &name, TH1 *&) const
StatusCode	readHist (const std::string &name, TH2 *&) const
StatusCode	readHist (const std::string &name, TH3 *&) const
StatusCode	readTree (const std::string &name, TTree *&) const
void	updateFiles ()
StatusCode	write ()
StatusCode	connect (const std::string &)
TDirectory *	changeDir (const THistSvc::THistID &hid) const
std::string	dirname (std::string &dir) const
void	removeDoubleSlash (std::string &) const
bool	browseTDir (TDirectory *dir) const
bool	findStream (const std::string &name, std::string &root, std::string &rem, TFile *&file) const
void	parseString (const std::string &id, std::string &root, std::string &rem) const
void	setupInputFile (Property &inputfile)
	call-back method to handle input stream property
void	setupOutputFile (Property &outputfile)
	call-back method to handle output stream property
void	MergeRootFile (TDirectory target, TDirectory source)
Private Attributes
MsgStream	m_log
StringArrayProperty	m_inputfile
StringArrayProperty	m_outputfile
std::vector< std::string >	m_Rstream
std::vector< std::string >	m_Wstream
IntegerProperty	m_autoSave
IntegerProperty	m_compressionLevel
IntegerProperty	m_maxFileSize
BooleanProperty	m_print
std::set< std::string >	m_alreadyConnectedInFiles
	list of already connected files.
std::set< std::string >	m_alreadyConnectedOutFiles
	list of already connected files.
uidMap	m_uids
idMap	m_ids
objMap	m_tobjs
std::map< std::string, std::pair< TFile *, Mode > >	m_files
streamMap	m_fileStreams
std::map< std::string, std::string >	m_sharedFiles
bool	signaledStop
Classes
class	GlobalDirectoryRestore
struct	THistID

Gaudi Framework, version v21r9

THistSvc Class Reference

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Classes

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
