NTuple::_ItemImp< TYP > Class Template Reference

Concrete class discribing a column in a N tuple. More...

#include <NTupleItems.h>

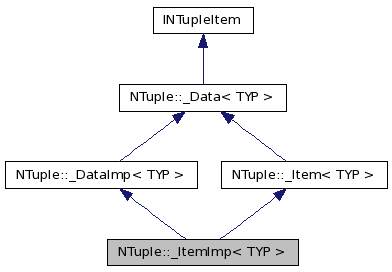

Inheritance diagram for NTuple::_ItemImp< TYP >:

[legend]

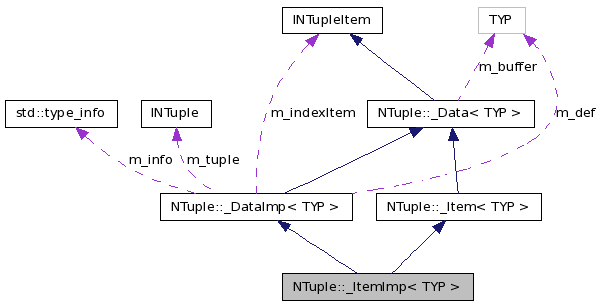

Collaboration diagram for NTuple::_ItemImp< TYP >:

[legend]

List of all members.

Public Types
typedef Range< TYP >	ItemRange
	Set type definition to make life more easy easy.
Public Member Functions
	_ItemImp (INTuple *tup, const std::string &name, const std::type_info &info, TYP min, TYP max, TYP def)
	Standard Constructor.
virtual	~_ItemImp ()
	Standard Destructor.
virtual void	setDefault (const TYP val)
	Compiler type ID.
virtual const ItemRange &	range () const
	Access the range if specified.
virtual long	size () const
	Size of entire object.

---

Detailed Description

template<class TYP>
class NTuple::_ItemImp< TYP >

Concrete class discribing a column in a N tuple.

Definition at line 160 of file NTupleItems.h.

---

Member Typedef Documentation

template<class TYP>

typedef Range<TYP> NTuple::_ItemImp< TYP >::ItemRange

Set type definition to make life more easy easy.

Reimplemented from NTuple::_DataImp< TYP >.

Definition at line 165 of file NTupleItems.h.

---

Constructor & Destructor Documentation

template<class TYP>

NTuple::_ItemImp< TYP >::_ItemImp	(	INTuple *	tup,
		const std::string &	name,
		const std::type_info &	info,
		TYP	min,
		TYP	max,
		TYP	def
	)			[inline]

Standard Constructor.

Definition at line 167 of file NTupleItems.h.

    : _DataImp<TYP>(tup, name, info, "", 1, min, max, def) {                       }

template<class TYP>

virtual NTuple::_ItemImp< TYP >::~_ItemImp

(

)

[inline, virtual]

Standard Destructor.

Definition at line 170 of file NTupleItems.h.

{                                     }

---

Member Function Documentation

template<class TYP>

virtual const ItemRange& NTuple::_ItemImp< TYP >::range

(

)

const [inline, virtual]

Access the range if specified.

Reimplemented from NTuple::_DataImp< TYP >.

Definition at line 176 of file NTupleItems.h.

{ return this->m_range;               }

template<class TYP>

virtual void NTuple::_ItemImp< TYP >::setDefault

(

const TYP

val

)

[inline, virtual]

Compiler type ID.

Set default value

Reimplemented from NTuple::_DataImp< TYP >.

Definition at line 174 of file NTupleItems.h.

{ this->m_def = val;                  }

template<class TYP>

virtual long NTuple::_ItemImp< TYP >::size

(

)

const [inline, virtual]

Size of entire object.

Reimplemented from NTuple::_DataImp< TYP >.

Definition at line 178 of file NTupleItems.h.

{ return this->m_length*sizeof(TYP);  }

---

The documentation for this class was generated from the following file:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r0/GaudiKernel/GaudiKernel/NTupleItems.h
