PfmCodeAnalyser Class Reference

#include <PfmCodeAnalyser.h>

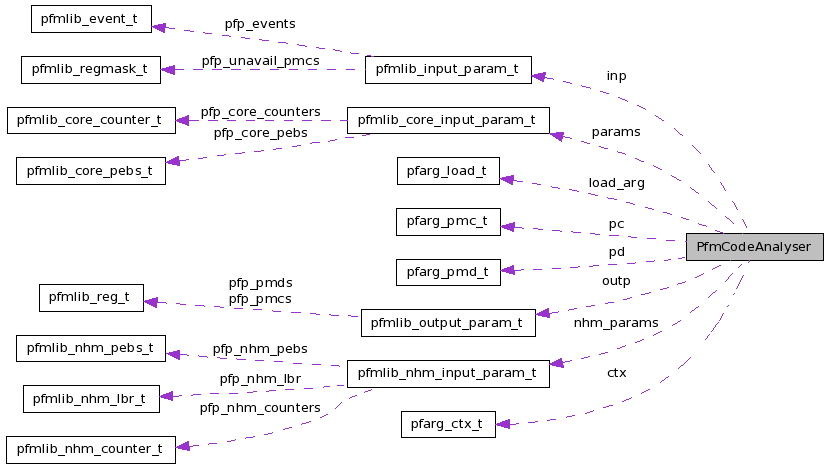

Collaboration diagram for PfmCodeAnalyser:

Public Member Functions
void	start ()
void	stop ()
void	stop_init ()
Static Public Member Functions
static PfmCodeAnalyser &	Instance (const char event0="UNHALTED_CORE_CYCLES", unsigned int cmask_v0=0, bool inv_v0=false, const char event1="", unsigned int cmask_v1=0, bool inv_v1=false, const char event2="", unsigned int cmask_v2=0, bool inv_v2=false, const char event3="", unsigned int cmask_v3=0, bool inv_v3=false)
Private Member Functions
	PfmCodeAnalyser (const char event0, unsigned int cmask_v0, bool inv_v0, const char event1, unsigned int cmask_v1, bool inv_v1, const char event2, unsigned int cmask_v2, bool inv_v2, const char event3, unsigned int cmask_v3, bool inv_v3)
	PfmCodeAnalyser (PfmCodeAnalyser const &)
PfmCodeAnalyser &	operator= (PfmCodeAnalyser const &)
	~PfmCodeAnalyser ()
Private Attributes
int	used_counters_number
int	nehalem
pfmlib_input_param_t	inp
pfmlib_output_param_t	outp
pfarg_ctx_t	ctx
pfarg_pmd_t	pd [NUM_PMDS]
pfarg_pmc_t	pc [NUM_PMCS]
pfarg_load_t	load_arg
int	fd
char	event_str [MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS][MAX_EVT_NAME_LEN]
bool	inv [MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS]
unsigned int	cmask [MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS]
pfmlib_core_input_param_t	params
pfmlib_nhm_input_param_t	nhm_params
int	ret
unsigned	i
unsigned long	sum [MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS]
unsigned	count
unsigned	overhead_avg [MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS]

Detailed Description

Definition at line 22 of file PfmCodeAnalyser.h.

Constructor & Destructor Documentation

PfmCodeAnalyser::PfmCodeAnalyser	(	const char *	event0,
		unsigned int	cmask_v0,
		bool	inv_v0,
		const char *	event1,
		unsigned int	cmask_v1,
		bool	inv_v1,
		const char *	event2,
		unsigned int	cmask_v2,
		bool	inv_v2,
		const char *	event3,
		unsigned int	cmask_v3,
		bool	inv_v3
	)			`[private]`

Definition at line 64 of file PfmCodeAnalyser.h.

00068 {
00069  int ax,bx,cx,dx;
00070  cpuid(1,ax,bx,cx,dx);
00071  int sse4_2_mask = 1 << 20;
00072  nehalem = cx & sse4_2_mask;
00073  strcpy(event_str[0], event0);
00074  strcpy(event_str[1], event1);
00075  strcpy(event_str[2], event2);
00076  strcpy(event_str[3], event3);
00077  cmask[0] = cmask_v0;
00078  cmask[1] = cmask_v1;
00079  cmask[2] = cmask_v2;
00080  cmask[3] = cmask_v3;
00081  inv[0] = inv_v0;
00082  inv[1] = inv_v1;
00083  inv[2] = inv_v2;
00084  inv[3] = inv_v3;
00085  used_counters_number = 0;
00086  for(int i=0; i<MAX_NUMBER_OF_PROGRAMMABLE_COUNTERS; i++)
00087  {
00088   if(strlen(event_str[i])>0) used_counters_number++;
00089  }
00090  for(int i=0; i<used_counters_number; i++)
00091  {
00092   sum[i] = 0;
00093   overhead_avg[i] = 0;
00094  }
00095  count = 0;
00096  if(pfm_initialize() != PFMLIB_SUCCESS)
00097  {
00098   printf("Cannot initialize perfmon!!\nExiting...\n");
00099   exit(0);
00100  }
00101  while(count<3)
00102  {
00103   start();
00104   stop_init();
00105  }
00106  for(int i=0; i<used_counters_number; i++)
00107  {
00108   sum[i] = 0;
00109  }
00110  count = 0;
00111  while(count<10)
00112  {
00113   start();
00114   stop_init();
00115  }
00116  for(int i=0; i<used_counters_number; i++)
00117  {
00118   overhead_avg[i] = sum[i]/count;
00119   sum[i] = 0;
00120  }
00121  count = 0;
00122 }

PfmCodeAnalyser::PfmCodeAnalyser ( PfmCodeAnalyser const & ) [private]

PfmCodeAnalyser::~PfmCodeAnalyser ( ) [private]

Definition at line 255 of file PfmCodeAnalyser.h.

00256 {
00257  for(int i=0; i<used_counters_number; i++)
00258  {
00259   printf("Event: %s\nTotal count:%lu\nNumber of counts:%u\nAverage count:%f\nOverhead removed:%u\n", event_str[i], sum[i], count, (double)sum[i]/count, overhead_avg[i]);
00260  }
00261 }

Member Function Documentation

PfmCodeAnalyser & PfmCodeAnalyser::Instance	(	const char *	event0 = `"UNHALTED_CORE_CYCLES"`,
		unsigned int	cmask_v0 = `0`,
		bool	inv_v0 = `false`,
		const char *	event1 = `""`,
		unsigned int	cmask_v1 = `0`,
		bool	inv_v1 = `false`,
		const char *	event2 = `""`,
		unsigned int	cmask_v2 = `0`,
		bool	inv_v2 = `false`,
		const char *	event3 = `""`,
		unsigned int	cmask_v3 = `0`,
		bool	inv_v3 = `false`
	)			`[static]`

Definition at line 124 of file PfmCodeAnalyser.h.

00128 {
00129  static PfmCodeAnalyser theSingleton(event0, cmask_v0, inv_v0, event1, cmask_v1, inv_v1, event2, cmask_v2, inv_v2, event3, cmask_v3, inv_v3);
00130  return theSingleton;
00131 }

PfmCodeAnalyser& PfmCodeAnalyser::operator= ( PfmCodeAnalyser const & ) [private]

void PfmCodeAnalyser::start ( )

Definition at line 135 of file PfmCodeAnalyser.h.

00136 {
00137  memset(&ctx,0, sizeof(ctx));
00138  memset(&inp,0, sizeof(inp));
00139  memset(&outp,0, sizeof(outp));
00140  memset(pd, 0, sizeof(pd));
00141  memset(pc, 0, sizeof(pc));
00142  memset(&load_arg, 0, sizeof(load_arg));
00143  memset(&params, 0, sizeof(params));
00144  for(int i=0; i<used_counters_number; i++)
00145  {
00146   ret = pfm_find_full_event(event_str[i], &inp.pfp_events[i]);
00147   if(ret != PFMLIB_SUCCESS)
00148   {
00149    fprintf(stderr, "ERROR: cannot find event: %s\naborting...\n", event_str[i]);
00150    exit(1);
00151   }
00152  }
00153  inp.pfp_dfl_plm = PFM_PLM3;
00154  inp.pfp_event_count = used_counters_number;
00155  for(int i=0; i<used_counters_number; i++)
00156  {
00157   if(inv[i])
00158   {
00159    (params.pfp_core_counters[i]).flags |= PFM_CORE_SEL_INV;
00160    (nhm_params.pfp_nhm_counters[i]).flags |= PFM_NHM_SEL_INV;
00161   }
00162   if(cmask[i]>0)
00163   {
00164    (params.pfp_core_counters[i]).cnt_mask = cmask[i];
00165    (nhm_params.pfp_nhm_counters[i]).cnt_mask = cmask[i];
00166   }
00167  }
00168  if(nehalem)
00169  {
00170   ret = pfm_dispatch_events(&inp, &nhm_params, &outp, NULL);
00171  }
00172  else
00173  {
00174   ret = pfm_dispatch_events(&inp, &params, &outp, NULL);
00175  }
00176  if(ret != PFMLIB_SUCCESS)
00177  {
00178   fprintf(stderr, "ERROR: cannot dispatch events: %s\naborting...\n", pfm_strerror(ret));
00179   exit(1);
00180  }
00181  for(unsigned int i=0; i<outp.pfp_pmc_count; i++)
00182  {
00183   pc[i].reg_num = outp.pfp_pmcs[i].reg_num;
00184   pc[i].reg_value = outp.pfp_pmcs[i].reg_value;
00185  }
00186  for(unsigned int i=0; i<outp.pfp_pmd_count; i++)
00187  {
00188   pd[i].reg_num = outp.pfp_pmds[i].reg_num;
00189   pd[i].reg_value = 0;
00190  }
00191  fd = pfm_create_context(&ctx, NULL, 0, 0);
00192  if(fd == -1)
00193  {
00194   fprintf(stderr, "ERROR: Context not created\naborting...\n");
00195   exit(1);
00196  }
00197  if(pfm_write_pmcs(fd, pc, outp.pfp_pmc_count) == -1)
00198  {
00199   fprintf(stderr, "ERROR: Could not write pmcs\naborting...\n");
00200   exit(1);
00201  }
00202  if(pfm_write_pmds(fd, pd, outp.pfp_pmd_count) == -1)
00203  {
00204   fprintf(stderr, "ERROR: Could not write pmds\naborting...\n");
00205   exit(1);
00206  }
00207  load_arg.load_pid = getpid();
00208  if(pfm_load_context(fd, &load_arg) == -1)
00209  {
00210   fprintf(stderr, "ERROR: Could not load context\naborting...\n");
00211   exit(1);
00212  }
00213  pfm_start(fd, NULL);
00214 }

void PfmCodeAnalyser::stop ( )

Definition at line 221 of file PfmCodeAnalyser.h.

00222 {
00223  pfm_stop(fd);
00224  if(pfm_read_pmds(fd, pd, inp.pfp_event_count) == -1)
00225  {
00226   fprintf(stderr, "ERROR: Could not read pmds\naborting...\n");
00227   exit(1);
00228  }
00229
00230  for(int i=0; i<used_counters_number; i++)
00231  {
00232   sum[i] += (pd[i].reg_value - overhead_avg[i]);
00233  }
00234  count++;
00235  close(fd);
00236 }

void PfmCodeAnalyser::stop_init ( )

Definition at line 238 of file PfmCodeAnalyser.h.

00239 {
00240  pfm_stop(fd);
00241  if(pfm_read_pmds(fd, pd, inp.pfp_event_count) == -1)
00242  {
00243   fprintf(stderr, "ERROR: Could not read pmds\naborting...\n");
00244   exit(1);
00245  }
00246
00247  for(int i=0; i<used_counters_number; i++)
00248  {
00249   sum[i] += (pd[i].reg_value);
00250  }
00251  count++;
00252  close(fd);
00253 }
