System::ProcessDescriptor Class Reference

Provides access to process information. More...

#include <ProcessDescriptor.h>

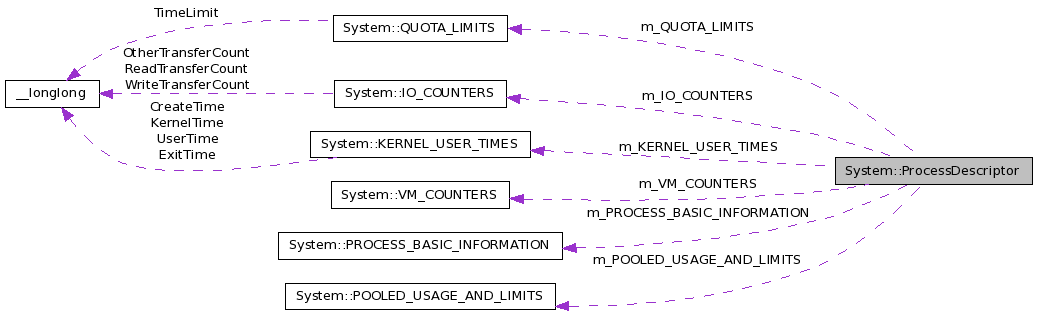

Collaboration diagram for System::ProcessDescriptor:
Collaboration graph
[legend]

List of all members.

Classes

class  ProcessHandle

Public Member Functions

 ProcessDescriptor ()
virtual ~ProcessDescriptor ()
long query (long pid, InfoType info, PROCESS_BASIC_INFORMATION *buffer)
long query (long pid, InfoType info, POOLED_USAGE_AND_LIMITS *buffer)
long query (long pid, InfoType info, KERNEL_USER_TIMES *buffer)
long query (long pid, InfoType info, QUOTA_LIMITS *buffer)
long query (long pid, InfoType info, VM_COUNTERS *buffer)
long query (long pid, InfoType info, IO_COUNTERS *buffer)
long query (long pid, InfoType info, long *buffer)

Private Attributes

long m_PRIORITYBOOST [2]
IO_COUNTERS m_IO_COUNTERS [2]
VM_COUNTERS m_VM_COUNTERS [2]
KERNEL_USER_TIMES m_KERNEL_USER_TIMES [2]
POOLED_USAGE_AND_LIMITS m_POOLED_USAGE_AND_LIMITS [2]
QUOTA_LIMITS m_QUOTA_LIMITS [2]
PROCESS_BASIC_INFORMATION m_PROCESS_BASIC_INFORMATION [2]

Detailed Description

Provides access to process information.

Author:
M.Frank
Sebastien Ponce

Definition at line 110 of file ProcessDescriptor.h.

Constructor & Destructor Documentation

System::ProcessDescriptor::ProcessDescriptor (  )

Definition at line 258 of file ProcessDescriptor.cpp.

00259 {
00260 }

System::ProcessDescriptor::~ProcessDescriptor (  )  [virtual]

Definition at line 262 of file ProcessDescriptor.cpp.

00262                                               {
00263 }

Member Function Documentation

long System::ProcessDescriptor::query ( long  pid,
InfoType  info,
long *  buffer
)

Definition at line 343 of file ProcessDescriptor.cpp.

00343                                                                            {
00344   long status = 1, *vb = &status;
00345   ProcessHandle h(pid);
00346   vb = &m_PRIORITYBOOST[h.item()];
00347   *vb = 0;
00348   switch ( fetch )    {
00349   case PriorityBoost:
00350 #if defined(_WIN32) && WINVER>=0x0400     // Windows NT
00351     status = NtApi::NtQueryInformationProcess(h.handle(),
00352                                               ProcessPriorityBoost,
00353                                               vb,
00354                                               sizeof(long),
00355                                               0);
00356 #elif defined(_WIN32)                     // Windows 95,98...
00357 #else
00358     // Not applicable
00359     status = 0;
00360     *vb = 0;
00361 #endif                                    // End ALL OS
00362     status = (status==0) ? 1 : 0;
00363     break;
00364   default:
00365     status = -1;
00366     vb = &status;
00367     break;
00368   }
00369   if ( info ) *info = *vb;
00370   return status;
00371 }

long System::ProcessDescriptor::query ( long  pid,
InfoType  info,
IO_COUNTERS *  buffer
)

Definition at line 265 of file ProcessDescriptor.cpp.

00267                                                          {
00268   long status = 1;
00269   ProcessHandle h(pid);
00270   IO_COUNTERS* vb = &m_IO_COUNTERS[h.item()];
00271   if ( fetch == IO )   {
00272 #if defined(_WIN32) && WINVER>=0x0400     // Windows NT
00273     status = NtApi::NtQueryInformationProcess(h.handle(),
00274                                               ProcessIoCounters,
00275                                               vb,
00276                                               sizeof(IO_COUNTERS),
00277                                               0);
00278     status = (status==0) ? 1 : 0;
00279 #elif defined(_WIN32)                     // Windows 95,98...
00280 #elif defined(linux)
00281     linux_proc prc;
00282     readProcStat(processID(pid), prc);
00283     rusage usage;
00284     getrusage(RUSAGE_SELF, &usage);
00285     vb->ReadOperationCount    = usage.ru_inblock;
00286     vb->WriteOperationCount   = usage.ru_oublock;
00287     vb->OtherOperationCount   = 0;
00288     vb->ReadTransferCount     = usage.ru_inblock;
00289     vb->WriteTransferCount    = usage.ru_oublock;
00290     vb->OtherTransferCount    = 0;
00291 #else                                     // All Other
00292 #endif                                    // End ALL OS
00293   }
00294   if ( info ) *info = *vb;
00295   return status;
00296 }

long System::ProcessDescriptor::query ( long  pid,
InfoType  info,
VM_COUNTERS *  buffer
)

Definition at line 373 of file ProcessDescriptor.cpp.

00375                                                             {
00376   long status = 1;
00377   ProcessHandle h(pid);
00378   VM_COUNTERS* vb = &m_VM_COUNTERS[h.item()];
00379   if ( fetch == Memory )   {
00380 #if defined(_WIN32) && WINVER>=0x0400     // Windows NT
00381     status = NtApi::NtQueryInformationProcess(h.handle(),
00382                                               ProcessVmCounters,
00383                                               vb,
00384                                               sizeof(VM_COUNTERS),
00385                                               0);
00386     status = (status==0) ? 1 : 0;
00387 #elif defined(_WIN32)                     // Windows 95,98...
00388 #elif defined(linux)                      // Linux
00389     const ssize_t bufsize = 1024;
00390     char buf[bufsize];
00391     sprintf(buf,"/proc/%ld/statm", processID(pid));
00392     long size, resident, share, trs, lrs, drs, dt;
00393     int fd = open(buf,O_RDONLY);
00394     ssize_t nread = read(fd, buf, bufsize);
00395     close(fd);
00396     if ( nread < bufsize && nread >= 0 )
00397       buf[nread]='\0';
00398     fd = sscanf(buf, "%ld %ld %ld %ld %ld %ld %ld",
00399                      &size, &resident, &share, &trs, &drs, &lrs, &dt);
00400     linux_proc prc;
00401     readProcStat( processID(pid), prc);
00402     vb->PeakVirtualSize            = prc.vsize;
00403     vb->VirtualSize                = prc.vsize;
00404     vb->PeakWorkingSetSize         = resident * pg_size;
00405     vb->WorkingSetSize             = resident * pg_size;
00406     vb->QuotaPeakPagedPoolUsage    = share    * pg_size;
00407     vb->QuotaPagedPoolUsage        = share    * pg_size;
00408     vb->QuotaNonPagedPoolUsage     = (trs+drs)* pg_size;// drs = data/stack size
00409     vb->QuotaPeakNonPagedPoolUsage = (trs+drs)* pg_size;// trs = VmExe size
00410     vb->PageFaultCount             = prc.majflt + prc.minflt;
00411     vb->PagefileUsage              = prc.vsize-resident*pg_size;
00412     vb->PeakPagefileUsage          = prc.vsize-resident*pg_size;
00413 #elif defined(__APPLE__)
00414 #else                                     // All Other
00415 #endif                                    // End ALL OS
00416   }
00417   if ( info ) *info = *vb;
00418   return status;
00419 }

long System::ProcessDescriptor::query ( long  pid,
InfoType  info,
QUOTA_LIMITS *  buffer
)

Definition at line 421 of file ProcessDescriptor.cpp.

00423                                                              {
00424   long status = 1;
00425   ProcessHandle h(pid);
00426   QUOTA_LIMITS* vb = &m_QUOTA_LIMITS[h.item()];
00427   if ( fetch == Quota )   {
00428 #if defined(_WIN32) && WINVER>=0x0400     // Windows NT
00429     status = NtApi::NtQueryInformationProcess(h.handle(),
00430                                               ProcessQuotaLimits,
00431                                               vb,
00432                                               sizeof(QUOTA_LIMITS),
00433                                               0);
00434     status = (status==0) ? 1 : 0;
00435 #elif defined(_WIN32)                     // Windows 95,98...
00436 #elif defined(linux)                      // Linux
00437     // On linux all this stuff typically is not set
00438     // (ie. rlim_max=RLIM_INFINITY...)
00439     rlimit lim;
00440     getrlimit(RLIMIT_DATA, &lim);
00441     if ( lim.rlim_max == RLIM_INFINITY ) lim.rlim_max = 0xFFFFFFFF;
00442     vb->PagedPoolLimit        = lim.rlim_max;
00443
00444     getrlimit(RLIMIT_STACK, &lim);
00445     if ( lim.rlim_max == RLIM_INFINITY ) lim.rlim_max = 0xFFFFFFFF;
00446     vb->NonPagedPoolLimit     = lim.rlim_max;
00447     vb->MinimumWorkingSetSize = 0;
00448
00449     getrlimit(RLIMIT_RSS, &lim);
00450     if ( lim.rlim_max == RLIM_INFINITY ) lim.rlim_max = 0xFFFFFFFF;
00451     vb->MaximumWorkingSetSize = lim.rlim_max;
00452
00453     getrlimit(RLIMIT_AS, &lim);
00454     if ( lim.rlim_max == RLIM_INFINITY ) lim.rlim_max = 0xFFFFFFFF;
00455     vb->PagefileLimit         = lim.rlim_max;
00456
00457     getrlimit(RLIMIT_CPU, &lim);
00458     if ( lim.rlim_max == RLIM_INFINITY ) lim.rlim_max = 0xFFFFFFFF;
00459     vb->TimeLimit             = lim.rlim_max;
00460 #elif defined(__APPLE__)
00461 #else                                     // All Other
00462 #endif                                    // End ALL OS
00463   }
00464   if ( info ) *info = *vb;
00465   return status;
00466 }

long System::ProcessDescriptor::query ( long  pid,
InfoType  info,
KERNEL_USER_TIMES *  buffer
)

Definition at line 503 of file ProcessDescriptor.cpp.

00505                                                                  {
00506   long status = 1;
00507   ProcessHandle h(pid);
00508   KERNEL_USER_TIMES* tb = &m_KERNEL_USER_TIMES[h.item()];;
00509   if ( fetch == Times )   {
00510 #if defined(_WIN32) && WINVER>=0x0400     // Windows NT
00511     status = NtApi::NtQueryInformationProcess(h.handle(),
00512                                               ProcessTimes,
00513                                               tb,
00514                                               sizeof(KERNEL_USER_TIMES),
00515                                               0);
00516     status = (status==0) ? 1 : 0;
00517 #elif defined(_WIN32)                     // Windows 95,98...
00518 #elif defined(linux)                      // Linux
00519     // prc.startup is in ticks since system start :
00520     // need to offset for absolute time
00521     tms tmsb;
00522     static longlong prc_start = 0;
00523     //    static longlong offset = 100*longlong(time(0)) - longlong(times(0));
00524     static longlong offset = 100*longlong(time(0)) - longlong(times(&tmsb));
00525     if ( processID(pid) == s_myPid && prc_start == 0 ) {
00526       linux_proc prc;
00527       readProcStat( processID(pid), prc);
00528       prc_start = prc.starttime+offset;
00529     }
00530
00531     if ( processID(pid) == s_myPid ) {
00532       struct rusage r;
00533       getrusage( RUSAGE_SELF, &r );
00534       tb->UserTime   = (static_cast<long long>(r.ru_utime.tv_sec) * 1000000 +
00535                         r.ru_utime.tv_usec) * 10;
00536       tb->KernelTime = (static_cast<long long>(r.ru_stime.tv_sec) * 1000000 +
00537                         r.ru_stime.tv_usec) * 10;
00538       tb->CreateTime = prc_start;
00539     }
00540     else {
00541       linux_proc prc;
00542       readProcStat( processID(pid), prc );
00543
00544       tms t;
00545       times(&t);
00546       tb->UserTime   = t.tms_utime * TICK_TO_100NSEC;
00547       tb->KernelTime = t.tms_stime * TICK_TO_100NSEC;
00548       tb->CreateTime = (prc.starttime+offset);
00549     }
00550     tb->CreateTime *= TICK_TO_100NSEC;
00551     tb->ExitTime    = 0;
00552
00553     status = 1;
00554
00555 #elif defined(__APPLE__)
00556     // FIXME (MCl): Make an alternative function get timing on OSX
00557     // times() seems to cause a segmentation fault
00558 #else  // no /proc file system: assume sys_start for the first call
00559     tms tmsb;
00560     static clock_t sys_start = times(0);
00561     static longlong offset = 100*longlong(time(0)) - sys_start;
00562     clock_t now = times(&tmsb);
00563     tb->CreateTime    = offset + now;
00564     tb->UserTime      = tmsb.tms_utime;
00565     tb->KernelTime    = tmsb.tms_stime;
00566     tb->CreateTime   *= TICK_TO_100NSEC;
00567     tb->UserTime     *= TICK_TO_100NSEC;
00568     tb->KernelTime   *= TICK_TO_100NSEC;
00569     tb->ExitTime      = 0;
00570     status = 1;
00571 #endif
00572   }
00573   if ( info ) *info = *tb;
00574   return status;
00575 }

long System::ProcessDescriptor::query ( long  pid,
InfoType  info,
POOLED_USAGE_AND_LIMITS *  buffer
)

Definition at line 298 of file ProcessDescriptor.cpp.

00300                                                                         {
00301   long status = 1;
00302   ProcessHandle h(pid);
00303   POOLED_USAGE_AND_LIMITS* vb = &m_POOLED_USAGE_AND_LIMITS[h.item()];
00304   if ( fetch == Quota )   {
00305 #if defined(_WIN32) && WINVER>=0x0400     // Windows NT
00306     status = NtApi::NtQueryInformationProcess(h.handle(),
00307                                               ProcessPooledUsageAndLimits,
00308                                               vb,
00309                                               sizeof(POOLED_USAGE_AND_LIMITS),
00310                                               0);
00311     status = (status==0) ? 1 : 0;
00312 #elif defined(_WIN32)                     // Windows 95,98...
00313 #elif defined(linux)                      // Linux
00314     //rusage usage;
00315     //getrusage(RUSAGE_SELF, &usage);
00316     rlimit lim;
00317
00318     getrlimit(RLIMIT_DATA, &lim);
00319     if ( lim.rlim_max == RLIM_INFINITY ) lim.rlim_max = 0xFFFFFFFF;
00320     vb->PeakPagedPoolUsage = lim.rlim_cur;
00321     vb->PagedPoolUsage     = lim.rlim_cur;
00322     vb->PagedPoolLimit     = lim.rlim_max;
00323
00324     getrlimit(RLIMIT_STACK, &lim);
00325     if ( lim.rlim_max == RLIM_INFINITY ) lim.rlim_max = 0xFFFFFFFF;
00326     vb->PeakNonPagedPoolUsage = lim.rlim_cur;
00327     vb->NonPagedPoolUsage     = lim.rlim_cur;
00328     vb->NonPagedPoolLimit     = lim.rlim_max;
00329
00330     linux_proc prc;
00331     readProcStat(processID(pid), prc);
00332     vb->PeakPagefileUsage     = prc.rss * pg_size;
00333     vb->PagefileUsage         = prc.rss * pg_size;
00334     vb->PagefileLimit         = 0xFFFFFFFF;
00335 #elif defined(__APPLE__)
00336 #else                                     // All Other
00337 #endif                                    // End ALL OS
00338   }
00339   if ( info ) *info = *vb;
00340   return status;
00341 }

long System::ProcessDescriptor::query ( long  pid,
InfoType  info,
PROCESS_BASIC_INFORMATION *  buffer
)

Definition at line 468 of file ProcessDescriptor.cpp.

00470                                                                           {
00471   long status = 1;
00472   ProcessHandle h(pid);
00473   PROCESS_BASIC_INFORMATION* vb = &m_PROCESS_BASIC_INFORMATION[h.item()];
00474   if ( fetch == ProcessBasics )   {
00475 #if defined(_WIN32) && WINVER>=0x0400     // Windows NT
00476     status = NtApi::NtQueryInformationProcess(h.handle(),
00477                                               ProcessBasicInformation,
00478                                               vb,
00479                                               sizeof(PROCESS_BASIC_INFORMATION),
00480                                               0);
00481     status = (status==0) ? 1 : 0;
00482 #elif defined(_WIN32)                     // Windows 95,98...
00483 #elif defined(linux)                      // Linux
00484     linux_proc prc;
00485     readProcStat( processID(pid), prc);
00486     vb->ExitStatus                   = 0;
00487     vb->PebBaseAddress               = (PPEB)prc.startcode;
00488     vb->BasePriority                 = 2*15-prc.priority;
00489     // std::cout << "Base Priority=" << vb->BasePriority << "|"
00490     // << prc.priority << std::endl;
00491     vb->AffinityMask                 = prc.flags;
00492     // std::cout << "Flags        =" << vb->AffinityMask << "|"
00493     // << prc.flags << std::endl;
00494     vb->UniqueProcessId              = processID(pid);
00495     vb->InheritedFromUniqueProcessId = prc.ppid;
00496 #else                                     // All Other
00497 #endif                                    // End ALL OS
00498   }
00499   if ( info ) *info = *vb;
00500   return status;
00501 }

Member Data Documentation

IO_COUNTERS System::ProcessDescriptor::m_IO_COUNTERS[2] [private]

Definition at line 125 of file ProcessDescriptor.h.

KERNEL_USER_TIMES System::ProcessDescriptor::m_KERNEL_USER_TIMES[2] [private]

Definition at line 127 of file ProcessDescriptor.h.

POOLED_USAGE_AND_LIMITS System::ProcessDescriptor::m_POOLED_USAGE_AND_LIMITS[2] [private]

Definition at line 128 of file ProcessDescriptor.h.

long System::ProcessDescriptor::m_PRIORITYBOOST[2] [private]

Definition at line 124 of file ProcessDescriptor.h.

PROCESS_BASIC_INFORMATION System::ProcessDescriptor::m_PROCESS_BASIC_INFORMATION[2] [private]

Definition at line 130 of file ProcessDescriptor.h.

QUOTA_LIMITS System::ProcessDescriptor::m_QUOTA_LIMITS[2] [private]

Definition at line 129 of file ProcessDescriptor.h.

VM_COUNTERS System::ProcessDescriptor::m_VM_COUNTERS[2] [private]

Definition at line 126 of file ProcessDescriptor.h.

The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Properties Friends Defines
Generated at Wed Feb 9 16:34:22 2011 for Gaudi Framework, version v22r0 by Doxygen version 1.6.2 written by Dimitri van Heesch, © 1997-2004
