Common AIDA implementation stuff for histograms and profiles using ROOT implementations. More...

#include <GaudiPI/Generic1D.h>

Inheritance diagram for Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >:

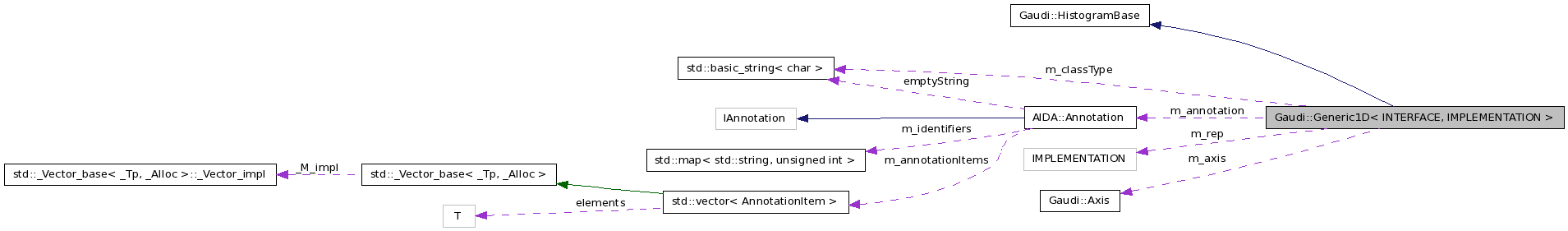

Collaboration diagram for Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >:

Public Types
typedef Generic1D< INTERFACE, IMPLEMENTATION >	Base
Public Member Functions
	Generic1D ()
	Default constructor.
virtual	~Generic1D ()
	Default destructor.
virtual const std::string &	userLevelClassType () const
	The AIDA user-level unterface leaf class type.
virtual void *	cast (const std::string &cl) const
	Manual cast by class name.
TObject *	representation () const
	ROOT object implementation.
virtual void	adoptRepresentation (TObject *rep)
	Adopt ROOT histogram representation.
virtual std::string	title () const
	Get the title of the object.
virtual bool	setTitle (const std::string &title)
	Set the title of the object.
std::string	name () const
	object name
bool	setName (const std::string &newName)
	Set the name of the object.
virtual AIDA::IAnnotation &	annotation ()
	Access annotation object.
virtual const AIDA::IAnnotation &	annotation () const
	Access annotation object (cons)
Axis &	axis ()
	Access to axis object.
const Axis &	axis () const
	Get the x axis of the IHistogram1D.
virtual int	entries () const
	Get the number or all the entries.
virtual int	allEntries () const
	Get the number or all the entries, both in range and underflow/overflow bins of the IProfile.
virtual int	extraEntries () const
	Get the number of entries in the underflow and overflow bins.
virtual int	binEntries (int index) const
	Number of entries in the corresponding bin (ie the number of times fill was called for this bin).
virtual double	binRms (int index) const
virtual double	sumBinHeights () const
	Get the sum of in range bin heights in the IProfile.
virtual double	sumAllBinHeights () const
	Get the sum of all the bins heights (including underflow and overflow bin).
virtual double	sumExtraBinHeights () const
	Get the sum of the underflow and overflow bin height.
virtual double	minBinHeight () const
	Get the minimum height of the in-range bins.
virtual double	maxBinHeight () const
	Get the maximum height of the in-range bins.
virtual double	equivalentBinEntries () const
	Number of equivalent entries, i.e. `SUM[ weight ] ^ 2 / SUM[ weight^2 ]`
virtual bool	scale (double scaleFactor)
	Scale the weights and the errors of all the IHistogram's bins (in-range and out-of-range ones) by a given scale factor.
virtual bool	reset ()
	Reset the Histogram; as if just created.
virtual bool	add (const INTERFACE &profile)
	Modifies this IProfile1D by adding the contents of profile to it.
virtual int	rIndex (int index) const
	operator methods
virtual double	binMean (int index) const
	The weighted mean of a bin.
virtual double	binHeight (int index) const
	Total height of the corresponding bin (ie the sum of the weights in this bin).
virtual double	binError (int index) const
	The error of a given bin.
virtual double	mean () const
	The mean of the whole IHistogram1D.
virtual double	rms () const
	The RMS of the whole IHistogram1D.
virtual int	coordToIndex (double coord) const
	Get the bin number corresponding to a given coordinate along the x axis.
virtual int	dimension () const
	Get the Histogram's dimension.
virtual std::ostream &	print (std::ostream &s) const
	Print (ASCII) the histogram into the output stream.
virtual std::ostream &	write (std::ostream &s) const
	Write (ASCII) the histogram table into the output stream.
virtual int	write (const char *file_name) const
	Write (ASCII) the histogram table into a file.
template<>
void *	cast (const std::string &className) const
template<>
int	binEntries (int index) const
template<>
void	adoptRepresentation (TObject *rep)
	Adopt ROOT histogram representation.
template<>
int	binEntries (int index) const
template<>
void *	cast (const std::string &className) const
template<>
void	adoptRepresentation (TObject *rep)
	Adopt ROOT histogram representation.
Protected Attributes
Axis	m_axis
	Axis member.
AIDA::Annotation	m_annotation
	Object annotations.
IMPLEMENTATION *	m_rep
	Reference to underlying implementation.
std::string	m_classType
int	m_sumEntries

Detailed Description

template<class INTERFACE, class IMPLEMENTATION>
class Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >

Common AIDA implementation stuff for histograms and profiles using ROOT implementations.

Credits: This code is the result of some stripdown implementation of LCG/PI. Credits to them!

Author:: M.Frank

Definition at line 22 of file Generic1D.h.

Member Typedef Documentation

template<class INTERFACE, class IMPLEMENTATION>

typedef Generic1D<INTERFACE,IMPLEMENTATION> Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::Base

Definition at line 24 of file Generic1D.h.

Constructor & Destructor Documentation

template<class INTERFACE, class IMPLEMENTATION>

Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::Generic1D ( ) [inline]

Default constructor.

Definition at line 26 of file Generic1D.h.

: virtual public INTERFACE, virtual public HistogramBase {

template<class INTERFACE, class IMPLEMENTATION>

virtual Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::~Generic1D ( ) [inline, virtual]

Default destructor.

Definition at line 28 of file Generic1D.h.

: virtual public INTERFACE, virtual public HistogramBase {

Member Function Documentation

template<class INTERFACE, class IMPLEMENTATION >

bool Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::add ( const INTERFACE & profile ) [virtual]

Modifies this IProfile1D by adding the contents of profile to it.

Definition at line 183 of file Generic1D.h.

                                                                      {
    m_rep->Scale ( scaleFactor );
    return true;
  }

  template <class INTERFACE, class IMPLEMENTATION>
  bool Generic1D<INTERFACE,IMPLEMENTATION>::add(const INTERFACE & h)  {
    const Generic1D<INTERFACE,IMPLEMENTATION>* p =

template<>

void Gaudi::Generic1D< AIDA::IHistogram1D, TH1D >::adoptRepresentation ( TObject * rep ) [virtual]

Adopt ROOT histogram representation.

Implements Gaudi::HistogramBase.

Reimplemented in Gaudi::Histogram1D.

Definition at line 45 of file H1D.cpp.

                                                                          {
    TH1D* imp = dynamic_cast<TH1D*>(rep);
    if ( imp )  {
      if ( m_rep ) delete m_rep;
      m_rep = imp;
      return;
    }
    throw std::runtime_error("Cannot adopt native histogram representation.");
  }

template<>

void Gaudi::Generic1D< AIDA::IProfile1D, TProfile >::adoptRepresentation ( TObject * rep ) [virtual]

Adopt ROOT histogram representation.

Implements Gaudi::HistogramBase.

Reimplemented in Gaudi::Histogram1D.

Definition at line 55 of file P1D.cpp.

                                                                            {
    TProfile* imp = dynamic_cast<TProfile*>(rep);
    if ( imp )  {
    if ( m_rep ) delete m_rep;
      m_rep = imp;
      m_axis.initialize(m_rep->GetXaxis(),true);
      const TArrayD* a = m_rep->GetSumw2();
      if ( 0 == a || (a && a->GetSize()==0) ) m_rep->Sumw2();
      setTitle(m_rep->GetTitle());
      return;
    }
    throw std::runtime_error("Cannot adopt native histogram representation.");
  }

template<class INTERFACE, class IMPLEMENTATION>

virtual void Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::adoptRepresentation ( TObject * rep ) [virtual]

Adopt ROOT histogram representation.

Implements Gaudi::HistogramBase.

Reimplemented in Gaudi::Histogram1D.

template<class INTERFACE, class IMPLEMENTATION>

virtual int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::allEntries ( ) const [inline, virtual]

Get the number or all the entries, both in range and underflow/overflow bins of the IProfile.

Definition at line 57 of file Generic1D.h.

{ return m_axis;                      }

template<class INTERFACE, class IMPLEMENTATION>

virtual AIDA::IAnnotation& Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::annotation ( ) [inline, virtual]

Access annotation object.

Definition at line 46 of file Generic1D.h.

template<class INTERFACE, class IMPLEMENTATION>

virtual const AIDA::IAnnotation& Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::annotation ( ) const [inline, virtual]

Access annotation object (cons)

Definition at line 48 of file Generic1D.h.

template<class INTERFACE, class IMPLEMENTATION>

Axis& Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::axis ( ) [inline]

Access to axis object.

Definition at line 50 of file Generic1D.h.

template<class INTERFACE, class IMPLEMENTATION>

const Axis& Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::axis ( ) const [inline]

Get the x axis of the IHistogram1D.

Definition at line 52 of file Generic1D.h.

template<class INTERFACE, class IMPLEMENTATION>

virtual int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::binEntries ( int index ) const [virtual]

Number of entries in the corresponding bin (ie the number of times fill was called for this bin).

template<>

int Gaudi::Generic1D< AIDA::IHistogram1D, TH1D >::binEntries ( int index ) const

Definition at line 38 of file H1D.cpp.

                                                                               {
    if (binHeight(index)<=0) return 0;
    double xx =  binHeight(index)/binError(index);
    return int(xx*xx+0.5);
  }

template<>

int Gaudi::Generic1D< AIDA::IProfile1D, TProfile >::binEntries ( int index ) const

Definition at line 40 of file P1D.cpp.

                                                                      {
    return int(m_rep->GetBinEntries( rIndex(index) )+0.5);
  }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::binError ( int index ) const [virtual]

The error of a given bin.

Definition at line 152 of file Generic1D.h.

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::binHeight ( int index ) const [virtual]

Total height of the corresponding bin (ie the sum of the weights in this bin).

Definition at line 147 of file Generic1D.h.

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::binMean ( int index ) const [virtual]

The weighted mean of a bin.

Definition at line 142 of file Generic1D.h.

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::binRms ( int index ) const [virtual]

Definition at line 137 of file Generic1D.h.

                                                                              {
    m_rep->SetName(newName.c_str());
    m_annotation.setValue( "Name", newName );

template<class INTERFACE, class IMPLEMENTATION>

virtual void* Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::cast ( const std::string & cl ) const [virtual]

Manual cast by class name.

template<>

void * Gaudi::Generic1D< AIDA::IHistogram1D, TH1D >::cast ( const std::string & className ) const

Definition at line 30 of file H1D.cpp.

                                                                                            {
    if (className == "AIDA::IHistogram1D")
      return const_cast<AIDA::IHistogram1D*>((AIDA::IHistogram1D*)this);
    if (className == "AIDA::IHistogram")
      return const_cast<AIDA::IHistogram*>((AIDA::IHistogram*)this);
    return 0;
  }

template<>

void * Gaudi::Generic1D< AIDA::IProfile1D, TProfile >::cast ( const std::string & className ) const

Definition at line 44 of file P1D.cpp.

                                                                                             {
    if (className == "AIDA::IProfile1D")
      return const_cast<AIDA::IProfile1D*>((AIDA::IProfile1D*)this);
    else if (className == "AIDA::IProfile")
      return const_cast<AIDA::IProfile*>((AIDA::IProfile*)this);
    else if (className == "AIDA::IBaseHistogram")
      return const_cast<AIDA::IBaseHistogram*>((AIDA::IBaseHistogram*)this);
    return 0;
  }

template<class INTERFACE, class IMPLEMENTATION>

virtual int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::coordToIndex ( double coord ) const [inline, virtual]

Get the bin number corresponding to a given coordinate along the x axis.

Definition at line 96 of file Generic1D.h.

{ return m_rep->GetMean();                    }

template<class INTERFACE, class IMPLEMENTATION>

virtual int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::dimension ( ) const [inline, virtual]

Get the Histogram's dimension.

Definition at line 98 of file Generic1D.h.

{ return m_rep->GetMean();                    }

template<class INTERFACE, class IMPLEMENTATION>

virtual int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::entries ( ) const [inline, virtual]

Get the number or all the entries.

Definition at line 55 of file Generic1D.h.

{ return m_annotation;                }

template<class INTERFACE , class IMPLEMENTATION >

double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::equivalentBinEntries ( ) const [virtual]

Number of equivalent entries, i.e. SUM[ weight ] ^ 2 / SUM[ weight^2 ]

Definition at line 169 of file Generic1D.h.

                                                    {
    m_sumEntries = 0;
    m_rep->Reset();
    return true;
  }

template<class INTERFACE , class IMPLEMENTATION >

int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::extraEntries ( ) const [virtual]

Get the number of entries in the underflow and overflow bins.

Definition at line 157 of file Generic1D.h.

                                                                          {
    return m_rep->GetBinError ( rIndex(index) );

template<class INTERFACE, class IMPLEMENTATION>

virtual double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::maxBinHeight ( ) const [inline, virtual]

Get the maximum height of the in-range bins.

Definition at line 73 of file Generic1D.h.

{ return m_rep->GetSum();                     }

template<class INTERFACE, class IMPLEMENTATION>

virtual double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::mean ( ) const [inline, virtual]

The mean of the whole IHistogram1D.

Definition at line 92 of file Generic1D.h.

{ return m_rep->GetMean();                    }

template<class INTERFACE, class IMPLEMENTATION>

virtual double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::minBinHeight ( ) const [inline, virtual]

Get the minimum height of the in-range bins.

Definition at line 71 of file Generic1D.h.

{ return m_rep->GetSumOfWeights();            }

template<class INTERFACE, class IMPLEMENTATION>

std::string Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::name ( ) const [inline]

object name

Definition at line 42 of file Generic1D.h.

template<class INTERFACE , class IMPLEMENTATION >

std::ostream & Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::print ( std::ostream & s ) const [virtual]

Print (ASCII) the histogram into the output stream.

bin contents and errors are printed for all bins including under and overflows

Implements Gaudi::HistogramBase.

Definition at line 194 of file Generic1D.h.

template<class INTERFACE, class IMPLEMENTATION>

TObject* Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::representation ( ) const [inline, virtual]

ROOT object implementation.

Implements Gaudi::HistogramBase.

Definition at line 34 of file Generic1D.h.

{ delete m_rep;                       }

template<class INTERFACE , class IMPLEMENTATION >

bool Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::reset ( ) [virtual]

Reset the Histogram; as if just created.

Reimplemented in Gaudi::Histogram1D.

Definition at line 162 of file Generic1D.h.

                                                              {
    return binEntries(AIDA::IAxis::UNDERFLOW_BIN) +
          binEntries(AIDA::IAxis::OVERFLOW_BIN);

template<class INTERFACE, class IMPLEMENTATION>

virtual int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::rIndex ( int index ) const [inline, virtual]

operator methods

Definition at line 84 of file Generic1D.h.

{ return m_axis.rIndex(index);}

template<class INTERFACE, class IMPLEMENTATION>

virtual double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::rms ( ) const [inline, virtual]

The RMS of the whole IHistogram1D.

Definition at line 94 of file Generic1D.h.

{ return m_rep->GetMean();                    }

template<class INTERFACE , class IMPLEMENTATION >

bool Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::scale ( double scaleFactor ) [virtual]

Scale the weights and the errors of all the IHistogram's bins (in-range and out-of-range ones) by a given scale factor.

Definition at line 177 of file Generic1D.h.

template<class INTERFACE , class IMPLEMENTATION >

bool Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::setName ( const std::string & newName )

Set the name of the object.

Definition at line 130 of file Generic1D.h.

template<class INTERFACE , class IMPLEMENTATION >

bool Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::setTitle ( const std::string & title ) [virtual]

Set the title of the object.

Definition at line 120 of file Generic1D.h.

template<class INTERFACE, class IMPLEMENTATION>

virtual double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::sumAllBinHeights ( ) const [inline, virtual]

Get the sum of all the bins heights (including underflow and overflow bin).

Definition at line 67 of file Generic1D.h.

{ return m_rep->GetSumOfWeights();            }

template<class INTERFACE, class IMPLEMENTATION>

virtual double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::sumBinHeights ( ) const [inline, virtual]

Get the sum of in range bin heights in the IProfile.

Definition at line 65 of file Generic1D.h.

{ return m_rep->GetSumOfWeights();            }

template<class INTERFACE, class IMPLEMENTATION>

virtual double Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::sumExtraBinHeights ( ) const [inline, virtual]

Get the sum of the underflow and overflow bin height.

Definition at line 69 of file Generic1D.h.

{ return m_rep->GetSumOfWeights();            }

template<class INTERFACE, class IMPLEMENTATION>

virtual std::string Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::title ( ) const [inline, virtual]

Get the title of the object.

Definition at line 38 of file Generic1D.h.

template<class INTERFACE, class IMPLEMENTATION>

virtual const std::string& Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::userLevelClassType ( ) const [inline, virtual]

The AIDA user-level unterface leaf class type.

Definition at line 30 of file Generic1D.h.

:
    typedef Generic1D<INTERFACE,IMPLEMENTATION> Base;

template<class INTERFACE , class IMPLEMENTATION >

std::ostream & Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::write ( std::ostream & s ) const [virtual]

Write (ASCII) the histogram table into the output stream.

Implements Gaudi::HistogramBase.

Definition at line 202 of file Generic1D.h.

                                                                               {
    s << "\n1D Histogram Table: " << std::endl;
    s << "Bin, Height, Error "  << std::endl;

template<class INTERFACE , class IMPLEMENTATION >

int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::write ( const char * file_name ) const [virtual]

Write (ASCII) the histogram table into a file.

Implements Gaudi::HistogramBase.

Definition at line 215 of file Generic1D.h.

Member Data Documentation

template<class INTERFACE, class IMPLEMENTATION>

AIDA::Annotation Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::m_annotation [mutable, protected]

Object annotations.

Definition at line 110 of file Generic1D.h.

template<class INTERFACE, class IMPLEMENTATION>

Axis Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::m_axis [protected]

Axis member.

Definition at line 108 of file Generic1D.h.

template<class INTERFACE, class IMPLEMENTATION>

std::string Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::m_classType [protected]

Definition at line 114 of file Generic1D.h.

template<class INTERFACE, class IMPLEMENTATION>

IMPLEMENTATION* Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::m_rep [protected]

Reference to underlying implementation.

Definition at line 112 of file Generic1D.h.

template<class INTERFACE, class IMPLEMENTATION>

int Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >::m_sumEntries [protected]

Definition at line 116 of file Generic1D.h.

The documentation for this class was generated from the following file:

/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r1/GaudiSvc/src/HistogramSvc/Generic1D.h

Gaudi Framework, version v22r1

Gaudi::Generic1D< INTERFACE, IMPLEMENTATION > Class Template Reference

Public Types

Public Member Functions

Protected Attributes

Detailed Description

template<class INTERFACE, class IMPLEMENTATION>
class Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

Gaudi Framework, version v22r1

Gaudi::Generic1D< INTERFACE, IMPLEMENTATION > Class Template Reference

Public Types

Public Member Functions

Protected Attributes

Detailed Description

template<class INTERFACE, class IMPLEMENTATION> class Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class INTERFACE, class IMPLEMENTATION>
class Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >
