AIDA implementation for 2 D histograms using ROOT THD2. More...

#include <H2D.h>

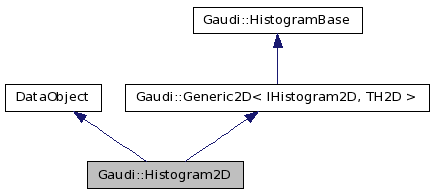

Inheritance diagram for Gaudi::Histogram2D:

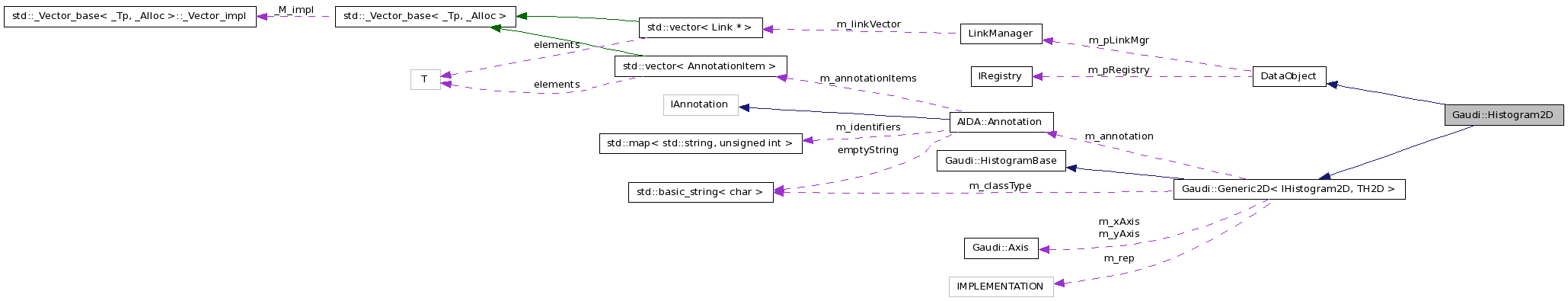

Collaboration diagram for Gaudi::Histogram2D:

Public Member Functions
	Histogram2D ()
	Standard Constructor.
	Histogram2D (TH2D *rep)
	Standard initializing Constructor with TH2D representation to be adopted.
virtual	~Histogram2D ()
	Destructor.
bool	fill (double x, double y, double weight=1.)
	Fill the Histogram2D with a value and the.
virtual bool	setBinContents (int binIndexX, int binIndexY, int entries, double height, double error, double centreX, double centreY)
	Fast filling method for a given bin. It can be also the over/underflow bin.
bool	setRms (double rmsX, double rmsY)
	Sets the rms of the histogram.
bool	reset ()
void	copyFromAida (const IHistogram2D &h)
	Create new histogram from any AIDA based histogram.
virtual const CLID &	clID () const
	Retrieve reference to class defininition identifier.
Static Public Member Functions
static const CLID &	classID ()
	Retrieve reference to class definition structure (static access)
Protected Attributes
double	m_sumwx
double	m_sumwy

Detailed Description

AIDA implementation for 2 D histograms using ROOT THD2.

Author:: M.Frank

Definition at line 20 of file H2D.h.

Constructor & Destructor Documentation

Gaudi::Histogram2D::Histogram2D ( )

Standard Constructor.

Definition at line 117 of file H2D.cpp.

                              {
  m_rep = new TH2D();
  m_rep->Sumw2();
  m_sumEntries = 0;
  m_sumwx = m_sumwy = 0;
  setTitle("");
  m_rep->SetDirectory(0);
}

Gaudi::Histogram2D::Histogram2D ( TH2D * rep )

Standard initializing Constructor with TH2D representation to be adopted.

Definition at line 126 of file H2D.cpp.

                                        {
  m_rep = 0;
  adoptRepresentation(rep);
  m_sumEntries = 0;
  m_sumwx = m_sumwy = 0;
  m_rep->SetDirectory(0);
}

virtual Gaudi::Histogram2D::~Histogram2D ( ) [inline, virtual]

Destructor.

Definition at line 27 of file H2D.h.

{}

Member Function Documentation

static const CLID& Gaudi::Histogram2D::classID ( ) [inline, static]

Retrieve reference to class definition structure (static access)

Retrieve Pointer to class definition structure.

Reimplemented from DataObject.

Definition at line 42 of file H2D.h.

{ return CLID_H2D; }

virtual const CLID& Gaudi::Histogram2D::clID ( ) const [inline, virtual]

Retrieve reference to class defininition identifier.

Reimplemented from DataObject.

Definition at line 41 of file H2D.h.

{ return Gaudi::Histogram2D::classID(); }

void Gaudi::Histogram2D::copyFromAida ( const IHistogram2D & h )

Create new histogram from any AIDA based histogram.

Definition at line 183 of file H2D.cpp.

                                                         {
  // implement here the copy
  delete m_rep;
  const char* tit = h.title().c_str();
  if (h.xAxis().isFixedBinning() && h.yAxis().isFixedBinning()  )
    m_rep = new TH2D(tit,tit,
                     h.xAxis().bins(),h.xAxis().lowerEdge(),h.xAxis().upperEdge(),
                     h.yAxis().bins(),h.yAxis().lowerEdge(),h.yAxis().upperEdge() );
  else {
    Edges eX, eY;
    for (int i =0; i < h.xAxis().bins(); ++i)
      eX.push_back(h.xAxis().binLowerEdge(i));
    // add also upperedges at the end
    eX.push_back(h.xAxis().upperEdge() );
    for (int i =0; i < h.yAxis().bins(); ++i)
      eY.push_back(h.yAxis().binLowerEdge(i));
    // add also upperedges at the end
    eY.push_back(h.yAxis().upperEdge() );
    m_rep = new TH2D(tit,tit,eX.size()-1,&eX.front(),eY.size()-1,&eY.front());
  }
  m_xAxis.initialize(m_rep->GetXaxis(),true);
  m_yAxis.initialize(m_rep->GetYaxis(),true);
  m_rep->Sumw2();
  m_sumEntries = 0;
  m_sumwx = 0;
  m_sumwy = 0;
  // statistics
  double sumw = h.sumBinHeights();
  double sumw2 = 0;
  if (h.equivalentBinEntries() != 0)
    sumw2 = ( sumw * sumw ) /h.equivalentBinEntries();
  double sumwx = h.meanX()*h.sumBinHeights();
  double sumwx2 = (h.meanX()*h.meanX() + h.rmsX()*h.rmsX() )*h.sumBinHeights();
  double sumwy = h.meanY()*h.sumBinHeights();
  double sumwy2 = (h.meanY()*h.meanY() + h.rmsY()*h.rmsY() )*h.sumBinHeights();
  double sumwxy = 0;

  // copy the contents in  (AIDA underflow/overflow are -2,-1)
  for (int i=-2; i < xAxis().bins(); ++i) {
    for (int j=-2; j < yAxis().bins(); ++j) {
      // root binning starts from one !
      m_rep->SetBinContent(rIndexX(i), rIndexY(j), h.binHeight(i,j) );
      m_rep->SetBinError(rIndexX(i), rIndexY(j), h.binError(i,j) );
      // calculate statistics
      if ( i >= 0 && j >= 0) {
        sumwxy += h.binHeight(i,j)*h.binMeanX(i,j)*h.binMeanY(i,j);
      }
    }
  }
  // need to do set entries after setting contents otherwise root will recalulate them
  // taking into account how many time  SetBinContents() has been called
  m_rep->SetEntries(h.allEntries());
  // fill stat vector
  std::vector<double> stat(11);
  stat[0] = sumw;
  stat[1] = sumw2;
  stat[2] = sumwx;
  stat[3] = sumwx2;
  stat[4] = sumwy;
  stat[5] = sumwy2;
  stat[6] = sumwxy;
  m_rep->PutStats(&stat.front());
}

bool Gaudi::Histogram2D::fill	(	double	x,
		double	y,
		double	weight = `1.`
	)

Fill the Histogram2D with a value and the.

Definition at line 158 of file H2D.cpp.

                                                             {
  (weight==1.) ? m_rep->Fill(x,y) : m_rep->Fill(x,y,weight );
  return true;
}

bool Gaudi::Histogram2D::reset ( )

Reimplemented from Gaudi::Generic2D< INTERFACE, IMPLEMENTATION >.

Definition at line 146 of file H2D.cpp.

                              {
  m_sumwx = 0;
  m_sumwy = 0;
  return Base::reset();
}

bool Gaudi::Histogram2D::setBinContents	(	int	binIndexX,
		int	binIndexY,
		int	entries,
		double	height,
		double	error,
		double	centreX,
		double	centreY
	)		`[virtual]`

Fast filling method for a given bin. It can be also the over/underflow bin.

Definition at line 134 of file H2D.cpp.

                                                                                                                       {
  m_rep->SetBinContent(rIndexX(i), rIndexY(j), height);
  m_rep->SetBinError(rIndexX(i), rIndexY(j), error);
  // accumulate sumwx for in range bins
  if (i >=0 && j >= 0) {
    m_sumwx += centreX*height;
    m_sumwy += centreY*height;
  }
  m_sumEntries += entries;
  return true;
}

bool Gaudi::Histogram2D::setRms	(	double	rmsX,
		double	rmsY
	)

Sets the rms of the histogram.

Definition at line 163 of file H2D.cpp.

                                                     {
  m_rep->SetEntries(m_sumEntries);
  std::vector<double> stat(11);
  stat[0] =  sumBinHeights();
  stat[1] = 0;
  if(equivalentBinEntries() != 0)
    stat[1] = (sumBinHeights() * sumBinHeights()) / equivalentBinEntries();
  stat[2] = m_sumwx;
  double meanX = 0;
  if(sumBinHeights() != 0) meanX =  m_sumwx/ sumBinHeights();
  stat[3] = (meanX*meanX + rmsX*rmsX) * sumBinHeights();
  stat[4] = m_sumwy;
  double meanY = 0;
  if(sumBinHeights() != 0) meanY =  m_sumwy/ sumBinHeights();
  stat[5] = (meanY*meanY + rmsY*rmsY) * sumBinHeights();
  stat[6] = 0;
  m_rep->PutStats(&stat.front());
  return true;
}

Member Data Documentation

double Gaudi::Histogram2D::m_sumwx [protected]

Definition at line 45 of file H2D.h.

double Gaudi::Histogram2D::m_sumwy [protected]

Definition at line 46 of file H2D.h.

The documentation for this class was generated from the following files:

/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r1/GaudiSvc/src/HistogramSvc/H2D.h
/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r1/GaudiSvc/src/HistogramSvc/H2D.cpp
