The DataOnDemandSvc listens to incidents typically triggered by the data service of the configurable name "IncidentName". More...

#include <DataOnDemandSvc.h>

Inheritance diagram for DataOnDemandSvc:

[legend]

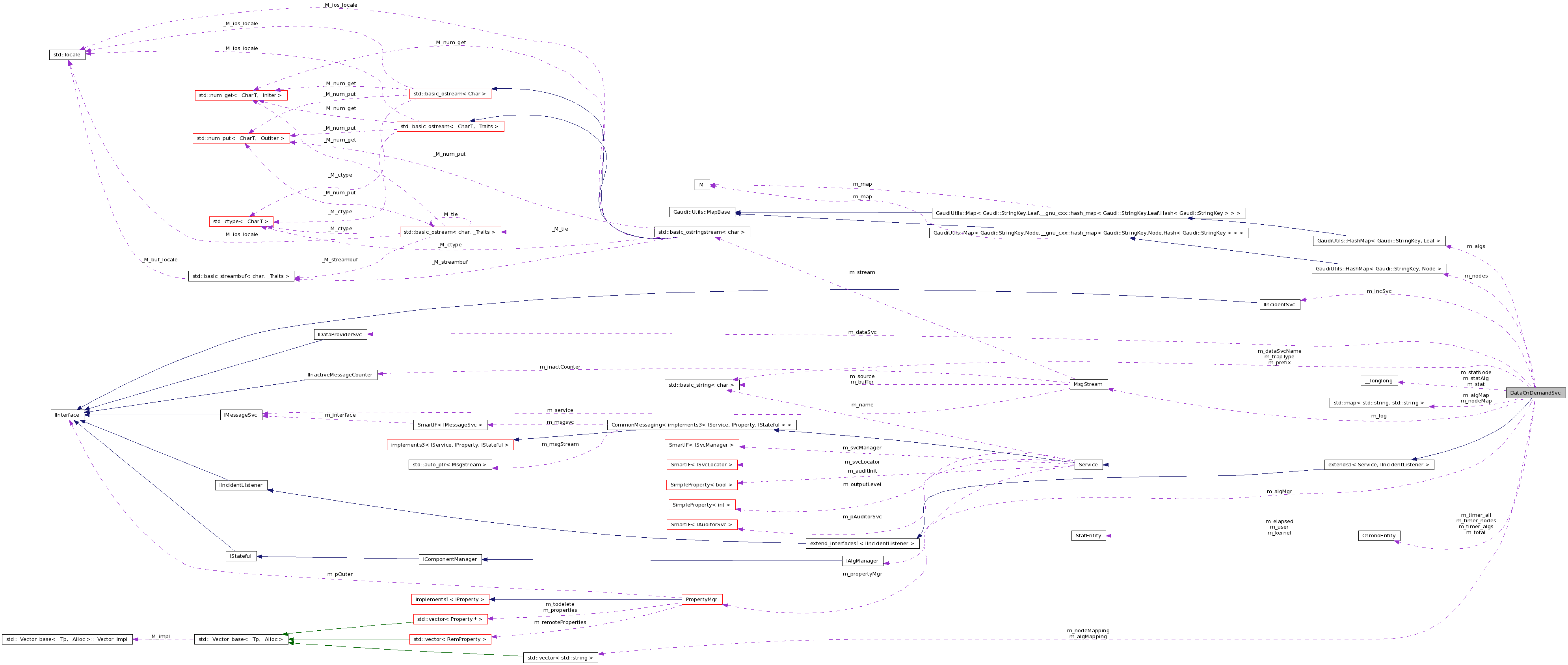

Collaboration diagram for DataOnDemandSvc:

[legend]

List of all members.

Classes
struct	Leaf
struct	Node
	Helper class of the DataOnDemandSvc. More...
struct	Protection
	Helper class of the DataOnDemandSvc. More...
Public Types
typedef std::vector< std::string >	Setup
typedef ROOT::Reflex::Type	ClassH
typedef GaudiUtils::HashMap < Gaudi::StringKey, Node >	NodeMap
typedef GaudiUtils::HashMap < Gaudi::StringKey, Leaf >	AlgMap
Public Member Functions
virtual StatusCode	initialize ()
	Inherited Service overrides: Service initialization.
virtual StatusCode	finalize ()
	Inherited Service overrides: Service finalization.
virtual StatusCode	reinitialize ()
	Inherited Service overrides: Service reinitialization.
virtual void	handle (const Incident &incident)
	IIncidentListener interfaces overrides: incident handling.
	DataOnDemandSvc (const std::string &name, ISvcLocator *svc)
	Standard initializing service constructor.
virtual	~DataOnDemandSvc ()
	Standard destructor.
void	update_1 (Property &p)
void	update_2 (Property &p)
void	update_3 (Property &p)
void	update_dump (Property &)
	update handler for 'Dump' property
Protected Member Functions
StatusCode	configureHandler (Leaf &leaf)
	Configure handler for leaf.
StatusCode	execHandler (const std::string &tag, Leaf &leaf)
	Execute leaf handler (algorithm)
StatusCode	execHandler (const std::string &tag, Node &node)
	Execute node handler (simple object creation using seal reflection)
StatusCode	setupNodeHandlers ()
	Initialize node handlers.
StatusCode	setupAlgHandlers ()
	Initialize leaf handlers.
StatusCode	setup ()
	Setup routine (called by (re-) initialize.
StatusCode	update ()
	update the handlers
MsgStream &	stream () const
	get the message stream
void	dump (const MSG::Level level, const bool mode=true) const
	dump the content of DataOnDemand service
Private Types
typedef std::map< std::string, std::string >	Map
Private Attributes
IIncidentSvc *	m_incSvc
	Incident service.
IAlgManager *	m_algMgr
	Algorithm manager.
IDataProviderSvc *	m_dataSvc
	Data provider reference.
std::string	m_trapType
	Trap name.
std::string	m_dataSvcName
	Data service name.
bool	m_partialPath
	Flag to allow for the creation of partial leaves.
bool	m_dump
	flag to force the printout
bool	m_init
	flag to warm up the configuration
bool	m_allowInitFailure
	flag to allow DataOnDemand initialization to succeed even if the (pre)initialization of the algorithms fails (m_init).
Setup	m_algMapping
	Mapping to algorithms.
Setup	m_nodeMapping
	Mapping to nodes.
AlgMap	m_algs
	Map of algorithms to handle incidents.
NodeMap	m_nodes
	Map of "empty" objects to be placed as intermediate nodes.
Map	m_algMap
	the major configuration property { 'data' : 'algorithm' }
Map	m_nodeMap
	the major configuration property { 'data' : 'type' }
bool	m_updateRequired
std::string	m_prefix
MsgStream *	m_log
ChronoEntity	m_total
ulonglong	m_statAlg
ulonglong	m_statNode
ulonglong	m_stat
ChronoEntity	m_timer_nodes
ChronoEntity	m_timer_algs
ChronoEntity	m_timer_all
bool	m_locked_nodes
bool	m_locked_algs
bool	m_locked_all

Detailed Description

The DataOnDemandSvc listens to incidents typically triggered by the data service of the configurable name "IncidentName".

In the job options handlers can be declared, which allow to configure this service. Such handlers are either:

Node handlers, if objects other than the default object type have to be instantiated. DataOnDemandSvc.Nodes = { "DATA='/Event/Rec' TYPE='DataObject'", "DATA='/Event/Rec/Muon' TYPE='DataObject'" };

Leaf handlers (Algorithms), which get instantiated and executed on demand. DataOnDemandSvc.Algorithms = { "DATA='/Event/Rec/Muon/Digits' TYPE='MuonDigitAlg/MyMuonDigits'" }; If the algorithm name is omitted the class name will be the instance name.

The handlers only get called if the exact path mathes. In the event already the partial path to any handler is missing a leaf handler may be triggered, which includes the partal pathes ( DataOnDemandSvc.UsePreceedingPath = true )

2006-10-15: New options (using map-like semantics:)

    DataOnDemandSvc.AlgMap  +=
   { "Phys/StdLoosePions/Particles" : "PreLoadParticles/StdLoosePions" ,
     "Phys/StdLoosePions/Vertioces" : "PreLoadParticles/StdLoosePions" } ;

    DataOnDemandSvc.NodeMap +=
   { "Phys" : "DataObject" ,
     "MC"   : "DataObject" } ;

New treatment of preceeding paths. for each registered leaf or node the all parent nodes are added into the node-map with default directory type 'DataObject'

The major properties are equipped with handlers (more or less mandatory for interactive work in python)

From now the default prefix ( "/Event/" ) coudl be omitted from any data-item. It will be added automatically.

Author:: M.Frank

Version:: 1.0

Definition at line 90 of file DataOnDemandSvc.h.

Member Typedef Documentation

typedef GaudiUtils::HashMap<Gaudi::StringKey, Leaf> DataOnDemandSvc::AlgMap

Definition at line 172 of file DataOnDemandSvc.h.

typedef ROOT::Reflex::Type DataOnDemandSvc::ClassH

Definition at line 96 of file DataOnDemandSvc.h.

typedef std::map<std::string,std::string> DataOnDemandSvc::Map [private]

Definition at line 277 of file DataOnDemandSvc.h.

typedef GaudiUtils::HashMap<Gaudi::StringKey, Node> DataOnDemandSvc::NodeMap

Definition at line 171 of file DataOnDemandSvc.h.

typedef std::vector<std::string> DataOnDemandSvc::Setup

Definition at line 95 of file DataOnDemandSvc.h.

Constructor & Destructor Documentation

DataOnDemandSvc::DataOnDemandSvc	(	const std::string &	name,
		ISvcLocator *	svc
	)

Standard initializing service constructor.

Parameters:

name	[IN] Service instance name
svc	[IN] Pointer to service locator

Returns:: Reference to DataOnDemandSvc object.

Definition at line 47 of file DataOnDemandSvc.cpp.

  : base_class(name, svc)
  , m_incSvc   ( 0 )
  , m_algMgr   ( 0 )
  , m_dataSvc  ( 0 )
  //
  , m_trapType    ( "DataFault")
  , m_dataSvcName ( "EventDataSvc" )
  , m_partialPath ( true  )
  , m_dump        ( false )
  , m_init        ( false )
  , m_allowInitFailure(false)
  //
  , m_algMapping  ()
  , m_nodeMapping ()
  //
  , m_algMap   (   )
  , m_nodeMap  (   )
  //
  , m_updateRequired ( true )
  , m_prefix         ( "/Event/" )
  , m_log      ( 0 )
  , m_total    (   )
  , m_statAlg  ( 0 )
  , m_statNode ( 0 )
  , m_stat     ( 0 )
  //
  , m_timer_nodes  ()
  , m_timer_algs   ()
  , m_timer_all    ()
  , m_locked_nodes ( false )
  , m_locked_algs  ( false )
  , m_locked_all   ( false )
  //
{
  // ==========================================================================
  declareProperty
    ( "IncidentName"       ,
      m_trapType           ,
      "The type of handled Incident" ) ;
  //
  declareProperty ( "DataSvc"            , m_dataSvcName ) ;
  //
  declareProperty ( "UsePreceedingPath"  , m_partialPath ) ;
  declareProperty
    ( "Dump"        ,
      m_dump        ,
      "Dump the configuration and stastics" )  ->
    declareUpdateHandler ( &DataOnDemandSvc::update_dump , this ) ;
  //
  declareProperty
    ( "PreInitialize" ,
      m_init          ,
      "Flag to (pre)initialize all algorithms" ) ;
  declareProperty
    ( "AllowPreInitializeFailure" ,
      m_allowInitFailure          ,
      "Allow (pre)initialization of algorithms to fail without stopping the application" ) ;
  //
  declareProperty ( "Algorithms"         , m_algMapping  )  ->
    declareUpdateHandler ( &DataOnDemandSvc::update_2 , this ) ;
  declareProperty ( "Nodes"              , m_nodeMapping ) ->
    declareUpdateHandler ( &DataOnDemandSvc::update_3 , this ) ;
  //
  declareProperty ( "AlgMap"  , m_algMap  ) ->
    declareUpdateHandler ( &DataOnDemandSvc::update_1 , this ) ;
  declareProperty ( "NodeMap" , m_nodeMap ) ->
    declareUpdateHandler ( &DataOnDemandSvc::update_1 , this ) ;
  //
  declareProperty ( "Prefix"             , m_prefix      ) ;
  // ==========================================================================
}

DataOnDemandSvc::~DataOnDemandSvc ( ) [virtual]

Standard destructor.

Definition at line 328 of file DataOnDemandSvc.cpp.

{ if ( 0 != m_log      ) { delete m_log      ; m_log      = 0 ; } }

Member Function Documentation

StatusCode DataOnDemandSvc::configureHandler ( Leaf & leaf ) [protected]

Configure handler for leaf.

Parameters:

leaf	[IN] Reference to leaf handler

Returns:: StatusCode indicating success or failure

Definition at line 542 of file DataOnDemandSvc.cpp.

{
  if ( 0 != l.algorithm ) { return StatusCode::SUCCESS ; }
  if ( 0 == m_algMgr  ) { return StatusCode::FAILURE ; }
  l.algorithm = m_algMgr->algorithm(l.name, false);
  if ( 0 != l.algorithm ) { return StatusCode::SUCCESS ; }
  // create it!
  StatusCode sc = m_algMgr->createAlgorithm ( l.type , l.name , l.algorithm , true ) ;
  if ( sc.isFailure() )
  {
    stream()
      << MSG::ERROR
      << "Failed to create algorithm "
      << l.type << "('" << l.name<< "')" << endmsg;
    l.algorithm = 0 ;
    return sc ;                                                    // RETURN
  }
  if ( l.algorithm->isInitialized() ) { return StatusCode:: SUCCESS ;}
  // initialize it!
  sc = l.algorithm -> sysInitialize () ;
  if ( sc.isFailure() )
  {
    stream()
      << MSG::ERROR
      << "Failed to initialize algorithm "
      << l.type << "('" << l.name<< "')" << endmsg;
    l.algorithm = 0 ;
    return sc ;                                                    // RETURN
  }
  if ( Gaudi::StateMachine::RUNNING == l.algorithm->FSMState() )
  { return StatusCode::SUCCESS ; }
  // run it!
  sc = l.algorithm->sysStart() ;
  if ( sc.isFailure() )
  {
    stream()
      << MSG::ERROR
      << "Failed to 'run'      algorithm "
      << l.type << "('" << l.name<< "')" << endmsg;
    l.algorithm = 0 ;
    return sc ;                                                    // RETURN
  }
  return StatusCode::SUCCESS  ;
}

void DataOnDemandSvc::dump	(	const MSG::Level	level,
		const bool	mode = `true`
	)		const `[protected]`

dump the content of DataOnDemand service

Parameters:

level	the printout level
mode	the printout mode

Definition at line 733 of file DataOnDemandSvc.cpp.

{
  if ( m_algs.empty()  &&  m_nodes.empty() ) { return ; }

  typedef std::pair<std::string,std::string> Pair ;
  typedef std::map<std::string,Pair>         PMap ;

  PMap _m ;
  for ( AlgMap::const_iterator alg = m_algs.begin() ;
        m_algs.end() != alg ; ++alg )
  {
    PMap::const_iterator check = _m.find(alg->first) ;
    if ( _m.end() != check )
    {
      stream()
        << MSG::WARNING
        << " The data item is activated for '"
        << check->first << "' as '" << check->second.first << "'" << endmsg ;
    }
    const Leaf& l = alg->second ;
    std::string nam = ( l.name == l.type ? l.type  : (l.type+"/"+l.name) ) ;
    //
    if ( !mode && 0 == l.num ) { continue ; }
    //
    std::string val ;
    if ( mode ) { val = ( 0 == l.algorithm ) ? "F" : "T" ; }
    else { val = boost::lexical_cast<std::string>( l.num ) ; }
    //
    _m[ no_prefix ( alg->first , m_prefix ) ] = std::make_pair ( nam , val ) ;
  }
  // nodes:
  for ( NodeMap::const_iterator node = m_nodes.begin() ;
        m_nodes.end() != node ; ++node )
  {
    PMap::const_iterator check = _m.find(node->first) ;
    if ( _m.end() != check )
    {
      stream()
        << MSG::WARNING
        << " The data item is already activated for '"
        << check->first << "' as '" << check->second.first << "'" << endmsg ;
    }
    const Node& n = node->second ;
    std::string nam = "'" + n.name + "'"  ;
    //
    std::string val ;

    if ( !mode && 0 == n.num ) { continue ; }

    if ( mode ) { val = ( 0 == n.clazz ) ? "F" : "T" ; }
    else { val = boost::lexical_cast<std::string>( n.num ) ; }
    //
    _m[ no_prefix ( node->first , m_prefix ) ] = std::make_pair ( nam , val ) ;
  }
  //
  if ( _m.empty() ) { return ; }

  // find the correct formats
  size_t n1 = 0 ;
  size_t n2 = 0 ;
  size_t n3 = 0 ;
  for  ( PMap::const_iterator it = _m.begin() ; _m.end() != it ; ++it )
  {
    n1 = std::max ( n1 , it->first.size()         ) ;
    n2 = std::max ( n2 , it->second.first.size()  ) ;
    n3 = std::max ( n3 , it->second.second.size() ) ;
  }
  if ( 10 > n1 ) { n1 = 10 ; }
  if ( 10 > n2 ) { n2 = 10 ; }
  if ( 60 < n1 ) { n1 = 60 ; }
  if ( 60 < n2 ) { n2 = 60 ; }
  //

  const std::string _f = " | %%1$-%1%.%1%s | %%2$-%2%.%2%s | %%3$%3%.%3%s |" ;
  boost::format _ff ( _f ) ;
  _ff % n1 % n2 % n3 ;

  const std::string _format  = _ff.str() ;

  MsgStream& msg = stream() << level ;

  if ( mode ) { msg << "Data-On-Demand Actions enabled for:"       ; }
  else        { msg << "Data-On-Demand Actions has been used for:" ; }

  boost::format fmt1( _format)  ;
  fmt1 % "Address" % "Creator" % ( mode ? "S" : "#" ) ;
  //
  const std::string header = fmt1.str() ;
  std::string line = std::string( header.size() , '-' ) ;
  line[0] = ' ' ;

  msg << std::endl << line
      << std::endl << header
      << std::endl << line ;

  // make the actual printout:
  for ( PMap::const_iterator item = _m.begin() ;
        _m.end() != item ; ++item )
  {
    boost::format fmt( _format)  ;
    msg << std::endl <<
      ( fmt % item->first % item->second.first % item->second.second ) ;
  }

  msg << std::endl << line << endmsg ;

}

StatusCode DataOnDemandSvc::execHandler	(	const std::string &	tag,
		Leaf &	leaf
	)		`[protected]`

Execute leaf handler (algorithm)

Parameters:

tag	[IN] Path to requested leaf
leaf	[IN] Reference to leaf handler

Returns:: StatusCode indicating success or failure

Definition at line 692 of file DataOnDemandSvc.cpp.

{
  Gaudi::Utils::LockedChrono timer ( m_timer_algs ,  m_locked_algs ) ;
  //
  if ( l.executing ) { return StatusCode::FAILURE ; }             // RETURN
  //
  if ( 0 == l.algorithm )
  {
    StatusCode sc = configureHandler ( l ) ;
    if ( sc.isFailure() )
    {
      stream()
        << MSG::ERROR
        << "Failed to configure handler for: "
        << l.name << "[" << l.type << "] " << tag << endmsg;
      return sc ;                                                 // RETURN
    }
  }
  //
  Chrono atimer ( m_total ) ;
  //
  Protection p(l.executing);
  StatusCode sc = l.algorithm->sysExecute();
  if ( sc.isFailure() )
  {
    stream() << MSG::ERROR
             << "Failed to execute the algorithm:"
             << l.algorithm->name() << " for location:" << tag << endmsg;
    return sc ;                                                       // RETURN
  }
  ++l.num ;
  //
  return StatusCode::SUCCESS ;
}

StatusCode DataOnDemandSvc::execHandler	(	const std::string &	tag,
		Node &	node
	)		`[protected]`

Execute node handler (simple object creation using seal reflection)

Parameters:

tag	[IN] Path to requested leaf
node	[IN] Reference to node handler

Returns:: StatusCode indicating success or failure

Definition at line 634 of file DataOnDemandSvc.cpp.

{

  Gaudi::Utils::LockedChrono timer ( m_timer_nodes ,  m_locked_nodes ) ;

  if ( n.executing ) { return StatusCode::FAILURE ; }            // RETURN

  Protection p(n.executing);

  DataObject* object= 0 ;

  if ( n.dataObject )  { object = new DataObject() ; }
  else
  {
    // try to recover the handler
    if ( !n.clazz  ) { n.clazz = ROOT::Reflex::Type::ByName(n.name) ; }
    if ( !n.clazz  )
    {
      stream()
        << MSG::ERROR
        << "Failed to get dictionary for class '"
        << n.name
        << "' for location:" << tag << endmsg;
      return StatusCode::FAILURE ;                               // RETURN
    }
    //
    ROOT::Reflex::Object obj = n.clazz.Construct();

    object = (DataObject*) obj.Address();

    if ( !object )
    {
      stream()
        << MSG::ERROR
        << "Failed to create an object of type:"
        << n.clazz.Name(ROOT::Reflex::SCOPED) << " for location:" << tag
        << endmsg;
      return StatusCode::FAILURE  ;                               // RETURN
    }
  }
  //
  StatusCode sc = m_dataSvc->registerObject(tag, object );
  if ( sc.isFailure() )
  {
    stream()
      << MSG::ERROR << "Failed to register an object of type:"
      << n.name << " at location:" << tag
      << endmsg;
    return sc ;                                                  // RETURN
  }
  ++n.num ;
  //
  return StatusCode::SUCCESS ;
}

StatusCode DataOnDemandSvc::finalize ( void ) [virtual]

Inherited Service overrides: Service finalization.

Reimplemented from Service.

Definition at line 351 of file DataOnDemandSvc.cpp.

{
  //
  stream ()
    << MSG::INFO
    << "Handled \"" << m_trapType << "\" incidents: "
    << m_statAlg  << "/" << m_statNode << "/" << m_stat << "(Alg/Node/Total)."
    << endmsg ;
  if ( m_dump || MSG::DEBUG >= outputLevel() )
  {
    stream ()
      << MSG::INFO
      << m_total.outputUserTime
      ( "Algorithm timing: Mean(+-rms)/Min/Max:%3%(+-%4%)/%6%/%7%[ms] " , System::milliSec )
      << m_total.outputUserTime ( "Total:%2%[s]" , System::Sec ) << endmsg ;
    stream ()
      << MSG::INFO
      << m_timer_nodes.outputUserTime
      ( "Nodes     timing: Mean(+-rms)/Min/Max:%3%(+-%4%)/%6%/%7%[ms] " , System::milliSec )
      << m_timer_nodes.outputUserTime ( "Total:%2%[s]" , System::Sec ) << endmsg ;
    stream ()
      << MSG::INFO
      << m_timer_algs .outputUserTime
      ( "Algs      timing: Mean(+-rms)/Min/Max:%3%(+-%4%)/%6%/%7%[ms] " , System::milliSec )
      << m_timer_algs .outputUserTime ( "Total:%2%[s]" , System::Sec ) << endmsg ;
    stream ()
      << MSG::INFO
      << m_timer_all  .outputUserTime
      ( "All       timing: Mean(+-rms)/Min/Max:%3%(+-%4%)/%6%/%7%[ms] " , System::milliSec )
      << m_timer_all  .outputUserTime ( "Total:%2%[s]" , System::Sec ) << endmsg ;
  }
  // dump it!
  if      ( m_dump )                      { dump ( MSG::INFO  , false ) ; }
  else if ( MSG::DEBUG >= outputLevel() ) { dump ( MSG::DEBUG , false ) ; }
  //
  if ( m_incSvc )
  {
    m_incSvc->removeListener(this, m_trapType);
    m_incSvc->release();
    m_incSvc = 0;
  }
  if ( 0 != m_algMgr  ) { m_algMgr   -> release () ; m_algMgr  = 0 ; }
  if ( 0 != m_dataSvc ) { m_dataSvc  -> release () ; m_dataSvc = 0 ; }
  //
  return Service::finalize();
}

void DataOnDemandSvc::handle ( const Incident & incident ) [virtual]

IIncidentListener interfaces overrides: incident handling.

Implements IIncidentListener.

Definition at line 589 of file DataOnDemandSvc.cpp.

{

  Gaudi::Utils::LockedChrono timer ( m_timer_all , m_locked_all ) ;

  ++m_stat ;
  // proper incident type?
  if ( incident.type() != m_trapType ) { return ; }             // RETURN
  const DataIncident* inc = dynamic_cast<const DataIncident*>(&incident);
  if ( 0 == inc                      ) { return ; }             // RETURN
  // update if needed!
  if ( m_updateRequired ) { update() ; }

  if ( MSG::VERBOSE >= outputLevel() )
  {
    stream()
      << MSG::VERBOSE
      << "Incident: [" << incident.type   () << "] "
      << " = "         << incident.source ()
      << " Location:"  << inc->tag()         << endmsg;
  }
  // ==========================================================================
  // const std::string& tag = inc->tag();
  Gaudi::StringKey tag ( inc->tag() ) ;
  // ==========================================================================
  NodeMap::iterator icl = m_nodes.find ( tag ) ;
  if ( icl != m_nodes.end() )
  {
    StatusCode sc = execHandler ( tag , icl->second ) ;
    if ( sc.isSuccess() ) { ++m_statNode ; }
    return ;                                                        // RETURN
  }
  // ==========================================================================
  AlgMap::iterator ialg = m_algs.find ( tag ) ;
  if ( ialg != m_algs.end() )
  {
    StatusCode sc = execHandler ( tag , ialg->second ) ;
    if ( sc.isSuccess() ) { ++m_statAlg ; }
    return ;                                                        // RETURN
  }
}

StatusCode DataOnDemandSvc::initialize ( ) [virtual]

Inherited Service overrides: Service initialization.

Reimplemented from Service.

Definition at line 333 of file DataOnDemandSvc.cpp.

{
  // initialize the Service Base class
  StatusCode sc = Service::initialize();
  if ( sc.isFailure() )  { return sc; }
  sc = setup();
  if ( sc.isFailure() )  { return sc; }
  //
  if      ( m_dump )                      { dump ( MSG::INFO  ) ; }
  else if ( MSG::DEBUG >= outputLevel() ) { dump ( MSG::DEBUG ) ; }
  //
  if ( m_init ) { return update () ; }
  //
  return StatusCode::SUCCESS ;
}

StatusCode DataOnDemandSvc::reinitialize ( ) [virtual]

Inherited Service overrides: Service reinitialization.

re-initialization of the service

Reimplemented from Service.

Definition at line 400 of file DataOnDemandSvc.cpp.

{
  // reinitialize the Service Base class
  if ( 0 != m_incSvc )
  {
    m_incSvc -> removeListener ( this , m_trapType );
    m_incSvc -> release ();
    m_incSvc = 0;
  }
  if ( 0 != m_algMgr  ) { m_algMgr   -> release() ; m_algMgr  = 0 ; }
  if ( 0 != m_dataSvc ) { m_dataSvc  -> release() ; m_dataSvc = 0 ; }
  if ( 0 != m_log     ) { delete m_log ; m_log = 0 ; }
  //
  StatusCode sc = Service::reinitialize();
  if ( sc.isFailure() )  { return sc; }
  //
  sc = setup() ;
  if ( sc.isFailure() )  { return sc; }
  //
  if ( m_dump ) { dump ( MSG::INFO ) ; }
  else if ( MSG::DEBUG >= outputLevel() ) { dump ( MSG::DEBUG  ) ; }
  //
  return StatusCode::SUCCESS ;
}

StatusCode DataOnDemandSvc::setup ( ) [protected]

Setup routine (called by (re-) initialize.

Definition at line 427 of file DataOnDemandSvc.cpp.

{
  m_algMgr = 0;
  StatusCode sc =
    serviceLocator()->queryInterface(IAlgManager::interfaceID(), pp_cast<void>(&m_algMgr));
  if ( sc.isFailure () )
  {
    stream()
      << MSG::ERROR
      << "Failed to retrieve the IAlgManager interface." << endmsg;
    return sc;
  }
  sc = service("IncidentSvc", m_incSvc, true);
  if ( sc.isFailure () )
  {
    stream()
      << MSG::ERROR << "Failed to retrieve Incident service." << endmsg;
    return sc;
  }
  m_incSvc->addListener(this, m_trapType);
  sc = service(m_dataSvcName, m_dataSvc, true);
  if ( sc.isFailure () )
  {
    stream()
      << MSG::ERROR
      << "Failed to retrieve the data provider interface of "
      << m_dataSvcName << endmsg;
    return sc;
  }
  return update() ;
}

StatusCode DataOnDemandSvc::setupAlgHandlers ( ) [protected]

Initialize leaf handlers.

Definition at line 503 of file DataOnDemandSvc.cpp.

{
  Setup::const_iterator j;
  std::string typ, tag;

  for(j=m_algMapping.begin(); j != m_algMapping.end(); ++j)
  {
    Tokenizer tok(true);
    tok.analyse(*j, " ", "", "", "=", "'", "'");
    for(Tokenizer::Items::iterator i = tok.items().begin(); i != tok.items().end(); i++ )   {
      const std::string& t = (*i).tag();
      const std::string& v = (*i).value();
      switch( ::toupper(t[0]) )    {
      case 'D':
        tag = v;
        break;
      case 'T':
        typ = v;
        break;
      }
    }
    Gaudi::Utils::TypeNameString item(typ);
    if ( m_algMap  .end () != m_algMap  .find ( tag ) ||
         m_nodeMap .end () != m_nodeMap .find ( tag ) )
    {
      stream()
        << MSG::WARNING
        << "The obsolete property 'Algorithms' redefines the action for '"
        + tag + "' to be '" +item.type() +"/"+item.name()+"'"
        << endmsg ;
    }
    m_algMap[tag] = item.type() + "/" + item.name() ;
  }
  m_updateRequired = true ;
  return StatusCode::SUCCESS;
}

StatusCode DataOnDemandSvc::setupNodeHandlers ( ) [protected]

Initialize node handlers.

Definition at line 461 of file DataOnDemandSvc.cpp.

{
  Setup::const_iterator j;
  std::string nam, typ, tag;
  StatusCode sc = StatusCode::SUCCESS;
  // Setup for node leafs, where simply a constructor is called...
  for ( j=m_nodeMapping.begin(); j != m_nodeMapping.end(); ++j)
  {
    Tokenizer tok(true);
    tok.analyse(*j, " ", "", "", "=", "'", "'");
    for ( Tokenizer::Items::iterator i = tok.items().begin();
          i != tok.items().end(); i++ )   {
      const std::string& t = (*i).tag();
      const std::string& v = (*i).value();
      switch( ::toupper(t[0]) )    {
      case 'D':
        tag = v;
        break;
      case 'T':
        nam = v;
        break;
      }
    }
    if ( m_algMap  .end () != m_algMap  .find ( tag ) ||
         m_nodeMap .end () != m_nodeMap .find ( tag ) )
    {
      stream()
        << MSG::WARNING
        << "The obsolete property 'Nodes' redefines the action for '"
        + tag + "' to be '" +nam+"'"
        << endmsg ;
    }
    m_nodeMap[tag] = nam ;
  }
  //
  m_updateRequired = true ;
  //
  return sc;
}

MsgStream& DataOnDemandSvc::stream ( ) const [inline, protected]

get the message stream

Definition at line 236 of file DataOnDemandSvc.h.

  {
    if ( 0 == m_log ) { m_log = new MsgStream( msgSvc() , name() ) ; }
    return *m_log;
  }

StatusCode DataOnDemandSvc::update ( ) [protected]

update the handlers

convert obsolete "Nodes" into new "NodeMap"

convert obsolete "Algorithms" into new "AlgMap"

add the default prefix

get all directories

setup algorithms

setup nodes

Definition at line 245 of file DataOnDemandSvc.cpp.

{
  if ( !m_updateRequired ) { return StatusCode::SUCCESS  ; }

  StatusCode sc = setupNodeHandlers() ; // convert "Nodes"      new "NodeMap"
  if ( sc.isFailure() )
  {
    stream() << MSG::ERROR << "Failed to setup old \"Nodes\""      << endmsg ;
    return sc ;
  }
  sc = setupAlgHandlers()   ; // convert "Algorithms" into "AlgMap"
  if ( sc.isFailure() )
  {
    stream() << MSG::ERROR << "Failed to setup old \"Algorithms\"" << endmsg ;
    return sc ;
  }
  add_prefix ( m_algMap  , m_prefix ) ;
  add_prefix ( m_nodeMap , m_prefix ) ;
  typedef std::set<std::string> Set ;
  Set dirs ;
  if ( m_partialPath ){ get_dirs ( m_algMap  , dirs ) ; }
  if ( m_partialPath ){ get_dirs ( m_nodeMap , dirs ) ; }
  //
  Set::iterator _e = dirs.find("/Event") ;
  if ( dirs.end() != _e ) { dirs.erase( _e ) ; }
  // add all directories as nodes
  for ( Set::const_iterator dir = dirs.begin() ; dirs.end() != dir ; ++dir )
  {
    if ( m_algMap  .end () != m_algMap  .find ( *dir ) ) { continue ; }
    if ( m_nodeMap .end () != m_nodeMap .find ( *dir ) ) { continue ; }
    m_nodeMap [*dir] = "DataObject" ;
  }
  //
  m_algs  .clear  () ;
  m_nodes .clear  () ;
  //
  for ( Map::const_iterator ialg = m_algMap.begin() ;
        m_algMap.end() != ialg ; ++ialg )
  {
    Gaudi::Utils::TypeNameString alg ( ialg->second ) ;
    Leaf leaf ( alg.type() , alg.name() ) ;
    if  ( m_init )
    {
      sc = configureHandler(leaf);
      if (sc.isFailure()) {
        if (m_allowInitFailure) {
          // re-store the content of the leaf object to try again to initialize
          // the algorithm later (on demand)
          leaf = Leaf(alg.type(), alg.name());
        }
        else
          return sc;
      }
    }
    m_algs[ialg->first] =  leaf ;
  }
  for ( Map::const_iterator inode = m_nodeMap.begin() ;
        m_nodeMap.end() != inode ; ++inode )
  {
    ClassH cl = ROOT::Reflex::Type::ByName( inode->second ) ;
    if ( !cl )
    {
      stream() << MSG::WARNING
               << "Failed to access dictionary class for "
               << inode->first << " of type:" << inode->second << endmsg;
    }
    m_nodes[inode->first] = Node ( cl , false , inode->second ) ;
  }
  m_updateRequired = false ;
  //
  return StatusCode::SUCCESS ;
}

void DataOnDemandSvc::update_1 ( Property & p )

Definition at line 122 of file DataOnDemandSvc.cpp.

{
  stream() << MSG::VERBOSE << " I am update handler for property " << p << endmsg ;
  // force update
  m_updateRequired = true ;
}

void DataOnDemandSvc::update_2 ( Property & p )

Definition at line 143 of file DataOnDemandSvc.cpp.

{
  stream() << MSG::WARNING
           << "The property 'Algorithms' is obsolete, switch to map-like 'AlgMap'  "
           << " = { 'data' : 'algorithm' } "
           << endmsg ;
  // force update
  m_updateRequired = true ;
}

void DataOnDemandSvc::update_3 ( Property & p )

Definition at line 131 of file DataOnDemandSvc.cpp.

{
  stream() << MSG::WARNING
           << "The property 'Nodes'      is obsolete, switch to map-like 'NodeMap' "
           << " = { 'data' : 'type'      } "
           << endmsg ;
  // force update
  m_updateRequired = true ;
}

void DataOnDemandSvc::update_dump ( Property & )

update handler for 'Dump' property

Definition at line 155 of file DataOnDemandSvc.cpp.

{
  // no action if not yet initialized
  if ( FSMState() < Gaudi::StateMachine::INITIALIZED ) { return ; }
  // dump the configuration:
  if ( m_dump ) { dump ( MSG::ALWAYS ) ; }
}

Member Data Documentation

Map DataOnDemandSvc::m_algMap [private]

the major configuration property { 'data' : 'algorithm' }

Definition at line 279 of file DataOnDemandSvc.h.

Setup DataOnDemandSvc::m_algMapping [private]

Mapping to algorithms.

Definition at line 269 of file DataOnDemandSvc.h.

IAlgManager* DataOnDemandSvc::m_algMgr [private]

Algorithm manager.

Definition at line 252 of file DataOnDemandSvc.h.

AlgMap DataOnDemandSvc::m_algs [private]

Map of algorithms to handle incidents.

Definition at line 273 of file DataOnDemandSvc.h.

bool DataOnDemandSvc::m_allowInitFailure [private]

flag to allow DataOnDemand initialization to succeed even if the (pre)initialization of the algorithms fails (m_init).

Definition at line 267 of file DataOnDemandSvc.h.

IDataProviderSvc* DataOnDemandSvc::m_dataSvc [private]

Data provider reference.

Definition at line 254 of file DataOnDemandSvc.h.

std::string DataOnDemandSvc::m_dataSvcName [private]

Data service name.

Definition at line 258 of file DataOnDemandSvc.h.

bool DataOnDemandSvc::m_dump [private]

flag to force the printout

Definition at line 262 of file DataOnDemandSvc.h.

IIncidentSvc* DataOnDemandSvc::m_incSvc [private]

Incident service.

Definition at line 250 of file DataOnDemandSvc.h.

bool DataOnDemandSvc::m_init [private]

flag to warm up the configuration

Definition at line 264 of file DataOnDemandSvc.h.

bool DataOnDemandSvc::m_locked_algs [private]

Definition at line 295 of file DataOnDemandSvc.h.

bool DataOnDemandSvc::m_locked_all [private]

Definition at line 296 of file DataOnDemandSvc.h.

bool DataOnDemandSvc::m_locked_nodes [private]

Definition at line 294 of file DataOnDemandSvc.h.

MsgStream* DataOnDemandSvc::m_log [mutable, private]

Definition at line 284 of file DataOnDemandSvc.h.

Map DataOnDemandSvc::m_nodeMap [private]

the major configuration property { 'data' : 'type' }

Definition at line 281 of file DataOnDemandSvc.h.

Setup DataOnDemandSvc::m_nodeMapping [private]

Mapping to nodes.

Definition at line 271 of file DataOnDemandSvc.h.

NodeMap DataOnDemandSvc::m_nodes [private]

Map of "empty" objects to be placed as intermediate nodes.

Definition at line 275 of file DataOnDemandSvc.h.

bool DataOnDemandSvc::m_partialPath [private]

Flag to allow for the creation of partial leaves.

Definition at line 260 of file DataOnDemandSvc.h.

std::string DataOnDemandSvc::m_prefix [private]

Definition at line 283 of file DataOnDemandSvc.h.

ulonglong DataOnDemandSvc::m_stat [private]

Definition at line 289 of file DataOnDemandSvc.h.

ulonglong DataOnDemandSvc::m_statAlg [private]

Definition at line 287 of file DataOnDemandSvc.h.

ulonglong DataOnDemandSvc::m_statNode [private]

Definition at line 288 of file DataOnDemandSvc.h.

ChronoEntity DataOnDemandSvc::m_timer_algs [private]

Definition at line 292 of file DataOnDemandSvc.h.

ChronoEntity DataOnDemandSvc::m_timer_all [private]

Definition at line 293 of file DataOnDemandSvc.h.

ChronoEntity DataOnDemandSvc::m_timer_nodes [private]

Definition at line 291 of file DataOnDemandSvc.h.

ChronoEntity DataOnDemandSvc::m_total [private]

Definition at line 286 of file DataOnDemandSvc.h.

std::string DataOnDemandSvc::m_trapType [private]

Trap name.

Definition at line 256 of file DataOnDemandSvc.h.

bool DataOnDemandSvc::m_updateRequired [private]

Definition at line 282 of file DataOnDemandSvc.h.

The documentation for this class was generated from the following files:

/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r2/GaudiSvc/src/IncidentSvc/DataOnDemandSvc.h
/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r2/GaudiSvc/src/IncidentSvc/DataOnDemandSvc.cpp

Gaudi Framework, version v22r2

DataOnDemandSvc Class Reference

Classes

Public Types

Public Member Functions

Protected Member Functions

Private Types

Private Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
