Gaudi::Histogram3D Class Reference

AIDA implementation for 2 D histograms using ROOT THD2. More...

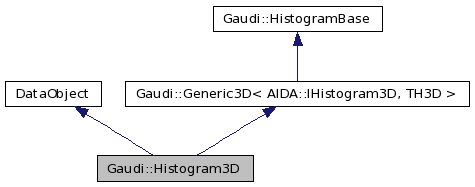

Inheritance diagram for Gaudi::Histogram3D:
Inheritance graph
[legend]

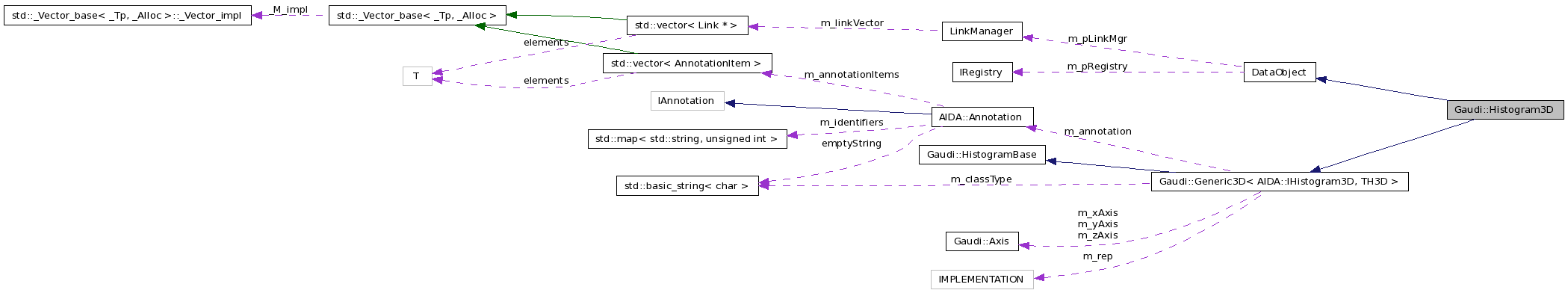

Collaboration diagram for Gaudi::Histogram3D:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 Histogram3D ()
 Standard Constructor.
 Histogram3D (TH3D *rep)
 Standard Constructor.
virtual ~Histogram3D ()
 Destructor.
bool fill (double x, double y, double z, double weight)
 Fill bin content.
virtual bool setBinContents (int i, int j, int k, int entries, double height, double error, double centreX, double centreY, double centreZ)
 Fast filling method for a given bin. It can be also the over/underflow bin.
virtual bool setRms (double rmsX, double rmsY, double rmsZ)
 Sets the rms of the histogram.
virtual bool reset ()
void * cast (const std::string &className) const
 Introspection method.
void copyFromAida (const AIDA::IHistogram3D &h)
 Create new histogram from any AIDA based histogram.
virtual const CLID & clID () const
 Retrieve reference to class defininition identifier.

Static Public Member Functions

static const CLID & classID ()
 Retrieve reference to class definition structure (static access)

Protected Attributes

double m_sumwx
double m_sumwy
double m_sumwz

Detailed Description

AIDA implementation for 2 D histograms using ROOT THD2.

Author:
M.Frank

Definition at line 25 of file H3D.cpp.

Constructor & Destructor Documentation

Gaudi::Histogram3D::Histogram3D (  )

Standard Constructor.

Definition at line 98 of file H3D.cpp.

                              {
  m_rep = new TH3D();
  setTitle("");
  m_rep->Sumw2();
  m_sumEntries = 0;
  m_sumwx = 0;
  m_sumwy = 0;
  m_sumwz = 0;
  m_rep->SetDirectory(0);
}
Gaudi::Histogram3D::Histogram3D ( TH3D *  rep )

Standard Constructor.

Definition at line 109 of file H3D.cpp.

                                       {
  m_rep = 0;
  adoptRepresentation(rep);
  m_sumEntries = 0;
  m_sumwx = 0;
  m_sumwy = 0;
  m_sumwz = 0;
  m_rep->SetDirectory(0);
}
virtual Gaudi::Histogram3D::~Histogram3D (  ) [inline, virtual]

Destructor.

Definition at line 32 of file H3D.cpp.

{}

Member Function Documentation

void * Gaudi::Histogram3D::cast ( const std::string &  className ) const

Introspection method.

Definition at line 147 of file H3D.cpp.

                                                                {
  if (className == "AIDA::IHistogram3D")   {
    return (AIDA::IHistogram3D*)this;
  }
  else if (className == "AIDA::IHistogram")   {
    return (AIDA::IHistogram*)this;
  }
  return 0;
}
static const CLID& Gaudi::Histogram3D::classID (  ) [inline, static]

Retrieve reference to class definition structure (static access)

Retrieve Pointer to class definition structure.

Reimplemented from DataObject.

Definition at line 47 of file H3D.cpp.

{ return Gaudi::Histogram3D::classID(); }
virtual const CLID& Gaudi::Histogram3D::clID (  ) const [inline, virtual]

Retrieve reference to class defininition identifier.

Reimplemented from DataObject.

Definition at line 46 of file H3D.cpp.

{ return Gaudi::Histogram3D::classID(); }
void Gaudi::Histogram3D::copyFromAida ( const AIDA::IHistogram3D &  h )

Create new histogram from any AIDA based histogram.

Definition at line 190 of file H3D.cpp.

                                                              {
  delete m_rep;
  // implement here the copy
  const char* tit = h.title().c_str();
  if (h.xAxis().isFixedBinning() && h.yAxis().isFixedBinning() &&  h.zAxis().isFixedBinning() )  {
    m_rep = new TH3D(tit,tit,
      h.xAxis().bins(), h.xAxis().lowerEdge(), h.xAxis().upperEdge(),
      h.yAxis().bins(), h.yAxis().lowerEdge(), h.yAxis().upperEdge(),
      h.zAxis().bins(), h.zAxis().lowerEdge(), h.zAxis().upperEdge() );
  }
  else {
    Edges eX, eY, eZ;
    for (int i =0; i < h.xAxis().bins(); ++i)
      eX.push_back(h.xAxis().binLowerEdge(i));
    // add also upperedges at the end
    eX.push_back(h.xAxis().upperEdge() );
    for (int i =0; i < h.yAxis().bins(); ++i)
      eY.push_back(h.yAxis().binLowerEdge(i));
    // add also upperedges at the end
    eY.push_back(h.yAxis().upperEdge() );
    for (int i =0; i < h.zAxis().bins(); ++i)
      eZ.push_back(h.zAxis().binLowerEdge(i));
    // add also upperedges at the end
    eZ.push_back(h.zAxis().upperEdge() );
    m_rep = new TH3D(tit,tit,eX.size()-1,&eX.front(),eY.size()-1,&eY.front(),eZ.size()-1,&eZ.front());
  }
  m_xAxis.initialize(m_rep->GetXaxis(),true);
  m_yAxis.initialize(m_rep->GetYaxis(),true);
  m_zAxis.initialize(m_rep->GetZaxis(),true);
  const TArrayD* a = m_rep->GetSumw2();
  if ( 0 == a || (a && a->GetSize()==0) ) m_rep->Sumw2();
  m_sumEntries = 0;
  m_sumwx = 0;
  m_sumwy = 0;
  m_sumwz = 0;

  // statistics
  double sumw   = h.sumBinHeights();
  double sumw2  = 0;
  if (h.equivalentBinEntries() != 0)
    sumw2 = ( sumw * sumw ) /h.equivalentBinEntries();
  double sumwx  = h.meanX()*h.sumBinHeights();
  double sumwx2 = (h.meanX()*h.meanX() + h.rmsX()*h.rmsX() )*h.sumBinHeights();
  double sumwy  = h.meanY()*h.sumBinHeights();
  double sumwy2 = (h.meanY()*h.meanY() + h.rmsY()*h.rmsY() )*h.sumBinHeights();
  double sumwz  = h.meanZ()*h.sumBinHeights();
  double sumwz2 = (h.meanZ()*h.meanZ() + h.rmsZ()*h.rmsZ() )*h.sumBinHeights();
  double sumwxy = 0;
  double sumwxz = 0;
  double sumwyz = 0;

  // copy the contents in  (AIDA underflow/overflow are -2,-1)
  for (int i=-2; i < xAxis().bins(); ++i) {
    for (int j=-2; j < yAxis().bins(); ++j) {
      for (int k=-2; k < zAxis().bins(); ++k) {
        m_rep->SetBinContent(rIndexX(i), rIndexY(j), rIndexZ(k), h.binHeight(i,j,k) );
        m_rep->SetBinError(rIndexX(i), rIndexY(j), rIndexZ(k), h.binError(i,j,k) );
        // calculate statistics
        if ( i >= 0 && j >= 0 && k >= 0) {
          sumwxy += h.binHeight(i,j,k)*h.binMeanX(i,j,k)*h.binMeanY(i,j,k);
          sumwxz += h.binHeight(i,j,k)*h.binMeanX(i,j,k)*h.binMeanZ(i,j,k);
          sumwyz += h.binHeight(i,j,k)*h.binMeanY(i,j,k)*h.binMeanZ(i,j,k);
        }
      }
    }
  }
  // need to do set entries after setting contents otherwise root will recalulate them
  // taking into account how many time  SetBinContents() has been called
  m_rep->SetEntries(h.allEntries());

  // fill stat vector
  std::vector<double> stat(11);
  stat[0] = sumw;
  stat[1] = sumw2;
  stat[2] = sumwx;
  stat[3] = sumwx2;
  stat[4] = sumwy;
  stat[5] = sumwy2;
  stat[6] = sumwxy;
  stat[7] = sumwz;
  stat[8] = sumwz2;
  stat[9] = sumwxz;
  stat[10] = sumwyz;
  m_rep->PutStats(&stat.front());
}
bool Gaudi::Histogram3D::fill ( double  x,
double  y,
double  z,
double  weight
)

Fill bin content.

Definition at line 142 of file H3D.cpp.

                                                                          {
  m_rep->Fill ( x , y, z, weight );
  return true;
}
bool Gaudi::Histogram3D::reset (  ) [virtual]

Definition at line 133 of file H3D.cpp.

                                  {
  m_sumwx = 0;
  m_sumwy = 0;
  m_sumwz = 0;
  m_sumEntries = 0;
  m_rep->Reset ( );
  return true;
}
bool Gaudi::Histogram3D::setBinContents ( int  i,
int  j,
int  k,
int  entries,
double  height,
double  error,
double  centreX,
double  centreY,
double  centreZ
) [virtual]

Fast filling method for a given bin. It can be also the over/underflow bin.

Definition at line 120 of file H3D.cpp.

                                                                                                                                              {
  m_rep->SetBinContent(rIndexX(i), rIndexY(j), rIndexZ(k), height);
  m_rep->SetBinError(rIndexX(i), rIndexY(j), rIndexZ(k), error);
  // accumulate sum bin centers
  if (i >=0 && j >= 0 && k >= 0) {
    m_sumwx += centreX*height;
    m_sumwy += centreY*height;
    m_sumwz += centreZ*height;
  }
  m_sumEntries += entries;
  return true;
}
bool Gaudi::Histogram3D::setRms ( double  rmsX,
double  rmsY,
double  rmsZ
) [virtual]

Sets the rms of the histogram.

Definition at line 163 of file H3D.cpp.

                                                                      {
  m_rep->SetEntries(m_sumEntries);
  std::vector<double> stat(11);
  // sum weights
  stat[0] =  sumBinHeights();
  stat[1] = 0;
  if (equivalentBinEntries() != 0)
    stat[1] = (  sumBinHeights() * sumBinHeights() ) / equivalentBinEntries();
  stat[2] = m_sumwx;
  double meanX = 0;
  if ( sumBinHeights() != 0 ) meanX =  m_sumwx/ sumBinHeights();
  stat[3] = ( meanX*meanX + rmsX*rmsX )* sumBinHeights();
  stat[4] = m_sumwy;
  double meanY = 0;
  if ( sumBinHeights() != 0 ) meanY =  m_sumwy/ sumBinHeights();
  stat[5] = ( meanY*meanY + rmsY*rmsY )* sumBinHeights();
  stat[6] = 0;
  stat[7] = m_sumwz;
  double meanZ = 0;
  if ( sumBinHeights() != 0 ) meanZ =  m_sumwz/ sumBinHeights();
  stat[8] = ( meanZ*meanZ + rmsZ*rmsZ )* sumBinHeights();
  // do not need to use sumwxy sumwxz and sumwyz

  m_rep->PutStats(&stat.front());
  return true;
}

Member Data Documentation

double Gaudi::Histogram3D::m_sumwx [protected]

Definition at line 51 of file H3D.cpp.

double Gaudi::Histogram3D::m_sumwy [protected]

Definition at line 52 of file H3D.cpp.

double Gaudi::Histogram3D::m_sumwz [protected]

Definition at line 53 of file H3D.cpp.

The documentation for this class was generated from the following file:
