IMonitorSvc Class Reference

Definition of the IMonitorSvc interface, which publishes Gaudi variables to outside monitoring processes. More...

#include <GaudiKernel/IMonitorSvc.h>

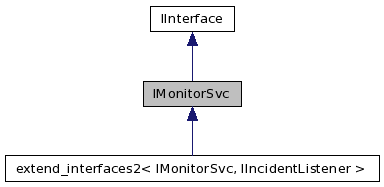

Inheritance diagram for IMonitorSvc:

Collaboration diagram for IMonitorSvc:

List of all members.

Public Member Functions
	DeclareInterfaceID (IMonitorSvc, 4, 1)
	InterfaceID.
virtual void	declareInfo (const std::string &name, const bool &var, const std::string &desc, const IInterface *owner)=0
	Declare monitoring information.
virtual void	declareInfo (const std::string &name, const int &var, const std::string &desc, const IInterface *owner)=0
virtual void	declareInfo (const std::string &name, const long &var, const std::string &desc, const IInterface *owner)=0
virtual void	declareInfo (const std::string &name, const double &var, const std::string &desc, const IInterface *owner)=0
virtual void	declareInfo (const std::string &name, const std::string &var, const std::string &desc, const IInterface *owner)=0
virtual void	declareInfo (const std::string &name, const std::pair< double, double > &var, const std::string &desc, const IInterface *owner)=0
virtual void	declareInfo (const std::string &name, const AIDA::IBaseHistogram *var, const std::string &desc, const IInterface *owner)=0
virtual void	declareInfo (const std::string &name, const StatEntity &var, const std::string &desc, const IInterface *owner)=0
virtual void	declareInfo (const std::string &name, const std::string &format, const void *var, int size, const std::string &desc, const IInterface *owner)=0
virtual void	undeclareInfo (const std::string &name, const IInterface *owner)=0
	Undeclare monitoring information.
virtual void	undeclareAll (const IInterface *owner)=0
	Undeclare monitoring information.
virtual std::set< std::string > *	getInfos (const IInterface *owner=0)=0
	Get the names for all declared monitoring informations for a given owner.

---

Detailed Description

Definition of the IMonitorSvc interface, which publishes Gaudi variables to outside monitoring processes.

Author:

Philippe Vannerem

Pere Mato

Definition at line 21 of file IMonitorSvc.h.

---

Member Function Documentation

virtual void IMonitorSvc::declareInfo	(	const std::string &	name,
		const bool &	var,
		const std::string &	desc,
		const IInterface *	owner
	)		[pure virtual]

Declare monitoring information.

Parameters:

name	Monitoring information name knwon to the external system
var	Monitoring Listener address
desc	Textual description
owner	Owner identifier of the monitoring information (needed to perform clean up

virtual void IMonitorSvc::declareInfo	(	const std::string &	name,
		const long &	var,
		const std::string &	desc,
		const IInterface *	owner
	)		[pure virtual]

virtual void IMonitorSvc::declareInfo	(	const std::string &	name,
		const AIDA::IBaseHistogram *	var,
		const std::string &	desc,
		const IInterface *	owner
	)		[pure virtual]

virtual void IMonitorSvc::declareInfo	(	const std::string &	name,
		const StatEntity &	var,
		const std::string &	desc,
		const IInterface *	owner
	)		[pure virtual]

virtual void IMonitorSvc::declareInfo	(	const std::string &	name,
		const double &	var,
		const std::string &	desc,
		const IInterface *	owner
	)		[pure virtual]

virtual void IMonitorSvc::declareInfo	(	const std::string &	name,
		const std::string &	format,
		const void *	var,
		int	size,
		const std::string &	desc,
		const IInterface *	owner
	)		[pure virtual]

virtual void IMonitorSvc::declareInfo	(	const std::string &	name,
		const int &	var,
		const std::string &	desc,
		const IInterface *	owner
	)		[pure virtual]

virtual void IMonitorSvc::declareInfo	(	const std::string &	name,
		const std::pair< double, double > &	var,
		const std::string &	desc,
		const IInterface *	owner
	)		[pure virtual]

virtual void IMonitorSvc::declareInfo	(	const std::string &	name,
		const std::string &	var,
		const std::string &	desc,
		const IInterface *	owner
	)		[pure virtual]

IMonitorSvc::DeclareInterfaceID	(	IMonitorSvc	,
		4	,
		1
	)

InterfaceID.

virtual std::set<std::string>* IMonitorSvc::getInfos

(

const IInterface *

owner = 0 )

[pure virtual]

Get the names for all declared monitoring informations for a given owner.

If the owner is NULL, then it returns for all owners informationUndeclare monitoring information

virtual void IMonitorSvc::undeclareAll

(

const IInterface *

owner )

[pure virtual]

Undeclare monitoring information.

Parameters:

owner

Owner identifier of the monitoring information

virtual void IMonitorSvc::undeclareInfo	(	const std::string &	name,
		const IInterface *	owner
	)		[pure virtual]

Undeclare monitoring information.

Parameters:

name	Monitoring information name known to the external system
owner	Owner identifier of the monitoring information

---

The documentation for this class was generated from the following file:

• /afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r2/GaudiKernel/GaudiKernel/IMonitorSvc.h
