IPoolDbMgr Class Reference

Description: More...

#include <PoolDb/IPoolDbMgr.h>

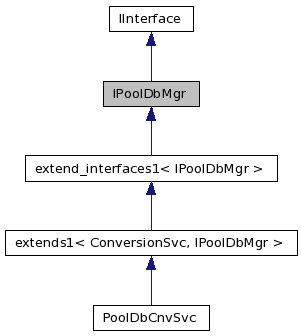

Inheritance diagram for IPoolDbMgr:

Collaboration diagram for IPoolDbMgr:

List of all members.

Public Types
enum	{ UNKNOWN = Gaudi::IIODataManager::UNKNOWN, PFN = Gaudi::IIODataManager::PFN, LFN = Gaudi::IIODataManager::LFN, FID = Gaudi::IIODataManager::FID }
enum	{ BAD_DATA_CONNECTION = Gaudi::IDataConnection::BAD_DATA_CONNECTION }
Public Member Functions
	DeclareInterfaceID (IPoolDbMgr, 2, 0)
	InterfaceID.
virtual IPoolCacheSvc *	cacheSvc () const =0
	Access to cache service.
virtual StatusCode	accessStorageType (const std::string &type_string, long &gaudi_type)=0
	Create access to the POOL persistency mechanism using the Gaudi String identifier.
virtual StatusCode	createAddress (long svc_type, const CLID &clid, const std::string *par, const unsigned long *ipar, IOpaqueAddress *&refpAddress)=0
	Create a Generic address using explicit arguments to identify a single object.
virtual StatusCode	createAddress (pool::Token *pToken, PoolDbAddress **ppAddress)=0
	Create a Generic address using explicit arguments to identify a single object.
virtual StatusCode	connectOutput (const std::string &outputFile, const std::string &openMode)=0
	Connect the output file to the service with open mode.
virtual StatusCode	commitOutput (const std::string &outputFile, bool do_commit)=0
	Commit pending output.
virtual StatusCode	connect (const std::string &dbName, const std::string &cntName, pool::DbContainer &cntH)=0
	Connect to a database container in read mode.
virtual StatusCode	connectContainer (int typ, const std::string &dbName, const std::string &cntName, pool::DbAccessMode openMode, const pool::DbTypeInfo *shape, pool::DbContainer &cntH)=0
	Connect to a database container.
virtual pool::DbSelect *	createSelect (const std::string &criteria, const std::string &dbName, const std::string &cntName)=0
	Request an iterator over a container from the service.
virtual StatusCode	disconnect (const std::string &dbName)=0
	Disconnect from an existing data stream.
virtual StatusCode	markWrite (pool::DataCallBack *call, const std::string &cntName, PoolDbAddress **ppAddr=0)=0
	Marks a reference to be written.
virtual StatusCode	markUpdate (pool::DataCallBack *call, PoolDbAddress *pAddr)=0
	Mark an object for update.
virtual StatusCode	read (pool::DataCallBack *call, PoolDbAddress *pAddr)=0
	Read existing object.
virtual StatusCode	read (pool::DataCallBack *call, pool::Token &tok)=0
	Read existing object. Open transaction in read mode if not active.

---

Detailed Description

Description:

The IPoolDbMgr service interface allows to store and retrieve data stored with the POOL persistency mechanism.

Author:

Markus Frank

Version:

1.0

Definition at line 51 of file IPoolDbMgr.h.

---

Member Enumeration Documentation

anonymous enum

Enumerator:

BAD_DATA_CONNECTION

Definition at line 61 of file IPoolDbMgr.h.

{ BAD_DATA_CONNECTION=Gaudi::IDataConnection::BAD_DATA_CONNECTION };

anonymous enum

Enumerator:

UNKNOWN
PFN
LFN
FID

Definition at line 56 of file IPoolDbMgr.h.

       { UNKNOWN = Gaudi::IIODataManager::UNKNOWN,
         PFN = Gaudi::IIODataManager::PFN,
         LFN = Gaudi::IIODataManager::LFN,
         FID = Gaudi::IIODataManager::FID
  };

---

Member Function Documentation

virtual StatusCode IPoolDbMgr::accessStorageType	(	const std::string &	type_string,
		long &	gaudi_type
	)		[pure virtual]

Create access to the POOL persistency mechanism using the Gaudi String identifier.

Also all appropriate DLLS will be loaded on the fly.

Parameters:

type_string	Gaudi storage string identifier
gaudi_type	Gaudi storage identifier

Returns:

Status code indicating failure or success.

Implemented in PoolDbCnvSvc.

virtual IPoolCacheSvc* IPoolDbMgr::cacheSvc

(

)

const [pure virtual]

Access to cache service.

Implemented in PoolDbCnvSvc.

virtual StatusCode IPoolDbMgr::commitOutput	(	const std::string &	outputFile,
		bool	do_commit
	)		[pure virtual]

Commit pending output.

Parameters:

outputFile	String containig output file
do_commit	if true commit the output and flush eventually pending items to the database if false, discard pending buffers. Note: The possibility to commit or rollback depends on the database technology used!

Returns:

Status code indicating success or failure.

Implemented in PoolDbCnvSvc.

virtual StatusCode IPoolDbMgr::connect	(	const std::string &	dbName,
		const std::string &	cntName,
		pool::DbContainer &	cntH
	)		[pure virtual]

Connect to a database container in read mode.

Parameters:

dbName	String containing name of the database
cntName	String containing the name of the container object
cntH	Reference to the POOL container object

Returns:

Status code indicating success or failure.

Implemented in PoolDbCnvSvc.

virtual StatusCode IPoolDbMgr::connectContainer	(	int	typ,
		const std::string &	dbName,
		const std::string &	cntName,
		pool::DbAccessMode	openMode,
		const pool::DbTypeInfo *	shape,
		pool::DbContainer &	cntH
	)		[pure virtual]

Connect to a database container.

Parameters:

typ	Database technology type
dbName	String containing name of the database
cntName	String containing the name of the container object
openMode	Open mode (READ,WRITE,UPDATE,...)
shape	Default shape of objects in the container
cntH	Reference to the POOL container object

Returns:

Status code indicating success or failure.

Implemented in PoolDbCnvSvc.

virtual StatusCode IPoolDbMgr::connectOutput	(	const std::string &	outputFile,
		const std::string &	openMode
	)		[pure virtual]

Connect the output file to the service with open mode.

Parameters:

outputFile	String containig output file
openMode	String containig opening mode of the output file

Returns:

Status code indicating success or failure.

Implemented in PoolDbCnvSvc.

virtual StatusCode IPoolDbMgr::createAddress	(	long	svc_type,
		const CLID &	clid,
		const std::string *	par,
		const unsigned long *	ipar,
		IOpaqueAddress *&	refpAddress
	)		[pure virtual]

Create a Generic address using explicit arguments to identify a single object.

Parameters:

svc_type	Technology identifier encapsulated in this address.
clid	Class identifier of the DataObject represented by the opaque address
par	Array of strings needed to construct the opaque address.
ipar	Array of integers needed to construct the opaque address.
refpAddress	Reference to pointer to the address where the created Address should be stored.

Returns:

Status code indicating success or failure.

Implemented in PoolDbCnvSvc.

virtual StatusCode IPoolDbMgr::createAddress	(	pool::Token *	pToken,
		PoolDbAddress **	ppAddress
	)		[pure virtual]

Create a Generic address using explicit arguments to identify a single object.

Parameters:

pToken	Pointer to valid POOL token object
ppAddress	Reference to pointer to the address where the created Address should be stored.

Returns:

Status code indicating success or failure.

Implemented in PoolDbCnvSvc.

virtual pool::DbSelect* IPoolDbMgr::createSelect	(	const std::string &	criteria,
		const std::string &	dbName,
		const std::string &	cntName
	)		[pure virtual]

Request an iterator over a container from the service.

Parameters:

criteria	Selection criteria to restrict iteration
dbName	String containing name of the database
cntName	String containing the name of the container object

Returns:

Reference to the iterator object

Implemented in PoolDbCnvSvc.

IPoolDbMgr::DeclareInterfaceID	(	IPoolDbMgr	,
		2	,
		0
	)

InterfaceID.

virtual StatusCode IPoolDbMgr::disconnect

(

const std::string &

dbName )

[pure virtual]

Disconnect from an existing data stream.

Parameters:

dbName

String containing name of the database

Returns:

Status code indicating success or failure.

Implemented in PoolDbCnvSvc.

virtual StatusCode IPoolDbMgr::markUpdate	(	pool::DataCallBack *	call,
		PoolDbAddress *	pAddr
	)		[pure virtual]

Mark an object for update.

Parameters:

call	Pointer to callback object
pAddr	Persistent object location to be used for link setup.

Returns:

Status code indicating success or failure.

Implemented in PoolDbCnvSvc.

virtual StatusCode IPoolDbMgr::markWrite	(	pool::DataCallBack *	call,
		const std::string &	cntName,
		PoolDbAddress **	ppAddr = 0
	)		[pure virtual]

Marks a reference to be written.

Parameters:

call	Pointer to callback object
cntName	Container name the object should be written to.
refpAddr	Persistent object location to be used for link setup.

Returns:

Status code indicating success or failure.

Implemented in PoolDbCnvSvc.

virtual StatusCode IPoolDbMgr::read	(	pool::DataCallBack *	call,
		PoolDbAddress *	pAddr
	)		[pure virtual]

Read existing object.

Open transaction in read mode if not active.

Parameters:

call	Pointer to callback object
pAddr	Pointer to valid object address.

Returns:

Status code indicating success or failure.

Implemented in PoolDbCnvSvc.

virtual StatusCode IPoolDbMgr::read	(	pool::DataCallBack *	call,
		pool::Token &	tok
	)		[pure virtual]

Read existing object. Open transaction in read mode if not active.

Parameters:

call	Pointer to callback object
tok	Reference to pool token describing the object

Returns:

Status code indicating success or failure.

Implemented in PoolDbCnvSvc.

---

The documentation for this class was generated from the following file:

• /afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r2/GaudiPoolDb/GaudiPoolDb/IPoolDbMgr.h
