PersistencySvc class implementation definition. More...

#include <PersistencySvc.h>

Inheritance diagram for PersistencySvc:

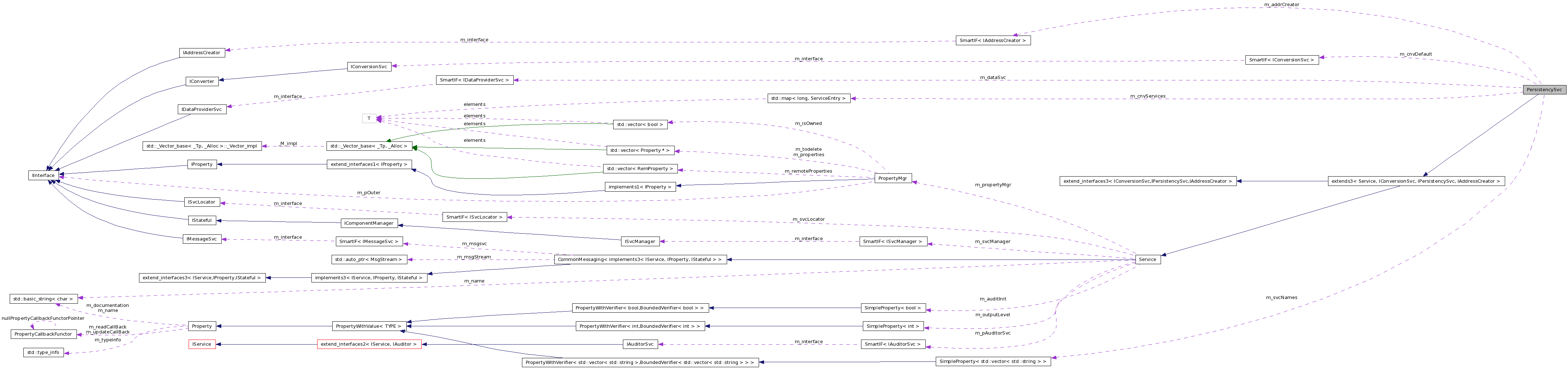

Collaboration diagram for PersistencySvc:

Classes
class	ServiceEntry
Public Member Functions
IPersistencySvc Interface implementation
long	repSvcType () const
	Return default service type.
const CLID &	objType () const
	Retrieve the class type of objects the converter produces. (DUMMY)
virtual StatusCode	createObj (IOpaqueAddress pAddress, DataObject &refpObject)
	Implementation of IConverter: Create the transient representation of an object.
virtual StatusCode	fillObjRefs (IOpaqueAddress pAddress, DataObject pObject)
	Implementation of IConverter: Resolve the references of the created transient object.
virtual StatusCode	updateObj (IOpaqueAddress pAddress, DataObject refpObject)
	Implementation of IConverter: Update the transient object from the other representation.
virtual StatusCode	updateObjRefs (IOpaqueAddress pAddress, DataObject pObject)
	Implementation of IConverter: Update the references of an updated transient object.
virtual StatusCode	createRep (DataObject pObject, IOpaqueAddress &refpAddress)
	Implementation of IConverter: Convert the transient object to the requested representation.
virtual StatusCode	fillRepRefs (IOpaqueAddress pAddress, DataObject pObject)
	Implementation of IConverter: Resolve the references of the converted object.
virtual StatusCode	updateRep (IOpaqueAddress pAddress, DataObject pObject)
	Implementation of IConverter: Update the converted representation of a transient object.
virtual StatusCode	updateRepRefs (IOpaqueAddress pAddress, DataObject pObject)
	Implementation of IConverter: Update the references of an already converted object.
virtual StatusCode	setDataProvider (IDataProviderSvc *pStore)
	Define transient datastore.
virtual SmartIF < IDataProviderSvc > &	dataProvider () const
	Access reference to transient datastore.
virtual StatusCode	setConversionSvc (IConversionSvc *svc)
	Set conversion service the converter is connected to.
virtual SmartIF< IConversionSvc > &	conversionSvc () const
	Get conversion service the converter is connected to.
virtual StatusCode	setAddressCreator (IAddressCreator *creator)
	Set address creator facility.
virtual SmartIF < IAddressCreator > &	addressCreator () const
	Retrieve address creator facility.
virtual StatusCode	addConverter (IConverter *pConverter)
	Add converter object to conversion service.
virtual StatusCode	addConverter (const CLID &clid)
	Add converter object to conversion service.
virtual IConverter *	converter (const CLID &clid)
	Retrieve converter from list.
virtual StatusCode	removeConverter (const CLID &clid)
	Remove converter object from conversion service (if present).
virtual StatusCode	connectOutput (const std::string &outputFile, const std::string &openMode)
	Connect the output file to the service with open mode.
virtual StatusCode	connectOutput (const std::string &outputFile)
	Connect the output file to the service.
virtual StatusCode	commitOutput (const std::string &output, bool do_commit)
	Commit pending output.
virtual StatusCode	createAddress (long svc_type, const CLID &clid, const std::string pars, const unsigned long ipars, IOpaqueAddress *&refpAddress)
	Create a Generic address using explicit arguments to identify a single object.
virtual StatusCode	convertAddress (const IOpaqueAddress *pAddress, std::string &refAddress)
	Convert an address to string form.
virtual StatusCode	createAddress (long svc_type, const CLID &clid, const std::string &refAddress, IOpaqueAddress *&refpAddress)
	Convert an address in string form to object form.
: IPersistencySvc implementation
virtual StatusCode	addCnvService (IConversionSvc *service)
	Add a new Service.
virtual StatusCode	removeCnvService (long type)
	Remove a Service.
virtual StatusCode	setDefaultCnvService (long type)
	Set default service type.
virtual StatusCode	getService (long service_type, IConversionSvc *&refpSvc)
	Retrieve conversion service identified by technology.
virtual StatusCode	getService (const std::string &service_type, IConversionSvc *&refpSvc)
	Retrieve conversion service identified by technology.
: IService implementation
virtual StatusCode	initialize ()
	Initialize the service.
virtual StatusCode	finalize ()
	stop the service.
Protected Types
typedef std::map< long, ServiceEntry >	Services
Protected Member Functions
void	svcNamesHandler (Property &theProp)
	Handlers for Service Names Property.
Protected Attributes
long	m_cnvDefType
	Default service type.
SmartIF< IDataProviderSvc >	m_dataSvc
	Pointer to datma provider service.
Services	m_cnvServices
	List of convermsion workers.
SmartIF< IConversionSvc >	m_cnvDefault
	Default output service.
StringArrayProperty	m_svcNames
	Names of services to be requested from the service locator and added by default.
bool	m_enable
	Flag to indicate that the service is enabled.
SmartIF< IAddressCreator >	m_addrCreator
	Pointer to the IAddressCreator interface of this, for addressCreator().
Friends
class	SvcFactory< PersistencySvc >
class	Factory< PersistencySvc, IService (std::string, ISvcLocator )>
: Object implementation
	PersistencySvc (const std::string &name, ISvcLocator *svc)
	Standard Constructor.
virtual	~PersistencySvc ()
	Standard Destructor.
SmartIF< IConversionSvc > &	service (const std::string &nam)
	Retrieve conversion service by name.
SmartIF< IConversionSvc > &	service (long service_type)
	Retrieve conversion service from list.
SmartIF< IAddressCreator > &	addressCreator (long service_type)
	Retrieve address creator from list.
void	encodeAddrHdr (long service_type, const CLID &clid, std::string &address) const
	Retrieve string from storage type and clid.
void	decodeAddrHdr (const std::string &address, long &service_type, CLID &clid, std::string &address_trailer) const
	Retrieve storage type and clid from address header of string.
StatusCode	makeCall (int typ, IOpaqueAddress &pAddress, DataObject &pObject)
	Implementation helper.
bool	enable (bool value)
	Set enabled flag.

Detailed Description

PersistencySvc class implementation definition.

System: The LHCb Offline System

Package: PersistencySvc

Dependencies:

STL: <vector>, <algorithm>, <functional>
Generic service definition: "Kernel/Service.h"
IConversionSvc definition: "Kernel/IConversionSvc.h"
PersistencySvc definition: "Kernel/Interfaces/IPersistencySvc.h"

History:

    +---------+----------------------------------------------+---------+
    |    Date |                 Comment                      | Who     |
    +---------+----------------------------------------------+---------+
    | 3/11/98 | Initial version                              | M.Frank |
    +---------+----------------------------------------------+---------+

Author:: Markus Frank

Version:: 1.0

Definition at line 53 of file PersistencySvc.h.

Member Typedef Documentation

typedef std::map<long,ServiceEntry> PersistencySvc::Services [protected]

Definition at line 106 of file PersistencySvc.h.

Constructor & Destructor Documentation

PersistencySvc::PersistencySvc	(	const std::string &	name,
		ISvcLocator *	svc
	)

Standard Constructor.

Definition at line 623 of file PersistencySvc.cpp.

:  base_class(name, svc),
   m_cnvDefType(TEST_StorageType),
   m_enable(true)
{
  declareProperty("CnvServices", m_svcNames);
  m_svcNames.declareUpdateHandler( &PersistencySvc::svcNamesHandler, this );
}

PersistencySvc::~PersistencySvc ( ) [virtual]

Standard Destructor.

Definition at line 633 of file PersistencySvc.cpp.

{
}

Member Function Documentation

StatusCode PersistencySvc::addCnvService ( IConversionSvc * service ) [virtual]

Add a new Service.

Add data service.

Definition at line 280 of file PersistencySvc.cpp.

                                                                 {
  if ( 0 != servc )   {
    long type = servc->repSvcType();
    long def_typ = (m_cnvDefault) ? m_cnvDefault->repSvcType() : 0;
    Services::iterator it = m_cnvServices.find( type );
    IConversionSvc* cnv_svc = 0;
    if ( it != m_cnvServices.end() )    {
      cnv_svc = (*it).second.conversionSvc();
    }
    if ( type == def_typ )     {
      m_cnvDefault = servc;
    }
    if ( cnv_svc != servc )   {
      MsgStream log( msgSvc(), name() );
      IAddressCreator* icr = 0;
      StatusCode status  = servc->queryInterface(IAddressCreator::interfaceID(), pp_cast<void>(&icr));
      if ( status.isSuccess() )   {
        IService* isvc = 0;
        status = servc->queryInterface(IService::interfaceID(), pp_cast<void>(&isvc));
        if ( status.isSuccess() )    {
          if ( 0 != cnv_svc )   {
            removeCnvService (type).ignore();
          }
          std::pair<Services::iterator, bool> p =
            m_cnvServices.insert( Services::value_type( type, ServiceEntry(type, isvc, servc, icr)));
          if( p.second )    {
            log << MSG::INFO << "Added successfully Conversion service:" << isvc->name() << endmsg;
            servc->addRef();
            servc->setAddressCreator(this).ignore();
            servc->setDataProvider(m_dataSvc).ignore();
            return StatusCode::SUCCESS;
          }
          log << MSG::INFO << "Cannot add Conversion service of type " << isvc->name() << endmsg;
          isvc->release();
          icr->release();
          return StatusCode::FAILURE;
        }
        icr->release();
      }
      log << MSG::INFO << "Cannot add Conversion service of type " << type << endmsg;
      return StatusCode::FAILURE;
    }
    else    {
      return StatusCode::SUCCESS;
    }
  }
  return BAD_STORAGE_TYPE;
}

StatusCode PersistencySvc::addConverter ( const CLID & clid ) [virtual]

Add converter object to conversion service.

Definition at line 199 of file PersistencySvc.cpp.

                                                               {
  return StatusCode::FAILURE;
}

StatusCode PersistencySvc::addConverter ( IConverter * pConverter ) [virtual]

Add converter object to conversion service.

Definition at line 204 of file PersistencySvc.cpp.

                                                                 {
  if ( 0 != pConverter )    {
    long typ  = pConverter->repSvcType();
    IConversionSvc* svc = service(typ);
    if ( 0 != svc )   {
      return svc->addConverter(pConverter);
    }
    return BAD_STORAGE_TYPE;
  }
  return NO_CONVERTER;
}

SmartIF< IAddressCreator > & PersistencySvc::addressCreator ( ) const [virtual]

Retrieve address creator facility.

Definition at line 500 of file PersistencySvc.cpp.

                                                                   {
  return m_addrCreator;
}

SmartIF< IAddressCreator > & PersistencySvc::addressCreator ( long service_type ) [protected]

Retrieve address creator from list.

Retrieve address creator service from list.

Definition at line 156 of file PersistencySvc.cpp.

                                                                      {
  long typ = type;
  Services::iterator it = m_cnvServices.find( typ );
  if( it == m_cnvServices.end() ) {
    IConversionSvc* s = service(type);
    if ( s )   {
      it = m_cnvServices.find( typ );
      if ( it != m_cnvServices.end() ) {
        return (*it).second.addrCreator();
      }
    }
    static SmartIF<IAddressCreator> no_creator;
    return no_creator;
  }
  return (*it).second.addrCreator();
}

StatusCode PersistencySvc::commitOutput	(	const std::string &	output,
		bool	do_commit
	)		`[virtual]`

Commit pending output.

Definition at line 365 of file PersistencySvc.cpp.

                                                                {
  return StatusCode::SUCCESS;
}

StatusCode PersistencySvc::connectOutput	(	const std::string &	outputFile,
		const std::string &	openMode
	)		`[virtual]`

Connect the output file to the service with open mode.

Definition at line 354 of file PersistencySvc.cpp.

                                                                          {
  return connectOutput(outputFile);
}

StatusCode PersistencySvc::connectOutput ( const std::string & outputFile ) [virtual]

Connect the output file to the service.

Definition at line 360 of file PersistencySvc.cpp.

                                                         {
  return StatusCode::SUCCESS;
}

SmartIF< IConversionSvc > & PersistencySvc::conversionSvc ( ) const [virtual]

Get conversion service the converter is connected to.

Definition at line 194 of file PersistencySvc.cpp.

                                                                  {
  return m_cnvDefault;
}

StatusCode PersistencySvc::convertAddress	(	const IOpaqueAddress *	pAddress,
		std::string &	refAddress
	)		`[virtual]`

Convert an address to string form.

Definition at line 385 of file PersistencySvc.cpp.

{
  // Assumuption is that the Persistency service prepends a header
  // and requests the conversion service refered to by the service
  // type to encode the rest
  long svc_type = 0;
  CLID clid = 0;
  if ( 0 != pAddress ) {
    svc_type = pAddress->svcType();
    clid     = pAddress->clID();
  }
  IAddressCreator* svc = addressCreator(svc_type);
  StatusCode   status  = BAD_STORAGE_TYPE;        // Preset error
  refAddress = "";

  if ( 0 != svc )   {
    // Found service, set header
    encodeAddrHdr(svc_type, clid, refAddress);
    std::string address;
    // Get rest of address from conversion service
    status = svc->convertAddress(pAddress, address);
    refAddress += address;
  }
  return status;
}

IConverter * PersistencySvc::converter ( const CLID & clid ) [virtual]

Retrieve converter from list.

Definition at line 230 of file PersistencySvc.cpp.

                                                          {
  return 0;
}

StatusCode PersistencySvc::createAddress	(	long	svc_type,
		const CLID &	clid,
		const std::string *	pars,
		const unsigned long *	ipars,
		IOpaqueAddress *&	refpAddress
	)		`[virtual]`

Create a Generic address using explicit arguments to identify a single object.

Definition at line 370 of file PersistencySvc.cpp.

                                                                          {
  IAddressCreator* svc = addressCreator(svc_type);
  StatusCode   status  = BAD_STORAGE_TYPE;        // Preset error
  refpAddress = 0;
  if ( 0 != svc )   {
    status = svc->createAddress(svc_type, clid, pars, ipars, refpAddress);
  }
  return status;
}

StatusCode PersistencySvc::createAddress	(	long	svc_type,
		const CLID &	clid,
		const std::string &	refAddress,
		IOpaqueAddress *&	refpAddress
	)		`[virtual]`

Convert an address in string form to object form.

Definition at line 413 of file PersistencySvc.cpp.

{
  // Assumption is that the Persistency service decodes that header
  // and requests the conversion service referred to by the service
  // type to decode the rest
  long new_svc_type = 0;
  CLID new_clid = 0;
  std::string address_trailer;
  decodeAddrHdr(refAddress, new_svc_type, new_clid, address_trailer);
  IAddressCreator* svc = addressCreator(new_svc_type);
  StatusCode   status  = BAD_STORAGE_TYPE;        // Preset error
  if ( 0 != svc )   {
    status = svc->createAddress( new_svc_type, new_clid, address_trailer, refpAddress);
  }
  return status;
}

StatusCode PersistencySvc::createObj	(	IOpaqueAddress *	pAddress,
		DataObject *&	refpObject
	)		`[virtual]`

Implementation of IConverter: Create the transient representation of an object.

Create the transient representation of an object.

Definition at line 116 of file PersistencySvc.cpp.

                                                                                  {
  return makeCall(CREATE_OBJ, pAddr, refpObj);
}

StatusCode PersistencySvc::createRep	(	DataObject *	pObject,
		IOpaqueAddress *&	refpAddress
	)		`[virtual]`

Implementation of IConverter: Convert the transient object to the requested representation.

Convert the transient object to the requested representation.

Reimplemented in HistogramPersistencySvc.

Definition at line 136 of file PersistencySvc.cpp.

                                                                                 {
  return makeCall(CREATE_REP, refpAddr, pObj);
}

SmartIF< IDataProviderSvc > & PersistencySvc::dataProvider ( ) const [virtual]

Access reference to transient datastore.

Access the dataprovider service.

Definition at line 183 of file PersistencySvc.cpp.

                                                                {
  return m_dataSvc;
}

void PersistencySvc::decodeAddrHdr	(	const std::string &	address,
		long &	service_type,
		CLID &	clid,
		std::string &	address_trailer
	)		const `[protected]`

Retrieve storage type and clid from address header of string.

Definition at line 447 of file PersistencySvc.cpp.

{
  // For address header, use xml-style format of
  // <address_header service_type="xxx" clid="yyy" />
  service_type = 0;
  clid = 0;
  address_trailer = "";

  // Check for address_header tag
  size_t pos = address.find("<address_header");
  if (std::string::npos != pos) {
    // Get service_type
    pos = address.find("service_type=\"");
    if (std::string::npos != pos) {
      pos += 14;
      size_t end = address.find('"', pos);
      if (std::string::npos != end) {
        std::istringstream str(address.substr(pos, end-pos));
        str >> service_type;
        // Get clid
        pos = address.find("clid=\"");
        if (std::string::npos != pos) {
          pos += 6;
          end = address.find('\"', pos);
          if (std::string::npos != end) {
            str.str(address.substr(pos, end-pos)); // reuse the istringstream
            str >> clid;
            // Get trailer_address
            pos = address.find('>');
            if (pos < (address.size()-2)) { // this means that '>' was found (pos != npos)
                                            // it is before the last char
              address_trailer = address.substr(pos+1);
            }
          }
        }
      }
    }
  }
}

bool PersistencySvc::enable ( bool value ) [protected]

Set enabled flag.

Definition at line 615 of file PersistencySvc.cpp.

{
  bool old = m_enable;
  m_enable = value;
  return old;
}

void PersistencySvc::encodeAddrHdr	(	long	service_type,
		const CLID &	clid,
		std::string &	address
	)		const `[protected]`

Retrieve string from storage type and clid.

Definition at line 434 of file PersistencySvc.cpp.

{
  // For address header, use xml-style format of
  // <addrhdr service_type="xxx" clid="yyy" />
  std::stringstream stream;
  int svctyp = service_type; // must put int into stream, not char
  stream << "<address_header service_type=\"" << svctyp << "\" clid=\"" << clid << "\" /> ";
  address = stream.str();
}

StatusCode PersistencySvc::fillObjRefs	(	IOpaqueAddress *	pAddress,
		DataObject *	pObject
	)		`[virtual]`

Implementation of IConverter: Resolve the references of the created transient object.

Resolve the references of the created transient object.

Definition at line 121 of file PersistencySvc.cpp.

                                                                                 {
  return makeCall(FILL_OBJ_REFS, pAddr, pObj);
}

StatusCode PersistencySvc::fillRepRefs	(	IOpaqueAddress *	pAddress,
		DataObject *	pObject
	)		`[virtual]`

Implementation of IConverter: Resolve the references of the converted object.

Resolve the references of the converted object.

Definition at line 141 of file PersistencySvc.cpp.

                                                                               {
  return makeCall(FILL_REP_REFS, pAddr, pObj);
}

StatusCode PersistencySvc::finalize ( void ) [virtual]

stop the service.

Reimplemented from Service.

Reimplemented in DetPersistencySvc, EvtPersistencySvc, and HistogramPersistencySvc.

Definition at line 601 of file PersistencySvc.cpp.

                                         {
  // Release all workers
  m_cnvServices.clear();
  // Release references to this to avoid loops
  m_addrCreator = 0;
  return StatusCode::SUCCESS;
}

StatusCode PersistencySvc::getService	(	const std::string &	service_type,
		IConversionSvc *&	refpSvc
	)		`[virtual]`

Retrieve conversion service identified by technology.

Definition at line 511 of file PersistencySvc.cpp.

                                                                                                 {
  const char* imp = service_type.c_str();
  long len = service_type.length();
  if ( ::strncasecmp(imp,"SICB", len) == 0 )
    return getService(SICB_StorageType, refpSvc);
  else if ( ::strncasecmp(imp,"ZEBRA", len) == 0 )
    return getService(SICB_StorageType, refpSvc);
  else if ( ::strncasecmp(imp,"MS Access", len) == 0 )
    return getService(ACCESS_StorageType, refpSvc);
  else if ( ::strncasecmp(imp,"Microsoft Access", strlen("Microsoft Access")) == 0 )
    return getService(ACCESS_StorageType, refpSvc);
  else if ( ::strncasecmp(imp,"SQL Server", len) == 0 )
    return getService(SQLSERVER_StorageType, refpSvc);
  else if ( ::strncasecmp(imp,"Microsoft ODBC for Oracle", len) == 0 )
    return getService(ORACLE_StorageType, refpSvc);
  else if ( ::strncasecmp(imp,"Oracle ODBC", strlen("Oracle ODBC")) == 0 )
    return getService(ORACLE_StorageType, refpSvc);
  else if ( ::strncasecmp(imp,"Oracle OCI", strlen("Oracle OCI")) == 0 )
    return getService(ORACLE_StorageType, refpSvc);
  else if ( ::strncasecmp(imp,"MySQL", len) == 0 )
    return getService(MYSQL_StorageType, refpSvc);
  else if ( ::strncasecmp(imp,"ROOT", len) == 0 )
    return getService(ROOT_StorageType, refpSvc);
  else if ( ::strncasecmp(imp,"OBJY", len) == 0 )
    return getService(OBJY_StorageType, refpSvc);
  else if ( ::strncasecmp(imp,"OBJYECTI", 7) == 0 )
    return getService(OBJY_StorageType, refpSvc);
  else if ( ::strncasecmp(imp,"POOL_ROOTKEY", 12) == 0 )
    return getService(POOL_ROOTKEY_StorageType, refpSvc);
  else if ( ::strncasecmp(imp,"POOL_ROOTTREE", 12) == 0 )
    return getService(POOL_ROOTTREE_StorageType, refpSvc);
  else if ( ::strncasecmp(imp,"POOL_ROOT", 9) == 0 )
    return getService(POOL_ROOT_StorageType, refpSvc);
  else if ( ::strncasecmp(imp,"POOL_MySQL", 8) == 0 )
    return getService(POOL_MYSQL_StorageType, refpSvc);
  else if ( ::strncasecmp(imp,"POOL_ORACLE", 8) == 0 )
    return getService(POOL_ORACLE_StorageType, refpSvc);
  else if ( ::strncasecmp(imp,"POOL_ACCESS", 8) == 0 )
    return getService(POOL_ACCESS_StorageType, refpSvc);
  else if ( ::strncasecmp(imp,"POOL", 4) == 0 )
    return getService(POOL_StorageType, refpSvc);

  for(Services::const_iterator i=m_cnvServices.begin(); i != m_cnvServices.end();++i)  {
    SmartIF<IService> svc((*i).second.conversionSvc());
    if ( svc )  {
      // Check wether this is already an active service: first check by service name
      if ( svc->name() == service_type )  {
        refpSvc = (*i).second.conversionSvc();
        return StatusCode::SUCCESS;
      }
      // Check wether this is already an active service: now check by service type
      if ( System::typeinfoName(typeid(*(svc.get()))) == service_type )  {
        refpSvc = (*i).second.conversionSvc();
        return StatusCode::SUCCESS;
      }
    }
  }
  const std::vector<std::string>& names = m_svcNames;
  // if not, check if the service is in the list and may be requested
  for(std::vector<std::string>::const_iterator i=names.begin(); i != names.end(); i++) {
    Gaudi::Utils::TypeNameString itm(*i);
    if ( itm.name() == service_type || itm.type() == service_type )  {
      IConversionSvc* svc = service(*i);
      if ( svc )  {
        refpSvc = svc;
        return StatusCode::SUCCESS;
      }
    }
  }
  return StatusCode::FAILURE;
}

StatusCode PersistencySvc::getService	(	long	service_type,
		IConversionSvc *&	refpSvc
	)		`[virtual]`

Retrieve conversion service identified by technology.

Definition at line 505 of file PersistencySvc.cpp.

                                                                                     {
  refpSvc = service(service_type);
  return (0==refpSvc) ? StatusCode::FAILURE : StatusCode::SUCCESS;
}

StatusCode PersistencySvc::initialize ( ) [virtual]

Initialize the service.

Reimplemented from Service.

Reimplemented in DetPersistencySvc, EvtPersistencySvc, and HistogramPersistencySvc.

Definition at line 589 of file PersistencySvc.cpp.

                                          {
  m_addrCreator = this; // initialize internal pointer to IAddressCreator interface
  // Initialize basic service
  StatusCode status = Service::initialize();
  if ( !status.isSuccess() )   {
    MsgStream log( msgSvc(), name() ); // Service MUST be initialized BEFORE!
    log << MSG::ERROR << "Error initializing Service base class." << endmsg;
  }
  return status;
}

StatusCode PersistencySvc::makeCall	(	int	typ,
		IOpaqueAddress *&	pAddress,
		DataObject *&	pObject
	)		`[protected]`

Implementation helper.

Definition at line 52 of file PersistencySvc.cpp.

                                                               {
  if ( m_enable )    {
    IConversionSvc* svc    = 0;
    switch(typ)   {
    case CREATE_REP:
    case FILL_REP_REFS:
    case UPDATE_REP:
    case UPDATE_REP_REFS:
      svc = m_cnvDefault;
      break;
    default:
      if ( 0 != pAddress )    {
        long svc_type = pAddress->svcType();
        svc = service(svc_type);
        if ( 0 == svc )   {
          return BAD_STORAGE_TYPE;
        }
      }
      else  {
        return INVALID_ADDRESS;
      }
      break;
    }

    StatusCode status(StatusCode::FAILURE,true);
    switch( typ )     {
    case CREATE_OBJ:
      pObject = 0;
      status = svc->createObj(pAddress, pObject);
      break;
    case FILL_OBJ_REFS:
      status = svc->fillObjRefs(pAddress, pObject);
      break;
    case UPDATE_OBJ:
      status = svc->updateObj(pAddress, pObject);
      break;
    case UPDATE_OBJ_REFS:
      status = svc->updateObjRefs(pAddress, pObject);
      break;
    case CREATE_REP:
      status = svc->createRep(pObject, pAddress);
      break;
    case FILL_REP_REFS:
      status = svc->fillRepRefs(pAddress, pObject);
      break;
    case UPDATE_REP:
      status = svc->updateRep(pAddress, pObject);
      break;
    case UPDATE_REP_REFS:
      status = svc->updateRepRefs(pAddress, pObject);
      break;
    default:
      status = StatusCode::FAILURE;
      break;
    }
    status.ignore();
    return status;
  }
  return StatusCode::SUCCESS;
}

const CLID & PersistencySvc::objType ( ) const

Retrieve the class type of objects the converter produces. (DUMMY)

Retrieve the class type of objects the converter produces.

Definition at line 584 of file PersistencySvc.cpp.

                                             {
  return CLID_NULL;
}

StatusCode PersistencySvc::removeCnvService ( long type ) [virtual]

Remove a Service.

Remove conversion service.

Definition at line 330 of file PersistencySvc.cpp.

                                                           {
  Services::iterator it = m_cnvServices.find( svctype );
  if( it != m_cnvServices.end() ) {
    (*it).second.service()->release();
    (*it).second.addrCreator()->release();
    m_cnvServices.erase(it);
    return StatusCode::SUCCESS;
  }
  return BAD_STORAGE_TYPE;
}

StatusCode PersistencySvc::removeConverter ( const CLID & clid ) [virtual]

Remove converter object from conversion service (if present).

Definition at line 217 of file PersistencySvc.cpp.

                                                            {
  // Remove converter type from all services
  StatusCode status = NO_CONVERTER, iret = StatusCode::SUCCESS;
  for ( Services::iterator i = m_cnvServices.begin(); i != m_cnvServices.end(); i++ )    {
    iret = (*i).second.conversionSvc()->removeConverter(clid);
    if ( iret.isSuccess() )    {
      status = iret;
    }
  }
  return status;
}

long PersistencySvc::repSvcType ( ) const

Return default service type.

Retrieve the class type of the data store the converter uses.

Definition at line 342 of file PersistencySvc.cpp.

                                      {
  long typ = (m_cnvDefault) ? m_cnvDefault->repSvcType() : 0;
  return typ;
}

SmartIF< IConversionSvc > & PersistencySvc::service ( const std::string & nam ) [protected]

Retrieve conversion service by name.

Definition at line 235 of file PersistencySvc.cpp.

                                                                         {
  Gaudi::Utils::TypeNameString tn(nam);
  IConversionSvc* svc = 0;
  for ( Services::iterator it = m_cnvServices.begin(); it != m_cnvServices.end(); it++ )    {
    if ( (*it).second.service()->name() == tn.name() )   {
      return (*it).second.conversionSvc();
    }
  }
  StatusCode status = Service::service(nam, svc, true);
  if ( status.isSuccess() )   {
    if ( addCnvService(svc).isSuccess() )   {
      svc->release();       // Do not double-reference count
      return service(nam); // now it is in the list
    }
  }
  MsgStream log( msgSvc(), name() );
  log << MSG::INFO << "Cannot access Conversion service:" << nam << endmsg;
  static SmartIF<IConversionSvc> no_svc;
  return no_svc;
}

SmartIF< IConversionSvc > & PersistencySvc::service ( long service_type ) [protected]

Retrieve conversion service from list.

Definition at line 257 of file PersistencySvc.cpp.

                                                              {
  typedef std::vector<std::string> SvcNames;
  // Check wether this is already an active service
  Services::iterator it = m_cnvServices.find( type );
  if( it != m_cnvServices.end() ) {
    return (*it).second.conversionSvc();
  }
  // if not, check if the service is in the list and may be requested
  const SvcNames& theNames = m_svcNames.value();
  for ( SvcNames::const_iterator i = theNames.begin(); i != theNames.end(); i++ )   {
    SmartIF<IConversionSvc>& svc = service(*i);
    if ( svc != 0 )  {
      long typ = svc->repSvcType();
      if ( typ == type )    {
        return svc;
      }
    }
  }
  static SmartIF<IConversionSvc> no_svc;
  return no_svc;
}

StatusCode PersistencySvc::setAddressCreator ( IAddressCreator * creator ) [virtual]

Set address creator facility.

Definition at line 491 of file PersistencySvc.cpp.

                                                                {
  // The persistency service is a address creation dispatcher istelf.
  // The persistency service can NEVER create addresses itself.
  // The entry point must only be provided in order to fulfill the needs of the
  // implementing interfaces.
  return StatusCode::FAILURE;
}

StatusCode PersistencySvc::setConversionSvc ( IConversionSvc * svc ) [virtual]

Set conversion service the converter is connected to.

Definition at line 188 of file PersistencySvc.cpp.

                                                                 {
  m_cnvDefault = svc;
  return StatusCode(StatusCode::SUCCESS,true);
}

StatusCode PersistencySvc::setDataProvider ( IDataProviderSvc * pStore ) [virtual]

Define transient datastore.

Define transient data store.

Definition at line 174 of file PersistencySvc.cpp.

                                                                        {
  m_dataSvc = pDataSvc;
  for ( Services::iterator i = m_cnvServices.begin(); i != m_cnvServices.end(); i++ )   {
    (*i).second.conversionSvc()->setDataProvider(m_dataSvc).ignore();
  }
  return StatusCode(StatusCode::SUCCESS,true);
}

StatusCode PersistencySvc::setDefaultCnvService ( long type ) [virtual]

Set default service type.

Set default conversion service.

Definition at line 348 of file PersistencySvc.cpp.

                                                             {
  m_cnvDefault = service(type);
  return StatusCode::SUCCESS;
}

void PersistencySvc::svcNamesHandler ( Property & theProp ) [protected]

Handlers for Service Names Property.

Definition at line 609 of file PersistencySvc.cpp.

                                                      {
  MsgStream log( msgSvc(), name() );
  log << MSG::INFO << p << endmsg ;
}

StatusCode PersistencySvc::updateObj	(	IOpaqueAddress *	pAddress,
		DataObject *	refpObject
	)		`[virtual]`

Implementation of IConverter: Update the transient object from the other representation.

Update the transient object from the other representation.

Definition at line 126 of file PersistencySvc.cpp.

                                                                              {
  return makeCall(UPDATE_OBJ, pAddr, pObj);
}

StatusCode PersistencySvc::updateObjRefs	(	IOpaqueAddress *	pAddress,
		DataObject *	pObject
	)		`[virtual]`

Implementation of IConverter: Update the references of an updated transient object.

Update the references of an updated transient object.

Definition at line 131 of file PersistencySvc.cpp.

                                                                                 {
  return makeCall(UPDATE_OBJ_REFS, pAddr, pObj);
}

StatusCode PersistencySvc::updateRep	(	IOpaqueAddress *	pAddress,
		DataObject *	pObject
	)		`[virtual]`

Implementation of IConverter: Update the converted representation of a transient object.

Update the converted representation of a transient object.

Definition at line 146 of file PersistencySvc.cpp.

                                                                             {
  return makeCall(UPDATE_REP, pAddr, pObj);
}

StatusCode PersistencySvc::updateRepRefs	(	IOpaqueAddress *	pAddress,
		DataObject *	pObject
	)		`[virtual]`

Implementation of IConverter: Update the references of an already converted object.

Update the references of an already converted object.

Definition at line 151 of file PersistencySvc.cpp.

                                                                                   {
  return makeCall(UPDATE_REP_REFS, pAddr, pObj);
}

Friends And Related Function Documentation

friend class Factory< PersistencySvc, IService *(std::string, ISvcLocator *)> [friend]

Definition at line 59 of file PersistencySvc.h.

friend class SvcFactory< PersistencySvc > [friend]

Definition at line 58 of file PersistencySvc.h.

Member Data Documentation

SmartIF<IAddressCreator> PersistencySvc::m_addrCreator [mutable, protected]

Pointer to the IAddressCreator interface of this, for addressCreator().

Definition at line 295 of file PersistencySvc.h.

SmartIF<IConversionSvc> PersistencySvc::m_cnvDefault [mutable, protected]

Default output service.

Definition at line 286 of file PersistencySvc.h.

long PersistencySvc::m_cnvDefType [protected]

Default service type.

Definition at line 280 of file PersistencySvc.h.

Services PersistencySvc::m_cnvServices [protected]

List of convermsion workers.

Definition at line 284 of file PersistencySvc.h.

SmartIF<IDataProviderSvc> PersistencySvc::m_dataSvc [mutable, protected]

Pointer to datma provider service.

Definition at line 282 of file PersistencySvc.h.

bool PersistencySvc::m_enable [protected]

Flag to indicate that the service is enabled.

Definition at line 292 of file PersistencySvc.h.

StringArrayProperty PersistencySvc::m_svcNames [protected]

Names of services to be requested from the service locator and added by default.

Definition at line 290 of file PersistencySvc.h.

The documentation for this class was generated from the following files:

/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r2/GaudiSvc/src/PersistencySvc/PersistencySvc.h
/afs/.cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r2/GaudiSvc/src/PersistencySvc/PersistencySvc.cpp

Gaudi Framework, version v22r2

PersistencySvc Class Reference

Classes

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes
