#include <AIDATupleSvc/AIDATupleSvc.h>

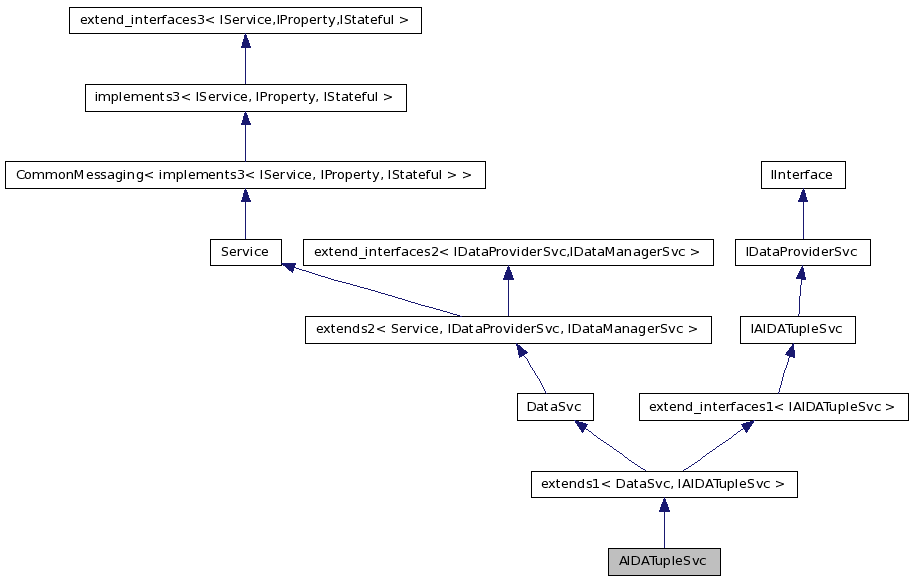

Inheritance diagram for AIDATupleSvc:

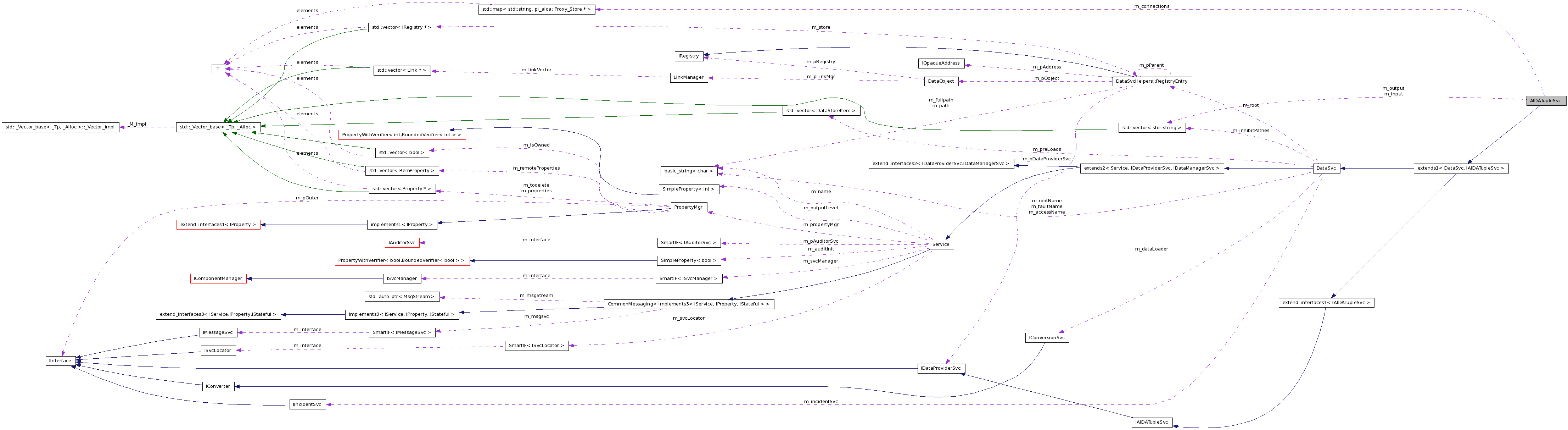

Collaboration diagram for AIDATupleSvc:

Public Member Functions
virtual StatusCode	initialize ()
	DataSvc overrides: Initialize the service.
virtual StatusCode	reinitialize ()
	DataSvc overrides: reinitialize service.
virtual StatusCode	finalize ()
	DataSvc overrides: stop the service.
virtual AIDA::ITuple *	book (const std::string &fullPath, const std::string &title, const std::string &columns)
	Create AIDATuple in the data store.
virtual AIDA::ITuple *	book (const std::string &parentPath, const std::string &objPath, const std::string &title, const std::string &columns)
	Create AIDATuple in the data store.
virtual AIDA::ITuple *	book (const std::string &parentPath, int tupleID, const std::string &title, const std::string &columns)
	Create AIDATuple in the data store.
virtual AIDA::ITuple *	book (DataObject *pParent, const std::string &objPath, const std::string &title, const std::string &columns)
	Create AIDATuple in the data store.
virtual AIDA::ITuple *	book (DataObject *pParent, int tupleID, const std::string &title, const std::string &columns)
	Create AIDATuple in the data store.
virtual StatusCode	registerObject (const std::string &dirPath, const std::string &objPath, AIDA::ITuple *tObj)
	Register a tuple in the data store.
virtual StatusCode	registerObject (DataObject pParent, const std::string &objPath, AIDA::ITuple tObj)
	Register a tuple in the data store.
virtual StatusCode	unregisterObject (AIDA::ITuple *tObj)
	Unregister a tuple in the data store.
virtual StatusCode	unregisterObject (AIDA::ITuple *tObj, const std::string &objPath)
	Unregister a tuple in the data store.
virtual StatusCode	retrieveObject (const std::string &fullPath, AIDA::ITuple *&tObj)
	Retrieve a tuple from the data store.
virtual StatusCode	retrieveObject (const std::string &parentPath, const std::string &objPath, AIDA::ITuple *&tObj)
	Retrieve a tuple from the data store.
virtual StatusCode	retrieveObject (DataObject pParent, const std::string &objPath, AIDA::ITuple &tObj)
	Retrieve a tuple from the data store.
virtual StatusCode	findObject (const std::string &fullPath, AIDA::ITuple *&tObj)
	Locate a tuple in the data store.
virtual StatusCode	findObject (IRegistry pDirectory, const std::string &path, AIDA::ITuple &tObj)
	Locate a tuple in the data store.
virtual StatusCode	findObject (const std::string &parentPath, const std::string &objPath, AIDA::ITuple *&tObj)
	Locate a tuple in the data store.
virtual StatusCode	findObject (DataObject parentObj, const std::string &objPath, AIDA::ITuple &tObj)
	Locate a tuple in the data store.
virtual void	setCriteria (AIDA::ITuple *&tObj, const std::string &criteria)
	Set a selection criteria for reading, as a filter.
virtual StatusCode	myTest ()
	Dummy method to test the service.
Protected Types
typedef std::vector< std::string >	DBaseEntries
	Typedefs for connections.
typedef std::map< std::string, pi_aida::Proxy_Store * >	Connections
Protected Member Functions
	AIDATupleSvc (const std::string &name, ISvcLocator *svc)
	Standard constructor.
virtual	~AIDATupleSvc ()
	Standard destructor.
void	parsePath (const std::string &fullPath, std::string &dirPath, std::string &objPath, std::string &storePath, std::string &storeObj)
	Split full path into its components.
virtual DataObject *	createPath (const std::string &newPath)
	Create all directories recursively in a given full path.
virtual DataObject *	createDirectory (const std::string &parentDir, const std::string &subDir)
	Create a sub-directory in a given directory.
StatusCode	connect (const std::string &ident, int mode)
	Add file to I/O list.
StatusCode	closeAIDAStores ()
	Disconnect all the stores in the I/O list.
Protected Attributes
DBaseEntries	m_output
	Output streams.
DBaseEntries	m_input
	Input streams.
Connections	m_connections
	Container of connection points.
Friends
class	SvcFactory< AIDATupleSvc >
	Allow SvcFactory to instantiate the service.

Detailed Description

AIDATupleSvc class definition.

Author:: Manuel Domenech Saavedra

Date:: 2005-05-23

Definition at line 28 of file AIDATupleSvc.h.

Member Typedef Documentation

typedef std::map<std::string, pi_aida::Proxy_Store*> AIDATupleSvc::Connections [protected]

Definition at line 37 of file AIDATupleSvc.h.

typedef std::vector<std::string> AIDATupleSvc::DBaseEntries [protected]

Typedefs for connections.

Definition at line 36 of file AIDATupleSvc.h.

Constructor & Destructor Documentation

AIDATupleSvc::AIDATupleSvc	(	const std::string &	name,
		ISvcLocator *	svc
	)		`[protected]`

Standard constructor.

Definition at line 551 of file AIDATupleSvc.cpp.

  : DataSvc( name, svc )
{
  // Properties can be declared here
  m_rootName = "/NTUPLES";
  m_rootCLID = CLID_DataObject;
  declareProperty("Input",  m_input);
  declareProperty("Output", m_output);
}

AIDATupleSvc::~AIDATupleSvc ( ) [protected, virtual]

Standard destructor.

Definition at line 562 of file AIDATupleSvc.cpp.

{
  clearStore().ignore();
}

Member Function Documentation

AIDA::ITuple * AIDATupleSvc::book	(	const std::string &	fullPath,
		const std::string &	title,
		const std::string &	columns
	)		`[virtual]`

Create AIDATuple in the data store.

Parameters:

fullPath	[IN]: Full path of the tuple
title	[IN]: Title of the tuple
columns	[IN]: Description of the column names and types returns a new tuple registered in the transient store

Implements IAIDATupleSvc.

Definition at line 98 of file AIDATupleSvc.cpp.

{
  std::string dirPath, objPath, storePath, storeObj;
  parsePath( fullPath, dirPath, objPath, storePath, storeObj);

  Connections::iterator i = m_connections.find(storePath);
  if( i != m_connections.end() ) {
    pi_aida::Tuple* tmp = new pi_aida::Tuple( *(*i).second, storeObj, title, columns );
    AIDA::ITuple* tuple = tmp;

    if( registerObject(dirPath, objPath, tuple).isSuccess() )
      return tuple;
    else {
      delete tuple;
      throw GaudiException("Cannot book tuple " + title,"AIDATupleSvc", StatusCode::FAILURE);
    }
  }
  else
    throw GaudiException("Cannot find store " + storePath, "AIDATupleSvc", StatusCode::FAILURE);
}

AIDA::ITuple * AIDATupleSvc::book	(	const std::string &	parentPath,
		const std::string &	objPath,
		const std::string &	title,
		const std::string &	columns
	)		`[virtual]`

Create AIDATuple in the data store.

Parameters:

parentPath	[IN]: Full path to the parent dir of the tuple
objPath	[IN]: Name of the tuple
title	[IN]: Title of the tuple
columns	[IN]: Description of the column names and types returns a new tuple registered in the transient store

Definition at line 122 of file AIDATupleSvc.cpp.

{
  std::string fullPath = parentPath+"/"+objPath;
  return book( fullPath, title, columns );
}

AIDA::ITuple * AIDATupleSvc::book	(	const std::string &	parentPath,
		int	tupleID,
		const std::string &	title,
		const std::string &	columns
	)		`[virtual]`

Create AIDATuple in the data store.

Parameters:

parentPath	[IN]: Full path to the parent dir of the tuple
tupleID	[IN]: ID of the tuple
title	[IN]: Title of the tuple
columns	[IN]: Description of the column names and types returns a new tuple registered in the transient store

Definition at line 132 of file AIDATupleSvc.cpp.

{
  char objPath[32];
  ::_itoa(tupleID, objPath, 10);
  std::string fullPath = parentPath+"/"+objPath;
  return book( fullPath, title, columns );
}

AIDA::ITuple * AIDATupleSvc::book	(	DataObject *	pParent,
		const std::string &	objPath,
		const std::string &	title,
		const std::string &	columns
	)		`[virtual]`

Create AIDATuple in the data store.

Parameters:

pParent	[IN]: Pointer to the parent directory of the tuple
objPath	[IN]: Name of the tuple
title	[IN]: Title of the tuple
columns	[IN]: Description of the column names and types returns a new tuple registered in the transient store

Definition at line 144 of file AIDATupleSvc.cpp.

{
  IRegistry* tmp = pParent->registry();
  std::string fullPath, parentPath;
  parentPath = tmp->identifier();
  fullPath = fullPath = parentPath+"/"+objPath;
  return book( fullPath, title, columns );
}

AIDA::ITuple * AIDATupleSvc::book	(	DataObject *	pParent,
		int	tupleID,
		const std::string &	title,
		const std::string &	columns
	)		`[virtual]`

Create AIDATuple in the data store.

Parameters:

pParent	[IN]: Pointer to the parent directory of the tuple
tupleID	[IN]: ID of the tuple
title	[IN]: Title of the tuple
columns	[IN]: Description of the column names and types returns a new tuple registered in the transient store

Definition at line 157 of file AIDATupleSvc.cpp.

{
  char txt[32];
  return book( pParent, ::_itoa(tupleID, txt, 10), title, columns );
}

StatusCode AIDATupleSvc::closeAIDAStores ( ) [protected]

Disconnect all the stores in the I/O list.

Definition at line 443 of file AIDATupleSvc.cpp.

{
   for( Connections::iterator k = m_connections.begin(); k != m_connections.end(); k++ ) {
     if ( (*k).second->isOpen()) {
       (*k).second->close();
       (*k).second = 0;
     }
   }

   m_connections.erase(m_connections.begin(), m_connections.end());
  return StatusCode::SUCCESS;
}

StatusCode AIDATupleSvc::connect	(	const std::string &	ident,
		int	mode
	)		`[protected]`

Add file to I/O list.

Parameters:

ident	[IN]: String with all the options from the job options file
mode	[IN]: Flag indicating INPUT or OUTPUT stream returns StatusCode indicating the success of the operation

Definition at line 338 of file AIDATupleSvc.cpp.

{
  MsgStream log ( msgSvc(), name() );
  DataObject* p0 = 0;
  StatusCode status = DataSvc::findObject(m_rootName, p0);
  if (status.isSuccess() ) {
    Tokenizer tok(true);
    long loc = ident.find(" ");
    int open_mode = 0; // Default is AUTO mode
    std::string file, typ = "", tmp_typ = "", opt = "";
    std::string logname = ident.substr(0,loc);
    tok.analyse(ident.substr(loc+1,ident.length()), " ", "", "", "=", "'", "'");
    for ( Tokenizer::Items::iterator i = tok.items().begin(); i != tok.items().end(); i++) {
      const std::string& tag = (*i).tag();
      switch( ::toupper(tag[0]) ) {
      case 'F':   // FILE='<file name>'
      case 'D':   // DATAFILE='<file name>'
        file = (*i).value();
        break;
      case 'O':   // OPT='<AUTO, OVERWRITE, CREATE, READONLY, UPDATE>'
        switch( ::toupper((*i).value()[0]) ) {
        case 'A': // AUTO
          if( mode == 0 )
            open_mode = 3; // READONLY
          else
            open_mode = 1; // CREATE
          break;
        case 'O': // OVERWRITE
          if( mode == 0 )
            throw GaudiException("Input file " + file + " with improper option (OVERWRITE)", "AIDATupleSvc", StatusCode::FAILURE);
          else
            open_mode = 1;
          break;
        case 'C': // CREATE
          if( mode == 0 )
            throw GaudiException("Input file " + file + " with improper option (CREATE)", "AIDATupleSvc", StatusCode::FAILURE);
          else
            open_mode = 2;
          break;
        case 'R': // READONLY
          if( mode == 1 )
            throw GaudiException("Output file " + file + " with improper option (READONLY)", "AIDATupleSvc", StatusCode::FAILURE);
          else
            open_mode = 3;
          break;
        case 'U': // UPDATE
          if( mode == 0 )
            throw GaudiException("Input file " + file + " with improper option (UPDATE)", "AIDATupleSvc", StatusCode::FAILURE);
          else
            open_mode = 4;
          break;
        }
        break;
      case 'T':   // TYP='<HBOOK,ROOT,XML,POOL>'
        typ = (*i).value();
        break;
      default:
        opt += (*i).tag() + "=" + (*i).value() + ",";
        break;
      }
    }

    // Check if persistency type has been specified at job options
    if (typ == "") {
      log << MSG::WARNING << "File type not specified at job options."
          << " Setting 'HistogramPersistency' type as default"
          << endmsg;
      // Get the value of the Stat persistancy mechanism from the AppMgr
      IProperty*   appPropMgr = 0;
      status = serviceLocator()->queryInterface(IProperty::interfaceID(),(void **)&appPropMgr );
      if( !status.isSuccess() ) {
        // Report an error and return the FAILURE status code
        log << MSG::ERROR << "Could not get PropMgr" << endmsg;
        return status;
      }
      StringProperty sp("HistogramPersistency","");
      status = appPropMgr->getProperty( &sp );
      if ( !status.isSuccess() ) {
        log << MSG::ERROR << "Could not get NTuple Persistency format"
            << " from ApplicationMgr properties" << endmsg;
        return status;
      }
      tmp_typ = sp.value();
      if (tmp_typ == "ROOT" || tmp_typ == "XML" || tmp_typ == "HBOOK" || tmp_typ == "POOL")
        typ = tmp_typ;
      else {
        log << MSG::ERROR << "Unknown persistency format at 'HistogramPersistency' option"
            << endmsg;
        return StatusCode::FAILURE;
      }
    }

    // Create a new pi_aida::Proxy_Store
    pi_aida::Proxy_Store* storePtr = new pi_aida::Proxy_Store( file, typ, open_mode, opt );
    m_connections.insert(Connections::value_type(m_rootName+'/'+logname, storePtr));

    return StatusCode::SUCCESS;
  }
  log << MSG::ERROR << "Cannot add " << ident << " invalid filename!" << endmsg;
  return StatusCode::FAILURE;

}

DataObject * AIDATupleSvc::createDirectory	(	const std::string &	parentDir,
		const std::string &	subDir
	)		`[protected, virtual]`

Create a sub-directory in a given directory.

Parameters:

parentDir	[IN]: Path to the parent directory, already existing
subDir	[IN]: Name of the subdirectory returns pointer to DataObject corresponding to the new subdirectory

Implements IAIDATupleSvc.

Definition at line 517 of file AIDATupleSvc.cpp.

{

  StatusCode   status    = StatusCode::FAILURE;
  DataObject*  directory = new DataObject();

  if ( 0 != directory )  {
    DataObject* pnode;
    status = DataSvc::findObject( parentDir, pnode );
    if( status.isSuccess() ) {
      status = DataSvc::registerObject( pnode, subDir, directory );
      if ( !status.isSuccess() )   {
        MsgStream log( msgSvc(), name() );
        log << MSG::ERROR << "Unable to create the directory: "
                          << parentDir << "/" << subDir << endmsg;
        delete directory;
        return 0;
      }
    }
    else {
      MsgStream log( msgSvc(), name() );
      log << MSG::ERROR << "Unable to create the directory: "
                        << parentDir << "/" << subDir << endmsg;
      delete directory;
      return 0;
    }
  }
  return directory;
}

DataObject * AIDATupleSvc::createPath ( const std::string & newPath ) [protected, virtual]

Create all directories recursively in a given full path.

Parameters:

newPath [IN]: Path until the tuple in the transient store returns pointer to DataObject corresponding to the top level directory of the path

Implements IAIDATupleSvc.

Definition at line 482 of file AIDATupleSvc.cpp.

{
  std::string tmpPath = newPath;
  if ( tmpPath[0] != SEPARATOR )    {
    tmpPath.insert(tmpPath.begin(), SEPARATOR);
    tmpPath.insert(tmpPath.begin(), m_rootName.begin(), m_rootName.end());
  }
  // Remove trailing "/" from newPath if it exists
  if (tmpPath.rfind(SEPARATOR) == tmpPath.length()-1) {
    tmpPath.erase(tmpPath.rfind(SEPARATOR),1);
  }

  DataObject* pObject = 0;
  StatusCode sc = DataSvc::findObject( tmpPath, pObject );
  if( sc.isSuccess() ) {
    return pObject;
  }

  int sep = tmpPath.rfind(SEPARATOR);
  std::string rest( tmpPath, sep+1, tmpPath.length()-sep );
  std::string subPath( tmpPath, 0, sep );
  if( 0 != sep ) {
    createPath( subPath );
  }
  else {
    MsgStream log( msgSvc(), name() );
    log << MSG::ERROR << "Unable to create the tuple path" << endmsg;
    return 0;
  }

  pObject = createDirectory( subPath, rest );
  return pObject;
}

StatusCode AIDATupleSvc::finalize ( void ) [virtual]

DataSvc overrides: stop the service.

Reimplemented from DataSvc.

Definition at line 605 of file AIDATupleSvc.cpp.

{
  MsgStream log( msgSvc(), name() );
  StatusCode status = DataSvc::finalize();
  if( status.isSuccess() ) {
    status = closeAIDAStores();
    if( status.isSuccess() )
      return status;
  }
  log << MSG::ERROR << "Error finalizing AIDATupleSvc." << endmsg;
  return status;
}

StatusCode AIDATupleSvc::findObject	(	const std::string &	fullPath,
		AIDA::ITuple *&	tObj
	)		`[virtual]`

Locate a tuple in the data store.

Parameters:

fullPath	[IN]: Full path of the tuple
tObj	[OUT]: Pointer to the tuple returns StatusCode indicating the success of the operation

Implements IAIDATupleSvc.

Definition at line 275 of file AIDATupleSvc.cpp.

{
  DataObject*  pObject  = 0;
  StatusCode sc = DataSvc::findObject( fullPath, pObject );
  tObj = dynamic_cast<AIDA::ITuple*>(pObject);
  return sc;
}

StatusCode AIDATupleSvc::findObject	(	IRegistry *	pDirectory,
		const std::string &	path,
		AIDA::ITuple *&	tObj
	)		`[virtual]`

Locate a tuple in the data store.

Parameters:

pDirectory	[IN]: Pointer to a directory
path	[IN]: Relative path to the tuple from the pDirectory
tObj	[OUT]: Pointer to the tuple returns StatusCode indicating the success of the operation

Implements IAIDATupleSvc.

Definition at line 285 of file AIDATupleSvc.cpp.

{
  DataObject*  pObject  = 0;
  StatusCode sc = DataSvc::findObject( pRegistry, path, pObject );
  tObj = dynamic_cast<AIDA::ITuple*>(pObject);
  return sc;
}

StatusCode AIDATupleSvc::findObject	(	const std::string &	parentPath,
		const std::string &	objPath,
		AIDA::ITuple *&	tObj
	)		`[virtual]`

Locate a tuple in the data store.

Parameters:

parentPath	[IN]: Full path of the tuple
objPath	[IN]: Name of the tuple
tObj	[OUT]: Pointer to the tuple returns StatusCode indicating the success of the operation

Implements IAIDATupleSvc.

Definition at line 296 of file AIDATupleSvc.cpp.

{
  DataObject*  pObject  = 0;
  StatusCode sc = DataSvc::findObject( parentPath, objPath, pObject );
  tObj = dynamic_cast<AIDA::ITuple*>(pObject);
  return sc;
}

StatusCode AIDATupleSvc::findObject	(	DataObject *	parentObj,
		const std::string &	objPath,
		AIDA::ITuple *&	tObj
	)		`[virtual]`

Locate a tuple in the data store.

Parameters:

parentObj	[IN]: Pointer to the parent directory
objPath	[IN]: Name of the tuple
tObj	[OUT]: Pointer to the tuple returns StatusCode indicating the success of the operation

Implements IAIDATupleSvc.

Definition at line 307 of file AIDATupleSvc.cpp.

{
  DataObject*  pObject  = 0;
  StatusCode sc = DataSvc::findObject( parentObj, objPath, pObject );
  tObj = dynamic_cast<AIDA::ITuple*>(pObject);
  return sc;
}

StatusCode AIDATupleSvc::initialize ( void ) [virtual]

DataSvc overrides: Initialize the service.

Reimplemented from DataSvc.

Definition at line 568 of file AIDATupleSvc.cpp.

{
  MsgStream log( msgSvc(), name() );
  StatusCode status = DataSvc::initialize();

  if( status.isSuccess() ){
    DataObject* rootObj = new DataObject();
    status = setRoot( m_rootName, rootObj );
    if( !status.isSuccess() ) {
      log << MSG::ERROR << "Unable to set NTuple data store root." << endmsg;
      delete rootObj;
      return status;
    }

    //Connect inputs (MODE = 0)
    for( DBaseEntries::iterator i = m_input.begin(); i != m_input.end(); i++ ) {
      status = connect(*i, 0);
      if( !status.isSuccess() )
        return status;
    }
    //Connect outputs (MODE = 1)
    for( DBaseEntries::iterator j = m_output.begin(); j != m_output.end(); j++ ) {
      status = connect(*j, 1);
      if( !status.isSuccess() )
        return status;
    }
  }
  return status;
}

StatusCode AIDATupleSvc::myTest ( ) [virtual]

Dummy method to test the service.

AIDATupleSvc class implementation.

Author:: Manuel Domenech Saavedra

Date:: 2005-05-23

Implements IAIDATupleSvc.

Definition at line 34 of file AIDATupleSvc.cpp.

{
  MsgStream log ( msgSvc(), name() );
  log << MSG::INFO << "Welcome to myTest!" << endmsg;

  // Defining the description of the tuple columns
  std::string description =  "float px; float py; float pz; float mass";

  pi_aida::Proxy_Store* store = new pi_aida::Proxy_Store("ntuple.root","POOL",0,"CAT=xmlcatalog_file:anotherCatalog.xml,SUB=POOL_ROOTTREE");
  pi_aida::Tuple tuple(*store, "1", "tuple1", description);
  //AIDATuple tuple( store, "1", "example tuple", description );

  DRand48Engine randomEngine;
  RandGauss rBeamEnergy( randomEngine, 90, 5 );
  RandGauss rTracksSpread( randomEngine, 0, 2 );
  RandGauss rMomentum( randomEngine, 0, 3 );
  RandGauss rMass( randomEngine, 1, 0.1 );

  std::cout << "Tuple created ... starting to fill " << std::endl;

  int i_px = tuple.findColumn( "px" );
  int i_py = tuple.findColumn( "py" );
  int i_pz = tuple.findColumn( "pz" );
  int i_mass = tuple.findColumn( "mass" );

  for ( unsigned int i = 0; i < 1000; i++ ) {

      tuple.fill( i_px,  rMomentum.fire() );
      tuple.fill( i_py,  rMomentum.fire() );
      tuple.fill( i_pz,  rMomentum.fire() );
      tuple.fill( i_mass, rMass.fire() );
      tuple.addRow();
  }
  std::cout << "Filled the tuple with " << tuple.rows() << " rows" << std::endl;
  store->close();
  delete store;

  pi_aida::Proxy_Store* store1 = new pi_aida::Proxy_Store("ntuple.root","POOL",3,"CAT=xmlcatalog_file:anotherCatalog.xml,SUB=POOL_ROOTTREE");
  pi_aida::Tuple tuple1 = store1->retrieveTuple("1");

  //AIDATuple tuple1 = store1->retrieveTuple("1");
  //AIDATuple tuple = static_cast<AIDATuple>(tmp);

  std::cout << "FOUND TUPLE WITH  " << tuple1.rows() << " ROWS" << std::endl;

  tuple1.start();
  int i = 0;
  while( tuple1.next() ) {
    i++;
    std::cout << "ROW " << i << std::endl;
    std::cout << "px: " << tuple1.getFloat(i_px) << std::endl;
    std::cout << "py: " << tuple1.getFloat(i_py) << std::endl;
    std::cout << "pz: " << tuple1.getFloat(i_pz) << std::endl;
    std::cout << "mass: " << tuple1.getFloat(i_mass) << std::endl;
  }
  store1->close();
  delete store1;
  return StatusCode::SUCCESS;
}

void AIDATupleSvc::parsePath	(	const std::string &	fullPath,
		std::string &	dirPath,
		std::string &	objPath,
		std::string &	storePath,
		std::string &	storeObj
	)		`[protected]`

Split full path into its components.

Parameters:

fullPath	[IN]: Full path of the store
dirPath	[OUT]: Path in the transient store to the tuple's parent dir
objPath	[OUT]: Name of the tuple in the transient store starting with '/'
storePath	[OUT]: Path in the transient store of the tuple store
storeObj	[OUT]: Full name of the tuple inside the tuple store, including parent dirs.File is a flat structure.

Definition at line 457 of file AIDATupleSvc.cpp.

{
  std::string tmpPath = fullPath;
  if ( tmpPath[0] != SEPARATOR ) {
    // Insert the top level name of the store (/NTUPLES)
    tmpPath.insert(tmpPath.begin(), SEPARATOR);
    tmpPath.insert(tmpPath.begin(), m_rootName.begin(), m_rootName.end());
  }
  // Remove trailing "/" from tmpPath if it exists
  if (tmpPath.rfind(SEPARATOR) == tmpPath.length()-1) {
    tmpPath.erase(tmpPath.rfind(SEPARATOR),1);
  }
  int sep   = tmpPath.rfind(SEPARATOR);
  dirPath   = tmpPath.substr(0, sep);
  objPath   = tmpPath.substr(sep, tmpPath.length()-sep );
  sep       = tmpPath.find(SEPARATOR, m_rootName.length()+1);
  storePath = tmpPath.substr(0, sep);
  storeObj  = tmpPath.substr(sep+1, tmpPath.length()-sep );
}

StatusCode AIDATupleSvc::registerObject	(	DataObject *	pParent,
		const std::string &	objPath,
		AIDA::ITuple *	tObj
	)		`[virtual]`

Register a tuple in the data store.

Parameters:

pParent	[IN]: Pointer to the parent directory of the tuple
objPath	[IN]: Name of the tuple
tObj	[IN]: Pointer to the tuple to be registered returns StatusCode indicating the success of the operation

Implements IAIDATupleSvc.

Definition at line 180 of file AIDATupleSvc.cpp.

{
  // Set the tuple id
  if ( objPath[0] == SEPARATOR ) {
    if ( !tObj->annotation().addItem( "id", objPath.substr(1) ) )
      tObj->annotation().setValue( "id", objPath.substr(1) );
  }
  else {
    if ( !tObj->annotation().addItem( "id", objPath ) )
      tObj->annotation().setValue( "id", objPath );
  }

  // Register the tuple in the tuple data store
  StatusCode status = DataSvc::registerObject( pParent,
                                               objPath,
                                               dynamic_cast<DataObject*>(tObj) );
  return status;
}

StatusCode AIDATupleSvc::registerObject	(	const std::string &	dirPath,
		const std::string &	objPath,
		AIDA::ITuple *	tObj
	)		`[virtual]`

Register a tuple in the data store.

Parameters:

dirPath	[IN]: Path to the directory where the tuple must be registered
objPath	[IN]: Name of the tuple
tObj	[IN]: Pointer to the tuple to be registered returns StatusCode indicating the success of the operation

Implements IAIDATupleSvc.

Definition at line 170 of file AIDATupleSvc.cpp.

{
  DataObject* pParent = 0;
  pParent = createPath( dirPath );
  return registerObject( pParent, objPath, tObj );

}

StatusCode AIDATupleSvc::reinitialize ( ) [virtual]

DataSvc overrides: reinitialize service.

Reimplemented from DataSvc.

Definition at line 599 of file AIDATupleSvc.cpp.

{
  return StatusCode::SUCCESS;
}

StatusCode AIDATupleSvc::retrieveObject	(	const std::string &	parentPath,
		const std::string &	objPath,
		AIDA::ITuple *&	tObj
	)		`[virtual]`

Retrieve a tuple from the data store.

Parameters:

parentPath	[IN]: Full path to the parent dir of the tuple
objPath	[IN]: Name of the tuple
tObj	[OUT]: Pointer to the tuple returns StatusCode indicating the success of the operation

Implements IAIDATupleSvc.

Definition at line 251 of file AIDATupleSvc.cpp.

{
  std::string fullPath = parentPath+'/'+objPath;
  return retrieveObject( fullPath, tObj );
}

StatusCode AIDATupleSvc::retrieveObject	(	const std::string &	fullPath,
		AIDA::ITuple *&	tObj
	)		`[virtual]`

Retrieve a tuple from the data store.

Parameters:

fullPath	[IN]: Full path of the tuple
tObj	[OUT]: Pointer to the tuple returns StatusCode indicating the success of the operation

Implements IAIDATupleSvc.

Definition at line 224 of file AIDATupleSvc.cpp.

{
  MsgStream log ( msgSvc(), name() );
  StatusCode status;
  status = findObject(fullPath, tObj);

  // Tuple already in the transient store
  if( status.isSuccess() )
    return status;

  std::string dirPath, objPath, storePath, storeObj;
  parsePath( fullPath, dirPath, objPath, storePath, storeObj);

  // Load tuple from persistency
  Connections::iterator i = m_connections.find(storePath);
  if( i != m_connections.end() ) {
    pi_aida::Tuple* tmp = new pi_aida::Tuple(((*i).second)->retrieveTuple(storeObj));

    tObj = dynamic_cast<AIDA::ITuple*>(tmp);
    return StatusCode::SUCCESS;
  }
  log << MSG::ERROR << "Could not retrieve tuple " << fullPath << endmsg;
  return StatusCode::FAILURE;
}

StatusCode AIDATupleSvc::retrieveObject	(	DataObject *	pParent,
		const std::string &	objPath,
		AIDA::ITuple *&	tObj
	)		`[virtual]`

Retrieve a tuple from the data store.

Parameters:

pParent	[IN]: Pointer to the parent directory of the tuple
objPath	[IN]: Name of the tuple
tObj	[OUT]: Pointer to the tuple returns StatusCode indicating the success of the operation

Implements IAIDATupleSvc.

Definition at line 260 of file AIDATupleSvc.cpp.

{
  IRegistry* tmpReg = pParent->registry();
  std::string parentPath = tmpReg->identifier();
  std::string fullPath = parentPath+'/'+objPath;

  return retrieveObject( fullPath, tObj );
}

void AIDATupleSvc::setCriteria	(	AIDA::ITuple *&	tObj,
		const std::string &	criteria
	)		`[virtual]`

Set a selection criteria for reading, as a filter.

Parameters:

tObj	[IN]: Pointer to the tuple
criteria	[IN]: Selection criteria

Implements IAIDATupleSvc.

Definition at line 318 of file AIDATupleSvc.cpp.

{
  pi_aida::Tuple* t = dynamic_cast<pi_aida::Tuple*>(tObj);
  t->setCriteria(criteria);
}

StatusCode AIDATupleSvc::unregisterObject	(	AIDA::ITuple *	tObj,
		const std::string &	objPath
	)		`[virtual]`

Unregister a tuple in the data store.

Parameters:

tObj	[IN]: Pointer to tuple
objPath	[IN]: Name of the tuple returns StatusCode indicating the success of the operation

Implements IAIDATupleSvc.

Definition at line 212 of file AIDATupleSvc.cpp.

{
  StatusCode status = DataSvc::unregisterObject( dynamic_cast<DataObject*>(tObj),
                                                 objPath );
  return status;
}

StatusCode AIDATupleSvc::unregisterObject ( AIDA::ITuple * tObj ) [virtual]

Unregister a tuple in the data store.

Parameters:

tObj	[IN]: Pointer to tuple returns StatusCode indicating the success of the operation

Implements IAIDATupleSvc.

Definition at line 205 of file AIDATupleSvc.cpp.

{
  StatusCode status = DataSvc::unregisterObject( dynamic_cast<DataObject*>(tObj) );
  return status;
}

Friends And Related Function Documentation

friend class SvcFactory< AIDATupleSvc > [friend]

Allow SvcFactory to instantiate the service.

Definition at line 32 of file AIDATupleSvc.h.

Member Data Documentation

Connections AIDATupleSvc::m_connections [protected]

Container of connection points.

Definition at line 46 of file AIDATupleSvc.h.

DBaseEntries AIDATupleSvc::m_input [protected]

Input streams.

Definition at line 43 of file AIDATupleSvc.h.

DBaseEntries AIDATupleSvc::m_output [protected]

Output streams.

Definition at line 40 of file AIDATupleSvc.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r4/GaudiSvc/src/AIDATupleSvc/AIDATupleSvc.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r4/GaudiSvc/src/AIDATupleSvc/AIDATupleSvc.cpp

Gaudi Framework, version v22r4

AIDATupleSvc Class Reference

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
