Base class for a component manager. More...

#include <ComponentManager.h>

Inheritance diagram for ComponentManager:

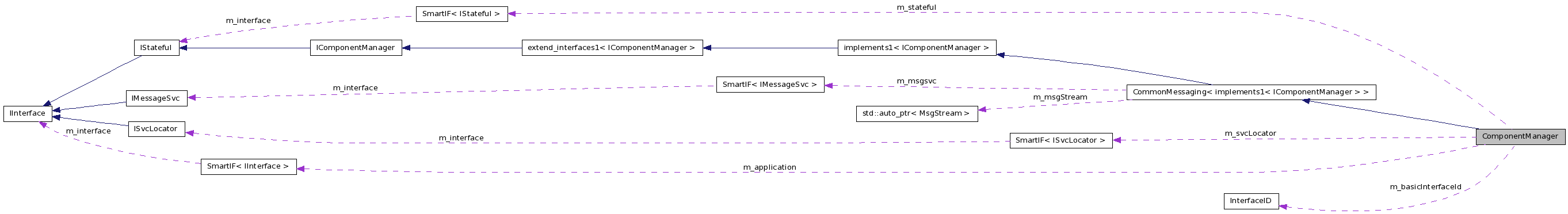

Collaboration diagram for ComponentManager:

Public Member Functions
	ComponentManager (IInterface *application, const InterfaceID &baseIID)
	Constructor.
virtual const InterfaceID &	componentBaseInterface () const
	Basic interface id of the managed components.
virtual	~ComponentManager ()
	Virtual destructor.
StatusCode	queryInterface (const InterfaceID &iid, void **pinterface)
	Specialized queryInterface implementation.
virtual SmartIF< ISvcLocator > &	serviceLocator () const
	Needed to locate the message service.
virtual StatusCode	configure ()
	Configuration (from OFFLINE to CONFIGURED).
virtual StatusCode	initialize ()
	Initialization (from CONFIGURED to INITIALIZED).
virtual StatusCode	start ()
	Start (from INITIALIZED to RUNNING).
virtual StatusCode	stop ()
	Stop (from RUNNING to INITIALIZED).
virtual StatusCode	finalize ()
	Finalize (from INITIALIZED to CONFIGURED).
virtual StatusCode	terminate ()
	Initialization (from CONFIGURED to OFFLINE).
virtual StatusCode	reinitialize ()
	Initialization (from INITIALIZED or RUNNING to INITIALIZED, via CONFIGURED).
virtual StatusCode	restart ()
	Initialization (from RUNNING to RUNNING, via INITIALIZED).
virtual Gaudi::StateMachine::State	FSMState () const
	Get the current state.
virtual Gaudi::StateMachine::State	targetFSMState () const
	When we are in the middle of a transition, get the state where the transition is leading us.
Protected Attributes
SmartIF< IInterface >	m_application
	Pointer to the owner of the manager.
SmartIF< IStateful >	m_stateful
	Pointer to the IStateful interface of the owner.
InterfaceID	m_basicInterfaceId
	Basic interface id of the managed components.
SmartIF< ISvcLocator >	m_svcLocator
	Service locator (needed to access the MessageSvc)

Detailed Description

Base class for a component manager.

Author:: Marco Clemencic

Definition at line 14 of file ComponentManager.h.

Constructor & Destructor Documentation

ComponentManager::ComponentManager	(	IInterface *	application,
		const InterfaceID &	baseIID
	)

Constructor.

Parameters:

application the manager of managers

Definition at line 12 of file ComponentManager.cpp.

                                                                                     :
  m_application(application), m_stateful(application), m_basicInterfaceId(baseIID)
{
}

ComponentManager::~ComponentManager ( ) [virtual]

Virtual destructor.

Definition at line 25 of file ComponentManager.cpp.

{
}

Member Function Documentation

const InterfaceID & ComponentManager::componentBaseInterface ( ) const [virtual]

Basic interface id of the managed components.

Implements IComponentManager.

Definition at line 19 of file ComponentManager.cpp.

                                                                  {
  return m_basicInterfaceId;
}

virtual StatusCode ComponentManager::configure ( ) [inline, virtual]

Configuration (from OFFLINE to CONFIGURED).

Implements IStateful.

Definition at line 38 of file ComponentManager.h.

{return StatusCode::SUCCESS;}

virtual StatusCode ComponentManager::finalize ( void ) [inline, virtual]

Finalize (from INITIALIZED to CONFIGURED).

Implements IStateful.

Reimplemented in AlgorithmManager, and ServiceManager.

Definition at line 50 of file ComponentManager.h.

{return StatusCode::SUCCESS;}

virtual Gaudi::StateMachine::State ComponentManager::FSMState ( ) const [inline, virtual]

Get the current state.

Implements IStateful.

Definition at line 63 of file ComponentManager.h.

{return m_stateful->FSMState();}

virtual StatusCode ComponentManager::initialize ( void ) [inline, virtual]

Initialization (from CONFIGURED to INITIALIZED).

Implements IStateful.

Reimplemented in AlgorithmManager, and ServiceManager.

Definition at line 41 of file ComponentManager.h.

{return StatusCode::SUCCESS;}

StatusCode ComponentManager::queryInterface	(	const InterfaceID &	iid,
		void **	pinterface
	)		`[virtual]`

Specialized queryInterface implementation.

If an interface is not fount in the implemented ones, we fall back on the owner.

Implements IInterface.

Reimplemented in extends1< ComponentManager, IAlgManager >, and extends2< ComponentManager, ISvcManager, ISvcLocator >.

Definition at line 30 of file ComponentManager.cpp.

{
  // try local interfaces
  StatusCode sc = base_class::queryInterface(iid,pinterface);
  if (sc.isSuccess()) return sc;
  // fall back on the owner
  return m_application->queryInterface(iid, pinterface);
}

virtual StatusCode ComponentManager::reinitialize ( ) [inline, virtual]

Initialization (from INITIALIZED or RUNNING to INITIALIZED, via CONFIGURED).

Implements IStateful.

Reimplemented in AlgorithmManager, and ServiceManager.

Definition at line 57 of file ComponentManager.h.

{return StatusCode::SUCCESS;}

virtual StatusCode ComponentManager::restart ( ) [inline, virtual]

Initialization (from RUNNING to RUNNING, via INITIALIZED).

Implements IStateful.

Reimplemented in AlgorithmManager, and ServiceManager.

Definition at line 60 of file ComponentManager.h.

{return StatusCode::SUCCESS;}

virtual SmartIF<ISvcLocator>& ComponentManager::serviceLocator ( ) const [inline, virtual]

Needed to locate the message service.

Implements CommonMessaging< implements1< IComponentManager > >.

Reimplemented in ServiceManager.

Definition at line 32 of file ComponentManager.h.

                                                       {
    if (!m_svcLocator) m_svcLocator = m_application;
    return m_svcLocator;
  }

virtual StatusCode ComponentManager::start ( ) [inline, virtual]

Start (from INITIALIZED to RUNNING).

Implements IStateful.

Reimplemented in AlgorithmManager, and ServiceManager.

Definition at line 44 of file ComponentManager.h.

{return StatusCode::SUCCESS;}

virtual StatusCode ComponentManager::stop ( ) [inline, virtual]

Stop (from RUNNING to INITIALIZED).

Implements IStateful.

Reimplemented in AlgorithmManager, and ServiceManager.

Definition at line 47 of file ComponentManager.h.

{return StatusCode::SUCCESS;}

virtual Gaudi::StateMachine::State ComponentManager::targetFSMState ( ) const [inline, virtual]

When we are in the middle of a transition, get the state where the transition is leading us.

Otherwise it returns the same state as state().

Implements IStateful.

Definition at line 67 of file ComponentManager.h.

{return m_stateful->targetFSMState();}

virtual StatusCode ComponentManager::terminate ( ) [inline, virtual]

Initialization (from CONFIGURED to OFFLINE).

Implements IStateful.

Definition at line 53 of file ComponentManager.h.

{return StatusCode::SUCCESS;}

Member Data Documentation

SmartIF<IInterface> ComponentManager::m_application [protected]

Pointer to the owner of the manager.

Definition at line 72 of file ComponentManager.h.

InterfaceID ComponentManager::m_basicInterfaceId [protected]

Basic interface id of the managed components.

Definition at line 78 of file ComponentManager.h.

SmartIF<IStateful> ComponentManager::m_stateful [protected]

Pointer to the IStateful interface of the owner.

Definition at line 75 of file ComponentManager.h.

SmartIF<ISvcLocator> ComponentManager::m_svcLocator [mutable, protected]

Service locator (needed to access the MessageSvc)

Definition at line 81 of file ComponentManager.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r4/GaudiKernel/GaudiKernel/ComponentManager.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r4/GaudiKernel/src/Lib/ComponentManager.cpp

Gaudi Framework, version v22r4
