INTupleItem Class Reference

NTuple interface class definition. More...

#include <GaudiKernel/INTuple.h>

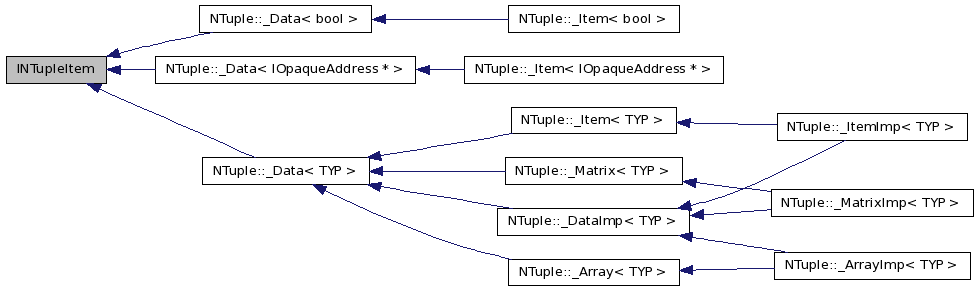

Inheritance diagram for INTupleItem:

List of all members.

Public Member Functions
virtual	~INTupleItem ()
	destructor
virtual void	release ()=0
	Destruct object.
virtual const std::type_info &	typeID () const =0
	Compiler type ID.
virtual std::string	typeName () const =0
	Proper type name of the object.
virtual const void *	buffer () const =0
	Access data buffer (CONST)
virtual bool	hasIndex () const =0
	Is the tuple have an index item?
virtual const std::string &	index () const =0
	Access the index _Item.
virtual const std::string &	name () const =0
	Access _Item name.
virtual long	type () const =0
	Type information of the item.
virtual long	length () const =0
	Access the buffer length.
virtual void	reset ()=0
	Reset column.
virtual long	ndim () const =0
	Dimension.
virtual long	dim (long i) const =0
	Access individual dimensions.
virtual long	size () const =0
	Size of entire object.
virtual long	filled () const =0
	Number of items filled.
virtual INTupleItem *	indexItem ()=0
	Pointer to index column (if present, 0 else)
virtual const INTupleItem *	indexItem () const =0
	Pointer to index column (if present, 0 else) (CONST)
virtual INTuple *	tuple ()=0
	NTuple the item belongs to.
Protected Member Functions
virtual void	setType (long typ)=0
	Set the properties of the INTupleItem.

---

Detailed Description

NTuple interface class definition.

Definition of the interface to an Ntuple class beeing a sequence(=Item) of data entries.

Author:

M.Frank

Definition at line 27 of file INTuple.h.

---

Constructor & Destructor Documentation

virtual INTupleItem::~INTupleItem

(

)

[inline, virtual]

destructor

Definition at line 33 of file INTuple.h.

{ }

---

Member Function Documentation

virtual const void* INTupleItem::buffer

(

)

const [pure virtual]

Access data buffer (CONST)

Implemented in NTuple::_DataImp< TYP >.

virtual long INTupleItem::dim

(

long

i )

const [pure virtual]

Access individual dimensions.

Implemented in NTuple::_DataImp< TYP >, NTuple::_ArrayImp< TYP >, and NTuple::_MatrixImp< TYP >.

virtual long INTupleItem::filled

(

)

const [pure virtual]

Number of items filled.

Implemented in NTuple::_DataImp< TYP >.

virtual bool INTupleItem::hasIndex

(

)

const [pure virtual]

Is the tuple have an index item?

Implemented in NTuple::_DataImp< TYP >.

virtual const std::string& INTupleItem::index

(

)

const [pure virtual]

Access the index _Item.

Implemented in NTuple::_DataImp< TYP >.

virtual INTupleItem* INTupleItem::indexItem

(

)

[pure virtual]

Pointer to index column (if present, 0 else)

Implemented in NTuple::_DataImp< TYP >.

virtual const INTupleItem* INTupleItem::indexItem

(

)

const [pure virtual]

Pointer to index column (if present, 0 else) (CONST)

Implemented in NTuple::_DataImp< TYP >.

virtual long INTupleItem::length

(

)

const [pure virtual]

Access the buffer length.

Implemented in NTuple::_DataImp< TYP >.

virtual const std::string& INTupleItem::name

(

)

const [pure virtual]

Access _Item name.

Implemented in NTuple::_DataImp< TYP >.

virtual long INTupleItem::ndim

(

)

const [pure virtual]

Dimension.

Implemented in NTuple::_DataImp< TYP >, NTuple::_ArrayImp< TYP >, and NTuple::_MatrixImp< TYP >.

virtual void INTupleItem::release

(

)

[pure virtual]

Destruct object.

Implemented in NTuple::_DataImp< TYP >.

virtual void INTupleItem::reset

(

)

[pure virtual]

Reset column.

Implemented in NTuple::_DataImp< TYP >.

virtual void INTupleItem::setType

(

long

typ )

[protected, pure virtual]

Set the properties of the INTupleItem.

Implemented in NTuple::_DataImp< TYP >.

virtual long INTupleItem::size

(

)

const [pure virtual]

Size of entire object.

Implemented in NTuple::_DataImp< TYP >, NTuple::_ItemImp< TYP >, NTuple::_ArrayImp< TYP >, and NTuple::_MatrixImp< TYP >.

virtual INTuple* INTupleItem::tuple

(

)

[pure virtual]

NTuple the item belongs to.

Implemented in NTuple::_DataImp< TYP >.

virtual long INTupleItem::type

(

)

const [pure virtual]

Type information of the item.

Implemented in NTuple::_DataImp< TYP >.

virtual const std::type_info& INTupleItem::typeID

(

)

const [pure virtual]

Compiler type ID.

Implemented in NTuple::_DataImp< TYP >.

virtual std::string INTupleItem::typeName

(

)

const [pure virtual]

Proper type name of the object.

Implemented in NTuple::_DataImp< TYP >.

---

The documentation for this class was generated from the following file:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r4/GaudiKernel/GaudiKernel/INTuple.h
