ToolHandle< T > Class Template Reference

Handle to be used in lieu of naked pointers to tools. More...

#include <GaudiKernel/ToolHandle.h>

Inheritance diagram for ToolHandle< T >:

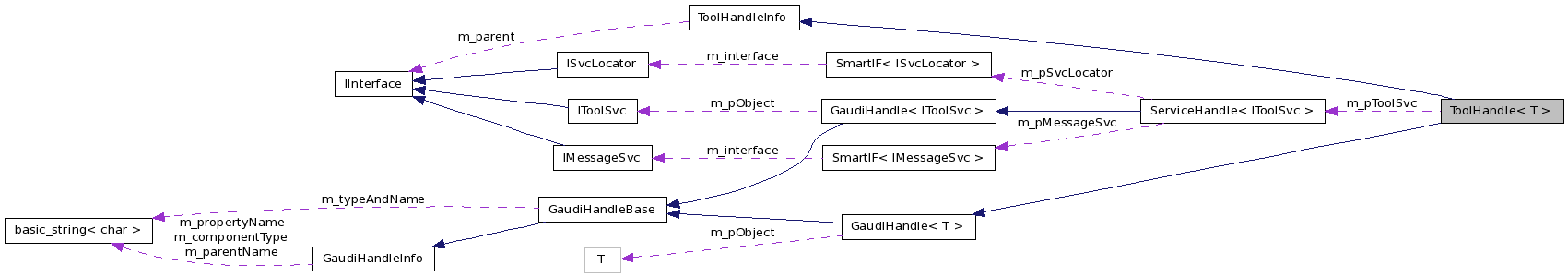

Collaboration diagram for ToolHandle< T >:

List of all members.

Public Member Functions
	ToolHandle (const IInterface *parent=0, bool createIf=true)
	Constructor for a tool with default tool type and name.
	ToolHandle (const std::string &toolTypeAndName, const IInterface *parent=0, bool createIf=true)
	Create a handle ('smart pointer') to a tool.
StatusCode	retrieve () const
	Retrieve the AlgTool.
StatusCode	release () const
	Release the AlgTool.
virtual StatusCode	retrieve (T *&algTool) const
	Do the real retrieval of the AlgTool.
virtual StatusCode	release (T *algTool) const
	Do the real release of the AlgTool.
Private Attributes
ServiceHandle< IToolSvc >	m_pToolSvc

---

Detailed Description

template<class T>
class ToolHandle< T >

Handle to be used in lieu of naked pointers to tools.

This allows better control through the framework of tool loading and usage. T is the AlgTool interface class (or concrete class) of the tool to use, and must derive from IAlgTool.

Author:

Wim Lavrijsen <WLavrijsen@lbl.gov>

Martin.Woudstra@cern.ch

Definition at line 80 of file ToolHandle.h.

---

Constructor & Destructor Documentation

template<class T>

ToolHandle< T >::ToolHandle	(	const IInterface *	parent = 0,
		bool	createIf = true
	)		[inline]

Constructor for a tool with default tool type and name.

Can be called only if the type T is a concrete tool type (not an interface), and you want to use the default name.

Definition at line 88 of file ToolHandle.h.

    : ToolHandleInfo(parent,createIf),
      GaudiHandle<T>( GaudiHandle<T>::getDefaultType(),
                      ToolHandleInfo::toolComponentType(parent),
                      ToolHandleInfo::toolParentName(parent) ),
      m_pToolSvc( "ToolSvc", GaudiHandleBase::parentName() )
  {}

template<class T>

ToolHandle< T >::ToolHandle	(	const std::string &	toolTypeAndName,
		const IInterface *	parent = 0,
		bool	createIf = true
	)		[inline]

Create a handle ('smart pointer') to a tool.

The arguments are passed on to ToolSvc, and have the same meaning:

      StatusCode ToolSvc::retrieveTool ( const std::string& type            ,
                                         T*&                tool            ,
                                         const IInterface*  parent   = 0    ,
                                         bool               createIf = true )

Parameters:

toolType,:	"MyToolType/MyToolName" "MyToolType" is short for "MyToolType/MyToolType" 'MyToolType' is the name of the class of the concrete tool 'MyToolName' is to distinguish several tool instances of the same class
parent,:	the parent Algorithm,Tool or Service of which this tool is a member. If non-zero, the the tool is a private tool of the parent, otherwise it is a public (shared) tool.
createIf,:	if true, create tool if not yet existing.

Definition at line 113 of file ToolHandle.h.

    : ToolHandleInfo(parent,createIf),
      GaudiHandle<T>( toolTypeAndName,
                      ToolHandleInfo::toolComponentType(parent),
                      ToolHandleInfo::toolParentName(parent) ),
      m_pToolSvc( "ToolSvc", GaudiHandleBase::parentName() )
  {}

---

Member Function Documentation

template<class T>

StatusCode ToolHandle< T >::release

(

)

const [inline]

Release the AlgTool.

Function must be repeated here to avoid hiding the function release( T*& )

Reimplemented from GaudiHandle< T >.

Definition at line 129 of file ToolHandle.h.

                             { // not really const, because it updates m_pObject
    return GaudiHandle<T>::release();
  }

template<class T>

virtual StatusCode ToolHandle< T >::release

(

T *

algTool )

const [inline, virtual]

Do the real release of the AlgTool.

Reimplemented from GaudiHandle< T >.

Definition at line 141 of file ToolHandle.h.

                                                 {
    return m_pToolSvc->releaseTool( algTool );
  }

template<class T>

virtual StatusCode ToolHandle< T >::retrieve

(

T *&

algTool )

const [inline, virtual]

Do the real retrieval of the AlgTool.

Implements GaudiHandle< T >.

Definition at line 134 of file ToolHandle.h.

                                                   {
    return m_pToolSvc->retrieve( GaudiHandleBase::typeAndName(), T::interfaceID(),
                                 (IAlgTool*&)(algTool),
                                 ToolHandleInfo::parent(), ToolHandleInfo::createIf() );
  }

template<class T>

StatusCode ToolHandle< T >::retrieve

(

)

const [inline]

Retrieve the AlgTool.

Release existing tool if needed. Function must be repeated here to avoid hiding the function retrieve( T*& )

Reimplemented from GaudiHandle< T >.

Definition at line 123 of file ToolHandle.h.

                              { // not really const, because it updates m_pObject
    return GaudiHandle<T>::retrieve();
  }

---

Member Data Documentation

template<class T>

ServiceHandle<IToolSvc> ToolHandle< T >::m_pToolSvc [mutable, private]

Definition at line 149 of file ToolHandle.h.

---

The documentation for this class was generated from the following file:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v22r4/GaudiKernel/GaudiKernel/ToolHandle.h
