Gaudi::Profile2D Class Reference

AIDA implementation for 2 D profiles using ROOT TProfile2D. More...

Inheritance diagram for Gaudi::Profile2D:

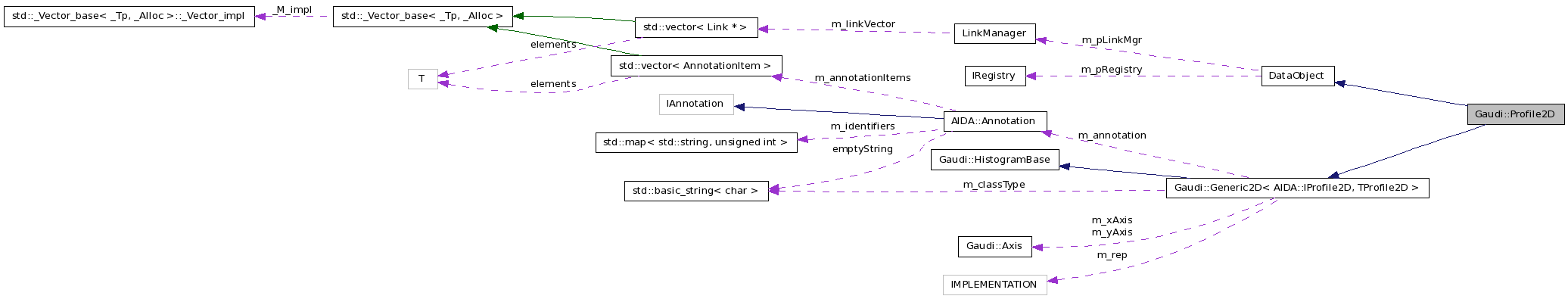

Collaboration diagram for Gaudi::Profile2D:

List of all members.

Public Member Functions
	Profile2D ()
	Default Constructor.
	Profile2D (TProfile2D *rep)
	Default Constructor with representation object.
virtual	~Profile2D ()
	Destructor.
bool	fill (double x, double y, double z, double weight)
	Fill bin content.
virtual const CLID &	clID () const
	Retrieve reference to class defininition identifier.
Static Public Member Functions
static const CLID &	classID ()
	Retrieve reference to class definition structure (static access)

---

Detailed Description

AIDA implementation for 2 D profiles using ROOT TProfile2D.

Author:

M.Frank

Definition at line 27 of file P2D.cpp.

---

Constructor & Destructor Documentation

Gaudi::Profile2D::Profile2D

(

)

[inline]

Default Constructor.

Definition at line 30 of file P2D.cpp.

                {
      m_classType = "IProfile2D";
      m_rep = new TProfile2D();
      m_rep->SetErrorOption("s");
      m_rep->SetDirectory(0);
      m_sumEntries = 0;
    }

Gaudi::Profile2D::Profile2D

(

TProfile2D *

rep )

Default Constructor with representation object.

Definition at line 103 of file P2D.cpp.

                                            {
  m_rep = 0;
  m_classType = "IProfile2D";
  rep->SetDirectory(0);
  adoptRepresentation(rep);
  m_sumEntries = 0;
}

virtual Gaudi::Profile2D::~Profile2D

(

)

[inline, virtual]

Destructor.

Definition at line 40 of file P2D.cpp.

{}

---

Member Function Documentation

static const CLID& Gaudi::Profile2D::classID

(

)

[inline, static]

Retrieve reference to class definition structure (static access)

Retrieve Pointer to class definition structure.

Reimplemented from DataObject.

Definition at line 48 of file P2D.cpp.

{ return CLID_ProfileH2; }

virtual const CLID& Gaudi::Profile2D::clID

(

)

const [inline, virtual]

Retrieve reference to class defininition identifier.

Reimplemented from DataObject.

Definition at line 47 of file P2D.cpp.

{ return classID(); }

bool Gaudi::Profile2D::fill	(	double	x,
		double	y,
		double	z,
		double	weight
	)		[inline]

Fill bin content.

Definition at line 42 of file P2D.cpp.

                                                         {
      m_rep->Fill(x,y,z,weight);
      return true;
    }

---

The documentation for this class was generated from the following file:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r0/GaudiCommonSvc/src/HistogramSvc/P2D.cpp
