RootHistCnv::RConverter Class Reference

Root Converter. More...

#include <RConverter.h>

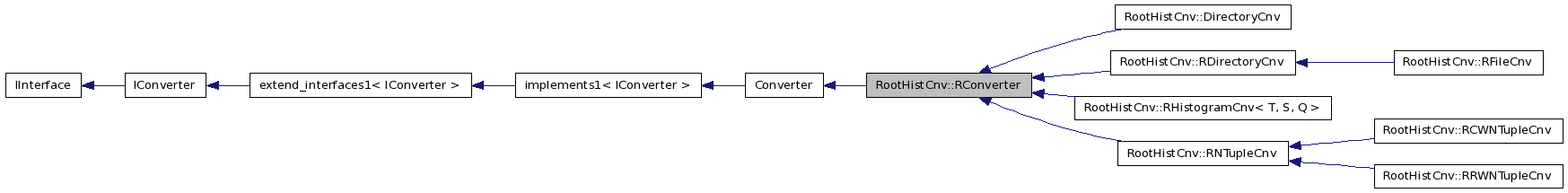

Inheritance diagram for RootHistCnv::RConverter:
Inheritance graph
[legend]

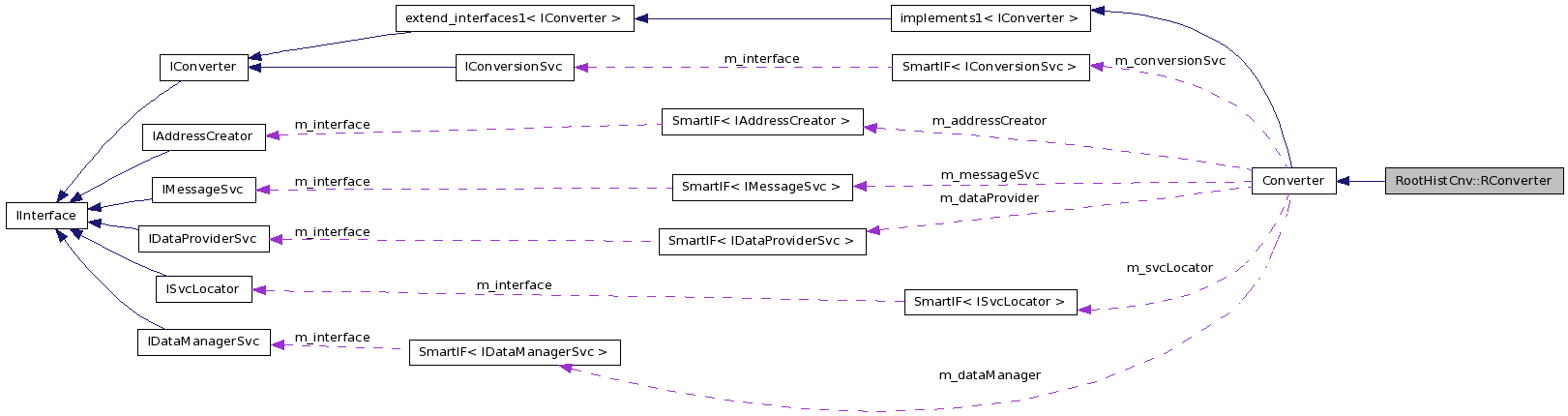

Collaboration diagram for RootHistCnv::RConverter:
Collaboration graph
[legend]

List of all members.

Public Member Functions

virtual StatusCode createRep (DataObject *pObj, IOpaqueAddress *&refpAddr)
 Convert the transient object to the requested representation.
long repSvcType () const
 Retrieve the class type of the data store the converter uses.
StatusCode error (const std::string &msg)
StatusCode regTFile (const std::string, const TFile *)
StatusCode findTFile (const std::string, TFile *&)
std::string diskDirectory (const std::string &loc)
std::string directory (const std::string &loc)
void setDirectory (const std::string &loc)
void setDiskDirectory (const std::string &loc)
StatusCode createDirectory (const std::string &loc)
StatusCode createDiskDirectory (const std::string &loc)
std::string getDirectory ()
std::string convertId (const std::string &) const

Static Public Member Functions

static long storageType ()
 Inquire storage type.

Protected Member Functions

 RConverter (const CLID &clid, ISvcLocator *svc)
 Standard constructor.
virtual ~RConverter ()
 Standard destructor.
virtual StatusCode readObject (IOpaqueAddress *pAddr, DataObject *&refpObj)
 Create the transient representation of an object.
virtual TObject * createPersistent (DataObject *pObj)
 Create the persistent representation of an object.
StatusCode createAddress (DataObject *pObject, TDirectory *pDir, TObject *pTObject, IOpaqueAddress *&refpAddr)
 Create address of the transient object according to the requested representation.
StatusCode createAddress (const std::string &rzdir, const CLID &clid, long id, TObject *pTobj, IOpaqueAddress *&refpAddress)
StatusCode createAddress (const std::string &rzdir, const CLID &clid, const std::string &title, TObject *pTobj, IOpaqueAddress *&refpAddress)
TDirectory * changeDirectory (DataObject *pObject)
 Switch to object directory (=Parent directory)

Detailed Description

Root Converter.

Author:
Charles Leggett

Definition at line 36 of file RConverter.h.

Constructor & Destructor Documentation

RootHistCnv::RConverter::RConverter ( const CLID &  clid,
ISvcLocator *  svc
) [inline, protected]

Standard constructor.

Definition at line 61 of file RConverter.h.

    : Converter(storageType(), clid, svc)  {    }
virtual RootHistCnv::RConverter::~RConverter (  ) [inline, protected, virtual]

Standard destructor.

Definition at line 64 of file RConverter.h.

{     }

Member Function Documentation

TDirectory * RootHistCnv::RConverter::changeDirectory ( DataObject *  pObject ) [protected]

Switch to object directory (=Parent directory)

Definition at line 236 of file RConverter.cpp.

{
  if ( pObject )    {
    IRegistry* pReg = pObject->registry();
    if ( pReg )    {
      SmartIF<IDataManagerSvc> dataMgr(dataProvider());
      if ( dataMgr.isValid() )    {
        IRegistry* pParentReg = 0;
        StatusCode status = dataMgr->objectParent(pReg, pParentReg);
        if ( status.isSuccess() )  {
          IOpaqueAddress* pParAddr = pParentReg->address();
          if ( pParAddr )   {
            TDirectory* pParentDir = (TDirectory*)pParAddr->ipar()[0];
            if ( pParentDir )   {
              gDirectory->cd(pParentDir->GetPath());
              return pParentDir;
            }
          }
        }
      }
    }
  }
  return 0;
}
std::string RootHistCnv::RConverter::convertId ( const std::string &  id ) const

Definition at line 370 of file RConverter.cpp.

{
  bool forced = false;
  if ( id.size() > 0 && isdigit(id[0]) ) {
    try {
      BooleanProperty tmp;
      tmp.assign(SmartIF<IProperty>(conversionSvc())->getProperty( "ForceAlphaIds"));
      forced = (bool)tmp;
    }
    catch ( ... ) { }
  }
  if (forced )  return std::string("h") + id;
  else          return id;
}
StatusCode RootHistCnv::RConverter::createAddress ( const std::string &  rzdir,
const CLID &  clid,
long  id,
TObject *  pTobj,
IOpaqueAddress *&  refpAddress
) [protected]

Definition at line 218 of file RConverter.cpp.

{
  std::ostringstream obj; obj << id;
  StatusCode status = createAddress(rzdir, clid, obj.str(), pTobj, refpAddress);
  if ( status.isSuccess() )   {
    unsigned long* ipar = (unsigned long*)refpAddress->ipar();
    ipar[0] = id;
  }
  return status;
}
StatusCode RootHistCnv::RConverter::createAddress ( const std::string &  rzdir,
const CLID &  clid,
const std::string &  title,
TObject *  pTobj,
IOpaqueAddress *&  refpAddress
) [protected]

Definition at line 197 of file RConverter.cpp.

{
  RootObjAddress* pA = new RootObjAddress(repSvcType(),
                                          clid,
                                          rzdir,
                                          title,
                                          0,
                                          0,
                                          pTObj );

  refpAddress = pA;
  return StatusCode::SUCCESS;
}
StatusCode RootHistCnv::RConverter::createAddress ( DataObject *  pObject,
TDirectory *  pDir,
TObject *  pTObject,
IOpaqueAddress *&  refpAddr
) [protected]

Create address of the transient object according to the requested representation.

Definition at line 171 of file RConverter.cpp.

{
  // Get address again....it does not change
  IRegistry* pReg = pObj->registry();
  if ( 0 != pReg )    {
    refpAddr = pReg->address();
    if ( 0 == refpAddr )    {
      refpAddr = new RootObjAddress(repSvcType(),
                                    objType(),
                                    pReg->name(),
                                    "",
                                    (unsigned long)(pDir),
                                    (unsigned long)(pTObj),
                                    pTObj);

      return StatusCode::SUCCESS;
    }
  }
  return StatusCode::FAILURE;
}
StatusCode RootHistCnv::RConverter::createDirectory ( const std::string &  loc )

Definition at line 26 of file RConverter.cpp.

{
  MsgStream log(msgSvc(), "RConverter::createDir");

  // Get rid of leading /NTUPLES
  std::string full;
  full = diskDirectory( loc );

  int p,i;
  std::string fil,cur,s;
  TDirectory *gDir;

  gDir = gDirectory;

  TFile *tf;
  if ( findTFile(loc,tf).isSuccess() ) {
    tf->cd();
  }

  std::list<std::string> lpath;
  i = 1;

  if ( (p=full.find(":",0)) != -1 ) {
    fil = full.substr(0,p);
    i = p+1;
    fil += ":/";
    gDirectory->cd(fil.c_str());
  }

  while ( (p = full.find("/",i)) != -1) {
    s = full.substr(i,p-i);
    lpath.push_back(s);
    i = p+1;
  }
  lpath.push_back( full.substr(i,full.length()-i) );

  if ( full.substr(0,1) == "/") {
    gDirectory->cd("/");
  }

  std::list<std::string>::const_iterator litr;
  for(litr=lpath.begin(); litr!=lpath.end(); ++litr) {
    cur = *litr;
    if (! gDirectory->GetKey(litr->c_str()) ) {
      gDirectory->mkdir(litr->c_str());
    }
    gDirectory->cd(litr->c_str());
  }

  gDirectory = gDir;

  return StatusCode::SUCCESS;
}
StatusCode RootHistCnv::RConverter::createDiskDirectory ( const std::string &  loc )
TObject * RootHistCnv::RConverter::createPersistent ( DataObject *  pObj ) [protected, virtual]

Create the persistent representation of an object.

Reimplemented in RootHistCnv::RHistogramCnv< T, S, Q >.

Definition at line 302 of file RConverter.cpp.

{
  return 0;
}
StatusCode RootHistCnv::RConverter::createRep ( DataObject *  pObj,
IOpaqueAddress *&  refpAddr
) [virtual]

Convert the transient object to the requested representation.

Reimplemented from Converter.

Reimplemented in RootHistCnv::DirectoryCnv, RootHistCnv::RDirectoryCnv, RootHistCnv::RFileCnv, and RootHistCnv::RNTupleCnv.

Definition at line 264 of file RConverter.cpp.

{
  GlobalDirectoryRestore restore;
  pAddr = 0;
  try   {
    TDirectory* pParentDir = changeDirectory(pObject);
    if ( pParentDir )   {
      TObject* pTObj = createPersistent(pObject);
      if ( pTObj )   {
        pTObj->Write();
        delete pTObj;
        return createAddress(pObject, pParentDir, 0, pAddr);
      }
    }
  }
  catch (...)   {
  }
  MsgStream log (msgSvc(), "RConverter");
  log << MSG::ERROR << "Failed to create persistent Object!" << endmsg;
  return StatusCode::FAILURE;
}
std::string RootHistCnv::RConverter::directory ( const std::string &  loc )

Definition at line 113 of file RConverter.cpp.

{
  return ( diskDirectory(loc) );
}
std::string RootHistCnv::RConverter::diskDirectory ( const std::string &  loc )

Definition at line 81 of file RConverter.cpp.

{
  // Get rid of leading /NTUPLES/{INPUT_STREAM} or /stat/{INPUT_STREAM}
  std::string dir;
  long lf1 = loc.find("/NTUPLES/");
  long lf2 = loc.find("/stat/");
  long ll;
  if (lf1 != -1) {
    ll = loc.find("/",lf1+9);

  } else if (lf2 != -1) {
    ll = loc.find("/",lf2+6);

  } else {
    MsgStream log(msgSvc(), "RConverter");
    log << MSG::ERROR << "diskDirectory(" << loc << ")"
        << " --> no leading /NTUPLES/ or /stat/" << endmsg;
    return loc;
  }
  //  dir = loc.substr(ll+8,loc.length()-ll-8);

  if (ll == -1) {
    dir = "/";
  } else {
    dir = loc.substr(ll,loc.length()-ll);
  }

  return dir;
}
StatusCode RootHistCnv::RConverter::error ( const std::string &  msg )

Definition at line 386 of file RConverter.cpp.

{
  MsgStream log(msgSvc(), "RootHistCnv");
  log << MSG::ERROR << msg << endmsg;
  return StatusCode::FAILURE;
}
StatusCode RootHistCnv::RConverter::findTFile ( const std::string  id,
TFile *&  tfile
)

Definition at line 331 of file RConverter.cpp.

{
  MsgStream log(msgSvc(), "RConverter");
  tfile = 0;

  std::string idm;

  // make sure we only get first two parts of id
  int i1,i2,i3;
  i1 = id.find("/",0);
  if (i1 != 0) {
    log << MSG::ERROR << "Directory name does not start with \"/\": "
        << id << endmsg;
    return StatusCode::FAILURE;
  }
  i2 = id.find("/",i1+1);
  if (i2 == -1) {
    log << MSG::ERROR << "Directory name has only one part: " << id << endmsg;
    return StatusCode::FAILURE;
  }
  i3 = id.find("/",i2+1);
  if (i3 == -1) {
    idm = id;
  } else {
    idm = id.substr(0,i3);
  }

  std::map<std::string,TFile*>::const_iterator imap;
  imap = s_fileMap.find(idm);

  if ( imap == s_fileMap.end() ) {
    return StatusCode::FAILURE;
  }
  tfile = (*imap).second;
  return StatusCode::SUCCESS;
}
std::string RootHistCnv::RConverter::getDirectory (  )

Definition at line 162 of file RConverter.cpp.

{
  std::string dir = gDirectory->GetPath();
  return (dir);
}
StatusCode RootHistCnv::RConverter::readObject ( IOpaqueAddress *  pAddr,
DataObject *&  refpObj
) [protected, virtual]

Create the transient representation of an object.

Definition at line 289 of file RConverter.cpp.

{
//    MsgStream log(msgSvc(), "RConverter::readObject");
//    log << MSG::WARNING << pAddr->par()[0] << " <> " << pAddr->par()[1]
//        << " <> "
//        << pAddr->ipar()[0] << " <> " << pAddr->ipar()[1] << " <> "
//        << pAddr->registry()->identifier() << endmsg;

  return StatusCode::SUCCESS;
}
StatusCode RootHistCnv::RConverter::regTFile ( const std::string  id,
const TFile *  tfile
)

Definition at line 309 of file RConverter.cpp.

{

  MsgStream log(msgSvc(), "RConverter");

  std::map<std::string,TFile*>::const_iterator imap;
  imap = s_fileMap.find(id);

  if ( imap != s_fileMap.end() ) {
    log << MSG::ERROR << "cannot register TTree " << id
        << ": already exists" << endmsg;
    return StatusCode::FAILURE;
  }

  s_fileMap[id] = const_cast<TFile*>(tfile);

  return StatusCode::SUCCESS;
}
long RootHistCnv::RConverter::repSvcType (  ) const [inline, virtual]

Retrieve the class type of the data store the converter uses.

Returns:
Class type information about the source data store type the converter will use to retrieve the information.

Implements IConverter.

Definition at line 43 of file RConverter.h.

{         return i_repSvcType();      }
void RootHistCnv::RConverter::setDirectory ( const std::string &  loc )

Definition at line 120 of file RConverter.cpp.

{
  MsgStream log(msgSvc(), "RConverter");
  std::string full, id;
  TFile *tf;

  full = diskDirectory( loc );

  // get associated TFile
  if ( findTFile(loc,tf).isSuccess() ) {
    tf->cd();
  } else {
    log << MSG::ERROR << "error getting TFile name " << loc << endmsg;
  }

  int p,i=1;
  std::string cur,sdir;

  gDirectory->cd("/");
  while ( (p = full.find("/",i)) != -1) {
    sdir = full.substr(i,p-i);
    if (! gDirectory->GetKey(sdir.c_str()) ) {
      log << MSG::ERROR << "cannot cd to " << full << " from "
          << gDirectory->GetPath() << endmsg;
      return;
    }
    gDirectory->cd(sdir.c_str());

    i = p+1;
  }
  gDirectory->cd( full.substr(i,full.length()-i).c_str() );
}
void RootHistCnv::RConverter::setDiskDirectory ( const std::string &  loc )

Definition at line 155 of file RConverter.cpp.

{
  setDirectory(loc);
}
static long RootHistCnv::RConverter::storageType (  ) [inline, static]

Inquire storage type.

Definition at line 42 of file RConverter.h.

{         return ROOT_StorageType;    }
The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Properties Friends Defines
Generated at Mon Jan 30 2012 13:53:36 for Gaudi Framework, version v23r0 by Doxygen version 1.7.2 written by Dimitri van Heesch, © 1997-2004
