pfmlib_pentium4.h File Reference

#include <perfmon/pfmlib.h>

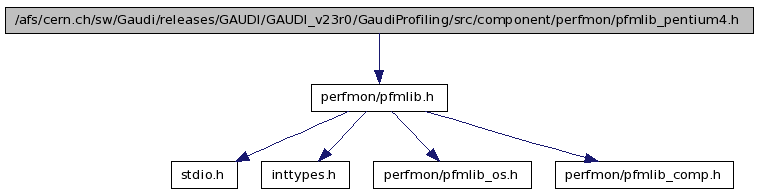

Include dependency graph for pfmlib_pentium4.h:

Go to the source code of this file.

Classes
union	pentium4_escr_value_t
union	pentium4_cccr_value_t
	pentium4_cccr_value_t More...
Defines
#define	EVENT_MASK_BITS   16
	pentium4_escr_value_t
#define	EVENT_SELECT_BITS   6

---

Define Documentation

#define EVENT_MASK_BITS   16

pentium4_escr_value_t

Bit-wise breakdown of the ESCR registers.

Bits Description ------- ----------- 63 - 31 Reserved 30 - 25 Event Select 24 - 9 Event Mask 8 - 5 Tag Value 4 Tag Enable 3 T0 OS - Enable counting in kernel mode (thread 0) 2 T0 USR - Enable counting in user mode (thread 0) 1 T1 OS - Enable counting in kernel mode (thread 1) 0 T1 USR - Enable counting in user mode (thread 1)

Definition at line 55 of file pfmlib_pentium4.h.

#define EVENT_SELECT_BITS   6

Definition at line 56 of file pfmlib_pentium4.h.
