AlgorithmHistory Class Reference

AlgorithmHistory class definition. More...

#include <AlgorithmHistory.h>

Inheritance diagram for AlgorithmHistory:

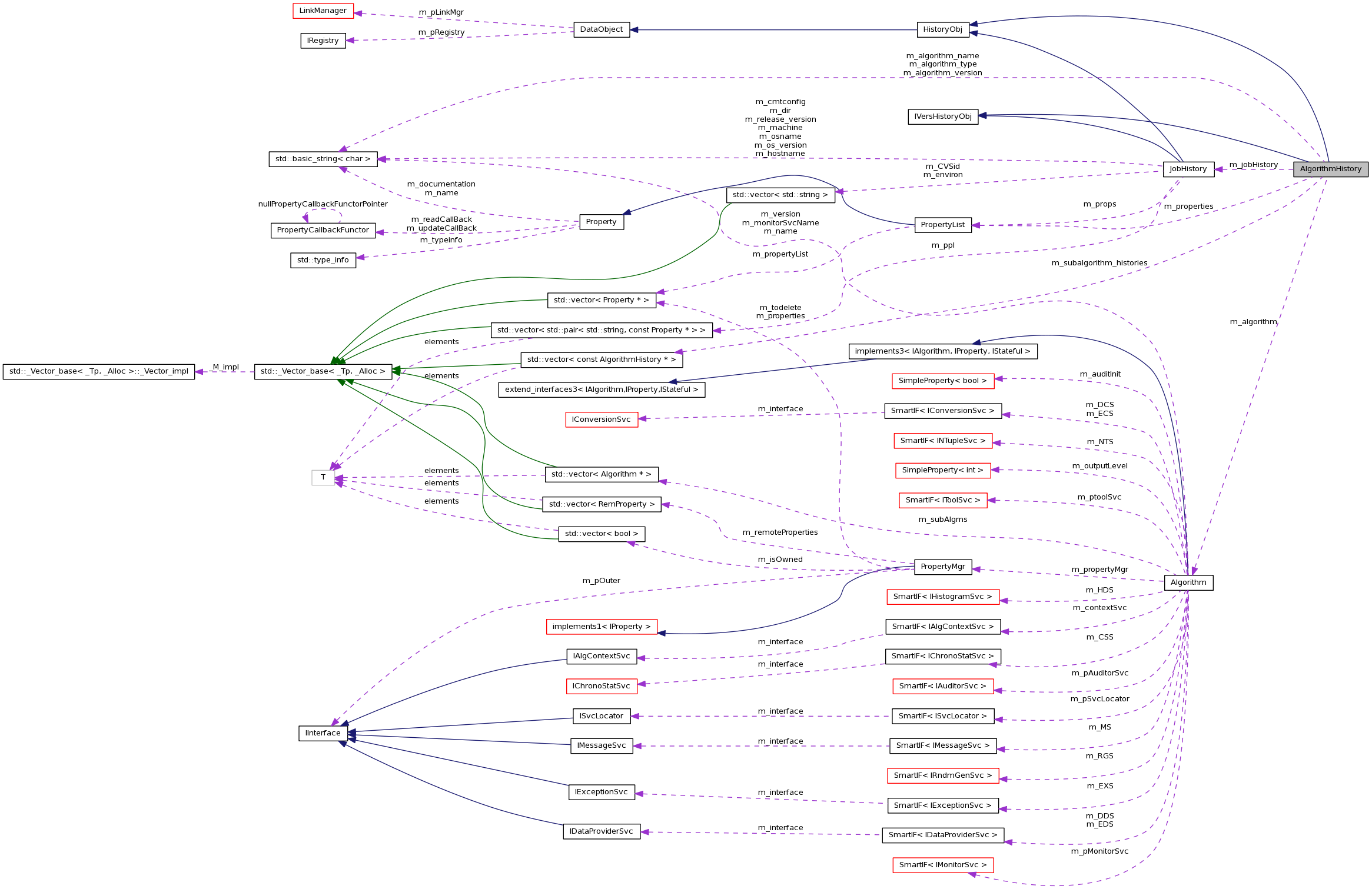

Collaboration diagram for AlgorithmHistory:

List of all members.

Public Types
typedef std::vector< const AlgorithmHistory * >	HistoryList
Public Member Functions
	AlgorithmHistory (const Algorithm &alg, const JobHistory *job)
	AlgorithmHistory (const std::string &algVersion, const std::string &algName, const std::string &algType, const PropertyList &props, const HistoryList &subHists)
virtual	~AlgorithmHistory ()
virtual const CLID &	clID () const
	Retrieve reference to class definition structure.
const std::string &	algorithm_type () const
const std::string &	algorithm_version () const
const std::string &	algorithm_name () const
const Algorithm *	algorithm () const
const PropertyList &	properties () const
const HistoryList &	subalgorithm_histories () const
const JobHistory *	jobHistory () const
void	dump (std::ostream &, const bool isXML=false, int indent=0) const
const std::string &	name () const
const std::string &	type () const
const std::string &	version () const
Static Public Member Functions
static const CLID &	classID ()
	Retrieve reference to class definition structure (static access)
Private Attributes
std::string	m_algorithm_type
std::string	m_algorithm_version
std::string	m_algorithm_name
const Algorithm *	m_algorithm
PropertyList	m_properties
HistoryList	m_subalgorithm_histories
const JobHistory *	m_jobHistory

---

Detailed Description

AlgorithmHistory class definition.

Author:

: Charles Leggett

Definition at line 29 of file AlgorithmHistory.h.

---

Member Typedef Documentation

typedef std::vector<const AlgorithmHistory*> AlgorithmHistory::HistoryList

Definition at line 34 of file AlgorithmHistory.h.

---

Constructor & Destructor Documentation

AlgorithmHistory::AlgorithmHistory	(	const Algorithm &	alg,
		const JobHistory *	job
	)		[explicit]

Definition at line 32 of file AlgorithmHistory.cpp.

:
  m_algorithm_type(System::typeinfoName(typeid(alg))),
  m_algorithm_version(alg.version()),
  m_algorithm_name(alg.name()),
  m_algorithm( &alg ),
  m_properties(alg.getProperties()),
  m_jobHistory(job)
{
  assert( alg.subAlgorithms() != 0 );

  for ( vector<Algorithm*>::const_iterator
        ialg=alg.subAlgorithms()->begin();
        ialg!=alg.subAlgorithms()->end(); ++ ialg ) {
    m_subalgorithm_histories.push_back(new AlgorithmHistory(**ialg, job));
  }
}

AlgorithmHistory::AlgorithmHistory	(	const std::string &	algVersion,
		const std::string &	algName,
		const std::string &	algType,
		const PropertyList &	props,
		const HistoryList &	subHists
	)		[explicit]

AlgorithmHistory::~AlgorithmHistory

(

)

[virtual]

Definition at line 68 of file AlgorithmHistory.cpp.

                                    {
  for ( HistoryList::const_iterator
        iphist=m_subalgorithm_histories.begin();
        iphist!=m_subalgorithm_histories.end(); ++iphist ) {
    delete *iphist;
  }
}

---

Member Function Documentation

const Algorithm* AlgorithmHistory::algorithm

(

)

const [inline]

Definition at line 87 of file AlgorithmHistory.h.

{ return m_algorithm; }

const std::string& AlgorithmHistory::algorithm_name

(

)

const [inline]

Definition at line 84 of file AlgorithmHistory.h.

{ return m_algorithm_name; }

const std::string& AlgorithmHistory::algorithm_type

(

)

const [inline]

Definition at line 78 of file AlgorithmHistory.h.

{ return m_algorithm_type; }

const std::string& AlgorithmHistory::algorithm_version

(

)

const [inline]

Definition at line 81 of file AlgorithmHistory.h.

{ return m_algorithm_version; }

const CLID & AlgorithmHistory::classID

(

)

[static]

Retrieve reference to class definition structure (static access)

Retrieve Pointer to class definition structure.

Reimplemented from HistoryObj.

Definition at line 79 of file AlgorithmHistory.cpp.

                          {

  static CLID CLID_AlgorithmHistory = 56809101;  //from `clid AlgorithmHistory`
  return CLID_AlgorithmHistory;

}

virtual const CLID& AlgorithmHistory::clID

(

)

const [inline, virtual]

Retrieve reference to class definition structure.

Retrieve Pointer to class definition structure.

Reimplemented from HistoryObj.

Definition at line 74 of file AlgorithmHistory.h.

{ return classID(); }

void AlgorithmHistory::dump	(	std::ostream &	ost,
		const bool	isXML = false,
		int	indent = 0
	)		const [virtual]

Implements HistoryObj.

Definition at line 89 of file AlgorithmHistory.cpp.

                                                                       {

  if (!isXML) {
    ost << "Type: " << algorithm_type() << endl;
    ost << "Name: " << algorithm_name() << endl;
    ost << "Version: " << algorithm_version() << endl;
    // Properties.
    ost << "Properties: [" << endl;;
    for ( AlgorithmHistory::PropertyList::const_iterator
            ipprop=properties().begin();
          ipprop!=properties().end(); ++ipprop ) {
      const Property& prop = **ipprop;
      prop.fillStream(ost);
      ost << endl;
    }
    ost << "]" << endl;
    // Subalgorithms.
    if ( subalgorithm_histories().size() == 0 ) {
      ost << "No subalgorithms.";
    } else {
      ost << "Subalgorithms: {" << endl;
      for ( AlgorithmHistory::HistoryList::const_iterator
              iphist=subalgorithm_histories().begin();
            iphist!=subalgorithm_histories().end(); ++iphist ) {
        if ( iphist==subalgorithm_histories().begin() ) {
          ost << "----------" << endl;
        }
        ost << **iphist << endl;
        ost << "----------" << endl;
      }
      ost << "}";
    }
  } else {
    ind += 2;
    indent(ost,ind);
    ost << "<COMPONENT name=\"" << algorithm_name()
        << "\" class=\"" << convert_string(algorithm_type())
        << "\" version=\"" << algorithm_version()
        << "\">" << std::endl;

    for ( AlgorithmHistory::PropertyList::const_iterator
            ipprop=properties().begin();
          ipprop!=properties().end(); ++ipprop ) {
      const Property& prop = **ipprop;
      indent(ost,ind+2);
      ost << "<PROPERTY name=\"" << prop.name()
          << "\" value=\"" << convert_string(prop.toString())
          << "\" documentation=\"" << convert_string(prop.documentation())
          << "\">" << std::endl;
    }

    // Subalgs
    if ( subalgorithm_histories().size() != 0 ) {
      for ( AlgorithmHistory::HistoryList::const_iterator
              iphist=subalgorithm_histories().begin();
            iphist!=subalgorithm_histories().end(); ++iphist ) {
        (*iphist)->dump(ost,isXML,ind+2);
      }

    }

    indent(ost,ind);
    ost << "</COMPONENT>" << std::endl;





  }
}

const JobHistory* AlgorithmHistory::jobHistory

(

)

const [inline]

Definition at line 97 of file AlgorithmHistory.h.

{ return m_jobHistory; }

const std::string& AlgorithmHistory::name

(

)

const [inline, virtual]

Implements IVersHistoryObj.

Definition at line 102 of file AlgorithmHistory.h.

{ return algorithm_name(); }

const PropertyList& AlgorithmHistory::properties

(

)

const [inline, virtual]

Implements IVersHistoryObj.

Definition at line 90 of file AlgorithmHistory.h.

{ return m_properties; }

const HistoryList& AlgorithmHistory::subalgorithm_histories

(

)

const [inline]

Definition at line 93 of file AlgorithmHistory.h.

    { return m_subalgorithm_histories; }

const std::string& AlgorithmHistory::type

(

)

const [inline, virtual]

Implements IVersHistoryObj.

Definition at line 103 of file AlgorithmHistory.h.

{ return algorithm_type(); }

const std::string& AlgorithmHistory::version

(

)

const [inline, virtual]

Implements IVersHistoryObj.

Definition at line 104 of file AlgorithmHistory.h.

{ return algorithm_version(); }

---

Member Data Documentation

const Algorithm* AlgorithmHistory::m_algorithm [private]

Definition at line 48 of file AlgorithmHistory.h.

std::string AlgorithmHistory::m_algorithm_name [private]

Definition at line 45 of file AlgorithmHistory.h.

std::string AlgorithmHistory::m_algorithm_type [private]

Definition at line 39 of file AlgorithmHistory.h.

std::string AlgorithmHistory::m_algorithm_version [private]

Definition at line 42 of file AlgorithmHistory.h.

const JobHistory* AlgorithmHistory::m_jobHistory [private]

Definition at line 57 of file AlgorithmHistory.h.

PropertyList AlgorithmHistory::m_properties [private]

Definition at line 51 of file AlgorithmHistory.h.

HistoryList AlgorithmHistory::m_subalgorithm_histories [private]

Definition at line 54 of file AlgorithmHistory.h.

---

The documentation for this class was generated from the following files:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r2/GaudiKernel/GaudiKernel/AlgorithmHistory.h
• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r2/GaudiKernel/src/Lib/AlgorithmHistory.cpp
