AIDA implementation for 1 D histograms using ROOT THD1. More...

#include <H1D.h>

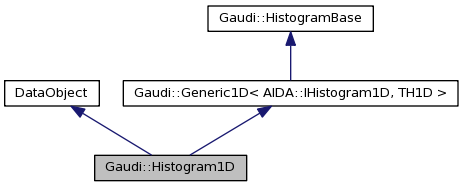

Inheritance diagram for Gaudi::Histogram1D:

Collaboration diagram for Gaudi::Histogram1D:

Public Member Functions
	Histogram1D ()
	Standard constructor.
	Histogram1D (TH1D *rep)
	Standard constructor with initialization. The histogram representation will be adopted.
virtual	~Histogram1D ()
	Destructor.
virtual void	adoptRepresentation (TObject *rep)
	Adopt ROOT histogram representation.
virtual bool	setBinContents (int i, int entries, double height, double error, double centre)
	set bin content (entries and centre are not used )
virtual bool	reset ()
	need to overwrite reset to reset the sums
virtual bool	setStatistics (int allEntries, double eqBinEntries, double mean, double rms)
	set histogram statistics
virtual bool	fill (double x, double weight)
	Fill the Profile1D with a value and the corresponding weight.
bool	setRms (double rms)
	Update histogram RMS.
void	copyFromAida (const AIDA::IHistogram1D &h)
	Create new histogram from any AIDA based histogram.
virtual const CLID &	clID () const
	Retrieve reference to class defininition identifier.
StreamBuffer &	serialize (StreamBuffer &s)
	Serialization mechanism, Serialize the object for reading.
StreamBuffer &	serialize (StreamBuffer &s) const
	Serialization mechanism, Serialize the object for writing.
Static Public Member Functions
static const CLID &	classID ()
	Retrieve reference to class definition structure (static access)
Protected Attributes
double	m_sumwx
	cache sumwx when setting contents since I don't have bin mean
Private Member Functions
void	init (const std::string &title, bool initialize_axis=true)
void	initSums ()

Detailed Description

AIDA implementation for 1 D histograms using ROOT THD1.

Author:: M.Frank

Definition at line 17 of file H1D.h.

Constructor & Destructor Documentation

Gaudi::Histogram1D::Histogram1D ( )

Standard constructor.

Definition at line 60 of file H1D.cpp.

                               {
  m_rep = new TH1D();
  init("",false);
}

Gaudi::Histogram1D::Histogram1D ( TH1D * rep )

Standard constructor with initialization. The histogram representation will be adopted.

Definition at line 65 of file H1D.cpp.

                                        {
  m_rep = rep;
  init(m_rep->GetTitle());
  initSums();
}

virtual Gaudi::Histogram1D::~Histogram1D ( ) [inline, virtual]

Destructor.

Definition at line 30 of file H1D.h.

{}

Member Function Documentation

void Gaudi::Histogram1D::adoptRepresentation ( TObject * rep ) [virtual]

Adopt ROOT histogram representation.

Reimplemented from Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >.

Definition at line 100 of file H1D.cpp.

                                                        {
  Gaudi::Generic1D<AIDA::IHistogram1D,TH1D>::adoptRepresentation(rep);
  if ( m_rep )  {
    init(m_rep->GetTitle());
    initSums();
  }
}

static const CLID& Gaudi::Histogram1D::classID ( ) [inline, static]

Retrieve reference to class definition structure (static access)

Retrieve Pointer to class definition structure.

Reimplemented from DataObject.

Definition at line 47 of file H1D.h.

{ return CLID_H1D; }

virtual const CLID& Gaudi::Histogram1D::clID ( ) const [inline, virtual]

Retrieve reference to class defininition identifier.

Reimplemented from DataObject.

Definition at line 46 of file H1D.h.

{ return classID(); }

void Gaudi::Histogram1D::copyFromAida ( const AIDA::IHistogram1D & h )

Create new histogram from any AIDA based histogram.

Definition at line 164 of file H1D.cpp.

                                                              {
 // implement here the copy
  std::string tit = h.title()+"Copy";
  delete m_rep;
  if (h.axis().isFixedBinning() )  {
    m_rep = new TH1D(tit.c_str(),tit.c_str(),h.axis().bins(),h.axis().lowerEdge(),h.axis().upperEdge());
  }
  else {
    Edges e;
    for (int i =0; i < h.axis().bins(); ++i)  {
      e.push_back(h.axis().binLowerEdge(i));
    }
    // add also upperedges at the end
    e.push_back(h.axis().upperEdge() );
    m_rep = new TH1D(tit.c_str(),tit.c_str(),e.size()-1,&e.front());
  }
  m_axis.initialize(m_rep->GetXaxis(),false);
  m_rep->Sumw2();
  m_sumEntries = 0;
  m_sumwx = 0;
  // sumw
  double sumw = h.sumBinHeights();
  // sumw2
  double sumw2 = 0;
  if (h.equivalentBinEntries() != 0)
    sumw2 = ( sumw * sumw ) /h.equivalentBinEntries();

  double sumwx = h.mean()*h.sumBinHeights();
  double sumwx2 = (h.mean()*h.mean() + h.rms()*h.rms() )*h.sumBinHeights();

  // copy the contents in
  for (int i=-2; i < axis().bins(); ++i) {
    // root binning starts from one !
    m_rep->SetBinContent(rIndex(i),h.binHeight(i) );
    m_rep->SetBinError(rIndex(i),h.binError(i) );
  }
  // need to do set entries after setting contents otherwise root will recalulate them
  // taking into account how many time  SetBinContents() has been called
  m_rep->SetEntries(h.allEntries());
    // stat vector
  std::vector<double> stat(11);
  stat[0] = sumw;
  stat[1] = sumw2;
  stat[2] = sumwx;
  stat[3] = sumwx2;
  m_rep->PutStats(&stat.front());
}

bool Gaudi::Histogram1D::fill	(	double	x,
		double	weight
	)		`[virtual]`

Fill the Profile1D with a value and the corresponding weight.

Definition at line 159 of file H1D.cpp.

                                                      {
  (weight == 1.) ? m_rep->Fill(x) : m_rep->Fill(x,weight);
  return true;
}

void Gaudi::Histogram1D::init	(	const std::string &	title,
		bool	initialize_axis = `true`
	)		`[private]`

Definition at line 71 of file H1D.cpp.

                                                                         {
  m_classType = "IHistogram1D";
  if ( initialize_axis )  {
    m_axis.initialize(m_rep->GetXaxis(),false);
  }
  const TArrayD* a = m_rep->GetSumw2();
  if ( 0 == a || (a && a->GetSize()==0) ) m_rep->Sumw2();
  setTitle(title);
  m_rep->SetDirectory(0);
  m_sumEntries = 0;
  m_sumwx = 0;
}

void Gaudi::Histogram1D::initSums ( ) [private]

Definition at line 84 of file H1D.cpp.

                                 {
  m_sumwx = 0;
  m_sumEntries = 0;
  for(int i=1, n=m_rep->GetNbinsX(); i<=n; ++i)    {
    m_sumwx += m_rep->GetBinContent(i)*m_rep->GetBinCenter(i);
    m_sumEntries += (int)m_rep->GetBinContent(i);
  }
}

bool Gaudi::Histogram1D::reset ( ) [virtual]

need to overwrite reset to reset the sums

Reimplemented from Gaudi::Generic1D< INTERFACE, IMPLEMENTATION >.

Definition at line 93 of file H1D.cpp.

                               {
  m_sumwx = 0;
  m_sumEntries = 0;
  return Base::reset();
}

StreamBuffer & Gaudi::Histogram1D::serialize ( StreamBuffer & s ) const

Serialization mechanism, Serialize the object for writing.

Parameters:

s	the StreamBuffer where to write the data

Returns:: the resulting StreamBuffer, after wrinting

Definition at line 264 of file H1D.cpp.

                                                               {
  //DataObject::serialize(s);
  s << static_cast<int>( annotation().size() );
  for (int i = 0; i < annotation().size(); i++) {
    s << annotation().key(i);
    s << annotation().value(i);
  }
  const AIDA::IAxis & axis( this->axis() );
  const int isFixedBinning = axis.isFixedBinning();
  const int bins = axis.bins();
  s << isFixedBinning << bins;
  if ( isFixedBinning ) {
    s << axis.lowerEdge();
  }
  else {
    for ( int i = 0; i < bins; ++i )
      s << axis.binLowerEdge(i);
  }
  s << axis.upperEdge();
  for ( int i = 0; i <= bins + 1; ++i )
    s << m_rep->GetBinContent(i) << m_rep->GetBinError( i );

  s << m_rep->GetEntries();
  Stat_t stats[4];  // stats array
  m_rep->GetStats( stats );
  s << stats[0] << stats[1] << stats[2] << stats[3];
  return s;
}

StreamBuffer & Gaudi::Histogram1D::serialize ( StreamBuffer & s )

Serialization mechanism, Serialize the object for reading.

Parameters:

s	the StreamBuffer containing the data to be read

Returns:: the resulting StreamBuffer, after reading

Definition at line 217 of file H1D.cpp.

                                                         {
  //DataObject::serialize(s);
  std::string title;
  int size;
  s >> size;
  for (int j = 0; j < size; j++) {
    std::string key, value;
    s >> key >> value;
    annotation().addItem (key, value);
    if ("Title" == key) {
      title = value;
    }
  }
  double lowerEdge, upperEdge, binHeight, binError;
  int    isFixedBinning, bins;
  s >> isFixedBinning >> bins;

  if ( m_rep ) delete m_rep;
  if ( isFixedBinning ) {
    s >> lowerEdge >> upperEdge;
    m_rep = new TH1D(title.c_str(),title.c_str(),bins,lowerEdge,upperEdge);
  } else {
    Edges edges;
    edges.resize(bins);
    for ( int i = 0; i <= bins; ++i )
      s >> *(double*)&edges[i];
    m_rep = new TH1D(title.c_str(),title.c_str(),edges.size()-1,&edges.front());
  }
  m_axis.initialize(m_rep->GetXaxis(),true);
  m_rep->Sumw2();
  m_sumEntries = 0;
  m_sumwx = 0;

  for ( int i = 0; i <= bins + 1; ++i ) {
    s >> binHeight >> binError;
    m_rep->SetBinContent( i, binHeight );
    m_rep->SetBinError( i, binError );
  }
  Stat_t allEntries;
  s >> allEntries;
  m_rep->SetEntries( allEntries );
  Stat_t stats[4];                                    // stats array
  s >> stats[0] >> stats[1] >> stats[2] >> stats[3];
  m_rep->PutStats( stats );
  return s;
}

bool Gaudi::Histogram1D::setBinContents	(	int	i,
		int	entries,
		double	height,
		double	error,
		double	centre
	)		`[virtual]`

set bin content (entries and centre are not used )

Definition at line 108 of file H1D.cpp.

                                                                                                 {
  m_rep->SetBinContent(rIndex(i),height);
  m_rep->SetBinError(rIndex(i),error);
  // accumulate sumwx for in range bins
  if (i != AIDA::IAxis::UNDERFLOW_BIN && i !=  AIDA::IAxis::OVERFLOW_BIN )
    m_sumwx  += centre*height;
  m_sumEntries += entries;
  return true;
}

bool Gaudi::Histogram1D::setRms ( double rms )

Update histogram RMS.

Definition at line 124 of file H1D.cpp.

                                        {
  m_rep->SetEntries(m_sumEntries);
  std::vector<double> stat(11);
  // sum weights
  stat[0] =  sumBinHeights();
  stat[1] = 0;
  if (equivalentBinEntries() != 0)
    stat[1] = (  sumBinHeights() * sumBinHeights() ) / equivalentBinEntries();
  stat[2] = m_sumwx;
  double mean = 0;
  if ( sumBinHeights() != 0 ) mean =  m_sumwx/ sumBinHeights();
  stat[3] = ( mean*mean + rms*rms )* sumBinHeights();
  m_rep->PutStats(&stat.front());
  return true;
}

bool Gaudi::Histogram1D::setStatistics	(	int	allEntries,
		double	eqBinEntries,
		double	mean,
		double	rms
	)		`[virtual]`

set histogram statistics

Definition at line 141 of file H1D.cpp.

                                                                                              {
  m_rep->SetEntries(allEntries);
  // fill statistcal vector for Root
  std::vector<double> stat(11);
  // sum weights
  stat[0] =  sumBinHeights();
  // sum weights **2
  stat[1] = 0;
  if (eqBinEntries != 0)
    stat[1] = (  sumBinHeights() * sumBinHeights() ) / eqBinEntries;
  // sum weights * x
  stat[2] = mean*sumBinHeights();
  // sum weight * x **2
  stat[3] = ( mean*mean + rms*rms )* sumBinHeights();
  m_rep->PutStats(&stat.front());
  return true;
}

Member Data Documentation

double Gaudi::Histogram1D::m_sumwx [protected]

cache sumwx when setting contents since I don't have bin mean

Definition at line 23 of file H1D.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r2/GaudiCommonSvc/src/HistogramSvc/H1D.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r2/GaudiCommonSvc/src/HistogramSvc/H1D.cpp

Gaudi Framework, version v23r2
