#include <IODataManager.h>

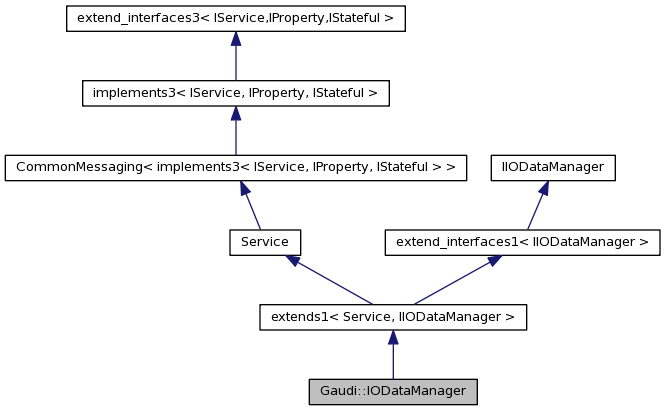

Inheritance diagram for Gaudi::IODataManager:

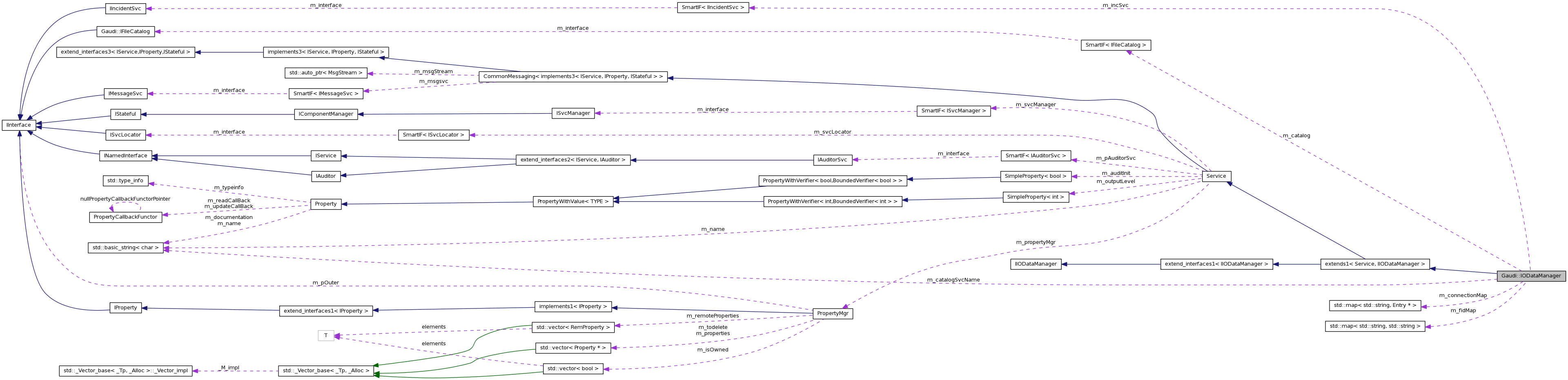

Collaboration diagram for Gaudi::IODataManager:

Classes
struct	Entry
Public Member Functions
	IODataManager (CSTR nam, ISvcLocator *loc)
	the incident service
virtual	~IODataManager ()
	Standard destructor.
virtual StatusCode	initialize ()
	IService implementation: initialize the service.
virtual StatusCode	finalize ()
	IService implementation: finalize the service.
virtual StatusCode	connectRead (bool keep_open, Connection *ioDesc)
	Open data stream in read mode.
virtual StatusCode	connectWrite (Connection *con, IoType mode=Connection::CREATE, CSTR doctype="UNKNOWN")
	Open data stream in write mode.
virtual StatusCode	disconnect (Connection *ioDesc)
	Release data stream.
virtual Connection *	connection (const std::string &dsn) const
	Retrieve known connection.
virtual Connections	connections (const IInterface *owner) const
	Get connection by owner instance (0=ALL)
virtual StatusCode	read (Connection ioDesc, void const data, size_t len)
	Read raw byte buffer from input stream.
virtual StatusCode	write (Connection con, const void data, int len)
	Write raw byte buffer to output stream.
virtual long long int	seek (Connection *ioDesc, long long int where, int origin)
	Seek on the file described by ioDesc. Arguments as in seek()
Protected Types
typedef const std::string &	CSTR
typedef std::map< std::string, Entry * >	ConnectionMap
typedef std::map< std::string, std::string >	FidMap
Protected Member Functions
StatusCode	connectDataIO (int typ, IoType rw, CSTR fn, CSTR technology, bool keep, Connection *con)
StatusCode	reconnect (Entry *e)
StatusCode	error (CSTR msg, bool rethrow)
StatusCode	establishConnection (Connection *con)
Protected Attributes
std::string	m_catalogSvcName
	Property: Name of the file catalog service.
int	m_ageLimit
	Property: Age limit.
bool	m_useGFAL
	Property: Flag for auto gfal data access.
bool	m_quarantine
	Property: Flag if unaccessible files should be quarantines in job.
ConnectionMap	m_connectionMap
	Map with I/O descriptors.
SmartIF< IFileCatalog >	m_catalog
	Reference to file catalog.
FidMap	m_fidMap
	Map of FID to PFN.
SmartIF< IIncidentSvc >	m_incSvc

Detailed Description

Definition at line 29 of file IODataManager.h.

Member Typedef Documentation

typedef std::map<std::string,Entry*> Gaudi::IODataManager::ConnectionMap [protected]

Definition at line 41 of file IODataManager.h.

typedef const std::string& Gaudi::IODataManager::CSTR [protected]

Definition at line 31 of file IODataManager.h.

typedef std::map<std::string, std::string> Gaudi::IODataManager::FidMap [protected]

Definition at line 42 of file IODataManager.h.

Constructor & Destructor Documentation

IODataManager::IODataManager	(	CSTR	nam,
		ISvcLocator *	loc
	)

the incident service

Initializing constructor

Parameters:

[in]	nam	Name of the service
[in]	loc	Pointer to the service locator object

Returns:: Initialized reference to service object

Definition at line 22 of file IODataManager.cpp.

  : base_class(nam, svcloc), m_ageLimit(2)
{
  declareProperty("CatalogType",     m_catalogSvcName="Gaudi::MultiFileCatalog/FileCatalog");
  declareProperty("UseGFAL",         m_useGFAL = true);
  declareProperty("QuarantineFiles", m_quarantine = true);
  declareProperty("AgeLimit",        m_ageLimit = 2);
}

virtual Gaudi::IODataManager::~IODataManager ( ) [inline, virtual]

Standard destructor.

Definition at line 76 of file IODataManager.h.

{}

Member Function Documentation

StatusCode IODataManager::connectDataIO	(	int	typ,
		IoType	rw,
		CSTR	fn,
		CSTR	technology,
		bool	keep,
		Connection *	con
	)		`[protected]`

Definition at line 234 of file IODataManager.cpp.

                                                                                                                     {
  MsgStream log(msgSvc(),name());
  std::string dsn = dataset;
  try  {
    StatusCode sc(StatusCode::SUCCESS,true);
    if ( ::strncasecmp(dsn.c_str(),"FID:",4)==0 )
      dsn = dataset.substr(4), typ = FID;
    else if ( ::strncasecmp(dsn.c_str(),"LFN:",4)==0 )
      dsn = dataset.substr(4), typ = LFN;
    else if ( ::strncasecmp(dsn.c_str(),"PFN:",4)==0 )
      dsn = dataset.substr(4), typ = PFN;
    else if ( typ == UNKNOWN )
      return connectDataIO(PFN, rw, dsn, technology, keep_open, connection);

    if(std::find(s_badFiles.begin(),s_badFiles.end(),dsn) != s_badFiles.end())  {
      m_incSvc->fireIncident(Incident(dsn,IncidentType::FailInputFile));
      return IDataConnection::BAD_DATA_CONNECTION;
    }
    if ( typ == FID )  {
      ConnectionMap::iterator fi = m_connectionMap.find(dsn);
      if ( fi == m_connectionMap.end() )  {
        IFileCatalog::Files files;
        m_catalog->getPFN(dsn,files);
        if ( files.size() == 0 ) {
          if ( !m_useGFAL )   {
            if ( m_quarantine ) s_badFiles.insert(dsn);
            m_incSvc->fireIncident(Incident(dsn,IncidentType::FailInputFile));
            error("connectDataIO> failed to resolve FID:"+dsn,false).ignore();
            return IDataConnection::BAD_DATA_CONNECTION;
          }
          else if ( dsn.length() == 36 && dsn[8]=='-' && dsn[13]=='-' )  {
            std::string gfal_name = "gfal:guid:" + dsn;
            m_fidMap[dsn] = m_fidMap[dataset] = m_fidMap[gfal_name] = dsn;
            sc = connectDataIO(PFN, rw, gfal_name, technology, keep_open, connection);
            if ( sc.isSuccess() ) return sc;
            if ( m_quarantine ) s_badFiles.insert(dsn);
          }
          if ( m_quarantine ) s_badFiles.insert(dsn);
          m_incSvc->fireIncident(Incident(dsn,IncidentType::FailInputFile));
          error("connectDataIO> Failed to resolve FID:"+dsn,false).ignore();
          return IDataConnection::BAD_DATA_CONNECTION;
        }
        std::string pfn = files[0].first;
        m_fidMap[dsn] = m_fidMap[dataset] = m_fidMap[pfn] = dsn;
        sc = connectDataIO(PFN, rw, pfn, technology, keep_open, connection);
        if ( !sc.isSuccess() )  {
          if ( m_quarantine ) s_badFiles.insert(pfn);
          m_incSvc->fireIncident(Incident(pfn,IncidentType::FailInputFile));
          return IDataConnection::BAD_DATA_CONNECTION;
        }

        return sc;
      }
      return S_ERROR;
      //Connection* c = (*fi).second->connection;
      //sc = connectDataIO(PFN, rw, c->pfn(), technology, keep_open, connection);
      //if ( !sc.isSuccess() && m_quarantine ) s_badFiles.insert(c->pfn());
      //return sc;
    }
    std::string fid;
    FidMap::iterator j = m_fidMap.find(dsn);
    if ( j == m_fidMap.end() )  {
      IFileCatalog::Files files;
      switch(typ)  {
      case LFN:
        fid = m_catalog->lookupLFN(dsn);
        if ( fid.empty() )  {
          m_incSvc->fireIncident(Incident(dsn,IncidentType::FailInputFile));
          log << MSG::ERROR << "Failed to resolve LFN:" << dsn
              << " Cannot access this dataset." << endmsg;
          return IDataConnection::BAD_DATA_CONNECTION;
        }
        break;
      case PFN:
        fid = m_catalog->lookupPFN(dsn);
        if ( !fid.empty() ) m_catalog->getPFN(fid, files);
        if ( files.empty() )   {
          if ( rw == Connection::CREATE || rw == Connection::RECREATE )  {
            if ( fid.empty() ) fid = m_catalog->createFID();
            m_catalog->registerPFN(fid,dsn,technology);
            log << MSG::INFO << "Referring to dataset " << dsn
                << " by its file ID:" << fid << endmsg;
          }
          else  {
            fid = dsn;
          }
        }
        break;
      }
    }
    else {
      fid = (*j).second;
    }
    if ( typ == PFN )  {
      // Open PFN
      ConnectionMap::iterator fi = m_connectionMap.find(fid);
      if ( fi == m_connectionMap.end() )  {
        connection->setFID(fid);
        connection->setPFN(dsn);
        Entry* e = new Entry(technology, keep_open, rw, connection);
        // Here we open the file!
        if ( !reconnect(e).isSuccess() )   {
          delete e;
          if ( m_quarantine ) s_badFiles.insert(dsn);
          m_incSvc->fireIncident(Incident(dsn,IncidentType::FailInputFile));
          error("connectDataIO> Cannot connect to database: PFN="+dsn+" FID="+fid,false).ignore();
          return IDataConnection::BAD_DATA_CONNECTION;
        }
        fid = connection->fid();
        m_fidMap[dataset] = m_fidMap[dsn] = m_fidMap[fid] = fid;
        if (  !(rw==Connection::CREATE || rw==Connection::RECREATE) )  {
          if ( strcasecmp(dsn.c_str(),fid.c_str()) == 0 )  {
            log << MSG::ERROR << "Referring to existing dataset " << dsn
                << " by its physical name." << endmsg;
            log << "You may not be able to navigate back to the input file"
                << " -- processing continues" << endmsg;
          }
        }
        m_connectionMap.insert(std::make_pair(fid,e)).first;
        return S_OK;
      }
      // Here we open the file!
      if ( !reconnect((*fi).second).isSuccess() )   {
        if ( m_quarantine ) s_badFiles.insert(dsn);
        m_incSvc->fireIncident(Incident(dsn,IncidentType::FailInputFile));
        error("connectDataIO> Cannot connect to database: PFN="+dsn+" FID="+fid,false).ignore();
        return IDataConnection::BAD_DATA_CONNECTION;
      }
      return S_OK;
    }
    sc = connectDataIO(FID, rw, fid, technology, keep_open, connection);
    if ( !sc.isSuccess() && m_quarantine ) {
      s_badFiles.insert(fid);
    }
    else if ( typ == LFN ) {
      m_fidMap[dataset] = fid;
    }
    return sc;
  }
  catch (std::exception& e)  {
    error(std::string("connectDataIO> Caught exception:")+e.what(), false).ignore();
  }
  catch(...) {
    error(std::string("connectDataIO> Caught unknown exception"), false).ignore();
  }
  m_incSvc->fireIncident(Incident(dsn,IncidentType::FailInputFile));
  error("connectDataIO> The dataset "+dsn+" cannot be opened.",false).ignore();
  s_badFiles.insert(dsn);
  return IDataConnection::BAD_DATA_CONNECTION;
}

virtual Connection* Gaudi::IODataManager::connection ( const std::string & dsn ) const [virtual]

Retrieve known connection.

IODataManager::Connections IODataManager::connections ( const IInterface * owner ) const [virtual]

Get connection by owner instance (0=ALL)

Definition at line 73 of file IODataManager.cpp.

                                                                                  {
  Connections conns;
  for(ConnectionMap::const_iterator i=m_connectionMap.begin(); i!=m_connectionMap.end();++i) {
    IDataConnection* c = (*i).second->connection;
    if ( 0 == owner || c->owner() == owner )
      conns.push_back(c);
  }
  return conns;
}

StatusCode IODataManager::connectRead	(	bool	keep_open,
		Connection *	ioDesc
	)		`[virtual]`

Open data stream in read mode.

Connect data file for writing.

Definition at line 84 of file IODataManager.cpp.

                                                                      {
  if ( !establishConnection(con) )  {
    return connectDataIO(UNKNOWN,Connection::READ,con->name(),"UNKNOWN",keep_open,con);
  }
  std::string dsn = con ? con->name() : std::string("Unknown");
  return error("Failed to connect to data:"+dsn,false);
}

StatusCode IODataManager::connectWrite	(	Connection *	con,
		IoType	mode = `Connection::CREATE`,
		CSTR	doctype = `"UNKNOWN"`
	)		`[virtual]`

Open data stream in write mode.

Connect data file for reading.

Definition at line 93 of file IODataManager.cpp.

                                                                                {
  if ( !establishConnection(con) )  {
    return connectDataIO(UNKNOWN,mode,con->name(),doctype,true,con);
  }
  std::string dsn = con ? con->name() : std::string("Unknown");
  return error("Failed to connect to data:"+dsn,false);
}

StatusCode IODataManager::disconnect ( Connection * ioDesc ) [virtual]

Release data stream.

Definition at line 116 of file IODataManager.cpp.

                                                       {
  if ( con )  {
    std::string dataset = con->name();
    std::string dsn = dataset;
    StatusCode sc = con->disconnect();
    if ( ::strncasecmp(dsn.c_str(),"FID:",4)==0 )
      dsn = dataset.substr(4);
    else if ( ::strncasecmp(dsn.c_str(),"LFN:",4)==0 )
      dsn = dataset.substr(4);
    else if ( ::strncasecmp(dsn.c_str(),"PFN:",4)==0 )
      dsn = dataset.substr(4);

    FidMap::iterator j = m_fidMap.find(dataset);
    if ( j != m_fidMap.end() )  {
      std::string fid = (*j).second;
      std::string gfal_name = "gfal:guid:" + fid;
      ConnectionMap::iterator i=m_connectionMap.find(fid);
      m_fidMap.erase(j);
      if ( (j=m_fidMap.find(fid)) != m_fidMap.end() )
        m_fidMap.erase(j);
      if ( (j=m_fidMap.find(gfal_name)) != m_fidMap.end() )
        m_fidMap.erase(j);
      if ( i != m_connectionMap.end() ) {
        if ( (*i).second )  {
          IDataConnection* c = (*i).second->connection;
          std::string pfn = c->pfn();
          if ( (j=m_fidMap.find(pfn)) != m_fidMap.end() )
            m_fidMap.erase(j);
          if ( c->isConnected() )  {
            MsgStream log(msgSvc(),name());
            c->disconnect();
            log << MSG::INFO << "Disconnect from dataset " << dsn
                << " [" << fid << "]" << endmsg;
          }
          delete (*i).second;
          m_connectionMap.erase(i);
        }
      }
    }
    return sc;
  }
  return S_ERROR;
}

StatusCode IODataManager::error	(	CSTR	msg,
		bool	rethrow
	)		`[protected]`

Definition at line 64 of file IODataManager.cpp.

                                                       {
  MsgStream log(msgSvc(),name());
  log << MSG::ERROR << "Error: " << msg << endmsg;
  if ( rethrow )  {
    System::breakExecution();
  }
  return S_ERROR;
}

StatusCode IODataManager::establishConnection ( Connection * con ) [protected]

Definition at line 211 of file IODataManager.cpp.

                                                              {
  if ( con )  {
    if ( !con->isConnected() )  {
      ConnectionMap::const_iterator i=m_connectionMap.find(con->name());
      if ( i != m_connectionMap.end() )  {
        Connection* c = (*i).second->connection;
        if ( c != con )  {
          m_incSvc->fireIncident(Incident(con->name(),IncidentType::FailInputFile));
          return error("Severe logic bug: Twice identical connection object for DSN:"+con->name(),true);
        }
        if ( reconnect((*i).second).isSuccess() ) {
          return S_OK;
        }
      }
      return S_ERROR;
    }
    con->resetAge();
    return S_OK;
  }
  return error("Severe logic bug: No connection object avalible.",true);
}

StatusCode IODataManager::finalize ( ) [virtual]

IService implementation: finalize the service.

Reimplemented from Service.

Definition at line 58 of file IODataManager.cpp.

                                    {
  m_catalog = 0; // release
  return Service::finalize();
}

StatusCode IODataManager::initialize ( ) [virtual]

IService implementation: initialize the service.

IService implementation: Db event selector override.

Reimplemented from Service.

Definition at line 32 of file IODataManager.cpp.

                                      {
  // Initialize base class
  StatusCode status = Service::initialize();
  MsgStream log(msgSvc(), name());
  if ( !status.isSuccess() )    {
    log << MSG::ERROR << "Error initializing base class Service!" << endmsg;
    return status;
  }
  // Retrieve conversion service handling event iteration
  m_catalog = serviceLocator()->service(m_catalogSvcName);
  if( !m_catalog.isValid() ) {
    log << MSG::ERROR
        << "Unable to localize interface IFileCatalog from service:"
        << m_catalogSvcName << endmsg;
    return StatusCode::FAILURE;
  }
  m_incSvc = serviceLocator()->service("IncidentSvc");
  if( !m_incSvc.isValid() ) {
    log << MSG::ERROR << "Error initializing IncidentSvc Service!" << endmsg;
    return status;
  }

  return status;
}

StatusCode IODataManager::read	(	Connection *	ioDesc,
		void *const	data,
		size_t	len
	)		`[virtual]`

Read raw byte buffer from input stream.

Definition at line 102 of file IODataManager.cpp.

                                                                             {
  return establishConnection(con).isSuccess() ? con->read(data,len) : S_ERROR;
}

StatusCode IODataManager::reconnect ( Entry * e ) [protected]

Definition at line 160 of file IODataManager.cpp.

                                             {
  StatusCode sc = S_ERROR;
  if ( e && e->connection )  {
    switch(e->ioType)  {
    case Connection::READ:
      sc = e->connection->connectRead();
      break;
    case Connection::UPDATE:
    case Connection::CREATE:
    case Connection::RECREATE:
      sc = e->connection->connectWrite(e->ioType);
      break;
    default:
      return S_ERROR;
    }
    if ( sc.isSuccess() && e->ioType == Connection::READ )  {
      std::vector<Entry*> to_retire;
      e->connection->resetAge();
      for(ConnectionMap::iterator i=m_connectionMap.begin(); i!=m_connectionMap.end();++i) {
        IDataConnection* c = (*i).second->connection;
        if ( e->connection != c && c->isConnected() && !(*i).second->keepOpen )  {
          c->ageFile();
          if ( c->age() > m_ageLimit ) {
            to_retire.push_back((*i).second);
          }
        }
      }
      if ( !to_retire.empty() )  {
        MsgStream log(msgSvc(),name());
        for(std::vector<Entry*>::iterator j=to_retire.begin(); j!=to_retire.end();++j)  {
          IDataConnection* c = (*j)->connection;
          c->disconnect();
          log << MSG::INFO << "Disconnect from dataset " << c->pfn()
              << " [" << c->fid() << "]" << endmsg;
        }
      }
    }
  }
  return sc;
}

long long int IODataManager::seek	(	Connection *	ioDesc,
		long long int	where,
		int	origin
	)		`[virtual]`

Seek on the file described by ioDesc. Arguments as in seek()

Definition at line 112 of file IODataManager.cpp.

                                                                                   {
  return establishConnection(con).isSuccess() ? con->seek(where,origin) : -1;
}

StatusCode IODataManager::write	(	Connection *	con,
		const void *	data,
		int	len
	)		`[virtual]`

Write raw byte buffer to output stream.

Definition at line 107 of file IODataManager.cpp.

                                                                           {
  return establishConnection(con).isSuccess() ? con->write(data,len) : S_ERROR;
}

Member Data Documentation

int Gaudi::IODataManager::m_ageLimit [protected]

Property: Age limit.

Definition at line 47 of file IODataManager.h.

SmartIF<IFileCatalog> Gaudi::IODataManager::m_catalog [protected]

Reference to file catalog.

Definition at line 56 of file IODataManager.h.

std::string Gaudi::IODataManager::m_catalogSvcName [protected]

Property: Name of the file catalog service.

Definition at line 45 of file IODataManager.h.

ConnectionMap Gaudi::IODataManager::m_connectionMap [protected]

Map with I/O descriptors.

Definition at line 54 of file IODataManager.h.

FidMap Gaudi::IODataManager::m_fidMap [protected]

Map of FID to PFN.

Definition at line 58 of file IODataManager.h.

SmartIF<IIncidentSvc> Gaudi::IODataManager::m_incSvc [protected]

Definition at line 64 of file IODataManager.h.

bool Gaudi::IODataManager::m_quarantine [protected]

Property: Flag if unaccessible files should be quarantines in job.

Definition at line 51 of file IODataManager.h.

bool Gaudi::IODataManager::m_useGFAL [protected]

Property: Flag for auto gfal data access.

Definition at line 49 of file IODataManager.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r2/GaudiUtils/src/component/IODataManager.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r2/GaudiUtils/src/component/IODataManager.cpp

Gaudi Framework, version v23r2

Gaudi::IODataManager Class Reference

Classes

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
