Concrete event selector implementation to access ROOT files. More...

#include <GAUDIROOT/RootEvtSelector.h>

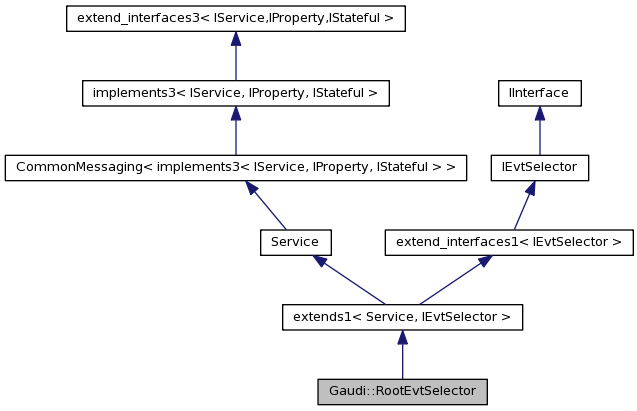

Inheritance diagram for Gaudi::RootEvtSelector:

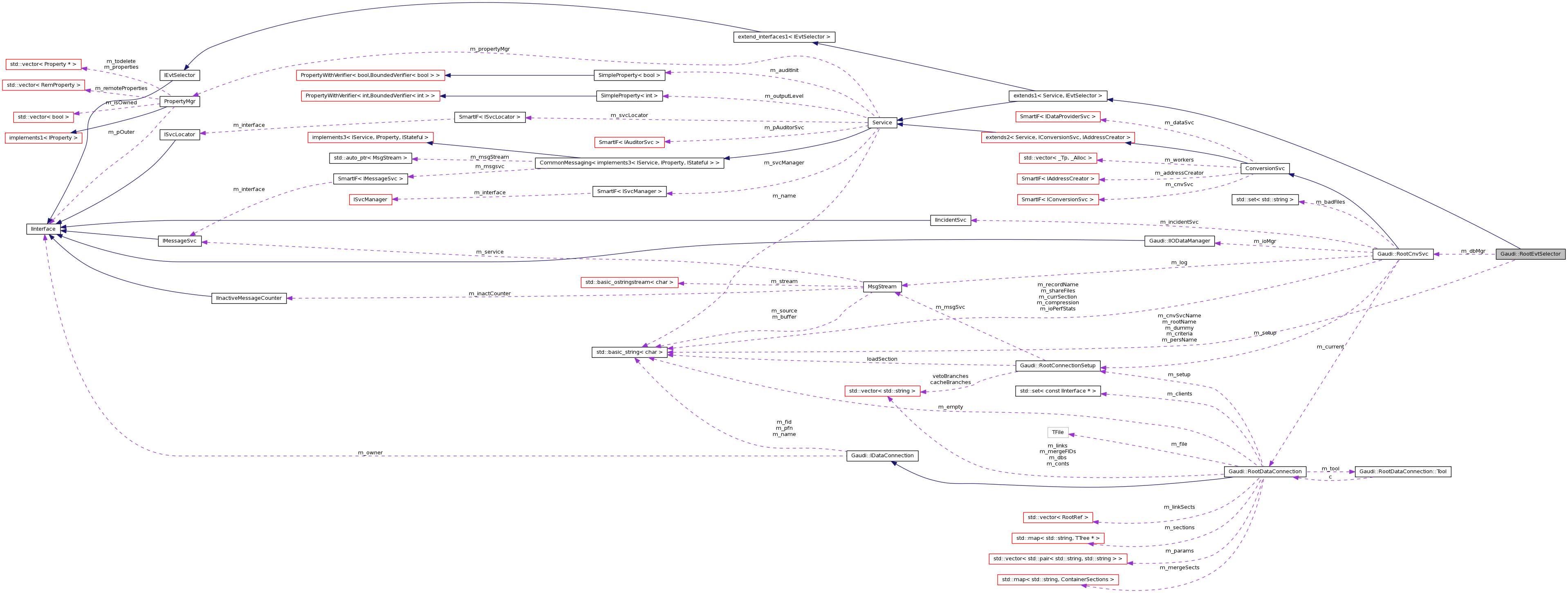

Collaboration diagram for Gaudi::RootEvtSelector:

Public Member Functions
	RootEvtSelector (const std::string &name, ISvcLocator *svcloc)
	Service Constructor.
virtual	~RootEvtSelector ()
	Standard destructor.
virtual StatusCode	initialize ()
	IService implementation: Db event selector override.
virtual StatusCode	finalize ()
	IService implementation: Service finalization.
virtual StatusCode	createContext (Context *&refpCtxt) const
	Create a new event loop context.
virtual StatusCode	last (Context &refContext) const
	Access last item in the iteration.
virtual StatusCode	next (Context &refCtxt) const
	Get next iteration item from the event loop context.
virtual StatusCode	next (Context &refCtxt, int jump) const
	Get next iteration item from the event loop context, but skip jump elements.
virtual StatusCode	previous (Context &refCtxt) const
	Get previous iteration item from the event loop context.
virtual StatusCode	previous (Context &refCtxt, int jump) const
	Get previous iteration item from the event loop context, but skip jump elements.
virtual StatusCode	rewind (Context &refCtxt) const
	Rewind the dataset.
virtual StatusCode	createAddress (const Context &refCtxt, IOpaqueAddress *&) const
	Create new Opaque address corresponding to the current record.
virtual StatusCode	releaseContext (Context *&refCtxt) const
	Release existing event iteration context.
virtual StatusCode	resetCriteria (const std::string &cr, Context &c) const
	Will set a new criteria for the selection of the next list of events and will change the state of the context in a way to point to the new list.
Protected Attributes
RootCnvSvc *	m_dbMgr
	Reference to the corresponding conversion service.
CLID	m_rootCLID
	Class id of root node to create opaque address.
std::string	m_persName
	Property; Name of the persistency service to search for conversion service.
std::string	m_cnvSvcName
	Property; Name of the concversion service used to create opaque addresses.
std::string	m_rootName
	Property: Name of the ROOT entry name.
std::string	m_criteria
	Property: File criteria to define item iteration.
std::string	m_dummy
	Property: dummy to fake backwards compatibility.
Private Member Functions
StatusCode	error (const std::string &msg) const
	Helper method to issue error messages.

Detailed Description

Concrete event selector implementation to access ROOT files.

Author:: M.Frank

Version:: 1.0

Date:: 20/12/2009

Definition at line 41 of file RootEvtSelector.h.

Constructor & Destructor Documentation

RootEvtSelector::RootEvtSelector	(	const std::string &	name,
		ISvcLocator *	svcloc
	)

Service Constructor.

Definition at line 100 of file RootEvtSelector.cpp.

: base_class(name, svcloc), m_rootCLID(CLID_NULL)
{
  m_cnvSvcName = "Gaudi::RootCnvSvc/RootCnvSvc";
  m_persName   = "EventPersistencySvc";
  declareProperty("EvtPersistencySvc",m_persName="EventPersistencySvc");
  declareProperty("DbType",m_dummy);
}

virtual Gaudi::RootEvtSelector::~RootEvtSelector ( ) [inline, virtual]

Standard destructor.

Definition at line 51 of file RootEvtSelector.h.

{}

Member Function Documentation

StatusCode RootEvtSelector::createAddress	(	const Context &	refCtxt,
		IOpaqueAddress *&	pAddr
	)		const `[virtual]`

Create new Opaque address corresponding to the current record.

Parameters:

refCtxt [IN/OUT] Reference to the context

Returns:: StatusCode indicating success or failure

Implements IEvtSelector.

Definition at line 272 of file RootEvtSelector.cpp.

                                                                                 {
  const RootEvtSelectorContext* pctxt = dynamic_cast<const RootEvtSelectorContext*>(&ctxt);
  if ( pctxt ) {
    long ent = pctxt->entry();
    if ( ent >= 0 )  {
      RootEvtSelectorContext::Files::const_iterator fileit = pctxt->fileIterator();
      if ( fileit != pctxt->files().end() ) {
        const string par[2] = {pctxt->fid(), m_rootName};
        const unsigned long ipar[2] = {0,ent};
        return m_dbMgr->createAddress(m_dbMgr->repSvcType(),m_rootCLID,&par[0],&ipar[0],pAddr);
      }
    }
  }
  pAddr = 0;
  return StatusCode::FAILURE;
}

StatusCode RootEvtSelector::createContext ( Context *& refpCtxt ) const [virtual]

Create a new event loop context.

Parameters:

refpCtxt [IN/OUT] Reference to pointer to store the context

Returns:: StatusCode indicating success or failure

Implements IEvtSelector.

Definition at line 165 of file RootEvtSelector.cpp.

                                                                   {
  refpCtxt = new RootEvtSelectorContext(this);
  return StatusCode::SUCCESS;
}

StatusCode RootEvtSelector::error ( const std::string & msg ) const [private]

Helper method to issue error messages.

Definition at line 110 of file RootEvtSelector.cpp.

                                                           {
  MsgStream log(msgSvc(), name());
  log << MSG::ERROR << msg << endmsg;
  return StatusCode::FAILURE;
}

StatusCode RootEvtSelector::finalize ( ) [virtual]

IService implementation: Service finalization.

Reimplemented from Service.

Definition at line 157 of file RootEvtSelector.cpp.

                                        {
  // Initialize base class
  if ( m_dbMgr ) m_dbMgr->release();
  m_dbMgr = 0; // release
  return Service::finalize();
}

StatusCode RootEvtSelector::initialize ( ) [virtual]

IService implementation: Db event selector override.

Reimplemented from Service.

Definition at line 117 of file RootEvtSelector.cpp.

                                          {
  // Initialize base class
  StatusCode status = Service::initialize();
  if ( !status.isSuccess() ) {
    return error("Error initializing base class Service!");
  }

  SmartIF<IPersistencySvc> ipers(serviceLocator()->service(m_persName));
  if( !ipers.isValid() )   {
    return error("Unable to locate IPersistencySvc interface of "+m_persName);
  }
  IConversionSvc *cnvSvc = 0;
  Gaudi::Utils::TypeNameString itm(m_cnvSvcName);
  status = ipers->getService(itm.name(),cnvSvc);
  if( !status.isSuccess() )   {
    status = ipers->getService(itm.type(),cnvSvc);
    if( !status.isSuccess() )   {
      return error("Unable to locate IConversionSvc interface of database type "+m_cnvSvcName);
    }
  }
  m_dbMgr = dynamic_cast<RootCnvSvc*>(cnvSvc);
  if( !m_dbMgr ) {
    cnvSvc->release();
    return error("Unable to localize service:"+m_cnvSvcName);
  }
  m_dbMgr->addRef();

  // Get DataSvc
  SmartIF<IDataManagerSvc> eds(serviceLocator()->service("EventDataSvc"));
  if( !eds.isValid() ) {
    return error("Unable to localize service EventDataSvc");
  }
  m_rootCLID = eds->rootCLID();
  m_rootName = eds->rootName();
  MsgStream log(msgSvc(), name());
  log << MSG::DEBUG << "Selection root:" << m_rootName << " CLID:" << m_rootCLID << endmsg;
  return status;
}

StatusCode RootEvtSelector::last ( Context & refContext ) const [virtual]

Access last item in the iteration.

Parameters:

refContext [IN/OUT] Reference to the Context object.

Implements IEvtSelector.

Definition at line 171 of file RootEvtSelector.cpp.

                                                               {
  return StatusCode::FAILURE;
}

StatusCode RootEvtSelector::next ( Context & refCtxt ) const [virtual]

Get next iteration item from the event loop context.

Parameters:

refCtxt [IN/OUT] Reference to the context

Returns:: StatusCode indicating success or failure

Implements IEvtSelector.

Definition at line 176 of file RootEvtSelector.cpp.

                                                     {
  RootEvtSelectorContext* pCtxt = dynamic_cast<RootEvtSelectorContext*>(&ctxt);
  if ( pCtxt ) {
    TBranch* b = pCtxt->branch();
    if ( !b ) {
      RootEvtSelectorContext::Files::const_iterator fileit = pCtxt->fileIterator();
      pCtxt->setBranch(0);
      pCtxt->setEntry(-1);
      if ( fileit != pCtxt->files().end() ) {
        RootDataConnection* con=0;
        string     in = *fileit;
        StatusCode sc = m_dbMgr->connectDatabase(in,IDataConnection::READ,&con);
        if ( sc.isSuccess() ) {
          string section = m_rootName[0] == '/' ? m_rootName.substr(1) : m_rootName;
          b = con->getBranch(section,m_rootName);
          if ( b ) {
            pCtxt->setFID(con->fid());
            pCtxt->setBranch(b);
            return next(ctxt);
          }
        }
        m_dbMgr->disconnect(in).ignore();
        pCtxt->setFileIterator(++fileit);
        return next(ctxt);
      }
      return StatusCode::FAILURE;
    }
    long ent = pCtxt->entry();
    Long64_t nent = b->GetEntries();
    if ( nent > (ent+1) ) {
      pCtxt->setEntry(++ent);
      return StatusCode::SUCCESS;
    }
    RootEvtSelectorContext::Files::const_iterator fit = pCtxt->fileIterator();
    pCtxt->setFileIterator(++fit);
    pCtxt->setEntry(-1);
    pCtxt->setBranch(0);
    pCtxt->setFID("");
    return next(ctxt);
  }
  return StatusCode::FAILURE;
}

StatusCode RootEvtSelector::next	(	Context &	refCtxt,
		int	jump
	)		const `[virtual]`

Get next iteration item from the event loop context, but skip jump elements.

Parameters:

refCtxt [IN/OUT] Reference to the context

Returns:: StatusCode indicating success or failure

Implements IEvtSelector.

Definition at line 220 of file RootEvtSelector.cpp.

                                                              {
  if ( jump > 0 ) {
    for ( int i = 0; i < jump; ++i ) {
      StatusCode status = next(ctxt);
      if ( !status.isSuccess() ) {
        return status;
      }
    }
    return StatusCode::SUCCESS;
  }
  return StatusCode::FAILURE;
}

StatusCode RootEvtSelector::previous	(	Context &	refCtxt,
		int	jump
	)		const `[virtual]`

Get previous iteration item from the event loop context, but skip jump elements.

Parameters:

refCtxt	[IN/OUT] Reference to the context
jump	[IN] Number of events to be skipped

Returns:: StatusCode indicating success or failure

Implements IEvtSelector.

Definition at line 239 of file RootEvtSelector.cpp.

                                                                   {
  if ( jump > 0 ) {
    for ( int i = 0; i < jump; ++i ) {
      StatusCode status = previous(ctxt);
      if ( !status.isSuccess() ) {
        return status;
      }
    }
    return StatusCode::SUCCESS;
  }
  return StatusCode::FAILURE;
}

StatusCode RootEvtSelector::previous ( Context & refCtxt ) const [virtual]

Get previous iteration item from the event loop context.

Parameters:

refCtxt	[IN/OUT] Reference to the context
jump	[IN] Number of events to be skipped

Returns:: StatusCode indicating success or failure

Implements IEvtSelector.

Definition at line 234 of file RootEvtSelector.cpp.

                                                                {
  return error("EventSelector Iterator, operator -- not supported ");
}

StatusCode RootEvtSelector::releaseContext ( Context *& refCtxt ) const [virtual]

Release existing event iteration context.

Parameters:

refCtxt [IN/OUT] Reference to the context

Returns:: StatusCode indicating success or failure

Implements IEvtSelector.

Definition at line 290 of file RootEvtSelector.cpp.

                                                                 {
  RootEvtSelectorContext* pCtxt = dynamic_cast<RootEvtSelectorContext*>(ctxt);
  if ( pCtxt ) {
    delete pCtxt;
    return StatusCode::SUCCESS;
  }
  return StatusCode::FAILURE;
}

StatusCode RootEvtSelector::resetCriteria	(	const std::string &	cr,
		Context &	c
	)		const `[virtual]`

Will set a new criteria for the selection of the next list of events and will change the state of the context in a way to point to the new list.

Parameters:

cr	The new criteria string.
c	Reference pointer to the Context object.

Implements IEvtSelector.

Definition at line 302 of file RootEvtSelector.cpp.

{
  MsgStream log(msgSvc(), name());
  RootEvtSelectorContext* ctxt = dynamic_cast<RootEvtSelectorContext*>(&context);
  string db, typ, item, sel, stmt, aut, addr;
  if ( ctxt )  {
    if ( criteria.substr(0,5) == "FILE " )  {
      // The format for the criteria is:
      //        FILE  filename1, filename2 ...
      db = criteria.substr(5);
    }
    else  {
      Tokenizer tok(true);
      tok.analyse(criteria," ","","","=","'","'");
      for(Tokenizer::Items::iterator i=tok.items().begin(); i!=tok.items().end();i++) {
        string tmp = (*i).tag().substr(0,3);
        if(tmp=="DAT")  {
          db = (*i).value();
        }
        if(tmp=="OPT")   {
          if((*i).value() != "REA")   {
            log << MSG::ERROR << "Option:\"" << (*i).value() << "\" not valid" << endmsg;
            return StatusCode::FAILURE;
          }
        }
        if (tmp=="TYP") {
          typ = (*i).value();
        }
        if(tmp=="ADD")  {
          item = (*i).value();
        }
        if(tmp=="SEL")  {
          sel = (*i).value();
        }
        if(tmp=="FUN")  {
          stmt = (*i).value();
        }
        if(tmp=="AUT")  {
          aut = (*i).value();
        }
        if(tmp=="COL")  {
          addr = (*i).value();
        }
      }
    }
    // It's now time to parse the criteria for the event selection
    // The format for the criteria is:
    //        FILE  filename1, filename2 ...
    //        JOBID number1-number2, number3, ...
    RootEvtSelectorContext::Files files;
    string rest = db;
    files.clear();
    while(true)  {
      int ipos = rest.find_first_not_of(" ,");
      if (ipos == -1 ) break;
      rest = rest.substr(ipos,string::npos);// remove blanks before
      int lpos  = rest.find_first_of(" ,");       // locate next blank
      files.push_back(rest.substr(0,lpos )); // insert in list
      if (lpos == -1 ) break;
      rest = rest.substr(lpos,string::npos);// get the rest
    }
    ctxt->setFiles(files);
    ctxt->setFileIterator(ctxt->files().begin());
    return StatusCode::SUCCESS;
  }
  return error("Invalid iteration context.");
}

StatusCode RootEvtSelector::rewind ( Context & refCtxt ) const [virtual]

Rewind the dataset.

Parameters:

refCtxt [IN/OUT] Reference to the context

Returns:: StatusCode indicating success or failure

Implements IEvtSelector.

Definition at line 253 of file RootEvtSelector.cpp.

                                                        {
  RootEvtSelectorContext* pCtxt = dynamic_cast<RootEvtSelectorContext*>(&ctxt);
  if ( pCtxt ) {
    RootEvtSelectorContext::Files::const_iterator fileit = pCtxt->fileIterator();
    if ( fileit != pCtxt->files().end() ) {
      string input = *fileit;
      m_dbMgr->disconnect(input).ignore();
    }
    pCtxt->setFID("");
    pCtxt->setEntry(-1);
    pCtxt->setBranch(0);
    pCtxt->setFileIterator(pCtxt->files().begin());
    return StatusCode::SUCCESS;
  }
  return StatusCode::FAILURE;
}

Member Data Documentation

std::string Gaudi::RootEvtSelector::m_cnvSvcName [protected]

Property; Name of the concversion service used to create opaque addresses.

Definition at line 138 of file RootEvtSelector.h.

std::string Gaudi::RootEvtSelector::m_criteria [protected]

Property: File criteria to define item iteration.

Definition at line 142 of file RootEvtSelector.h.

RootCnvSvc* Gaudi::RootEvtSelector::m_dbMgr [mutable, protected]

Reference to the corresponding conversion service.

Definition at line 132 of file RootEvtSelector.h.

std::string Gaudi::RootEvtSelector::m_dummy [protected]

Property: dummy to fake backwards compatibility.

Definition at line 144 of file RootEvtSelector.h.

std::string Gaudi::RootEvtSelector::m_persName [protected]

Property; Name of the persistency service to search for conversion service.

Definition at line 136 of file RootEvtSelector.h.

CLID Gaudi::RootEvtSelector::m_rootCLID [protected]

Class id of root node to create opaque address.

Definition at line 134 of file RootEvtSelector.h.

std::string Gaudi::RootEvtSelector::m_rootName [protected]

Property: Name of the ROOT entry name.

Definition at line 140 of file RootEvtSelector.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r2/RootCnv/RootCnv/RootEvtSelector.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r2/RootCnv/src/RootEvtSelector.cpp

Gaudi Framework, version v23r2

Gaudi::RootEvtSelector Class Reference

Public Member Functions

Protected Attributes

Private Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
