IStatSvc Class Reference

"Stat"-related part of interface IChronoStatSvc More...

#include <GaudiKernel/IStatSvc.h>

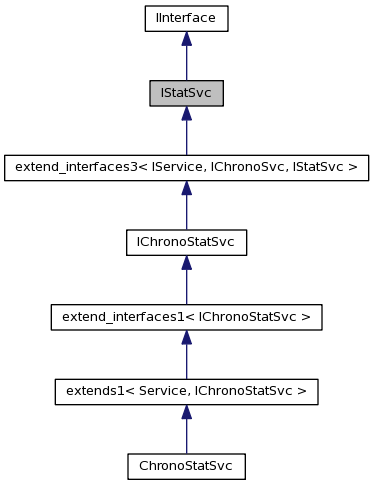

Inheritance diagram for IStatSvc:

Collaboration diagram for IStatSvc:

List of all members.

Public Types
typedef std::string	StatTag
	the actual identificator of Stat
typedef double	StatFlag
	the actual value type used for Stat
Public Member Functions
	DeclareInterfaceID (IStatSvc, 2, 0)
	InterfaceID.
virtual void	stat (const StatTag &t, const StatFlag &f)=0
	add statistical information to the entity , tagged by its name
virtual void	statPrint (const StatTag &t)=0
	prints (using message service) info about statistical entity, tagged by its name
virtual const StatEntity *	stat (const StatTag &t) const =0
	extract the stat entity for the given tag (name)
Protected Member Functions
virtual	~IStatSvc ()
	Destructor.

---

Detailed Description

"Stat"-related part of interface IChronoStatSvc

Author:

Vanya BELYAEV ibelyaev@physics.syr.edu

Date:

December 1, 1999

2007-07-08

Definition at line 27 of file IStatSvc.h.

---

Member Typedef Documentation

typedef double IStatSvc::StatFlag

the actual value type used for Stat

Definition at line 35 of file IStatSvc.h.

typedef std::string IStatSvc::StatTag

the actual identificator of Stat

Definition at line 33 of file IStatSvc.h.

---

Constructor & Destructor Documentation

IStatSvc::~IStatSvc

(

)

[protected, virtual]

Destructor.

Definition at line 24 of file IChronoStatSvc.cpp.

{}

---

Member Function Documentation

IStatSvc::DeclareInterfaceID	(	IStatSvc	,
		2	,
		0
	)

InterfaceID.

virtual const StatEntity* IStatSvc::stat

(

const StatTag &

t )

const [pure virtual]

extract the stat entity for the given tag (name)

Parameters:

t	stat tag(name)

Returns:

pointer to stat entity

Implemented in ChronoStatSvc.

virtual void IStatSvc::stat	(	const StatTag &	t,
		const StatFlag &	f
	)		[pure virtual]

add statistical information to the entity , tagged by its name

Parameters:

t	stat tag(name)
f	flag (quantity to be accumulated)

Returns:

status of stat

Implemented in ChronoStatSvc.

virtual void IStatSvc::statPrint

(

const StatTag &

t )

[pure virtual]

prints (using message service) info about statistical entity, tagged by its name

Parameters:

t	stat tag(name)

Returns:

status code

Implemented in ChronoStatSvc.

---

The documentation for this class was generated from the following files:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r2/GaudiKernel/GaudiKernel/IStatSvc.h
• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r2/GaudiKernel/src/Lib/IChronoStatSvc.cpp
