IToolSvc Class Reference

The interface implemented by the IToolSvc base class. More...

#include <GaudiKernel/IToolSvc.h>

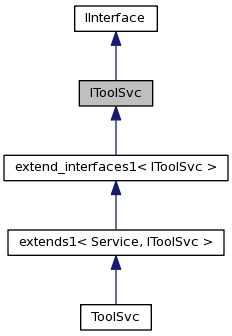

Inheritance diagram for IToolSvc:

Collaboration diagram for IToolSvc:

List of all members.

Classes
class	Observer
	allow call-backs when a tool is a created or retrieved More...
Public Member Functions
	DeclareInterfaceID (IToolSvc, 2, 0)
	InterfaceID.
virtual StatusCode	retrieve (const std::string &type, const InterfaceID &iid, IAlgTool *&tool, const IInterface *parent=0, bool createIf=true)=0
	Retrieve tool with tool dependent part of the name automatically assigned.
virtual StatusCode	retrieve (const std::string &type, const std::string &name, const InterfaceID &iid, IAlgTool *&tool, const IInterface *parent=0, bool createIf=true)=0
	Retrieve tool with tool dependent part of the name specified by the requester.
virtual std::vector< std::string >	getInstances (const std::string &toolType)=0
	Get all instance of tool by type.
virtual StatusCode	releaseTool (IAlgTool *tool)=0
	Release the tool.
template<class T >
StatusCode	retrieveTool (const std::string &type, T *&tool, const IInterface *parent=0, bool createIf=true)
	Retrieve specified tool sub-type with tool dependent part of the name automatically assigned.
template<class T >
StatusCode	retrieveTool (const std::string &type, const std::string &name, T *&tool, const IInterface *parent=0, bool createIf=true)
	Retrieve specified tool sub-type with tool dependent part of the name tool dependent part of the name specified by the requester.
virtual void	registerObserver (Observer *obs)=0
virtual void	unRegisterObserver (Observer *obs)=0

---

Detailed Description

The interface implemented by the IToolSvc base class.

Author:

G.Corti

Definition at line 17 of file IToolSvc.h.

---

Member Function Documentation

IToolSvc::DeclareInterfaceID	(	IToolSvc	,
		2	,
		0
	)

InterfaceID.

virtual std::vector<std::string> IToolSvc::getInstances

(

const std::string &

toolType )

[pure virtual]

Get all instance of tool by type.

Parameters:

toolType

type of tool

Implemented in ToolSvc.

virtual void IToolSvc::registerObserver

(

Observer *

obs )

[pure virtual]

Implemented in ToolSvc.

virtual StatusCode IToolSvc::releaseTool

(

IAlgTool *

tool )

[pure virtual]

Release the tool.

Parameters:

tool	to be released

Implemented in ToolSvc.

virtual StatusCode IToolSvc::retrieve	(	const std::string &	type,
		const InterfaceID &	iid,
		IAlgTool *&	tool,
		const IInterface *	parent = 0,
		bool	createIf = true
	)		[pure virtual]

Retrieve tool with tool dependent part of the name automatically assigned.

By default a tool will be created if it does not exist, unless otherwise specified. By default it will be a common tool unless a parent is specified. The parent of a common tool is automatically taken as the ToolSvc itself.

Parameters:

type	AlgTool type name
iid	the unique interface identifier
tool	returned tool
parent	constant reference to the parent (def=none)
createIf	creation flag (def=create if not existing)

Implemented in ToolSvc.

virtual StatusCode IToolSvc::retrieve	(	const std::string &	type,
		const std::string &	name,
		const InterfaceID &	iid,
		IAlgTool *&	tool,
		const IInterface *	parent = 0,
		bool	createIf = true
	)		[pure virtual]

Retrieve tool with tool dependent part of the name specified by the requester.

By default a tool will be created if it does not exist, unless otherwise specified. By default it will be a common tool unless a parent is specified. The parent of a common tool is automatically taken as the ToolSvc itself.

Parameters:

type	AlgTool type name
name	name to be assigned to tool dependent part of the name
iid	the unique interface identifier
tool	returned tool
parent	constant reference to parent (def=none)
createIf	creation flag (def=create if not existing)

Implemented in ToolSvc.

template<class T >

StatusCode IToolSvc::retrieveTool	(	const std::string &	type,
		const std::string &	name,
		T *&	tool,
		const IInterface *	parent = 0,
		bool	createIf = true
	)		[inline]

Retrieve specified tool sub-type with tool dependent part of the name tool dependent part of the name specified by the requester.

Internally it uses the corresponding IToolSvc::retrieve and does the dynamic casting.

  IToolSvc* svc  = ... ;
  IMyTool*  tool = 0   ;
  StatusCode sc = svc->retrieveTool ( "MyToolType" ,
                                      "MyToolName" , tool ) ;

For this example public tool of type 'MyToolType' will be retrieved from Tool Service (created on demand). The full name of the tool instance is set to be ToolSvc.MyToolName

  IToolSvc*   svc = ... ;
  IAlgorithm* alg = ... ;
  IMyTool*  tool  = 0   ;
  StatusCode sc   = svc->retrieveTool ( "MyToolType" ,
                                        "MyToolName" , tool , alg ) ;

For this example the private tool of type 'MyToolType' will be retrieved from Tool Service (created on demand). The full name of the tool instance is set to be <AlgName>.MyToolName , where <AlgName> is a name of the algorithm.

If name is empty ("") it is assumed to be equal to the type

Parameters:

type	AlgTool type name
name	name to be assigned to tool dependent part of the name
tool	returned tool
parent	constant reference to parent (def=none)
createIf	creation flag (def=create if not existing)

Definition at line 189 of file IToolSvc.h.

  {
    return retrieve ( type,
                      name,
                      T::interfaceID(),
                      (IAlgTool*&)tool,
                      parent,
                      createIf );
  }

template<class T >

StatusCode IToolSvc::retrieveTool	(	const std::string &	type,
		T *&	tool,
		const IInterface *	parent = 0,
		bool	createIf = true
	)		[inline]

Retrieve specified tool sub-type with tool dependent part of the name automatically assigned.

Internally it uses the corresponding IToolSvc::retrieve and does the dynamic casting.

  IToolSvc* svc  = ... ;
  IMyTool*  tool = 0   ;
  StatusCode sc = svc->retrieveTool ( "MyToolType" , tool ) ;

For this example public tool of type 'MyToolType' will be retrieved from Tool Service (created on demand). The full name of the tool instance is set to be ToolSvc.MyToolType

  IToolSvc*   svc = ... ;
  IAlgorithm* alg = ... ;
  IMyTool*  tool  = 0   ;
  StatusCode sc   = svc->retrieveTool ( "MyToolType" , tool , alg ) ;

For this example the private tool of type 'MyToolType' will be retrieved from Tool Service (created on demand). The full name of the tool instance is set to be <AlgName>.MyToolType , where <AlgName> is a name of the algorithm.

  IToolSvc* svc  = ... ;
  IMyTool*  tool = 0   ;
  StatusCode sc = svc->retrieveTool ( "MyToolType/MyToolName" , tool ) ;

For this example public tool of type 'MyToolType' will be retrieved from Tool Service (created on demand). The full name of the tool instance is set to be ToolSvc.MyToolName

  IToolSvc*   svc = ... ;
  IAlgorithm* alg = ... ;
  IMyTool*  tool  = 0   ;
  StatusCode sc   = svc ->
                retrieveTool ( "MyToolType/MyToolName" , tool , alg ) ;

For this example the private tool of type 'MyToolType' will be retrieved from Tool Service (created on demand). The full name of the tool instance is set to be <AlgName>.MyToolName , where <AlgName> is a name of the algorithm.

Parameters:

tool	returned tool
parent	constant reference to parent (def=none)
createIf	creation flag (def=create if not existing)

Definition at line 133 of file IToolSvc.h.

  {
    return retrieve( type,
                     T::interfaceID(),
                     (IAlgTool*&)tool,
                     parent,
                     createIf );
  }

virtual void IToolSvc::unRegisterObserver

(

Observer *

obs )

[pure virtual]

Implemented in ToolSvc.

---

The documentation for this class was generated from the following file:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r2/GaudiKernel/GaudiKernel/IToolSvc.h
