PartitionSwitchAlg Class Reference

Small algorith, which switches the partition of a configurable multi-service. More...

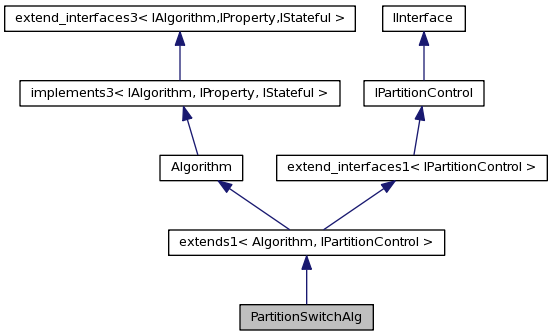

Inheritance diagram for PartitionSwitchAlg:
Inheritance graph
[legend]

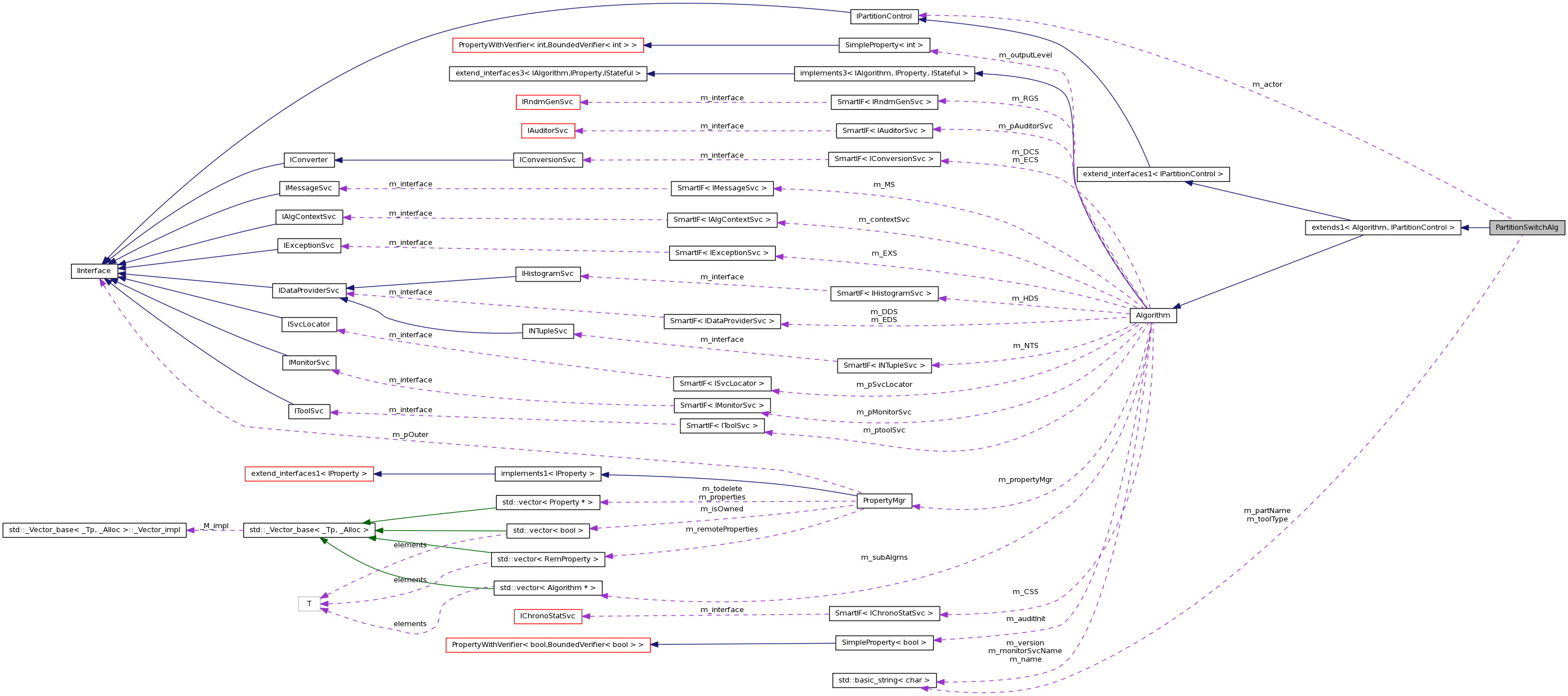

Collaboration diagram for PartitionSwitchAlg:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 PartitionSwitchAlg (CSTR name, ISvcLocator *pSvcLocator)
 Standard algorithm constructor.
virtual ~PartitionSwitchAlg ()
 Standard Destructor.
virtual STATUS initialize ()
 Initialize.
virtual STATUS finalize ()
 Finalize.
virtual STATUS execute ()
 Execute procedure.
void _check (STATUS sc, CSTR msg) const
virtual STATUS create (CSTR nam, CSTR typ)
 Create a partition object. The name identifies the partition uniquely.
virtual STATUS create (CSTR nam, CSTR typ, IInterface *&pPartition)
 Create a partition object. The name identifies the partition uniquely.
virtual STATUS drop (CSTR nam)
 Drop a partition object. The name identifies the partition uniquely.
virtual STATUS drop (IInterface *pPartition)
 Drop a partition object. The name identifies the partition uniquely.
virtual STATUS activate (CSTR nam)
 Activate a partition object. The name identifies the partition uniquely.
virtual STATUS activate (IInterface *pPartition)
 Activate a partition object.
virtual STATUS get (CSTR nam, IInterface *&pPartition) const
 Access a partition object. The name identifies the partition uniquely.
virtual STATUS activePartition (std::string &nam, IInterface *&pPartition) const
 Access the active partition object.

Private Types

typedef StatusCode STATUS
typedef const std::string & CSTR

Private Attributes

std::string m_partName
 Job option to set the requested partition name.
std::string m_toolType
 Job option to set the tool manipulating the multi-service name.
IPartitionControl * m_actor
 reference to Partition Controller

Detailed Description

Small algorith, which switches the partition of a configurable multi-service.

The algorithm can be part of a sequence, which allows for e.g. buffer tampering.

Author:
: M.Frank
Version:
: 1.0

Definition at line 26 of file PartitionSwitchAlg.cpp.

Member Typedef Documentation

typedef const std::string& PartitionSwitchAlg::CSTR [private]

Definition at line 29 of file PartitionSwitchAlg.cpp.

typedef StatusCode PartitionSwitchAlg::STATUS [private]

Definition at line 28 of file PartitionSwitchAlg.cpp.

Constructor & Destructor Documentation

PartitionSwitchAlg::PartitionSwitchAlg ( CSTR  name,
ISvcLocator *  pSvcLocator
) [inline]

Standard algorithm constructor.

Definition at line 43 of file PartitionSwitchAlg.cpp.

  : base_class(name, pSvcLocator), m_actor(0)
  {
    declareProperty("Partition",  m_partName);
    declareProperty("Tool",       m_toolType="PartitionSwitchTool");
  }
virtual PartitionSwitchAlg::~PartitionSwitchAlg (  ) [inline, virtual]

Standard Destructor.

Definition at line 50 of file PartitionSwitchAlg.cpp.

                                    {
  }

Member Function Documentation

void PartitionSwitchAlg::_check ( STATUS  sc,
CSTR  msg
) const [inline]

Definition at line 100 of file PartitionSwitchAlg.cpp.

                                          {
    MsgStream log(msgSvc(), name());
    log << MSG::ERROR << msg << " Status=" << sc.getCode() << endmsg;
  }
virtual STATUS PartitionSwitchAlg::activate ( CSTR  nam ) [inline, virtual]

Activate a partition object. The name identifies the partition uniquely.

Definition at line 127 of file PartitionSwitchAlg.cpp.

                                     {
    STATUS sc = m_actor ? m_actor->activate(nam) : NO_INTERFACE;
    CHECK(sc, "Cannot activate partition: "+nam);
  }
virtual STATUS PartitionSwitchAlg::activate ( IInterface *  pPartition ) [inline, virtual]

Activate a partition object.

Implements IPartitionControl.

Definition at line 132 of file PartitionSwitchAlg.cpp.

                                                   {
    STATUS sc = m_actor ? m_actor->activate(pPartition) : NO_INTERFACE;
    CHECK(sc, "Cannot activate partition by Interface.");
  }
virtual STATUS PartitionSwitchAlg::activePartition ( std::string &  nam,
IInterface *&  pPartition
) const [inline, virtual]

Access the active partition object.

Implements IPartitionControl.

Definition at line 142 of file PartitionSwitchAlg.cpp.

                                                                                 {
    STATUS sc = m_actor ? m_actor->activePartition(nam, pPartition) : NO_INTERFACE;
    CHECK(sc, "Cannot determine active partition.");
  }
virtual STATUS PartitionSwitchAlg::create ( CSTR  nam,
CSTR  typ
) [inline, virtual]

Create a partition object. The name identifies the partition uniquely.

Definition at line 107 of file PartitionSwitchAlg.cpp.

                                             {
    STATUS sc = m_actor ? m_actor->create(nam,typ) : NO_INTERFACE;
    CHECK(sc, "Cannot create partition: "+nam+" of type "+typ);
  }
virtual STATUS PartitionSwitchAlg::create ( CSTR  nam,
CSTR  typ,
IInterface *&  pPartition
) [inline, virtual]

Create a partition object. The name identifies the partition uniquely.

Definition at line 112 of file PartitionSwitchAlg.cpp.

                                                                      {
    STATUS sc = m_actor ? m_actor->create(nam,typ,pPartition) : NO_INTERFACE;
    CHECK(sc, "Cannot create partition: "+nam+" of type "+typ);
  }
virtual STATUS PartitionSwitchAlg::drop ( IInterface *  pPartition ) [inline, virtual]

Drop a partition object. The name identifies the partition uniquely.

Implements IPartitionControl.

Definition at line 122 of file PartitionSwitchAlg.cpp.

                                               {
    STATUS sc = m_actor ? m_actor->drop(pPartition) : NO_INTERFACE;
    CHECK(sc, "Cannot drop partition by Interface.");
  }
virtual STATUS PartitionSwitchAlg::drop ( CSTR  nam ) [inline, virtual]

Drop a partition object. The name identifies the partition uniquely.

Definition at line 117 of file PartitionSwitchAlg.cpp.

                                 {
    STATUS sc = m_actor ? m_actor->drop(nam) : NO_INTERFACE;
    CHECK(sc, "Cannot drop partition: "+nam);
  }
virtual STATUS PartitionSwitchAlg::execute (  ) [inline, virtual]

Execute procedure.

Definition at line 84 of file PartitionSwitchAlg.cpp.

                              {
    if ( m_actor )  {
      STATUS sc = m_actor->activate(m_partName);
      if ( !sc.isSuccess() )  {
        MsgStream log(msgSvc(), name());
        log << MSG::ERROR << "Cannot activate partition \""
            << m_partName << "\"!" << endmsg;
      }
      return sc;
    }
    MsgStream log(msgSvc(), name());
    log << MSG::ERROR << "The partition control tool \"" << name()
        << "." << m_toolType << "\" cannot be accessed!" << endmsg;
    return STATUS::FAILURE;
  }
virtual STATUS PartitionSwitchAlg::finalize (  ) [inline, virtual]

Finalize.

Reimplemented from Algorithm.

Definition at line 76 of file PartitionSwitchAlg.cpp.

                            {
    SmartIF<IAlgTool> tool(m_actor);
    if ( tool ) toolSvc()->releaseTool(tool);
    m_actor = 0;
    return STATUS::SUCCESS;
  }
virtual STATUS PartitionSwitchAlg::get ( CSTR  nam,
IInterface *&  pPartition
) const [inline, virtual]

Access a partition object. The name identifies the partition uniquely.

Definition at line 137 of file PartitionSwitchAlg.cpp.

                                                               {
    STATUS sc = m_actor ? m_actor->get(nam, pPartition) : NO_INTERFACE;
    CHECK(sc, "Cannot get partition "+nam);
  }
virtual STATUS PartitionSwitchAlg::initialize (  ) [inline, virtual]

Initialize.

Release old tool

Now check if the partition is present. If not: try to create it

Reimplemented from Algorithm.

Definition at line 54 of file PartitionSwitchAlg.cpp.

                                {
    MsgStream log(msgSvc(), name());
    SmartIF<IAlgTool> tool(m_actor);
    STATUS sc = toolSvc()->retrieveTool(m_toolType,m_actor,this);
    if ( sc.isFailure() ) {
      log << MSG::ERROR << "Unable to load PartitionSwitchTool "
          << m_toolType << endmsg;
      return sc;
    }
    if ( tool ) toolSvc()->releaseTool(tool);
    IInterface* partititon = 0;
    sc = m_actor->get(m_partName, partititon);
    if ( !sc.isSuccess() )  {
      log << MSG::ERROR << "Cannot access partition \""
          << m_partName << "\"" << endmsg;
    }
    return sc;
  }

Member Data Documentation

IPartitionControl* PartitionSwitchAlg::m_actor [private]

reference to Partition Controller

Definition at line 38 of file PartitionSwitchAlg.cpp.

std::string PartitionSwitchAlg::m_partName [private]

Job option to set the requested partition name.

Definition at line 34 of file PartitionSwitchAlg.cpp.

std::string PartitionSwitchAlg::m_toolType [private]

Job option to set the tool manipulating the multi-service name.

Definition at line 36 of file PartitionSwitchAlg.cpp.

The documentation for this class was generated from the following file:
