Small algorith, which traverses the data store and prints generic information about all leaves, which can be loaded/accessed. More...

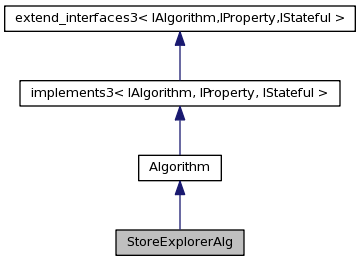

Inheritance diagram for StoreExplorerAlg:

[legend]

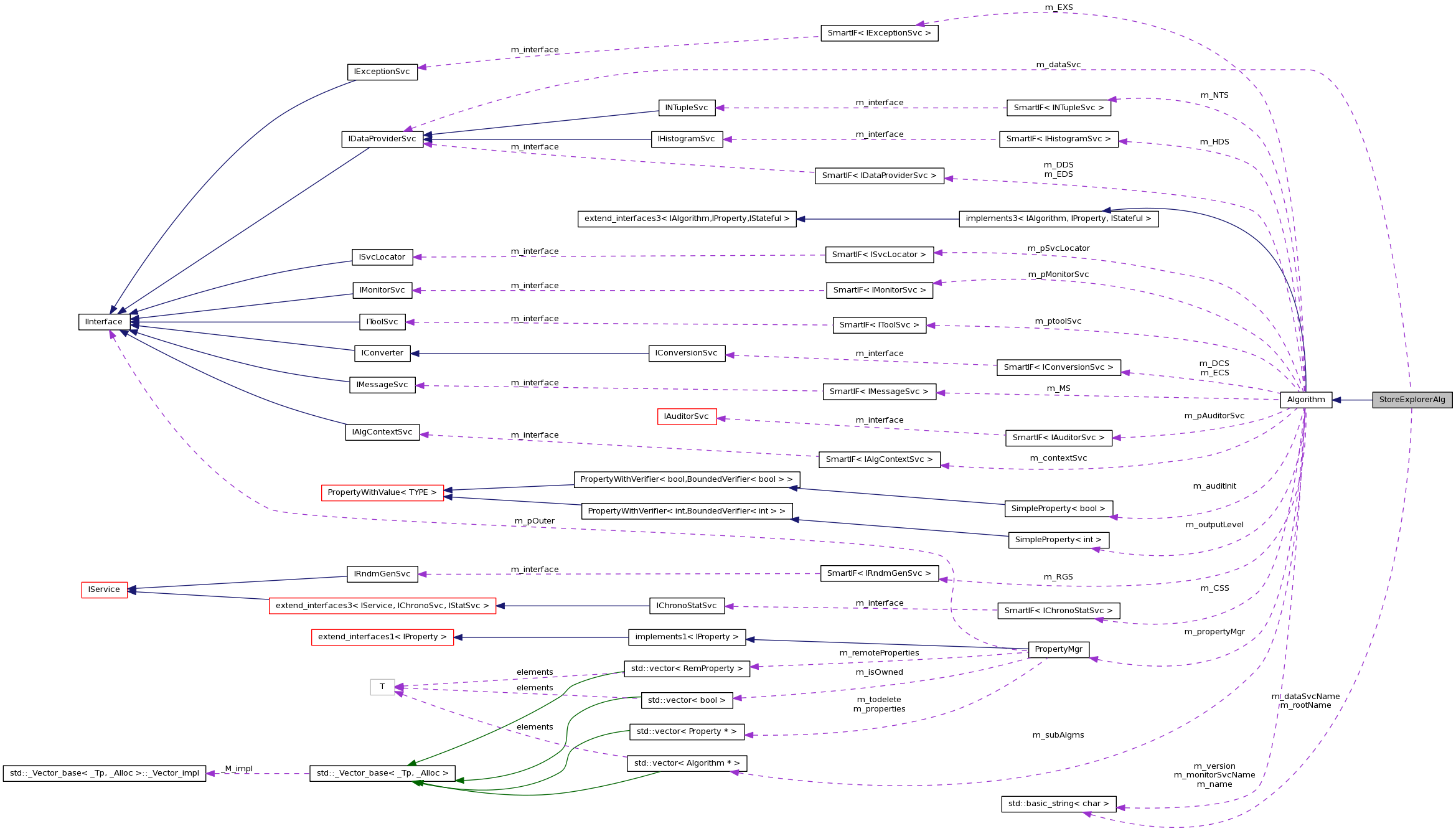

Collaboration diagram for StoreExplorerAlg:

[legend]

List of all members.

Public Member Functions
	StoreExplorerAlg (const std::string &name, ISvcLocator *pSvcLocator)
	Standard algorithm constructor.
virtual	~StoreExplorerAlg ()
	Standard Destructor.
template<class T >
std::string	access (T *p)
void	printObj (IRegistry *pReg, std::vector< bool > &flg)
	Print datastore leaf.
void	explore (IRegistry *pObj, std::vector< bool > &flg)
virtual StatusCode	initialize ()
	Initialize.
virtual StatusCode	finalize ()
	Finalize.
virtual StatusCode	execute ()
	Execute procedure.
Private Attributes
long	m_print
	Job option to limit printout to first nnn events.
double	m_frequency
	Job option to set the printout frequency.
bool	m_exploreRelations
	Flag to check if relations should be followed.
long	m_printMissing
	Flag to indicate if missing entities should be printed.
long	m_total
	Internal counter to trigger printouts.
long	m_frqPrint
	Internal counter to adjust printout frequency.
bool	m_load
	Flag to load non existing items.
bool	m_testAccess
	Flag to test access to objects (DataObject and ContainedObject)
bool	m_accessForeign
	Flag to indicate if foreign files should be opened.
IDataProviderSvc *	m_dataSvc
	Reference to data provider service.
std::string	m_dataSvcName
	Name of the data provider service.
std::string	m_rootName
	Name of the root leaf (obtained at initialize)

Detailed Description

Small algorith, which traverses the data store and prints generic information about all leaves, which can be loaded/accessed.

Author:: : M.Frank

Version:: : 1.0

Definition at line 32 of file StoreExplorerAlg.cpp.

Constructor & Destructor Documentation

StoreExplorerAlg::StoreExplorerAlg	(	const std::string &	name,
		ISvcLocator *	pSvcLocator
	)		`[inline]`

Standard algorithm constructor.

Definition at line 60 of file StoreExplorerAlg.cpp.

  :     Algorithm(name, pSvcLocator), m_dataSvc(0)
  {
    m_total = m_frqPrint = 0;
    declareProperty("Load",             m_load = false);
    declareProperty("PrintEvt",         m_print = 1);
    declareProperty("PrintMissing",     m_printMissing = 0);
    declareProperty("PrintFreq",        m_frequency = 0.0);
    declareProperty("ExploreRelations", m_exploreRelations = false);
    declareProperty("DataSvc",          m_dataSvcName="EventDataSvc");
    declareProperty("TestAccess",       m_testAccess = false);
    declareProperty("AccessForeign",    m_accessForeign = false);
  }

virtual StoreExplorerAlg::~StoreExplorerAlg ( ) [inline, virtual]

Standard Destructor.

Definition at line 74 of file StoreExplorerAlg.cpp.

                                  {
  }

Member Function Documentation

template<class T >

std::string StoreExplorerAlg::access ( T * p ) [inline]

Definition at line 78 of file StoreExplorerAlg.cpp.

                          {
    if ( p )  {
      std::stringstream s;
      for (typename T::const_iterator i = p->begin(); i != p->end(); ++i )  {
        int idx = p->index(*i);
        s << idx << ":" << (*i)->clID() << ",";
      }
      std::string result = s.str();
      return result.substr(0, result.length()-2);
    }
    return "Access FAILED.";
  }

virtual StatusCode StoreExplorerAlg::execute ( ) [inline, virtual]

Execute procedure.

Definition at line 237 of file StoreExplorerAlg.cpp.

                                  {
    MsgStream log(msgSvc(), name());
    SmartDataPtr<DataObject>   root(m_dataSvc,m_rootName);
    if ( ((m_print > m_total++) || (m_frequency*m_total > m_frqPrint)) && root )    {
      if ( m_frequency*m_total > m_frqPrint )  {
        m_frqPrint++;
      }
      std::string store_name = "Unknown";
      IRegistry* pReg = root->registry();
      if ( pReg )  {
        SmartIF<IService> isvc(pReg->dataSvc());
        if ( isvc )  {
          store_name = isvc->name();
        }
      }
      log << MSG::INFO << "========= " << m_rootName << "["
          << "0x" << std::hex << (unsigned long) root.ptr() << std::dec
          << "@" << store_name << "]:" << endmsg;
      std::vector<bool> flg;
      flg.push_back(true);
      explore(root->registry(), flg);
      return StatusCode::SUCCESS;
    }
    else if ( root )   {
      return StatusCode::SUCCESS;
    }
    log << MSG::ERROR << "Cannot retrieve \"/Event\"!" << endmsg;
    return StatusCode::FAILURE;
  }

void StoreExplorerAlg::explore	(	IRegistry *	pObj,
		std::vector< bool > &	flg
	)		`[inline]`

Definition at line 160 of file StoreExplorerAlg.cpp.

                                                         {
    printObj(pObj, flg);
    if ( 0 != pObj )    {
      SmartIF<IDataManagerSvc> mgr(eventSvc());
      if ( mgr )    {
        typedef std::vector<IRegistry*> Leaves;
        Leaves leaves;
        StatusCode sc = mgr->objectLeaves(pObj, leaves);
        const std::string* par0 = 0;
        if ( pObj->address() )  {
          par0 = pObj->address()->par();
        }
        if ( sc.isSuccess() )  {
          for ( Leaves::const_iterator i=leaves.begin(); i != leaves.end(); i++ )   {
            const std::string& id = (*i)->identifier();
            DataObject* p = 0;
            if ( !m_accessForeign && (*i)->address() )  {
              if ( par0 )  {
                const std::string* par1 = (*i)->address()->par();
                if ( par1 )  {
                  if ( par0[0] != par1[0] )  {
                    continue;
                  }
                }
              }
            }
            if ( m_load )  {
              sc = eventSvc()->retrieveObject(id, p);
            }
            else {
              sc = eventSvc()->findObject(id, p);
            }
            if ( sc.isSuccess() )  {
              if ( id != "/Event/Rec/Relations" || m_exploreRelations )   {
                flg.push_back(i+1 == leaves.end());
                explore(*i, flg);
                flg.pop_back();
              }
            }
            else {
              flg.push_back(i+1 == leaves.end());
              printObj(*i, flg);
              flg.pop_back();
            }
          }
        }
      }
    }
  }

virtual StatusCode StoreExplorerAlg::finalize ( ) [inline, virtual]

Finalize.

Reimplemented from Algorithm.

Definition at line 230 of file StoreExplorerAlg.cpp.

                                {
    if ( m_dataSvc ) m_dataSvc->release();
    m_dataSvc = 0;
    return StatusCode::SUCCESS;
  }

virtual StatusCode StoreExplorerAlg::initialize ( ) [inline, virtual]

Initialize.

Reimplemented from Algorithm.

Definition at line 211 of file StoreExplorerAlg.cpp.

                                    {
    MsgStream log(msgSvc(), name());
    m_rootName = "";
    StatusCode sc = service(m_dataSvcName, m_dataSvc, true);
    if ( sc.isSuccess() )  {
      SmartIF<IDataManagerSvc> mgr(m_dataSvc);
      if ( mgr )  {
        m_rootName = mgr->rootName();
        return sc;
      }
      log << MSG::ERROR << "Failed to retrieve IDataManagerSvc interface." << endmsg;
      return StatusCode::FAILURE;
    }
    log << MSG::ERROR << "Failed to access service \""
        << m_dataSvcName << "\"." << endmsg;
    return StatusCode::FAILURE;
  }

void StoreExplorerAlg::printObj	(	IRegistry *	pReg,
		std::vector< bool > &	flg
	)		`[inline]`

Print datastore leaf.

Definition at line 93 of file StoreExplorerAlg.cpp.

                                                          {
    MsgStream log(msgSvc(), name());
    log << MSG::INFO;
    for (size_t j = 1; j < flg.size(); j++ )     {
      if ( !flg[j-1] && flg[j] ) log << "| ";
      else if ( flg[j] ) log << "  ";
      else          log << "| ";
    }
    log << "+--> " << pReg->name();
    if ( pReg->address() )  {
      log << " [Address: CLID="
          << std::showbase << std::hex << pReg->address()->clID();
      log << " Type=" << (void*)pReg->address()->svcType() << "]";
    }
    else  {
      log << " [No Address]";
    }
    DataObject* p = pReg->object();
    if ( p )   {
      try  {
        std::string typ = System::typeinfoName(typeid(*p));
        if ( m_testAccess )  {
          p->clID();
        }
        log << "  " << typ.substr(0,32);
      }
      catch (...)  {
        log << "Access test FAILED";
      }
    }
    else    {
      log << "  (Unloaded) ";
    }
    ObjectContainerBase* base = dynamic_cast<ObjectContainerBase*>(p);
    if ( base )  {
      try   {
        int numObj = base->numberOfObjects();
        const CLID id = p->clID();
        log << " [" << numObj << "]";
        if ( m_testAccess )  {
          CLID idd = id>>16;
          switch(idd) {
            case CLID_ObjectList>>16:                /* ObjectList    */
              access((ObjectList<ContainedObject>*)base);
              break;
            case CLID_ObjectVector>>16:              /* ObjectVector  */
              access((ObjectVector<ContainedObject>*)base);
              break;
            case (CLID_ObjectVector+0x00030000)>>16: /* Keyed Map     */
              access((KeyedContainer<KeyedObject<int>,Containers::Map>*)base);
              break;
            case (CLID_ObjectVector+0x00040000)>>16: /* Keyed Hashmap */
              access((KeyedContainer<KeyedObject<int>,Containers::HashMap>*)base);
              break;
            case (CLID_ObjectVector+0x00050000)>>16: /* Keyed array   */
              access((KeyedContainer<KeyedObject<int>,Containers::Array>*)base);
              break;
          }
        }
      }
      catch (...)  {
        log << "Access test FAILED";
      }
    }
    log << endmsg;
  }
