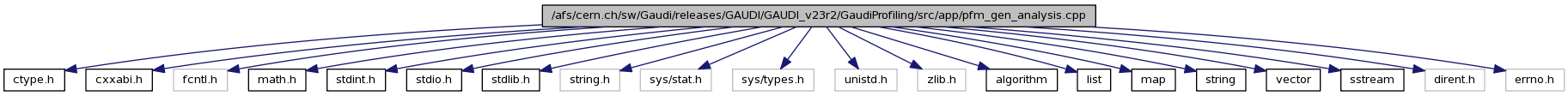

#include <ctype.h>#include <cxxabi.h>#include <fcntl.h>#include <math.h>#include <stdint.h>#include <stdio.h>#include <stdlib.h>#include <string.h>#include <sys/stat.h>#include <sys/types.h>#include <unistd.h>#include <zlib.h>#include <algorithm>#include <list>#include <map>#include <string>#include <vector>#include <sstream>#include <dirent.h>#include <errno.h>
Go to the source code of this file.
| #define CORE_L1_DTLB_MISS_CYCLES 10 |
Definition at line 40 of file pfm_gen_analysis.cpp.
| #define CORE_L2_HIT_CYCLES 14.5 |
Definition at line 39 of file pfm_gen_analysis.cpp.
| #define CORE_L2_MISS_CYCLES 200 |
Definition at line 38 of file pfm_gen_analysis.cpp.
| #define CORE_LCP_STALL_CYCLES 6 |
Definition at line 41 of file pfm_gen_analysis.cpp.
| #define CORE_OVERLAPPING_CYCLES 6 |
Definition at line 43 of file pfm_gen_analysis.cpp.
| #define CORE_SPAN_ACROSS_CACHE_LINE_CYCLES 20 |
Definition at line 44 of file pfm_gen_analysis.cpp.
| #define CORE_UNKNOWN_ADDR_STORE_CYCLES 5 |
Definition at line 42 of file pfm_gen_analysis.cpp.
| #define EXPECTED_CPI 0.25 |
Definition at line 65 of file pfm_gen_analysis.cpp.
| #define I7_IFETCH_L2_MISS_L3_HIT_NO_SNOOP 35 |
Definition at line 58 of file pfm_gen_analysis.cpp.
| #define I7_IFETCH_L2_MISS_L3_HIT_SNOOP 60 |
Definition at line 59 of file pfm_gen_analysis.cpp.
| #define I7_IFETCH_L2_MISS_L3_HITM 75 |
Definition at line 60 of file pfm_gen_analysis.cpp.
| #define I7_IFETCH_L3_MISS_LOCAL_DRAM_HIT 200 |
Definition at line 56 of file pfm_gen_analysis.cpp.
| #define I7_IFETCH_L3_MISS_REMOTE_CACHE_FWD 180 |
Definition at line 61 of file pfm_gen_analysis.cpp.
| #define I7_IFETCH_L3_MISS_REMOTE_DRAM_HIT 350 |
Definition at line 57 of file pfm_gen_analysis.cpp.
| #define I7_L1_DTLB_WALK_COMPLETED_CYCLES 35 |
Definition at line 47 of file pfm_gen_analysis.cpp.
| #define I7_L1_ITLB_WALK_COMPLETED_CYCLES 35 |
Definition at line 48 of file pfm_gen_analysis.cpp.
| #define I7_L2_HIT_CYCLES 6 |
Definition at line 49 of file pfm_gen_analysis.cpp.
| #define I7_L3_MISS_LOCAL_DRAM_HIT_CYCLES 225 |
Definition at line 53 of file pfm_gen_analysis.cpp.
| #define I7_L3_MISS_REMOTE_CACHE_HIT_CYCLES 180 |
Definition at line 55 of file pfm_gen_analysis.cpp.
| #define I7_L3_MISS_REMOTE_DRAM_HIT_CYCLES 360 |
Definition at line 54 of file pfm_gen_analysis.cpp.
| #define I7_L3_UNSHARED_HIT_CYCLES 35 |
Definition at line 50 of file pfm_gen_analysis.cpp.
| #define I7_OTHER_CORE_L2_HIT_CYCLES 60 |
Definition at line 51 of file pfm_gen_analysis.cpp.
| #define I7_OTHER_CORE_L2_HITM_CYCLES 75 |
Definition at line 52 of file pfm_gen_analysis.cpp.
| #define MAX_ARCH_NAME_LENGTH 20 |
Definition at line 81 of file pfm_gen_analysis.cpp.
| #define MAX_CMASK_STR_LENGTH 5 |
Definition at line 82 of file pfm_gen_analysis.cpp.
| #define MAX_EVENT_NAME_LENGTH 150 |
Definition at line 78 of file pfm_gen_analysis.cpp.
| #define MAX_FILENAME_LENGTH 1024 |
Definition at line 67 of file pfm_gen_analysis.cpp.
| #define MAX_INV_STR_LENGTH 5 |
Definition at line 83 of file pfm_gen_analysis.cpp.
| #define MAX_LIB_LENGTH 5000 |
Definition at line 71 of file pfm_gen_analysis.cpp.
| #define MAX_LIB_MOD_LENGTH 7000 |
Definition at line 72 of file pfm_gen_analysis.cpp.
| #define MAX_LINE_LENGTH 20000 |
Definition at line 77 of file pfm_gen_analysis.cpp.
| #define MAX_MODULE_NAME_LENGTH 250 |
Definition at line 79 of file pfm_gen_analysis.cpp.
| #define MAX_MODULES 1000 |
Definition at line 63 of file pfm_gen_analysis.cpp.
| #define MAX_SAMPLE_INDEX_LENGTH 10000 |
Definition at line 68 of file pfm_gen_analysis.cpp.
| #define MAX_SIMPLE_LIB_LENGTH 300 |
Definition at line 75 of file pfm_gen_analysis.cpp.
| #define MAX_SIMPLE_LIB_MOD_LENGTH 500 |
Definition at line 76 of file pfm_gen_analysis.cpp.
| #define MAX_SIMPLE_SYM_LENGTH 300 |
Definition at line 73 of file pfm_gen_analysis.cpp.
| #define MAX_SIMPLE_SYM_MOD_LENGTH 500 |
Definition at line 74 of file pfm_gen_analysis.cpp.
| #define MAX_SP_STR_LENGTH 50 |
Definition at line 84 of file pfm_gen_analysis.cpp.
| #define MAX_SYM_LENGTH 15000 |
Definition at line 69 of file pfm_gen_analysis.cpp.
| #define MAX_SYM_MOD_LENGTH 20000 |
Definition at line 70 of file pfm_gen_analysis.cpp.
| #define MAX_VALUE_STRING_LENGTH 250 |
Definition at line 80 of file pfm_gen_analysis.cpp.
| #define PIPE_BUFFER_LENGTH 1000 |
Definition at line 86 of file pfm_gen_analysis.cpp.
| void calc_core_deriv_values | ( | double | totalCycles ) |
Definition at line 469 of file pfm_gen_analysis.cpp.
{
for(std::map<std::string, std::map<std::string, double> >::iterator it = C_modules.begin(); it != C_modules.end(); ++it)
{
(it->second)["Total Cycles"] = (it->second)["UNHALTED_CORE_CYCLES"];
(it->second)["Stalled Cycles"] = (it->second)["RS_UOPS_DISPATCHED CMASK=1 INV=1"];
(it->second)["L2 Miss Impact"] = (it->second)["MEM_LOAD_RETIRED:L2_LINE_MISS"] * CORE_L2_MISS_CYCLES;
(it->second)["L2 Hit Impact"] = ((it->second)["MEM_LOAD_RETIRED:L1D_LINE_MISS"] - (it->second)["MEM_LOAD_RETIRED:L2_LINE_MISS"]) * CORE_L2_HIT_CYCLES;
(it->second)["L1 DTLB Miss Impact"] = (it->second)["MEM_LOAD_RETIRED:DTLB_MISS"] * CORE_L1_DTLB_MISS_CYCLES;
(it->second)["LCP Stalls Impact"] = (it->second)["ILD_STALL"] * CORE_LCP_STALL_CYCLES;
(it->second)["Loads Blocked by Unknown Address Store Impact"] = (it->second)["LOAD_BLOCK:STA"] * CORE_UNKNOWN_ADDR_STORE_CYCLES;
(it->second)["Loads Overlapped with Stores Impact"] = (it->second)["LOAD_BLOCK:OVERLAP_STORE"] * CORE_OVERLAPPING_CYCLES;
(it->second)["Loads Spanning across Cache Lines Impact"] = (it->second)["LOAD_BLOCK:UNTIL_RETIRE"] * CORE_SPAN_ACROSS_CACHE_LINE_CYCLES;
(it->second)["Store-Fwd Stalls Impact"] = (it->second)["Loads Blocked by Unknown Address Store Impact"] + (it->second)["Loads Overlapped with Stores Impact"] + (it->second)["Loads Spanning across Cache Lines Impact"];
(it->second)["Counted Stalled Cycles"] = (it->second)["L2 Miss Impact"] + (it->second)["L2 Hit Impact"] + (it->second)["LCP Stalls Impact"] + (it->second)["L1 DTLB Miss Impact"] + (it->second)["Store-Fwd Stalls Impact"];
(it->second)["Instructions Retired"] = (it->second)["INSTRUCTIONS_RETIRED"];
(it->second)["ITLB Miss Rate in %"] = ((it->second)["ITLB_MISS_RETIRED"]/(it->second)["INSTRUCTIONS_RETIRED"])*100;
(it->second)["Branch Instructions"] = (it->second)["BRANCH_INSTRUCTIONS_RETIRED"];
(it->second)["Load Instructions"] = (it->second)["INST_RETIRED:LOADS"];
(it->second)["Store Instructions"] = (it->second)["INST_RETIRED:STORES"];
(it->second)["Other Instructions"] = (it->second)["INST_RETIRED:OTHER"] - (it->second)["SIMD_COMP_INST_RETIRED:PACKED_SINGLE:PACKED_DOUBLE"] - (it->second)["BRANCH_INSTRUCTIONS_RETIRED"];
(it->second)["% of Mispredicted Branches"] = ((it->second)["MISPREDICTED_BRANCH_RETIRED"]/(it->second)["BRANCH_INSTRUCTIONS_RETIRED"])*100;
(it->second)["Packed SIMD Computational Instructions"] = (it->second)["SIMD_COMP_INST_RETIRED:PACKED_SINGLE:PACKED_DOUBLE"];
(it->second)["Counted Instructions Retired"] = (it->second)["Branch Instructions"] + (it->second)["Load Instructions"] + (it->second)["Store Instructions"] + (it->second)["Other Instructions"] + (it->second)["Packed SIMD Computational Instructions"];
(it->second)["CPI"] = (it->second)["UNHALTED_CORE_CYCLES"]/(it->second)["INSTRUCTIONS_RETIRED"];
double localPerformanceImprovement = (it->second)["CPI"]/EXPECTED_CPI;
double cyclesAfterImprovement = (it->second)["UNHALTED_CORE_CYCLES"]/localPerformanceImprovement;
double totalCyclesAfterImprovement = totalCycles-(it->second)["UNHALTED_CORE_CYCLES"]+cyclesAfterImprovement;
(it->second)["iMargin"] = 100-(totalCyclesAfterImprovement/totalCycles)*100;
(it->second)["% of Total Cycles"] = (it->second)["RS_UOPS_DISPATCHED CMASK=1 INV=1"]*100/(it->second)["UNHALTED_CORE_CYCLES"];
(it->second)["L2 Miss % of counted Stalled Cycles"] =(it->second)["L2 Miss Impact"]*100/(it->second)["Counted Stalled Cycles"];
(it->second)["L2 Hit % of counted Stalled Cycles"] =(it->second)["L2 Hit Impact"]*100/(it->second)["Counted Stalled Cycles"];
(it->second)["L1 DTLB Miss % of counted Stalled Cycles"] =(it->second)["L1 DTLB Miss Impact"]*100/(it->second)["Counted Stalled Cycles"];
(it->second)["LCP Stalls % of counted Stalled Cycles"] =(it->second)["LCP Stalls Impact"]*100/(it->second)["Counted Stalled Cycles"];
(it->second)["Store-Fwd Stalls % of counted Stalled Cycles"] =(it->second)["Store-Fwd Stalls Impact"]*100/(it->second)["Counted Stalled Cycles"];
(it->second)["Loads Blocked % of Store-Fwd Stalls Cycles"] =(it->second)["Loads Blocked by Unknown Address Store Impact"]*100/(it->second)["Store-Fwd Stalls Impact"];
(it->second)["Loads Overlapped % of Store-Fwd Stalls Cycles"] =(it->second)["Loads Overlapped with Stores Impact"]*100/(it->second)["Store-Fwd Stalls Impact"];
(it->second)["Loads Spanning % of Store-Fwd Stalls Cycles"] =(it->second)["Loads Spanning across Cache Lines Impact"]*100/(it->second)["Store-Fwd Stalls Impact"];
(it->second)["Load % of all Instructions"] =(it->second)["INST_RETIRED:LOADS"]*100/(it->second)["Counted Instructions Retired"];
(it->second)["Store % of all Instructions"] =(it->second)["INST_RETIRED:STORES"]*100/(it->second)["Counted Instructions Retired"];
(it->second)["Branch % of all Instructions"] =(it->second)["BRANCH_INSTRUCTIONS_RETIRED"]*100/(it->second)["Counted Instructions Retired"];
(it->second)["Packed SIMD % of all Instructions"] =(it->second)["SIMD_COMP_INST_RETIRED:PACKED_SINGLE:PACKED_DOUBLE"]*100/(it->second)["Counted Instructions Retired"];
(it->second)["Other % of all Instructions"] =(it->second)["Other Instructions"]*100/(it->second)["Counted Instructions Retired"];
}
}
| void calc_nhm_deriv_values | ( | double | totalCycles ) |
Definition at line 624 of file pfm_gen_analysis.cpp.
{
for(std::map<std::string, std::map<std::string, double> >::iterator it = C_modules.begin(); it != C_modules.end(); ++it)
{
(it->second)["Total Cycles"] = (it->second)["CPU_CLK_UNHALTED:THREAD_P"];
(it->second)["L2 Hit Impact"] = (it->second)["MEM_LOAD_RETIRED:L2_HIT"] * I7_L2_HIT_CYCLES;
(it->second)["L3 Unshared Hit Impact"] = (it->second)["MEM_LOAD_RETIRED:L3_UNSHARED_HIT"] * I7_L3_UNSHARED_HIT_CYCLES;
if((it->second)["MEM_LOAD_RETIRED:OTHER_CORE_L2_HIT_HITM"]>(it->second)["MEM_UNCORE_RETIRED:OTHER_CORE_L2_HITM"])
{
(it->second)["L2 Other Core Hit Impact"] = ((it->second)["MEM_LOAD_RETIRED:OTHER_CORE_L2_HIT_HITM"] - (it->second)["MEM_UNCORE_RETIRED:OTHER_CORE_L2_HITM"])* I7_OTHER_CORE_L2_HIT_CYCLES;
}
else
{
(it->second)["L2 Other Core Hit Impact"] = 0.0;
}
(it->second)["L2 Other Core Hit Modified Impact"] = (it->second)["MEM_UNCORE_RETIRED:OTHER_CORE_L2_HITM"] * I7_OTHER_CORE_L2_HITM_CYCLES;
(it->second)["L3 Miss -> Local DRAM Hit Impact"] = (it->second)["MEM_UNCORE_RETIRED:LOCAL_DRAM"] * I7_L3_MISS_LOCAL_DRAM_HIT_CYCLES;
(it->second)["L3 Miss -> Remote DRAM Hit Impact"] = (it->second)["MEM_UNCORE_RETIRED:REMOTE_DRAM"] * I7_L3_MISS_REMOTE_DRAM_HIT_CYCLES;
(it->second)["L3 Miss -> Remote Cache Hit Impact"] = (it->second)["MEM_UNCORE_RETIRED:REMOTE_CACHE_LOCAL_HOME_HIT"] * I7_L3_MISS_REMOTE_CACHE_HIT_CYCLES;
(it->second)["L3 Miss -> Total Impact"] = (it->second)["L3 Miss -> Local DRAM Hit Impact"] + (it->second)["L3 Miss -> Remote DRAM Hit Impact"] + (it->second)["L3 Miss -> Remote Cache Hit Impact"];
(it->second)["L1 DTLB Miss Impact"] = (it->second)["DTLB_LOAD_MISSES:WALK_COMPLETED"] * I7_L1_DTLB_WALK_COMPLETED_CYCLES;
(it->second)["Counted Stalled Cycles due to Load Ops"] = (it->second)["L3 Miss -> Total Impact"] + (it->second)["L2 Hit Impact"] + (it->second)["L1 DTLB Miss Impact"] + (it->second)["L3 Unshared Hit Impact"] + (it->second)["L2 Other Core Hit Modified Impact"] + (it->second)["L2 Other Core Hit Impact"];
(it->second)["Cycles spent during DIV & SQRT Ops"] = (it->second)["ARITH:CYCLES_DIV_BUSY"];
(it->second)["Total Counted Stalled Cycles"] = (it->second)["Counted Stalled Cycles due to Load Ops"] + (it->second)["Cycles spent during DIV & SQRT Ops"];
(it->second)["Stalled Cycles"] = (it->second)["Total Counted Stalled Cycles"]; //TO BE FIXED when UOPS_EXECUTED:0x3f is fixed!!
(it->second)["% of Total Cycles"] = (it->second)["Stalled Cycles"] * 100 / (it->second)["CPU_CLK_UNHALTED:THREAD_P"]; //TO BE FIXED!! see above
(it->second)["L3 Miss % of Load Stalls"] = (it->second)["L3 Miss -> Total Impact"] * 100 / (it->second)["Counted Stalled Cycles due to Load Ops"];
(it->second)["L2 Hit % of Load Stalls"] = (it->second)["L2 Hit Impact"] * 100 / (it->second)["Counted Stalled Cycles due to Load Ops"];
(it->second)["L1 DTLB Miss % of Load Stalls"] = (it->second)["L1 DTLB Miss Impact"] * 100 / (it->second)["Counted Stalled Cycles due to Load Ops"];
(it->second)["L3 Unshared Hit % of Load Stalls"] = (it->second)["L3 Unshared Hit Impact"] * 100 / (it->second)["Counted Stalled Cycles due to Load Ops"];
(it->second)["L2 Other Core Hit % of Load Stalls"] = (it->second)["L2 Other Core Hit Impact"] * 100 / (it->second)["Counted Stalled Cycles due to Load Ops"];
(it->second)["L2 Other Core Hit Modified % of Load Stalls"] = (it->second)["L2 Other Core Hit Modified Impact"] * 100 / (it->second)["Counted Stalled Cycles due to Load Ops"];
(it->second)["DIV & SQRT Ops % of counted Stalled Cycles"] = (it->second)["Cycles spent during DIV & SQRT Ops"] * 100 / (it->second)["Total Counted Stalled Cycles"];
(it->second)["Cycles IFETCH served by Local DRAM"] = (it->second)["OFFCORE_RESPONSE_0:DMND_IFETCH:LOCAL_DRAM"] * I7_IFETCH_L3_MISS_LOCAL_DRAM_HIT;
(it->second)["Cycles IFETCH served by L3 (Modified)"] = (it->second)["OFFCORE_RESPONSE_0:DMND_IFETCH:OTHER_CORE_HITM"] * I7_IFETCH_L2_MISS_L3_HITM;
(it->second)["Cycles IFETCH served by L3 (Clean Snoop)"] = (it->second)["OFFCORE_RESPONSE_0:DMND_IFETCH:OTHER_CORE_HIT_SNP"] * I7_IFETCH_L2_MISS_L3_HIT_SNOOP;
(it->second)["Cycles IFETCH served by Remote L2"] = (it->second)["OFFCORE_RESPONSE_0:DMND_IFETCH:REMOTE_CACHE_FWD"] * I7_IFETCH_L3_MISS_REMOTE_CACHE_FWD;
(it->second)["Cycles IFETCH served by Remote DRAM"] = (it->second)["OFFCORE_RESPONSE_0:DMND_IFETCH:REMOTE_DRAM"] * I7_IFETCH_L3_MISS_REMOTE_DRAM_HIT;
(it->second)["Cycles IFETCH served by L3 (No Snoop)"] = (it->second)["OFFCORE_RESPONSE_0:DMND_IFETCH:UNCORE_HIT"] * I7_IFETCH_L2_MISS_L3_HIT_NO_SNOOP;
(it->second)["Total L2 IFETCH miss Impact"] = (it->second)["Cycles IFETCH served by Local DRAM"] + (it->second)["Cycles IFETCH served by L3 (Modified)"] + (it->second)["Cycles IFETCH served by L3 (Clean Snoop)"] + (it->second)["Cycles IFETCH served by Remote L2"] + (it->second)["Cycles IFETCH served by Remote DRAM"] + (it->second)["Cycles IFETCH served by L3 (No Snoop)"];
(it->second)["Local DRAM IFECTHes % Impact"] = (it->second)["Cycles IFETCH served by Local DRAM"] * 100 / (it->second)["Total L2 IFETCH miss Impact"];
(it->second)["L3 (Modified) IFECTHes % Impact"] = (it->second)["Cycles IFETCH served by L3 (Modified)"] * 100 / (it->second)["Total L2 IFETCH miss Impact"];
(it->second)["L3 (Clean Snoop) IFECTHes % Impact"] = (it->second)["Cycles IFETCH served by L3 (Clean Snoop)"] * 100 / (it->second)["Total L2 IFETCH miss Impact"];
(it->second)["Remote L2 IFECTHes % Impact"] = (it->second)["Cycles IFETCH served by Remote L2"] * 100 / (it->second)["Total L2 IFETCH miss Impact"];
(it->second)["Remote DRAM IFECTHes % Impact"] = (it->second)["Cycles IFETCH served by Remote DRAM"] * 100 / (it->second)["Total L2 IFETCH miss Impact"];
(it->second)["L3 (No Snoop) IFECTHes % Impact"] = (it->second)["Cycles IFETCH served by L3 (No Snoop)"] * 100 / (it->second)["Total L2 IFETCH miss Impact"];
(it->second)["Total L2 IFETCH misses"] = (it->second)["L2_RQSTS:IFETCH_MISS"];
(it->second)["% of IFETCHes served by Local DRAM"] = (it->second)["OFFCORE_RESPONSE_0:DMND_IFETCH:LOCAL_DRAM"] * 100 / (it->second)["L2_RQSTS:IFETCH_MISS"];
(it->second)["% of IFETCHes served by L3 (Modified)"] = (it->second)["OFFCORE_RESPONSE_0:DMND_IFETCH:OTHER_CORE_HITM"] * 100 / (it->second)["L2_RQSTS:IFETCH_MISS"];
(it->second)["% of IFETCHes served by L3 (Clean Snoop)"] = (it->second)["OFFCORE_RESPONSE_0:DMND_IFETCH:OTHER_CORE_HIT_SNP"] * 100 / (it->second)["L2_RQSTS:IFETCH_MISS"];
(it->second)["% of IFETCHes served by Remote L2"] = (it->second)["OFFCORE_RESPONSE_0:DMND_IFETCH:REMOTE_CACHE_FWD"] * 100 / (it->second)["L2_RQSTS:IFETCH_MISS"];
(it->second)["% of IFETCHes served by Remote DRAM"] = (it->second)["OFFCORE_RESPONSE_0:DMND_IFETCH:REMOTE_DRAM"] * 100 / (it->second)["L2_RQSTS:IFETCH_MISS"];
(it->second)["% of IFETCHes served by L3 (No Snoop)"] = (it->second)["OFFCORE_RESPONSE_0:DMND_IFETCH:UNCORE_HIT"] * 100 / (it->second)["L2_RQSTS:IFETCH_MISS"];
(it->second)["% of L2 IFETCH misses"] = (it->second)["L2_RQSTS:IFETCH_MISS"] * 100 / ((it->second)["L2_RQSTS:IFETCH_MISS"] + (it->second)["L2_RQSTS:IFETCH_HIT"]);
(it->second)["L1 ITLB Miss Impact"] = (it->second)["ITLB_MISSES:WALK_COMPLETED"] * I7_L1_ITLB_WALK_COMPLETED_CYCLES;
(it->second)["Total Branch Instructions Executed"] = (it->second)["BR_INST_EXEC:ANY"];
(it->second)["% of Mispredicted Branches"] = (it->second)["BR_MISP_EXEC:ANY"] * 100 / (it->second)["BR_INST_EXEC:ANY"];
(it->second)["Direct Near Calls % of Total Branches Executed"] = (it->second)["BR_INST_EXEC:DIRECT_NEAR_CALL"] * 100 / (it->second)["Total Branch Instructions Executed"];
(it->second)["Indirect Near Calls % of Total Branches Executed"] = (it->second)["BR_INST_EXEC:INDIRECT_NEAR_CALL"] * 100 / (it->second)["Total Branch Instructions Executed"];
(it->second)["Indirect Near Non-Calls % of Total Branches Executed"] = (it->second)["BR_INST_EXEC:INDIRECT_NON_CALL"] * 100 / (it->second)["Total Branch Instructions Executed"];
(it->second)["All Near Calls % of Total Branches Executed"] = (it->second)["BR_INST_EXEC:NEAR_CALLS"] * 100 / (it->second)["Total Branch Instructions Executed"];
(it->second)["All Non Calls % of Total Branches Executed"] = (it->second)["BR_INST_EXEC:NON_CALLS"] * 100 / (it->second)["Total Branch Instructions Executed"];
(it->second)["All Returns % of Total Branches Executed"] = (it->second)["BR_INST_EXEC:RETURN_NEAR"] * 100 / (it->second)["Total Branch Instructions Executed"];
(it->second)["Total Branch Instructions Retired"] = (it->second)["BR_INST_RETIRED:ALL_BRANCHES"];
(it->second)["Conditionals % of Total Branches Retired"] = (it->second)["BR_INST_RETIRED:CONDITIONAL"] * 100 / (it->second)["Total Branch Instructions Retired"];
(it->second)["Near Calls % of Total Branches Retired"] = (it->second)["BR_INST_RETIRED:NEAR_CALL"] * 100 / (it->second)["Total Branch Instructions Retired"];
(it->second)["Instruction Starvation % of Total Cycles"] = ((it->second)["UOPS_ISSUED:ANY CMASK=1 INV=1"] - (it->second)["RESOURCE_STALLS:ANY"])* 100 / (it->second)["CPU_CLK_UNHALTED:THREAD_P"];
(it->second)["% of Total Cycles spent handling FP exceptions"] = (it->second)["UOPS_DECODED:MS CMASK=1"]* 100 / (it->second)["CPU_CLK_UNHALTED:THREAD_P"];
(it->second)["# of Instructions per Call"] = (it->second)["INST_RETIRED:ANY_P"] / (it->second)["BR_INST_EXEC:NEAR_CALLS"];
(it->second)["Instructions Retired"] = (it->second)["INST_RETIRED:ANY_P"];
(it->second)["ITLB Miss Rate in %"] = ((it->second)["ITLB_MISS_RETIRED"] / (it->second)["INST_RETIRED:ANY_P"]) * 100;
(it->second)["Branch Instructions"] = (it->second)["BR_INST_RETIRED:ALL_BRANCHES"];
(it->second)["Load Instructions"] = (it->second)["MEM_INST_RETIRED:LOADS"];
(it->second)["Store Instructions"] = (it->second)["MEM_INST_RETIRED:STORES"];
(it->second)["Other Instructions"] = (it->second)["Instructions Retired"] - (it->second)["MEM_INST_RETIRED:LOADS"] - (it->second)["MEM_INST_RETIRED:STORES"] - (it->second)["BR_INST_RETIRED:ALL_BRANCHES"];
(it->second)["Packed UOPS Retired"] = (it->second)["SSEX_UOPS_RETIRED:PACKED_DOUBLE"] + (it->second)["SSEX_UOPS_RETIRED:PACKED_SINGLE"];
(it->second)["CPI"] = (it->second)["CPU_CLK_UNHALTED:THREAD_P"] / (it->second)["INST_RETIRED:ANY_P"];
double localPerformanceImprovement = (it->second)["CPI"]/EXPECTED_CPI;
double cyclesAfterImprovement = (it->second)["CPU_CLK_UNHALTED:THREAD_P"]/localPerformanceImprovement;
double totalCyclesAfterImprovement = totalCycles-(it->second)["CPU_CLK_UNHALTED:THREAD_P"]+cyclesAfterImprovement;
(it->second)["iMargin"] = 100-(totalCyclesAfterImprovement/totalCycles)*100;
(it->second)["Load % of all Instructions"] = (it->second)["MEM_INST_RETIRED:LOADS"] * 100 / (it->second)["INST_RETIRED:ANY_P"];
(it->second)["Store % of all Instructions"] = (it->second)["MEM_INST_RETIRED:STORES"] * 100 / (it->second)["INST_RETIRED:ANY_P"];
(it->second)["Branch % of all Instructions"] = (it->second)["BR_INST_RETIRED:ALL_BRANCHES"] * 100 / (it->second)["INST_RETIRED:ANY_P"];
(it->second)["Other % of all Instructions"] = (it->second)["Other Instructions"] * 100 / (it->second)["INST_RETIRED:ANY_P"];
(it->second)["Packed % of all UOPS Retired"] = (it->second)["Packed UOPS Retired"] * 100 / (it->second)["UOPS_RETIRED:ANY"];
}
}
| void calc_post_deriv_values | ( | ) |
Definition at line 1687 of file pfm_gen_analysis.cpp.
{
if(nehalem)
{
for(std::map<std::string, std::map<std::string, double> >::iterator it = C_modules.begin(); it != C_modules.end(); ++it)
{
double simdnorm = 1. - normalize("Packed % of all UOPS Retired", (it->second)["Packed % of all UOPS Retired"], 1);
double misspnorm = normalize("% of Mispredicted Branches", (it->second)["% of Mispredicted Branches"], 1);
double stallnorm = normalize("Stalled Cycles", (it->second)["Stalled Cycles"], 1);
(it->second)["iFactor"] = stallnorm*(simdnorm + misspnorm + stallnorm);
}
}
else
{
for(std::map<std::string, std::map<std::string, double> >::iterator it = C_modules.begin(); it != C_modules.end(); ++it)
{
double simdnorm = 1. - normalize("Packed SIMD % of all Instructions", (it->second)["Packed SIMD % of all Instructions"], 1);
double misspnorm = normalize("% of Mispredicted Branches", (it->second)["% of Mispredicted Branches"], 1);
double stallnorm = normalize("Stalled Cycles", (it->second)["Stalled Cycles"], 1);
(it->second)["iFactor"] = stallnorm*(simdnorm + misspnorm + stallnorm);
}
}
}
| bool check_for_core_caa_events | ( | ) |
Definition at line 393 of file pfm_gen_analysis.cpp.
{
for(std::vector<std::string>::const_iterator it=core_caa_events.begin(); it!=core_caa_events.end(); ++it)
{
if(find(C_events.begin(), C_events.end(), (*it))==C_events.end())
{
fprintf(stderr, "ERROR: Cannot find event %s!!!\naborting...\n", (*it).c_str());
return false;
}
}
return true;
}
| bool check_for_nhm_caa_events | ( | ) |
Definition at line 406 of file pfm_gen_analysis.cpp.
{
for(std::vector<std::string>::const_iterator it=nhm_caa_events.begin(); it!=nhm_caa_events.end(); ++it)
{
if(find(C_events.begin(), C_events.end(), (*it))==C_events.end())
{
fprintf(stderr, "ERROR: Cannot find event %s!!!\naborting...\n", (*it).c_str());
return false;
}
}
return true;
}
| int finalize_S_html_pages | ( | const char * | dir ) |
Definition at line 1472 of file pfm_gen_analysis.cpp.
{
for(std::map<std::string, unsigned int>::const_iterator i = modules_tot_samples.begin(); i != modules_tot_samples.end(); i++)
{
char module_filename[MAX_FILENAME_LENGTH];
strcpy(module_filename, dir);
strcat(module_filename, "/HTML/");
strcat(module_filename, (i->first).c_str());
strcat(module_filename, ".html");
FILE *module_file = fopen(module_filename, "a");
if(module_file == NULL)
{
fprintf(stderr, "ERROR: Unable to append to file: %s\naborting...\n", module_filename);
exit(1);
}
fprintf(module_file, "</body>\n</html>\n");
if(fclose(module_file))
{
fprintf(stderr, "ERROR: Cannot close file %s!!!\naborting...\n", module_filename);
exit(1);
}
}
return 0;
}
| const char* func_name | ( | const char * | demangled_symbol ) |
Definition at line 855 of file pfm_gen_analysis.cpp.
{
char *operator_string_begin = const_cast<char *>(strstr(demangled_symbol, "operator"));
if(operator_string_begin != NULL)
{
char *operator_string_end = operator_string_begin+8;
while(*operator_string_end == ' ') operator_string_end++;
if(strstr(operator_string_end, "delete[]")==operator_string_end)
{
operator_string_end+=8;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "delete")==operator_string_end)
{
operator_string_end+=6;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "new[]")==operator_string_end)
{
operator_string_end+=5;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "new")==operator_string_end)
{
operator_string_end+=3;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, ">>=")==operator_string_end)
{
operator_string_end+=3;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "<<=")==operator_string_end)
{
operator_string_end+=3;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "->*")==operator_string_end)
{
operator_string_end+=3;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "<<")==operator_string_end)
{
operator_string_end+=2;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, ">>")==operator_string_end)
{
operator_string_end+=2;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, ">=")==operator_string_end)
{
operator_string_end+=2;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "<=")==operator_string_end)
{
operator_string_end+=2;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "==")==operator_string_end)
{
operator_string_end+=2;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "!=")==operator_string_end)
{
operator_string_end+=2;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "|=")==operator_string_end)
{
operator_string_end+=2;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "&=")==operator_string_end)
{
operator_string_end+=2;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "^=")==operator_string_end)
{
operator_string_end+=2;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "%=")==operator_string_end)
{
operator_string_end+=2;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "/=")==operator_string_end)
{
operator_string_end+=2;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "*=")==operator_string_end)
{
operator_string_end+=2;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "-=")==operator_string_end)
{
operator_string_end+=2;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "+=")==operator_string_end)
{
operator_string_end+=2;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "&&")==operator_string_end)
{
operator_string_end+=2;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "||")==operator_string_end)
{
operator_string_end+=2;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "[]")==operator_string_end)
{
operator_string_end+=2;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "()")==operator_string_end)
{
operator_string_end+=2;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "++")==operator_string_end)
{
operator_string_end+=2;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "--")==operator_string_end)
{
operator_string_end+=2;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "->")==operator_string_end)
{
operator_string_end+=2;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "<")==operator_string_end)
{
operator_string_end+=1;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, ">")==operator_string_end)
{
operator_string_end+=1;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "~")==operator_string_end)
{
operator_string_end+=1;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "!")==operator_string_end)
{
operator_string_end+=1;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "+")==operator_string_end)
{
operator_string_end+=1;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "-")==operator_string_end)
{
operator_string_end+=1;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "*")==operator_string_end)
{
operator_string_end+=1;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "/")==operator_string_end)
{
operator_string_end+=1;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "%")==operator_string_end)
{
operator_string_end+=1;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "^")==operator_string_end)
{
operator_string_end+=1;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "&")==operator_string_end)
{
operator_string_end+=1;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "|")==operator_string_end)
{
operator_string_end+=1;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, ",")==operator_string_end)
{
operator_string_end+=1;
*operator_string_end='\0';
}
else if(strstr(operator_string_end, "=")==operator_string_end)
{
operator_string_end+=1;
*operator_string_end='\0';
}
return operator_string_begin;
}
char *end_of_demangled_name = const_cast<char *>(strrchr(demangled_symbol, ')'));
if(end_of_demangled_name != NULL)
{
int pars = 1;
char c;
while(pars>0 && end_of_demangled_name!=demangled_symbol)
{
c = *(--end_of_demangled_name);
if(c==')')
{
pars++;
}
else if(c=='(')
{
pars--;
}
}
}
else
{
return demangled_symbol;
}
char *end_of_func_name = end_of_demangled_name;
if(end_of_func_name != NULL)
{
*end_of_func_name = '\0';
char c = *(--end_of_func_name);
if(c=='>')
{
int pars = 1;
while(pars>0 && end_of_func_name!=demangled_symbol)
{
c = *(--end_of_func_name);
if(c=='>')
{
pars++;
}
else if(c=='<')
{
pars--;
}
}
*end_of_func_name = '\0';
}
c = *(--end_of_func_name);
while(isalnum(c) || c=='_' || c=='~')
{
c = *(--end_of_func_name);
}
return ++end_of_func_name;
}
return demangled_symbol;
}
| double getTotalCycles | ( | ) |
Definition at line 1715 of file pfm_gen_analysis.cpp.
{
double sum=0;
if(nehalem)
{
for(std::map<std::string, std::map<std::string, double> >::iterator it = C_modules.begin(); it != C_modules.end(); ++it)
{
sum += (it->second)["CPU_CLK_UNHALTED:THREAD_P"];
}
}
else
{
for(std::map<std::string, std::map<std::string, double> >::iterator it = C_modules.begin(); it != C_modules.end(); ++it)
{
sum += (it->second)["UNHALTED_CORE_CYCLES"];
}
}
return sum;
}
| void html_special_chars | ( | const char * | s, |
| char * | s_mod | ||
| ) |
Definition at line 821 of file pfm_gen_analysis.cpp.
{
int n = strlen(s);
*s_mod = '\0';
for (int i=0; i < n; i++)
{
switch(s[i])
{
case '<':
strcat(s_mod, "<");
break;
case '>':
strcat(s_mod, ">");
break;
case '&':
strcat(s_mod, "&");
break;
case '"':
strcat(s_mod, """);
break;
default:
char to_app[2];
to_app[0]=s[i];
to_app[1]='\0';
strcat(s_mod, to_app);
break;
}
}
return;
}
| void init_core_caa_events | ( | ) |
Definition at line 323 of file pfm_gen_analysis.cpp.
{
core_caa_events.push_back("BRANCH_INSTRUCTIONS_RETIRED");
core_caa_events.push_back("ILD_STALL");
core_caa_events.push_back("INST_RETIRED:LOADS");
core_caa_events.push_back("INST_RETIRED:OTHER");
core_caa_events.push_back("INST_RETIRED:STORES");
core_caa_events.push_back("INSTRUCTIONS_RETIRED");
core_caa_events.push_back("LOAD_BLOCK:OVERLAP_STORE");
core_caa_events.push_back("LOAD_BLOCK:STA");
core_caa_events.push_back("LOAD_BLOCK:UNTIL_RETIRE");
core_caa_events.push_back("MEM_LOAD_RETIRED:DTLB_MISS");
core_caa_events.push_back("MEM_LOAD_RETIRED:L1D_LINE_MISS");
core_caa_events.push_back("MEM_LOAD_RETIRED:L2_LINE_MISS");
core_caa_events.push_back("MISPREDICTED_BRANCH_RETIRED");
//core_caa_events.push_back("RS_UOPS_DISPATCHED");
//core_caa_events.push_back("RS_UOPS_DISPATCHED CMASK=1");
core_caa_events.push_back("RS_UOPS_DISPATCHED CMASK=1 INV=1");
core_caa_events.push_back("SIMD_COMP_INST_RETIRED:PACKED_SINGLE:PACKED_DOUBLE");
core_caa_events.push_back("UNHALTED_CORE_CYCLES");
//core_caa_events.push_back("UOPS_RETIRED:ANY");
//core_caa_events.push_back("UOPS_RETIRED:FUSED");
//core_caa_events.push_back("IDLE_DURING_DIV");
}
| void init_core_caa_events_displ | ( | ) |
Definition at line 419 of file pfm_gen_analysis.cpp.
{
core_caa_events_displ.push_back("Total Cycles");
core_caa_events_displ.push_back("Stalled Cycles");
core_caa_events_displ.push_back("% of Total Cycles");
core_caa_events_displ.push_back("Instructions Retired");
core_caa_events_displ.push_back("CPI");
core_caa_events_displ.push_back("");
core_caa_events_displ.push_back("iMargin");
core_caa_events_displ.push_back("iFactor");
core_caa_events_displ.push_back("");
core_caa_events_displ.push_back("Counted Stalled Cycles");
core_caa_events_displ.push_back("");
core_caa_events_displ.push_back("L2 Miss Impact");
core_caa_events_displ.push_back("L2 Miss % of counted Stalled Cycles");
core_caa_events_displ.push_back("");
core_caa_events_displ.push_back("L2 Hit Impact");
core_caa_events_displ.push_back("L2 Hit % of counted Stalled Cycles");
core_caa_events_displ.push_back("");
core_caa_events_displ.push_back("L1 DTLB Miss Impact");
core_caa_events_displ.push_back("L1 DTLB Miss % of counted Stalled Cycles");
core_caa_events_displ.push_back("");
core_caa_events_displ.push_back("LCP Stalls Impact");
core_caa_events_displ.push_back("LCP Stalls % of counted Stalled Cycles");
core_caa_events_displ.push_back("");
core_caa_events_displ.push_back("Store-Fwd Stalls Impact");
core_caa_events_displ.push_back("Store-Fwd Stalls % of counted Stalled Cycles");
core_caa_events_displ.push_back("");
core_caa_events_displ.push_back("Loads Blocked by Unknown Address Store Impact");
core_caa_events_displ.push_back("Loads Blocked % of Store-Fwd Stalls Cycles");
core_caa_events_displ.push_back("Loads Overlapped with Stores Impact");
core_caa_events_displ.push_back("Loads Overlapped % of Store-Fwd Stalls Cycles");
core_caa_events_displ.push_back("Loads Spanning across Cache Lines Impact");
core_caa_events_displ.push_back("Loads Spanning % of Store-Fwd Stalls Cycles");
core_caa_events_displ.push_back("");
core_caa_events_displ.push_back("Load Instructions");
core_caa_events_displ.push_back("Load % of all Instructions");
core_caa_events_displ.push_back("Store Instructions");
core_caa_events_displ.push_back("Store % of all Instructions");
core_caa_events_displ.push_back("Branch Instructions");
core_caa_events_displ.push_back("Branch % of all Instructions");
core_caa_events_displ.push_back("Packed SIMD Computational Instructions");
core_caa_events_displ.push_back("Packed SIMD % of all Instructions");
core_caa_events_displ.push_back("Other Instructions");
core_caa_events_displ.push_back("Other % of all Instructions");
core_caa_events_displ.push_back("");
core_caa_events_displ.push_back("ITLB Miss Rate in %");
core_caa_events_displ.push_back("% of Mispredicted Branches");
}
| void init_nhm_caa_events | ( | ) |
Definition at line 348 of file pfm_gen_analysis.cpp.
{
nhm_caa_events.push_back("ARITH:CYCLES_DIV_BUSY");
nhm_caa_events.push_back("BR_INST_EXEC:ANY");
nhm_caa_events.push_back("BR_INST_EXEC:DIRECT_NEAR_CALL");
nhm_caa_events.push_back("BR_INST_EXEC:INDIRECT_NEAR_CALL");
nhm_caa_events.push_back("BR_INST_EXEC:INDIRECT_NON_CALL");
nhm_caa_events.push_back("BR_INST_EXEC:NEAR_CALLS");
nhm_caa_events.push_back("BR_INST_EXEC:NON_CALLS");
nhm_caa_events.push_back("BR_INST_EXEC:RETURN_NEAR");
nhm_caa_events.push_back("BR_INST_RETIRED:ALL_BRANCHES");
nhm_caa_events.push_back("BR_INST_RETIRED:CONDITIONAL");
nhm_caa_events.push_back("BR_INST_RETIRED:NEAR_CALL");
nhm_caa_events.push_back("BR_MISP_EXEC:ANY");
nhm_caa_events.push_back("CPU_CLK_UNHALTED:THREAD_P");
nhm_caa_events.push_back("DTLB_LOAD_MISSES:WALK_COMPLETED");
nhm_caa_events.push_back("INST_RETIRED:ANY_P");
nhm_caa_events.push_back("ITLB_MISSES:WALK_COMPLETED");
nhm_caa_events.push_back("L2_RQSTS:IFETCH_HIT");
nhm_caa_events.push_back("L2_RQSTS:IFETCH_MISS");
nhm_caa_events.push_back("MEM_INST_RETIRED:LOADS");
nhm_caa_events.push_back("MEM_INST_RETIRED:STORES");
nhm_caa_events.push_back("MEM_LOAD_RETIRED:L2_HIT");
nhm_caa_events.push_back("MEM_LOAD_RETIRED:L3_MISS");
nhm_caa_events.push_back("MEM_LOAD_RETIRED:L3_UNSHARED_HIT");
nhm_caa_events.push_back("MEM_LOAD_RETIRED:OTHER_CORE_L2_HIT_HITM");
nhm_caa_events.push_back("MEM_UNCORE_RETIRED:LOCAL_DRAM");
nhm_caa_events.push_back("MEM_UNCORE_RETIRED:OTHER_CORE_L2_HITM");
nhm_caa_events.push_back("MEM_UNCORE_RETIRED:REMOTE_CACHE_LOCAL_HOME_HIT");
nhm_caa_events.push_back("MEM_UNCORE_RETIRED:REMOTE_DRAM");
nhm_caa_events.push_back("OFFCORE_RESPONSE_0:DMND_IFETCH:LOCAL_DRAM");
nhm_caa_events.push_back("OFFCORE_RESPONSE_0:DMND_IFETCH:OTHER_CORE_HITM");
nhm_caa_events.push_back("OFFCORE_RESPONSE_0:DMND_IFETCH:OTHER_CORE_HIT_SNP");
nhm_caa_events.push_back("OFFCORE_RESPONSE_0:DMND_IFETCH:REMOTE_CACHE_FWD");
nhm_caa_events.push_back("OFFCORE_RESPONSE_0:DMND_IFETCH:REMOTE_DRAM");
nhm_caa_events.push_back("OFFCORE_RESPONSE_0:DMND_IFETCH:UNCORE_HIT");
nhm_caa_events.push_back("RESOURCE_STALLS:ANY");
nhm_caa_events.push_back("SSEX_UOPS_RETIRED:PACKED_DOUBLE");
nhm_caa_events.push_back("SSEX_UOPS_RETIRED:PACKED_SINGLE");
nhm_caa_events.push_back("UOPS_DECODED:MS CMASK=1");
nhm_caa_events.push_back("UOPS_ISSUED:ANY CMASK=1 INV=1");
nhm_caa_events.push_back("ITLB_MISS_RETIRED");
nhm_caa_events.push_back("UOPS_RETIRED:ANY");
}
| void init_nhm_caa_events_displ | ( | ) |
Definition at line 518 of file pfm_gen_analysis.cpp.
{
nhm_caa_events_displ.push_back("Total Cycles");
nhm_caa_events_displ.push_back("Instructions Retired");
nhm_caa_events_displ.push_back("CPI");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("iMargin");
nhm_caa_events_displ.push_back("iFactor");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("Stalled Cycles");
nhm_caa_events_displ.push_back("% of Total Cycles");
nhm_caa_events_displ.push_back("Total Counted Stalled Cycles");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("Instruction Starvation % of Total Cycles");
nhm_caa_events_displ.push_back("# of Instructions per Call");
nhm_caa_events_displ.push_back("% of Total Cycles spent handling FP exceptions");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("Counted Stalled Cycles due to Load Ops");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("L2 Hit Impact");
nhm_caa_events_displ.push_back("L2 Hit % of Load Stalls");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("L3 Unshared Hit Impact");
nhm_caa_events_displ.push_back("L3 Unshared Hit % of Load Stalls");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("L2 Other Core Hit Impact");
nhm_caa_events_displ.push_back("L2 Other Core Hit % of Load Stalls");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("L2 Other Core Hit Modified Impact");
nhm_caa_events_displ.push_back("L2 Other Core Hit Modified % of Load Stalls");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("L3 Miss -> Local DRAM Hit Impact");
nhm_caa_events_displ.push_back("L3 Miss -> Remote DRAM Hit Impact");
nhm_caa_events_displ.push_back("L3 Miss -> Remote Cache Hit Impact");
nhm_caa_events_displ.push_back("L3 Miss -> Total Impact");
nhm_caa_events_displ.push_back("L3 Miss % of Load Stalls");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("L1 DTLB Miss Impact");
nhm_caa_events_displ.push_back("L1 DTLB Miss % of Load Stalls");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("Cycles spent during DIV & SQRT Ops");
nhm_caa_events_displ.push_back("DIV & SQRT Ops % of counted Stalled Cycles");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("Total L2 IFETCH misses");
nhm_caa_events_displ.push_back("% of L2 IFETCH misses");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("% of IFETCHes served by Local DRAM");
nhm_caa_events_displ.push_back("% of IFETCHes served by L3 (Modified)");
nhm_caa_events_displ.push_back("% of IFETCHes served by L3 (Clean Snoop)");
nhm_caa_events_displ.push_back("% of IFETCHes served by Remote L2");
nhm_caa_events_displ.push_back("% of IFETCHes served by Remote DRAM");
nhm_caa_events_displ.push_back("% of IFETCHes served by L3 (No Snoop)");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("Total L2 IFETCH miss Impact");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("Cycles IFETCH served by Local DRAM");
nhm_caa_events_displ.push_back("Local DRAM IFECTHes % Impact");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("Cycles IFETCH served by L3 (Modified)");
nhm_caa_events_displ.push_back("L3 (Modified) IFECTHes % Impact");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("Cycles IFETCH served by L3 (Clean Snoop)");
nhm_caa_events_displ.push_back("L3 (Clean Snoop) IFECTHes % Impact");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("Cycles IFETCH served by Remote L2");
nhm_caa_events_displ.push_back("Remote L2 IFECTHes % Impact");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("Cycles IFETCH served by Remote DRAM");
nhm_caa_events_displ.push_back("Remote DRAM IFECTHes % Impact");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("Cycles IFETCH served by L3 (No Snoop)");
nhm_caa_events_displ.push_back("L3 (No Snoop) IFECTHes % Impact");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("Total Branch Instructions Executed");
nhm_caa_events_displ.push_back("% of Mispredicted Branches");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("Direct Near Calls % of Total Branches Executed");
nhm_caa_events_displ.push_back("Indirect Near Calls % of Total Branches Executed");
nhm_caa_events_displ.push_back("Indirect Near Non-Calls % of Total Branches Executed");
nhm_caa_events_displ.push_back("All Near Calls % of Total Branches Executed");
nhm_caa_events_displ.push_back("All Non Calls % of Total Branches Executed");
nhm_caa_events_displ.push_back("All Returns % of Total Branches Executed");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("Total Branch Instructions Retired");
nhm_caa_events_displ.push_back("Conditionals % of Total Branches Retired");
nhm_caa_events_displ.push_back("Near Calls % of Total Branches Retired");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("L1 ITLB Miss Impact");
nhm_caa_events_displ.push_back("ITLB Miss Rate in %");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("Branch Instructions");
nhm_caa_events_displ.push_back("Branch % of all Instructions");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("Load Instructions");
nhm_caa_events_displ.push_back("Load % of all Instructions");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("Store Instructions");
nhm_caa_events_displ.push_back("Store % of all Instructions");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("Other Instructions");
nhm_caa_events_displ.push_back("Other % of all Instructions");
nhm_caa_events_displ.push_back("");
nhm_caa_events_displ.push_back("Packed UOPS Retired");
nhm_caa_events_displ.push_back("Packed % of all UOPS Retired");
}
| int main | ( | int | argc, |
| char * | argv[] | ||
| ) |
Definition at line 1738 of file pfm_gen_analysis.cpp.
{
if(argc<2 || argc>4)
{
printf("\n\nUsage: %s DIRECTORY [--caa] [--csv]\n\n", argv[0]);
exit(1);
}
bool caa = false;
bool csv = false;
for(int i=2; i<argc; i++)
{
if(!strcmp(argv[i], "--caa")) caa = true;
if(!strcmp(argv[i], "--csv")) csv = true;
}
char dir[MAX_FILENAME_LENGTH];
strcpy(dir, argv[1]);
if(!csv)
{
strcat(dir, "/HTML");
int res = mkdir(dir, S_IRWXU | S_IRWXG | S_IROTH | S_IXOTH);
if(res!=0)
{
fprintf(stderr, "ERROR: Cannot create directory %s\naborting...\n", dir);
exit(1);
}
}
DIR *dp;
struct dirent *dirp;
int num_of_modules = 0;
if((dp = opendir(argv[1]))==NULL)
{
printf("Error(%d) opening %s\n", errno, argv[1]);
return errno;
}
while((dirp = readdir(dp))!=NULL)
{
if(strstr(dirp->d_name, "_S_")!=NULL && strstr(dirp->d_name, ".txt.gz")!=NULL && !csv)
{
if(read_S_events(argv[1], dirp->d_name))
{
fprintf(stderr, "ERROR: Cannot read file %s\naborting...\n", dirp->d_name);
exit(1);
}
}
}
closedir(dp);
sort(S_events.begin(), S_events.end());
if((dp = opendir(argv[1]))==NULL)
{
printf("Error(%d) opening %s\n", errno, argv[1]);
return errno;
}
while((dirp = readdir(dp))!=NULL)
{
if(strstr(dirp->d_name, "_S_")!=NULL && strstr(dirp->d_name, ".txt.gz")!=NULL && !csv)
{
if(read_S_file(argv[1], dirp->d_name))
{
fprintf(stderr, "ERROR: Cannot read file %s\naborting...\n", dirp->d_name);
exit(1);
}
}
else if(strstr(dirp->d_name, "_C_")!=NULL && strstr(dirp->d_name, ".txt")!=NULL)
{
int res = read_C_file(argv[1], dirp->d_name);
if(res>num_of_modules)
{
num_of_modules = res;
}
}
}
closedir(dp);
if(!csv)
{
if(finalize_S_html_pages(argv[1]))
{
fprintf(stderr, "ERROR: Cannot finalize HTML pages!!!\naborting...\n");
exit(1);
}
}
char filepath[MAX_FILENAME_LENGTH];
bzero(filepath, MAX_FILENAME_LENGTH);
if(!csv) sprintf(filepath, "%s/HTML/index.html", argv[1]);
else sprintf(filepath, "%s/results.csv", argv[1]);
FILE *fp = fopen(filepath, "w");
if(fp == NULL)
{
fprintf(stderr, "ERROR: Cannot create file index.html!!!\naborting...\n");
exit(1);
}
if(caa)
{
double totalCycles;
if(!nehalem)
{
init_core_caa_events();
if(!check_for_core_caa_events())
{
fprintf(stderr, "(core) ERROR: One or more events for CAA missing!\naborting...\n");
exit(1);
}
init_core_caa_events_displ();
totalCycles = getTotalCycles();
calc_core_deriv_values(totalCycles);
calc_post_deriv_values();
if(!csv)
{
put_C_header(fp, core_caa_events_displ);
put_C_modules(fp, core_caa_events_displ);
}
else
{
put_C_header_csv(fp, core_caa_events_displ);
put_C_modules_csv(fp, core_caa_events_displ);
}
}
else
{
init_nhm_caa_events();
if(!check_for_nhm_caa_events())
{
fprintf(stderr, "(nehalem) ERROR: One or more events for CAA missing!\naborting...\n");
exit(1);
}
init_nhm_caa_events_displ();
totalCycles = getTotalCycles();
calc_nhm_deriv_values(totalCycles);
calc_post_deriv_values();
if(!csv)
{
put_C_header(fp, nhm_caa_events_displ);
put_C_modules(fp, nhm_caa_events_displ);
}
else
{
put_C_header_csv(fp, nhm_caa_events_displ);
put_C_modules_csv(fp, nhm_caa_events_displ);
}
}
if(!csv) put_C_footer(fp);
fclose(fp);
}
else
{
if(!csv)
{
put_C_header(fp, C_events);
put_C_modules(fp, C_events);
put_C_footer(fp);
}
else
{
put_C_header_csv(fp, C_events);
put_C_modules_csv(fp, C_events);
}
fclose(fp);
}
if(!csv)
{
char src[MAX_FILENAME_LENGTH];
char dst[MAX_FILENAME_LENGTH];
sprintf(src, "sorttable.js");
sprintf(dst, "%s/HTML/sorttable.js", argv[1]);
int fd_src = open(src, O_RDONLY);
if(fd_src == -1)
{
fprintf(stderr, "ERROR: Cannot open file \"%s\"!\naborting...\n", src);
exit(1);
}
int fd_dst = open(dst, O_WRONLY|O_CREAT|O_TRUNC, 0644);
if(fd_dst == -1)
{
fprintf(stderr, "ERROR: Cannot open file \"%s\" (%s)!\naborting...\n", dst, strerror(errno));
exit(1);
}
char c;
while(read(fd_src, &c, 1))
{
write(fd_dst, &c, 1);
}
close(fd_dst);
close(fd_src);
}
return 0;
}
| double normalize | ( | std::string | field, |
| double | value, | ||
| double | normalizeTo | ||
| ) |
Definition at line 1666 of file pfm_gen_analysis.cpp.
{
double max = 0;
double counter_value;
for(std::map<std::string, std::map<std::string, double> >::iterator it = C_modules.begin(); it != C_modules.end(); ++it)
{
counter_value = (it->second)[field];
if(max < counter_value) max = counter_value;
}
if(value>0 && max>0 && normalizeTo>0)
{
return 1.*value/max*normalizeTo;
}
else return 0;
}
| void put_C_footer | ( | FILE * | fp ) |
Definition at line 1619 of file pfm_gen_analysis.cpp.
{
fprintf(fp, "</table>\n</body>\n</html>\n");
return;
}
| void put_C_header | ( | FILE * | fp, |
| std::vector< std::string > & | columns | ||
| ) |
Definition at line 1565 of file pfm_gen_analysis.cpp.
{
fprintf(fp, "<!DOCTYPE html PUBLIC \"-//W3C//DTD HTML 4.01 Transitional//EN\" \"http://www.w3.org/TR/html4/loose.dtd\">\n");
fprintf(fp, "<html>\n");
fprintf(fp, "<head>\n");
fprintf(fp, "<title>\n");
fprintf(fp, "Analysis Result\n");
fprintf(fp, "</title>\n");
fprintf(fp, "<script src=\"sorttable.js\"></script>\n");
fprintf(fp, "<style>\ntable.sortable thead {\nbackground-color:#eee;\ncolor:#666666;\nfont-weight:bold;\ncursor:default;\nfont-family:courier;\n}\n</style>\n");
fprintf(fp, "</head>\n");
fprintf(fp, "<body link=\"black\">\n");
fprintf(fp, "<h1>RESULTS:</h1><br/>Click for detailed symbol view...<p/>\n");
fprintf(fp, "<table class=\"sortable\" cellpadding=\"5\">\n");
fprintf(fp, "<tr>\n");
fprintf(fp, "<th>MODULE NAME</th>\n");
for(std::vector<std::string>::const_iterator it = columns.begin(); it != columns.end(); ++it)
{
if(strlen(it->c_str())==0) fprintf(fp, "<th bgcolor=\"#FFFFFF\"> </th>\n");
else fprintf(fp, "<th>%s</th>\n", (*it).c_str());
}
fprintf(fp, "</tr>\n");
return;
}
| void put_C_header_csv | ( | FILE * | fp, |
| std::vector< std::string > & | columns | ||
| ) |
Definition at line 1625 of file pfm_gen_analysis.cpp.
{
fprintf(fp, "MODULE NAME");
for(std::vector<std::string>::const_iterator it = columns.begin(); it != columns.end(); ++it)
{
if(strlen(it->c_str())==0) {}
else fprintf(fp, ",%s", (*it).c_str());
}
fprintf(fp, "\n");
return;
}
| void put_C_modules | ( | FILE * | fp, |
| std::vector< std::string > & | columns | ||
| ) |
Definition at line 1590 of file pfm_gen_analysis.cpp.
{
int index = 0;
for(std::map<std::string, std::map<std::string, double> >::iterator it = C_modules.begin(); it != C_modules.end(); ++it)
{
if(index%2) fprintf(fp, "<tr bgcolor=\"#FFFFCC\">\n");
else fprintf(fp, "<tr bgcolor=\"#CCFFCC\">\n");
fprintf(fp, "<td style=\"font-family:monospace;font-size:large;color:Black\"><a href=\"%s.html\">%s</a></td>\n", (it->first).c_str(), (it->first).c_str());
for(std::vector<std::string>::const_iterator jt = columns.begin(); jt != columns.end(); ++jt)
{
if(strlen(jt->c_str())==0)
{
fprintf(fp, "<td bgcolor=\"#FFFFFF\"> </td>");
}
else
{
if((it->second).find(*jt) == (it->second).end())
{
fprintf(stderr, "ERROR: Cannot find derivate value \"%s\"!!!\naborting...\n", (*jt).c_str());
exit(1);
}
fprintf(fp, "<td style=\"font-family:monospace;font-size:large;color:DarkBlue\" align=\"right\">%.2f</td>\n", (it->second)[*jt]);
}
}
fprintf(fp, "</tr>\n");
index++;
}
}
| void put_C_modules_csv | ( | FILE * | fp, |
| std::vector< std::string > & | columns | ||
| ) |
Definition at line 1637 of file pfm_gen_analysis.cpp.
{
for(std::map<std::string, std::map<std::string, double> >::iterator it = C_modules.begin(); it != C_modules.end(); ++it)
{
fprintf(fp, "%s", (it->first).c_str()) ;
for(std::vector<std::string>::const_iterator jt = columns.begin(); jt != columns.end(); ++jt)
{
if(strlen(jt->c_str())==0) {}
else
{
if((it->second).find(*jt) == (it->second).end())
{
fprintf(stderr, "ERROR: Cannot find derivate value \"%s\"!!!\naborting...\n", (*jt).c_str());
exit(1);
}
fprintf(fp, ",%.2f", (it->second)[*jt]);
}
}
fprintf(fp, "\n");
}
}
| void put_S_module | ( | S_module * | cur_module, |
| const char * | dir | ||
| ) |
Definition at line 1133 of file pfm_gen_analysis.cpp.
{
char module_name[MAX_MODULE_NAME_LENGTH];
bzero(module_name, MAX_MODULE_NAME_LENGTH);
strcpy(module_name, (cur_module->get_module_name()).c_str());
char module_filename[MAX_FILENAME_LENGTH];
bzero(module_filename, MAX_FILENAME_LENGTH);
strcpy(module_filename, dir);
strcat(module_filename, "/HTML/");
strcat(module_filename, module_name);
strcat(module_filename, ".html");
char event[MAX_EVENT_NAME_LENGTH];
bzero(event, MAX_EVENT_NAME_LENGTH);
strcpy(event, (cur_module->get_event()).c_str());
std::map<std::string, unsigned int>::iterator result = modules_tot_samples.find(cur_module->get_module_name());
FILE *module_file;
if(result == modules_tot_samples.end()) //not found
{
if((!strcmp(event, "UNHALTED_CORE_CYCLES") && !nehalem) || (!strcmp(event, "CPU_CLK_UNHALTED:THREAD_P") && nehalem))
{
modules_tot_samples.insert(std::pair<std::string, unsigned int>(cur_module->get_module_name(), cur_module->get_total_num_samples()));
}
else
{
modules_tot_samples.insert(std::pair<std::string, unsigned int>(cur_module->get_module_name(), 0));
}
module_file = fopen(module_filename, "w");
if(module_file == NULL)
{
fprintf(stderr, "ERROR: Cannot create file %s!!!\naborting...\n", module_filename);
exit(1);
}
fprintf(module_file, "<!DOCTYPE html PUBLIC \"-//W3C//DTD HTML 4.01 Transitional//EN\" \"http://www.w3.org/TR/html4/loose.dtd\">\n");
fprintf(module_file, "<html>\n");
fprintf(module_file, "<head>\n");
fprintf(module_file, "<title>\n");
fprintf(module_file, "%s\n", module_name);
fprintf(module_file, "</title>\n");
fprintf(module_file, "</head>\n");
fprintf(module_file, "<body>\n");
fprintf(module_file, "<h2>%s</h2><br/>Events Sampled:<br/>\n", module_name);
fprintf(module_file, "<ul>\n");
for(std::vector<std::string>::const_iterator it = S_events.begin(); it != S_events.end(); ++it)
{
fprintf(module_file, "<li><a href=\"#%s\">%s</a></li>\n", it->c_str(), it->c_str());
}
fprintf(module_file, "</ul>\n");
}// if(result == modules_tot_samples.end()) //not found
else
{
if((!strcmp(event, "UNHALTED_CORE_CYCLES") && !nehalem) || (!strcmp(event, "CPU_CLK_UNHALTED:THREAD_P") && nehalem))
{
modules_tot_samples[cur_module->get_module_name()] = cur_module->get_total_num_samples();
}
module_file = fopen(module_filename, "a");
}//else:: if(result != modules_tot_samples.end()) //found!!
char event_str[MAX_EVENT_NAME_LENGTH];
bzero(event_str, MAX_EVENT_NAME_LENGTH);
strcpy(event_str, event);
if(cur_module->get_c_mask()>0)
{
sprintf(event_str, "%s CMASK=%d", event_str, cur_module->get_c_mask());
}
if(cur_module->get_inv_mask()>0)
{
sprintf(event_str, "%s INV=%d", event_str, cur_module->get_inv_mask());
}
fprintf(module_file, "<a name=\"%s\"><a>\n", event_str);
fprintf(module_file, "<table cellpadding=\"5\">\n");
fprintf(module_file, "<tr bgcolor=\"#EEEEEE\">\n");
fprintf(module_file, "<th colspan=\"6\" align=\"left\">%s -- cmask: %u -- invmask: %u -- Total Samples: %u -- Sampling Period: %d</th>\n", event, cur_module->get_c_mask(), cur_module->get_inv_mask(), cur_module->get_total_num_samples(), cur_module->get_smpl_period());
fprintf(module_file, "</tr>\n");
fprintf(module_file, "<tr bgcolor=\"#EEEEEE\">\n");
fprintf(module_file, "<th align=\"left\">Samples</th>\n");
fprintf(module_file, "<th align=\"left\">Percentage</th>\n");
fprintf(module_file, "<th align=\"left\">Symbol Name</th>\n");
fprintf(module_file, "<th align=\"left\">Library Name</th>\n");
fprintf(module_file, "<th align=\"left\">Complete Signature</th>\n");
fprintf(module_file, "<th align=\"left\">Library Pathname</th>\n");
fprintf(module_file, "</tr>\n");
for(int j=0; j<20; j++)
{
char sym[MAX_SYM_LENGTH];
char sym_mod[MAX_SYM_MOD_LENGTH];
char lib[MAX_LIB_LENGTH];
char lib_mod[MAX_LIB_MOD_LENGTH];
char simple_sym[MAX_SIMPLE_SYM_LENGTH];
char simple_sym_mod[MAX_SIMPLE_SYM_MOD_LENGTH];
char simple_lib[MAX_SIMPLE_LIB_LENGTH];
char simple_lib_mod[MAX_SIMPLE_LIB_MOD_LENGTH];
bzero(sym, MAX_SYM_LENGTH);
bzero(sym_mod, MAX_SYM_MOD_LENGTH);
bzero(lib, MAX_LIB_LENGTH);
bzero(lib_mod, MAX_LIB_MOD_LENGTH);
bzero(simple_sym, MAX_SIMPLE_SYM_LENGTH);
bzero(simple_sym_mod, MAX_SIMPLE_SYM_MOD_LENGTH);
bzero(simple_lib, MAX_SIMPLE_LIB_LENGTH);
bzero(simple_lib_mod, MAX_SIMPLE_LIB_MOD_LENGTH);
char index[MAX_SAMPLE_INDEX_LENGTH];
bzero(index, MAX_SAMPLE_INDEX_LENGTH);
unsigned int value;
bool res = cur_module->get_max(index, &value);
if(!res) break;
char *sym_end = strchr(index, '%');
if(sym_end==NULL) //error
{
fprintf(stderr, "ERROR: Invalid sym and lib name! : %s\naborting...\n", index);
exit(1);
}
strncpy(sym, index, strlen(index)-strlen(sym_end));
strcpy(lib, sym_end+1);
char temp[MAX_SYM_LENGTH];
bzero(temp, MAX_SYM_LENGTH);
strcpy(temp, sym);
strcpy(simple_sym, (func_name(temp)));
if(strrchr(lib, '/')!=NULL && *(strrchr(lib, '/')+1)!='\0')
{
strcpy(simple_lib, strrchr(lib, '/')+1);
}
else
{
strcpy(simple_lib, lib);
}
if(j%2!=0)
{
fprintf(module_file, "<tr bgcolor=\"#FFFFCC\">\n");
}
else
{
fprintf(module_file, "<tr bgcolor=\"#CCFFCC\">\n");
}
fprintf(module_file, "<td style=\"font-family:monospace;font-size:large;color:DarkBlue\">%u</td>\n", value);
fprintf(module_file, "<td style=\"font-family:monospace;font-size:large;color:DarkBlue\">%f%%</td>\n", (((double)(value))/((double)(cur_module->get_total_num_samples())))*100);
html_special_chars(simple_sym, simple_sym_mod);
html_special_chars(simple_lib, simple_lib_mod);
html_special_chars(sym, sym_mod);
html_special_chars(lib, lib_mod);
fprintf(module_file, "<td style=\"font-family:courier;\">%s</td>\n", simple_sym_mod);
fprintf(module_file, "<td style=\"font-family:courier;\">%s</td>\n", simple_lib_mod);
fprintf(module_file, "<td style=\"font-family:courier;\">%s</td>\n", sym_mod);
fprintf(module_file, "<td style=\"font-family:courier;\">%s</td>\n</tr>\n", lib_mod);
}
fprintf(module_file, "</table><br/><br/>\n");
int res = fclose(module_file);
if(res)
{
fprintf(stderr, "ERROR: Cannot close file %s!!!\naborting...\n", module_filename);
exit(1);
}
return;
}
| int read_C_file | ( | const char * | dir, |
| const char * | filename | ||
| ) |
Definition at line 1501 of file pfm_gen_analysis.cpp.
{
char event[MAX_EVENT_NAME_LENGTH];
char arch[MAX_ARCH_NAME_LENGTH];
char line[MAX_LINE_LENGTH];
char cmask_str[MAX_CMASK_STR_LENGTH];
char inv_str[MAX_INV_STR_LENGTH];
char sp_str[MAX_SP_STR_LENGTH];
char cur_module_name[MAX_MODULE_NAME_LENGTH];
bzero(line, MAX_LINE_LENGTH);
bzero(event, MAX_EVENT_NAME_LENGTH);
bzero(cur_module_name, MAX_MODULE_NAME_LENGTH);
bzero(arch, MAX_ARCH_NAME_LENGTH);
bzero(line, MAX_LINE_LENGTH);
bzero(cmask_str, MAX_CMASK_STR_LENGTH);
bzero(inv_str, MAX_INV_STR_LENGTH);
bzero(sp_str, MAX_SP_STR_LENGTH);
int number_of_modules = 0;
long cur_sum = 0;
int no_of_values = 0;
char path_name[MAX_FILENAME_LENGTH];
bzero(path_name, MAX_FILENAME_LENGTH);
strcpy(path_name, dir);
strcat(path_name, "/");
strcat(path_name, filename);
FILE *fp = fopen(path_name, "r");
fscanf(fp, "%s %s %s %s %s\n", arch, event, cmask_str, inv_str, sp_str);
if(!strcmp(arch, "NHM")) nehalem = true; else nehalem = false;
std::string event_str(event);
if(atoi(cmask_str)>0)
{
event_str += " CMASK=";
event_str += cmask_str;
}
if(atoi(inv_str)>0)
{
event_str += " INV=";
event_str += inv_str;
}
C_events.push_back(event_str);
while(fscanf(fp, "%s\n", line)!=EOF)
{
if(isalpha(line[0])) //module
{
if(number_of_modules>0)
{
C_modules[cur_module_name][event_str]=(double)cur_sum/no_of_values;
cur_sum = 0;
no_of_values = 0;
}
strcpy(cur_module_name, line);
number_of_modules++;
}
else if(isdigit(line[0])) //value
{
cur_sum += strtol(line, NULL, 10);
no_of_values++;
}
}
C_modules[cur_module_name][event_str]=(double)cur_sum/no_of_values; //last module
fclose(fp);
return number_of_modules;
}
| int read_S_events | ( | const char * | dir, |
| const char * | filename | ||
| ) |
Definition at line 1421 of file pfm_gen_analysis.cpp.
{
char event[MAX_EVENT_NAME_LENGTH];
char arch[MAX_ARCH_NAME_LENGTH];
char line[MAX_LINE_LENGTH];
char cmask_str[MAX_CMASK_STR_LENGTH];
char inv_str[MAX_INV_STR_LENGTH];
char sp_str[MAX_SP_STR_LENGTH];
bzero(line, MAX_LINE_LENGTH);
bzero(event, MAX_EVENT_NAME_LENGTH);
bzero(arch, MAX_ARCH_NAME_LENGTH);
bzero(cmask_str, MAX_CMASK_STR_LENGTH);
bzero(inv_str, MAX_INV_STR_LENGTH);
bzero(sp_str, MAX_SP_STR_LENGTH);
char path_name[MAX_FILENAME_LENGTH];
bzero(path_name, MAX_FILENAME_LENGTH);
strcpy(path_name, dir);
strcat(path_name, "/");
strcat(path_name, filename);
gzFile res_file = gzopen(path_name, "rb");
if(res_file != NULL)
{
bzero(line, MAX_LINE_LENGTH);
gzgets(res_file, line, MAX_LINE_LENGTH);
if(line[strlen(line)-1]=='\n') line[strlen(line)-1]='\0';
bzero(event, MAX_EVENT_NAME_LENGTH);
sscanf(line, "%s %s %s %s %s\n", arch, event, cmask_str, inv_str, sp_str);
std::string event_str(event);
if(atoi(cmask_str)>0)
{
event_str += " CMASK=";
event_str += cmask_str;
}
if(atoi(inv_str)>0)
{
event_str += " INV=";
event_str += inv_str;
}
S_events.push_back(event_str);
}// if(res_file != NULL)
else
{
fprintf(stderr, "ERROR: Unable to open input file: %s\naborting...\n", filename);
exit(1);
}
return 0;
}
| int read_S_file | ( | const char * | dir, |
| const char * | filename | ||
| ) |
Definition at line 1294 of file pfm_gen_analysis.cpp.
{
char line[MAX_LINE_LENGTH];
char event[MAX_EVENT_NAME_LENGTH];
char arch[MAX_ARCH_NAME_LENGTH];
unsigned int cmask;
unsigned int inv;
unsigned int sp;
char cur_module_name[MAX_MODULE_NAME_LENGTH];
bzero(line, MAX_LINE_LENGTH);
bzero(event, MAX_EVENT_NAME_LENGTH);
bzero(cur_module_name, MAX_MODULE_NAME_LENGTH);
bzero(arch, MAX_ARCH_NAME_LENGTH);
S_module *cur_module = new S_module();
unsigned int module_num = 0;
char path_name[MAX_FILENAME_LENGTH];
bzero(path_name, MAX_FILENAME_LENGTH);
strcpy(path_name, dir);
strcat(path_name, "/");
strcat(path_name, filename);
gzFile res_file = gzopen(path_name, "rb");
if(res_file != NULL)
{
bzero(line, MAX_LINE_LENGTH);
gzgets(res_file, line, MAX_LINE_LENGTH);
if(line[strlen(line)-1]=='\n') line[strlen(line)-1]='\0';
bzero(event, MAX_EVENT_NAME_LENGTH);
sscanf(line, "%s %s %u %u %u", arch, event, &cmask, &inv, &sp);
if(!strcmp(arch, "NHM")) nehalem = true; else nehalem = false;
bzero(line, MAX_LINE_LENGTH);
while(gzgets(res_file, line, MAX_LINE_LENGTH)!=Z_NULL)
{
if(line[strlen(line)-1]=='\n') line[strlen(line)-1]='\0';
if(strchr(line, ' ')==NULL) //module
{
if(module_num>0)
{
put_S_module(cur_module, dir);
cur_module->clear();
}
module_num++;
char *end_sym = strchr(line, '%');
if(end_sym == NULL) //error
{
fprintf(stderr, "ERROR: Invalid module name. \nLINE: %s\naborting...\n", line);
exit(1);
}
bzero(cur_module_name, MAX_MODULE_NAME_LENGTH);
strncpy(cur_module_name, line, strlen(line)-strlen(end_sym));
cur_module->init(cur_module_name, arch, event, cmask, inv, sp);
cur_module->set_total(atoi(end_sym+1));
} //module
else //symbol, libName, libOffset, value
{
unsigned int value=0, libOffset=0;
char symbol[MAX_SYM_LENGTH];
char libName[MAX_LIB_LENGTH];
char final_sym[MAX_SYM_MOD_LENGTH];
char final_lib[MAX_LIB_MOD_LENGTH];
bzero(symbol, MAX_SYM_LENGTH);
bzero(libName, MAX_LIB_LENGTH);
bzero(final_sym, MAX_SYM_MOD_LENGTH);
bzero(final_lib, MAX_LIB_MOD_LENGTH);
sscanf(line, "%s %s %u %u", symbol, libName, &libOffset, &value);
char realPathName_s[FILENAME_MAX];
bzero(realPathName_s, FILENAME_MAX);
char *realPathName = realpath(libName, realPathName_s);
if(realPathName!=NULL && strlen(realPathName)>0)
{
std::map<std::string, FileInfo>::iterator result;
result = libsInfo.find(realPathName);
if(result == libsInfo.end())
{
libsInfo[realPathName] = FileInfo(realPathName, true);
}
const char *temp_sym = libsInfo[realPathName].symbolByOffset(libOffset);
if(temp_sym!=NULL && strlen(temp_sym)>0)
{
int status;
char *demangled_symbol = abi::__cxa_demangle(temp_sym, NULL, NULL, &status);
if(status == 0)
{
strcpy(final_sym, demangled_symbol);
free(demangled_symbol);
}
else
{
strcpy(final_sym, temp_sym);
}
}
else
{
strcpy(final_sym, "???");
}
strcpy(final_lib, realPathName);
}
else
{
strcpy(final_sym, symbol);
strcpy(final_lib, libName);
}
char index[MAX_LINE_LENGTH];
bzero(index, MAX_LINE_LENGTH);
strcpy(index, final_sym);
strcat(index, "%");
strcat(index, final_lib);
cur_module->add_sample(index, value);
}// symbol, libName, libOffset, value
bzero(line, MAX_LINE_LENGTH);
}// while(gzgets(res_file, line, MAX_LINE_LENGTH)!=Z_NULL)
put_S_module(cur_module, dir);//last module!
cur_module->clear();
gzclose(res_file);
}// if(res_file != NULL)
else
{
fprintf(stderr, "ERROR: Unable to open input file: %s\naborting...\n", filename);
exit(1);
}
delete cur_module; //delete it!
return 0;
}
| bool skipString | ( | const char * | strptr, |
| const char * | srcbuffer, | ||
| const char ** | dstbuffer | ||
| ) |
Definition at line 153 of file pfm_gen_analysis.cpp.
{
if(strncmp(srcbuffer, strptr, strlen(strptr)))
{
return false;
}
*dstbuffer = srcbuffer + strlen(strptr);
return true;
}
| bool skipWhitespaces | ( | const char * | srcbuffer, |
| const char ** | destbuffer | ||
| ) |
Definition at line 132 of file pfm_gen_analysis.cpp.
std::vector<std::string> C_events [static] |
Definition at line 315 of file pfm_gen_analysis.cpp.
std::map<std::string, std::map<std::string, double> > C_modules [static] |
Definition at line 314 of file pfm_gen_analysis.cpp.
std::vector<std::string> core_caa_events [static] |
Definition at line 318 of file pfm_gen_analysis.cpp.
std::vector<std::string> core_caa_events_displ [static] |
Definition at line 320 of file pfm_gen_analysis.cpp.
std::map<std::string, FileInfo> libsInfo [static] |
Definition at line 311 of file pfm_gen_analysis.cpp.
std::map<std::string, unsigned int> modules_tot_samples [static] |
Definition at line 310 of file pfm_gen_analysis.cpp.
int nehalem [static] |
Definition at line 312 of file pfm_gen_analysis.cpp.
std::vector<std::string> nhm_caa_events [static] |
Definition at line 319 of file pfm_gen_analysis.cpp.
std::vector<std::string> nhm_caa_events_displ [static] |
Definition at line 321 of file pfm_gen_analysis.cpp.
std::vector<std::string> S_events [static] |
Definition at line 316 of file pfm_gen_analysis.cpp.
