Description: More...

#include <src/RootCnvSvc.h>

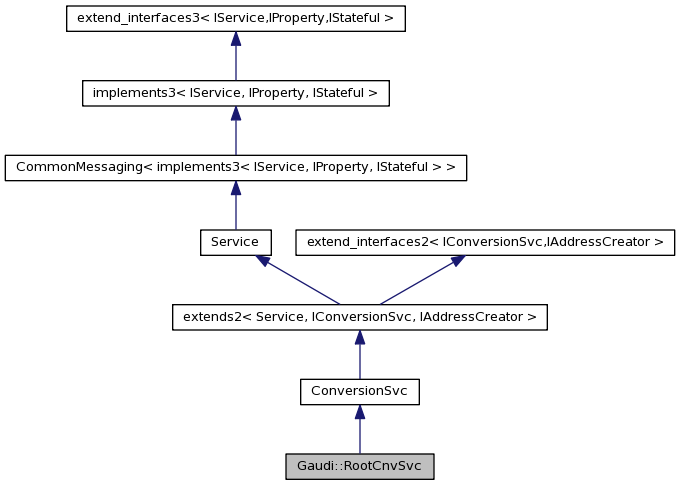

Inheritance diagram for Gaudi::RootCnvSvc:

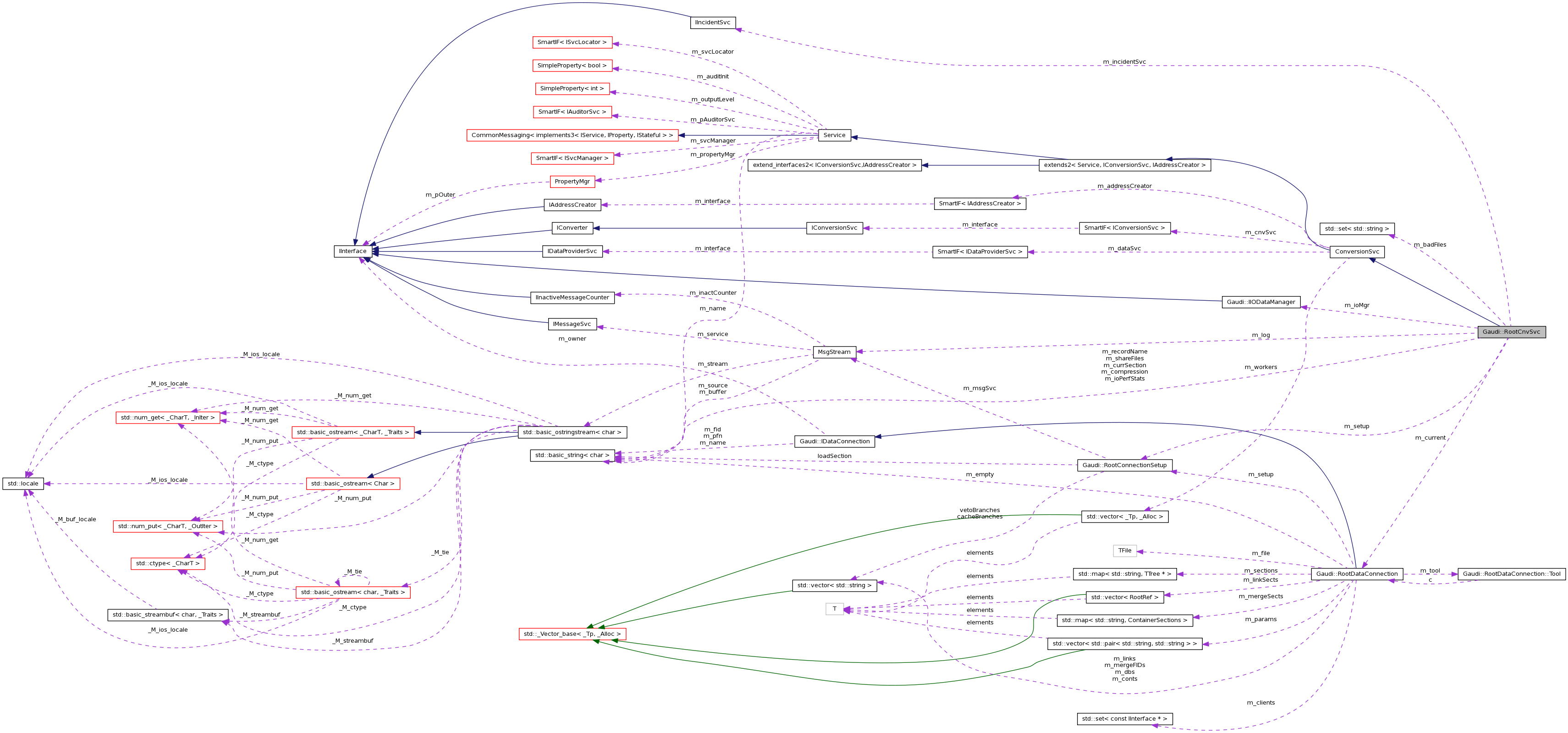

Collaboration diagram for Gaudi::RootCnvSvc:

Public Member Functions
	RootCnvSvc (const std::string &name, ISvcLocator *svc)
	Standard constructor.
virtual	~RootCnvSvc ()
	Standard destructor.
virtual StatusCode	updateServiceState (IOpaqueAddress *)
	Update state of the service.
StatusCode	error (const std::string &msg)
	Standard way to print errors.
StatusCode	connectDatabase (const std::string &dataset, int mode, RootDataConnection **con)
	Connect the output file to the service with open mode.
virtual StatusCode	initialize ()
	ConversionSvc overload: initialize Db service.
virtual StatusCode	finalize ()
	ConversionSvc overload: Finalize Db service.
virtual IConverter *	createConverter (long typ, const CLID &wanted, const ICnvFactory *fac)
	ConversionSvc overload: Create new Converter using factory.
virtual void	loadConverter (DataObject *pObj)
	ConversionSvc overload: Load the class (dictionary) for the converter.
virtual StatusCode	connectOutput (const std::string &outputFile, const std::string &openMode)
	Connect the output file to the service with open mode.
virtual StatusCode	connectOutput (const std::string &outputFile)
	Connect the output file to the service.
virtual StatusCode	commitOutput (const std::string &outputFile, bool do_commit)
	Commit pending output.
virtual StatusCode	disconnect (const std::string &dbName)
	Disconnect from an existing data stream.
virtual StatusCode	createAddress (long svc_type, const CLID &clid, const std::string par, const unsigned long ip, IOpaqueAddress *&refpAddress)
	IAddressCreator implementation: Address creation.
virtual StatusCode	createAddress (long svc_type, const CLID &clid, const std::string &refAddress, IOpaqueAddress *&refpAddress)
	IAddressCreator implementation: Creates an address in string form to object form.
virtual StatusCode	createNullRep (const std::string &path)
	Insert null marker for not existent transient object.
virtual StatusCode	createNullRef (const std::string &path)
	Insert null marker for not existent transient object.
virtual StatusCode	i__createRep (DataObject pObj, IOpaqueAddress &refpAddr)
	Convert the transient object to the requested persistent representation.
virtual StatusCode	i__fillRepRefs (IOpaqueAddress pAddr, DataObject pObj)
	Resolve the references of the converted object.
virtual StatusCode	i__createObj (IOpaqueAddress pAddr, DataObject &refpObj)
	Create transient object from persistent data.
virtual StatusCode	i__fillObjRefs (IOpaqueAddress pAddr, DataObject pObj)
	Resolve the references of the created transient object.
Protected Member Functions
TClass *	getClass (DataObject *pObject)
	Helper: Get TClass for a given DataObject pointer.
MsgStream &	log () const
	Helper: Use message streamer.
Protected Attributes
Gaudi::IIODataManager *	m_ioMgr
	Reference to the I/O data manager.
IIncidentSvc *	m_incidentSvc
	Reference to incident service.
Gaudi::RootDataConnection *	m_current
	On writing: reference to active output stream.
TClass *	m_classRefs
	TClass pointer to reference class.
TClass *	m_classDO
	TClass pointer to DataObject class.
RootConnectionSetup *	m_setup
	Setup structure (ref-counted) and passed to data connections.
std::string	m_currSection
	Property: ROOT section name.
bool	m_incidentEnabled
	Property: Flag to enable incidents on FILE_OPEN.
std::string	m_shareFiles
	Property: Share files ? If set to YES, files will not be closed on finalize.
std::string	m_recordName
	Property: Records name to fire incident for file records.
std::string	m_ioPerfStats
	Property: Enable TTree IOperfStats if not empty; otherwise perf stat file name.
std::string	m_compression
	Property: Compression-algorithm:compression-level.
std::set< std::string >	m_badFiles
	Set with bad files/tables.
MsgStream *	m_log
	Message streamer.

Detailed Description

Description:

RootCnvSvc class implementation definition.

Author:: Markus Frank

Version:: 1.0

Date:: 20/12/2009

Definition at line 46 of file RootCnvSvc.h.

Constructor & Destructor Documentation

Gaudi::RootCnvSvc::RootCnvSvc	(	const std::string &	name,
		ISvcLocator *	svc
	)

Standard constructor.

RootCnvSvc::~RootCnvSvc ( ) [virtual]

Standard destructor.

Definition at line 79 of file RootCnvSvc.cpp.

                        {
  if (m_setup) m_setup->release();
}

Member Function Documentation

virtual StatusCode Gaudi::RootCnvSvc::commitOutput	(	const std::string &	outputFile,
		bool	do_commit
	)		`[virtual]`

Commit pending output.

Parameters:

outputFile	String containig output file
do_commit	if true commit the output and flush eventually pending items to the database if false, discard pending buffers. Note: The possibility to commit or rollback depends on the database technology used!

Returns:: Status code indicating success or failure.

Reimplemented from ConversionSvc.

StatusCode Gaudi::RootCnvSvc::connectDatabase	(	const std::string &	dataset,
		int	mode,
		RootDataConnection **	con
	)

Connect the output file to the service with open mode.

Parameters:

dataset	String containig file name
mode	String containig opening mode

Returns:: Status code indicating success or failure.

virtual StatusCode Gaudi::RootCnvSvc::connectOutput	(	const std::string &	outputFile,
		const std::string &	openMode
	)		`[virtual]`

Connect the output file to the service with open mode.

Parameters:

outputFile	String containig output file
openMode	String containig opening mode of the output file

Returns:: Status code indicating success or failure.

Reimplemented from ConversionSvc.

virtual StatusCode Gaudi::RootCnvSvc::connectOutput ( const std::string & outputFile ) [virtual]

Connect the output file to the service.

Parameters:

outputFile String containig output file

Returns:: Status code indicating success or failure.

Reimplemented from ConversionSvc.

StatusCode RootCnvSvc::createAddress	(	long	svc_type,
		const CLID &	clid,
		const std::string *	par,
		const unsigned long *	ip,
		IOpaqueAddress *&	refpAddress
	)		`[virtual]`

IAddressCreator implementation: Address creation.

Create an address using the link infotmation together with the triple (database name/container name/object name).

Parameters:

refLink	Reference to abstract link information
dbName	Database name
containerName	Object container name
refpAddress	Opaque address information to retrieve object

Returns:: StatusCode indicating SUCCESS or failure

Reimplemented from ConversionSvc.

Definition at line 378 of file RootCnvSvc.cpp.

{
  refpAddress = new RootAddress(typ,clid,par[0],par[1],ip[0],ip[1]);
  return S_OK;
}

virtual StatusCode Gaudi::RootCnvSvc::createAddress	(	long	svc_type,
		const CLID &	clid,
		const std::string &	refAddress,
		IOpaqueAddress *&	refpAddress
	)		`[inline, virtual]`

IAddressCreator implementation: Creates an address in string form to object form.

Parameters:

svc_type	Technology identifier encapsulated in this address.
clid	Class identifier of the DataObject represented by the opaque address
address	Input address.
refpAddress	Output address in string form.

Returns:: Status code indicating success or failure.

Reimplemented from ConversionSvc.

Definition at line 188 of file RootCnvSvc.h.

                                                                    {
      return this->ConversionSvc::createAddress(svc_type,clid,refAddress,refpAddress);
    }

IConverter * RootCnvSvc::createConverter	(	long	typ,
		const CLID &	wanted,
		const ICnvFactory *	fac
	)		`[virtual]`

ConversionSvc overload: Create new Converter using factory.

Reimplemented from ConversionSvc.

Definition at line 155 of file RootCnvSvc.cpp.

                                                                                        {
  if ( wanted == CLID_StatisticsFile )
    return new RootDatabaseCnv(typ,wanted,serviceLocator().get(),this);
  else if ( wanted == CLID_StatisticsDirectory )
    return new RootDirectoryCnv(typ,wanted,serviceLocator().get(),this);
  else if ( wanted == CLID_RowWiseTuple )
    return new RootNTupleCnv(typ,wanted,serviceLocator().get(),this);
  else if ( wanted == CLID_ColumnWiseTuple )
    return new RootNTupleCnv(typ,wanted,serviceLocator().get(),this);
  else
    return new RootConverter(typ,wanted,serviceLocator().get(),this);
}

StatusCode RootCnvSvc::createNullRef ( const std::string & path ) [virtual]

Insert null marker for not existent transient object.

Parameters:

path	[IN] Path to the (null-)object

Returns:: Status code indicating success or failure.

Definition at line 397 of file RootCnvSvc.cpp.

                                                          {
  RootObjectRefs* refs = 0;
  size_t len = path.find('/',1);
  string section = path.substr(1,len==string::npos ? string::npos : len-1);
  pair<int,unsigned long> ret = m_current->save(section,path+"#R",0,refs);
  log() << MSG::VERBOSE << "Writing object:" << path << " "
    << ret.first << " " << hex << ret.second << dec << " [NULL]" << endmsg;
  return S_OK;
}

StatusCode RootCnvSvc::createNullRep ( const std::string & path ) [virtual]

Insert null marker for not existent transient object.

Parameters:

path	[IN] Path to the (null-)object

Returns:: Status code indicating success or failure.

Definition at line 389 of file RootCnvSvc.cpp.

                                                          {
  size_t len = path.find('/',1);
  string section = path.substr(1,len==string::npos ? string::npos : len-1);
  m_current->saveObj(section,path,0,0);
  return S_OK;
}

virtual StatusCode Gaudi::RootCnvSvc::disconnect ( const std::string & dbName ) [virtual]

Disconnect from an existing data stream.

Parameters:

dbName String containing name of the database

Returns:: Status code indicating success or failure.

StatusCode Gaudi::RootCnvSvc::error ( const std::string & msg )

Standard way to print errors.

after the printout an exception is thrown.

Parameters:

msg	[IN] Message string to be printed.

Returns:: Status code returning failure.

StatusCode RootCnvSvc::finalize ( ) [virtual]

ConversionSvc overload: Finalize Db service.

Reimplemented from ConversionSvc.

Definition at line 125 of file RootCnvSvc.cpp.

                                   {
  log() << MSG::INFO;
  if ( m_ioMgr )  {
    IIODataManager::Connections cons = m_ioMgr->connections(0);
    for(IIODataManager::Connections::iterator i=cons.begin(); i != cons.end(); ++i)  {
      RootDataConnection* pc = dynamic_cast<RootDataConnection*>(*i);
      if ( pc ) {
        if ( pc->owner() == this && !m_ioPerfStats.empty() )   {
          pc->saveStatistics(m_ioPerfStats);
        }
        if ( pc->lookupClient(this) )   {
          size_t num_clients = pc->removeClient(this);
          if ( num_clients == 0 ) {
            if ( m_ioMgr->disconnect(pc).isSuccess() )  {
              log() << "Disconnected data IO:" << pc->fid()
                    << " [" << pc->pfn() << "]" << endmsg;
              delete pc;
            }
          }
        }
      }
    }
    releasePtr(m_ioMgr);
  }
  deletePtr(m_log);
  releasePtr(m_incidentSvc);
  return ConversionSvc::finalize();
}

TClass * RootCnvSvc::getClass ( DataObject * pObject ) [protected]

Helper: Get TClass for a given DataObject pointer.

Definition at line 185 of file RootCnvSvc.cpp.

                                                {
  map<CLID, TClass*>::iterator i=s_classesClids.find(pObject->clID());
  if ( i != s_classesClids.end() ) return (*i).second;
  loadConverter(pObject);
  i=s_classesClids.find(pObject->clID());
  if ( i != s_classesClids.end() ) return (*i).second;

  string cname = System::typeinfoName(typeid(*pObject));
  throw runtime_error("Unknown ROOT class for object:"+cname);
  return 0;
}

StatusCode RootCnvSvc::i__createObj	(	IOpaqueAddress *	pAddr,
		DataObject *&	refpObj
	)		`[virtual]`

Create transient object from persistent data.

Parameters:

pAddr	[IN] Pointer to object address.
refpObj	[OUT] Location to pointer to store data object

Returns:: Status code indicating success or failure.

Definition at line 469 of file RootCnvSvc.cpp.

                                                                             {
  refpObj = 0;
  if ( pA ) {
    RootDataConnection* con = 0;
    const string*  par  = pA->par();
    unsigned long* ipar = const_cast<unsigned long*>(pA->ipar());
    StatusCode sc = connectDatabase(par[0],IDataConnection::READ,&con);
    if ( sc.isSuccess() ) {
      ipar[0] = (unsigned long)con;
      DataObject* pObj = 0;
      size_t len = par[1].find('/',1);
      string section = par[1].substr(1,len==string::npos ? string::npos : len-1);

      int nb = con->loadObj(section,par[1],ipar[1],pObj);
      if ( nb > 1 || (nb == 1 && pObj->clID() == CLID_DataObject) ) {
        refpObj = pObj;
        return S_OK;
      }
      delete pObj;
    }
    string tag = par[0]+":"+par[1];
    if ( m_badFiles.find(tag) == m_badFiles.end() ) {
      m_badFiles.insert(tag);
      return error("createObj> Cannot access the object:"+tag);
    }
    return S_FAIL;
  }
  return S_FAIL;
}

StatusCode RootCnvSvc::i__createRep	(	DataObject *	pObj,
		IOpaqueAddress *&	refpAddr
	)		`[virtual]`

Convert the transient object to the requested persistent representation.

Parameters:

pObj	[IN] Pointer to data object
refpAddr	[OUT] Location to store pointer to object address.

Returns:: Status code indicating success or failure.

Definition at line 408 of file RootCnvSvc.cpp.

                                                                                {
  refpAddr = 0;
  if ( pObj ) {
    CLID       clid = pObj->clID();
    IRegistry* pR   = pObj->registry();
    string     p[2] = {m_current->fid(), pR->identifier()};
    TClass*    cl   = (clid == CLID_DataObject) ? m_classDO : getClass(pObj);
    size_t     len  = p[1].find('/',1);
    string     sect = p[1].substr(1,len==string::npos ? string::npos : len-1);
    pair<int,unsigned long> ret = m_current->saveObj(sect,p[1],cl,pObj,true);
    if ( ret.first > 1 || (clid == CLID_DataObject && ret.first==1) ) {
      unsigned long ip[2] = {0,ret.second};
      if ( m_currSection.empty() ) m_currSection = p[1];
      return createAddress(repSvcType(),clid,p,ip,refpAddr);
    }
    return error("Failed to write object data for:"+p[1]);
  }
  return error("createRep> Current Database is invalid!");
}

StatusCode RootCnvSvc::i__fillObjRefs	(	IOpaqueAddress *	pAddr,
		DataObject *	pObj
	)		`[virtual]`

Resolve the references of the created transient object.

Parameters:

pAddr	[IN] Pointer to object address.
pObj	[IN] Pointer to data object

Returns:: Status code indicating success or failure.

Definition at line 500 of file RootCnvSvc.cpp.

                                                                          {
  if ( pA && pObj )  {
    const unsigned long* ipar = pA->ipar();
    RootDataConnection* con = (RootDataConnection*)ipar[0];
    if ( con ) {
      RootObjectRefs refs;
      const string* par = pA->par();
      size_t len = par[1].find('/',1);
      string section = par[1].substr(1,len==string::npos ? string::npos : len-1);
      int nb = con->loadRefs(section,par[1],ipar[1],refs);
      log() << MSG::VERBOSE;
      if ( nb >= 1 ) {
        string npar[3];
        unsigned long nipar[2];
        IOpaqueAddress* nPA;
        IRegistry* pR = pObj->registry();
        SmartIF<IService> isvc(pR->dataSvc());
        SmartIF<IDataManagerSvc> dataMgr(pR->dataSvc());
        LinkManager* mgr = pObj->linkMgr();
        bool active = log().isActive();
        for(vector<int>::const_iterator i=refs.links.begin(); i!=refs.links.end();++i) {
          mgr->addLink(con->getLink(*i),0);
        }
        for(size_t j=0, n=refs.refs.size(); j<n; ++j)  {
          const RootRef& r = refs.refs[j];
          npar[0] = con->getDb(r.dbase);
          npar[1] = con->getCont(r.container);
          npar[2] = con->getLink(r.link);
          nipar[0] = 0;
          nipar[1] = r.entry;
          StatusCode sc = addressCreator()->createAddress(r.svc,r.clid,npar,nipar,nPA);
          if ( sc.isSuccess() ) {
            if ( active )  {
              log() << isvc->name() << " -> Register:" << pA->registry()->identifier()
                << "#" << npar[2] << "[" << r.entry << "]" << endmsg;
            }
            sc = dataMgr->registerAddress(pA->registry(),npar[2],nPA);
            if ( sc.isSuccess() ) {
              continue;
            }
          }
          log() << MSG::ERROR << con->fid() << ": Failed to create address!!!!" << endmsg;
          return S_FAIL;
        }
        return pObj->update();
      }
    }
    return S_FAIL;
  }
  return error("read> Cannot read object -- no valid object address present ");
}

StatusCode RootCnvSvc::i__fillRepRefs	(	IOpaqueAddress *	pAddr,
		DataObject *	pObj
	)		`[virtual]`

Resolve the references of the converted object.

Parameters:

pAddr	[IN] Pointer to object address.
pObj	[IN] Pointer to data object

Returns:: Status code indicating success or failure.

Definition at line 429 of file RootCnvSvc.cpp.

                                                                                {
  if ( pObj ) {
    typedef vector<IRegistry*> Leaves;
    Leaves leaves;
    RootObjectRefs refs;
    IRegistry* pR = pObj->registry();
    SmartIF<IDataManagerSvc> dataMgr(pR->dataSvc());
    if ( dataMgr ) {
      StatusCode status = dataMgr->objectLeaves(pObj, leaves);
      if ( status.isSuccess() )  {
        RootRef ref;
        const string& id    = pR->identifier();
        size_t        len   = id.find('/',1);
        string        sect  = id.substr(1,len==string::npos ? string::npos : len-1);
        LinkManager* pLinks = pObj->linkMgr();
        for(Leaves::iterator i=leaves.begin(), iend=leaves.end(); i != iend; ++i)  {
          if ( (*i)->address() ) {
            m_current->makeRef(*i,ref);
            ref.entry = (*i)->address()->ipar()[1];
            refs.refs.push_back(ref);
          }
        }
        for(int i = 0, n=pLinks->size(); i < n; ++i)  {
          LinkManager::Link* lnk = pLinks->link(i);
          int link_id = m_current->makeLink(lnk->path());
          refs.links.push_back(link_id);
        }
        pair<int,unsigned long> ret = m_current->save(sect,id+"#R",m_classRefs,&refs,true);
        if ( ret.first > 1 ) {
          log() << MSG::DEBUG << "Writing object:" << id << " "
                << ret.first << " " << hex << ret.second << dec << endmsg;
          return S_OK;
        }
      }
    }
  }
  return S_FAIL;
}

StatusCode RootCnvSvc::initialize ( ) [virtual]

ConversionSvc overload: initialize Db service.

Reimplemented from ConversionSvc.

Definition at line 95 of file RootCnvSvc.cpp.

                                   {
  string cname;
  StatusCode status = ConversionSvc::initialize();
  if ( !status.isSuccess() )
    return error("Failed to initialize ConversionSvc base class.");
  m_log = new MsgStream(msgSvc(),name());
  if ( !m_compression.empty() ) {
    log() << MSG::INFO << "Setting global ROOT compression to:" << m_compression << endmsg;
    if ( !(status=RootConnectionSetup::setCompression(m_compression)).isSuccess() ) {
      return error("Unable to interprete ROOT compression encoding:"+m_compression);
    }
  }
  if( !(status=service("IODataManager", m_ioMgr)).isSuccess() )
    return error("Unable to localize interface from service:IODataManager");
  if( !(status=service("IncidentSvc", m_incidentSvc)).isSuccess() )
    return error("Unable to localize interface from service:IncidentSvc");
  m_setup->setMessageSvc(new MsgStream(msgSvc(),name()));
  GaudiRoot::patchStreamers(log());
  cname = System::typeinfoName(typeid(DataObject));
  m_classDO = gROOT->GetClass(cname.c_str());
  if ( 0 == m_classDO )
    return error("Unable to load class description for DataObject");
  cname = System::typeinfoName(typeid(RootObjectRefs));
  m_classRefs = gROOT->GetClass(cname.c_str());
  if ( 0 == m_classRefs )
    return error("Unable to load class description for ObjectRefs");
  return S_OK;
}

void RootCnvSvc::loadConverter ( DataObject * pObj ) [virtual]

ConversionSvc overload: Load the class (dictionary) for the converter.

Reimplemented from ConversionSvc.

Definition at line 169 of file RootCnvSvc.cpp.

                                                  {
  if (pObject) {
    string cname = System::typeinfoName(typeid(*pObject));
    log() << MSG::DEBUG << "Trying to 'Autoload' dictionary for class " << cname << endmsg;
    TClass* cl = s_classesNames[cname];
    if ( 0 == cl ) {
      cl = gROOT->GetClass(cname.c_str());
      if ( cl ) {
        s_classesNames[cname] = cl;
        s_classesClids[pObject->clID()] = cl;
      }
    }
  }
}

MsgStream& Gaudi::RootCnvSvc::log ( ) const [inline, protected]

Helper: Use message streamer.

Definition at line 83 of file RootCnvSvc.h.

{   return *m_log; }

virtual StatusCode Gaudi::RootCnvSvc::updateServiceState ( IOpaqueAddress * ) [inline, virtual]

Update state of the service.

Reimplemented from ConversionSvc.

Definition at line 94 of file RootCnvSvc.h.

    { return StatusCode::SUCCESS;                  }

Member Data Documentation

std::set<std::string> Gaudi::RootCnvSvc::m_badFiles [protected]

Set with bad files/tables.

Definition at line 75 of file RootCnvSvc.h.

TClass* Gaudi::RootCnvSvc::m_classDO [protected]

TClass pointer to DataObject class.

Definition at line 58 of file RootCnvSvc.h.

TClass* Gaudi::RootCnvSvc::m_classRefs [protected]

TClass pointer to reference class.

Definition at line 56 of file RootCnvSvc.h.

std::string Gaudi::RootCnvSvc::m_compression [protected]

Property: Compression-algorithm:compression-level.

Definition at line 73 of file RootCnvSvc.h.

Gaudi::RootDataConnection* Gaudi::RootCnvSvc::m_current [protected]

On writing: reference to active output stream.

Definition at line 54 of file RootCnvSvc.h.

std::string Gaudi::RootCnvSvc::m_currSection [protected]

Property: ROOT section name.

Definition at line 62 of file RootCnvSvc.h.

bool Gaudi::RootCnvSvc::m_incidentEnabled [protected]

Property: Flag to enable incidents on FILE_OPEN.

Definition at line 65 of file RootCnvSvc.h.

IIncidentSvc* Gaudi::RootCnvSvc::m_incidentSvc [protected]

Reference to incident service.

Definition at line 52 of file RootCnvSvc.h.

Gaudi::IIODataManager* Gaudi::RootCnvSvc::m_ioMgr [protected]

Reference to the I/O data manager.

Definition at line 50 of file RootCnvSvc.h.

std::string Gaudi::RootCnvSvc::m_ioPerfStats [protected]

Property: Enable TTree IOperfStats if not empty; otherwise perf stat file name.

Definition at line 71 of file RootCnvSvc.h.

MsgStream* Gaudi::RootCnvSvc::m_log [protected]

Message streamer.

Definition at line 78 of file RootCnvSvc.h.

std::string Gaudi::RootCnvSvc::m_recordName [protected]

Property: Records name to fire incident for file records.

Definition at line 69 of file RootCnvSvc.h.

RootConnectionSetup* Gaudi::RootCnvSvc::m_setup [protected]

Setup structure (ref-counted) and passed to data connections.

Definition at line 60 of file RootCnvSvc.h.

std::string Gaudi::RootCnvSvc::m_shareFiles [protected]

Property: Share files ? If set to YES, files will not be closed on finalize.

Definition at line 67 of file RootCnvSvc.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r2p1/RootCnv/RootCnv/RootCnvSvc.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r2p1/RootCnv/src/RootCnvSvc.cpp

Gaudi Framework, version v23r2p1

Gaudi::RootCnvSvc Class Reference

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
