GaudiHandleInfo Class Reference

#include <GaudiHandle.h>

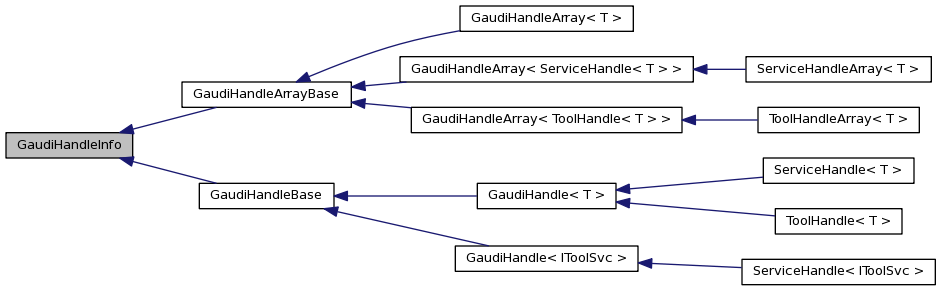

Inheritance diagram for GaudiHandleInfo:

Collaboration diagram for GaudiHandleInfo:

List of all members.

Public Member Functions
virtual	~GaudiHandleInfo ()
	virtual destructor so that derived class destructor is called.
const std::string &	componentType () const
const std::string &	propertyName () const
	name as used in declareProperty(name,gaudiHandle)
void	setPropertyName (const std::string &propName)
	set name as used in declareProperty(name,gaudiHandle).
const std::string &	parentName () const
	The name of the parent.
virtual const std::string	pythonPropertyClassName () const =0
	The python class name for the property in the genconf-generated configurables.
virtual const std::string	pythonRepr () const =0
	Python representation of handle, i.e.
Protected Member Functions
	GaudiHandleInfo (const std::string &myComponentType, const std::string &myParentName)
	Some basic information and helper functions shared between various handles/arrays.
Private Attributes
std::string	m_componentType
std::string	m_propertyName
std::string	m_parentName

---

Detailed Description

Definition at line 14 of file GaudiHandle.h.

---

Constructor & Destructor Documentation

GaudiHandleInfo::GaudiHandleInfo	(	const std::string &	myComponentType,
		const std::string &	myParentName
	)		[inline, protected]

Some basic information and helper functions shared between various handles/arrays.

Parameters:

myComponentType,:	string indicating what type of component the handle is pointing to. For example: "PublicTool", "PrivateTool", "Service". This is used for printout and on the python side for type checking. On the python side there are classes with these names with "Handle" appended: PublicToolHandle,PrivateToolHandle,ServiceHandle
myParentName,:	Name of the parent that has this handle as a member. Used in printout.

Definition at line 24 of file GaudiHandle.h.

    : m_componentType(myComponentType), m_parentName(myParentName)
  {}

virtual GaudiHandleInfo::~GaudiHandleInfo

(

)

[inline, virtual]

virtual destructor so that derived class destructor is called.

Definition at line 29 of file GaudiHandle.h.

{}

---

Member Function Documentation

const std::string& GaudiHandleInfo::componentType

(

)

const [inline]

Definition at line 33 of file GaudiHandle.h.

                                         {
     return m_componentType;
  }

const std::string& GaudiHandleInfo::parentName

(

)

const [inline]

The name of the parent.

Definition at line 48 of file GaudiHandle.h.

                                      {
    return m_parentName;
  }

const std::string& GaudiHandleInfo::propertyName

(

)

const [inline]

name as used in declareProperty(name,gaudiHandle)

Definition at line 38 of file GaudiHandle.h.

                                        {
     return m_propertyName;
  }

virtual const std::string GaudiHandleInfo::pythonPropertyClassName

(

)

const [pure virtual]

The python class name for the property in the genconf-generated configurables.

The python class is defined in GaudiPython/python/GaudiHandles.py. To be implemented in derived class.

Implemented in GaudiHandleBase, and GaudiHandleArrayBase.

virtual const std::string GaudiHandleInfo::pythonRepr

(

)

const [pure virtual]

Python representation of handle, i.e.

python class name and argument. Can be used in the genconf-generated configurables. The corresponding python classes are defined in GaudiPython/GaudiHandles.py. To be implemented in derived class.

Implemented in GaudiHandleBase, and GaudiHandleArrayBase.

void GaudiHandleInfo::setPropertyName

(

const std::string &

propName )

[inline]

set name as used in declareProperty(name,gaudiHandle).

Used in printout.

Definition at line 43 of file GaudiHandle.h.

                                                    {
    m_propertyName = propName;
  }

---

Member Data Documentation

std::string GaudiHandleInfo::m_componentType [private]

Definition at line 67 of file GaudiHandle.h.

std::string GaudiHandleInfo::m_parentName [private]

Definition at line 69 of file GaudiHandle.h.

std::string GaudiHandleInfo::m_propertyName [private]

Definition at line 68 of file GaudiHandle.h.

---

The documentation for this class was generated from the following file:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r4/GaudiKernel/GaudiKernel/GaudiHandle.h
