An abstract interface for "histogramming tool". More...

#include <GaudiTools/IHistoTool.h>

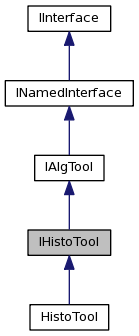

Inheritance diagram for IHistoTool:

Collaboration diagram for IHistoTool:

Public Types
typedef Histos::HistoID	HistoID
	the actual type for histogram identifier (HBOOK style)
Public Member Functions
	DeclareInterfaceID (IHistoTool, 2, 0)
	InterfaceID.
virtual AIDA::IHistogram1D *	plot1D (const double value, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const =0
	fill the 1D histogram (book on demand)
AIDA::IHistogram1D *	plot (const double value, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const
	fill the 1D histogram (book on demand)
virtual AIDA::IHistogram1D *	plot1D (const double value, const HistoID &ID, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const =0
	fill the 1D histogram with forced ID assignement (book on demand)
AIDA::IHistogram1D *	plot (const double value, const HistoID &ID, const std::string &title, const double low, const double high, const unsigned long bins=100, const double weight=1.0) const
	fill the 1D histogram with forced ID assignment (book on demand)
virtual AIDA::IHistogram2D *	plot2D (const double valueX, const double valueY, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const unsigned long binsX=50, const unsigned long binsY=50, const double weight=1.0) const =0
	fill the 2D histogram (book on demand)
virtual AIDA::IHistogram2D *	plot2D (const double valueX, const double valueY, const HistoID &ID, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const unsigned long binsX=50, const unsigned long binsY=50, const double weight=1.0) const =0
	fill the 2D histogram with forced ID assignment (book on demand)
virtual AIDA::IHistogram3D *	plot3D (const double valueX, const double valueY, const double valueZ, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const double lowZ, const double highZ, const unsigned long binsX=10, const unsigned long binsY=10, const unsigned long binsZ=10, const double weight=1.0) const =0
	fill the 3D histogram (book on demand)
virtual AIDA::IHistogram3D *	plot3D (const double valueX, const double valueY, const double valueZ, const HistoID &ID, const std::string &title, const double lowX, const double highX, const double lowY, const double highY, const double lowZ, const double highZ, const unsigned long binsX=10, const unsigned long binsY=10, const unsigned long binsZ=10, const double weight=1.0) const =0
	fill the 3D histogram with forced ID assignment (book on demand)
virtual AIDA::IHistogram1D *	book1D (const std::string &title, const double low=0, const double high=100, const unsigned long bins=100) const =0
	book the 1D histogram
AIDA::IHistogram1D *	book (const std::string &title, const double low=0, const double high=100, const unsigned long bins=100) const
	book the 1D histogram
virtual AIDA::IHistogram2D *	book2D (const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=50, const double lowY=0, const double highY=100, const unsigned long binsY=50) const =0
	book the 2D histogram
virtual AIDA::IHistogram3D *	book3D (const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=10, const double lowY=0, const double highY=100, const unsigned long binsY=10, const double lowZ=0, const double highZ=100, const unsigned long binsZ=10) const =0
	book the 3D histogram
virtual AIDA::IHistogram1D *	book1D (const HistoID &ID, const std::string &title="", const double low=0, const double high=100, const unsigned long bins=100) const =0
	book the 1D histogram with forced ID
AIDA::IHistogram1D *	book (const HistoID &ID, const std::string &title="", const double low=0, const double high=100, const unsigned long bins=100) const
	book the 1D histogram with forced ID
virtual AIDA::IHistogram2D *	book2D (const HistoID &ID, const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=100, const double lowY=0, const double highY=100, const unsigned long binsY=100) const =0
	book the 2D histogram with forced ID
virtual AIDA::IHistogram3D *	book3D (const HistoID &ID, const std::string &title, const double lowX=0, const double highX=100, const unsigned long binsX=10, const double lowY=0, const double highY=100, const unsigned long binsY=10, const double lowZ=0, const double highZ=100, const unsigned long binsZ=10) const =0
	book the 3D histogram with forced ID
virtual AIDA::IHistogram1D *	fill (AIDA::IHistogram1D *histo, const double value, const double weight, const std::string &title="") const =0
	fill the 1D histo with the value and weight
virtual AIDA::IHistogram2D *	fill (AIDA::IHistogram2D *histo, const double valueX, const double valueY, const double weight, const std::string &title="") const =0
	fill the 2D histo with the value and weight
virtual AIDA::IHistogram3D *	fill (AIDA::IHistogram3D *histo, const double valueX, const double valueY, const double valueZ, const double weight, const std::string &title="") const =0
	fill the 3D histo with the value and weight
virtual AIDA::IHistogram1D *	histo1D (const std::string &title) const =0
	access the EXISTING 1D histogram by title return the pointer to existing 1D histogram or NULL
AIDA::IHistogram1D *	histo (const std::string &title) const
	access the EXISTING 1D histogram by title
virtual AIDA::IHistogram2D *	histo2D (const std::string &title) const =0
	access the EXISTING 2D histogram by title return the pointer to existing 2D histogram or NULL
virtual AIDA::IHistogram3D *	histo3D (const std::string &title) const =0
	access the EXISTING 3D histogram by title return the pointer to existing 3D histogram or NULL
virtual AIDA::IHistogram1D *	histo1D (const HistoID &ID) const =0
	access the EXISTING 1D histogram by ID return the pointer to existing 1D histogram or NULL
AIDA::IHistogram1D *	histo (const HistoID &ID) const
	access the EXISTING 1D histogram by ID
virtual AIDA::IHistogram2D *	histo2D (const HistoID &ID) const =0
	access the EXISTING 2D histogram by ID return the pointer to existing 2D histogram or NULL
virtual AIDA::IHistogram3D *	histo3D (const HistoID &ID) const =0
	access the EXISTING 3D histogram by ID return the pointer to existing 3D histogram or NULL
virtual bool	histoExists (const std::string &title) const =0
	check the existence AND validity of the histogram with given title
virtual bool	histoExists (const HistoID &ID) const =0
	check the existence AND validity of the histogram with given title
template<class FUNCTION , class OBJECT >
AIDA::IHistogram1D *	plot (const FUNCTION &func, OBJECT first, OBJECT last, const std::string &title, const double low, const double high, const unsigned long bins=100) const
	fill the 1D histogram with information from [first,last) sequence
template<class FUNCTION , class OBJECT >
AIDA::IHistogram1D *	plot (const FUNCTION &func, OBJECT first, OBJECT last, const HistoID &ID, const std::string &title, const double low, const double high, const unsigned long bins=100) const
	fill the 1D histogram with forced ID and information from [first,last) sequence
template<class FUNCTION , class OBJECT , class WEIGHT >
AIDA::IHistogram1D *	plot (const FUNCTION &func, OBJECT first, OBJECT last, const std::string &title, const double low, const double high, const unsigned long bins, const WEIGHT &weight) const
	book and fill the 1D histogram with information from [first,last) sequence with given weight
template<class FUNCTION , class OBJECT , class WEIGHT >
AIDA::IHistogram1D *	plot (const FUNCTION &func, OBJECT first, OBJECT last, const HistoID &ID, const std::string &title, const double low, const double high, const unsigned long bins, const WEIGHT &weight) const
	book and fill the 1D histogram with forced ID and information from [first,last) sequence with given weight
Protected Member Functions
virtual	~IHistoTool ()
	destructor

Detailed Description

An abstract interface for "histogramming tool".

Author:: Vanya BELYAEV Ivan.Belyaev@itep.ru

Date:: 2004-06-28

Definition at line 33 of file IHistoTool.h.

Member Typedef Documentation

typedef Histos::HistoID IHistoTool::HistoID

the actual type for histogram identifier (HBOOK style)

Reimplemented in HistoTool.

Definition at line 40 of file IHistoTool.h.

Constructor & Destructor Documentation

IHistoTool::~IHistoTool ( ) [protected, virtual]

destructor

Definition at line 24 of file IHistoTool.cpp.

{}

Member Function Documentation

AIDA::IHistogram1D* IHistoTool::book	(	const std::string &	title,
		const double	low = `0`,
		const double	high = `100`,
		const unsigned long	bins = `100`
	)		const `[inline]`

book the 1D histogram

Wrapper method for the equivalent book1D method. Retained for backwards compatibility, please use book1D instead.

See also:: IHistogram1D

Parameters:

title	histogram title (must be unique within the algorithm)
low	low limit for histogram
high	high limit for histogram
bins	number of bins

Returns:: pointer to AIDA 1D histogram

Definition at line 447 of file IHistoTool.h.

  {
    return book1D( title, low, high, bins );
  }

AIDA::IHistogram1D* IHistoTool::book	(	const HistoID &	ID,
		const std::string &	title = `""`,
		const double	low = `0`,
		const double	high = `100`,
		const unsigned long	bins = `100`
	)		const `[inline]`

book the 1D histogram with forced ID

Wrapper method for the equivalent book1D method. Retained for backwards compatibility, please use book1D instead.

See also:: IHistogram1D

Parameters:

ID	unique histogram ID
title	histogram title (must be unique within the algorithm)
low	low limit for histogram
high	high limit for histogram
bins	number of bins

Returns:: pointer to AIDA histogram

Definition at line 538 of file IHistoTool.h.

  {
    return book1D( ID, title, low, high, bins );
  }

virtual AIDA::IHistogram1D* IHistoTool::book1D	(	const std::string &	title,
		const double	low = `0`,
		const double	high = `100`,
		const unsigned long	bins = `100`
	)		const `[pure virtual]`

book the 1D histogram

The histogram will be assigned a unique identifier

See also:: IHistogram1D

Parameters:

title	histogram title (must be unique within the algorithm)
low	low limit for histogram
high	high limit for histogram
bins	number of bins

Returns:: pointer to AIDA 1D histogram

Implemented in HistoTool.

virtual AIDA::IHistogram1D* IHistoTool::book1D	(	const HistoID &	ID,
		const std::string &	title = `""`,
		const double	low = `0`,
		const double	high = `100`,
		const unsigned long	bins = `100`
	)		const `[pure virtual]`

book the 1D histogram with forced ID

See also:: IHistogram1D

Parameters:

ID	unique histogram ID
title	histogram title (must be unique within the algorithm)
low	low limit for histogram
high	high limit for histogram
bins	number of bins

Returns:: pointer to AIDA histogram

Implemented in HistoTool.

virtual AIDA::IHistogram2D* IHistoTool::book2D	(	const HistoID &	ID,
		const std::string &	title,
		const double	lowX = `0`,
		const double	highX = `100`,
		const unsigned long	binsX = `100`,
		const double	lowY = `0`,
		const double	highY = `100`,
		const unsigned long	binsY = `100`
	)		const `[pure virtual]`

book the 2D histogram with forced ID

See also:: IHistogram2D

Parameters:

ID	unique histogram ID
title	histogram title (must be unique within the algorithm)
low	low limit for histogram
high	high limit for histogram
bins	number of bins

Returns:: pointer to AIDA histogram

Implemented in HistoTool.

virtual AIDA::IHistogram2D* IHistoTool::book2D	(	const std::string &	title,
		const double	lowX = `0`,
		const double	highX = `100`,
		const unsigned long	binsX = `50`,
		const double	lowY = `0`,
		const double	highY = `100`,
		const unsigned long	binsY = `50`
	)		const `[pure virtual]`

book the 2D histogram

The histogram will be assigned a unique identifier

See also:: IHistogram2D

Parameters:

title	histogram title (must be unique within the algorithm)
lowX	low x limit for histogram
highX	high x limit for histogram
binsX	number of bins in x
lowY	low y limit for histogram
highY	high y limit for histogram
binsY	number of bins in y

Returns:: pointer to AIDA 2D histogram

Implemented in HistoTool.

virtual AIDA::IHistogram3D* IHistoTool::book3D	(	const HistoID &	ID,
		const std::string &	title,
		const double	lowX = `0`,
		const double	highX = `100`,
		const unsigned long	binsX = `10`,
		const double	lowY = `0`,
		const double	highY = `100`,
		const unsigned long	binsY = `10`,
		const double	lowZ = `0`,
		const double	highZ = `100`,
		const unsigned long	binsZ = `10`
	)		const `[pure virtual]`

book the 3D histogram with forced ID

See also:: IHistogram3D

Parameters:

ID	unique histogram ID
title	histogram title (must be unique within the algorithm)
lowX	low x limit for histogram
highX	high x limit for histogram
binsX	number of bins in x
lowY	low y limit for histogram
highY	high y limit for histogram
binsY	number of bins in y
lowZ	low y limit for histogram
highZ	high y limit for histogram
binsZ	number of bins in y

Returns:: pointer to AIDA 3D histogram

Implemented in HistoTool.

virtual AIDA::IHistogram3D* IHistoTool::book3D	(	const std::string &	title,
		const double	lowX = `0`,
		const double	highX = `100`,
		const unsigned long	binsX = `10`,
		const double	lowY = `0`,
		const double	highY = `100`,
		const unsigned long	binsY = `10`,
		const double	lowZ = `0`,
		const double	highZ = `100`,
		const unsigned long	binsZ = `10`
	)		const `[pure virtual]`

book the 3D histogram

The histogram will be assigned a unique identifier

See also:: IHistogram3D

Parameters:

title	histogram title (must be unique within the algorithm)
lowX	low x limit for histogram
highX	high x limit for histogram
binsX	number of bins in x
lowY	low y limit for histogram
highY	high y limit for histogram
binsY	number of bins in y
lowZ	low y limit for histogram
highZ	high y limit for histogram
binsZ	number of bins in y

Returns:: pointer to AIDA 3D histogram

Implemented in HistoTool.

IHistoTool::DeclareInterfaceID	(	IHistoTool	,
		2	,
		0
	)

InterfaceID.

virtual AIDA::IHistogram1D* IHistoTool::fill	(	AIDA::IHistogram1D *	histo,
		const double	value,
		const double	weight,
		const std::string &	title = `""`
	)		const `[pure virtual]`

fill the 1D histo with the value and weight

Parameters:

histo	1D histogram to be filled
value	value to be put into the histogram
weight	weight to be used
title	histogram title (to be used for error report)

Returns:: pointer to AIDA 1D histogram

Implemented in HistoTool.

virtual AIDA::IHistogram2D* IHistoTool::fill	(	AIDA::IHistogram2D *	histo,
		const double	valueX,
		const double	valueY,
		const double	weight,
		const std::string &	title = `""`
	)		const `[pure virtual]`

fill the 2D histo with the value and weight

Parameters:

histo	2D histogram to be filled
valueX	x value to be put into the histogram
valueY	y value to be put into the histogram
weight	weight to be used
title	histogram title (to be used for error report)

Returns:: pointer to AIDA 2D histogram

Implemented in HistoTool.

virtual AIDA::IHistogram3D* IHistoTool::fill	(	AIDA::IHistogram3D *	histo,
		const double	valueX,
		const double	valueY,
		const double	valueZ,
		const double	weight,
		const std::string &	title = `""`
	)		const `[pure virtual]`

fill the 3D histo with the value and weight

Parameters:

histo	3D histogram to be filled
valueX	x value to be put into the histogram
valueY	y value to be put into the histogram
valueZ	z value to be put into the histogram
weight	weight to be used
title	histogram title (to be used for error report)

Returns:: pointer to AIDA 3D histogram

Implemented in HistoTool.

AIDA::IHistogram1D* IHistoTool::histo ( const std::string & title ) const [inline]

access the EXISTING 1D histogram by title

Wrapper method for the equivalent histo1D method. Retained for backwards compatibility, please use histo1D instead.

return the pointer to existing 1D histogram or NULL

Definition at line 653 of file IHistoTool.h.

  {
    return histo1D( title );
  };

AIDA::IHistogram1D* IHistoTool::histo ( const HistoID & ID ) const [inline]

access the EXISTING 1D histogram by ID

Wrapper method for the equivalent histo1D method. Retained for backwards compatibility, please use histo1D instead.

return the pointer to existing 1D histogram or NULL

Definition at line 681 of file IHistoTool.h.

  {
    return histo1D( ID );
  };

virtual AIDA::IHistogram1D* IHistoTool::histo1D ( const std::string & title ) const [pure virtual]

access the EXISTING 1D histogram by title return the pointer to existing 1D histogram or NULL

Implemented in HistoTool.

virtual AIDA::IHistogram1D* IHistoTool::histo1D ( const HistoID & ID ) const [pure virtual]

access the EXISTING 1D histogram by ID return the pointer to existing 1D histogram or NULL

Implemented in HistoTool.

virtual AIDA::IHistogram2D* IHistoTool::histo2D ( const std::string & title ) const [pure virtual]

access the EXISTING 2D histogram by title return the pointer to existing 2D histogram or NULL

Implemented in HistoTool.

virtual AIDA::IHistogram2D* IHistoTool::histo2D ( const HistoID & ID ) const [pure virtual]

access the EXISTING 2D histogram by ID return the pointer to existing 2D histogram or NULL

Implemented in HistoTool.

virtual AIDA::IHistogram3D* IHistoTool::histo3D ( const std::string & title ) const [pure virtual]

access the EXISTING 3D histogram by title return the pointer to existing 3D histogram or NULL

Implemented in HistoTool.

virtual AIDA::IHistogram3D* IHistoTool::histo3D ( const HistoID & ID ) const [pure virtual]

access the EXISTING 3D histogram by ID return the pointer to existing 3D histogram or NULL

Implemented in HistoTool.

virtual bool IHistoTool::histoExists ( const std::string & title ) const [pure virtual]

check the existence AND validity of the histogram with given title

Implemented in HistoTool.

virtual bool IHistoTool::histoExists ( const HistoID & ID ) const [pure virtual]

check the existence AND validity of the histogram with given title

Implemented in HistoTool.

AIDA::IHistogram1D* IHistoTool::plot	(	const double	value,
		const std::string &	title,
		const double	low,
		const double	high,
		const unsigned long	bins = `100`,
		const double	weight = `1.0`
	)		const `[inline]`

fill the 1D histogram (book on demand)

Wrapper method for the equivalent plot1D method. Retained for backwards compatibility, please use plot1D instead.

Parameters:

value	value to be filled
title	histogram title (must be unique within the algorithm)
low	low limit for histogram
high	high limit for histogram
bins	number of bins
weight	weight

Returns:: pointer to AIDA 1D histogram

Definition at line 96 of file IHistoTool.h.

  {
    return plot1D ( value, title, low, high, bins, weight );
  }

template<class FUNCTION , class OBJECT , class WEIGHT >

AIDA::IHistogram1D* IHistoTool::plot	(	const FUNCTION &	func,
		OBJECT	first,
		OBJECT	last,
		const std::string &	title,
		const double	low,
		const double	high,
		const unsigned long	bins,
		const WEIGHT &	weight
	)		const `[inline]`

book and fill the 1D histogram with information from [first,last) sequence with given weight

  std::vector<double> v = ... ;

  plot( sin                 ,   // function
        v.begin() , v.end() ,   // sequence
        " bla-bla "         ,   // title
        -1. , 1.0           ,   // low and high limits
        100                 ,   // number of bins
        tanh                );  // weight function

The histogram will get a unique integer identifier automatically assigned

Sequence, objects and function can be non-trivial:

  Particles* p = ... ;

  plot( PT                  ,  // function
        p->begin()  , p->end() , // sequence
        " bla-bla "         ,   // title
        -1. , 1.0           ,   // low and high limits
        100                 ,   // number of bins
        MASS                ) ; // weight function

where PT and MASS can be any function or function object for which the expressions PT(p) and MASS with p of type Particle* have some sense and can be evaluated to the values, which is convertible to double

Note : These plot methods using iterator ranges are more efficient than the simplier "value" only methods, since the associated histogram only requires locating from internal storage once per loop, as opposed to once per fill for the simplier functions. It is recommended to use these whenever possible.

See also:: AIDA::IHistogram1D

Parameters:

first	begin of the sequence
last	end of the sequence
title	histogram title
func	function to be plotted
low	low limit for histogram
high	high limit for histogram
bins	number of bins for histogram
weight	weight function

Definition at line 895 of file IHistoTool.h.

  {
    // retrieve or book the histogram
    AIDA::IHistogram1D* h = histo1D ( title ) ;
    if ( 0 == h     ) { h = book1D  ( title , low , high , bins ); }
    while( first != last && 0 != h )
    { h = fill ( h                 ,
                 func   ( *first ) ,
                 weight ( *first ) , title  ) ; ++first ; }
    return h ;
  }

template<class FUNCTION , class OBJECT >

AIDA::IHistogram1D* IHistoTool::plot	(	const FUNCTION &	func,
		OBJECT	first,
		OBJECT	last,
		const HistoID &	ID,
		const std::string &	title,
		const double	low,
		const double	high,
		const unsigned long	bins = `100`
	)		const `[inline]`

fill the 1D histogram with forced ID and information from [first,last) sequence

  std::vector<double> v = ... ;

  plot( sin                 ,   // function
        v.begin() , v.end() ,   // sequence
        100 , " bla-bla "   ,   // ID and title
        -1. , 1.0           ,   // low and high limits
        100                 );  // number of bins

Sequence, objects and function can be non-trivial:

  Particles* p = ... ;

  plot( PT                  ,   // function
        p->begin()   , p->end() , // sequence
        100 , " bla-bla "   ,   // ID and title
        -1. , 1.0           ,   // low and high limits
        100                 ) ; // number of bins

Note : These plot methods using iterator ranges are more efficient than the simplier "value" only methods, since the associated histogram only requires locating from internal storage once per loop, as opposed to once per fill for the simplier functions. It is recommended to use these whenever possible.

Note : This method is more efficient that the similar method without forced ID, since the histogram lookup is faster using a numerical ID.

See also:: AIDA::IHistogram1D

Parameters:

func	function to be plotted
first	begin of the sequence
last	end of the sequence
ID	histogram identifier
title	histogram title
low	low limit for histogram
high	high limit for histogram
bins	number of bins for histogram

Definition at line 822 of file IHistoTool.h.

  {
    // retrieve or book the histogram
    AIDA::IHistogram1D* h = histo1D ( ID ) ;
    if ( 0 == h )     { h = book1D  ( ID , title , low , high , bins ); }
    while ( first != last && 0 != h )
    { h = fill( h , func( *first ) , 1.0 , title  ) ; ++first ; }
    return h ;
  }

template<class FUNCTION , class OBJECT >

AIDA::IHistogram1D* IHistoTool::plot	(	const FUNCTION &	func,
		OBJECT	first,
		OBJECT	last,
		const std::string &	title,
		const double	low,
		const double	high,
		const unsigned long	bins = `100`
	)		const `[inline]`

fill the 1D histogram with information from [first,last) sequence

  std::vector<double> v = ... ;

  plot( sin                 , // function
        v.begin() , v.end() , // sequence
        " bla-bla "         , // title
        -1. , 1.0           , // low and high limits
        100                 ) // number of bins

The histogram will get a unique integer identifier automatically assigned

Sequence, objects and function can be non-trivial:

  Particles* p = ... ;

  plot( PT                  , // function
        p->begin()  , p->end() , // sequence
        " bla-bla "         , // title
        -1. , 1.0           , // low and high limits
        100                 ) ; // number of bins

where PT can be any function or function object for which the expression PT(p) , with p of type Particle* have some sense and can be evaluated to the values, which is convertible to double

Note : These plot methods using iterator ranges are more efficient than the simplier "value" only methods, since the associated histogram only requires locating from internal storage once per loop, as opposed to once per fill for the simplier functions. It is recommended to use these whenever possible.

See also:: AIDA::IHistogram1D

Parameters:

func	function to be plotted
first	begin of the sequence
last	end of the sequence
title	histogram title
low	low limit for histogram
high	high limit for histogram
bins	number of bins for histogram

Definition at line 755 of file IHistoTool.h.

  {
    // retrieve or book the histogram
    AIDA::IHistogram1D* h = histo1D ( title ) ;
    if ( 0 == h )     { h = book1D  ( title , low , high , bins ); }
    while ( first != last && 0 != h  )
    { h = fill ( h , func( *first ) , 1.0 , title  ) ; ++first ; }
    return h ;
  }

AIDA::IHistogram1D* IHistoTool::plot	(	const double	value,
		const HistoID &	ID,
		const std::string &	title,
		const double	low,
		const double	high,
		const unsigned long	bins = `100`,
		const double	weight = `1.0`
	)		const `[inline]`

fill the 1D histogram with forced ID assignment (book on demand)

Wrapper method for the equivalent plot1D method. Retained for backwards compatibility, please use plot1D instead.

Parameters:

value	value to be filled
ID	histogram identifier
title	histogram title (must be unique within the algorithm)
low	low limit for histogram
high	high limit for histogram
bins	number of bins
weight	weight

Returns:: pointer to AIDA histogram

Definition at line 170 of file IHistoTool.h.

  {
    return plot1D ( value, ID, title, low, high, bins, weight );
  };

template<class FUNCTION , class OBJECT , class WEIGHT >

AIDA::IHistogram1D* IHistoTool::plot	(	const FUNCTION &	func,
		OBJECT	first,
		OBJECT	last,
		const HistoID &	ID,
		const std::string &	title,
		const double	low,
		const double	high,
		const unsigned long	bins,
		const WEIGHT &	weight
	)		const `[inline]`

book and fill the 1D histogram with forced ID and information from [first,last) sequence with given weight

  std::vector<double> v = ... ;

  plot( sin                 ,   // function
        v.begin() , v.end() ,   // sequence
        100 , " bla-bla "   ,   // ID and title
        -1. , 1.0           ,   // low and high limits
        100                 ,   // number of bins
        sinh                );  // weight function

Attention:: no checks for NaN and Finite is performed!

Sequence, objects and function can be non-trivial:

  Particles* p = ... ;

  plot( PT                  ,   // function
        p->begin()   , p->end() , // sequence
        100 , " bla-bla "   ,   // ID and title
        -1. , 1.0           ,   // low and high limits
        100                 ,   // number of bins
        MASS                ) ; // weight function

where PT and MASS can be any function or function object for which the expressions PT(p) and MASS with p of type Particle* have some sense and can be evaluated to the values, which is convertible to double

Note : These plot methods using iterator ranges are more efficient than the simplier "value" only methods, since the associated histogram only requires locating from internal storage once per loop, as opposed to once per fill for the simplier functions. It is recommended to use these whenever possible.

Note : This method is more efficient that the similar method without forced ID, since the histogram lookup is faster using a numerical ID.

See also:: AIDA::IHistogram1D

Parameters:

first	begin of the sequence
last	end of the sequence
ID	histogram identifier
title	histogram title
func	function to be plotted
low	low limit for histogram
high	high limit for histogram
bins	number of bins for histogram
weight	weight function

Definition at line 975 of file IHistoTool.h.

  {
    // retrieve or book the histogram
    AIDA::IHistogram1D* h = histo1D ( ID ) ;
    if ( 0 == h     ) { h = book1D  ( ID , title , low , high , bins ); }
    while( first != last && 0 != h )
    { h  = fill ( h                 ,
                  func   ( *first ) ,
                  weight ( *first ) , title  ) ; ++first ; }
    return h ;
  }

virtual AIDA::IHistogram1D* IHistoTool::plot1D	(	const double	value,
		const std::string &	title,
		const double	low,
		const double	high,
		const unsigned long	bins = `100`,
		const double	weight = `1.0`
	)		const `[pure virtual]`

fill the 1D histogram (book on demand)

     const double mass = ... ;
     plot1D( mass , "Invariant Mass" , 2.5 , 3.5 , 100 )

This example illustrates the filling of the histogram titled "InvariantMass" with value mass .
If the histogram with given title does not exist yet it will be automatically booked with parameters low equal to 2.5, parameters high equal to 3.5 and bins equal to 100.

The histogram will get a unique integer identifier automatically assigned.

See also:: AIDA::IHistogram1D

Parameters:

value	value to be filled
title	histogram title (must be unique within the algorithm)
low	low limit for histogram
high	high limit for histogram
bins	number of bins
weight	weight

Returns:: pointer to AIDA 1D histogram

Implemented in HistoTool.

virtual AIDA::IHistogram1D* IHistoTool::plot1D	(	const double	value,
		const HistoID &	ID,
		const std::string &	title,
		const double	low,
		const double	high,
		const unsigned long	bins = `100`,
		const double	weight = `1.0`
	)		const `[pure virtual]`

fill the 1D histogram with forced ID assignement (book on demand)

     const double mass = ... ;
     plot1D( mass , 15 , "Invariant Mass" , 2.5 , 3.5 , 100 )

This example illustrates the filling of the 1D histogram ID=15 titled "Invariant Mass" with value mass .
If the histogram with given ID does not exist yet it will be automatically booked with parameters low equal to 2.5, parameters high equal to 3.5 and bins equal to 100.

Attention:: If the histogram with given ID is already booked through automatic assignement of histogram ID, the error will not be detected. Therefore it is recommended to use non-trivial histogram ID offset (property "HistoOffSet") if one need to combine these techniques together It is still desirable to use the unique histogram title to avoid a bad interference.

Note : This method is more efficient that the similar method without forced ID, since the histogram lookup is faster using a numerical ID.

See also:: AIDA::IHistogram1D

Parameters:

value	value to be filled
ID	histogram identifier
title	histogram title (must be unique within the algorithm)
low	low limit for histogram
high	high limit for histogram
bins	number of bins
weight	weight

Returns:: pointer to AIDA histogram

Implemented in HistoTool.

virtual AIDA::IHistogram2D* IHistoTool::plot2D	(	const double	valueX,
		const double	valueY,
		const HistoID &	ID,
		const std::string &	title,
		const double	lowX,
		const double	highX,
		const double	lowY,
		const double	highY,
		const unsigned long	binsX = `50`,
		const unsigned long	binsY = `50`,
		const double	weight = `1.0`
	)		const `[pure virtual]`

fill the 2D histogram with forced ID assignment (book on demand)

     const double mass1 = ... ;
     const double mass2 = ... ;
     plot2D( mass1, mass2, 15, "Invariant Mass2 versus Mass1" ,2.5 ,3.5, 4.5, 5.5, 100, 200 );

This example illustrates the filling of the 2D histogram ID=15 titled "Invariant Mass2 versus Mass1" with values mass1 and mass2 .
If the histogram with given title does not exist yet it will be automatically booked with parameters lowX equal to 2.5, highX equal to 3.5, lowY equal to 4.5, highY equal to 5.5, binsX equal to 100 and binsY equal to 200.

Attention:: If the histogram with given ID is already booked through automatic assignment of histogram ID, the error will not be detected. Therefore it is recommended to use non-trivial histogram ID offset (property "HistoOffSet") if one need to combine these techniques together It is still desirable to use the unique histogram title to avoid a bad interference

Note : This method is more efficient that the similar method without forced ID, since the histogram lookup is faster using a numerical ID.

See also:: AIDA::IHistogram2D

Parameters:

valueX	x value to be filled
valueY	y value to be filled
ID	Histogram ID to use
title	histogram title (must be unique within the algorithm)
lowX	low x limit for histogram
highX	high x limit for histogram
lowY	low y limit for histogram
highY	high y limit for histogram
binsX	number of bins in x
binsY	number of bins in y
weight	weight

Returns:: pointer to AIDA 2D histogram

Implemented in HistoTool.

virtual AIDA::IHistogram2D* IHistoTool::plot2D	(	const double	valueX,
		const double	valueY,
		const std::string &	title,
		const double	lowX,
		const double	highX,
		const double	lowY,
		const double	highY,
		const unsigned long	binsX = `50`,
		const unsigned long	binsY = `50`,
		const double	weight = `1.0`
	)		const `[pure virtual]`

fill the 2D histogram (book on demand)

     const double mass1 = ... ;
     const double mass2 = ... ;
     plot2D( mass1, mass2, "Invariant Mass2 versus Mass1" ,2.5 ,3.5, 4.5, 5.5, 100, 200 );

This example illustrates the filling of the 2D histogram titled "Invariant Mass2 versus Mass1" with values mass1 and mass2 .
If the histogram with given title does not exist yet it will be automatically booked with parameters lowX equal to 2.5, highX equal to 3.5, lowY equal to 4.5, highY equal to 5.5, binsX equal to 100 and binsY equal to 200.

The histogram will get a unique integer identifier automatically assigned

See also:: AIDA::IHistogram2D

Parameters:

valueX	x value to be filled
valueY	y value to be filled
title	histogram title (must be unique within the algorithm)
lowX	low x limit for histogram
highX	high x limit for histogram
lowY	low y limit for histogram
highY	high y limit for histogram
binsX	number of bins in x
binsY	number of bins in y
weight	weight

Returns:: pointer to AIDA 2D histogram

Implemented in HistoTool.

virtual AIDA::IHistogram3D* IHistoTool::plot3D	(	const double	valueX,
		const double	valueY,
		const double	valueZ,
		const std::string &	title,
		const double	lowX,
		const double	highX,
		const double	lowY,
		const double	highY,
		const double	lowZ,
		const double	highZ,
		const unsigned long	binsX = `10`,
		const unsigned long	binsY = `10`,
		const unsigned long	binsZ = `10`,
		const double	weight = `1.0`
	)		const `[pure virtual]`

fill the 3D histogram (book on demand)

     const double mass1 = ... ;
     const double mass2 = ... ;
     const double mass3 = ... ;
     plot3D( X, Y, Z, "Space Points" ,2.5 ,3.5, 4.5, 5.5, 6.5, 7.5, 10, 20, 30 );

This example illustrates the filling of the 3D histogram titled "Space Points" with values X, Y and Z.
If the histogram with given title does not exist yet it will be automatically booked with parameters lowX equal to 2.5, highX equal to 3.5, lowY equal to 4.5, highY equal to 5.5, lowZ equal to 6.5, highZ equal to 7.5, binsX equal to 10, binsY equal to 20 and binsZ equal to 30.

The histogram will get a unique integer identifier automatically assigned

See also:: AIDA::IHistogram3D

Parameters:

valueX	x value to be filled
valueY	y value to be filled
valueZ	z value to be filled
title	histogram title (must be unique within the algorithm)
lowX	low x limit for histogram
highX	high x limit for histogram
lowY	low y limit for histogram
highY	high y limit for histogram
lowZ	low z limit for histogram
highZ	high z limit for histogram
binsX	number of bins in x
binsY	number of bins in y
binsZ	number of bins in z
weight	weight

Returns:: pointer to AIDA 3D histogram

Implemented in HistoTool.

virtual AIDA::IHistogram3D* IHistoTool::plot3D	(	const double	valueX,
		const double	valueY,
		const double	valueZ,
		const HistoID &	ID,
		const std::string &	title,
		const double	lowX,
		const double	highX,
		const double	lowY,
		const double	highY,
		const double	lowZ,
		const double	highZ,
		const unsigned long	binsX = `10`,
		const unsigned long	binsY = `10`,
		const unsigned long	binsZ = `10`,
		const double	weight = `1.0`
	)		const `[pure virtual]`

fill the 3D histogram with forced ID assignment (book on demand)

     const double mass1 = ... ;
     const double mass2 = ... ;
     const double mass3 = ... ;
     plot3D( X, Y, Z, "Space Points" ,2.5 ,3.5, 4.5, 5.5, 6.5, 7.5, 10, 20, 30 );

This example illustrates the filling of the 3D histogram titled "Space Points" with values X, Y and Z.
If the histogram with given title does not exist yet it will be automatically booked with parameters lowX equal to 2.5, highX equal to 3.5, lowY equal to 4.5, highY equal to 5.5, lowZ equal to 6.5, highZ equal to 7.5, binsX equal to 10, binsY equal to 20 and binsZ equal to 30.

Attention:: If the histogram with given ID is already booked through automatic assignment of histogram ID, the error will not be detected. Therefore it is recommended to use non-trivial histogram ID offset (property "HistoOffSet") if one need to combine these techniques together It is still desirable to use the unique histogram title to avoid a bad interference

Note : This method is more efficient that the similar method without forced ID, since the histogram lookup is faster using a numerical ID.

See also:: AIDA::IHistogram3D

Parameters:

valueX	x value to be filled
valueY	y value to be filled
valueZ	z value to be filled
ID	Histogram ID to use
title	histogram title (must be unique within the algorithm)
lowX	low x limit for histogram
highX	high x limit for histogram
lowY	low y limit for histogram
highY	high y limit for histogram
lowZ	low z limit for histogram
highZ	high z limit for histogram
binsX	number of bins in x
binsY	number of bins in y
binsZ	number of bins in z
weight	weight

Returns:: pointer to AIDA 3D histogram

Implemented in HistoTool.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r4/GaudiAlg/GaudiAlg/IHistoTool.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r4/GaudiAlg/src/lib/IHistoTool.cpp

Gaudi Framework, version v23r4

IHistoTool Class Reference

Public Types

Public Member Functions

Protected Member Functions

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation
