NTuple::File Class Reference

Small class representing an N tuple file in the transient store. More...

#include <NTuple.h>

Inheritance diagram for NTuple::File:

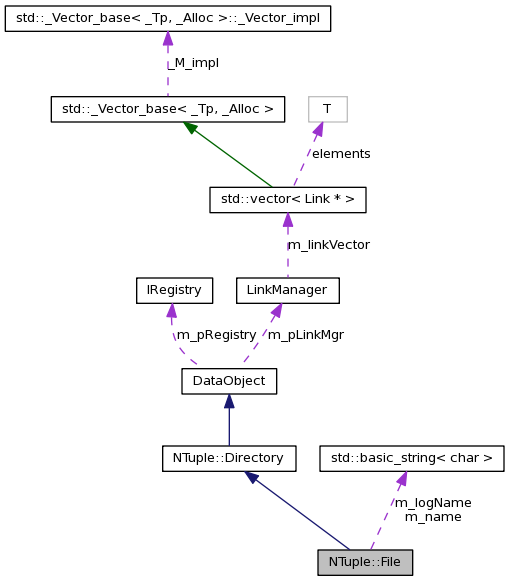

Collaboration diagram for NTuple::File:

List of all members.

Public Member Functions
	File ()
	File (long type, const std::string name, const std::string &logName)
	Standard constructor.
virtual	~File ()
	Standard destructor.
virtual const CLID &	clID () const
	class ID of the object
void	setType (const long typ)
	Set access type.
long	type () const
	Return access type.
const std::string &	name () const
	Retrun physical file name.
void	setName (const std::string &nam)
	Set access type.
const std::string &	logicalName () const
void	setLogicalName (const std::string &l)
void	setOpen (bool flag)
	Set "open" flag.
bool	isOpen () const
	Access "open" flag.
Static Public Member Functions
static const CLID &	classID ()
	class ID of the object
Protected Attributes
std::string	m_name
	Physical file name.
std::string	m_logName
	Logical file name.
long	m_type
	Access type.
bool	m_isOpen
	Flag to indicate wether the file was opened already.

---

Detailed Description

Small class representing an N tuple file in the transient store.

Definition at line 1085 of file NTuple.h.

---

Constructor & Destructor Documentation

NTuple::File::File

(

)

[inline]

Definition at line 1096 of file NTuple.h.

           : m_type(0), m_isOpen(false)   {
    }

NTuple::File::File	(	long	type,
		const std::string	name,
		const std::string &	logName
	)		[inline]

Standard constructor.

Definition at line 1099 of file NTuple.h.

    : m_name(name), m_logName(logName), m_type(type), m_isOpen(false)  {
    }

virtual NTuple::File::~File

(

)

[inline, virtual]

Standard destructor.

Definition at line 1103 of file NTuple.h.

                      {
    }

---

Member Function Documentation

static const CLID& NTuple::File::classID

(

)

[inline, static]

class ID of the object

Reimplemented from NTuple::Directory.

Definition at line 1106 of file NTuple.h.

                                    {
      return CLID_NTupleFile;
    }

virtual const CLID& NTuple::File::clID

(

)

const [inline, virtual]

class ID of the object

Reimplemented from NTuple::Directory.

Definition at line 1110 of file NTuple.h.

                                          {
      return classID();
    }

bool NTuple::File::isOpen

(

)

const [inline]

Access "open" flag.

Definition at line 1142 of file NTuple.h.

                            {
      return m_isOpen;
    }

const std::string& NTuple::File::logicalName

(

)

const [inline]

Definition at line 1130 of file NTuple.h.

                                              {
      return m_logName;
    }

const std::string& NTuple::File::name

(

)

const [inline]

Retrun physical file name.

Reimplemented from DataObject.

Definition at line 1122 of file NTuple.h.

                                       {
      return m_name;
    }

void NTuple::File::setLogicalName

(

const std::string &

l )

[inline]

Definition at line 1134 of file NTuple.h.

                                              {
      m_logName = l;
    }

void NTuple::File::setName

(

const std::string &

nam )

[inline]

Set access type.

Definition at line 1126 of file NTuple.h.

                                          {
      m_name = nam;
    }

void NTuple::File::setOpen

(

bool

flag )

[inline]

Set "open" flag.

Definition at line 1138 of file NTuple.h.

                                {
      m_isOpen = flag;
    }

void NTuple::File::setType

(

const long

typ )

[inline]

Set access type.

Definition at line 1114 of file NTuple.h.

                                   {
      m_type = typ;
    }

long NTuple::File::type

(

)

const [inline]

Return access type.

Definition at line 1118 of file NTuple.h.

                           {
      return m_type;
    }

---

Member Data Documentation

bool NTuple::File::m_isOpen [protected]

Flag to indicate wether the file was opened already.

Definition at line 1094 of file NTuple.h.

std::string NTuple::File::m_logName [protected]

Logical file name.

Definition at line 1090 of file NTuple.h.

std::string NTuple::File::m_name [protected]

Physical file name.

Definition at line 1088 of file NTuple.h.

long NTuple::File::m_type [protected]

Access type.

Definition at line 1092 of file NTuple.h.

---

The documentation for this class was generated from the following file:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r4/GaudiKernel/GaudiKernel/NTuple.h
