Simple auditor which uses SequencerTimerTool for *ALL* algorithms, including the algorithm from main Gaudi "TopAlg" list and algorithms managed by Data-On-Demand Service. More...

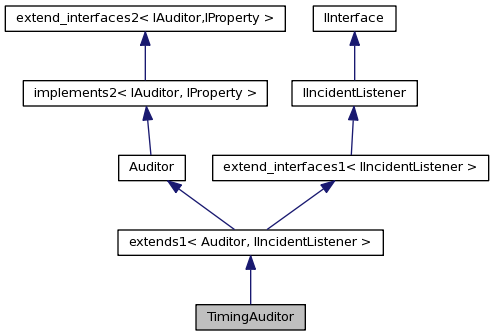

Inheritance diagram for TimingAuditor:

[legend]

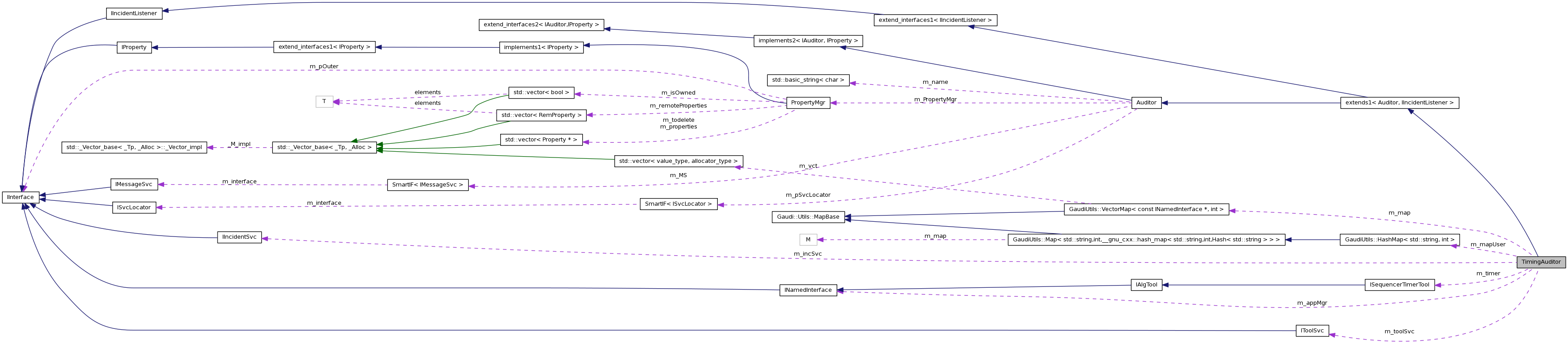

Collaboration diagram for TimingAuditor:

[legend]

List of all members.

Public Member Functions
virtual void	before (StandardEventType evt, INamedInterface *alg)
	The following methods are meant to be implemented by the child class...
virtual void	after (StandardEventType evt, INamedInterface *alg, const StatusCode &sc)
virtual void	before (CustomEventTypeRef evt, const std::string &name)
virtual void	after (CustomEventTypeRef evt, const std::string &name, const StatusCode &sc)
virtual void	handle (const Incident &)
	Inform that a new incident has occurred.
virtual StatusCode	initialize ()
	factory:
virtual StatusCode	finalize ()
	TimingAuditor (const std::string &name, ISvcLocator *pSvc)
	standard constructor
virtual	~TimingAuditor ()
	virtual destructor
Private Types
typedef GaudiUtils::VectorMap < const INamedInterface *, int >	Map
typedef GaudiUtils::HashMap < std::string, int >	MapUser
Private Member Functions
void	i_beforeInitialize (INamedInterface *alg)
void	i_afterInitialize (INamedInterface *alg)
void	i_beforeFinalize (INamedInterface *alg)
void	i_beforeExecute (INamedInterface *alg)
void	i_afterExecute (INamedInterface *alg)
	TimingAuditor ()
	TimingAuditor (const TimingAuditor &)
TimingAuditor &	operator= (const TimingAuditor &)
Private Attributes
IToolSvc *	m_toolSvc
	tool service
IIncidentSvc *	m_incSvc
	incident service
ISequencerTimerTool *	m_timer
	the timer tool
INamedInterface *	m_appMgr
	ApplicationManager.
Map	m_map
int	m_indent
	indentation level
bool	m_inEvent
	"In event" flag
bool	m_goodForDOD
	"optimized for DOD"
MapUser	m_mapUser
	map used to record user timing events
bool	m_histoSaved

Detailed Description

Simple auditor which uses SequencerTimerTool for *ALL* algorithms, including the algorithm from main Gaudi "TopAlg" list and algorithms managed by Data-On-Demand Service.

Author:: Vanya BELYAEV ibelyaev@physics.syr.edu

Date:: 2007-01-31

Definition at line 33 of file TimingAuditor.cpp.

Member Typedef Documentation

typedef GaudiUtils::VectorMap<const INamedInterface*,int> TimingAuditor::Map [private]

Definition at line 101 of file TimingAuditor.cpp.

typedef GaudiUtils::HashMap<std::string,int> TimingAuditor::MapUser [private]

Definition at line 110 of file TimingAuditor.cpp.

Constructor & Destructor Documentation

TimingAuditor::TimingAuditor	(	const std::string &	name,
		ISvcLocator *	pSvc
	)		`[inline]`

standard constructor

Definition at line 62 of file TimingAuditor.cpp.

    : base_class ( name , pSvc )
    //
    , m_toolSvc    ( 0 )
    , m_incSvc     ( 0 )
    //
    , m_timer      ( 0 )
    //
    , m_appMgr     ( 0 )
    //
    , m_map        (       )
    , m_indent     ( 0     )
    , m_inEvent    ( false )
    , m_goodForDOD ( false )
    , m_mapUser    (       )
    , m_histoSaved ( false )
  {
    declareProperty ( "OptimizedForDOD" , m_goodForDOD ) ;
  } ;

virtual TimingAuditor::~TimingAuditor ( ) [inline, virtual]

virtual destructor

Definition at line 83 of file TimingAuditor.cpp.

{}

TimingAuditor::TimingAuditor ( ) [private]

TimingAuditor::TimingAuditor ( const TimingAuditor & ) [private]

Member Function Documentation

void TimingAuditor::after	(	StandardEventType	evt,
		INamedInterface *	alg,
		const StatusCode &	sc
	)		`[virtual]`

Reimplemented from Auditor.

Definition at line 220 of file TimingAuditor.cpp.

{
  switch (evt) {
  case IAuditor::Initialize : i_afterInitialize( alg ); break;
  case IAuditor::Execute    : i_afterExecute( alg ); break;
  default: break;
  }
}

void TimingAuditor::after	(	CustomEventTypeRef	evt,
		const std::string &	name,
		const StatusCode &	sc
	)		`[virtual]`

Reimplemented from Auditor.

Definition at line 326 of file TimingAuditor.cpp.

{
  // Ignore obvious mistakes
  if ( name.empty() && evt.empty() ) { return; }

  // look for the user timer in the map
  std::string nick = name + ":" + evt;
  MapUser::iterator found = m_mapUser.find( nick );

  // We cannot do much if the timer is not available
  if ( m_mapUser.end() == found ) {
    MsgStream log(msgSvc(), this->name());
    log << MSG::WARNING << "Trying to stop the measure  of the timing for '"
                        << nick << "' but it was never started. Check the code"
                        << endmsg;
    return;
  }
  m_timer->stop( found->second );
}

void TimingAuditor::before	(	StandardEventType	evt,
		INamedInterface *	obj
	)		`[virtual]`

The following methods are meant to be implemented by the child class...

Reimplemented from Auditor.

Definition at line 210 of file TimingAuditor.cpp.

{
  switch (evt) {
  case IAuditor::Initialize : i_beforeInitialize( alg ); break;
  case IAuditor::Execute    : i_beforeExecute( alg );    break;
  case IAuditor::Finalize   : i_beforeFinalize( alg );   break;
  default: break;
  }
}

void TimingAuditor::before	(	CustomEventTypeRef	evt,
		const std::string &	name
	)		`[virtual]`

Reimplemented from Auditor.

Definition at line 304 of file TimingAuditor.cpp.

{
  // Ignore obvious mistakes
  if ( name.empty() && evt.empty() ) { return; }

  // look for the user timer in the map
  int timer = 0;
  std::string nick = name + ":" + evt;
  MapUser::iterator found = m_mapUser.find( nick );

  if ( m_mapUser.end() == found ) {
    // add a new timer if not yet available
    timer = m_timer->addTimer( nick ) ;
    m_mapUser[nick] = timer;
  }
  else {
    timer = found->second;
  }

  m_timer->start( timer );
}

StatusCode TimingAuditor::finalize ( ) [virtual]

Reimplemented from Auditor.

Definition at line 184 of file TimingAuditor.cpp.

{
  if ( 0 != m_incSvc )
  {
    m_incSvc -> removeListener ( this , IncidentType::BeginEvent ) ;
    m_incSvc -> removeListener ( this , IncidentType::EndEvent   ) ;
    m_incSvc -> release () ;
    m_incSvc = 0 ;
  }
  if ( 0 != m_toolSvc )
  {
    // the 2 following line are commented out: it is
    // is a temporary hack which prevent a crash due to a problem in
    // the reference counting
    //     if ( 0 != m_timer )
    //     { m_toolSvc -> releaseTool ( m_timer ) . ignore() ; m_timer = 0 ; }
    m_toolSvc -> release () ;
    m_toolSvc = 0 ;
  }
  if ( 0 != m_appMgr ) { m_appMgr -> release () ;  m_appMgr = 0 ; }
  // clear the map
  m_map.clear() ;
  // finalize the base class
  return Auditor::finalize () ;
}

void TimingAuditor::handle ( const Incident & i ) [virtual]

Inform that a new incident has occurred.

Implements IIncidentListener.

Definition at line 346 of file TimingAuditor.cpp.

{
  if      ( IncidentType::BeginEvent == i.type () )
  {
    m_timer -> start ( m_map[ m_appMgr ] ) ;
    ++m_indent ;
    m_inEvent = true ;
  }
  else if ( IncidentType::EndEvent   == i.type () )
  {
    m_timer -> stop  ( m_map[ m_appMgr ] ) ;
    --m_indent ;
    m_inEvent = false ;
  }
}

void TimingAuditor::i_afterExecute ( INamedInterface * alg ) [private]

Definition at line 295 of file TimingAuditor.cpp.

{
  if ( 0 == alg ) { return ; }
  Map::iterator found = m_map.find( alg ) ;
  if ( m_map.end() == found ) { return ; }
  m_timer->stop( found->second ) ;
  --m_indent ;
}

void TimingAuditor::i_afterInitialize ( INamedInterface * alg ) [private]

Definition at line 264 of file TimingAuditor.cpp.

{
  if ( m_goodForDOD ) { return ; }
  if ( 0 == alg     ) { return ; }
  --m_indent ;
}

void TimingAuditor::i_beforeExecute ( INamedInterface * alg ) [private]

Definition at line 271 of file TimingAuditor.cpp.

{
  if ( 0 == alg ) { return ; }
  ++m_indent ;
  Map::iterator found = m_map.find( alg ) ;
  if ( m_map.end() == found )
  {
    MsgStream log( msgSvc() , name() ) ;
    log << MSG::DEBUG
        << "Insert non-structural component '"
        << alg->name() << "' of type '"
        << System::typeinfoName(typeid(*alg)) << "' at level "
        << m_indent << endmsg ;
    std::string nick = alg->name() ;
    if ( 0 < m_indent  ) { nick = std::string ( m_indent , ' ') + nick ; }
    if ( !m_goodForDOD ) { nick[0]='*' ;}
    int timer = m_timer->addTimer( nick ) ;
    m_map.insert ( alg , timer ) ;
    m_timer->start( timer ) ;
    return ;
  }
  m_timer->start( found->second ) ;
}

void TimingAuditor::i_beforeFinalize ( INamedInterface * alg ) [private]

Definition at line 229 of file TimingAuditor.cpp.

{
  if (!m_histoSaved)
  {
    m_timer->saveHistograms();
    m_histoSaved = true;
  }
}

void TimingAuditor::i_beforeInitialize ( INamedInterface * alg ) [private]

Definition at line 239 of file TimingAuditor.cpp.

{
  if ( m_goodForDOD ) { return ; }
  //
  if ( 0 == alg ) { return ; }
  Map::iterator found = m_map.find( alg ) ;
  if ( m_map.end() != found ) { return ; }
  ++m_indent ;
  std::string nick = alg->name() ;
  if ( 0 < m_indent ) { nick = std::string ( m_indent , ' ') + nick ; }
  if ( m_inEvent )
  {
    nick[0] = '*' ;
    MsgStream log( msgSvc() , name() ) ;
    log << MSG::DEBUG
        << "Insert non-structural component '"
        << alg->name() << "' of type '"
        << System::typeinfoName(typeid(*alg)) << "' at level "
        << m_indent << endmsg ;
  }
  int timer = m_timer->addTimer( nick ) ;
  m_map.insert ( alg , timer ) ;
  m_timer->start( timer ) ;
}

StatusCode TimingAuditor::initialize ( ) [virtual]

factory:

Reimplemented from Auditor.

Definition at line 123 of file TimingAuditor.cpp.

{
  StatusCode sc = Auditor::initialize() ;
  if ( sc.isFailure() ) { return sc ; }                  // RETURN

  MsgStream log ( msgSvc() , name() ) ;

  // get tool service
  if ( 0 == m_toolSvc )
  {
    sc = Auditor::service ( "ToolSvc" , m_toolSvc ) ;
    if ( sc.isFailure() )
    {
      log << "Could not retrieve 'ToolSvc' " << sc << endmsg ;
      return sc ;                                        // RETURN
    }
    if ( 0 == m_timer )
    {
      sc = m_toolSvc->retrieveTool
        ( "SequencerTimerTool/TIMER" , m_timer , this  , true ) ;
      if ( sc.isFailure() )
      {
        log << MSG::ERROR
            << "Could not retrieve ISequencerTimerTool" << endmsg ;
        return sc ;
      }
    }
  }
  // get incident service
  if ( 0 == m_incSvc )
  {
    sc = Auditor::service ( "IncidentSvc" , m_incSvc ) ;
    if ( sc.isFailure() )
    {
      log << MSG::ERROR
          << "Could not retrieve 'IncidentSvc'" << sc << endmsg ;
      return sc ;
    }
    m_incSvc -> addListener ( this , IncidentType::BeginEvent ) ;
    m_incSvc -> addListener ( this , IncidentType::EndEvent   ) ;
  }
  // get the application manager
  if ( 0 == m_appMgr )
  {
    sc = Auditor::service ( "ApplicationMgr" , m_appMgr ) ;
    if ( sc.isFailure() )
    {
      log << MSG::ERROR
          << "Could not retrieve 'ApplicationMgr'" << sc << endmsg ;
      return sc ;
    }
    if ( m_map.end() == m_map.find( m_appMgr ) )
    {
      int timer = m_timer->addTimer( "EVENT LOOP" ) ;
      m_map.insert ( m_appMgr , timer ) ;
    }
  }
  //
  return StatusCode::SUCCESS ;
}
