AlgorithmHistory Class Reference

AlgorithmHistory class definition. More...

#include <AlgorithmHistory.h>

Inheritance diagram for AlgorithmHistory:
Inheritance graph
[legend]

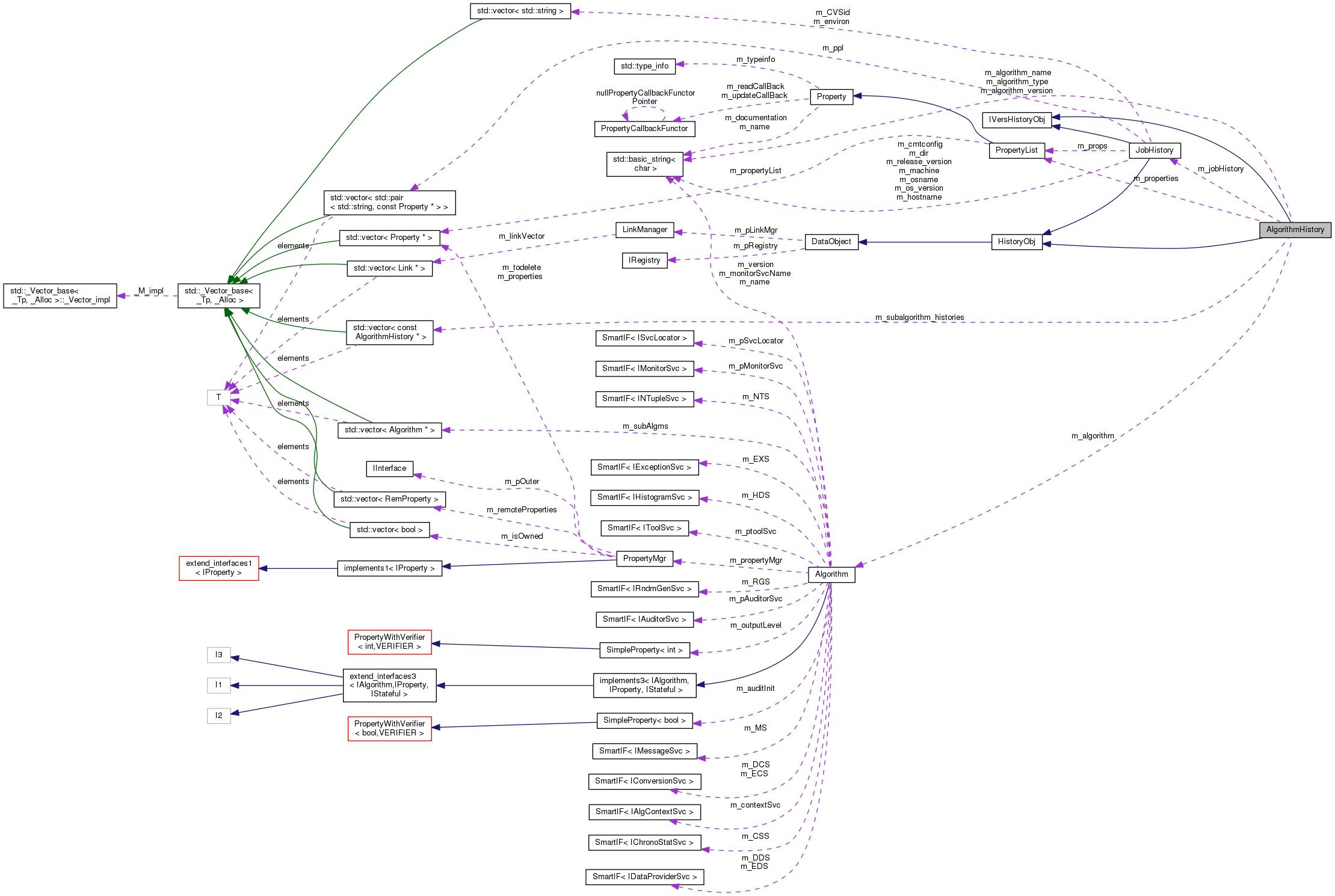

Collaboration diagram for AlgorithmHistory:
Collaboration graph
[legend]

Public Types

typedef std::vector< const
AlgorithmHistory * > 		HistoryList

- Public Types inherited from IVersHistoryObj
typedef std::vector< Property * > PropertyList


Public Member Functions

 AlgorithmHistory (const Algorithm &alg, const JobHistory *job)

 AlgorithmHistory (const std::string &algVersion, const std::string &algName, const std::string &algType, const PropertyList &props, const HistoryList &subHists)

virtual ~AlgorithmHistory ()

virtual const CLID & clID () const
 Retrieve reference to class definition structure.

const std::string & algorithm_type () const

const std::string & algorithm_version () const

const std::string & algorithm_name () const

const Algorithm * algorithm () const

const PropertyList & properties () const

const HistoryList & subalgorithm_histories () const

const JobHistory * jobHistory () const

void dump (std::ostream &, const bool isXML=false, int indent=0) const

const std::string & name () const

const std::string & type () const

const std::string & version () const

- Public Member Functions inherited from HistoryObj
 HistoryObj ()

virtual ~HistoryObj ()

- Public Member Functions inherited from DataObject
 DataObject ()
 Standard Constructor.

 DataObject (const DataObject &)
 Copy Constructor.

virtual ~DataObject ()
 Standard Destructor.

virtual unsigned long addRef ()
 Add reference to object.

virtual unsigned long release ()
 release reference to object

const std::string & name () const
 Retreive DataObject name. It is the name when registered in the store.

virtual StatusCode update ()
 Provide empty placeholder for internal object reconfiguration callback.

void setRegistry (IRegistry *pRegistry)
 Set pointer to Registry.

IRegistry * registry () const
 Get pointer to Registry.

LinkManager * linkMgr () const
 Retrieve Link manager.

unsigned char version () const
 Retrieve version number of this object representation.

void setVersion (unsigned char vsn)
 Set version number of this object representation.

unsigned long refCount () const
 Return the refcount.

virtual std::ostream & fillStream (std::ostream &s) const
 Fill the output stream (ASCII)

- Public Member Functions inherited from IVersHistoryObj
virtual ~IVersHistoryObj ()


Static Public Member Functions

static const CLID & classID ()

- Static Public Member Functions inherited from HistoryObj
static const CLID & classID ()

static std::string convert_string (const std::string &)

- Static Public Member Functions inherited from DataObject
static const CLID & classID ()
 Retrieve reference to class definition structure (static access)


Private Attributes

std::string m_algorithm_type

std::string m_algorithm_version

std::string m_algorithm_name

const Algorithm * m_algorithm

PropertyList m_properties

HistoryList m_subalgorithm_histories

const JobHistory * m_jobHistory


Additional Inherited Members

- Protected Member Functions inherited from HistoryObj
virtual void indent (std::ostream &, int) const

- Friends inherited from DataObject

Detailed Description

AlgorithmHistory class definition.

Author
: Charles Leggett

Definition at line 29 of file AlgorithmHistory.h.

Member Typedef Documentation

typedef std::vector<const AlgorithmHistory*> AlgorithmHistory::HistoryList

Definition at line 34 of file AlgorithmHistory.h.

Constructor & Destructor Documentation

AlgorithmHistory::AlgorithmHistory ( const Algorithm &  alg,
const JobHistory *  job
)
explicit

Definition at line 32 of file AlgorithmHistory.cpp.

:
m_algorithm_type(System::typeinfoName(typeid(alg))),
m_algorithm_version(alg.version()),
m_algorithm_name(alg.name()),
m_algorithm( &alg ),
m_properties(alg.getProperties()),
m_jobHistory(job)
{
assert( alg.subAlgorithms() != 0 );
for ( vector<Algorithm*>::const_iterator
ialg=alg.subAlgorithms()->begin();
ialg!=alg.subAlgorithms()->end(); ++ ialg ) {
m_subalgorithm_histories.push_back(new AlgorithmHistory(**ialg, job));
}
}
AlgorithmHistory::AlgorithmHistory ( const std::string &  algVersion,
const std::string &  algName,
const std::string &  algType,
const PropertyList &  props,
const HistoryList &  subHists
)
explicit
AlgorithmHistory::~AlgorithmHistory ( )
virtual

Definition at line 68 of file AlgorithmHistory.cpp.

{
for ( HistoryList::const_iterator
iphist=m_subalgorithm_histories.begin();
iphist!=m_subalgorithm_histories.end(); ++iphist ) {
delete *iphist;
}
}

Member Function Documentation

const Algorithm* AlgorithmHistory::algorithm ( ) const
inline

Definition at line 87 of file AlgorithmHistory.h.

{ return m_algorithm; }
const std::string& AlgorithmHistory::algorithm_name ( ) const
inline

Definition at line 84 of file AlgorithmHistory.h.

{ return m_algorithm_name; }
const std::string& AlgorithmHistory::algorithm_type ( ) const
inline

Definition at line 78 of file AlgorithmHistory.h.

{ return m_algorithm_type; }
const std::string& AlgorithmHistory::algorithm_version ( ) const
inline

Definition at line 81 of file AlgorithmHistory.h.

{ return m_algorithm_version; }
const CLID & AlgorithmHistory::classID ( )
static

Definition at line 79 of file AlgorithmHistory.cpp.

{
static CLID CLID_AlgorithmHistory = 56809101; //from `clid AlgorithmHistory`
return CLID_AlgorithmHistory;
}
virtual const CLID& AlgorithmHistory::clID ( ) const
inlinevirtual

Retrieve reference to class definition structure.

Retrieve Pointer to class definition structure.

Reimplemented from HistoryObj.

Definition at line 74 of file AlgorithmHistory.h.

{ return classID(); }
void AlgorithmHistory::dump ( std::ostream &  ost,
const bool  isXML = false,
int  indent = 0
) const
virtual

Implements HistoryObj.

Definition at line 89 of file AlgorithmHistory.cpp.

{
if (!isXML) {
ost << "Type: " << algorithm_type() << endl;
ost << "Name: " << algorithm_name() << endl;
ost << "Version: " << algorithm_version() << endl;
// Properties.
ost << "Properties: [" << endl;;
for ( AlgorithmHistory::PropertyList::const_iterator
ipprop=properties().begin();
ipprop!=properties().end(); ++ipprop ) {
const Property& prop = **ipprop;
prop.fillStream(ost);
ost << endl;
}
ost << "]" << endl;
// Subalgorithms.
if ( subalgorithm_histories().size() == 0 ) {
ost << "No subalgorithms.";
} else {
ost << "Subalgorithms: {" << endl;
for ( AlgorithmHistory::HistoryList::const_iterator
iphist=subalgorithm_histories().begin();
iphist!=subalgorithm_histories().end(); ++iphist ) {
if ( iphist==subalgorithm_histories().begin() ) {
ost << "----------" << endl;
}
ost << **iphist << endl;
ost << "----------" << endl;
}
ost << "}";
}
} else {
ind += 2;
indent(ost,ind);
ost << "<COMPONENT name=\"" << algorithm_name()
<< "\" class=\"" << convert_string(algorithm_type())
<< "\" version=\"" << algorithm_version()
<< "\">" << std::endl;
for ( AlgorithmHistory::PropertyList::const_iterator
ipprop=properties().begin();
ipprop!=properties().end(); ++ipprop ) {
const Property& prop = **ipprop;
indent(ost,ind+2);
ost << "<PROPERTY name=\"" << prop.name()
<< "\" value=\"" << convert_string(prop.toString())
<< "\" documentation=\"" << convert_string(prop.documentation())
<< "\">" << std::endl;
}
// Subalgs
if ( subalgorithm_histories().size() != 0 ) {
for ( AlgorithmHistory::HistoryList::const_iterator
iphist=subalgorithm_histories().begin();
iphist!=subalgorithm_histories().end(); ++iphist ) {
(*iphist)->dump(ost,isXML,ind+2);
}
}
indent(ost,ind);
ost << "</COMPONENT>" << std::endl;
}
}
const JobHistory* AlgorithmHistory::jobHistory ( ) const
inline

Definition at line 97 of file AlgorithmHistory.h.

{ return m_jobHistory; }
const std::string& AlgorithmHistory::name ( ) const
inlinevirtual

Implements IVersHistoryObj.

Definition at line 102 of file AlgorithmHistory.h.

{ return algorithm_name(); }
const PropertyList& AlgorithmHistory::properties ( ) const
inlinevirtual

Implements IVersHistoryObj.

Definition at line 90 of file AlgorithmHistory.h.

{ return m_properties; }
const HistoryList& AlgorithmHistory::subalgorithm_histories ( ) const
inline

Definition at line 93 of file AlgorithmHistory.h.

{ return m_subalgorithm_histories; }
const std::string& AlgorithmHistory::type ( ) const
inlinevirtual

Implements IVersHistoryObj.

Definition at line 103 of file AlgorithmHistory.h.

{ return algorithm_type(); }
const std::string& AlgorithmHistory::version ( ) const
inlinevirtual

Implements IVersHistoryObj.

Definition at line 104 of file AlgorithmHistory.h.

{ return algorithm_version(); }

Member Data Documentation

const Algorithm* AlgorithmHistory::m_algorithm
private

Definition at line 48 of file AlgorithmHistory.h.

std::string AlgorithmHistory::m_algorithm_name
private

Definition at line 45 of file AlgorithmHistory.h.

std::string AlgorithmHistory::m_algorithm_type
private

Definition at line 39 of file AlgorithmHistory.h.

std::string AlgorithmHistory::m_algorithm_version
private

Definition at line 42 of file AlgorithmHistory.h.

const JobHistory* AlgorithmHistory::m_jobHistory
private

Definition at line 57 of file AlgorithmHistory.h.

PropertyList AlgorithmHistory::m_properties
private

Definition at line 51 of file AlgorithmHistory.h.

HistoryList AlgorithmHistory::m_subalgorithm_histories
private

Definition at line 54 of file AlgorithmHistory.h.

The documentation for this class was generated from the following files:
