CollectionCloneAlg Class Reference

Small algorithm, which allows to merge N-tuples in a generic way. More...

Inheritance diagram for CollectionCloneAlg:
Inheritance graph
[legend]

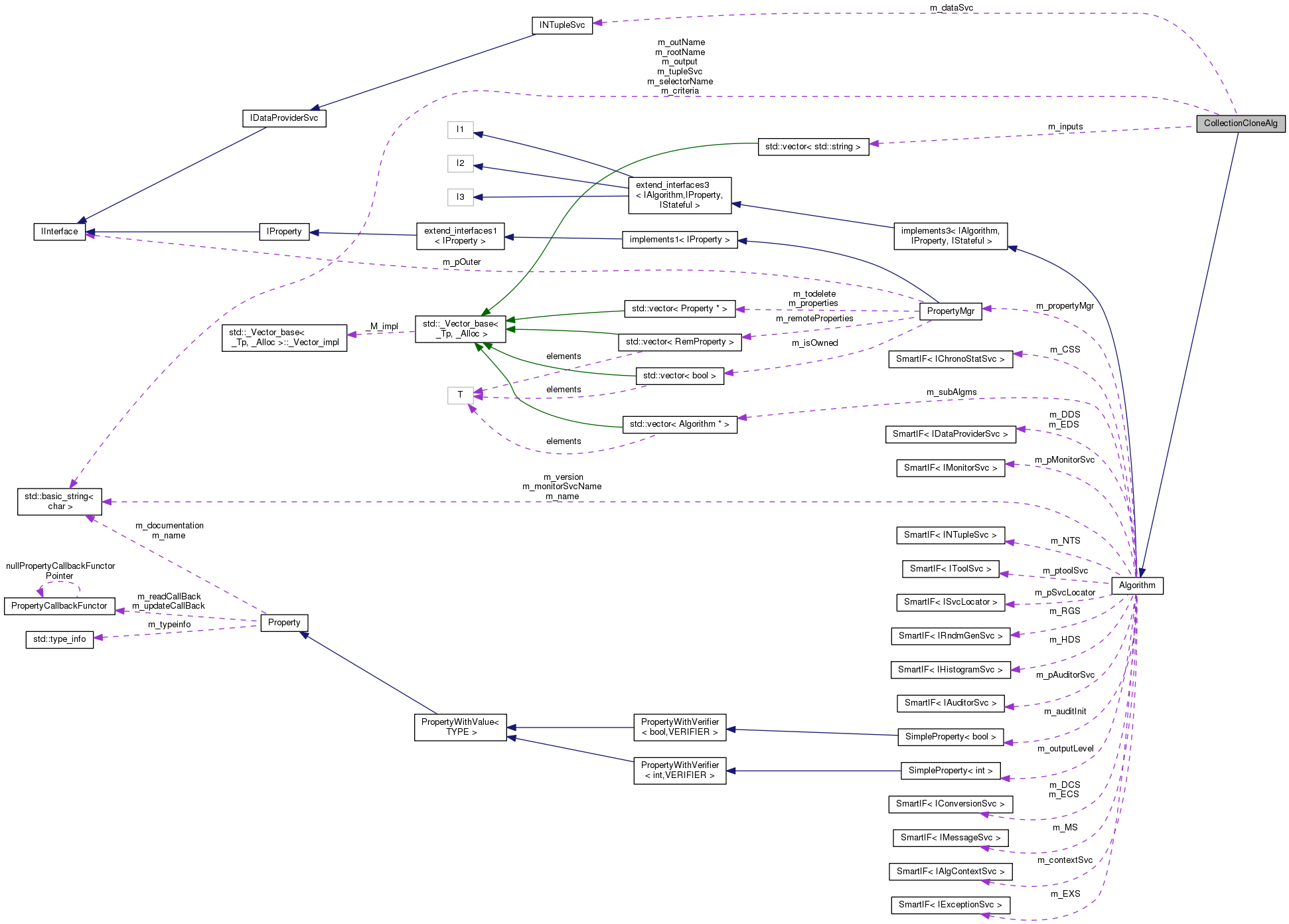

Collaboration diagram for CollectionCloneAlg:
Collaboration graph
[legend]

Public Member Functions

 CollectionCloneAlg (const std::string &name, ISvcLocator *pSvcLocator)
 Standard algorithm constructor.

virtual ~CollectionCloneAlg ()
 Standard Destructor.

virtual StatusCode initialize ()
 Initialize.

virtual StatusCode finalize ()
 Finalize.

virtual StatusCode execute ()
 Execute procedure.

virtual StatusCode book (const NTuple::Tuple *nt)
 Book the N-tuple according to the specification.

virtual StatusCode checkInput (const NTuple::Tuple *clone, const NTuple::Tuple *src)

StatusCode mergeEntries (const std::string &input)
 Merge the entries of a single input tuple into the output.

StatusCode connect ()
 Connect input and output N-tuples.

StatusCode mergeInputTuples ()
 Merge all N-tuple entries.

- Public Member Functions inherited from Algorithm
 Algorithm (const std::string &name, ISvcLocator *svcloc, const std::string &version=PACKAGE_VERSION)
 Constructor.

virtual ~Algorithm ()
 Destructor.

virtual StatusCode sysStart ()
 Reinitialization method invoked by the framework.

virtual StatusCode sysInitialize ()
 Initialization method invoked by the framework.

virtual StatusCode sysReinitialize ()
 Reinitialization method invoked by the framework.

virtual StatusCode sysRestart ()
 Restart method invoked by the framework.

virtual StatusCode sysExecute ()
 The actions to be performed by the algorithm on an event.

virtual StatusCode sysStop ()
 System stop.

virtual StatusCode sysFinalize ()
 System finalization.

virtual StatusCode sysBeginRun ()
 beginRun method invoked by the framework.

virtual StatusCode sysEndRun ()
 endRun method invoked by the framework.

virtual const std::string & name () const
 The identifying name of the algorithm object.

virtual const std::string & version () const

virtual StatusCode configure ()
 Dummy implementation of IStateful::configure() method.

virtual StatusCode terminate ()
 Dummy implementation of IStateful::terminate() method.

virtual StatusCode start ()
 the default (empty) implementation of IStateful::start() method

virtual StatusCode stop ()
 the default (empty) implementation of IStateful::stop() method

virtual StatusCode reinitialize ()
 the default (empty) implementation of IStateful::reinitialize() method

virtual StatusCode restart ()
 the default (empty) implementation of IStateful::restart() method

virtual bool isExecuted () const
 Has this algorithm been executed since the last reset?

virtual void setExecuted (bool state)
 Set the executed flag to the specified state.

virtual void resetExecuted ()
 Reset the executed state of the Algorithm for the duration of the current event.

virtual StatusCode beginRun ()
 Algorithm begin run.

virtual StatusCode endRun ()
 Algorithm end run. This method is called at the end of the event loop.

virtual Gaudi::StateMachine::State FSMState () const
 returns the current state of the algorithm

virtual Gaudi::StateMachine::State targetFSMState () const
 returns the state the algorithm will be in after the ongoing transition

virtual bool isEnabled () const
 Is this algorithm enabled or disabled?

virtual bool filterPassed () const
 Did this algorithm pass or fail its filter criterion for the last event?

virtual void setFilterPassed (bool state)
 Set the filter passed flag to the specified state.

template<class T >
StatusCode service (const std::string &name, T *&psvc, bool createIf=true) const
 Access a service by name, creating it if it doesn't already exist.

template<class T >
StatusCode service (const std::string &svcType, const std::string &svcName, T *&psvc) const
 Access a service by name and type, creating it if it doesn't already exist.

SmartIF< IService > service (const std::string &name, const bool createIf=true, const bool quiet=false) const
 Return a pointer to the service identified by name (or "type/name")

void setOutputLevel (int level)
 Set the output level for current algorithm.

SmartIF< IAuditorSvc > & auditorSvc () const
 The standard auditor service.May not be invoked before sysInitialize() has been invoked.

SmartIF< IChronoStatSvc > & chronoSvc () const
 The standard Chrono & Stat service, Return a pointer to the service if present.

SmartIF< IChronoStatSvc > & chronoStatService () const
 Obsoleted name, kept due to the backwards compatibility.

SmartIF< IDataProviderSvc > & detSvc () const
 The standard detector data service.

SmartIF< IDataProviderSvc > & detDataService () const
 Obsoleted name, kept due to the backwards compatibility.

SmartIF< IConversionSvc > & detCnvSvc () const
 The standard detector data persistency conversion service.

SmartIF< IConversionSvc > & detDataCnvService () const
 Obsoleted name, kept due to the backwards compatibility.

SmartIF< IDataProviderSvc > & eventSvc () const
 The standard event data service.

SmartIF< IDataProviderSvc > & evtSvc () const
 shortcut for method eventSvc

SmartIF< IDataProviderSvc > & eventDataService () const
 Obsoleted name, kept due to the backwards compatibility.

SmartIF< IConversionSvc > & eventCnvSvc () const
 The standard event data persistency conversion service.

SmartIF< IConversionSvc > & eventDataCnvService () const
 Obsoleted name, kept due to the backwards compatibility.

SmartIF< IHistogramSvc > & histoSvc () const
 The standard histogram service.

SmartIF< IHistogramSvc > & histogramDataService () const
 Obsoleted name, kept due to the backwards compatibility.

SmartIF< IMessageSvc > & msgSvc () const
 The standard message service.

SmartIF< IMessageSvc > & messageService () const
 Obsoleted name, kept due to the backwards compatibility.

SmartIF< INTupleSvc > & ntupleSvc () const
 The standard N tuple service.

SmartIF< INTupleSvc > & ntupleService () const
 Obsoleted name, kept due to the backwards compatibility.

SmartIF< IRndmGenSvc > & randSvc () const
 AIDA-based NTuple service Returns a pointer to the AIDATuple service if present.

SmartIF< IToolSvc > & toolSvc () const
 The standard ToolSvc service, Return a pointer to the service if present.

SmartIF< IExceptionSvc > & exceptionSvc () const
 Get the exception Service.

SmartIF< IAlgContextSvc > & contextSvc () const
 get Algorithm Context Service

SmartIF< ISvcLocator > & serviceLocator () const
 The standard service locator.

SmartIF< ISvcLocator > & svcLoc () const
 shortcut for method serviceLocator

bool registerContext () const
 register for Algorithm Context Service?

StatusCode createSubAlgorithm (const std::string &type, const std::string &name, Algorithm *&pSubAlg)
 Create a sub algorithm.

std::vector< Algorithm * > * subAlgorithms () const
 List of sub-algorithms. Returns a pointer to a vector of (sub) Algorithms.

virtual StatusCode setProperty (const Property &p)
 Implementation of IProperty::setProperty.

virtual StatusCode setProperty (const std::string &s)
 Implementation of IProperty::setProperty.

virtual StatusCode setProperty (const std::string &n, const std::string &v)
 Implementation of IProperty::setProperty.

virtual StatusCode getProperty (Property *p) const
 Implementation of IProperty::getProperty.

virtual const Property & getProperty (const std::string &name) const
 Implementation of IProperty::getProperty.

virtual StatusCode getProperty (const std::string &n, std::string &v) const
 Implementation of IProperty::getProperty.

virtual const std::vector
< Property * > & 		getProperties () const
 Implementation of IProperty::getProperties.

StatusCode setProperties ()
 Set the algorithm's properties.

template<class T >
Property * declareProperty (const std::string &name, T &property, const std::string &doc="none") const
 Declare the named property.

Property * declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="") const
 Declare remote named properties.

SmartIF< IMonitorSvc > & monitorSvc () const
 Access the monitor service.

template<class T >
void declareInfo (const std::string &name, const T &var, const std::string &desc) const
 Declare monitoring information.

void declareInfo (const std::string &name, const std::string &format, const void *var, int size, const std::string &desc) const
 Declare monitoring information (special case)

template<class TYPE >
StatusCode setProperty (const std::string &name, const TYPE &value)
 set the property form the value


Private Attributes

std::string m_tupleSvc
 Name of the data provider service.

std::string m_output
 Output specification.

std::vector< std::string > m_inputs
 input specifications

std::string m_rootName
 Name of the root leaf (obtained at initialize)

std::string m_outName
 Output tuple name.

std::string m_criteria
 Selection criteria (if any)

std::string m_selectorName
 Selector factory.


Static Private Attributes

INTupleSvc * m_dataSvc
 Reference to data provider service.


Additional Inherited Members

- Public Types inherited from implements3< IAlgorithm, IProperty, IStateful >
typedef implements3 base_class
 Typedef to this class.

typedef extend_interfaces3
< IAlgorithm, IProperty,
IStateful > 		extend_interfaces_base
 Typedef to the base of this class.

typedef
extend_interfaces_base::ext_iids 		interfaces
 MPL set of all the implemented interfaces.

- Protected Member Functions inherited from Algorithm
bool isInitialized () const
 Has the Algorithm already been initialized?

bool isFinalized () const
 Has the Algorithm already been finalized?

int outputLevel () const
 retrieve the Algorithm output level

IntegerProperty & outputLevelProperty ()
 Accessor for the Message level property.

void initOutputLevel (Property &prop)
 callback for output level property


Detailed Description

Small algorithm, which allows to merge N-tuples in a generic way.

In the options directory an python interface is presented, which shows how to steer this algorithm in a standaqlone program.

Author
: M.Frank
Version
: 1.0

Definition at line 127 of file CollectionCloneAlg.cpp.

Constructor & Destructor Documentation

CollectionCloneAlg::CollectionCloneAlg ( const std::string &  name,
ISvcLocator *  pSvcLocator
)
inline

Standard algorithm constructor.

Definition at line 147 of file CollectionCloneAlg.cpp.

: Algorithm(name, pSvcLocator), m_dataSvc(0)
{
declareProperty("EvtTupleSvc", m_tupleSvc="EvtTupleSvc");
declareProperty("Input", m_inputs);
declareProperty("Output", m_output);
}
virtual CollectionCloneAlg::~CollectionCloneAlg ( )
inlinevirtual

Standard Destructor.

Definition at line 155 of file CollectionCloneAlg.cpp.

{
}

Member Function Documentation

virtual StatusCode CollectionCloneAlg::book ( const NTuple::Tuple *  nt)
inlinevirtual

Book the N-tuple according to the specification.

Definition at line 220 of file CollectionCloneAlg.cpp.

{
MsgStream log(msgSvc(), name());
const INTuple::ItemContainer& items = nt->items();
StatusCode status = StatusCode::SUCCESS;
INTuple::ItemContainer::const_iterator i;
NTuple::Tuple* tuple = m_dataSvc->book(m_outName, nt->clID(), nt->title());
for (i = items.begin(); i != items.end(); ++i) {
long type = (*i)->type();
switch(type) {
case DataTypeInfo::UCHAR:
status = createItem(log, tuple, *i, (unsigned char)0);
break;
case DataTypeInfo::USHORT:
status = createItem(log, tuple, *i, (unsigned short)0);
break;
case DataTypeInfo::UINT:
status = createItem(log, tuple, *i, (unsigned int)0);
break;
case DataTypeInfo::ULONG:
status = createItem(log, tuple, *i, (unsigned long)0);
break;
case DataTypeInfo::CHAR:
status = createItem(log, tuple, *i, char(0));
break;
case DataTypeInfo::SHORT:
status = createItem(log, tuple, *i, short(0));
break;
case DataTypeInfo::INT:
status = createItem(log, tuple, *i, int(0));
break;
case DataTypeInfo::LONG:
status = createItem(log, tuple, *i, long(0));
break;
case DataTypeInfo::BOOL:
status = createItem(log, tuple, *i, false);
break;
case DataTypeInfo::FLOAT:
status = createItem(log, tuple, *i, float(0.0));
break;
case DataTypeInfo::DOUBLE:
status = createItem(log, tuple, *i, double(0.0));
break;
case DataTypeInfo::OBJECT_ADDR:
status = createItem(log, tuple, *i, (IOpaqueAddress*)0);
break;
case DataTypeInfo::POINTER:
status = createItem(log, tuple, *i, (void*)0);
break;
case DataTypeInfo::STRING:
// status = createItem(log, tuple, *i, (std::string*)0);
// break;
case DataTypeInfo::NTCHAR:
// status = createItem(log, tuple, *i, (char*)0);
// break;
case DataTypeInfo::UNKNOWN:
default:
status = StatusCode::FAILURE;
break;
}
}
return status;
}
virtual StatusCode CollectionCloneAlg::checkInput ( const NTuple::Tuple *  clone,
const NTuple::Tuple *  src
)
inlinevirtual

Definition at line 284 of file CollectionCloneAlg.cpp.

{
MsgStream log(msgSvc(), name());
if ( 0 != clone && 0 != src ) {
const INTuple::ItemContainer& clone_items = clone->items();
const std::string clone_id = clone->registry()->identifier();
const std::string src_id = src->registry()->identifier();
INTuple::ItemContainer::const_iterator i;
log << MSG::ERROR;
for (i = clone_items.begin(); i != clone_items.end(); ++i) {
const INTupleItem* itm = *i;
const std::string& nam = itm->name();
const INTupleItem* src_itm = src->find(nam);
if ( !src_itm ) {
log << "Tuple item " << nam << " not present in " << src_id << endmsg;
return StatusCode::FAILURE;
}
if ( itm->type() != src_itm->type() ) {
log << "Tuple item " << nam << " are of different types in "
<< src_id << ":" << src_itm->typeName() << " <-> "
<< clone_id << ":" << itm->typeName() << endmsg;
return StatusCode::FAILURE;
}
if ( itm->ndim() != src_itm->ndim() ) {
log << "Tuple item " << nam << " have different dimensions in "
<< src_id << ":" << src_itm->ndim() << " <-> "
<< clone_id << ":" << itm->ndim() << endmsg;
return StatusCode::FAILURE;
}
for (int j=0; j<itm->ndim(); ++j) {
if ( src_itm->dim(j) != itm->dim(j) ) {
log << "Tuple item " << nam << " have different dimensions in "
<< src_id << "[" << j << "]:" << src_itm->dim(j) << " <-> "
<< clone_id << "[" << j << "]:" << itm->dim(j) << endmsg;
return StatusCode::FAILURE;
}
}
if ( itm->hasIndex() != src_itm->hasIndex() ) {
log << "Tuple item " << nam << " has different index colums "
<< src_id << ":" << src_itm->hasIndex() << " <-> "
<< clone_id << ":" << itm->hasIndex() << endmsg;
return StatusCode::FAILURE;
}
if ( itm->hasIndex() ) {
if ( itm->index() != src_itm->index() ) {
log << "Tuple item " << nam << " has different index colums "
<< src_id << ":" << src_itm->index() << " <-> "
<< clone_id << ":" << itm->index() << endmsg;
return StatusCode::FAILURE;
}
}
}
return StatusCode::SUCCESS;
}
return StatusCode::FAILURE;
}
StatusCode CollectionCloneAlg::connect ( )
inline

Connect input and output N-tuples.

Definition at line 452 of file CollectionCloneAlg.cpp.

{
StatusCode status = StatusCode::SUCCESS;
for (size_t i=0; i < m_inputs.size(); ++i) {
NTuplePtr nt(m_dataSvc, m_inputs[i]);
if ( !(0 == nt) ) {
NTuplePtr out(m_dataSvc, m_outName);
if ( 0 == out ) {
status = book(nt);
}
else {
status = checkInput(out, nt);
}
if ( !status.isSuccess() ) {
return status;
}
else if ( m_selectorName != "" ) {
SmartIF<ISelectStatement> stmt(ROOT::Reflex::PluginService::Create<IInterface*>(m_selectorName,serviceLocator()));
if ( stmt.isValid( ) ) {
if ( m_criteria.length() > 0 ) stmt->setCriteria(m_criteria);
nt->attachSelector(stmt);
}
else {
MsgStream log(msgSvc(), name());
log << MSG::ERROR << "Failed to attach tuple selector to " << m_inputs[i] << endmsg;
return StatusCode::FAILURE;
}
}
}
else {
MsgStream log(msgSvc(), name());
log << MSG::ERROR << "Failed to access tuple: " << m_inputs[i] << endmsg;
return StatusCode::FAILURE;
}
}
return StatusCode::SUCCESS;
}
virtual StatusCode CollectionCloneAlg::execute ( )
inlinevirtual

Execute procedure.

Definition at line 211 of file CollectionCloneAlg.cpp.

{
StatusCode status = connect();
if ( status.isSuccess() ) {
status = mergeInputTuples();
}
return status;
}
virtual StatusCode CollectionCloneAlg::finalize ( )
inlinevirtual

Finalize.

Reimplemented from Algorithm.

Definition at line 204 of file CollectionCloneAlg.cpp.

{
if ( m_dataSvc ) m_dataSvc->release();
m_dataSvc = 0;
return StatusCode::SUCCESS;
}
virtual StatusCode CollectionCloneAlg::initialize ( )
inlinevirtual

Initialize.

Reimplemented from Algorithm.

Definition at line 159 of file CollectionCloneAlg.cpp.

{
MsgStream log(msgSvc(), name());
m_rootName = "";
m_outName = "";
m_criteria = "";
m_selectorName = "";
StatusCode sc = service(m_tupleSvc, m_dataSvc, true);
if ( sc.isSuccess() ) {
std::string fun;
Tokenizer tok(true);
tok.analyse(m_output, " ", "", "", "=", "'", "'");
for ( Tokenizer::Items::iterator i = tok.items().begin(); i != tok.items().end(); i++ ) {
const std::string& tag = (*i).tag();
const std::string& val = (*i).value();
switch( ::toupper(tag[0]) ) {
case 'D':
m_outName = val;
break;
case 'S':
m_criteria = val;
break;
case 'F':
fun = val;
break ;
default:
break;
}
}
if ( m_outName.empty() ) {
log << MSG::ERROR << "Failed to analyze output specs:" << m_output << endmsg;
return StatusCode::FAILURE;
}
if ( fun.length() > 0 || m_criteria.length() > 0 ) {
if ( m_criteria.length() > 0 && fun.length() == 0 ) fun = "NTuple::Selector";
m_selectorName = fun;
return StatusCode::SUCCESS;
}
return sc;
}
log << MSG::ERROR << "Failed to access service \""
<< m_tupleSvc << "\"." << endmsg;
return sc;
}
StatusCode CollectionCloneAlg::mergeEntries ( const std::string &  input)
inline

Merge the entries of a single input tuple into the output.

Definition at line 342 of file CollectionCloneAlg.cpp.

{
MsgStream log(msgSvc(), name());
NTuplePtr out(m_dataSvc, m_outName);
if ( 0 != out ) {
const INTuple::ItemContainer& clone_items = out->items();
std::vector<GenericAddress> addrVector(clone_items.size());
StatusCode status = StatusCode::SUCCESS;
NTuplePtr nt(m_dataSvc, input);
size_t k = 0, nentry = 0;
if ( 0 != nt ) {
const INTuple::ItemContainer& source_items = nt->items();
for (k=0; k < source_items.size(); ++k ) {
if ( source_items[k]->type() == DataTypeInfo::OBJECT_ADDR ) {
*(IOpaqueAddress**)source_items[k]->buffer() = &addrVector[k];
}
}
while ( status.isSuccess() ) {
status = m_dataSvc->readRecord(nt.ptr());
if ( status.isSuccess() ) {
INTuple::ItemContainer::const_iterator i;
nentry++;
for (k=0,i = source_items.begin(); i != source_items.end(); ++i,++k) {
const INTupleItem* src_itm = *i;
const INTupleItem* out_itm = out->find(src_itm->name());
size_t size = 0;
switch((*i)->type()) {
case DataTypeInfo::UCHAR:
size = sizeof(unsigned char);
break;
case DataTypeInfo::USHORT:
size = sizeof(unsigned short);
break;
case DataTypeInfo::UINT:
size = sizeof(unsigned int);
break;
case DataTypeInfo::ULONG:
size = sizeof(unsigned long);
break;
case DataTypeInfo::CHAR:
size = sizeof(char);
break;
case DataTypeInfo::SHORT:
size = sizeof(short);
break;
case DataTypeInfo::INT:
size = sizeof(int);
break;
case DataTypeInfo::LONG:
size = sizeof(long);
break;
case DataTypeInfo::BOOL:
size = sizeof(bool);
break;
case DataTypeInfo::FLOAT:
size = sizeof(float);
break;
case DataTypeInfo::DOUBLE:
size = sizeof(double);
break;
case DataTypeInfo::STRING:
*(std::string*)out_itm->buffer() = *(std::string*)src_itm->buffer();
size = 0;
break;
case DataTypeInfo::NTCHAR:
size = ::strlen((const char*)src_itm->buffer())+1;
break;
case DataTypeInfo::POINTER:
{
*(void**)out_itm->buffer() = *(void**)src_itm->buffer();
size = 0;
}
break;
case DataTypeInfo::OBJECT_ADDR:
{
IOpaqueAddress* ppA1 = &addrVector[k];
IOpaqueAddress** ppA2 = (IOpaqueAddress**)out_itm->buffer();
*ppA2 = ppA1;
size = 0;
}
break;
case DataTypeInfo::UNKNOWN:
default:
size = 0;
break;
}
if ( size > 0 ) {
::memcpy((void*)out_itm->buffer(), src_itm->buffer(), size*src_itm->length());
}
}
status = m_dataSvc->writeRecord(out.ptr());
if ( !status.isSuccess() ) {
log << MSG::ERROR << "Failed to write record " << nentry
<< " from " << input << " to " << m_outName << endmsg;
}
}
}
log << MSG::INFO << "End of reading tuple " << input
<< " after " << nentry << " entries." << endmsg;
if ( nentry > 0 || m_selectorName != "" ) {
return StatusCode::SUCCESS;
}
return StatusCode::FAILURE;
}
log << MSG::ERROR << "Failed to access input: " << input << endmsg;
}
return StatusCode::FAILURE;
}
StatusCode CollectionCloneAlg::mergeInputTuples ( )
inline

Merge all N-tuple entries.

Definition at line 490 of file CollectionCloneAlg.cpp.

{
MsgStream log(msgSvc(), name());
for (size_t inp=0; inp < m_inputs.size(); ++inp) {
StatusCode sc = mergeEntries(m_inputs[inp]);
if ( !sc.isSuccess() ) {
log << MSG::ERROR << "Failed to merge tuple:" << m_inputs[inp] << endmsg;
return sc;
}
}
return StatusCode::SUCCESS;
}

Member Data Documentation

std::string CollectionCloneAlg::m_criteria
private

Selection criteria (if any)

Definition at line 141 of file CollectionCloneAlg.cpp.

INTupleSvc* CollectionCloneAlg::m_dataSvc
staticprivate

Reference to data provider service.

Definition at line 129 of file CollectionCloneAlg.cpp.

std::vector<std::string> CollectionCloneAlg::m_inputs
private

input specifications

Definition at line 135 of file CollectionCloneAlg.cpp.

std::string CollectionCloneAlg::m_outName
private

Output tuple name.

Definition at line 139 of file CollectionCloneAlg.cpp.

std::string CollectionCloneAlg::m_output
private

Output specification.

Definition at line 133 of file CollectionCloneAlg.cpp.

std::string CollectionCloneAlg::m_rootName
private

Name of the root leaf (obtained at initialize)

Definition at line 137 of file CollectionCloneAlg.cpp.

std::string CollectionCloneAlg::m_selectorName
private

Selector factory.

Definition at line 143 of file CollectionCloneAlg.cpp.

std::string CollectionCloneAlg::m_tupleSvc
private

Name of the data provider service.

Definition at line 131 of file CollectionCloneAlg.cpp.

The documentation for this class was generated from the following file:
Generated at Wed Nov 28 2012 12:17:25 for Gaudi Framework, version v23r5 by Doxygen version 1.8.2 written by Dimitri van Heesch, © 1997-2004
