CommandProperty Class Reference

Command property base class (abstract). More...

#include <GaudiKernel/CommandProperty.h>

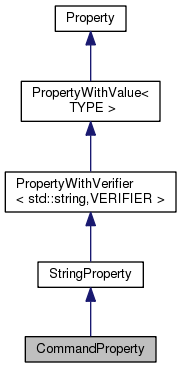

Inheritance diagram for CommandProperty:

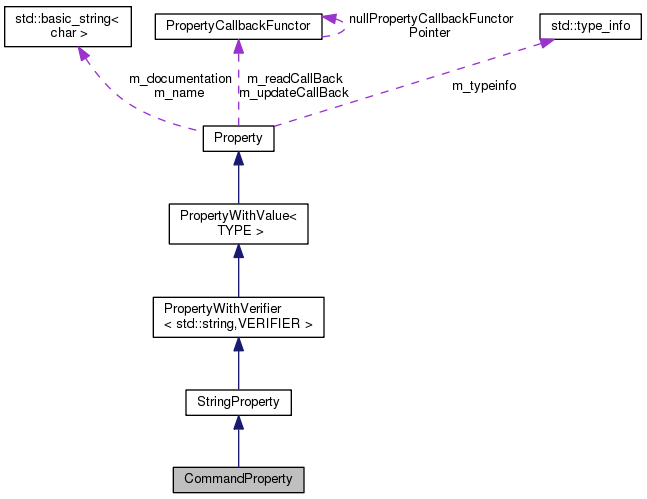

Collaboration diagram for CommandProperty:

Public Member Functions
	CommandProperty ()
	Constructors and destructors.
	CommandProperty (const std::string &name)
	CommandProperty (const std::string &name, const std::string &value)
virtual	~CommandProperty ()
virtual bool	set (const std::string &value)
	Set value method.
virtual void	handler (const std::string &value)=0
	User call back function.
Public Member Functions inherited from SimpleProperty< std::string >
	SimpleProperty (VERIFIER verifier=VERIFIER())
	"Almost default" constructor from verifier
	SimpleProperty (const std::string &value, VERIFIER verifier=VERIFIER())
	The constructor from the value and verifier (ATLAS needs it!)
	SimpleProperty (const std::string &name, const std::string &value, VERIFIER verifier=VERIFIER())
	The constructor from the name, value and verifier.
	SimpleProperty (const PropertyWithValue< OTHER > &right)
	constructor from other property type
	SimpleProperty (const SimpleProperty &right)
	copy constructor (must be!)
virtual	~SimpleProperty ()
	virtual Destructor
virtual SimpleProperty *	clone () const
	implementation of Property::clone
SimpleProperty &	operator= (const std::string &value)
	assignment form the value
SimpleProperty &	operator= (const PropertyWithValue< OTHER > &right)
	assignment form the other property type
Public Member Functions inherited from PropertyWithVerifier< TYPE, VERIFIER >
VERIFIER &	verifier ()
const VERIFIER &	verifier () const
bool	set (const TYPE &value)
	update the value of the property/check the verifier
virtual bool	setValue (const TYPE &value)
	implementation of PropertyWithValue::setValue
template<class OTHER , class OTHERVERIFIER >
PropertyWithVerifier &	operator= (const PropertyWithVerifier< OTHER, OTHERVERIFIER > &right)
	templated assignment
template<class OTHER >
PropertyWithVerifier &	operator= (const PropertyWithValue< OTHER > &right)
	templated assignment
PropertyWithVerifier &	operator= (const TYPE &right)
	assignment
Public Member Functions inherited from PropertyWithValue< TYPE >
	operator const TYPE & () const
	implicit conversion to the type
const TYPE &	value () const
	explicit conversion
virtual bool	assign (const Property &source)
	get the value from another property
virtual bool	load (Property &dest) const
	set value for another property
virtual StatusCode	fromString (const std::string &s)
	string -> value
virtual std::string	toString () const
	value -> string
virtual void	toStream (std::ostream &out) const
	value -> stream
Public Member Functions inherited from Property
const std::string &	name () const
	property name
const std::string &	documentation () const
	property documentation
const std::type_info *	type_info () const
	property type-info
std::string	type () const
	property type
const PropertyCallbackFunctor *	readCallBack () const
	Call-back functor at reading: the functor is owned by property!
const PropertyCallbackFunctor *	updateCallBack () const
	Call-back functor for update: the functor is owned by property!
virtual void	declareReadHandler (PropertyCallbackFunctor *pf)
	set new callback for reading
virtual void	declareUpdateHandler (PropertyCallbackFunctor *pf)
	set new callback for update
template<class HT >
void	declareReadHandler (void(HT::*MF)(Property &), HT *instance)
template<class HT >
void	declareUpdateHandler (void(HT::*MF)(Property &), HT *instance)
virtual void	useReadHandler () const
	use the call-back function at reading
virtual bool	useUpdateHandler ()
	use the call-back function at update
virtual	~Property ()
	virtual destructor
void	setName (const std::string &value)
	set the new value for the property name
void	setDocumentation (const std::string &documentation)
	set the documentation string
virtual std::ostream &	fillStream (std::ostream &) const
	the printout of the property value

Additional Inherited Members
Public Types inherited from PropertyWithValue< TYPE >
typedef Gaudi::Utils::PropertyTypeTraits < TYPE >	Traits
	the type-traits for properties
typedef Traits::PVal	PVal
	the actual storage type
Protected Types inherited from SimpleProperty< std::string >
typedef Gaudi::Utils::PropertyTypeTraits < std::string >	Traits
Protected Member Functions inherited from PropertyWithVerifier< TYPE, VERIFIER >
	PropertyWithVerifier (const std::string &name, typename Gaudi::Utils::PropertyTypeTraits< TYPE >::PVal value, const bool owner, const VERIFIER &verifier)
	the constructor with property name and value
virtual	~PropertyWithVerifier ()
	virtual destructor
Protected Attributes inherited from Property
PropertyCallbackFunctor *	m_readCallBack
PropertyCallbackFunctor *	m_updateCallBack

Detailed Description

Command property base class (abstract).

The CommandProperty is a subclass of StringProperty that has a callback when the value is changed. Not very useful until we have a scripting language

Author

David Quarrie

Definition at line 16 of file CommandProperty.h.

Constructor & Destructor Documentation

CommandProperty::CommandProperty

(

)

Constructors and destructors.

Definition at line 5 of file CommandProperty.cpp.

: StringProperty( ) {
}

CommandProperty::CommandProperty

(

const std::string &

name

)

Definition at line 9 of file CommandProperty.cpp.

: StringProperty( name ) {
}

CommandProperty::CommandProperty	(	const std::string &	name,
		const std::string &	value
	)

Definition at line 13 of file CommandProperty.cpp.

: StringProperty( name, value ) {
}

CommandProperty::~CommandProperty ( )

virtual

Definition at line 18 of file CommandProperty.cpp.

                                  {
}

Member Function Documentation

virtual void CommandProperty::handler ( const std::string &  value )

pure virtual

User call back function.

bool CommandProperty::set ( const std::string &  value )

virtual

Set value method.

Definition at line 21 of file CommandProperty.cpp.

{
  bool result = StringProperty::set( value );
  handler( value );
  return result;
}

---

The documentation for this class was generated from the following files:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r5/GaudiKernel/GaudiKernel/CommandProperty.h
• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r5/GaudiKernel/src/Lib/CommandProperty.cpp
