#include <Algorithm.h>

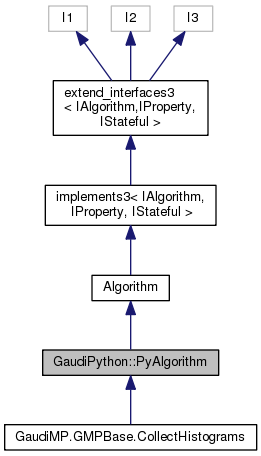

Inheritance diagram for GaudiPython::PyAlgorithm:

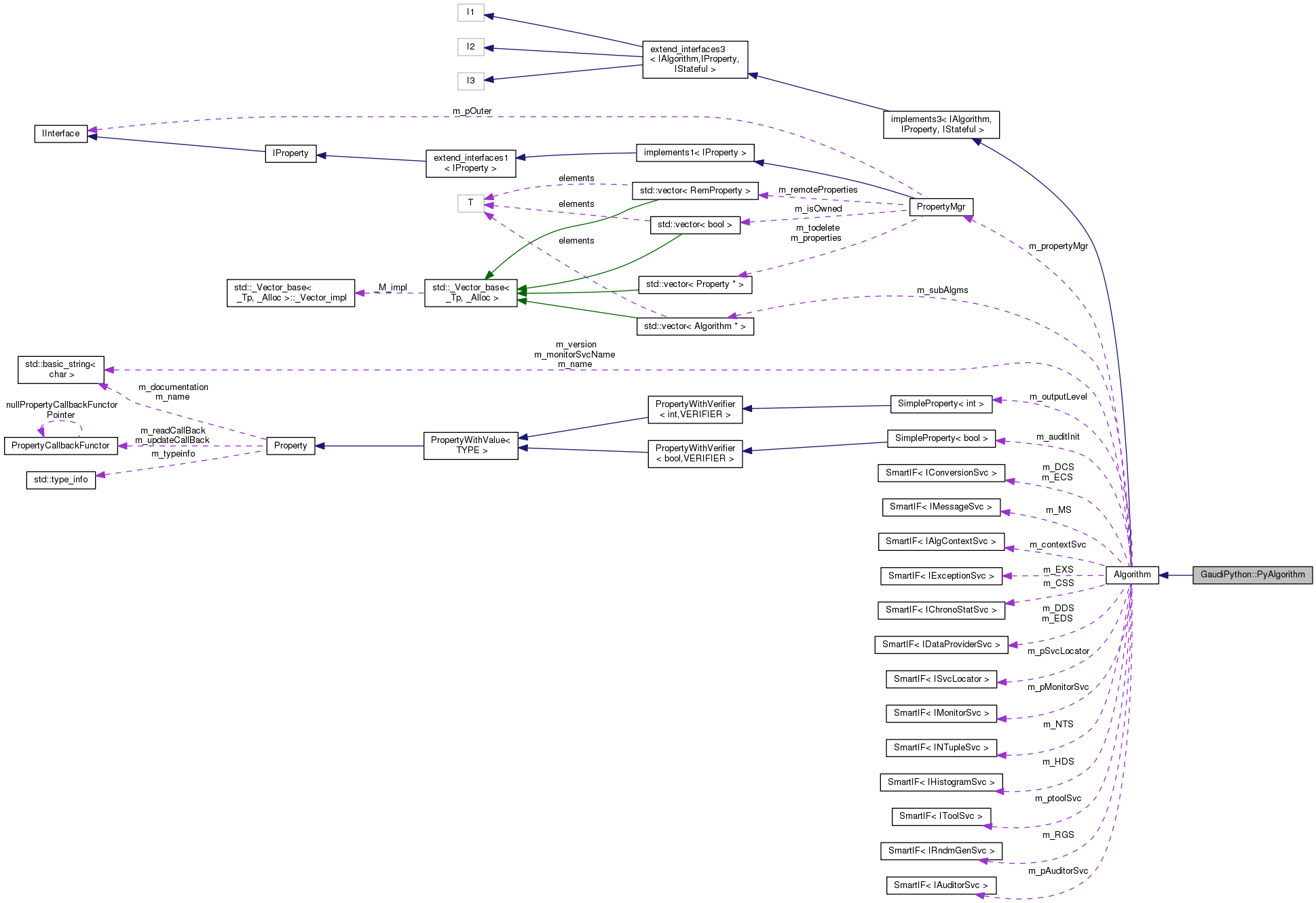

Collaboration diagram for GaudiPython::PyAlgorithm:

Public Member Functions
	PyAlgorithm (PyObject *self, const std::string &name)
	constructor

StatusCode	initialize ()
	the default (empty) implementation of IStateful::initialize() method

StatusCode	start ()
	the default (empty) implementation of IStateful::start() method

StatusCode	beginRun ()
	Algorithm begin run.

StatusCode	endRun ()
	Algorithm end run. This method is called at the end of the event loop.

StatusCode	execute ()

StatusCode	stop ()
	the default (empty) implementation of IStateful::stop() method

StatusCode	finalize ()
	the default (empty) implementation of IStateful::finalize() method

IAlgorithm *	myself ()

Public Member Functions inherited from Algorithm
	Algorithm (const std::string &name, ISvcLocator *svcloc, const std::string &version=PACKAGE_VERSION)
	Constructor.

virtual	~Algorithm ()
	Destructor.

virtual StatusCode	sysStart ()
	Reinitialization method invoked by the framework.

virtual StatusCode	sysInitialize ()
	Initialization method invoked by the framework.

virtual StatusCode	sysReinitialize ()
	Reinitialization method invoked by the framework.

virtual StatusCode	sysRestart ()
	Restart method invoked by the framework.

virtual StatusCode	sysExecute ()
	The actions to be performed by the algorithm on an event.

virtual StatusCode	sysStop ()
	System stop.

virtual StatusCode	sysFinalize ()
	System finalization.

virtual StatusCode	sysBeginRun ()
	beginRun method invoked by the framework.

virtual StatusCode	sysEndRun ()
	endRun method invoked by the framework.

virtual const std::string &	name () const
	The identifying name of the algorithm object.

virtual const std::string &	version () const

virtual StatusCode	configure ()
	Dummy implementation of IStateful::configure() method.

virtual StatusCode	terminate ()
	Dummy implementation of IStateful::terminate() method.

virtual StatusCode	reinitialize ()
	the default (empty) implementation of IStateful::reinitialize() method

virtual StatusCode	restart ()
	the default (empty) implementation of IStateful::restart() method

virtual bool	isExecuted () const
	Has this algorithm been executed since the last reset?

virtual void	setExecuted (bool state)
	Set the executed flag to the specified state.

virtual void	resetExecuted ()
	Reset the executed state of the Algorithm for the duration of the current event.

virtual Gaudi::StateMachine::State	FSMState () const
	returns the current state of the algorithm

virtual Gaudi::StateMachine::State	targetFSMState () const
	returns the state the algorithm will be in after the ongoing transition

virtual bool	isEnabled () const
	Is this algorithm enabled or disabled?

virtual bool	filterPassed () const
	Did this algorithm pass or fail its filter criterion for the last event?

virtual void	setFilterPassed (bool state)
	Set the filter passed flag to the specified state.

template<class T >
StatusCode	service (const std::string &name, T *&psvc, bool createIf=true) const
	Access a service by name, creating it if it doesn't already exist.

template<class T >
StatusCode	service (const std::string &svcType, const std::string &svcName, T *&psvc) const
	Access a service by name and type, creating it if it doesn't already exist.

SmartIF< IService >	service (const std::string &name, const bool createIf=true, const bool quiet=false) const
	Return a pointer to the service identified by name (or "type/name")

void	setOutputLevel (int level)
	Set the output level for current algorithm.

SmartIF< IAuditorSvc > &	auditorSvc () const
	The standard auditor service.May not be invoked before sysInitialize() has been invoked.

SmartIF< IChronoStatSvc > &	chronoSvc () const
	The standard Chrono & Stat service, Return a pointer to the service if present.

SmartIF< IChronoStatSvc > &	chronoStatService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IDataProviderSvc > &	detSvc () const
	The standard detector data service.

SmartIF< IDataProviderSvc > &	detDataService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IConversionSvc > &	detCnvSvc () const
	The standard detector data persistency conversion service.

SmartIF< IConversionSvc > &	detDataCnvService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IDataProviderSvc > &	eventSvc () const
	The standard event data service.

SmartIF< IDataProviderSvc > &	evtSvc () const
	shortcut for method eventSvc

SmartIF< IDataProviderSvc > &	eventDataService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IConversionSvc > &	eventCnvSvc () const
	The standard event data persistency conversion service.

SmartIF< IConversionSvc > &	eventDataCnvService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IHistogramSvc > &	histoSvc () const
	The standard histogram service.

SmartIF< IHistogramSvc > &	histogramDataService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IMessageSvc > &	msgSvc () const
	The standard message service.

SmartIF< IMessageSvc > &	messageService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< INTupleSvc > &	ntupleSvc () const
	The standard N tuple service.

SmartIF< INTupleSvc > &	ntupleService () const
	Obsoleted name, kept due to the backwards compatibility.

SmartIF< IRndmGenSvc > &	randSvc () const
	AIDA-based NTuple service Returns a pointer to the AIDATuple service if present.

SmartIF< IToolSvc > &	toolSvc () const
	The standard ToolSvc service, Return a pointer to the service if present.

SmartIF< IExceptionSvc > &	exceptionSvc () const
	Get the exception Service.

SmartIF< IAlgContextSvc > &	contextSvc () const
	get Algorithm Context Service

SmartIF< ISvcLocator > &	serviceLocator () const
	The standard service locator.

SmartIF< ISvcLocator > &	svcLoc () const
	shortcut for method serviceLocator

bool	registerContext () const
	register for Algorithm Context Service?

StatusCode	createSubAlgorithm (const std::string &type, const std::string &name, Algorithm *&pSubAlg)
	Create a sub algorithm.

std::vector< Algorithm * > *	subAlgorithms () const
	List of sub-algorithms. Returns a pointer to a vector of (sub) Algorithms.

virtual StatusCode	setProperty (const Property &p)
	Implementation of IProperty::setProperty.

virtual StatusCode	setProperty (const std::string &s)
	Implementation of IProperty::setProperty.

virtual StatusCode	setProperty (const std::string &n, const std::string &v)
	Implementation of IProperty::setProperty.

virtual StatusCode	getProperty (Property *p) const
	Implementation of IProperty::getProperty.

virtual const Property &	getProperty (const std::string &name) const
	Implementation of IProperty::getProperty.

virtual StatusCode	getProperty (const std::string &n, std::string &v) const
	Implementation of IProperty::getProperty.

virtual const std::vector < Property * > &	getProperties () const
	Implementation of IProperty::getProperties.

StatusCode	setProperties ()
	Set the algorithm's properties.

template<class T >
Property *	declareProperty (const std::string &name, T &property, const std::string &doc="none") const
	Declare the named property.

Property *	declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="") const
	Declare remote named properties.

SmartIF< IMonitorSvc > &	monitorSvc () const
	Access the monitor service.

template<class T >
void	declareInfo (const std::string &name, const T &var, const std::string &desc) const
	Declare monitoring information.

void	declareInfo (const std::string &name, const std::string &format, const void *var, int size, const std::string &desc) const
	Declare monitoring information (special case)

template<class TYPE >
StatusCode	setProperty (const std::string &name, const TYPE &value)
	set the property form the value

Private Attributes
PyObject *	m_self

Additional Inherited Members
Public Types inherited from implements3< IAlgorithm, IProperty, IStateful >
typedef implements3	base_class
	Typedef to this class.

typedef extend_interfaces3 < IAlgorithm, IProperty, IStateful >	extend_interfaces_base
	Typedef to the base of this class.

typedef extend_interfaces_base::ext_iids	interfaces
	MPL set of all the implemented interfaces.

Protected Member Functions inherited from Algorithm
bool	isInitialized () const
	Has the Algorithm already been initialized?

bool	isFinalized () const
	Has the Algorithm already been finalized?

int	outputLevel () const
	retrieve the Algorithm output level

IntegerProperty &	outputLevelProperty ()
	Accessor for the Message level property.

void	initOutputLevel (Property &prop)
	callback for output level property

Detailed Description

Python Algorithm base class.

Definition at line 35 of file Algorithm.h.

Constructor & Destructor Documentation

PyAlgorithm::PyAlgorithm	(	PyObject *	self,
		const std::string &	name
	)

constructor

Parameters

self	python objects
name	name of algorithm instance

Definition at line 73 of file Algorithm.cpp.

  : Algorithm ( name , Gaudi::svcLocator() )
  , m_self ( self )
{
  // The owner of the Algorithm is Python (as creator) therefore
  // it should not be deleted by Gaudi (added an extra addRef()).
  addRef() ;
  addRef() ;
}

Member Function Documentation

StatusCode PyAlgorithm::beginRun ( )

virtual

Algorithm begin run.

This method is called at the beginning of the event loop.

Reimplemented from Algorithm.

Definition at line 101 of file Algorithm.cpp.

{

return GaudiPython::call_python_method ( m_self , "beginRun" ) ; }

StatusCode PyAlgorithm::endRun ( )

virtual

Algorithm end run. This method is called at the end of the event loop.

Reimplemented from Algorithm.

Definition at line 103 of file Algorithm.cpp.

{

return GaudiPython::call_python_method ( m_self , "endRun" ) ; }

StatusCode PyAlgorithm::execute ( )

Definition at line 92 of file Algorithm.cpp.

{ return GaudiPython::call_python_method ( m_self , "execute" ) ; }

StatusCode PyAlgorithm::finalize ( )

virtual

the default (empty) implementation of IStateful::finalize() method

Reimplemented from Algorithm.

Definition at line 98 of file Algorithm.cpp.

{ return GaudiPython::call_python_method ( m_self , "finalize" ) ; }

StatusCode PyAlgorithm::initialize ( )

virtual

the default (empty) implementation of IStateful::initialize() method

Reimplemented from Algorithm.

Definition at line 86 of file Algorithm.cpp.

{ return GaudiPython::call_python_method ( m_self , "initialize" ) ; }

IAlgorithm* GaudiPython::PyAlgorithm::myself ( )

inline

Definition at line 53 of file Algorithm.h.

{ return this; }

StatusCode PyAlgorithm::start ( )

virtual

the default (empty) implementation of IStateful::start() method

Reimplemented from Algorithm.

Definition at line 89 of file Algorithm.cpp.

{ return GaudiPython::call_python_method ( m_self , "start" ) ; }

StatusCode PyAlgorithm::stop ( )

virtual

the default (empty) implementation of IStateful::stop() method

Reimplemented from Algorithm.

Definition at line 95 of file Algorithm.cpp.

{ return GaudiPython::call_python_method ( m_self , "stop" ) ; }

Member Data Documentation

PyObject* GaudiPython::PyAlgorithm::m_self

private

Definition at line 55 of file Algorithm.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r5/GaudiPython/GaudiPython/Algorithm.h
/afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r5/GaudiPython/src/Lib/Algorithm.cpp

Gaudi Framework, version v23r5

Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
