RootHistCnv::PersSvc Class Reference

Persistency service - to store histograms in ROOT format. More...

#include <PersSvc.h>

Inheritance diagram for RootHistCnv::PersSvc:
Inheritance graph
[legend]

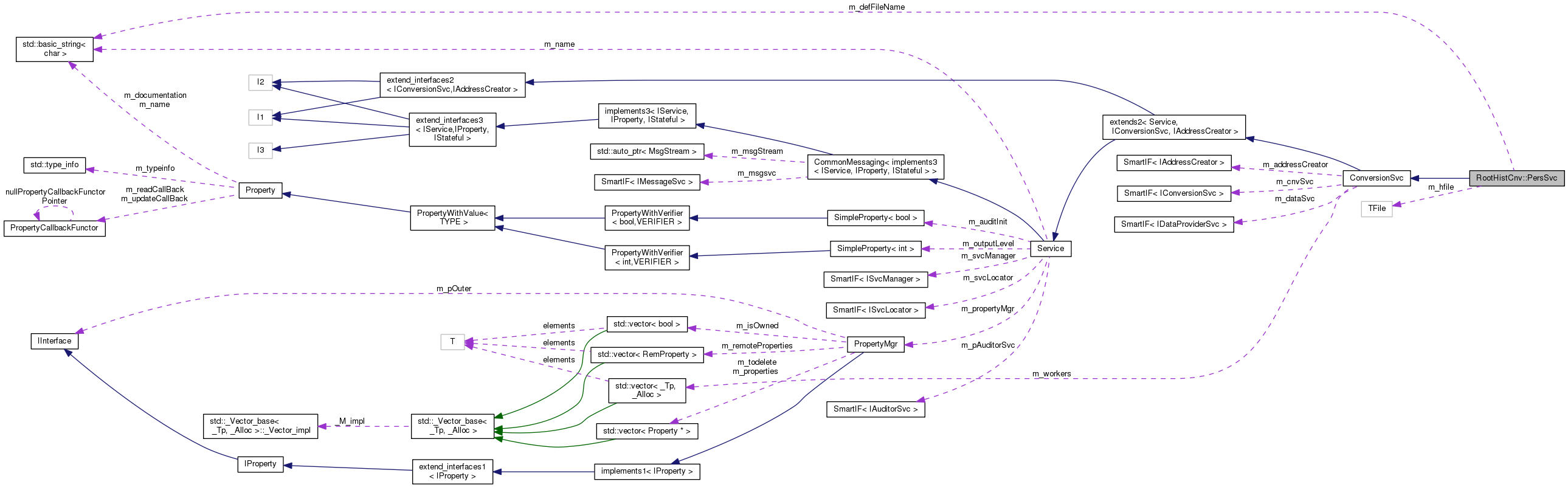

Collaboration diagram for RootHistCnv::PersSvc:
Collaboration graph
[legend]

Public Member Functions

virtual StatusCode initialize ()
 Initialise the service.

virtual StatusCode finalize ()
 Finalise the service.

virtual StatusCode createRep (DataObject *pObject, IOpaqueAddress *&refpAddress)
 Convert a collection of transient data objects into another representation.

 PersSvc (const std::string &name, ISvcLocator *svc)
 Standard constructor.

virtual ~PersSvc ()
 Standard destructor.

- Public Member Functions inherited from ConversionSvc
virtual long repSvcType () const
 Retrieve the class type of the data store the converter uses.

const CLID & objType () const
 Implementation of IConverter: dummy call.

virtual StatusCode setDataProvider (IDataProviderSvc *pService)
 Implementation of IConverter: Set Data provider service.

virtual SmartIF
< IDataProviderSvc > & 		dataProvider () const
 Implementation of IConverter: Get Data provider service.

virtual StatusCode setConversionSvc (IConversionSvc *svc)
 Implementation of IConverter: Set conversion service the converter is connected to.

virtual SmartIF< IConversionSvc > & conversionSvc () const
 Implementation of IConverter: Get conversion service the converter is connected to.

virtual StatusCode setAddressCreator (IAddressCreator *creator)
 Set address creator facility.

virtual SmartIF
< IAddressCreator > & 		addressCreator () const
 Retrieve address creator facility.

virtual StatusCode createObj (IOpaqueAddress *pAddress, DataObject *&refpObject)
 Implementation of IConverter: Create the transient representation of an object.

virtual StatusCode fillObjRefs (IOpaqueAddress *pAddress, DataObject *pObject)
 Implementation of IConverter: Resolve the references of the created transient object.

virtual StatusCode updateObj (IOpaqueAddress *pAddress, DataObject *refpObject)
 Implementation of IConverter: Update the transient object from the other representation.

virtual StatusCode updateObjRefs (IOpaqueAddress *pAddress, DataObject *pObject)
 Implementation of IConverter: Update the references of an updated transient object.

virtual StatusCode fillRepRefs (IOpaqueAddress *pAddress, DataObject *pObject)
 Implementation of IConverter: Resolve the references of the converted object.

virtual StatusCode updateRep (IOpaqueAddress *pAddress, DataObject *pObject)
 Implementation of IConverter: Update the converted representation of a transient object.

virtual StatusCode updateRepRefs (IOpaqueAddress *pAddress, DataObject *pObject)
 Implementation of IConverter: Update the references of an already converted object.

virtual StatusCode addConverter (const CLID &clid)
 Add converter object to conversion service.

virtual StatusCode addConverter (IConverter *pConverter)
 Add converter object to conversion service.

virtual StatusCode removeConverter (const CLID &clid)
 Remove converter object from conversion service (if present).

virtual IConverter * converter (const CLID &wanted)
 Retrieve converter from list.

virtual StatusCode connectOutput (const std::string &outputFile, const std::string &openMode)
 Connect the output file to the service with open mode.

virtual StatusCode connectOutput (const std::string &output)
 Connect the output file to the service.

virtual StatusCode commitOutput (const std::string &output, bool do_commit)
 Commit pending output.

virtual StatusCode createAddress (long svc_type, const CLID &clid, const std::string *par, const unsigned long *ip, IOpaqueAddress *&refpAddress)
 Create a Generic address using explicit arguments to identify a single object.

virtual StatusCode convertAddress (const IOpaqueAddress *pAddress, std::string &refAddress)
 Convert an address to string form.

virtual StatusCode createAddress (long svc_type, const CLID &clid, const std::string &refAddress, IOpaqueAddress *&refpAddress)
 Convert an address in string form to object form.

virtual StatusCode updateServiceState (IOpaqueAddress *pAddress)
 Update state of the service.

 ConversionSvc (const std::string &name, ISvcLocator *svc, long type)
 Standard Constructor.

- Public Member Functions inherited from extends2< Service, IConversionSvc, IAddressCreator >
 extends2 (A1 a1, A2 a2, A3 a3)
 Templated constructor with 3 arguments.

 extends2 (A1 a1, A2 a2)
 Templated constructor with 2 arguments.

 extends2 (A1 a1)
 Templated constructor with 1 argument.

 extends2 ()
 Default constructor.

virtual void * i_cast (const InterfaceID &tid) const
 Implementation of IInterface::i_cast.

virtual StatusCode queryInterface (const InterfaceID &ti, void **pp)
 Implementation of IInterface::queryInterface.

virtual std::vector< std::string > getInterfaceNames () const
 Implementation of IInterface::getInterfaceNames.

virtual ~extends2 ()
 Virtual destructor.

- Public Member Functions inherited from Service
virtual unsigned long release ()
 Release Interface instance.

virtual const std::string & name () const
 Retrieve name of the service.

virtual StatusCode configure ()

virtual StatusCode start ()

virtual StatusCode stop ()

virtual StatusCode terminate ()

virtual Gaudi::StateMachine::State FSMState () const

virtual Gaudi::StateMachine::State targetFSMState () const

virtual StatusCode reinitialize ()

virtual StatusCode restart ()

virtual StatusCode sysInitialize ()
 Initialize Service.

virtual StatusCode sysStart ()
 Initialize Service.

virtual StatusCode sysStop ()
 Initialize Service.

virtual StatusCode sysFinalize ()
 Finalize Service.

virtual StatusCode sysReinitialize ()
 Re-initialize the Service.

virtual StatusCode sysRestart ()
 Re-initialize the Service.

virtual StatusCode setProperty (const Property &p)

virtual StatusCode setProperty (const std::string &s)

virtual StatusCode setProperty (const std::string &n, const std::string &v)

virtual StatusCode getProperty (Property *p) const

virtual const Property & getProperty (const std::string &name) const

virtual StatusCode getProperty (const std::string &n, std::string &v) const

virtual const std::vector
< Property * > & 		getProperties () const

template<class TYPE >
StatusCode setProperty (const std::string &name, const TYPE &value)
 set the property form the value

 Service (const std::string &name, ISvcLocator *svcloc)
 Standard Constructor.

SmartIF< ISvcLocator > & serviceLocator () const
 Retrieve pointer to service locator.

StatusCode setProperties ()
 Method for setting declared properties to the values specified for the job.

template<class T >
StatusCode service (const std::string &name, const T *&psvc, bool createIf=true) const
 Access a service by name, creating it if it doesn't already exist.

template<class T >
StatusCode service (const std::string &name, T *&psvc, bool createIf=true) const

template<class T >
StatusCode service (const std::string &svcType, const std::string &svcName, T *&psvc) const
 Access a service by name and type, creating it if it doesn't already exist.

template<class T >
Property * declareProperty (const std::string &name, T &property, const std::string &doc="none") const
 Declare the named property.

Property * declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="") const
 Declare remote named properties.

SmartIF< IAuditorSvc > & auditorSvc () const
 The standard auditor service.May not be invoked before sysInitialize() has been invoked.

- Public Member Functions inherited from CommonMessaging< implements3< IService, IProperty, IStateful > >
 CommonMessaging (const A1 &a1, const A2 &a2, const A3 &a3)
 Templated constructor with 3 arguments.

 CommonMessaging (const A1 &a1, const A2 &a2)
 Templated constructor with 2 arguments.

 CommonMessaging (const A1 &a1)
 Templated constructor with 1 argument.

 CommonMessaging ()
 Default constructor.

virtual ~CommonMessaging ()
 Virtual destructor.

SmartIF< IMessageSvc > & msgSvc () const
 The standard message service.

MsgStream & msgStream () const
 Return an uninitialized MsgStream.

MsgStream & msgStream (const MSG::Level level) const
 Predefined configurable message stream for the efficient printouts.

MsgStream & always () const
 shortcut for the method msgStream(MSG::ALWAYS)

MsgStream & fatal () const
 shortcut for the method msgStream(MSG::FATAL)

MsgStream & err () const
 shortcut for the method msgStream(MSG::ERROR)

MsgStream & error () const
 shortcut for the method msgStream(MSG::ERROR)

MsgStream & warning () const
 shortcut for the method msgStream(MSG::WARNING)

MsgStream & info () const
 shortcut for the method msgStream(MSG::INFO)

MsgStream & debug () const
 shortcut for the method msgStream(MSG::DEBUG)

MsgStream & verbose () const
 shortcut for the method msgStream(MSG::VERBOSE)

MsgStream & msg () const
 shortcut for the method msgStream(MSG::INFO)

MSG::Level msgLevel () const
 get the output level from the embedded MsgStream

bool msgLevel (MSG::Level lvl) const
 get the output level from the embedded MsgStream

- Public Member Functions inherited from extend_interfaces2< I1, I2 >
virtual ~extend_interfaces2 ()
 Virtual destructor.


Private Attributes

std::string m_defFileName
 Default file name.

TFile * m_hfile
 Pointer to the ROOT file.

bool m_prtWar
 Already printed a Warning.

bool m_alphaIds
 Force alphabetic histograms/ntuple IDs.

bool m_outputEnabled
 Flag to enable/disable the output to file.


Friends

class SvcFactory< PersSvc >


Additional Inherited Members

- Public Types inherited from ConversionSvc
typedef std::vector< WorkerEntry > Workers

- Protected Member Functions inherited from ConversionSvc
virtual ~ConversionSvc ()
 Standard Destructor.

virtual IConverter * createConverter (long typ, const CLID &clid, const ICnvFactory *fac)
 Create new Converter using factory.

virtual StatusCode configureConverter (long typ, const CLID &clid, IConverter *cnv)
 Configure the new converter before initialize is called.

virtual StatusCode initializeConverter (long typ, const CLID &clid, IConverter *cnv)
 Initialize the new converter.

virtual StatusCode activateConverter (long typ, const CLID &clid, IConverter *cnv)
 Activate the new converter after initialization.

virtual void loadConverter (DataObject *pObject)
 Load converter or dictionary needed by the converter.

virtual SmartIF
< IAddressCreator > & 		addressCreator ()
 Retrieve address creation interface.

StatusCode makeCall (int typ, bool ignore_add, bool ignore_obj, bool update, IOpaqueAddress *&pAddress, DataObject *&pObject)

- Protected Attributes inherited from ConversionSvc
SmartIF< IDataProviderSvc > m_dataSvc
 Pointer to data provider service.

SmartIF< IAddressCreator > m_addressCreator
 Pointer to the address creation service interface.

SmartIF< IConversionSvc > m_cnvSvc
 Pointer to the IConversionSvc interface of this.

long m_type
 Conversion service type.

Workers * m_workers
 List of conversion workers.


Detailed Description

Persistency service - to store histograms in ROOT format.

Author
Charles Leggett

Definition at line 21 of file PersSvc.h.

Constructor & Destructor Documentation

RootHistCnv::PersSvc::PersSvc ( const std::string &  name,
ISvcLocator *  svc
)

Standard constructor.

Definition at line 129 of file PersSvc.cpp.

: ConversionSvc(name, svc, ROOT_StorageType), m_hfile(0), m_prtWar(false) {
declareProperty("OutputFile", m_defFileName = undefFileName);
declareProperty("ForceAlphaIds", m_alphaIds = false);
declareProperty("OutputEnabled", m_outputEnabled = true,
"Flag to enable/disable the output to file.");
}
RootHistCnv::PersSvc::~PersSvc ( )
virtual

Standard destructor.

Definition at line 139 of file PersSvc.cpp.

{
if ( m_hfile != 0 ) {
delete m_hfile;
m_hfile = 0;
}
}

Member Function Documentation

StatusCode RootHistCnv::PersSvc::createRep ( DataObject *  pObject,
IOpaqueAddress *&  refpAddress
)
virtual

Convert a collection of transient data objects into another representation.

Reimplemented from ConversionSvc.

Definition at line 78 of file PersSvc.cpp.

{
// There are objects in the HDS to be stored
if( m_outputEnabled && undefFileName != m_defFileName ) {
SmartDataPtr<DataObject> top(dataProvider(), stat_dir);
if ( 0 != top ) {
IRegistry* pReg = top->registry();
if ( pReg ) {
if ( top.ptr() == pObject ) {
TDirectory* pDir = m_hfile;
refpAddress = new RootObjAddress( repSvcType(),
CLID_DataObject,
stat_dir,
m_defFileName,
long(pDir),
long(0));
return StatusCode::SUCCESS;
}
else {
StatusCode sc = ConversionSvc::createRep(pObject, refpAddress);
if( sc.isFailure() ) {
MsgStream log( msgSvc(), name() );
log << MSG::ERROR
<< "Error while creating persistent Histogram:"
<< pReg->identifier()
<< endmsg;
}
return sc;
}
}
}
MsgStream err( msgSvc(), name() );
err << MSG::ERROR
<< "Internal error while creating Histogram persistent representations"
<< endmsg;
return StatusCode::FAILURE;
} else {
if (m_outputEnabled && !m_prtWar) {
m_prtWar = true;
MsgStream log( msgSvc(), name() );
log << MSG::WARNING
<< "no ROOT output file name, "
<< "Histograms cannot be persistified" << endmsg;
}
}
return StatusCode::SUCCESS;
}
StatusCode RootHistCnv::PersSvc::finalize ( )
virtual

Finalise the service.

Reimplemented from ConversionSvc.

Definition at line 64 of file PersSvc.cpp.

{
// Close ROOT only if the output file name is defined
MsgStream log( msgSvc(), name() );
log << MSG::DEBUG << "RootHistCnv::PersSvc::finalize()" << endmsg;
if( undefFileName != m_defFileName ) {
m_hfile->Write("",TObject::kOverwrite);
m_hfile->Close();
}
return ConversionSvc::finalize();
}
StatusCode RootHistCnv::PersSvc::initialize ( )
virtual

Initialise the service.

Reimplemented from ConversionSvc.

Definition at line 33 of file PersSvc.cpp.

{
MsgStream log( msgSvc(), name() );
StatusCode status = ConversionSvc::initialize();
if( status.isFailure() ) return status;
// Get my properties from the JobOptionsSvc
if (setProperties().isFailure()) {
log << MSG::ERROR << "Could not set my properties" << endmsg;
return StatusCode::FAILURE;
}
if (m_outputEnabled) {
// Initialize ROOT if output file name is defined
if( undefFileName != m_defFileName ) {
m_hfile = TFile::Open(m_defFileName.c_str(),"RECREATE","GAUDI Histograms");
} else {
m_hfile = 0;
}
log << MSG::INFO << "Writing ROOT histograms to: " << m_defFileName
<< endmsg;
}
else {
log << MSG::INFO << "Writing ROOT histograms disabled." << endmsg;
}
return StatusCode(StatusCode::SUCCESS,true);
}

Friends And Related Function Documentation

friend class SvcFactory< PersSvc >
friend

Definition at line 23 of file PersSvc.h.

Member Data Documentation

bool RootHistCnv::PersSvc::m_alphaIds
private

Force alphabetic histograms/ntuple IDs.

Definition at line 45 of file PersSvc.h.

std::string RootHistCnv::PersSvc::m_defFileName
private

Default file name.

Definition at line 42 of file PersSvc.h.

TFile* RootHistCnv::PersSvc::m_hfile
private

Pointer to the ROOT file.

Definition at line 43 of file PersSvc.h.

bool RootHistCnv::PersSvc::m_outputEnabled
private

Flag to enable/disable the output to file.

Definition at line 46 of file PersSvc.h.

bool RootHistCnv::PersSvc::m_prtWar
private

Already printed a Warning.

Definition at line 44 of file PersSvc.h.

The documentation for this class was generated from the following files:
Generated at Wed Nov 28 2012 12:17:42 for Gaudi Framework, version v23r5 by Doxygen version 1.8.2 written by Dimitri van Heesch, © 1997-2004
