Tuples::TupleObj Class Reference

A simple wrapper class over standard Gaudi NTuple::Tuple facility. More...

#include <GaudiAlg/TupleObj.h>

Inheritance diagram for Tuples::TupleObj:

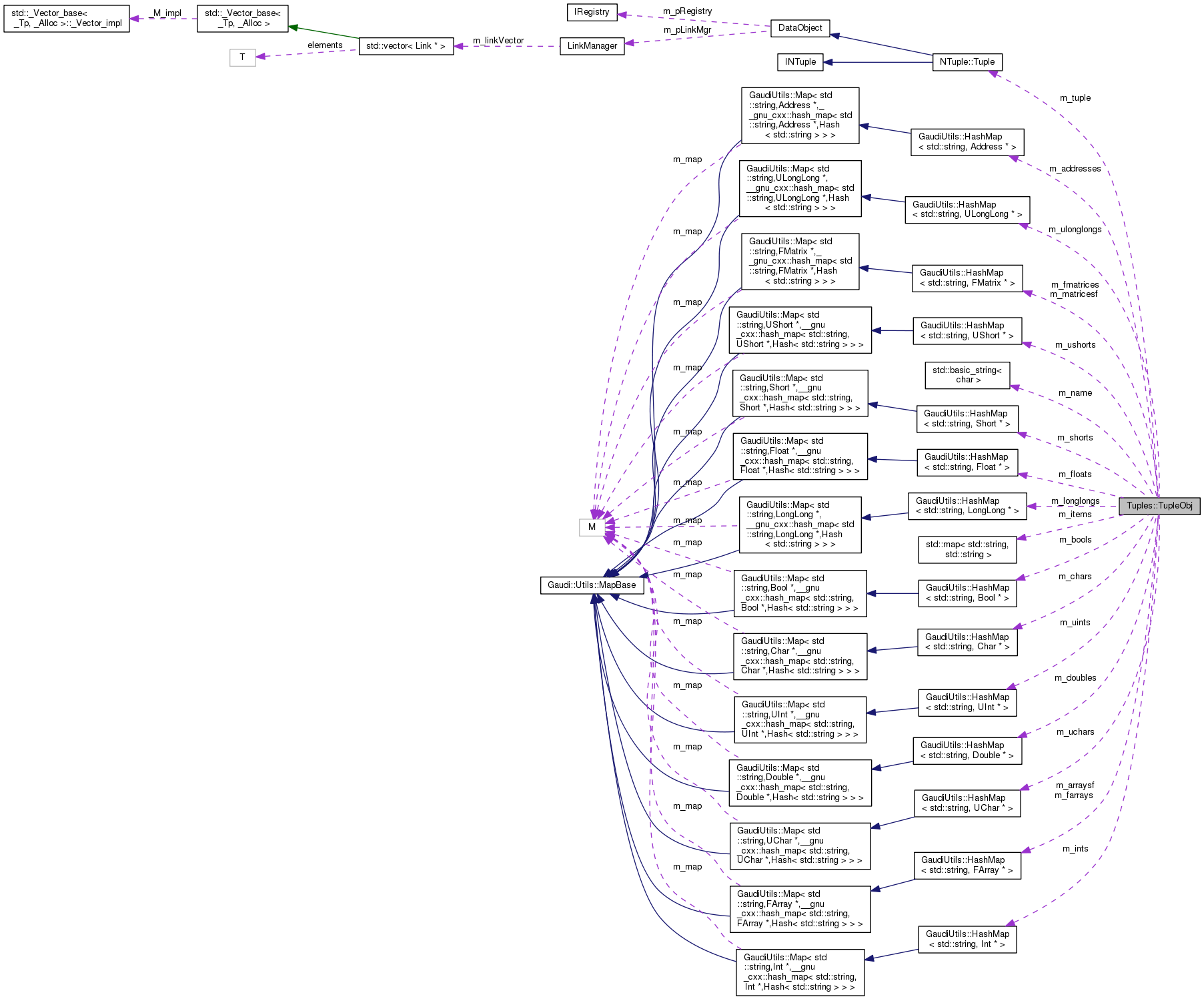

Collaboration diagram for Tuples::TupleObj:

Public Types
typedef NTuple::Item< bool >	Bool
	basic type for int items
typedef NTuple::Item< char >	Char
	basic type for int items
typedef NTuple::Item< unsigned char >	UChar
	basic type for unsigned int items
typedef NTuple::Item< short >	Short
	basic type for int items
typedef NTuple::Item< unsigned short >	UShort
	basic type for unsigned int items
typedef NTuple::Item< int >	Int
	basic type for int items
typedef NTuple::Item< unsigned int >	UInt
	basic type for unsigned int items
typedef NTuple::Item< long long >	LongLong
	basic type for unsigned long long items
typedef NTuple::Item< unsigned long long >	ULongLong
	basic type for unsigned long long items
typedef NTuple::Item< float >	Float
	basic type for float items
typedef NTuple::Item< double >	Double
	basic type for double items
typedef NTuple::Item < IOpaqueAddress * >	Address
	basic type for address items
typedef NTuple::Array< float >	FArray
	basic type for array of floats
typedef NTuple::Matrix< float >	FMatrix
	basic type for matrix of floats
typedef unsigned short	MIndex
typedef std::map< std::string, std::string >	ItemMap

Public Member Functions
StatusCode	column (const std::string &name, const float value)
	Set the value for selected tuple column.
StatusCode	column (const std::string &name, const double value)
	Set the value for the selected tuple column If the column does not exist, it will be automatically created and appended to the tuple.
StatusCode	column (const std::string &name, const short value)
	Set the value for selected tuple column.
StatusCode	column (const std::string &name, const short value, const short minv, const short maxv)
	Set the value for selected tuple column.
StatusCode	column (const std::string &name, const unsigned short value)
	Set the value for selected tuple column.
StatusCode	column (const std::string &name, const unsigned short value, const unsigned short minv, const unsigned short maxv)
	Set the value for selected tuple column.
StatusCode	column (const std::string &name, const char value)
	Set the value for selected tuple column.
StatusCode	column (const std::string &name, const char value, const char minv, const char maxv)
	Set the value for selected tuple column.
StatusCode	column (const std::string &name, const unsigned char value)
	Set the value for selected tuple column.
StatusCode	column (const std::string &name, const unsigned char value, const unsigned char minv, const unsigned char maxv)
	Set the value for selected tuple column.
StatusCode	column (const std::string &name, const int value)
	Set the value for selected tuple column.
StatusCode	column (const std::string &name, const int value, const int minv, const int maxv)
	Set the value for selected tuple column.
StatusCode	column (const std::string &name, const unsigned int value)
	Set the value for selected tuple column.
StatusCode	column (const std::string &name, const unsigned int value, const unsigned int minv, const unsigned int maxv)
	Set the value for selected tuple column.
StatusCode	column (const std::string &name, const long value)
	Set the value for the selected tuple column.
StatusCode	column (const std::string &name, const long value, const long minv, const long maxv)
	Set the value for selected tuple column.
StatusCode	column (const std::string &name, const unsigned long value)
	Set the value for selected tuple column.
StatusCode	column (const std::string &name, const unsigned long value, const unsigned long minv, const unsigned long maxv)
	Set the value for selected tuple column.
StatusCode	column (const std::string &name, const long long value)
	Set the value for selected tuple column.
StatusCode	column (const std::string &name, const long long value, const long long minv, const long long maxv)
	Set the value for selected tuple column.
StatusCode	column (const std::string &name, const unsigned long long value)
	Set the value for selected tuple column.
StatusCode	column (const std::string &name, const unsigned long long value, const unsigned long long minv, const unsigned long long maxv)
	Set the value for selected tuple column.
StatusCode	column (const std::string &name, const signed char value)
	Set the value for the selected tuple column.
StatusCode	column (const std::string &name, const bool value)
	Set the value for selected tuple column.
StatusCode	column (const std::string &name, IOpaqueAddress *address)
	Put IOpaqueAddress in POOL-based NTuple.
StatusCode	column (IOpaqueAddress *address)
	Put IOpaqueAddress in NTuple.
StatusCode	fill (const char *format...)
	Set the values for several columns simultaneously.
template<class DATA >
StatusCode	farray (const std::string &name, DATA first, DATA last, const std::string &length, const size_t maxv)
	Add an indexed array (of type float) to N-tuple.
template<class DATA >
StatusCode	farray (const std::string &name, const DATA &data, const std::string &length, const size_t maxv)
	Add an indexed array (of type float) to N-tuple.
template<class FUNCTION , class DATA >
StatusCode	farray (const std::string &name, const FUNCTION &function, DATA first, DATA last, const std::string &length, const size_t maxv)
	Put an indexed array into LoKi-style N-Tuple.
template<class FUNC1 , class FUNC2 , class DATA >
StatusCode	farray (const std::string &name1, const FUNC1 &func1, const std::string &name2, const FUNC2 &func2, DATA first, DATA last, const std::string &length, const size_t maxv)
	Put two functions from one data array into LoKi-style N-Tuple simultaneously (effective!)
template<class FUNC1 , class FUNC2 , class FUNC3 , class DATA >
StatusCode	farray (const std::string &name1, const FUNC1 &func1, const std::string &name2, const FUNC2 &func2, const std::string &name3, const FUNC3 &func3, DATA first, DATA last, const std::string &length, const size_t maxv)
	Put three functions from one data array into LoKi-style N-Tuple simultaneously (effective!)
template<class FUNC1 , class FUNC2 , class FUNC3 , class FUNC4 , class DATA >
StatusCode	farray (const std::string &name1, const FUNC1 &func1, const std::string &name2, const FUNC2 &func2, const std::string &name3, const FUNC3 &func3, const std::string &name4, const FUNC4 &func4, DATA first, DATA last, const std::string &length, const size_t maxv)
	Put four functions from one data array into LoKi-style N-Tuple simultaneously (effective!)
template<class MATRIX >
StatusCode	fmatrix (const std::string &name, const MATRIX &data, size_t rows, const MIndex &cols, const std::string &length, const size_t maxv)
	Fill N-Tuple with data from variable-size matrix.
template<class DATA >
StatusCode	fmatrix (const std::string &name, DATA first, DATA last, const MIndex &cols, const std::string &length, const size_t maxv)
	Fill N-Tuple with data from variable-size matrix.
template<class FUN , class DATA >
StatusCode	fmatrix (const std::string &name, FUN funF, FUN funL, DATA first, DATA last, const std::string &length, const size_t maxv)
	fill N-Tuple with matrix of "direct-product" of "data-vector" [first,last) and "function-vector" [funF, funL)
template<class DATA >
StatusCode	array (const std::string &name, DATA first, DATA last)
	fill N-Tuple with fixed-size array
template<class ARRAY >
StatusCode	array (const std::string &name, const ARRAY &data, const MIndex &length)
	fill N-Tuple with fixed-size array
template<class ARRAY >
StatusCode	array (const std::string &name, const ARRAY &data)
	fill N-Tuple with fixed-size array
template<class MATRIX >
StatusCode	matrix (const std::string &name, const MATRIX &data, const MIndex &rows, const MIndex &cols)
	fill N-Tuple with fixed-size matrix
template<class TYPE >
StatusCode	column (const std::string &name, const ROOT::Math::LorentzVector< TYPE > &v)
	Useful shortcut to put LorentzVector directly into N-Tuple:
template<class TYPE , class TAG >
StatusCode	column (const std::string &name, const ROOT::Math::DisplacementVector3D< TYPE, TAG > &v)
	Useful shortcut to put 3D-Vector directly into N-Tuple:
template<class TYPE , class TAG >
StatusCode	column (const std::string &name, const ROOT::Math::PositionVector3D< TYPE, TAG > &v)
	Useful shortcut to put 3D-Vector directly into N-Tuple:
template<class TYPE , unsigned int DIM>
StatusCode	array (const std::string &name, const ROOT::Math::SVector< TYPE, DIM > &vect)
	shortcut to put SVector into N-tuple:
template<class TYPE , unsigned int D1, unsigned int D2, class REP >
StatusCode	matrix (const std::string &name, const ROOT::Math::SMatrix< TYPE, D1, D2, REP > &mtrx)
	shortcut to put Smatrix into N-tuple:
template<class KEY , class VALUE >
StatusCode	fmatrix (const std::string &name, const GaudiUtils::VectorMap< KEY, VALUE > &info, const std::string &length, const size_t maxv=100)
	shortcut to put "ExtraInfo" fields of major into N-Tuple
template<class TYPE >
StatusCode	put (const std::string &name, const TYPE *obj)
	The function allows to add almost arbitrary object into N-tuple.
StatusCode	write ()
	write a record to NTuple
const std::string &	name () const
	get the name
NTuple::Tuple *	tuple () const
	provide the access to underlying Gaudi N-tuple
unsigned long	refCount () const
	return the reference counter
unsigned long	addRef ()
	add the reference to TupleObj
void	release ()
	release the reference to TupleObj if reference counter becomes zero, object will be automatically deleted
const CLID &	clid () const
	accessor to the N-Tuple CLID
Tuples::Type	type () const
	accessor to the N-Tuple type
bool	columnWise () const
	column wise NTuple ?
bool	rowWise () const
	row wise NTuple ?
bool	evtColType () const
	Event collection ?
bool	valid () const
	valid pointer to tuple ?
bool	invalid () const
	invalid pointer to tuple ?
bool	addItem (const std::string &name, const std::string &type)
	add the item name into the list of known items
bool	goodItem (const std::string &name) const
	check the uniqueness of the name
const ItemMap &	items () const
	get the full list of booked items
virtual StatusCode	Error (const std::string &msg, const StatusCode sc=StatusCode::FAILURE) const =0
virtual StatusCode	Warning (const std::string &msg, const StatusCode sc=StatusCode::FAILURE) const =0

Protected Member Functions
	TupleObj (const std::string &name, NTuple::Tuple *tuple, const CLID &clid=CLID_ColumnWiseTuple, const Tuples::Type type=Tuples::NTUPLE)
	Standard constructor.
virtual	~TupleObj ()
	destructor is protected

Private Types
typedef GaudiUtils::HashMap < std::string, Bool * >	Bools
	the actual storage type for short columns
typedef GaudiUtils::HashMap < std::string, Char * >	Chars
	the actual storage type for short columns
typedef GaudiUtils::HashMap < std::string, UChar * >	UChars
	the actual storage type for unsigned short columns
typedef GaudiUtils::HashMap < std::string, Short * >	Shorts
	the actual storage type for short columns
typedef GaudiUtils::HashMap < std::string, UShort * >	UShorts
	the actual storage type for unsigned short columns
typedef GaudiUtils::HashMap < std::string, Int * >	Ints
	the actual storage type for integer columns
typedef GaudiUtils::HashMap < std::string, UInt * >	UInts
	the actual storage type for unsigned integer columns
typedef GaudiUtils::HashMap < std::string, LongLong * >	LongLongs
	the actual storage type for longlong columns
typedef GaudiUtils::HashMap < std::string, ULongLong * >	ULongLongs
	the actual storage type for ulonglong columns
typedef GaudiUtils::HashMap < std::string, Float * >	Floats
	the actual storage type for float columns
typedef GaudiUtils::HashMap < std::string, Double * >	Doubles
	the actual storage type for float columns
typedef GaudiUtils::HashMap < std::string, Address * >	Addresses
	the actual storage type for address columns
typedef GaudiUtils::HashMap < std::string, FArray * >	FArrays
	the actual storage type for array columns
typedef GaudiUtils::HashMap < std::string, FMatrix * >	FMatrices
	the actual storage type for matrix columns

Private Member Functions
Bool *	bools (const std::string &name)
	get the column
Float *	floats (const std::string &name)
	get the column
Double *	doubles (const std::string &name)
	get the column
Char *	chars (const std::string &name)
	get the column
Char *	chars (const std::string &name, const char minv, const char maxv)
	get the column
UChar *	uchars (const std::string &name)
	get the column
UChar *	uchars (const std::string &name, const unsigned char minv, const unsigned char maxv)
	get the column
Short *	shorts (const std::string &name)
	get the column
Short *	shorts (const std::string &name, const short minv, const short maxv)
	get the column
UShort *	ushorts (const std::string &name)
	get the column
UShort *	ushorts (const std::string &name, const unsigned short minv, const unsigned short maxv)
	get the column
Int *	ints (const std::string &name)
	get the column
Int *	ints (const std::string &name, const int minv, const int maxv)
	get the column
UInt *	uints (const std::string &name)
	get the column
UInt *	uints (const std::string &name, const unsigned int minv, const unsigned int maxv)
	get the column
LongLong *	longlongs (const std::string &name)
	get the column
LongLong *	longlongs (const std::string &name, const long long minv, const long long maxv)
	get the column
ULongLong *	ulonglongs (const std::string &name)
	get the column
ULongLong *	ulonglongs (const std::string &name, const unsigned long long minv, const unsigned long long maxv)
	get the column
FArray *	fArray (const std::string &name, Int *item)
	get the column
FArray *	fArray (const std::string &name, const MIndex &rows)
	get the column
Address *	addresses (const std::string &name)
	get the column
FMatrix *	fMatrix (const std::string &name, Int *item, const MIndex &cols)
	get the column
FMatrix *	fMatrix (const std::string &name, const MIndex &rows, const MIndex &cols)
	get the column
	TupleObj ()
	the default constructor is disabled
	TupleObj (const TupleObj &)
	copy constructor is disabled
TupleObj &	operator= (const TupleObj &)
	assignment is disabled

Private Attributes
std::string	m_name
	name
NTuple::Tuple *	m_tuple
	tuple itself
CLID	m_clid
	tuple CLID
Tuples::Type	m_type
	tuple 'type'
size_t	m_refCount
	reference counter
Bools	m_bools
	the actual storage of all 'bool' columns
Chars	m_chars
	the actual storage of all 'Int' columns
UChars	m_uchars
	the actual storage of all 'unsigned int' columns
Shorts	m_shorts
	the actual storage of all 'Int' columns
UShorts	m_ushorts
	the actual storage of all 'unsigned int' columns
Ints	m_ints
	the actual storage of all 'Int' columns
UInts	m_uints
	the actual storage of all 'unsigned int' columns
LongLongs	m_longlongs
	the actual storage of all 'longlong' columns
ULongLongs	m_ulonglongs
	the actual storage of all 'ulonglong' columns
Floats	m_floats
	the actual storage of all 'Float' columns
Doubles	m_doubles
	the actual storage of all 'Double' columns
Addresses	m_addresses
	the actual storage of all 'Address' columns
FArrays	m_farrays
	the actual storage of all 'FArray' columns
FArrays	m_arraysf
	the actual storage of all 'FArray' columns (fixed)
FMatrices	m_fmatrices
	the actual storage of all 'FArray' columns
FMatrices	m_matricesf
	the actual storage of all 'FMatrix' columns (fixed)
ItemMap	m_items
	all booked types:

Detailed Description

A simple wrapper class over standard Gaudi NTuple::Tuple facility.

The design and implementation are imported from LoKi package

One should not use lass TupleObj directly. The special handler Tuples::Tuple should be used instead, which is simultaneously 'proxy' an d'smart pointer' for real (and heavy!) TupleObj class.

The main advantages of local ntuples with respect to 'standard' Gaudi NTuples ( NTuple::Tuple ) is their "locality". For 'standard' ntuples one need

1. Define all ntuple columns/items as data members of the algorithm
2. Book the NTuple::Tuple object using INTupleSvc
3. Add all defined columns/items to the booked ntuple
4. Fill ntuple records

Usually the first step is done in the header file (separate file!) of the algorithm, the second and the third steps are done in initialize() method of the algorithm and the fourth step is done somewhere in execute() method of the same algorithm. Such approach requires to keep track of the tuple structure through different method and event through different files. And even minor modification of the structure of the ntuple will require the modification of at least 2 methods and 2 files.

The Tuples::Tuple wrapper over standard Gaudi NTuple::Tuple class solves all above listed problems with "non-local" nature of Gaudi NTuple::Tuple objects.

Tuples::Tuple object is booked and used 'locally'. One does not need to pre-book the ntuple or its columns/items somewhere in different compilation units or other methods different from the actual point of using the ntuple.

The simplest example of usage Tuples::Tuple object:

Tuple tuple = nTuple( "some more or less unique tuple title ");
for( Loop D0 = loop( "K- pi+", "D0" ) , D0 , ++D0 )
{
   tuple -> column ( "mass" , M  ( D0 ) / GeV ) ;
   tuple -> column ( "pt"   , PT ( D0 ) / GeV ) ;
   tuple -> column ( "p"    , P  ( D0 ) / GeV ) ;
   tuple -> write  () ;
}

One could fill some Tuple variables in one go

Tuple tuple = nTuple( "some more or less unique tuple title ");
for( Loop D0 = loop( "K- pi+", "D0" ) , D0 , ++D0 )
{
   tuple -> column ( "mass"      , M  ( D0 ) / GeV ) ;
   tuple -> fill   ( "pt , p "   , PT ( D0 ) / GeV , P(D0) / GeV ) ;
   tuple -> write  () ;
}

Even ALL variables could be filled in one go:

Tuple tuple = nTuple( "some more or less unique tuple title ");
for( Loop D0 = loop( "K- pi+", "D0" ) , D0 , ++D0 )
{
   tuple -> fill   ( "mass pt , p ", M(D0)/GeV,PT(D0)/GeV,P(D0)/GeV ) ;
   tuple -> write  () ;
}

The 'array-like' columns are also supported ( see methods 'farray')

All these techniques could be easily combined in arbitrary ways

class TupleObj is an abstract class with 3 pure abstract functions Error and Warning , which need to be reimplemented in any 'concrete class. Helper classes TupleObjImp, ErrorHandler and functions createTupleObj and make_handler allows to create concrete objects 'on-flight'

Attention

long long and unsigned long long types are not supported. One needs to convert the data into some other representation (e.g. as 2 separate fields, or perform the explicitly cast to long)

Author

Vanya BELYAEV ibely.nosp@m.aev@.nosp@m.physi.nosp@m.cs.s.nosp@m.yr.ed.nosp@m.u

Date

2004-01-23

Definition at line 180 of file TupleObj.h.

Member Typedef Documentation

typedef NTuple::Item<IOpaqueAddress*> Tuples::TupleObj::Address

basic type for address items

Definition at line 218 of file TupleObj.h.

typedef GaudiUtils::HashMap<std::string,Address*> Tuples::TupleObj::Addresses

private

the actual storage type for address columns

Definition at line 2301 of file TupleObj.h.

typedef NTuple::Item<bool> Tuples::TupleObj::Bool

basic type for int items

Definition at line 185 of file TupleObj.h.

typedef GaudiUtils::HashMap<std::string,Bool*> Tuples::TupleObj::Bools

private

the actual storage type for short columns

Definition at line 2268 of file TupleObj.h.

typedef NTuple::Item<char> Tuples::TupleObj::Char

basic type for int items

Definition at line 188 of file TupleObj.h.

typedef GaudiUtils::HashMap<std::string,Char*> Tuples::TupleObj::Chars

private

the actual storage type for short columns

Definition at line 2271 of file TupleObj.h.

typedef NTuple::Item<double> Tuples::TupleObj::Double

basic type for double items

Definition at line 215 of file TupleObj.h.

typedef GaudiUtils::HashMap<std::string,Double*> Tuples::TupleObj::Doubles

private

the actual storage type for float columns

Definition at line 2298 of file TupleObj.h.

typedef NTuple::Array<float> Tuples::TupleObj::FArray

basic type for array of floats

Definition at line 221 of file TupleObj.h.

typedef GaudiUtils::HashMap<std::string,FArray*> Tuples::TupleObj::FArrays

private

the actual storage type for array columns

Definition at line 2304 of file TupleObj.h.

typedef NTuple::Item<float> Tuples::TupleObj::Float

basic type for float items

Definition at line 212 of file TupleObj.h.

typedef GaudiUtils::HashMap<std::string,Float*> Tuples::TupleObj::Floats

private

the actual storage type for float columns

Definition at line 2295 of file TupleObj.h.

typedef GaudiUtils::HashMap<std::string,FMatrix*> Tuples::TupleObj::FMatrices

private

the actual storage type for matrix columns

Definition at line 2307 of file TupleObj.h.

typedef NTuple::Matrix<float> Tuples::TupleObj::FMatrix

basic type for matrix of floats

Definition at line 224 of file TupleObj.h.

typedef NTuple::Item<int> Tuples::TupleObj::Int

basic type for int items

Definition at line 200 of file TupleObj.h.

typedef GaudiUtils::HashMap<std::string,Int*> Tuples::TupleObj::Ints

private

the actual storage type for integer columns

Definition at line 2283 of file TupleObj.h.

typedef std::map<std::string,std::string> Tuples::TupleObj::ItemMap

Definition at line 230 of file TupleObj.h.

typedef NTuple::Item<long long> Tuples::TupleObj::LongLong

basic type for unsigned long long items

Definition at line 206 of file TupleObj.h.

typedef GaudiUtils::HashMap<std::string,LongLong*> Tuples::TupleObj::LongLongs

private

the actual storage type for longlong columns

Definition at line 2289 of file TupleObj.h.

typedef unsigned short Tuples::TupleObj::MIndex

Definition at line 227 of file TupleObj.h.

typedef NTuple::Item<short> Tuples::TupleObj::Short

basic type for int items

Definition at line 194 of file TupleObj.h.

typedef GaudiUtils::HashMap<std::string,Short*> Tuples::TupleObj::Shorts

private

the actual storage type for short columns

Definition at line 2277 of file TupleObj.h.

typedef NTuple::Item<unsigned char> Tuples::TupleObj::UChar

basic type for unsigned int items

Definition at line 191 of file TupleObj.h.

typedef GaudiUtils::HashMap<std::string,UChar*> Tuples::TupleObj::UChars

private

the actual storage type for unsigned short columns

Definition at line 2274 of file TupleObj.h.

typedef NTuple::Item<unsigned int> Tuples::TupleObj::UInt

basic type for unsigned int items

Definition at line 203 of file TupleObj.h.

typedef GaudiUtils::HashMap<std::string,UInt*> Tuples::TupleObj::UInts

private

the actual storage type for unsigned integer columns

Definition at line 2286 of file TupleObj.h.

typedef NTuple::Item<unsigned long long> Tuples::TupleObj::ULongLong

basic type for unsigned long long items

Definition at line 209 of file TupleObj.h.

typedef GaudiUtils::HashMap<std::string,ULongLong*> Tuples::TupleObj::ULongLongs

private

the actual storage type for ulonglong columns

Definition at line 2292 of file TupleObj.h.

typedef NTuple::Item<unsigned short> Tuples::TupleObj::UShort

basic type for unsigned int items

Definition at line 197 of file TupleObj.h.

typedef GaudiUtils::HashMap<std::string,UShort*> Tuples::TupleObj::UShorts

private

the actual storage type for unsigned short columns

Definition at line 2280 of file TupleObj.h.

Constructor & Destructor Documentation

Tuples::TupleObj::TupleObj ( const std::string &  name, NTuple::Tuple *  tuple, const CLID &  clid = CLID_ColumnWiseTuple, const Tuples::Type  type = Tuples::NTUPLE  )

protected

Standard constructor.

See Also

NTuple:Tuple

Parameters

name	name of the object
tuple	pointer to standard Gaudi NTuple::Tuple object
clid	CLID_ColumnWiseTuple or CLID_RowWiseTuple
type	the type of the tuple

Definition at line 84 of file TupleObj.cpp.

  : m_name     ( name )
  , m_tuple    ( tuple )
  , m_clid     ( clid )
  , m_type     ( type )
// for error handling
  , m_refCount ( 0 )
// columns
  , m_bools     ()
  , m_chars     ()
  , m_uchars    ()
  , m_shorts    ()
  , m_ushorts   ()
  , m_ints      ()
  , m_uints     ()
  , m_longlongs ()
  , m_ulonglongs()
  , m_floats    ()
  , m_doubles   ()
  , m_addresses ()
  , m_farrays   ()
  , m_arraysf   ()
  , m_fmatrices ()
  , m_matricesf ()
//
  , m_items     ()
{
  // make counts
  Tuples::Local::s_InstanceCounter.increment ( m_name ) ;
}

Tuples::TupleObj::~TupleObj ( )

protectedvirtual

destructor is protected

Definition at line 121 of file TupleObj.cpp.

{
  {// delete 'bool' columns
    for( Bools::iterator it = m_bools.begin() ;
         m_bools.end() != it ; ++it )
    { if( 0 != it->second ) { delete it->second ; } }
    m_bools.clear() ;
  }
  {// delete 'char' columns
    for( Chars::iterator it = m_chars.begin() ;
         m_chars.end() != it ; ++it )
    { if( 0 != it->second ) { delete it->second ; } }
    m_chars.clear() ;
  }
  {// delete 'unsigned char' columns
    for( UChars::iterator it = m_uchars.begin() ;
         m_uchars.end() != it ; ++it )
    { if( 0 != it->second ) { delete it->second ; } }
    m_uchars.clear() ;
  }
  {// delete 'short' columns
    for( Shorts::iterator it = m_shorts.begin() ;
         m_shorts.end() != it ; ++it )
    { if( 0 != it->second ) { delete it->second ; } }
    m_shorts.clear() ;
  }
  {// delete 'unsigned short' columns
    for( UShorts::iterator it = m_ushorts.begin() ;
         m_ushorts.end() != it ; ++it )
    { if( 0 != it->second ) { delete it->second ; } }
    m_ushorts.clear() ;
  }
  {// delete 'int' columns
    for( Ints::iterator it = m_ints.begin() ;
         m_ints.end() != it ; ++it )
    { if( 0 != it->second ) { delete it->second ; } }
    m_ints.clear() ;
  }
  {// delete 'unsigned int' columns
    for( UInts::iterator it = m_uints.begin() ;
         m_uints.end() != it ; ++it )
    { if( 0 != it->second ) { delete it->second ; } }
    m_uints.clear() ;
  }
  {// delete 'longlong' columns
    for( LongLongs::iterator it = m_longlongs.begin() ;
         m_longlongs.end() != it ; ++it )
    { if( 0 != it->second ) { delete it->second ; } }
    m_longlongs.clear() ;
  }
  {// delete 'ulonglong' columns
    for( ULongLongs::iterator it = m_ulonglongs.begin() ;
         m_ulonglongs.end() != it ; ++it )
    { if( 0 != it->second ) { delete it->second ; } }
    m_ulonglongs.clear() ;
  }
  {// delete 'float' columns
    for( Floats::iterator it = m_floats.begin() ;
         m_floats.end() != it ; ++it )
    { if( 0 != it->second ) { delete it->second ; } }
    m_floats.clear() ;
  }
  {// delete 'double' columns
    for( Doubles::iterator it = m_doubles.begin() ;
         m_doubles.end() != it ; ++it )
    { if( 0 != it->second ) { delete it->second ; } }
    m_doubles.clear() ;
  }
  {// delete 'fArray' columns
    for( FArrays::iterator it = m_farrays.begin() ;
         m_farrays.end() != it ; ++it )
    { if( 0 != it->second ) { delete it->second ; } }
    m_farrays.clear() ;
  }
  {// delete 'fArray' columns
    for( FArrays::iterator it = m_arraysf.begin() ;
         m_arraysf.end() != it ; ++it )
    { if( 0 != it->second ) { delete it->second ; } }
    m_arraysf.clear() ;
  }
  { // destroy and clean all "addresses"
    for( Addresses::iterator it = m_addresses.begin() ;
         m_addresses.end() != it ; ++it )
    { if( 0 != it->second ) { delete it->second ; } }
    m_addresses.clear();
  }
  { // destroy and clean all "matrices"
    for( FMatrices::iterator it = m_fmatrices.begin() ;
         m_fmatrices.end() != it ; ++it )
    { if( 0 != it->second ) { delete it->second ; } }
    m_fmatrices.clear();
  }
  { // destroy and clean all "matrices" (fixed)
    for( FMatrices::iterator it = m_matricesf.begin() ;
         m_matricesf.end() != it ; ++it )
    { if( 0 != it->second ) { delete it->second ; } }
    m_matricesf.clear();
  }

  // make counts
  Tuples::Local::s_InstanceCounter.decrement ( m_name ) ;
}

Tuples::TupleObj::TupleObj ( )

private

the default constructor is disabled

Tuples::TupleObj::TupleObj ( const TupleObj &  )

private

copy constructor is disabled

Member Function Documentation

bool Tuples::TupleObj::addItem ( const std::string &  name, const std::string &  type  )

inline

add the item name into the list of known items

Parameters

name	the name of the item
type	the type of the item

Returns

true if the name is indeed added

Definition at line 2134 of file TupleObj.h.

    { return m_items.insert ( std::make_pair ( name , type ) ).second ; }

unsigned long Tuples::TupleObj::addRef ( )

inline

add the reference to TupleObj

Returns

current reference counter

Definition at line 2098 of file TupleObj.h.

{ return ++m_refCount ; }

Tuples::TupleObj::Address * Tuples::TupleObj::addresses ( const std::string &  name )

private

get the column

Definition at line 887 of file TupleObj.cpp.

{
  Addresses::iterator found = m_addresses.find( name ) ;
  if( m_addresses.end() != found ) { return found->second ; }
  Address* item = new Address() ;
  m_addresses[ name ] = item ;
  const StatusCode sc = tuple()->addItem( name , *item );
  if( sc.isFailure() )
  { Error ( "addresses ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "IOpaqueAddress*" ) )
  { Error ( "addresses ('" + name + "'): item is not unique"     ) ; }
  return item ;
}

template<class DATA >

StatusCode Tuples::TupleObj::array ( const std::string &  name, DATA  first, DATA  last  )

inline

fill N-Tuple with fixed-size array

SEQUENCE  data( 10 ) ;
...
tuple -> array("data"         ,
                data.begin () ,
                data.end   () ) ;

Sequence may be of any objects, implicitly convertible into "float"

Parameters

name	N-Tuple entry name
first	begin-iterator for data sequence
last	end-iterator for data sequence

Author

Vanya BELYAEV Ivan..nosp@m.Bely.nosp@m.aev@l.nosp@m.app..nosp@m.in2p3.nosp@m..fr

Date

2005-05-01

fill the array

Definition at line 1659 of file TupleObj.h.

    {
      if ( invalid () ) { return InvalidTuple     ; }
      if ( rowWise () ) { return InvalidOperation ; }

      // get the length (fixed!)
      const size_t length = last - first ;

      // get the array itself
      FArray* var  = fArray ( name , length ) ;
      if ( 0 == var ) { return InvalidColumn ; }

      size_t iCol = 0 ;
      for ( ; first != last ; ++first )
      { (*var)[ iCol ] = (float)(*first) ; ++iCol ; }

      return StatusCode::SUCCESS ;
    }

template<class ARRAY >

StatusCode Tuples::TupleObj::array ( const std::string &  name, const ARRAY &  data, const MIndex &  length  )

inline

fill N-Tuple with fixed-size array

"ARRAY" must support indexing operations: e.g it coudl be of type:

• std::vector<TYPE>
• CLHEP::HepVector, ...
• "TYPE"[n]

The content of array should be implicitly convertible to "float"

CLHEP::HepVector vct1(10) ;
...
tuple -> array ( "vct1" , vct1 , 10 ) ;

double vct2[40];
...
tuple -> array ( "vct2" , vct2 , 40 ) ;

long   vct3[4];
...
tuple -> array ( "vct3" , vct4 ,  4 ) ;

std::vector<long double> vct4(15) ;
...
tuple -> array ( "vct4" , vct4 , 15 ) ;

Parameters

name	N-Tuple entry name
data	data sequence
length	data length (fixed!)

Author

Vanya BELYAEV Ivan..nosp@m.Bely.nosp@m.aev@l.nosp@m.app..nosp@m.in2p3.nosp@m..fr

Date

2005-05-01

fill the array

Definition at line 1721 of file TupleObj.h.

    {
      if ( invalid () ) { return InvalidTuple     ; }
      if ( rowWise () ) { return InvalidOperation ; }

      // get the array itself
      FArray* var  = fArray ( name , length ) ;
      if ( 0 == var ) { return InvalidColumn ; }

      for ( size_t index = 0 ; index < length ; ++index )
      { (*var)[ index ] = (float) data[index] ; }

      return StatusCode::SUCCESS ;
    }

template<class ARRAY >

StatusCode Tuples::TupleObj::array ( const std::string &  name, const ARRAY &  data  )

inline

fill N-Tuple with fixed-size array

"ARRAY" is any sequence, which supports ARRAY::begin() and ARRAY::end() protocol, e.g.

• std::vector<TYPE>

The content of array should be implicitly convertible to "float"

 typedef std::vector<double> Seq ;
 Seq data( 10 ) ;
 for ( int i = 0 ; i < 10 ; ++i )
  {
    data[i] = ... ;
  }

tuple -> array( "data" , data ) ;

Parameters

name	N-Tupel entry name
data	data sequence

Author

Vanya BELYAEV Ivan..nosp@m.Bely.nosp@m.aev@l.nosp@m.app..nosp@m.in2p3.nosp@m..fr

Date

2005-05-01

Definition at line 1769 of file TupleObj.h.

    { return array ( name , data.begin() , data.end() ) ; }

template<class TYPE , unsigned int DIM>

StatusCode Tuples::TupleObj::array ( const std::string &  name, const ROOT::Math::SVector< TYPE, DIM > &  vect  )

inline

shortcut to put SVector into N-tuple:

ROOT::Math::SVector<double,15> vct = ... ;

Tuple tuple = nTuple("My N-Tuple") ;

// put the vector into N-Tuple:
tuple -> array ( "v" , vct ) ;

Author

Vanya BELYAEV ibely.nosp@m.aev@.nosp@m.physi.nosp@m.cs.s.nosp@m.yr.ed.nosp@m.u

Date

2006-11-26

Definition at line 1963 of file TupleObj.h.

    {
      return this->array( name , vect.begin() , vect.end() ) ;
    }

Tuples::TupleObj::Bool * Tuples::TupleObj::bools ( const std::string &  name )

private

get the column

Definition at line 616 of file TupleObj.cpp.

{
  Bools::iterator found = m_bools.find( name ) ;
  if( m_bools.end() != found ) { return found->second ; }
  Bool* item = new Bool() ;
  m_bools[ name ] = item ;
  StatusCode sc = tuple()->addItem( name , *item );
  if( sc.isFailure() )
  { Error ( "bools ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "I" ) )
  { Error ( "bools ('" + name + "'): item is not unique"     ) ; }
  return item ;
}

Tuples::TupleObj::Char * Tuples::TupleObj::chars ( const std::string &  name )

private

get the column

Definition at line 631 of file TupleObj.cpp.

{
  Chars::iterator found = m_chars.find( name ) ;
  if( m_chars.end() != found ) { return found->second ; }
  Char* item = new Char() ;
  m_chars[ name ] = item ;
  StatusCode sc = tuple()->addItem( name , *item );
  if( sc.isFailure() )
  { Error ( "chars ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "I" ) )
  { Error ( "chars ('" + name + "'): item is not unique"     ) ; }
  return item ;
}

Tuples::TupleObj::Char * Tuples::TupleObj::chars ( const std::string &  name, const char  minv, const char  maxv  )

private

get the column

Definition at line 646 of file TupleObj.cpp.

{
  Chars::iterator found = m_chars.find( name ) ;
  if( m_chars.end() != found ) { return found->second ; }
  Char* item = new Char() ;
  m_chars[ name ] = item ;
  const StatusCode sc = tuple()->addItem( name , *item , minv , maxv );
  if( sc.isFailure() )
  { Error ( "chars ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "I" ) )
  { Error ( "chars ('" + name + "'): item is not unique"     ) ; }
  return item ;
}

const CLID& Tuples::TupleObj::clid ( ) const

inline

accessor to the N-Tuple CLID

Definition at line 2107 of file TupleObj.h.

{ return m_clid ; }

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const float	value
	)

Set the value for selected tuple column.

If column does not exist, it will be automatically created and appended to the tuple

//
const float mass = ... ;
tuple->column( "m", mass );
//

Parameters

name	the name of the column
value	the value of the variable

Returns

status code

Definition at line 337 of file TupleObj.cpp.

{
  if ( invalid() ) { return InvalidTuple  ; }
  Float* item = floats ( name ) ;
  if ( !item )     { return InvalidColumn ; }
  *item = value ;
  return StatusCode::SUCCESS ;
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const double	value
	)

Set the value for the selected tuple column If the column does not exist, it will be automatically created and appended to the tuple.

//
const double mass = ... ;
tuple->column( "m", mass );
//

Warning

the value is truncated to float

Parameters

name	the name of the column
value	the value of the variable

Returns

status code

Definition at line 347 of file TupleObj.cpp.

{
  if ( invalid() ) { return InvalidTuple  ; }
  Double * item = doubles ( name ) ;
  if ( !item )     { return InvalidColumn ; }
  *item = value ;
  return StatusCode::SUCCESS ;
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const short	value
	)

Set the value for selected tuple column.

If the column does not exist yet, it will be automatically created and appended to the tuple

short number = ... ;
tuple -> column ( "num" , number );

Parameters

name	the name of the column
value	the value of the variable

Returns

status code

Definition at line 401 of file TupleObj.cpp.

{
  if ( invalid() ) { return InvalidTuple  ; }
  Short* item = shorts( name ) ;
  if ( !item )     { return InvalidColumn ; }
  *item = value ;
  return StatusCode::SUCCESS ;
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const short	value,
		const short	minv,
		const short	maxv
	)

Set the value for selected tuple column.

If the column does not exist yet, it will be automatically created and appended to the tuple

short number = ... ;
tuple->column( "num", number );

Parameters

name	name of the column
value	value of the variable
minv	minimum value of the variable
maxv	maximum value of the variable

Returns

status code

Definition at line 411 of file TupleObj.cpp.

{
  if ( invalid() ) { return InvalidTuple  ; }
  Short* item = shorts ( name , minv , maxv ) ;
  if ( !item )     { return InvalidColumn ; }
  *item = value ;
  return StatusCode::SUCCESS ;
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const unsigned short	value
	)

Set the value for selected tuple column.

If the column does not exist yet, it will be automatically created and appended to the tuple

unsigned short number = ... ;
tuple -> column ( "num" , number );

Parameters

name	the name of the column
value	the value of the variable

Returns

status code

Definition at line 423 of file TupleObj.cpp.

{
  if ( invalid() ) { return InvalidTuple  ; }
  UShort* item = ushorts( name ) ;
  if ( !item )     { return InvalidColumn ; }
  *item = value ;
  return StatusCode::SUCCESS ;
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const unsigned short	value,
		const unsigned short	minv,
		const unsigned short	maxv
	)

Set the value for selected tuple column.

If the column does not exist yet, it will be automatically created and appended to the tuple

unsigned short number = ... ;
tuple->column( "num", number );

Parameters

name	name of the column
value	value of the variable
minv	minimum value of the variable
maxv	maximum value of the variable

Returns

status code

Definition at line 433 of file TupleObj.cpp.

{
  if ( invalid() ) { return InvalidTuple  ; }
  UShort* item = ushorts ( name , minv , maxv ) ;
  if ( !item )     { return InvalidColumn ; }
  *item = value ;
  return StatusCode::SUCCESS ;
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const char	value
	)

Set the value for selected tuple column.

If the column does not exist yet, it will be automatically created and appended to the tuple

char number = ... ;
tuple -> column ( "num" , number );

Parameters

name	the name of the column
value	the value of the variable

Returns

status code

Definition at line 357 of file TupleObj.cpp.

{
  if ( invalid() ) { return InvalidTuple  ; }
  Char* item = chars( name ) ;
  if ( !item )     { return InvalidColumn ; }
  *item = value ;
  return StatusCode::SUCCESS ;
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const char	value,
		const char	minv,
		const char	maxv
	)

Set the value for selected tuple column.

If the column does not exist yet, it will be automatically created and appended to the tuple

char number = ... ;
tuple->column( "num", number );

Parameters

name	name of the column
value	value of the variable
minv	minimum value of the variable
maxv	maximum value of the variable

Returns

status code

Definition at line 367 of file TupleObj.cpp.

{
  if ( invalid() ) { return InvalidTuple  ; }
  Char* item = chars ( name , minv , maxv ) ;
  if ( !item )     { return InvalidColumn ; }
  *item = value ;
  return StatusCode::SUCCESS ;
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const unsigned char	value
	)

Set the value for selected tuple column.

If the column does not exist yet, it will be automatically created and appended to the tuple

unsigned char number = ... ;
tuple -> column ( "num" , number );

Parameters

name	the name of the column
value	the value of the variable

Returns

status code

Definition at line 379 of file TupleObj.cpp.

{
  if ( invalid() ) { return InvalidTuple  ; }
  UChar* item = uchars( name ) ;
  if ( !item )     { return InvalidColumn ; }
  *item = value ;
  return StatusCode::SUCCESS ;
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const unsigned char	value,
		const unsigned char	minv,
		const unsigned char	maxv
	)

Set the value for selected tuple column.

If the column does not exist yet, it will be automatically created and appended to the tuple

unsigned char number = ... ;
tuple->column( "num", number );

Parameters

name	name of the column
value	value of the variable
minv	minimum value of the variable
maxv	maximum value of the variable

Returns

status code

Definition at line 389 of file TupleObj.cpp.

{
  if ( invalid() ) { return InvalidTuple  ; }
  UChar* item = uchars ( name , minv , maxv ) ;
  if ( !item )     { return InvalidColumn ; }
  *item = value ;
  return StatusCode::SUCCESS ;
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const int	value
	)

Set the value for selected tuple column.

If the column does not exist yet, it will be automatically created and appended to the tuple

int number = ... ;
tuple->column("num", number );

Parameters

name	name of the column
value	value of the variable

Returns

status code

Definition at line 445 of file TupleObj.cpp.

{
  if ( invalid() ) { return InvalidTuple  ; }
  Int* item = ints( name ) ;
  if ( !item ) { return InvalidColumn ; }
  *item = value ;
  return StatusCode::SUCCESS ;
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const int	value,
		const int	minv,
		const int	maxv
	)

Set the value for selected tuple column.

If the column does not exist yet, it will be automatically created and appended to the tuple

int number = ... ;
tuple->column( "num", number );

Parameters

name	name of the column
value	value of the variable
minv	minimum value of the variable
maxv	maximum value of the variable

Returns

status code

Definition at line 455 of file TupleObj.cpp.

{
  if ( invalid() ) { return InvalidTuple  ; }
  Int* item = ints ( name , minv , maxv ) ;
  if ( !item )     { return InvalidColumn ; }
  *item = value ;
  return StatusCode::SUCCESS ;
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const unsigned int	value
	)

Set the value for selected tuple column.

If the column does not exist yet, it will be automatically created and appended to the tuple

unsigned int number = ... ;
tuple->column("num", number );

Parameters

name	name of the column
value	value of the variable

Returns

status code

Definition at line 467 of file TupleObj.cpp.

{
  if ( invalid() ) { return InvalidTuple  ; }
  UInt* item = uints( name ) ;
  if ( !item )     { return InvalidColumn ; }
  *item = value ;
  return StatusCode::SUCCESS ;
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const unsigned int	value,
		const unsigned int	minv,
		const unsigned int	maxv
	)

Set the value for selected tuple column.

If the column does not exist yet, it will be automatically created and appended to the tuple

unsigned int number = ... ;
tuple->column("num", number );

Parameters

name	name of the column
value	value of the variable
minv	minimum value of the variable
maxv	maximum value of the variable

Returns

status code

Definition at line 477 of file TupleObj.cpp.

{
  if ( invalid() ) { return InvalidTuple  ; }
  UInt* item = uints ( name , minv , maxv ) ;
  if ( !item )     { return InvalidColumn ; }
  *item = value ;
  return StatusCode::SUCCESS ;
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const long	value
	)

Set the value for the selected tuple column.

If the column does not exist yet, it will be automatically created and appended to the tuple

long number = ... ;
tuple -> column ( "num", number );

Warning

the value could be truncated to int

Parameters

name	the name of the column
value	the value of the variable

Returns

status code

Definition at line 489 of file TupleObj.cpp.

{
  Warning( "'long' has different sizes on 32/64 bit systems. Casting '" +
           name + "' to 'long long'", StatusCode::SUCCESS ).ignore();
  return column( name, (long long)value );
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const long	value,
		const long	minv,
		const long	maxv
	)

Set the value for selected tuple column.

If the column does not exist yet, it will be automatically created and appended to the tuple

long number = ... ;
tuple->column("num", number );

Parameters

name	name of the column
value	value of the variable
minv	minimum value of the variable
maxv	maximum value of the variable

Returns

status code

Definition at line 497 of file TupleObj.cpp.

{
  Warning( "'long' has different sizes on 32/64 bit systems. Casting '" +
           name + "' to 'long long'", StatusCode::SUCCESS ).ignore();
  return column( name,
                 (long long)value,
                 (long long)minv,
                 (long long)maxv );
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const unsigned long	value
	)

Set the value for selected tuple column.

If the column does not exist yet, it will be automatically created and appended to the tuple

unsigned long number = ... ;
tuple -> column ( "num" , number );

Warning

the value could be truncated to int

Parameters

name	the name of the column
value	the value of the variable

Returns

status code

Definition at line 510 of file TupleObj.cpp.

{
  Warning( "'unsigned long' has different sizes on 32/64 bit systems. Casting '" +
           name  + "' to 'unsigned long long'", StatusCode::SUCCESS ).ignore();
  return column( name, (unsigned long long)value );
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const unsigned long	value,
		const unsigned long	minv,
		const unsigned long	maxv
	)

Set the value for selected tuple column.

If the column does not exist yet, it will be automatically created and appended to the tuple

unsigned long number = ... ;
tuple->column( "num", number );

Parameters

name	name of the column
value	value of the variable
minv	minimum value of the variable
maxv	maximum value of the variable

Returns

status code

Definition at line 518 of file TupleObj.cpp.

{
  Warning( "'unsigned long' has different sizes on 32/64 bit systems. Casting '" +
           name + "' to 'unsigned long long'", StatusCode::SUCCESS ).ignore();
  return column( name,
                 (unsigned long long)value,
                 (unsigned long long)minv,
                 (unsigned long long)maxv );
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const long long	value
	)

Set the value for selected tuple column.

If the column does not exist yet, it will be automatically created and appended to the tuple

long long number = ... ;
tuple->column( "num", number );

Parameters

name	name of the column
value	value of the variable

Returns

status code

Definition at line 531 of file TupleObj.cpp.

{
  if ( invalid() ) { return InvalidTuple  ; }
  LongLong* item = longlongs( name ) ;
  if ( !item )     { return InvalidColumn ; }
  *item = value ;
  return StatusCode::SUCCESS ;
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const long long	value,
		const long long	minv,
		const long long	maxv
	)

Set the value for selected tuple column.

If the column does not exist yet, it will be automatically created and appended to the tuple

long long number = ... ;
tuple->column( "num", number );

Parameters

name	name of the column
value	value of the variable
minv	minimum value of the variable
maxv	maximum value of the variable

Returns

status code

Definition at line 541 of file TupleObj.cpp.

{
  if ( invalid() ) { return InvalidTuple  ; }
  LongLong* item = longlongs ( name , minv , maxv ) ;
  if ( !item )     { return InvalidColumn ; }
  *item = value ;
  return StatusCode::SUCCESS ;
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const unsigned long long	value
	)

Set the value for selected tuple column.

If the column does not exist yet, it will be automatically created and appended to the tuple

unsigned long long number = ... ;
tuple->column( "num", number );

Parameters

name	name of the column
value	value of the variable

Returns

status code

Definition at line 553 of file TupleObj.cpp.

{
  if ( invalid() ) { return InvalidTuple  ; }
  ULongLong* item = ulonglongs( name ) ;
  if ( !item )     { return InvalidColumn ; }
  *item = value ;
  return StatusCode::SUCCESS ;
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const unsigned long long	value,
		const unsigned long long	minv,
		const unsigned long long	maxv
	)

Set the value for selected tuple column.

If the column does not exist yet, it will be automatically created and appended to the tuple

unsigned long long number = ... ;
tuple->column( "num", number );

Parameters

name	name of the column
value	value of the variable
minv	minimum value of the variable
maxv	maximum value of the variable

Returns

status code

Definition at line 563 of file TupleObj.cpp.

{
  if ( invalid() ) { return InvalidTuple  ; }
  ULongLong* item = ulonglongs ( name , minv , maxv ) ;
  if ( !item )     { return InvalidColumn ; }
  *item = value ;
  return StatusCode::SUCCESS ;
}

StatusCode Tuples::TupleObj::column ( const std::string &  name, const signed char  value  )

inline

Set the value for the selected tuple column.

If the column does not exist yet, it will be automatically created and appended to the tuple

signed char number = ... ;
tuple->column("num", number );

Parameters

name	the name of the column
value	the value of tve variable

Returns

status code

Definition at line 732 of file TupleObj.h.

    {
      return column
        ( name  ,
          value ,
          std::numeric_limits<signed char>::min() ,
          std::numeric_limits<signed char>::max() ) ;
    }

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		const bool	value
	)

Set the value for selected tuple column.

If the column does not exist yet, it will be automatically create and appended to the tuple

tuple->column( "empty" , v.empty()  );

Parameters

name	the name of the column
value	the value of the variable

Returns

status code

Definition at line 575 of file TupleObj.cpp.

{
  if ( invalid() ) { return InvalidTuple  ; }
  Bool* item = bools( name ) ;
  if ( !item )     { return InvalidColumn ; }
  *item = value ;
  return StatusCode::SUCCESS ;
}

StatusCode Tuples::TupleObj::column	(	const std::string &	name,
		IOpaqueAddress *	address
	)

Put IOpaqueAddress in POOL-based NTuple.

If the column does not exist, it will be automatically created and appended to the tuple.

IOpaqueAddress* address  = ... ;
tuple->column( "Address", address );

Warning

It has sense only for Event tag collection N-Tuples

Parameters

name	name of the column ("Address" is a recommended convention!)
address	IOpaqueAddress

Returns

status code

Definition at line 313 of file TupleObj.cpp.

{
  if (  invalid    () ) { return InvalidTuple     ; }
  if ( !evtColType () ) { return InvalidOperation ; }
  if ( 0 == address )
  { return Error ( "column('" + name +
                   "') IOpaqueAddress* is NULL!" , InvalidObject ) ; }
  Address* item = addresses( name );
  if ( 0 == item      ) { return InvalidItem      ; }
  *item = address ;
  return StatusCode::SUCCESS ;
}

StatusCode Tuples::TupleObj::column

(

IOpaqueAddress *

address

)

Put IOpaqueAddress in NTuple.

If the column does not exist, it will be automatically created and appended to the tuple. The column name is set to be "Address"

IOpaqueAddress* address  = ... ;
tuple->column ( address  );

Warning

It has sense only for Event tag collection N-Tuples

Parameters

address

IOpaqueAddress

Returns

status code

Definition at line 331 of file TupleObj.cpp.

{
  return column ( "Address" , address ) ;
}

template<class TYPE >

StatusCode Tuples::TupleObj::column ( const std::string &  name, const ROOT::Math::LorentzVector< TYPE > &  v  )

inline

Useful shortcut to put LorentzVector directly into N-Tuple:

const LHCb::Particle* B = ...

Tuple tuple = nTuple("My N-Tuple") ;

// put 4-vector of B-candidate into N-tuple:
tuple -> column ("B" , B->momentum() ) ;

Author

Vanya BELYAEV ibely.nosp@m.aev@.nosp@m.physi.nosp@m.cs.s.nosp@m.yr.ed.nosp@m.u

Date

2006-11-26

Definition at line 1865 of file TupleObj.h.

    {
      if ( invalid() ) { return InvalidTuple ; }
      // fill all separate columns:
      StatusCode sc1 = this -> column ( name + "E" , v.E  () ) ;
      StatusCode sc2 = this -> column ( name + "X" , v.Px () ) ;
      StatusCode sc3 = this -> column ( name + "Y" , v.Py () ) ;
      StatusCode sc4 = this -> column ( name + "Z" , v.Pz () ) ;
      return
        sc1.isFailure () ? sc1 :
        sc2.isFailure () ? sc2 :
        sc3.isFailure () ? sc3 :
        sc4.isFailure () ? sc4 : StatusCode(StatusCode::SUCCESS) ;
    }

template<class TYPE , class TAG >

StatusCode Tuples::TupleObj::column ( const std::string &  name, const ROOT::Math::DisplacementVector3D< TYPE, TAG > &  v  )

inline

Useful shortcut to put 3D-Vector directly into N-Tuple:

const LHCb::Vertex* V = ...

Tuple tuple = nTuple("My N-Tuple") ;

// put vertex position into N-tuple:
tuple -> column ("B" , B->position() ) ;

Author

Vanya BELYAEV ibely.nosp@m.aev@.nosp@m.physi.nosp@m.cs.s.nosp@m.yr.ed.nosp@m.u

Date

2006-11-26

fill separate columns

Definition at line 1899 of file TupleObj.h.

    {
      if ( invalid() ) { return InvalidTuple ; }
      StatusCode sc1 = this -> column ( name + "X" , v.X () ) ;
      StatusCode sc2 = this -> column ( name + "Y" , v.Y () ) ;
      StatusCode sc3 = this -> column ( name + "Z" , v.Z () ) ;
      return
        sc1.isFailure () ? sc1 :
        sc2.isFailure () ? sc2 :
        sc3.isFailure () ? sc3 : StatusCode(StatusCode::SUCCESS) ;
    }

template<class TYPE , class TAG >

StatusCode Tuples::TupleObj::column ( const std::string &  name, const ROOT::Math::PositionVector3D< TYPE, TAG > &  v  )

inline

Useful shortcut to put 3D-Vector directly into N-Tuple:

const LHCb::Vertex* V = ...

Tuple tuple = nTuple("My N-Tuple") ;

// put vertex position into N-tuple:
tuple -> column ("B" , B->position() ) ;

Author

Vanya BELYAEV ibely.nosp@m.aev@.nosp@m.physi.nosp@m.cs.s.nosp@m.yr.ed.nosp@m.u

Date

2006-11-26

fill separate columns

Definition at line 1931 of file TupleObj.h.

    {
      if ( invalid() ) { return InvalidTuple ; }
      StatusCode sc1 = this -> column ( name + "X" , v.X () ) ;
      StatusCode sc2 = this -> column ( name + "Y" , v.Y () ) ;
      StatusCode sc3 = this -> column ( name + "Z" , v.Z () ) ;
      return
        sc1.isFailure () ? sc1 :
        sc2.isFailure () ? sc2 :
        sc3.isFailure () ? sc3 : StatusCode(StatusCode::SUCCESS) ;
    }

bool Tuples::TupleObj::columnWise ( ) const

inline

column wise NTuple ?

Definition at line 2113 of file TupleObj.h.

{ return CLID_ColumnWiseTuple == clid() ; }

Tuples::TupleObj::Double * Tuples::TupleObj::doubles ( const std::string &  name )

private

get the column

Definition at line 601 of file TupleObj.cpp.

{
  Doubles::iterator found = m_doubles.find( name ) ;
  if ( m_doubles.end() != found ) { return found->second ; }
  Double* item = new Double() ;
  m_doubles[ name ] = item ;
  const StatusCode sc = tuple()->addItem( name , *item );
  if ( sc.isFailure() )
  { Error ( "doubles ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "D" ) )
  { Error ( "doubles ('" + name + "'): item is not unique"     ) ; }
  return item ;
}

virtual StatusCode Tuples::TupleObj::Error ( const std::string &  msg, const StatusCode  sc = StatusCode::FAILURE  ) const

pure virtual

Implemented in Tuples::detail::TupleObjImp< HANDLER1, HANDLER2 >.

bool Tuples::TupleObj::evtColType ( ) const

inline

Event collection ?

Definition at line 2119 of file TupleObj.h.

{ return Tuples::EVTCOL       == type()  ; }

template<class DATA >

StatusCode Tuples::TupleObj::farray ( const std::string &  name, DATA  first, DATA  last, const std::string &  length, const size_t  maxv  )

inline

Add an indexed array (of type float) to N-tuple.

The method is not VERY efficient since it copies the data.

std::vector<double> values  = ... ;

tuple->farray( "Values"        ,  // item name
               values.begin () ,  // begin of sequence
               values.end   () ,  // end of sequence
               "Length"        ,  // name of "length" item
               10000           ) ;

The name of "length" item can be reused for several arrays. The last assignement "wins"

std::vector<double> val1 = ... ;
std::vector<double> val2 = ... ;

tuple->farray( "Val1"          ,   // item name
                val1.begin  () ,   // begin of sequence
                val1.end    () ,   // end of sequence
               "Length"        ,   // name of "length" item
               10000           ) ; // maximal length

tuple->farray( "Val2"          ,   // item name
                val2.begin  () ,   // begin of sequence
                val2.end    () ,   // end of sequence
               "Length"        ,   // name of "length" item
               10000           ) ; // maximal length

Any sequence [first:last[ of objects which can be converted to type float can be used as input data, e.g. std::vector<double>, std::vector<float>, plain C-array, or whatever else

Parameters

name	name of N-tuple item
first	begin of data sequence
last	end of data sequence
length	name of "length" item
maxv	maximal length of array

fill the array

Definition at line 880 of file TupleObj.h.

    {
      if ( invalid () ) { return InvalidTuple     ; }
      if ( rowWise () ) { return InvalidOperation ; }

      // adjust the length
      if( first + maxv < last )
      {
        Warning( "farray('"+name+"'): array is overflow, skip extra items") ;
        last = first + maxv ;
      }

      // get the length item
      Int* len  = ints( length , 0 , maxv ) ;
      if( 0 == len  ) { return InvalidColumn; }

      // adjust the length item
      *len = last - first ;

      // get the array itself
      FArray* var  = fArray ( name , len ) ;
      if( 0 == var ) { return InvalidColumn ; }

      size_t index = 0 ;
      for( ; first != last ; ++first )
      { (*var)[ index ] = (float)(*first) ; ++index ; }

      return StatusCode::SUCCESS ;
    }

template<class DATA >

StatusCode Tuples::TupleObj::farray ( const std::string &  name, const DATA &  data, const std::string &  length, const size_t  maxv  )

inline

Add an indexed array (of type float) to N-tuple.

it is just a small adaptor for the previous method

std::vector<double> values  = ... ;

tuple->farray( "Values"        ,  // item name
               values          ,  // sequence
               "Length"        ,  // name of "length" item
               10000           ) ;

The name of "length" item can be reused for several arrays. The last assignment "wins"

std::vector<double> val1 = ... ;
std::vector<double> val2 = ... ;

tuple->farray( "Val1"          ,   // item name
                val1           ,   // begin of sequence
               "Length"        ,   // name of "length" item
               10000           ) ; // maximal length

tuple->farray( "Val2"          ,   // item name
                val2           ,   // begin of sequence
               "Length"        ,   // name of "length" item
               10000           ) ; // maximal length

Any sequence which provides begin() and end() methods can be used.

Parameters

name	name of N-tuple item
data	data sequence
length	name of "length" item
maxv	maximal length of array

Definition at line 958 of file TupleObj.h.

    { return farray ( name , data.begin() , data.end() , length , maxv  ) ; }

template<class FUNCTION , class DATA >

StatusCode Tuples::TupleObj::farray ( const std::string &  name, const FUNCTION &  function, DATA  first, DATA  last, const std::string &  length, const size_t  maxv  )

inline

Put an indexed array into LoKi-style N-Tuple.

std::vector<double> data = ... ;

Tuple tuple = ntuple( "My Ntuple" );

tuple->farray( "data"         ,   // data item name
                sqrt          ,   // "function" to be applied
                data.begin () ,   // begin of data sequence
                data.end   () ,   // end of data sequence
                "length"      ,   // name of "length" tuple item
                10000         ) ; // maximal array length

Since the method is templated, one can use arbitrary combinations of "sequences" and "functions", e.g. one can directly manipulate with complex objects. The only one thing is required - the result of FUNCTION(*DATA) formal operation MUST be convertible to type float

// some container of particles.
ParticleVector particles = ... ;

Tuple tuple = ntuple( "My Ntuple" );

// put the transverse momentum of all particles into N-Tuple
tuple->farray( "pt"                , // data item name
                PT                 , // function object
                particles.begin () , // begin of data sequence
                particles.end   () , // end of data sequence
                "num"              ,   // name of "length" tuple item
                10000              ) ; // maximal array length


// create the appropriate function object
Fun fun =  Q / P ;

// put Q/P of all particles into N-Tuple
tuple->farray( "qp"                , // data item name
                fun                , // function object
                particles.begin () , // begin of data sequence
                particles.end   () , // end of data sequence
                "num"              ,   // name of "length" tuple item
                10000              ) ; // maximal array length

Parameters

name	tuple item name
function	function to be applied
first	begin of data sequence
last	end of data sequence
length	name of "length" tuple name
maxv	maximal length of the array

Returns

status code

Definition at line 1027 of file TupleObj.h.

    {
      if ( invalid () ) { return InvalidTuple     ; }
      if ( rowWise () ) { return InvalidOperation ; }

      // adjust the length
      if( first + maxv < last )
      {
        Warning("farray('"
                + name  + "'): array is overflow, skip extra entries") ;
        last = first + maxv ;
      }

      // get the length item
      Int* len  = ints( length , 0 , maxv ) ;
      if( 0 == len  ) { return InvalidColumn ; }

      // adjust the length
      *len = last - first ;

      // get the array itself
      FArray*  var  = fArray ( name , len ) ;
      if( 0 == var ) { return InvalidColumn ; }

      // fill the array
      size_t index = 0 ;
      for( ; first != last ; ++first )
      { (*var)[ index ] = function( *first )  ; ++index ; }

      return StatusCode::SUCCESS ;
    }

template<class FUNC1 , class FUNC2 , class DATA >

StatusCode Tuples::TupleObj::farray ( const std::string &  name1, const FUNC1 &  func1, const std::string &  name2, const FUNC2 &  func2, DATA  first, DATA  last, const std::string &  length, const size_t  maxv  )

inline

Put two functions from one data array into LoKi-style N-Tuple simultaneously (effective!)

std::vector<double> data = ... ;

Tuple tuple = ntuple( "My Ntuple" );

tuple->farray( "sqr"          ,   // the first data item name
                sqrt          ,   // "func1" to be used
               "sinus"        ,   // the second data item name
                sin           ,   // "func2" to be used
                data.begin () ,   // begin of data sequence
                data.end   () ,   // end of data sequence
                "length"      ,   // name of "length" tuple item
                10000         ) ; // maximal array length

Parameters

name1	the first tuple item name
func1	the first function to be applied
name2	the second tuple item name
func2	the second function to be applied
first	begin of data sequence
last	end of data sequence
length	name of "length" tuple name
maxv	maximal length of the array

Returns

status code

Definition at line 1096 of file TupleObj.h.

    {
      if ( invalid () ) { return InvalidTuple     ; }
      if ( rowWise () ) { return InvalidOperation ; }

      // adjust the lenfth
      if( first + maxv < last )
      {
        Warning("farray('"
                + name1 + ","
                + name2 + "'): array is overflow, skip extra entries").ignore() ;
        Warning("farray('"+name1+"'): array is overflow, skip extra items").ignore() ;
        last = first + maxv ;
      }

      // get the length item
      Int* len  = ints ( length , 0 , maxv ) ;
      if ( 0 == len  ) { return InvalidColumn ; }

      // adjust the length
      *len = last - first ;

      // get the array itself
      FArray*  var1  = fArray ( name1 , len ) ;
      if ( 0 == var1 ) { return InvalidColumn ; }

      // get the array itself
      FArray*  var2 = fArray ( name2 , len ) ;
      if ( 0 == var2 ) { return InvalidColumn ; }

      // fill the array
      size_t index = 0 ;
      for( ; first != last ; ++first )
      {
        ( *var1 ) [ index ] = func1 ( *first )  ;
        ( *var2 ) [ index ] = func2 ( *first )  ;
        ++index ;
      }

      return StatusCode::SUCCESS ;
    }

template<class FUNC1 , class FUNC2 , class FUNC3 , class DATA >

StatusCode Tuples::TupleObj::farray ( const std::string &  name1, const FUNC1 &  func1, const std::string &  name2, const FUNC2 &  func2, const std::string &  name3, const FUNC3 &  func3, DATA  first, DATA  last, const std::string &  length, const size_t  maxv  )

inline

Put three functions from one data array into LoKi-style N-Tuple simultaneously (effective!)

std::vector<double> data = ... ;

Tuple tuple = ntuple( "My Ntuple" );

tuple->farray( "sqr"          ,   // the first data item name
                sqrt          ,   // "func1" to be used
               "sinus"        ,   // the second data item name
                sin           ,   // "func2" to be used
               "tan"          ,   // the third data item name
                tan           ,   // "func3" to be used
                data.begin () ,   // begin of data sequence
                data.end   () ,   // end of data sequence
                "length"      ,   // name of "length" tuple item
                10000         ) ; // maximal array length

Parameters

name1	the first tuple item name
func1	the first function to be applied
name2	the second tuple item name
func2	the second function to be applied
name3	the third tuple item name
func3	the third function to be applied
first	begin of data sequence
last	end of data sequence
length	name of "length" tuple name
maxv	maximal length of the array

Returns

status code

Definition at line 1182 of file TupleObj.h.

    {
      if ( invalid () ) { return InvalidTuple     ; }
      if ( rowWise () ) { return InvalidOperation ; }

      // adjust the length
      if( first + maxv < last )
      {
        Warning("farray('"
                + name1 + ","
                + name2 + ","
                + name3 + "'): array is overflow, skip extra entries").ignore() ;
        last = first + maxv ;
      }

      // get the length item
      Int* len  = ints ( length , 0 , maxv ) ;
      if( 0 == len   ) { return InvalidColumn ; }

      // adjust the length
      *len = last - first ;

      // get the array itself
      FArray*  var1  = fArray ( name1 , len ) ;
      if( 0 == var1 ) { return InvalidColumn  ; }

      // get the array itself
      FArray*  var2 = fArray ( name2 , len ) ;
      if( 0 == var2 ) { return InvalidColumn ; }

      // get the array itself
      FArray*  var3 = fArray ( name3 , len ) ;
      if( 0 == var3 ) { return InvalidColumn ; }

      // fill the array
      size_t index = 0 ;
      for( ; first != last ; ++first )
      {
        ( *var1 ) [ index ] = (float)func1 ( *first )  ;
        ( *var2 ) [ index ] = (float)func2 ( *first )  ;
        ( *var3 ) [ index ] = (float)func3 ( *first )  ;
        ++index ;
      }
      return StatusCode::SUCCESS ;
    }

template<class FUNC1 , class FUNC2 , class FUNC3 , class FUNC4 , class DATA >

StatusCode Tuples::TupleObj::farray ( const std::string &  name1, const FUNC1 &  func1, const std::string &  name2, const FUNC2 &  func2, const std::string &  name3, const FUNC3 &  func3, const std::string &  name4, const FUNC4 &  func4, DATA  first, DATA  last, const std::string &  length, const size_t  maxv  )

inline

Put four functions from one data array into LoKi-style N-Tuple simultaneously (effective!)

std::vector<double>   data = ... ;

Tuple tuple = ntuple( "My Ntuple" );

tuple->farray( "sqr"          ,   // the first data item name
                sqrt          ,   // "func1" to be used
               "sinus"        ,   // the second data item name
                sin           ,   // "func2" to be used
               "tan"          ,   // the third data item name
                tan           ,   // "func3" to be used
               "tanh"         ,   //
                tanh          ,   //
                data.begin () ,   // begin of data sequence
                data.end   () ,   // end of data sequence
                "length"      ,   // name of "length" tuple item
                10000         ) ; // maximal array length

Parameters

name1	the first tuple item name
func1	the first function to be applied
name2	the second tuple item name
func2	the second function to be applied
name3	the third tuple item name
func3	the third function to be applied
name4	the fourth tuple item name
func4	the fourth function to be applied
first	begin of data sequence
last	end of data sequence
length	name of "length" tuple name
maxv	maximal length of the array

Returns

status code

Definition at line 1277 of file TupleObj.h.

    {
      if ( invalid () ) { return InvalidTuple     ; }
      if ( rowWise () ) { return InvalidOperation ; }

      // adjust the length
      if( first + maxv < last )
      {
        Warning("farray('"
                + name1 + ","
                + name2 + ","
                + name3 + ","
                + name4 + "'): array is overflow, skip extra entries").ignore() ;
        last = first + maxv ;
      }

      // get the length item
      Int* len  = ints ( length , 0 , maxv ) ;
      if( 0 == len  ) { return InvalidColumn ; }

      // adjust the length
      *len = last - first ;

      // get the array itself
      FArray*  var1  = fArray ( name1 , len ) ;
      if( 0 == var1 ) { return InvalidColumn ; }

      // get the array itself
      FArray*  var2 = fArray ( name2 , len ) ;
      if( 0 == var2 ) { return InvalidColumn ; }

      // get the array itself
      FArray*  var3 = fArray ( name3 , len ) ;
      if( 0 == var3 ) { return InvalidColumn ; }

      // get the array itself
      FArray*  var4 = fArray ( name4 , len ) ;
      if( 0 == var4 ) { return InvalidColumn ; }

      // fill the array
      size_t index = 0 ;
      for( ; first != last ; ++first )
      {
        ( *var1 ) [ index ] = static_cast<float> ( func1 ( *first ) );
        ( *var2 ) [ index ] = static_cast<float> ( func2 ( *first ) );
        ( *var3 ) [ index ] = static_cast<float> ( func3 ( *first ) );
        ( *var4 ) [ index ] = static_cast<float> ( func4 ( *first ) );
        ++index ;
      }

      return StatusCode::SUCCESS ;
    }

Tuples::TupleObj::FArray * Tuples::TupleObj::fArray ( const std::string &  name, Int *  item  )

private

get the column

Definition at line 904 of file TupleObj.cpp.

{
  // existing array ?
  FArrays::iterator found = m_farrays.find( name ) ;
  if( m_farrays.end() != found ) { return found->second ; }
  // create new array
  FArray* array = new FArray () ;
  m_farrays[ name] =      array    ;
  const StatusCode sc = tuple() -> addIndexedItem( name , *length , *array) ;
  if( sc.isFailure() )
  { Error ( "farray ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "FArray" ) )
  { Error ( "farray ('" + name + "'): item is not unique"     ) ; }
  return array ;
}

Tuples::TupleObj::FArray * Tuples::TupleObj::fArray ( const std::string &  name, const MIndex &  rows  )

private

get the column

Definition at line 924 of file TupleObj.cpp.

{
  // existing array ?
  FArrays::iterator found = m_arraysf.find( name ) ;
  if( m_arraysf.end() != found ) { return found->second ; }
  // create new array
  FArray* array = new FArray () ;
  m_arraysf[ name] =      array    ;
  const StatusCode sc = tuple() -> addItem ( name , rows , *array) ;
  if( sc.isFailure() )
  { Error ( "array ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "FArray" ) )
  { Error ( "array ('" + name + "'): item is not unique"     ) ; }
  return array ;
}

StatusCode Tuples::TupleObj::fill

(

const char *

format...

)

Set the values for several columns simultaneously.

Number of columns is arbitrary, but it should not be less than number of blank or comma separated tags in format string. Non-existing columns will be automatically created and appended to the ntuple.

double r1 , r2 , r3 , r4 , mass , length ;
tuple->fill( "var1 var2, radius  rad4 mass  len" ,
              r1,  r2,   r3,     r4,  mass, length);

Warning

ALL columns are assumed to be of type double

Parameters

format

blank-separated list of variables, followed by variable number of arguments.

Attention

All variables are assumed to be double numbers

Author

Vanya Belyaev Ivan..nosp@m.Bely.nosp@m.aev@i.nosp@m.tep..nosp@m.ru

Date

2002-10-30

decode arguments

Definition at line 282 of file TupleObj.cpp.

{
  // check the underlying tuple
  if ( invalid()      ) { return InvalidTuple ; }
  // decode format string into tokens
  Tokens tokens ;
  tokenize( format , tokens , " ,;" );
  if ( tokens.empty() ) { return StatusCode::SUCCESS ; }
  va_list valist ;
  va_start( valist , format ) ;
  // loop over all tokens
  StatusCode status = StatusCode::SUCCESS ;
  for( Tokens::const_iterator token = tokens.begin() ;
       tokens.end() != token && status.isSuccess() ; ++token )
  {
    const double val = va_arg( valist , double );
    status = column( *token , val );
    if( status.isFailure() )
    { Error ( "fill(): Can not add column '" + *token + "' " ) ; }
  }
  // mandatory !!!
  va_end( valist );
  //
  return status ;
}

Tuples::TupleObj::Float * Tuples::TupleObj::floats ( const std::string &  name )

private

get the column

Definition at line 586 of file TupleObj.cpp.

{
  Floats::iterator found = m_floats.find( name ) ;
  if ( m_floats.end() != found ) { return found->second ; }
  Float* item = new Float() ;
  m_floats[ name ] = item ;
  const StatusCode sc = tuple()->addItem( name , *item );
  if ( sc.isFailure() )
  { Error ( "floats ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "F" ) )
  { Error ( "floats ('" + name + "'): item is not unique"     ) ; }
  return item ;
}

template<class MATRIX >

StatusCode Tuples::TupleObj::fmatrix ( const std::string &  name, const MATRIX &  data, size_t  rows, const MIndex &  cols, const std::string &  length, const size_t  maxv  )

inline

Fill N-Tuple with data from variable-size matrix.

"Matrix" could be of any type, which supports data[iRow][iCol] indexing, e.g.

• std::vector<std::vector<TYPE> >
• CLHEP::HepMatrix, etc...

typedef std::vector<double> Row  ;
typedef std::vector<Row>    Mtrx ;
// number of columns (fixed!)
const size_t numCols = 5 ;
// maximal number of rows
const size_t maxRows = 300 ;
// number of rows (variable)
size_t numRows =  .... ;
...
tuple -> fMatrix ( "mtrx"        , // "column" name
                   mtrx          , // matrix
                   numRows       , // number of rows (variable!)
                   numCols       , // number of columns (fixed)
                   "Length"      , // name for "length" column
                   maxRows       ) ; // maximal number of columns

CLHEP::HepMatrix mtrx = ... ;
...
tuple -> fMatrix ( "mtrx"         , // "column" name
                   mtrx           , // matrix
                   mtrx.num_row() , // number of rows (variable!)
                   mtrx.num_col() , // number of columns (fixed)
                   "Length"       , // name for "length" column
                   maxRows        ) ; // maximal number of columns

Parameters

name	entry name in N-Tuple
data	matrix itself
rows	number of rows of matrix (variable)
cols	number of columns of matrix (fixed)
length	entry name in NTuple for number of matrix column
maxv	maximal number of rows in matrix

Author

Vanya BELYAEV Ivan..nosp@m.Bely.nosp@m.aev@l.nosp@m.app..nosp@m.in2p3.nosp@m..fr

Date

2005-05-01

fill the matrix

Definition at line 1394 of file TupleObj.h.

    {
      if ( invalid () ) { return InvalidTuple     ; }
      if ( rowWise () ) { return InvalidOperation ; }

      // adjust the length
      if ( rows >= maxv )
      {
        Warning ( "fmatrix('"+name+"'): matrix is overflow, skip extra items").ignore() ;
        rows = ( 0 < maxv ) ? ( maxv - 1 ) : 0 ;
      }

      // get the length item
      Int* len  = ints( length , 0 , maxv ) ;
      if ( 0 == len  ) { return InvalidColumn; }

      // adjust the length item
      *len = rows ;

      // get the array itself
      FMatrix* var  = fMatrix ( name , len  , cols ) ;
      if ( 0 == var ) { return InvalidColumn ; }

      for ( size_t iCol = 0 ; iCol < cols ; ++iCol )
      {
        for ( MIndex iRow = 0 ; iRow < rows ; ++iRow )
        { (*var)[ iRow ] [ iCol ] = (float)(data[ iRow ][ iCol ]) ; }
      }

      return StatusCode::SUCCESS ;
    }

template<class DATA >

StatusCode Tuples::TupleObj::fmatrix ( const std::string &  name, DATA  first, DATA  last, const MIndex &  cols, const std::string &  length, const size_t  maxv  )

inline

Fill N-Tuple with data from variable-size matrix.

"Matrix" could be of any type, which supports iteration from the first column to the last column and for each iterating column supports the indexing: (*first)[iCol]

typedef std::vector<double> Row  ;
typedef std::vector<Row>    Mtrx ;
// number of rows (fixed!)
const size_t numRows = 5 ;
// maximal number of columns
const size_t maxCols = 300 ;
// number of columns (variable)
size_t numCols =  .... ;
...
tuple -> fMatrix ( "mtrx"         , // entry name
                    mtrx.begin()  , // first row of matrix
                    mtrx.end  ()  , // last  row of matrix
                    numCols       , // number of columns (fixed!)
                    "Length"      , // name for "length" column
                    maxRows       ) ; // maximal number of rows

Parameters

name	entry name in N-Tuple
first	iterator for the first row of matrix
last	iterator for the last row of matrix
cols	number of columns for matrix (fixed!)
length	entry name in NTuple for number of matrix column
maxv	maximal number of rows in matrix

Author

Vanya BELYAEV Ivan..nosp@m.Bely.nosp@m.aev@l.nosp@m.app..nosp@m.in2p3.nosp@m..fr

Date

2005-05-01

fill the matrix

Definition at line 1469 of file TupleObj.h.

    {
      if ( invalid () ) { return InvalidTuple     ; }
      if ( rowWise () ) { return InvalidOperation ; }

      // adjust the length
      if ( first + maxv < last )
      {
        Warning("fmatrix('"+name+"'): matrix is overflow, skip extra items").ignore() ;
        last = first + maxv ;
      }

      // get the length item
      Int* len  = ints( length , 0 , maxv ) ;
      if ( 0 == len  ) { return InvalidColumn; }

      // adjust the length item
      *len = last - first ;

      // get the array itself
      FMatrix* var  = fMatrix ( name , len , cols ) ;
      if ( 0 == var ) { return InvalidColumn ; }

      size_t iRow = 0 ;
      for ( ; first != last ; ++first )
      {
        //
        for ( MIndex iCol = 0 ; iCol < cols ; ++iCol )
        { (*var)[ iRow ] [ iCol ] = (float)((*first)[ iCol ]) ; }
        //
        ++iRow ;
      }

      return StatusCode::SUCCESS ;
    }

template<class FUN , class DATA >

StatusCode Tuples::TupleObj::fmatrix ( const std::string &  name, FUN  funF, FUN  funL, DATA  first, DATA  last, const std::string &  length, const size_t  maxv  )

inline

fill N-Tuple with matrix of "direct-product" of "data-vector" [first,last) and "function-vector" [funF, funL)

The elements of effective matrix are:

mtrx[iCol][iRow] = (*(funF+iRow))( *(first+iCol) )

Attention

The length of data-vector is variable, while the length of "function" vector is fixed!

typedef std::vector<double> Array ;
Array array  = ... ;

typedef double (*fun)( double ) ;
typedef std::vector<fun>   Funs ;

Funs funs ;
funs.push_back( sin  ) ;
funs.push_back( cos  ) ;
funs.push_back( tan  ) ;
funs.push_back( sinh ) ;
funs.push_back( cosh ) ;
funs.push_back( tanh ) ;

tuple->fmatrix ( "mtrx"         , // N-Tuple entry name
                 funs.begin  () , // begin of "function-vector"
                 funs.end    () , // end of "function-vector"
                 array.begin () , // begin of "data-vector"
                 array.end   () , // end of "data-vector"
                 "Length"       ,
                 100            ) ;

This method is very convenient e.g. for using within LoKi:

 typedef std::vector<Fun>  VctFun ;

 // sequence of Particles
 Range particles = .... ;

 // vector of functions:
VctFun funs ;
funs.push_back( E  / GeV ) ;
funs.push_back( PX / GeV ) ;
funs.push_back( PY / GeV ) ;
funs.push_back( PZ / GeV ) ;
funs.push_back( PT / GeV ) ;
funs.push_back( M  / GeV ) ;
funs.push_back( ID       ) ;

// fill N-Tuple with information about each particle
tuple -> fmatrix ( "vars"             ,
                   funs.begin      () ,
                   funs.end        () ,
                   particles.begin () ,
                   particles.end   () ,
                   "nParts"           ,
                   200                ) ;

Parameters

name	entry name in N-Tuple
funF	"begin"-iterator for vector of functions
funL	"end"-iterator for vector of functions
first	"begin"-iterator for vector of data
last	"end"-iterator for vector of data
length	entry name in NTuple for number of matrix column
maxv	maximal number of rows in matrix

Author

Vanya BELYAEV Ivan..nosp@m.Bely.nosp@m.aev@l.nosp@m.app..nosp@m.in2p3.nosp@m..fr

Date

2005-05-01

fill the matrix

Definition at line 1590 of file TupleObj.h.

    {
      if ( invalid () ) { return InvalidTuple     ; }
      if ( rowWise () ) { return InvalidOperation ; }

      // adjust the length
      if ( first + maxv < last )
      {
        Warning("fmatrix('"+name+"'): matrix is overflow, skip extra items").ignore() ;
        last = first + maxv ;
      }

      // get the length item
      Int* len  = ints( length , 0 , maxv ) ;
      if ( 0 == len  ) { return InvalidColumn; }

      // adjust the length item
      *len = last - first ;

      // get the array itself
      const size_t cols = funL - funF ;
      FMatrix* var  = fMatrix ( name , len , cols ) ;
      if ( 0 == var ) { return InvalidColumn ; }

      size_t iRow = 0 ;
      for ( ; first != last ; ++first )
      {
        //
        for ( FUN fun = funF ; fun < funL ; ++fun )
        { (*var)[ iRow ] [ fun - funF ] = (float)((*fun) ( *first )) ; }
        //
        ++iRow;
      }

      return StatusCode::SUCCESS ;
    }

template<class KEY , class VALUE >

StatusCode Tuples::TupleObj::fmatrix ( const std::string &  name, const GaudiUtils::VectorMap< KEY, VALUE > &  info, const std::string &  length, const size_t  maxv = 100  )

inline

shortcut to put "ExtraInfo" fields of major into N-Tuple

const LHCb::Particle* B = ...

Tuple tuple = nTuple("My N-Tuple") ;

// put the vector into N-Tuple:
tuple -> fmatrix ( "Info" , B->extraInfo() , "nInfo" , 100 ) ;

Author

Vanya BELYAEV ibely.nosp@m.aev@.nosp@m.physi.nosp@m.cs.s.nosp@m.yr.ed.nosp@m.u

Date

2006-11-26

fill the matrix

Definition at line 2018 of file TupleObj.h.

    {

      if ( invalid () ) { return InvalidTuple     ; }
      if ( rowWise () ) { return InvalidOperation ; }

      typename GaudiUtils::VectorMap<KEY,VALUE>::const_iterator begin = info.begin () ;
      typename GaudiUtils::VectorMap<KEY,VALUE>::const_iterator end   = info.end   () ;

      // adjust the length
      if ( maxv < info.size() )
      {
        Warning("fmatrix('"+name+"'): matrix is overflow, skip extra items") ;
        end = begin + maxv ;
      } ;

      // get the length item
      Int* len  = ints( length , 0 , maxv ) ;
      if ( 0 == len  ) { return InvalidColumn; }

      // adjust the length item
      *len = end - begin ;

      // get the array itself
      FMatrix* var  = fMatrix ( name , len , 2 ) ;
      if ( 0 == var ) { return InvalidColumn ; }

      size_t iRow = 0 ;
      for ( ; begin != end ; ++begin)
      {
        //
        (*var)[iRow][0] = (float) begin->first   ;
        (*var)[iRow][1] = (float) begin->second  ;
        //
        ++iRow ;
      } ;

      return StatusCode::SUCCESS ;
    }

Tuples::TupleObj::FMatrix * Tuples::TupleObj::fMatrix ( const std::string &  name, Int *  item, const MIndex &  cols  )

private

get the column

Definition at line 945 of file TupleObj.cpp.

{
  // existing array ?
  FMatrices::iterator found = m_fmatrices.find( name ) ;
  if( m_fmatrices.end() != found ) { return found->second ; }
  // create new array
  FMatrix* matrix = new FMatrix () ;
  m_fmatrices[ name] =  matrix   ;
  const StatusCode sc =
    tuple() -> addIndexedItem( name , *length , cols , *matrix ) ;
  if( sc.isFailure() )
  { Error ( "fmatrix ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "FMatrix" ) )
  { Error ( "fmatrix ('" + name + "'): item is not unique"     ) ; }
  return matrix ;
}

Tuples::TupleObj::FMatrix * Tuples::TupleObj::fMatrix ( const std::string &  name, const MIndex &  rows, const MIndex &  cols  )

private

get the column

Definition at line 968 of file TupleObj.cpp.

{
  // existing array ?
  FMatrices::iterator found = m_matricesf.find( name ) ;
  if( m_matricesf.end() != found ) { return found->second ; }
  // create new array
  FMatrix* matrix = new FMatrix () ;
  m_matricesf[ name] =  matrix   ;
  const StatusCode sc =
    tuple() -> addItem( name , rows , cols , *matrix ) ;
  if( sc.isFailure() )
  { Error ( "matrix ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "FMatrix" ) )
  { Error ( "matrix ('" + name + "'): item is not unique"     ) ; }
  return matrix ;
}

bool Tuples::TupleObj::goodItem ( const std::string &  name ) const

inline

check the uniqueness of the name

Parameters

name	the name of the item

Returns

true if the name is indeed unique

Definition at line 2142 of file TupleObj.h.

    { return m_items.end() == m_items.find ( name ) ; }

Tuples::TupleObj::Int * Tuples::TupleObj::ints ( const std::string &  name )

private

get the column

Definition at line 759 of file TupleObj.cpp.

{
  Ints::iterator found = m_ints.find( name ) ;
  if( m_ints.end() != found ) { return found->second ; }
  Int* item = new Int() ;
  m_ints[ name ] = item ;
  StatusCode sc = tuple()->addItem( name , *item );
  if( sc.isFailure() )
  { Error ( "ints ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "I" ) )
  { Error ( "ints ('" + name + "'): item is not unique"     ) ; }
  return item ;
}

Tuples::TupleObj::Int * Tuples::TupleObj::ints ( const std::string &  name, const int  minv, const int  maxv  )

private

get the column

Definition at line 774 of file TupleObj.cpp.

{
  Ints::iterator found = m_ints.find( name ) ;
  if( m_ints.end() != found ) { return found->second ; }
  Int* item = new Int() ;
  m_ints[ name ] = item ;
  const StatusCode sc = tuple()->addItem( name , *item , minv , maxv );
  if( sc.isFailure() )
  { Error ( "ints ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "I" ) )
  { Error ( "ints ('" + name + "'): item is not unique"     ) ; }
  return item ;
}

bool Tuples::TupleObj::invalid ( ) const

inline

invalid pointer to tuple ?

Definition at line 2125 of file TupleObj.h.

{ return ! valid()    ; }

const ItemMap& Tuples::TupleObj::items ( ) const

inline

get the full list of booked items

Definition at line 2146 of file TupleObj.h.

{ return m_items ; }

Tuples::TupleObj::LongLong * Tuples::TupleObj::longlongs ( const std::string &  name )

private

get the column

Definition at line 823 of file TupleObj.cpp.

{
  LongLongs::iterator found = m_longlongs.find( name ) ;
  if( m_longlongs.end() != found ) { return found->second ; }
  LongLong* item = new LongLong() ;
  m_longlongs[ name ] = item ;
  StatusCode sc = tuple()->addItem( name , *item );
  if( sc.isFailure() )
  { Error ( "ints ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "ULL" ) )
  { Error ( "ints ('" + name + "'): item is not unique"     ) ; }
  return item ;
}

Tuples::TupleObj::LongLong * Tuples::TupleObj::longlongs ( const std::string &  name, const long long  minv, const long long  maxv  )

private

get the column

Definition at line 838 of file TupleObj.cpp.

{
  LongLongs::iterator found = m_longlongs.find( name ) ;
  if( m_longlongs.end() != found ) { return found->second ; }
  LongLong* item = new LongLong() ;
  m_longlongs[ name ] = item ;
  const StatusCode sc = tuple()->addItem( name , *item , minv , maxv );
  if( sc.isFailure() )
  { Error ( "longlongs ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "ULL" ) )
  { Error ( "longlongs ('" + name + "'): item is not unique"     ) ; }
  return item ;
}

template<class MATRIX >

StatusCode Tuples::TupleObj::matrix ( const std::string &  name, const MATRIX &  data, const MIndex &  rows, const MIndex &  cols  )

inline

fill N-Tuple with fixed-size matrix

"MATRIX" must support indexing operations: data[iRow][iCol]

e.g it could be of type:

• std::vector<std::vector<TYPE> >
• CLHEP::HepMatrix , CLHEP::GenMatrix, etc ...
• "TYPE"[n][m]

The content of MATRIX should be implicitly convertible to "float"

CLHEP::HepMatrix mtrx1(3,20) ;
...
tuple -> matrix ( "m1"             ,
                   mtrx1           ,
                   mtrx1.num_row() ,
                   mtrx1.num_col() ) ;

typedef std::vector<double> Row  ;
typedef std:vector<Row>     Mtrx ;
Mtrx mtrx2( 3 , Row(10) ) ;
...
tuple -> matrix ( "m2"   ,
                   mtrx2 ,
                   3     ,
                   10    ) ;

float mtrx3[3][10] ;
...
tuple -> matrix ( "m3"   ,
                   mtrx3 ,
                   3     ,
                   10    ) ;

Parameters

name	N-Tuple entry name
data	data source (matrix)
cols	number of columns
rows	number of rows

Author

Vanya BELYAEV Ivan..nosp@m.Bely.nosp@m.aev@l.nosp@m.app..nosp@m.in2p3.nosp@m..fr

Date

2005-05-01

fill the matrix

Definition at line 1824 of file TupleObj.h.

    {
      if ( invalid () ) { return InvalidTuple     ; }
      if ( rowWise () ) { return InvalidOperation ; }

      // get the matrix itself
      FMatrix* var  = fMatrix ( name , rows , cols ) ;
      if ( 0 == var ) { return InvalidColumn ; }

      for ( size_t iCol = 0 ; iCol < cols ; ++iCol )
      {
        for ( size_t iRow = 0 ; iRow < rows ; ++iRow )
        { (*var)[iRow][iCol] = (float)(data[iRow][iCol]) ; }
      };
      return StatusCode::SUCCESS ;
    }

template<class TYPE , unsigned int D1, unsigned int D2, class REP >

StatusCode Tuples::TupleObj::matrix ( const std::string &  name, const ROOT::Math::SMatrix< TYPE, D1, D2, REP > &  mtrx  )

inline

shortcut to put Smatrix into N-tuple:

Author

Vanya BELYAEV ibely.nosp@m.aev@.nosp@m.physi.nosp@m.cs.s.nosp@m.yr.ed.nosp@m.u

Date

2006-11-26

fill the matrix

Definition at line 1979 of file TupleObj.h.

    {
      if ( invalid () ) { return InvalidTuple     ; }
      if ( rowWise () ) { return InvalidOperation ; }

      // get the matrix itself
      FMatrix* var  = fMatrix ( name , (MIndex)D1 , (MIndex)D2 ) ;
      if ( 0 == var   ) { return InvalidColumn ; }

      for ( size_t iCol = 0 ; iCol < D2 ; ++iCol )
      {
        for ( size_t iRow = 0 ; iRow < D1 ; ++iRow )
        { (*var)[iRow][iCol] = (float) mtrx(iRow,iCol) ; }
      };

      return StatusCode::SUCCESS ;
    }

const std::string& Tuples::TupleObj::name ( ) const

inline

get the name

Definition at line 2083 of file TupleObj.h.

{ return m_name ; }

TupleObj& Tuples::TupleObj::operator= ( const TupleObj &  )

private

assignment is disabled

template<class TYPE >

StatusCode Tuples::TupleObj::put ( const std::string &  name, const TYPE *  obj  )

inline

The function allows to add almost arbitrary object into N-tuple.

Attention

it requires POOL persistency

Parameters

name	column name
obj	pointer to the object

Author

Vanya BELYAEV ibely.nosp@m.aev@.nosp@m.physi.nosp@m.cs.s.nosp@m.yr.ed.nosp@m.u

Date

2007-04-08

Definition at line 127 of file TuplePut.h.

{
  if (  invalid    () ) { return InvalidTuple     ; }   // RETURN
  if ( !evtColType () ) { return InvalidOperation ; }   // RETURN

  // static block: The Reflex type description & the flag
  static bool               s_fail = false ;                // STATIC
  static ROOT::Reflex::Type s_type         ;                // STATIC
  // check the status
  if      (  s_fail  ) { return InvalidItem ; }                           // RETURN
  else if ( !s_type  )
  {
    const std::string class_name = System::typeinfoName ( typeid ( TYPE ) ) ;
    s_type = ROOT::Reflex::Type::ByName( class_name  ) ;
    if ( !s_type )
    {
      s_fail = true ;
      return Error ( " put('"+name+"'," + class_name +
                     ") :Invalid ROOT::Reflex::Type", InvalidItem ) ;    // RETURN
    }
  }
  // the local storage of items
  static Tuples::ItemStore<TYPE*> s_map ;
  // get the variable by name:
  NTuple::Item<TYPE*>* item = s_map.getItem ( name , this ) ;
  if ( 0 == item )
  { return Error ( " put('" + name + "'): invalid item detected", InvalidItem ) ; }
  // assign the item!
  (*item) = const_cast<TYPE*> ( obj ) ;                    // THATS ALL!!
  //
  return StatusCode::SUCCESS ;                             // RETURN
}

unsigned long Tuples::TupleObj::refCount ( ) const

inline

return the reference counter

Returns

current reference counter

Definition at line 2093 of file TupleObj.h.

{ return   m_refCount ; }

void Tuples::TupleObj::release

(

)

release the reference to TupleObj if reference counter becomes zero, object will be automatically deleted

Definition at line 228 of file TupleObj.cpp.

{
  // decrease the reference counter
  if( 0 < refCount() ) { --m_refCount; }
  // check references
  if( 0 != refCount() ) { return; }
  // delete the object
  delete this  ;
}

bool Tuples::TupleObj::rowWise ( ) const

inline

row wise NTuple ?

Definition at line 2116 of file TupleObj.h.

{ return CLID_RowWiseTuple    == clid() ; }

Tuples::TupleObj::Short * Tuples::TupleObj::shorts ( const std::string &  name )

private

get the column

Definition at line 695 of file TupleObj.cpp.

{
  Shorts::iterator found = m_shorts.find( name ) ;
  if( m_shorts.end() != found ) { return found->second ; }
  Short* item = new Short() ;
  m_shorts[ name ] = item ;
  StatusCode sc = tuple()->addItem( name , *item );
  if( sc.isFailure() )
  { Error ( "shorts ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "I" ) )
  { Error ( "shorts ('" + name + "'): item is not unique"     ) ; }
  return item ;
}

Tuples::TupleObj::Short * Tuples::TupleObj::shorts ( const std::string &  name, const short  minv, const short  maxv  )

private

get the column

Definition at line 710 of file TupleObj.cpp.

{
  Shorts::iterator found = m_shorts.find( name ) ;
  if( m_shorts.end() != found ) { return found->second ; }
  Short* item = new Short() ;
  m_shorts[ name ] = item ;
  const StatusCode sc = tuple()->addItem( name , *item , minv , maxv );
  if( sc.isFailure() )
  { Error ( "shorts ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "I" ) )
  { Error ( "shorts ('" + name + "'): item is not unique"     ) ; }
  return item ;
}

NTuple::Tuple* Tuples::TupleObj::tuple ( ) const

inline

provide the access to underlying Gaudi N-tuple

Returns

pointer to Gaudi N-tuple object

Definition at line 2088 of file TupleObj.h.

{ return m_tuple ; }

Tuples::Type Tuples::TupleObj::type ( ) const

inline

accessor to the N-Tuple type

Definition at line 2110 of file TupleObj.h.

{ return m_type ; }

Tuples::TupleObj::UChar * Tuples::TupleObj::uchars ( const std::string &  name )

private

get the column

Definition at line 663 of file TupleObj.cpp.

{
  UChars::iterator found = m_uchars.find( name ) ;
  if( m_uchars.end() != found ) { return found->second ; }
  UChar* item = new UChar() ;
  m_uchars[ name ] = item ;
  StatusCode sc = tuple()->addItem( name , *item );
  if( sc.isFailure() )
  { Error ( "uchars ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "I" ) )
  { Error ( "uchars ('" + name + "'): item is not unique"     ) ; }
  return item ;
}

Tuples::TupleObj::UChar * Tuples::TupleObj::uchars ( const std::string &  name, const unsigned char  minv, const unsigned char  maxv  )

private

get the column

Definition at line 678 of file TupleObj.cpp.

{
  UChars::iterator found = m_uchars.find( name ) ;
  if( m_uchars.end() != found ) { return found->second ; }
  UChar* item = new UChar() ;
  m_uchars[ name ] = item ;
  const StatusCode sc = tuple()->addItem( name , *item , minv , maxv );
  if( sc.isFailure() )
  { Error ( "uchars ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "I" ) )
  { Error ( "uchars ('" + name + "'): item is not unique"     ) ; }
  return item ;
}

Tuples::TupleObj::UInt * Tuples::TupleObj::uints ( const std::string &  name )

private

get the column

Definition at line 791 of file TupleObj.cpp.

{
  UInts::iterator found = m_uints.find( name ) ;
  if( m_uints.end() != found ) { return found->second ; }
  UInt* item = new UInt() ;
  m_uints[ name ] = item ;
  StatusCode sc = tuple()->addItem( name , *item );
  if( sc.isFailure() )
  { Error ( "uints ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "I" ) )
  { Error ( "uints ('" + name + "'): item is not unique"     ) ; }
  return item ;
}

Tuples::TupleObj::UInt * Tuples::TupleObj::uints ( const std::string &  name, const unsigned int  minv, const unsigned int  maxv  )

private

get the column

Definition at line 806 of file TupleObj.cpp.

{
  UInts::iterator found = m_uints.find( name ) ;
  if( m_uints.end() != found ) { return found->second ; }
  UInt* item = new UInt() ;
  m_uints[ name ] = item ;
  const StatusCode sc = tuple()->addItem( name , *item , minv , maxv );
  if( sc.isFailure() )
  { Error ( "uints ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "I" ) )
  { Error ( "uints ('" + name + "'): item is not unique"     ) ; }
  return item ;
}

Tuples::TupleObj::ULongLong * Tuples::TupleObj::ulonglongs ( const std::string &  name )

private

get the column

Definition at line 855 of file TupleObj.cpp.

{
  ULongLongs::iterator found = m_ulonglongs.find( name ) ;
  if( m_ulonglongs.end() != found ) { return found->second ; }
  ULongLong* item = new ULongLong() ;
  m_ulonglongs[ name ] = item ;
  StatusCode sc = tuple()->addItem( name , *item );
  if( sc.isFailure() )
  { Error ( "ulonglongs ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "ULL" ) )
  { Error ( "ulonglongs ('" + name + "'): item is not unique"     ) ; }
  return item ;
}

Tuples::TupleObj::ULongLong * Tuples::TupleObj::ulonglongs ( const std::string &  name, const unsigned long long  minv, const unsigned long long  maxv  )

private

get the column

Definition at line 870 of file TupleObj.cpp.

{
  ULongLongs::iterator found = m_ulonglongs.find( name ) ;
  if( m_ulonglongs.end() != found ) { return found->second ; }
  ULongLong* item = new ULongLong() ;
  m_ulonglongs[ name ] = item ;
  const StatusCode sc = tuple()->addItem( name , *item , minv , maxv );
  if( sc.isFailure() )
  { Error ( "ulonglongs ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "ULL" ) )
  { Error ( "ulonglongs ('" + name + "'): item is not unique"     ) ; }
  return item ;
}

Tuples::TupleObj::UShort * Tuples::TupleObj::ushorts ( const std::string &  name )

private

get the column

Definition at line 727 of file TupleObj.cpp.

{
  UShorts::iterator found = m_ushorts.find( name ) ;
  if( m_ushorts.end() != found ) { return found->second ; }
  UShort* item = new UShort() ;
  m_ushorts[ name ] = item ;
  StatusCode sc = tuple()->addItem( name , *item );
  if( sc.isFailure() )
  { Error ( "ushorts ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "I" ) )
  { Error ( "ushorts ('" + name + "'): item is not unique"     ) ; }
  return item ;
}

Tuples::TupleObj::UShort * Tuples::TupleObj::ushorts ( const std::string &  name, const unsigned short  minv, const unsigned short  maxv  )

private

get the column

Definition at line 742 of file TupleObj.cpp.

{
  UShorts::iterator found = m_ushorts.find( name ) ;
  if( m_ushorts.end() != found ) { return found->second ; }
  UShort* item = new UShort() ;
  m_ushorts[ name ] = item ;
  const StatusCode sc = tuple()->addItem( name , *item , minv , maxv );
  if( sc.isFailure() )
  { Error ( "ushorts ('" + name + "'): item is not added",  sc ) ; }
  if ( !addItem ( name , "I" ) )
  { Error ( "ushorts ('" + name + "'): item is not unique"     ) ; }
  return item ;
}

bool Tuples::TupleObj::valid ( ) const

inline

valid pointer to tuple ?

Definition at line 2122 of file TupleObj.h.

{ return 0 != tuple() ; }

virtual StatusCode Tuples::TupleObj::Warning ( const std::string &  msg, const StatusCode  sc = StatusCode::FAILURE  ) const

pure virtual

Implemented in Tuples::detail::TupleObjImp< HANDLER1, HANDLER2 >.

StatusCode Tuples::TupleObj::write

(

)

write a record to NTuple

Returns

status code

Definition at line 240 of file TupleObj.cpp.

{
  if ( invalid()  ) { return InvalidTuple ; }
  return tuple()->write() ;
}

Member Data Documentation

Addresses Tuples::TupleObj::m_addresses

mutableprivate

the actual storage of all 'Address' columns

Definition at line 2360 of file TupleObj.h.

FArrays Tuples::TupleObj::m_arraysf

mutableprivate

the actual storage of all 'FArray' columns (fixed)

Definition at line 2366 of file TupleObj.h.

Bools Tuples::TupleObj::m_bools

mutableprivate

the actual storage of all 'bool' columns

Definition at line 2327 of file TupleObj.h.

Chars Tuples::TupleObj::m_chars

mutableprivate

the actual storage of all 'Int' columns

Definition at line 2330 of file TupleObj.h.

CLID Tuples::TupleObj::m_clid

private

tuple CLID

Definition at line 2318 of file TupleObj.h.

Doubles Tuples::TupleObj::m_doubles

mutableprivate

the actual storage of all 'Double' columns

Definition at line 2357 of file TupleObj.h.

FArrays Tuples::TupleObj::m_farrays

mutableprivate

the actual storage of all 'FArray' columns

Definition at line 2363 of file TupleObj.h.

Floats Tuples::TupleObj::m_floats

mutableprivate

the actual storage of all 'Float' columns

Definition at line 2354 of file TupleObj.h.

FMatrices Tuples::TupleObj::m_fmatrices

mutableprivate

the actual storage of all 'FArray' columns

Definition at line 2369 of file TupleObj.h.

Ints Tuples::TupleObj::m_ints

mutableprivate

the actual storage of all 'Int' columns

Definition at line 2342 of file TupleObj.h.

ItemMap Tuples::TupleObj::m_items

private

all booked types:

Definition at line 2375 of file TupleObj.h.

LongLongs Tuples::TupleObj::m_longlongs

mutableprivate

the actual storage of all 'longlong' columns

Definition at line 2348 of file TupleObj.h.

FMatrices Tuples::TupleObj::m_matricesf

mutableprivate

the actual storage of all 'FMatrix' columns (fixed)

Definition at line 2372 of file TupleObj.h.

std::string Tuples::TupleObj::m_name

private

name

Definition at line 2312 of file TupleObj.h.

size_t Tuples::TupleObj::m_refCount

private

reference counter

Definition at line 2324 of file TupleObj.h.

Shorts Tuples::TupleObj::m_shorts

mutableprivate

the actual storage of all 'Int' columns

Definition at line 2336 of file TupleObj.h.

NTuple::Tuple* Tuples::TupleObj::m_tuple

private

tuple itself

Definition at line 2315 of file TupleObj.h.

Tuples::Type Tuples::TupleObj::m_type

private

tuple 'type'

Definition at line 2321 of file TupleObj.h.

UChars Tuples::TupleObj::m_uchars

mutableprivate

the actual storage of all 'unsigned int' columns

Definition at line 2333 of file TupleObj.h.

UInts Tuples::TupleObj::m_uints

mutableprivate

the actual storage of all 'unsigned int' columns

Definition at line 2345 of file TupleObj.h.

ULongLongs Tuples::TupleObj::m_ulonglongs

mutableprivate

the actual storage of all 'ulonglong' columns

Definition at line 2351 of file TupleObj.h.

UShorts Tuples::TupleObj::m_ushorts

mutableprivate

the actual storage of all 'unsigned int' columns

Definition at line 2339 of file TupleObj.h.

---

The documentation for this class was generated from the following files:

• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r5/GaudiAlg/GaudiAlg/TupleObj.h
• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r5/GaudiAlg/GaudiAlg/TuplePut.h
• /afs/cern.ch/sw/Gaudi/releases/GAUDI/GAUDI_v23r5/GaudiAlg/src/lib/TupleObj.cpp
