Converter Class Reference

Converter base class. More...

#include <GaudiKernel/Converter.h>

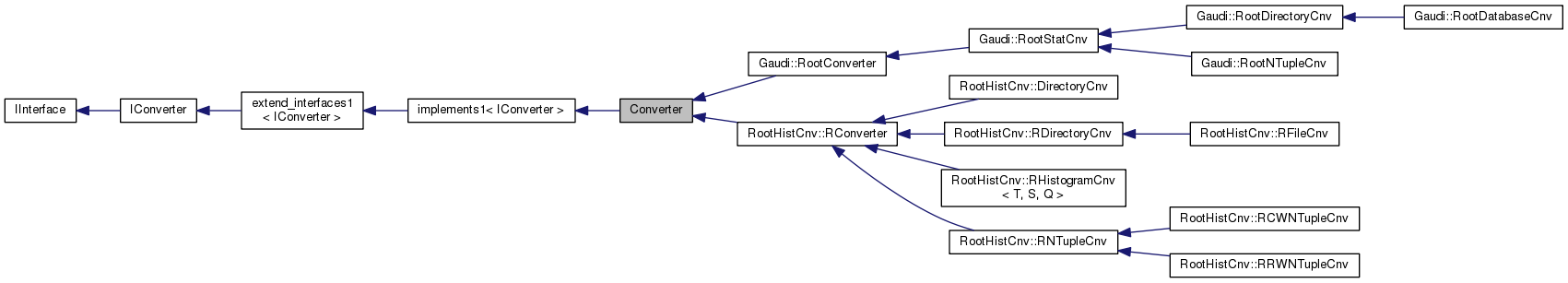

Inheritance diagram for Converter:
Inheritance graph
[legend]
Collaboration diagram for Converter:
Collaboration graph
[legend]

Public Member Functions

virtual StatusCode initialize ()
 Initialize the converter.

virtual StatusCode finalize ()
 Initialize the converter.

virtual StatusCode setDataProvider (IDataProviderSvc *svc)
 Set Data provider service.

virtual SmartIF
< IDataProviderSvc > & 		dataProvider () const
 Get Data provider service.

virtual StatusCode setConversionSvc (IConversionSvc *svc)
 Set conversion service the converter is connected to.

virtual SmartIF< IConversionSvc > & conversionSvc () const
 Get conversion service the converter is connected to.

virtual StatusCode setAddressCreator (IAddressCreator *creator)
 Set address creator facility.

virtual SmartIF
< IAddressCreator > & 		addressCreator () const
 Retrieve address creator facility.

virtual const CLID & objType () const
 Retrieve the class type of objects the converter produces.

virtual long i_repSvcType () const
 Retrieve the class type of the data store the converter uses.

virtual StatusCode createObj (IOpaqueAddress *pAddress, DataObject *&refpObject)
 Create the transient representation of an object.

virtual StatusCode fillObjRefs (IOpaqueAddress *pAddress, DataObject *pObject)
 Resolve the references of the created transient object.

virtual StatusCode updateObj (IOpaqueAddress *pAddress, DataObject *refpObject)
 Update the transient object from the other representation.

virtual StatusCode updateObjRefs (IOpaqueAddress *pAddress, DataObject *pObject)
 Update the references of an updated transient object.

virtual StatusCode createRep (DataObject *pObject, IOpaqueAddress *&refpAddress)
 Convert the transient object to the requested representation.

virtual StatusCode fillRepRefs (IOpaqueAddress *pAddress, DataObject *pObject)
 Resolve the references of the converted object.

virtual StatusCode updateRep (IOpaqueAddress *pAddress, DataObject *pObject)
 Update the converted representation of a transient object.

virtual StatusCode updateRepRefs (IOpaqueAddress *pAddress, DataObject *pObject)
 Update the references of an already converted object.

 Converter (long storage_type, const CLID &class_type, ISvcLocator *svc=0)
 Standard Constructor.

template<class T >
StatusCode service (const std::string &name, T *&psvc, bool createIf=false) const
 Access a service by name, creating it if it doesn't already exist.

template<class T >
StatusCode service (const std::string &type, const std::string &name, T *&psvc) const
 Access a service by name, type creating it if it doesn't already exist.

SmartIF< IService > service (const std::string &name, const bool createIf=true) const
 Return a pointer to the service identified by name (or "type/name")


Protected Member Functions

virtual ~Converter ()
 Standard Destructor.

SmartIF< ISvcLocator > & serviceLocator () const
 Retrieve pointer to service locator.

SmartIF< IMessageSvc > & msgSvc () const
 Retrieve pointer to message service.

SmartIF< IMessageSvc > & messageService () const

SmartIF< IDataManagerSvc > & dataManager () const
 Get Data Manager service.


Private Member Functions

StatusCode service_i (const std::string &svcName, bool createIf, const InterfaceID &iid, void **ppSvc) const
 implementation of service method

StatusCode service_i (const std::string &svcType, const std::string &svcName, const InterfaceID &iid, void **ppSvc) const


Private Attributes

long m_storageType
 Storage type.

const CLID m_classType
 Class type the converter can handle.

SmartIF< IAddressCreator > m_addressCreator
 Pointer to the address creation service interface.

SmartIF< IDataProviderSvc > m_dataProvider
 Pointer to data provider service.

SmartIF< IDataManagerSvc > m_dataManager
 Pointer to data manager service.

SmartIF< IConversionSvc > m_conversionSvc
 Pointer to the connected conversion service.

SmartIF< ISvcLocator > m_svcLocator
 Service Locator reference.

SmartIF< IMessageSvc > m_messageSvc
 MessageSvc reference.


Additional Inherited Members

- Public Types inherited from implements1< IConverter >
typedef implements1 base_class
 Typedef to this class.

typedef extend_interfaces1
< IConverter > 		extend_interfaces_base
 Typedef to the base of this class.

typedef
extend_interfaces_base::ext_iids 		interfaces
 MPL set of all the implemented interfaces.

- Static Public Member Functions inherited from IInterface
static const InterfaceID & interfaceID ()
 Return an instance of InterfaceID identifying the interface.


Detailed Description

Converter base class.

See interface for detailed description, arguments and return values

Author
Markus Frank
Version
1.0

Definition at line 25 of file Converter.h.

Constructor & Destructor Documentation

Converter::Converter ( long  storage_type,
const CLID &  class_type,
ISvcLocator *  svc = 0
)

Standard Constructor.

Definition at line 147 of file Converter.cpp.

:
m_storageType(storage_type),
m_classType(class_type),
m_svcLocator(svc)
{
}
Converter::~Converter ( )
protectedvirtual

Standard Destructor.

Definition at line 155 of file Converter.cpp.

{
}

Member Function Documentation

SmartIF< IAddressCreator > & Converter::addressCreator ( ) const
virtual

Retrieve address creator facility.

Access the transient store.

Implements IConverter.

Definition at line 121 of file Converter.cpp.

{
return m_addressCreator;
}
SmartIF< IConversionSvc > & Converter::conversionSvc ( ) const
virtual

Get conversion service the converter is connected to.

Get data conversion service the converter is connected to.

Implements IConverter.

Definition at line 110 of file Converter.cpp.

{
return m_conversionSvc;
}
StatusCode Converter::createObj ( IOpaqueAddress *  pAddress,
DataObject *&  refpObject
)
virtual

Create the transient representation of an object.

Implements IConverter.

Reimplemented in Gaudi::RootNTupleCnv, Gaudi::RootConverter, Gaudi::RootDatabaseCnv, Gaudi::RootDirectoryCnv, RootHistCnv::RHistogramCnv< T, S, Q >, RootHistCnv::RNTupleCnv, RootHistCnv::RFileCnv, RootHistCnv::DirectoryCnv, and RootHistCnv::RDirectoryCnv.

Definition at line 26 of file Converter.cpp.

{
return StatusCode::SUCCESS;
}
StatusCode Converter::createRep ( DataObject *  pObject,
IOpaqueAddress *&  refpAddress
)
virtual

Convert the transient object to the requested representation.

Implements IConverter.

Reimplemented in Gaudi::RootDirectoryCnv, Gaudi::RootConverter, Gaudi::RootNTupleCnv, RootHistCnv::RConverter, RootHistCnv::RNTupleCnv, RootHistCnv::RFileCnv, RootHistCnv::RDirectoryCnv, and RootHistCnv::DirectoryCnv.

Definition at line 47 of file Converter.cpp.

{
return StatusCode::SUCCESS;
}
SmartIF< IDataManagerSvc > & Converter::dataManager ( ) const
protected

Get Data Manager service.

Get data manager service.

Definition at line 99 of file Converter.cpp.

{
return m_dataManager;
}
SmartIF< IDataProviderSvc > & Converter::dataProvider ( ) const
virtual

Get Data provider service.

Get data provider service.

Implements IConverter.

Definition at line 94 of file Converter.cpp.

{
return m_dataProvider;
}
StatusCode Converter::fillObjRefs ( IOpaqueAddress *  pAddress,
DataObject *  pObject
)
virtual

Resolve the references of the created transient object.

Implements IConverter.

Reimplemented in Gaudi::RootNTupleCnv, Gaudi::RootConverter, Gaudi::RootDirectoryCnv, and RootHistCnv::RDirectoryCnv.

Definition at line 32 of file Converter.cpp.

{
return StatusCode::SUCCESS;
}
StatusCode Converter::fillRepRefs ( IOpaqueAddress *  pAddress,
DataObject *  pObject
)
virtual

Resolve the references of the converted object.

Implements IConverter.

Reimplemented in Gaudi::RootDirectoryCnv, Gaudi::RootConverter, and Gaudi::RootNTupleCnv.

Definition at line 52 of file Converter.cpp.

{
return StatusCode::SUCCESS;
}
StatusCode Converter::finalize ( )
virtual

Initialize the converter.

Finalize the converter.

Implements IConverter.

Reimplemented in Gaudi::RootStatCnv, and RootHistCnv::RNTupleCnv.

Definition at line 76 of file Converter.cpp.

{
// release services
m_messageSvc = 0;
m_dataManager = 0;
m_dataProvider = 0;
m_conversionSvc = 0;
m_addressCreator = 0;
return StatusCode::SUCCESS;
}
long Converter::i_repSvcType ( ) const
virtual

Retrieve the class type of the data store the converter uses.

Definition at line 21 of file Converter.cpp.

{
return m_storageType;
}
StatusCode Converter::initialize ( )
virtual

Initialize the converter.

Implements IConverter.

Reimplemented in Gaudi::RootStatCnv, and RootHistCnv::RNTupleCnv.

Definition at line 67 of file Converter.cpp.

{
// Get a reference to the Message Service
if ( !msgSvc().isValid() ) {
return StatusCode::FAILURE;
}
return StatusCode::SUCCESS;
}
SmartIF< IMessageSvc > & Converter::messageService ( ) const
protected

Definition at line 142 of file Converter.cpp.

{
return msgSvc();
}
SmartIF< IMessageSvc > & Converter::msgSvc ( ) const
protected

Retrieve pointer to message service.

— Retrieve pointer to message service

Definition at line 131 of file Converter.cpp.

{
if ( !m_messageSvc.isValid() ) {
m_messageSvc = serviceLocator();
if( !m_messageSvc.isValid() ) {
throw GaudiException("Service [MessageSvc] not found", "Converter", StatusCode::FAILURE);
}
}
return m_messageSvc;
}
const CLID & Converter::objType ( ) const
virtual

Retrieve the class type of objects the converter produces.

Implements IConverter.

Definition at line 16 of file Converter.cpp.

{
return m_classType;
}
template<class T >
StatusCode Converter::service ( const std::string &  name,
T *&  psvc,
bool  createIf = false
) const
inline

Access a service by name, creating it if it doesn't already exist.

Definition at line 88 of file Converter.h.

{
return service_i(name, createIf, T::interfaceID(), (void**)&psvc);
}
template<class T >
StatusCode Converter::service ( const std::string &  type,
const std::string &  name,
T *&  psvc
) const
inline

Access a service by name, type creating it if it doesn't already exist.

Definition at line 94 of file Converter.h.

{
return service_i(type, name, T::interfaceID(), (void**)&psvc);
}
SmartIF< IService > Converter::service ( const std::string &  name,
const bool  createIf = true
) const

Return a pointer to the service identified by name (or "type/name")

Definition at line 182 of file Converter.cpp.

{
SmartIF<INamedInterface> cnvsvc(conversionSvc());
SmartIF<IService> svc;
if (cnvsvc.isValid()) {
const ServiceLocatorHelper helper(*serviceLocator(), "Converter", cnvsvc->name());
svc = helper.service(name, false, createIf);
}
return svc;
}
StatusCode Converter::service_i ( const std::string &  svcName,
bool  createIf,
const InterfaceID &  iid,
void **  ppSvc
) const
private

implementation of service method

Definition at line 159 of file Converter.cpp.

{
// Check for name of conversion service
SmartIF<INamedInterface> cnvsvc(conversionSvc());
if (cnvsvc.isValid()) {
const ServiceLocatorHelper helper(*serviceLocator(), "Converter", cnvsvc->name());
return helper.getService(svcName, createIf, iid, ppSvc);
}
return StatusCode::FAILURE;
}
StatusCode Converter::service_i ( const std::string &  svcType,
const std::string &  svcName,
const InterfaceID &  iid,
void **  ppSvc
) const
private

Definition at line 171 of file Converter.cpp.

{
// Check for name of conversion service
SmartIF<INamedInterface> cnvsvc(conversionSvc());
if (cnvsvc.isValid()) {
const ServiceLocatorHelper helper(*serviceLocator(), "Converter", cnvsvc->name());
return helper.createService(svcType, svcName, iid, ppSvc);
}
return StatusCode::FAILURE;
}
SmartIF< ISvcLocator > & Converter::serviceLocator ( ) const
protected

Retrieve pointer to service locator.

— Retrieve pointer to service locator

Definition at line 126 of file Converter.cpp.

{
return m_svcLocator;
}
StatusCode Converter::setAddressCreator ( IAddressCreator *  creator)
virtual

Set address creator facility.

Implements IConverter.

Definition at line 115 of file Converter.cpp.

{
m_addressCreator = creator;
return StatusCode::SUCCESS;
}
StatusCode Converter::setConversionSvc ( IConversionSvc *  svc)
virtual

Set conversion service the converter is connected to.

Implements IConverter.

Definition at line 104 of file Converter.cpp.

{
m_conversionSvc = svc;
return StatusCode::SUCCESS;
}
StatusCode Converter::setDataProvider ( IDataProviderSvc *  svc)
virtual

Set Data provider service.

Set data provider service.

Implements IConverter.

Definition at line 87 of file Converter.cpp.

{
m_dataProvider = svc;
m_dataManager = svc;
return StatusCode::SUCCESS;
}
StatusCode Converter::updateObj ( IOpaqueAddress *  pAddress,
DataObject *  refpObject
)
virtual

Update the transient object from the other representation.

Implements IConverter.

Reimplemented in Gaudi::RootNTupleCnv, Gaudi::RootDirectoryCnv, RootHistCnv::RHistogramCnv< T, S, Q >, and RootHistCnv::RNTupleCnv.

Definition at line 37 of file Converter.cpp.

{
return StatusCode::SUCCESS;
}
StatusCode Converter::updateObjRefs ( IOpaqueAddress *  pAddress,
DataObject *  pObject
)
virtual

Update the references of an updated transient object.

Implements IConverter.

Reimplemented in Gaudi::RootNTupleCnv, and Gaudi::RootDirectoryCnv.

Definition at line 42 of file Converter.cpp.

{
return StatusCode::SUCCESS;
}
StatusCode Converter::updateRep ( IOpaqueAddress *  pAddress,
DataObject *  pObject
)
virtual

Update the converted representation of a transient object.

Implements IConverter.

Reimplemented in Gaudi::RootNTupleCnv, Gaudi::RootDirectoryCnv, RootHistCnv::RNTupleCnv, RootHistCnv::RFileCnv, and RootHistCnv::RDirectoryCnv.

Definition at line 57 of file Converter.cpp.

{
return StatusCode::SUCCESS;
}
StatusCode Converter::updateRepRefs ( IOpaqueAddress *  pAddress,
DataObject *  pObject
)
virtual

Update the references of an already converted object.

Implements IConverter.

Reimplemented in Gaudi::RootNTupleCnv, and Gaudi::RootDirectoryCnv.

Definition at line 62 of file Converter.cpp.

{
return StatusCode::SUCCESS;
}

Member Data Documentation

SmartIF<IAddressCreator> Converter::m_addressCreator
mutableprivate

Pointer to the address creation service interface.

Definition at line 122 of file Converter.h.

const CLID Converter::m_classType
private

Class type the converter can handle.

Definition at line 120 of file Converter.h.

SmartIF<IConversionSvc> Converter::m_conversionSvc
mutableprivate

Pointer to the connected conversion service.

Definition at line 128 of file Converter.h.

SmartIF<IDataManagerSvc> Converter::m_dataManager
mutableprivate

Pointer to data manager service.

Definition at line 126 of file Converter.h.

SmartIF<IDataProviderSvc> Converter::m_dataProvider
mutableprivate

Pointer to data provider service.

Definition at line 124 of file Converter.h.

SmartIF<IMessageSvc> Converter::m_messageSvc
mutableprivate

MessageSvc reference.

Definition at line 132 of file Converter.h.

long Converter::m_storageType
private

Storage type.

Definition at line 118 of file Converter.h.

SmartIF<ISvcLocator> Converter::m_svcLocator
mutableprivate

Service Locator reference.

Definition at line 130 of file Converter.h.

The documentation for this class was generated from the following files:
Generated at Wed Jan 30 2013 17:13:44 for Gaudi Framework, version v23r6 by Doxygen version 1.8.2 written by Dimitri van Heesch, © 1997-2004
